AUDIO
212(f) Selecting a desired track
SV22065
ºTRACKº button: Use for direct access to a desired track.
Push either side of the ºTRACKº button several times until the
desired track number appears on the display. As you release
the button, the player will start playing the selected track from
the beginning.
ºFast forwardº button.
Push the º
º button and hold it to fast forward the disc.
When you release the button, the compact disc player will
resume playing from that position.
ºReverseº button.
Push the º º button and hold it to reverse the disc. When
you release the button, the compact disc player will resume
playing. (g) Other compact disc player functions
SV22036
ºRPTº button
: Use it for automatic repeat of the track you are
currently listening to.
In order to repeat the track you are currently listening to, push
the button briefly while the track is playing. ºRPTº will appear
on the display. When the track is finished, the player will
automatically go back to the beginning of the track and play the
track again. To cancel it, push the button briefly once again.
In order to repeat the disc you are currently listening to, push
the button until you hear a beep. ºD
RPTº will appear on the
display. When the last track of the disc you are listening to is
finished, the player will automatically go back to the first track
on the disc and play the disc again. To cancel it, push the
button once again.
Page 226 of 378

AUDIO
213
ºRANDº button:
Use it for automatic track selection and play
by the system.
When the button is pushed briefly, the system selects a track
in the disc which are set and plays it and ºRANDº will appear
on the display. To cancel it, push the button briefly once again.
When the button is pushed until you hear a beep, the system
selects a track in the all discs which are set and plays it and
ºD
RANDº will appear on the display. To cancel it, push the
button once again.
When a tr ack is skipped or the system is inoperative, push the
button to reset. (h) If the player malfunctions
If the player or another unit equipped with the player
malfunctions, your audio system will display one of the four
following error messages.
If ºERR 1º appears on the display:
It indicates that the disc
is dirty, damaged, or it was inserted up±side down. Clean the
disc or insert it correctly.
If ºERR 3º or ºERR 4º appears on the display: It indicates
there is a trouble inside the system. Eject the disc.
If the malfunction is not rectified: Take your vehicle to your
Lexus dealer.
Page 239 of 378

STARTING AND DRIVING
226
AUTOMATIC TRANSMISSION
Your automatic transmission has a shift lock system to
minimize the possibility of incorrect operation. This
means you can only shift out of ºPº position when the
brake pedal is depressed with the ignition switch in ºONº
position. ()
SV31020
The shift position is displayed on the instrument
cluster.
P: Parking, engine starting and key removal position
R: Reverse position
N: Neutral position
D: Normal driving position (Shifting into overdrive
possible)
M: Position for manual shifting up or downshifting
When the cruise control is being used, even if you
downshift from º5º to º4º, engine braking will not be
enabled because the cruise control is not cancelled. For
the operation to decrease the vehicle speed, see page
239.
3, 2: Position for more powerful engine braking
L: Position for maximum engine braking
Page 325 of 378

ENGINE
312
Engine oil selection
Use API SJ or SL, Energy±Conserving or ILSAC multigrade
engine oil.

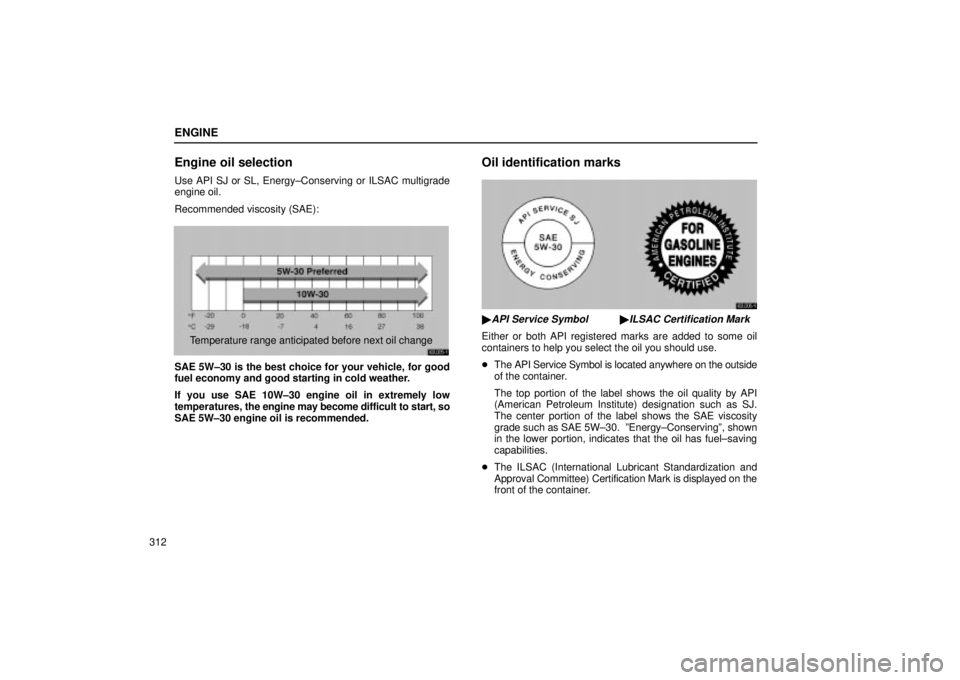

Recommended viscosity (SAE):
62L005±1
Temperature range anticipated before next oil change
SAE 5W±30 is the best choice for your vehicle, for good
fuel economy and good starting in cold weather.
If you use SAE 10W±30 engine oil in extremely low
temperatures, the engine may become difficult to start, so
SAE 5W±30 engine oil is recommended.
Oil identification marks
62L006±1
API Service SymbolILSAC Certification Mark
Either or both API registered marks are added to some oil
containers to help you select the oil you should use.
The API Service Symbol is located anywhere on the outside
of the container.
The top portion of the label shows the oil quality by API
(American Petroleum Institute) designation such as SJ.
The center portion of the label shows the SAE viscosity
grade such as SAE 5W±30. ºEnergy±Conservingº, shown
in the lower portion, indicates that the oil has fuel±saving
capabilities.
The ILSAC (International Lubricant Standardization and
Approval Committee) Certification Mark is displayed on the
front of the container.
