KEYS AND DOORS
11
If you make your own duplicate key, you will not be able
to cancel the system or start the engine.
For vehicles sold in U.S.A.
FCC ID: MOZ RI±4ATY
MADE IN JAPAN
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
CAUTION
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user's authority to operate the equipment.
For vehicles sold in Canada
This device complies with RSS±210 of Industry
Canada.
Operation is subject to the following two conditions:
(1) This device may not cause interference, and (2)
this device must accept any interference, including
interference that may cause undesired operation of
the device.
WIRELESS REMOTE CONTROL*
SV11008
1 Locking the doors and sounding an alarm
2Unlocking the doors
3Indicator light
4Unlocking the trunk lid
NOTE: *This feature can be set inoperative as vehicle theft
deterrent measure in case of the loss of the wireless remote
control key. Ask your Lexus dealer for details.
When you operate any button on the key, push it slowly and
surely.
The operational range of the wireless remote control is
approximately 1 meter (3 ft.). The effective range may vary
with different conditions. To activate the wireless remote
control w ithout fail, do it approximately 1 meter (3 ft.) from your
Lexus.

SWITCHES
23
Daytime Running Light System
The headlights turn on at reduced intensity when the parking
brake is released with the engine started, even with the light
switch in the ºOFFº position. They will not go off until the
ignition switch is turned off.
To turn on the other exterior lights and instrument panel lights,
twist the knob to the first clickstop.
Twist
the knob to the second clickstop to turn on the headlights
to full intensity for driving at night.
When setting the knob to the third clickstop (ºAUTOº), the
headlights will automatically adjust to full intensity and/or turn
on the other lights depending on the darkness of the
surroundings. Likewise, as the surroundings become brighter,
the headlights will turn to reduced intensity, ultimately turning
off the other lights.
NOTICE
To prevent the battery from being discharged, do not leave the lights on longer than necessary when theengine is not running.
Automatic headlight leveling system
SV12014
As the headlight beam level is always maintained
automatically at the proper level in all loading conditions, your
headlights do not dazzle other road users.
If this system fails, the warning light in the instrument cluster
comes on. If this occurs, have your vehicle checked by Lexus
dealer.

SWITCHES
30

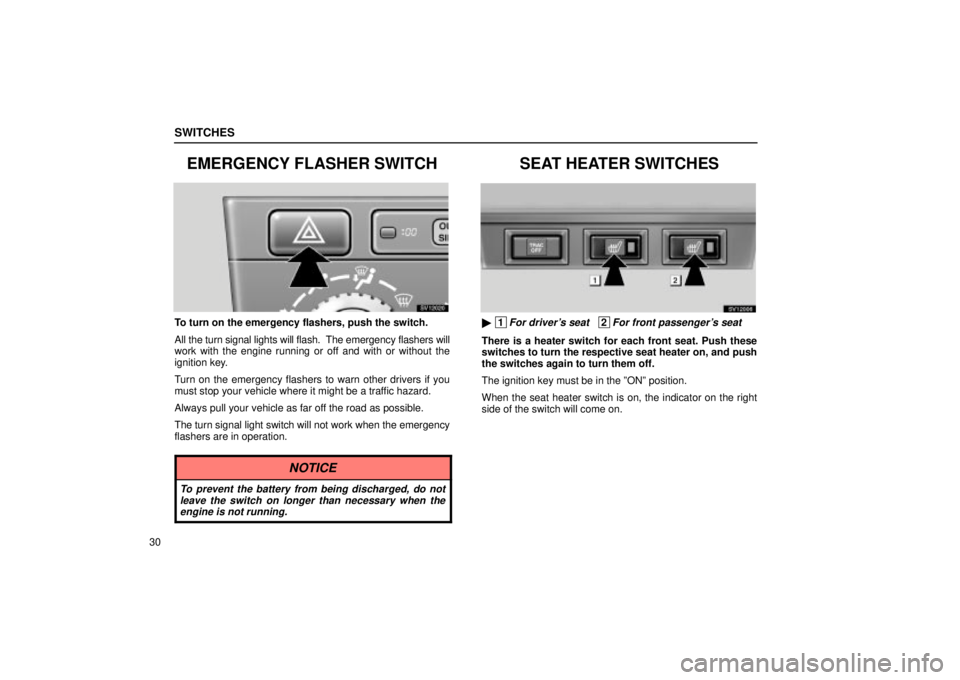

EMERGENCY FLASHER SWITCH
SV12020
To turn on the emergency flashers, push the switch.
All the turn signal lights will flash. The emergency flashers will
work with the engine running or off and with or without the
ignition key.
Turn on the emergency flashers to warn other drivers if you
must stop your vehicle where it might be a traffic hazard.
Always pull your vehicle as far off the road as possible.
The turn signal light switch will not work when the emergency
flashers are in operation.
NOTICE
To prevent the battery from being discharged, do notleave the switch on longer than necessary when theengine is not running.
SEAT HEATER SWITCHES
SV12006

1For driver's seat 2For front passenger's seat
There is a heater switch for each front seat. Push these
switches to turn the respective seat heater on, and push
the switches again to turn them off.
The ignition key must be in the ºONº position.
When the seat heater switch is on, the indicator on the right
side of the switch will come on.

SWITCHES
31
CAUTION
Occupants must use caution when operating the seat
heater because they may experience minor burns even
at low temperatures. Use extra caution for;
Babies, small children, elderly persons, sick persons
or handicapped persons
 Persons who have delicate skin
 Persons who are exhausted
 Persons who have taken alcohol or drugs which
induce sleep (sleeping drug, cold remedy, etc.).
To prevent the seat from overheating, do not use the
seat heater with a blanket, cushion, or other insulating
objects which cover the seat.
NOTICE
Do not put unevenly weighted objects on the seat and do not stick sharp objects (needles, nails, etc.) intothe seat.
When cleaning the seats, do not use organicsubstances (paint thinner, benzine, alcohol,gasoline, etc.). They may damage the heater and seat
surface.
To prevent the battery from being discharged, turn the switches on when the engine is running.

SECTION 1 ± 3
33
INSTRUMENTS AND CONTROLS
Gauges, meters and service reminder
indicators
Fuel gauge34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Engine coolant temperature gauge 35
. . . . . . . . . . . . . . . . . . . . . . . . . .
Voltmeter 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Momentary fuel consumption meter 36
. . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Odometer and trip meter 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 38
. . . . . . . . . . . . . .
Instrument panel light control 46
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

GAUGES, METERS AND SERVICE REMINDER INDICATORS
35

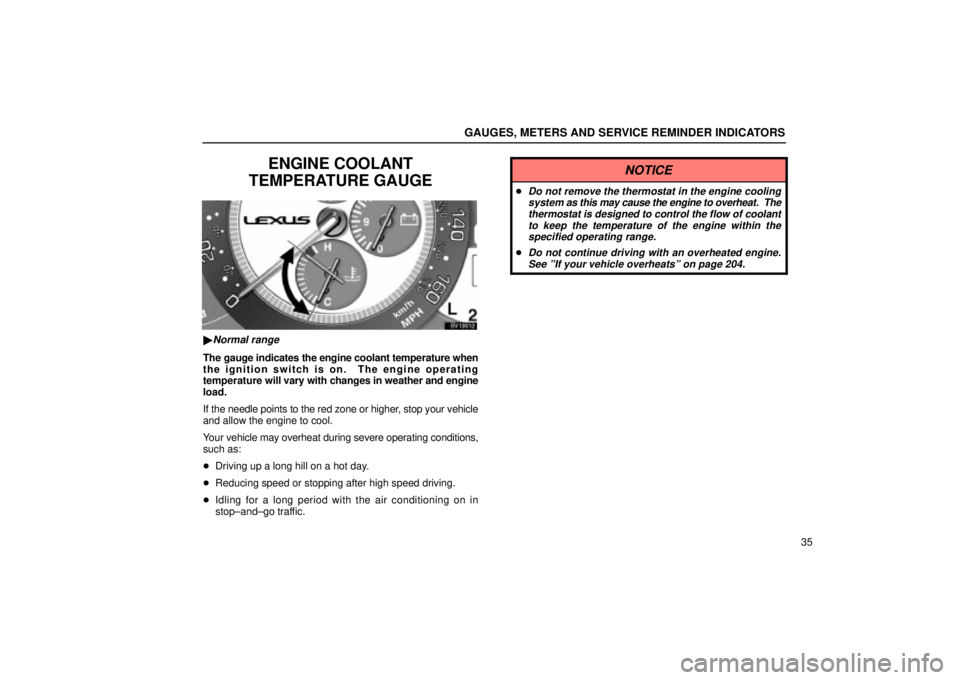

ENGINE COOLANT
TEMPERATURE GAUGE
SV13012

Normal range
The gauge indicates the engine coolant temperature when
the ignition switch is on. The engine operating
temperature will vary with changes in weather and engine
load.
If the needle points to the red zone or higher, stop your vehicle
and allow the engine to cool.
Your vehicle may overheat during severe operating conditions,
such as:
 Driving up a long hill on a hot day.
 Reducing speed or stopping after high speed driving.
 Idling for a long period with the air conditioning on in
stop±and±go traffic.
NOTICE
Do not remove the thermostat in the engine cooling
system as this may cause the engine to overheat. Thethermostat is designed to control the flow of coolantto keep the temperature of the engine within thespecified operating range.
Do not continue driving with an overheated engine.See ºIf your vehicle overheatsº on page 204.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
36
VOLTMETER
SV13013

1Discharge warning light 2Normal range
The voltmeter tells whether the battery is charged or
discharged. Check it while the engine is running ± the
needle should always indicate as shown above.
If the needle reads below or above the normal range while the
engine is running, it indicates that the charging system needs
immediate repair.
However, it is normal for the needle to drop below the normal
range during engine starting.
MOMENTARY FUEL CONSUMPTIONMETER
SV13018

Vehicles sold in U.S.A.
SV13020

Vehicles sold in Canada

GAUGES, METERS AND SERVICE REMINDER INDICATORS
37
The momentary fuel consumption is calculated and
indicated based on the driving distance and the fuel
consumption with the engine running.
If you are driving at low speeds just before stopping, the
accurate figure may not be shown.

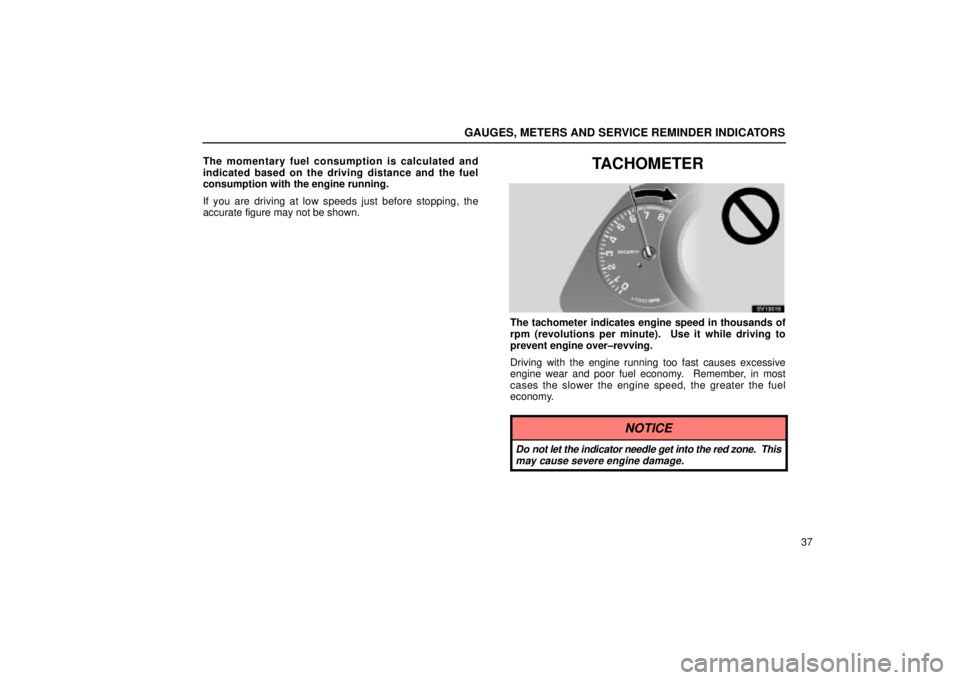

TACHOMETER
SV13016
The tachometer indicates engine speed in thousands of
rpm (revolutions per minute). Use it while driving to
prevent engine over±revving.
Driving with the engine running too fast causes excessive
engine wear and poor fuel economy. Remember, in most
cases the slower the engine speed, the greater the fuel
economy.
NOTICE
Do not let the indicator needle get into the red zone. This
may cause severe engine damage.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
39
(e) Stop and check.

(f) Stop and check.
(g) Add engine oil.
(h) Take vehicle to Lexus dealer.
(i) Take vehicle to Lexus dealer.
If brake system
warning light is also
on, stop immediately
and contact Lexus
dealer.
(j) Close all doors.
(k) Replace bulb. (l) Fill up tank.
(m) Take vehicle to Lexus
dealer.
(n) Take vehicle to Lexus dealer.
(o) Remove key.
(a) Brake System Warning Light and Buzzer
This l ight comes on in the following cases when the ignition key
is in the ºONº position.
 When the parking brake is applied ...
This light comes on for a few seconds when the ignition key is
turned to the ºONº position even after the parking brake is
released.
The buzzer beeps once if the vehicle is driven with its parking
brake applied.
 When the brake fluid level is low ...
CAUTION
It is dangerous to continue driving normally when the
brake fluid level is low.
or
or
Low fuel level
warning light
Key reminder buzzer

GAUGES, METERS AND SERVICE REMINDER INDICATORS
40Have your vehicle checked at your Lexus dealer in the
following cases:

The light does not come on even if the parking brake is
applied when the ignition key is in the ºONº position.
 The light does not come on even if the ignition key is turned
on with the parking brake released.
A warning light turning on briefly during operation does not
indicate a problem.
CAUTION
If either of the following conditions occurs, immediately
stop your vehicle at a safe place and contact your Lexus
dealer.
 The light does not turn off even after the parking
brake is released while the engine is running.
In the case, the brakes may not work properly and
your stopping distance will become longer. Depress
the brake pedal firmly and bring the vehicle to an
immediate stop.
 The brake system warning light remains on together
with the ºABSº warning light.
In this case, not only the anti±lock brake system will
fail but also the vehicle will become extremely
unstable during braking.
(b) Driver's Seat Belt Reminder Light and
Buzzer
This light and buzzer remind you to buckle up the driver's seat
belt.
Once the ignition key is turned to ºONº or ºSTARTº, the
reminder light flashes and buzzer sounds if the driver's seat
belt is not fastened. Unless the driver fastens the belt, the light
stays flashing and the buzzer stops after about 4 to 8 seconds.
(c) Front Passenger's Seat Belt Reminder Light
This light reminds you to buckle up the front passenger's seat
belt.
Once the ignition key is turned to ºONº or ºSTARTº, the
reminder light flashes if a passenger sits in the front passenger
seat and does not fasten the seat belt. Unless the front
passenger fastens the belt, the light stays flashing. However,
if a front passenger uses an additional seat cushion, the light
may not flash even when the seat belt is not buckled up.
If luggage load is placed on the front passenger seat,
depending on its weight and how it is placed on the seat,
built±in sensors in the seat cushion may detect the pressure,
causing the reminder light to come on.
