SWITCHES
28
POWER WINDOW SWITCHES
SV12019

1For driver's window
2For front passenger's window
3For left rear window
4For right rear window
To raise or lower the windows, use the switch on each
door. The passengers' windows can also be controlled by
the switches on the driver's door.
The power windows work when the ignition key is in the ºONº
position.
Key off operation (driver's window only): Even if the
ignition key is turned to the ºACCº or ºLOCKº position, the
window can be operated until either of the front doors is
opened (or for about 45 seconds).
12L010
Operating the driver's window
To raise or lower the window, pull the switch halfway up
or push it halfway down.
Automatic operation: To fully raise or lower the window
automatically, pull the switch fully up or push it fully down.
To stop the window partway, lightly push or pull the switch in
the opposite direction and then release it.
Operating the passengers' windows
To lower the window, push the switch down. Pull it up to
raise the window. The window moves as long as the
switch is operated.

SWITCHES
29

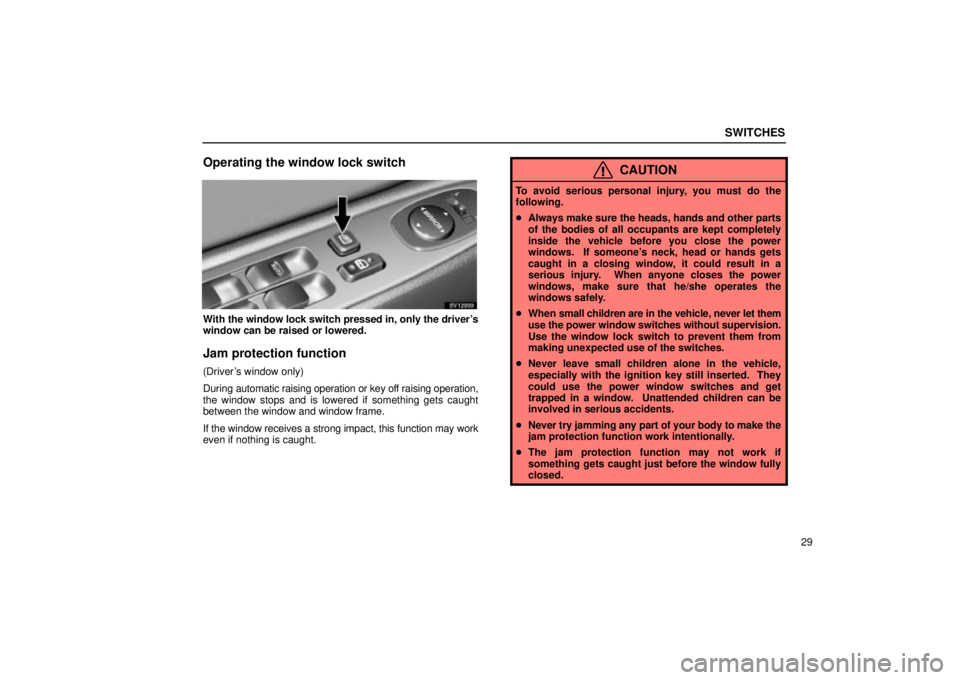

Operating the window lock switch
SV12009
With the window lock switch pressed in, only the driver's
window can be raised or lowered.
Jam protection function
(Driver's window only)
During automatic raising operation or key off raising operation,
the window stops and is lowered if something gets caught
between the window and window frame.
If the window receives a strong impact, this function may work
even if nothing is caught.
CAUTION
To avoid serious personal injury, you must do the
following.
 Always make sure the heads, hands and other parts
of the bodies of all occupants are kept completely
inside the vehicle before you close the power
windows. If someone's neck, head or hands gets
caught in a closing window, it could result in a
serious injury. When anyone closes the power
windows, make sure that he/she operates the
windows safely.
 When small children are in the vehicle, never let them
use the power window switches without supervision.
Use the window lock switch to prevent them from
making unexpected use of the switches.
 Never leave small children alone in the vehicle,
especially with the ignition key still inserted. They
could use the power window switches and get
trapped in a window. Unattended children can be
involved in serious accidents.
 Never try jamming any part of your body to make the
jam protection function work intentionally.
 The jam protection function may not work if
something gets caught just before the window fully
closed.

THEFT DETERRENT
121
Testing the system
1. Open all the windows.
2. Set the system as described above.
The front doors should be locked with the ignition key or
wireless remote control. Be sure to wait until the indicator light
starts flashing.
3. Unlock one of the doors from the inside.
The system should activate the alarm.
4. Unlock any of the doors with a key or the wireless
remote control to cancel the system.
5. Repeat this operation for the other doors and hood.
When testing the hood, also check that the system is activated
when the battery terminal is disconnected and then
reconnected.
If the system does not work properly, have it checked by your
Lexus dealer.
NOTICE
Disconnecting the battery may result in the erasure of information you have set in the computer memory. After
reconnecting the battery, check that the memorized data has been retained. If it has been erased, input it into
the computer once more.
THEFT PREVENTION LABELS
17L002
Your new vehicle carries theft prevention labels which are
approximately 56 mm (2.20 in.) by 16 mm (0.63 in.).
The purpose of these labels is to reduce the incidence of
vehicle thefts by facilitating the tracing and recovery of parts
from stolen vehicles. The label is designed so that once it is
applied to a surface, any attempt to remove it will result in
destroying the integrity of the label. Transferring these labels
intact from one part to another will be impossible.
NOTICE
You should not attempt to remove the theft prevention labels as it may violate certain state or federal laws.

AIR CONDITIONING
129

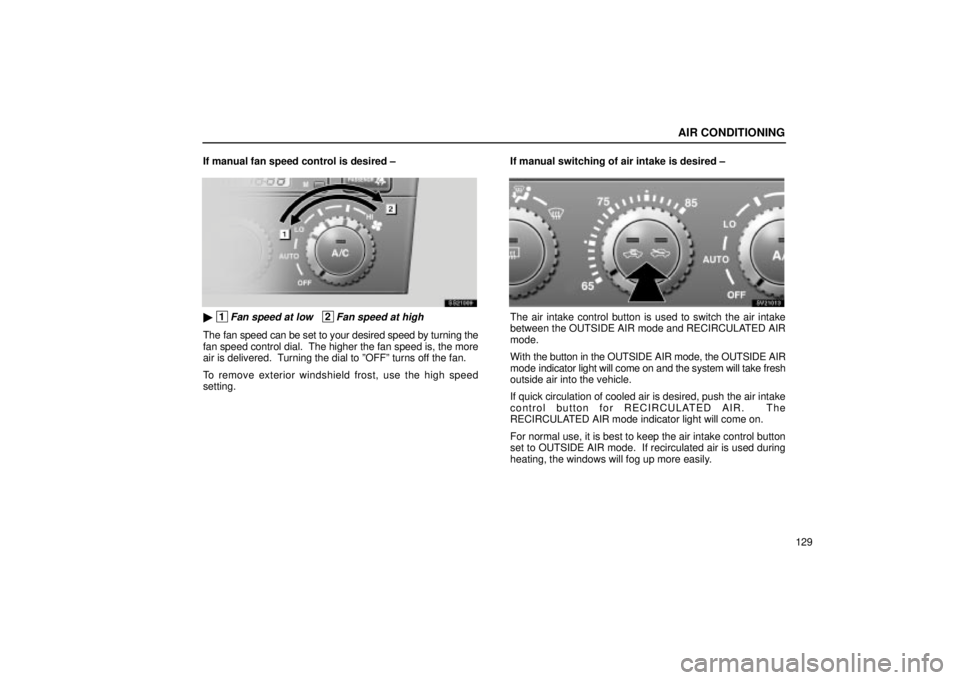

If manual fan speed control is desired ±
SS21009

1Fan speed at low 2Fan speed at high
The fan speed can be set to your desired speed by turning the
fan speed control dial. The higher the fan speed is, the more
air is delivered. Turning the dial to ºOFFº turns off the fan.
To remove exterior windshield frost, use the high speed
setting.
If manual switching of air intake is desired ±
SV21013
The air intake control button is used to switch the air intake
between the OUTSIDE AIR mode and RECIRCULATED AIR
mode.
With the button in the OUTSIDE AIR mode, the OUTSIDE AIR
mode ind
icator light will come on and the system will take fresh
outside air into the vehicle.
If quick circulation of cooled air is desired, push the air intake
control button for RECIRCULATED AIR. The
RECIRCULATED AIR mode indicator light will come on.
For normal use, it is best to keep the air intake control button
set to OUTSIDE AIR mode. If recirculated air is used during
heating, the windows will fog up more easily.

AIR CONDITIONING
131
CAUTION
Do not use the ºFRONT WINDSHIELDº button during
cooled air operation in extremely humid weather. The
difference between the temperature of the outside air
and that of the windshield could cause the outer surface
of the windshield to fog up blocking your vision.
(c) Air filter
The air filter may clog after long use which will reduce the air
flow. However, you can inspect the filter easily.
The air conditioning filter may clog after long use. The filter
may need to be replaced if the air flow of the air conditioner and
heater experiences extreme reductions in operating ef ficiency,
or if the windows become to fog up easily.
When you inspect and replace the air filter, be sure to turn off
the fan.
SS21013

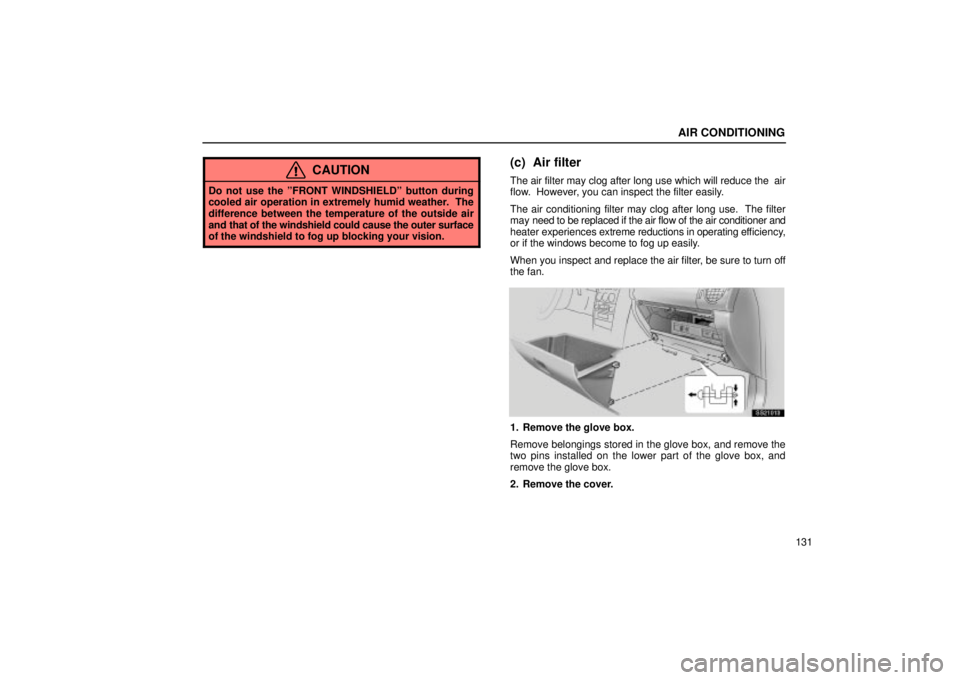

1. Remove the glove box.
Remove belongings stored in the glove box, and remove the
two pins installed on the lower part of the glove box, and
remove the glove box.
2. Remove the cover.

AIR CONDITIONING
132
SS21015
3. Take out the air filter.
If it is dirty, it should be replaced. To maintain the air
conditioning efficiency, replace the air filter according to the
maintenance schedule. (For scheduled maintenance
information, please refer to the ºOwner's Manual Supplement
/ Maintenance Scheduleº.)
INFORMATION
The air filter should be installed properly in position.The use of air conditioning with the air filter removedmay cause deteriorated dustproof performance andthen affect air conditioning performance.
(d) Operating tips
 To help cool down the interior after parking in the hot sun,
drive for the first few minutes with the windows open. After
the excess heat has blown away, close the windows.
 Make sure the air inlet grilles in front of the windshield are
not blocked by leaves or other obstructions.
 If air flow control is not satisfactory, check the dashboard
vents. (See ºCenter ventsº and ºSide ventsº.)
 On humid days, do not blow cold air on the windshield. The
windshield could fog up because of the difference in air
temperature on the inside and outside of the windshield.
 Keep the area under the front seats clear to allow air to
circulate throughout the vehicle.
 On cold days, set the fan speed selector to adjust the fan
speed high for a minute to help clear the intake ducts of
snow or moisture. This can reduce the amount of fogging
on the windows.
 When driving on dusty roads, close all windows. If dust
thrown up by the vehicle is still drawn into the vehicle after
closing the windows, it is recommended that the air intake
control button be left to the OUTSIDE AIR mode and the fan
speed control dial be turned to anywhere except the ºOFFº
button.
 If following another vehicle on a dusty road, or driving in
windy and dusty conditions, it is recommended that the air
intake control button be temporarily pressed in to the
RECIRCULATED AIR m ode, which will close off the outside
passage and prevent outside air and dust from entering the
vehicle interior.

AIR CONDITIONING
133
Heating
For best results, set controls to:
For automatic operation ±
Set the air flow control dial and the fan speed control
dial to ºAUTOº position.
Temperature ± To the desired temperature
Air intake ± OUTSIDE AIR
For manual operation ±Fan speed ± To the desired fan speed
Temperature ± Towards WARM (to the right)
Air intake ± OUTSIDE AIR
Air flow ± FLOOR
 For quick heating, select RECIRCULATED AIR for a few
minutes. To keep the windows from fogging, select
OUTSIDE AIR after the vehicle interior has been warmed.
 Push the ºA/Cº button on for dehumidified heating.
 Choose floor/windshield air flow to heat the vehicle interior
while defrosting or defogging the windshield. Air conditioning
For best results, set controls to:
For automatic operation ±
Set the air flow control dial and the fan speed control
dial to ºAUTOº position.
Temperature ± To the desired temperature
Air intake ± OUTSIDE AIR
For manual operation ±Fan speed ± To the desired fan speed
Temperature ± Towards COLD (to the left)
Air intake ± OUTSIDE AIR
Air flow ± PANEL
 For quick cooling, select RECIRCULATED AIR for a few
minutes.
Ventilation
For best results, set controls to:
For automatic operation ±
Set the air flow control dial and the fan speed control
dial to ºAUTOº position.
Temperature ± Towards low temperature
Air intake ± OUTSIDE AIR

STARTING AND DRIVING
166
To allow proper operation of your vehicle's
ventilation system, keep the inlet grilles in front of the
windshield clear of snow, leaves, or other
obstructions.
 If you smell exhaust fumes in the vehicle, drive with
the windows open and the trunk lid closed. Have the
cause immediately located and corrected.BEFORE STARTING THE ENGINE
1. Check the area around the vehicle before entering it.
2. Adjust seat position, seatback angle, head restraint height
and steering wheel angle.
3. Adjust the inside and outside rear view mirrors.
4. Lock all doors.
5. Fasten seat belts.
Remember to check that the service reminder indicators
function when turning the key to ºONº, and check the fuel
gauge to see that you have sufficient fuel.

MAINTENANCE
226
DOES YOUR VEHICLE NEEDREPAIRING?
Be on the alert for changes in performance and sounds, and
visual tip±offs that indicate service is needed. Some important
clues are:

Engine missing, stumbling, or pinging

Appreciable loss of power

Strange engine noises

A fluid leak under the vehicle (however, water dripping from
the air conditioning after use is normal.)

Change in exhaust sound (This may indicate a dangerous
carbon monoxide leak. Drive with the windows open and
have the exhaust system checked immediately.)

Flat±looking tires, excessive tire squeal when cornering,
uneven tire wear

Vehicle pulls to one side when driving straight on a level
road

Strange noises related to suspension movement

Loss of brake effectiveness, spongy feeling brake pedal,
pedal almost touches floors, vehicle pulls to one side when
braking

Engine coolant temperature continually higher than normal
If you notice any of these clues, take your vehicle to your Lexus
dealer as soon as possible. It probably needs adjustment or
repair.
CAUTION
Do not continue driving with the vehicle unchecked. It
could result in serious vehicle damage and possibly
personal injury.

BODY
285
NOTICE

If a stain should fail to come out with a neutraldetergent, apply a cleaner that does not contain anorganic solvent.

Never use organic substances such as benzine,alcohol or gasoline, or alkaline or acid solutions forcleaning the leather as these could causediscoloring.

Use of a nylon brush or synthetic fiber cloth, etc. mayscratch the fine grained surface of the leather.

Mildew may dev elop on soiled leather upholstery. Be
especially careful to avoid oil spots. Try to keep your
upholstery always clean.

Long exposure to direct sunlight may cause the leather surface to harden and shrink. Keep yourvehicle in a shaded area, especially in the summer.

The interior of your vehicle is apt to heat up on hotsummer days, so avoid placing on the upholstery
items made of vinyl or plastic or containing wax asthese tend to stick to leather when warm.

Improper cleaning of the leather upholstery couldresult in discoloration or staining.
If you have any questions about the cleaning of your
Lexus, your local Lexus dealer will be pleased to answer
them.
Carpets, Windows and Seat Belts
Begin by vacuuming thoroughly to remove as much dirt as
possible. Several types of foam cleaners are available; some
are in aerosol cans and others are powders or liquids which
you mix with water to produce a foam. To shampoo the
carpets, use a sponge or brush to apply the foam. Rub in
overlapping circles. Do not apply water ± the best results are
obtained by keeping the carpet as dry as possible. Read the
shampoo instructions and follow them closely.
The seat belts may be cleaned with mild soap and water
or with lukewarm water.
Use a cloth or sponge. As you are cleaning, check the belts
for excessive wear, fraying or cuts.
NOTICE

Use a good foam±type shampoo to clean the carpets.

Do not use dye or bleach on the belts ± it may weakenthem.

Do not use the belts until they become dry.

The windows may be cleaned with any household
window cleaner.

When cleaning the inside of the rear window, becareful not to scratch or damage the heater wires orconnectors.
