STARTING AND DRIVING
221

To ensure that the three±way catalytic converter and
the entire emission control system operate properly,your vehicle must receive the periodic inspectionsrequired by the Lexus Maintenance Schedule . Forscheduled maintenance information, refer to theºOwner's Manual Supplement/ScheduledMaintenance º.ENGINE EXHAUST CAUTION
CAUTION
 Avoid inhaling the engine exhaust. It contains
carbon monoxide, which is a colorless and odorless
gas. It can cause unconsciousness or even death.
 Make sure the exhaust system has no holes or loose
connections. The system should be checked from
time to time. If you hit something, or notice a change
in the sound of the exhaust, have the system checked
immediately.
 Do not run the engine in a garage or enclosed area
except for the time needed to drive the vehicle in or
out. The exhaust gases cannot escape, making this
a particularly dangerous situation.
 Do not remain for a long time in a parked vehicle with
the engine running. If it is unavoidable, however, do
so only in an unconfined area and adjust the heating
or cooling system to force outside air into the vehicle.
 Keep the trunk lid or back door closed while driving.
An open or unsealed trunk lid or back door may
cause exhaust gases to be drawn into the vehicle.

STARTING AND DRIVING
222
To allow proper operation of your vehicle's
ventilation system, keep the inlet grilles in front of the
windshield clear of snow, leaves, or other
obstructions.
 If you smell exhaust fumes in the vehicle, drive with
the windows open and the trunk lid or back door
closed. Have the cause immediately located and
corrected.BEFORE STARTING THE ENGINE
1. Check the area around the vehicle before entering it.
2. Adjust seat position, seatback angle, head restraint height
and steering wheel angle.
3. Adjust the inside and outside rear view mirrors.
4. Lock all doors.
5. Fasten seat belts.
Remember to check that the service reminder indicators
function when turning the key to ºONº, and check the fuel
gauge to see that you have sufficient fuel.

STARTING AND DRIVING
225
HOW TO START THE ENGINE
Before cranking
1. Apply the parking brake firmly.
2. Turn off unnecessary lights and accessories.
3.Manual transmission : Press the clutch pedal to the floor
and shift the transmission into neutral. Hold the clutch pedal
to the floor until the engine is started. A starter safety device
will prevent the starter from operating if the clutch pedal is not
fully depressed.
Automatic transmission : Put the selector lever in ºPº. If you
need to restart the engine while the vehicle is moving, put the
selector lever in ºNº. A starter safety device will prevent the
starter from operating if the selector lever is in any drive
position.
4. For automatic transmission only :Depress the brake
pedal and hold it to the floor until driving off.
Starting the engine
Before starting the engine, be sure to follow the instructions in
ºBefore crankingº.
Normal starting procedure
The multiport fuel injection system/sequential multiport fuel
injection system in your engine automatically controls the
proper air±fuel mixture for starting. You can start a cold or hot
engine as follows:
1. With your foot off the accelerator pedal, crank the engine by
turning the key to ºSTARTº. Release it when the engine starts. 2. After the engine runs for about 10 seconds, you are ready
to drive.
If the weather is below freezing, let the engine warm up for a
few minutes before driving. Do not leave the vehicle while the
engine is warming up.
If the engine stalls ...
Simply restart it , using the correct procedure given in normal
starting.
If the engine will not start
See ºIf your vehicle will not startº on page 263.
NOTICE
Do not crank for more than 30 seconds at a time. This
may overheat the starter and wiring systems.
Do not race a cold engine.
If the engine becomes difficult to start or stallsfrequently, have the engine checked immediately.

STARTING AND DRIVING
239
2Cancelling the preset speed
You can cancel the preset speed by either of the following:
a. Pulling the control lever in the ºCANCELº direction.
b. Depressing the brake pedal.
c. Depressing the clutch pedal (manual transmission)
If the vehicle speed falls below about 40 km/h (25 mph), the
preset speed will be automatically cancelled.
If the vehicle speed drops 16 km/h (10 mph) below the preset
speed, the preset speed will also automatically be cancelled.
If the preset speed automatically cancels out for other than
these reasons, have your vehicle checked by your Lexus
dealer at the earliest opportunity.
3Resetting to a faster speed
Press the control lever upward in the ºRES/ACCº direction and
hold it. Release the lever when the desired speed is attained.
While the lever is held upward, the vehicle will gradually gain
speed.
When the difference between the actual vehicle speed and the
set speed is less than 5 km/h (3 mph), the set speed can be
increased 1.6 km/h (1 mph) each time by pressing the control
lever upward in the ºRES/ACCº direction quickly within 0.6
seconds.
However, a quicker way to reset is to accelerate the vehicle
and then press the control lever downward in the
ºSET/COASTº direction.
4Resetting to a slower speed
Press the control lever downward in the ºSET/COASTº
direction and hold it. Release the lever when the desired
speed is attained. While the lever is held downward, the
vehicle speed will gradually decrease.
When the difference between the actual vehicle speed and the
set speed is less than 5 km/h (3 mph), the set speed can be
lowered 1.6 km/h (1 mph) each time by pressing the control
lever downward in the ºSET/COASTº direction quickly within
0.6 seconds.
However, a quicker way to reset is to depress the brake pedal
and then press the control lever downward in the
ºSET/COASTº direction.
Automatic transmission: Even if you downshift the
transmission from the ºDº position to ºMº with the cruise control
on, engine braking will not be applied because the cruise
control is not cancelled. To decrease the vehicle speed, reset
to a slower speed with the cruise control lever or depress the
brake pedal. If you use the brake pedal, cruise control is
cancelled.
5Resuming the preset speed
If the preset speed is cancelled by pulling the control lever or
by depressing the brake pedal, pushing the lever up in the
ºRES/ACCº direction will restore the speed set prior to
cancellation. However, once the vehicle speed falls below
about 40 km/h (25 mph), the preset speed will not be resumed.

STARTING AND DRIVING
241
SV31033
You can turn off the traction control system by pushing
the ºTRAC OFFº switch. The ºTRAC OFFº
indicator/warning light will then come on. Pushing the
ºTRAC OFFº switch a second time turns the system back
on and extinguishes the ºTRAC OFFº indicator/warning
light.
You may hear a sound in the engine compartment for a few
seconds when the engine is started or just after the vehicle is
started. This means that the traction control system is in the
self±check mode, and does not indicate malfunction.
When the traction control system is operating, you may feel
vibration of your vehicle, caused by operation of the brakes.
This indicates the system is functioning properly.
When getting the vehicle out of mud or new snow, etc. the
traction control system will help operate to prevent the wheels
from spinning.
If the light flashes, this indicates a malfunction in the traction
control system. Contact your Lexus dealer as soon as
possible to service the vehicle.
Traction control system failure warning
SV31035
These lights warn that there is a problem somewhere in the
vehicle skid control system or traction control system.
The lights will come on when the ignition key is turned to ºONº,
and will go off after a few seconds.
If the ºVSCº warning light and ºTRAC OFFº indicator/warning
light come on, the vehicle skid control system and traction
control system do not work. However, as conventional braking
operates when applied, there is no problem to continue your
driving.
If any of the following conditions occurs, this indicates a
malfunction somewhere in the parts monitored by the warning
light system. Contact your Lexus dealer as soon as possible
to service the vehicle:
 The ºVSCº warning light or ºTRAC OFFº indicator/warning
light do not come on after the ignition is turned to on.

STARTING AND DRIVING
243
SV31036
You can turn off the traction control system by pushing
the ºTRAC OFFº switch. The ºTRAC OFFº
indicator/warning light will then come on. Pushing the
ºTRAC OFFº switch a second time turns the system back
on and extinguishes the ºTRAC OFFº indicator/warning
light.
You may hear a sound in the engine compartment for a few
seconds when the engine is started or just after the vehicle is
started. This means that the traction control system is in the
self±check mode, and does not indicate malfunction.
When the traction control system is operating, you may feel
vibration of your vehicle, caused by operation of the brakes.
This indicates the system is functioning properly.
When getting the vehicle out of mud or new snow, etc. the
traction control system will help operate to prevent the wheels
from spinning.
If the light flashes, this indicates a malfunction in the traction
control system. Contact your Lexus dealer as soon as
possible to service the vehicle.
CAUTION
Under certain slippery road conditions, full traction of
the vehicle and power to the rear wheels cannot be
maintained, even though the traction control system is
in operation. Do not drive the vehicle under any speed
or maneuvering conditions which will cause the vehicle
to lose traction. In situations where the road surface is
covered with ice or snow, your vehicle should be fitted
with snow tires or tire chains. Always drive at an
appropriate and cautious pace.

STARTING AND DRIVING
244
VEHICLE SKID CONTROL SYSTEM
The vehicle skid control system helps provide integrated
control of the systems such as an anti±lock brake system,
brake assist system, traction control, engine control, etc.
This system automatically controls the output of the
brakes or engine to help prevent the vehicle from skidding
when cornering on a slippery road surface or abrupt
steering wheel operation occurs.
SV31037

Slip indicator light
If the vehicle is going to skid during driving, the slip indicator
light flashes and an alarm sounds intermittently.
The vehicle skid control activates when the vehicle speed is
about more than 15 km/h (9 mph).You may hear a sound in the engine compartment for a few
seconds when the engine is started or just after the vehicle is
started. This means that the vehicle skid control is in the
self±check mode and does not indicate a malfunction.
When
you turn the ignition switch on, this system always turns
on.

STARTING AND DRIVING
247
Anti±lock brake system
The anti±lock brake system is designed to automatically
help prevent lock±up of the wheels during a sudden
braking or braking on slippery road surfaces. This assists
in providing directional stability and steering
performance of the vehicle under these circumstances.

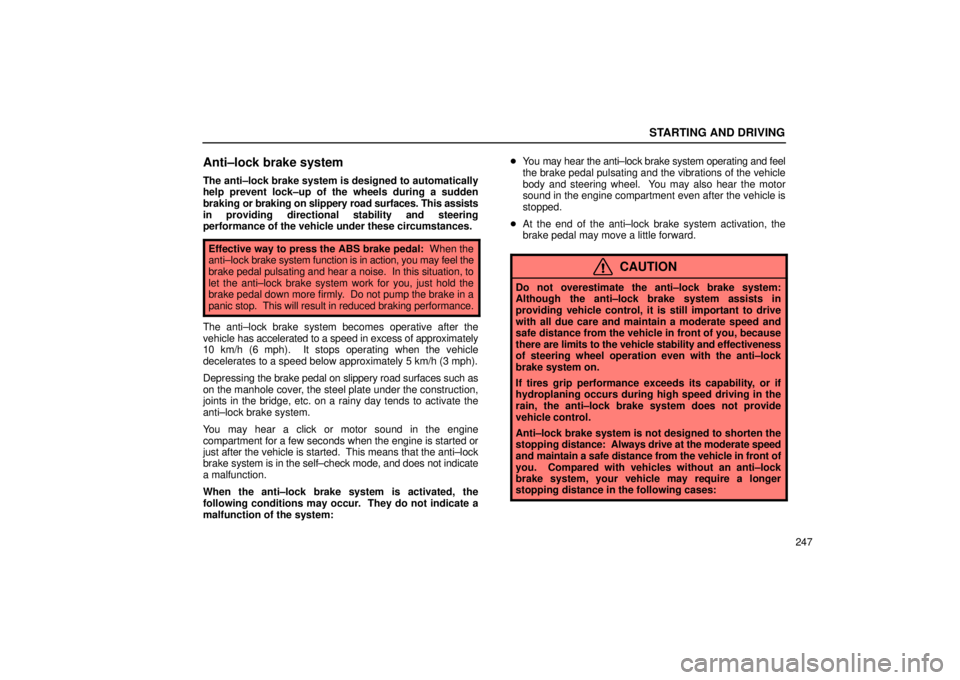

Effective way to press the ABS brake pedal: When the
anti±lock brake system function is in action, you may feel the
brake pedal pulsating and hear a noise. In this situation, to
let the anti±lock brake system work for you, just hold the
brake pedal down more firmly. Do not pump the brake in a
panic stop. This will result in reduced braking performance.
The anti±lock brake system becomes operative after the
vehicle has accelerated to a speed in excess of approximately
10 km/h (6 mph). It stops operating when the vehicle
decelerates to a speed below approximately 5 km/h (3 mph).
Depressing the brake pedal on slippery road surfaces such as
on the manhole cover, the steel plate under the construction,
joints in the bridge, etc. on a rainy day tends to activate the
anti±lock brake system.
You may hear a click or motor sound in the engine
compartment for a few seconds when the engine is started or
just after the vehicle is started. This means that the anti±lock
brake system is in the self±check mode, and does not indicate
a malfunction.
When the anti±lock brake system is activated, the
following conditions may occur. They do not indicate a
malfunction of the system:
You may hear the anti±lock brake system operating and feel
the brake pedal pulsating and the vibrations of the vehicle
body and steering wheel. You may also hear the motor
sound in the engine compartment even after the vehicle is
stopped.
 At the end of the anti±lock brake system activation, the
brake pedal may move a little forward.
CAUTION
Do not overestimate the anti±lock brake system:
Although the anti±lock brake system assists in
providing vehicle control, it is still important to drive
with all due care and maintain a moderate speed and
safe distance from the vehicle in front of you, because
there are limits to the vehicle stability and effectiveness
of steering wheel operation even with the anti±lock
brake system on.
If tires grip performance exceeds its capability, or if
hydroplaning occurs during high speed driving in the
rain, the anti±lock brake system does not provide
vehicle control.
Anti±lock brake system is not designed to shorten the
stopping distance: Always drive at the moderate speed
and maintain a safe distance from the vehicle in front of
you. Compared with vehicles without an anti±lock
brake system, your vehicle may require a longer
stopping distance in the following cases:

DRIVING TIPS
255
TIPS FOR DRIVING IN VARIOUSCONDITIONS

Always slow down in gusty crosswinds. This will allow you
much better control.

Drive slowly onto curbs and, if possible, at a right angle.
Avoid driving onto high, sharp±edged objects and other
road hazards. Failure to do so can lead to severe tire
damage resulting in tire bursts.
Drive slowly when passing over bumps or travelling on a
bumpy road. Otherwise, the impact could cause severe
damage to the tires and/or wheels.

When parking on a hill, turn the front wheels until they touch
the curb so that the vehicle will not roll. Apply the parking
brake, and place the transmission in ºPº (automatic) or in
first or reverse (manual). If necessary, block the wheels.

Washing your vehicle or driving through deep water may get
the brakes wet. To see whether they are wet, check that
there is no traffic near you and then press the pedal lightly.
If you do not feel a normal braking force, the brakes are
probably wet. To dry them, drive the vehicle cautiously while
lightly pressing the brake pedal with the parking brake
applied. If they still do not work safely, pull to the side of the
road and call a Lexus dealer for assistance.

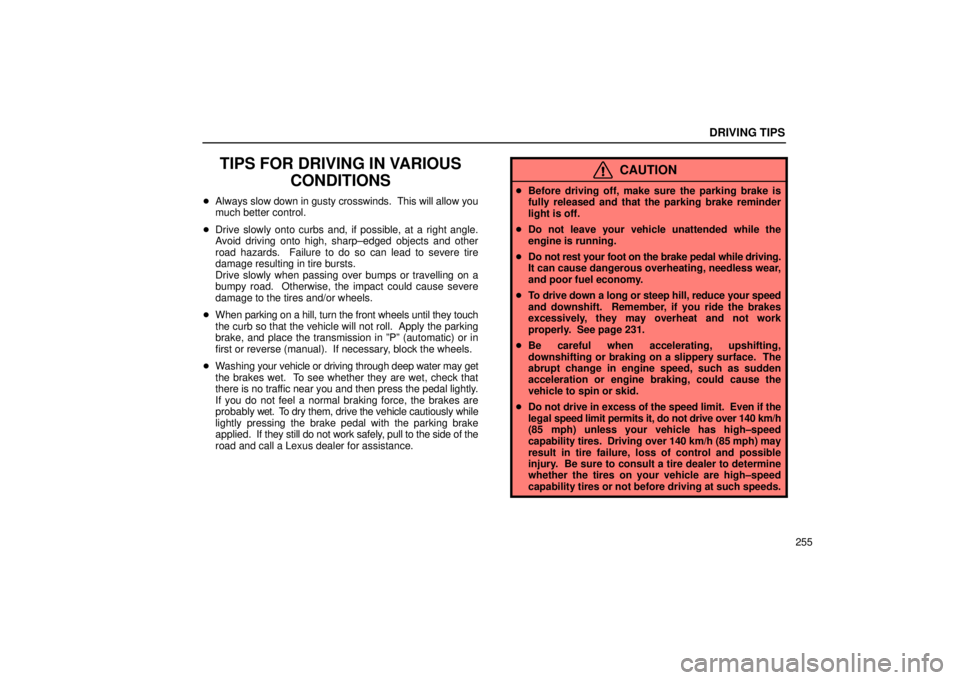

CAUTION

Before driving off, make sure the parking brake is
fully released and that the parking brake reminder
light is off.

Do not leave your vehicle unattended while the
engine is running.

Do not rest your foot on the brake pedal while driving.
It can cause dangerous overheating, needless wear,
and poor fuel economy.

To drive down a long or steep hill, reduce your speed
and downshift. Remember, if you ride the brakes
excessively, they may overheat and not work
properly. See page 231.

Be careful when accelerating, upshifting,
downshifting or braking on a slippery surface. The
abrupt change in engine speed, such as sudden
acceleration or engine braking, could cause the
vehicle to spin or skid.

Do not drive in excess of the speed limit. Even if the
legal speed limit permits it, do not drive over 140 km/h
(85 mph) unless your vehicle has high±speed
capability tires. Driving over 140 km/h (85 mph) may
result in tire failure, loss of control and possible
injury. Be sure to consult a tire dealer to determine
whether the tires on your vehicle are high±speed
capability tires or not before driving at such speeds.

DRIVING TIPS
256

Do not continue normal driving when the brakes are
wet. If they are wet, your vehicle will require a longer
stopping distance, and it may pull to one side when
the brakes are applied. Also, the parking brake will
not hold the vehicle securely.WINTER DRIVING TIPS
Make sure you have a proper freeze protection of engine
coolant.
Your coolant must contain ethylene±glycol type coolant for a
proper corrosion protection of aluminum components. Use
ºToyota Long Life Coolantº or equivalent. See ºChecking the
engine coolant levelº on page 313 for instructions.
NOTICE
Do not use alcohol type antifreeze or plain water alone.
When it is extremely cold, we recommend to use 60% solution
for your Lexus, to provide protection down to about ±50 C
(±58 F). Do not use more than 70% solution for better coolant
performance.
Check the condition of the battery and cables.
Cold temperatures reduce the capacity of any battery, so it
must be in top shape to provide enough power for winter
starting. Page 338 tells you how to visually inspect the battery.
Your Lexus dealer and most service stations will be pleased to
check the battery charge level.
Make sure the engine oil viscosity is suitable for the cold
weather.
See page 312 for recommended viscosity. Leaving a heavy
summer oil in your vehicle during winter months may cause
harder starting. If you are not sure about which oil to use, call
your Lexus dealer ± they will be pleased to help.
