THEFT DETERRENT
172
THEFT DETERRENT SYSTEM
To deter theft of the vehicle, this system is designed to
sound an alarm if any of the doors, trunk or hood is
forcibly unlocked or the battery terminal is disconnected
and then reconnected while the vehicle is locked.*
NOTE: *The system operating condition can be changed.Ask your Lexus dealer for details.
The alarm blows the horn intermittently and flashes the
headlights, tail lights and other exterior lights.
SV17002
Setting the system
1. Turn the ignition key to the ºLOCKº position and
remove it.
The engine immobiliser system causes the indicator light to
flash. 2. Close and lock all the doors, trunk and hood using an
ignition key or wireless remote control.
The flashing indicator light will remain on when all the doors,
trunk and hood are closed and locked.
3. After 30 seconds, the indicator starts flashing and the
system is set.
Cancelling the system
When you unlock any door or trunk using an ignition key
or wireless remote control, the system is cancelled.
Activating the system
The alarm sounds for 60 seconds if any of the following are
operated:


Unlocking any door or trunk without using an ignition key or
wireless remote control.

Opening the hood forcibly.

Reconnecting the battery.
If any door is unlocked and the ignition key is not in the ignition
switch during the alarm sounding, its door is automatically
locked.
To stop the alarm: Use either of the following methods.

Unlock the door or trunk using an ignition key or wireless
remote control.

Turn the ignition switch on.

ELECTRICAL COMPONENTS
343
It is a good idea to purchase a set of spare fuses and keep them
in your vehicle for emergencies.
If the new fuse immediately blows out, there is a problem with
the electrical system. Have your Lexus dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher amperage rating, or any
other object, in place of a fuse. This may cause
extensive damage and possibly a fire.
CHECKING THE CARTRIDGE TYPE
FUSES
SV64005

1Good 2Melted
If the headlights or other electrical components do not
work and the blade type fuses are O.K., check the
cartridge type fuses. If any of the cartridge type fuses are
blown, they must be replaced.
If there is an overload in the circuits from the battery, the fuses
are designed to blow before the entire wiring harness is
damaged.

ELECTRICAL COMPONENTS
346

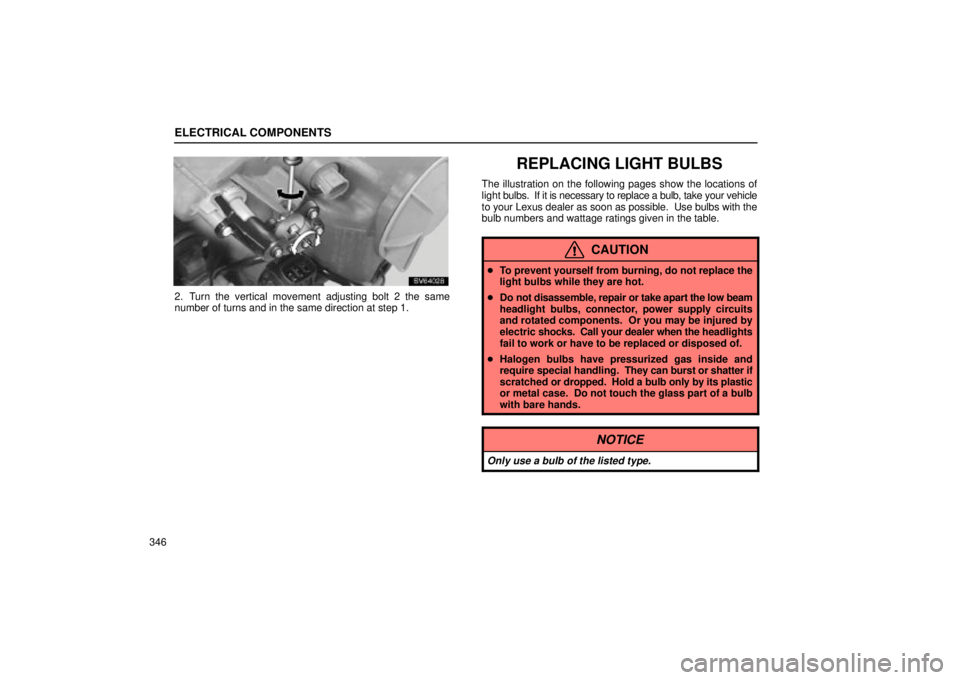

SB64028
2. Turn the vertical movement adjusting bolt 2 the same
number of turns and in the same direction at step 1.
REPLACING LIGHT BULBS
The illustration on the following pages show the locations of
light bulbs. If it is necessary to replace a bulb, take your vehicle
to your Lexus dealer as soon as possible. Use bulbs with the
bulb numbers and wattage ratings given in the table.
CAUTION
 To prevent yourself from burning, do not replace the
light bulbs while they are hot.
 Do not disassemble, repair or take apart the low beam
headlight bulbs, connector, power supply circuits
and rotated components. Or you may be injured by
electric shocks. Call your dealer when the headlights
fail to work or have to be replaced or disposed of.
 Halogen bulbs have pressurized gas inside and
require special handling. They can burst or shatter if
scratched or dropped. Hold a bulb only by its plastic
or metal case. Do not touch the glass part of a bulb
with bare hands.
NOTICE
Only use a bulb of the listed type.

ELECTRICAL COMPONENTS
347
The inside of the lens of exterior lights such as headlights may
temporarily
fog up when the lens becomes wet in the rain or in
a car wash. This is not a problem because the fogging is
caused by the temperature dif ference between the outside and
inside of the lens, just like the windshield fogged up in the rain.
However, if there is a large drop of water on the inside of the
lens, or if there is water pooled inside the light, contact your

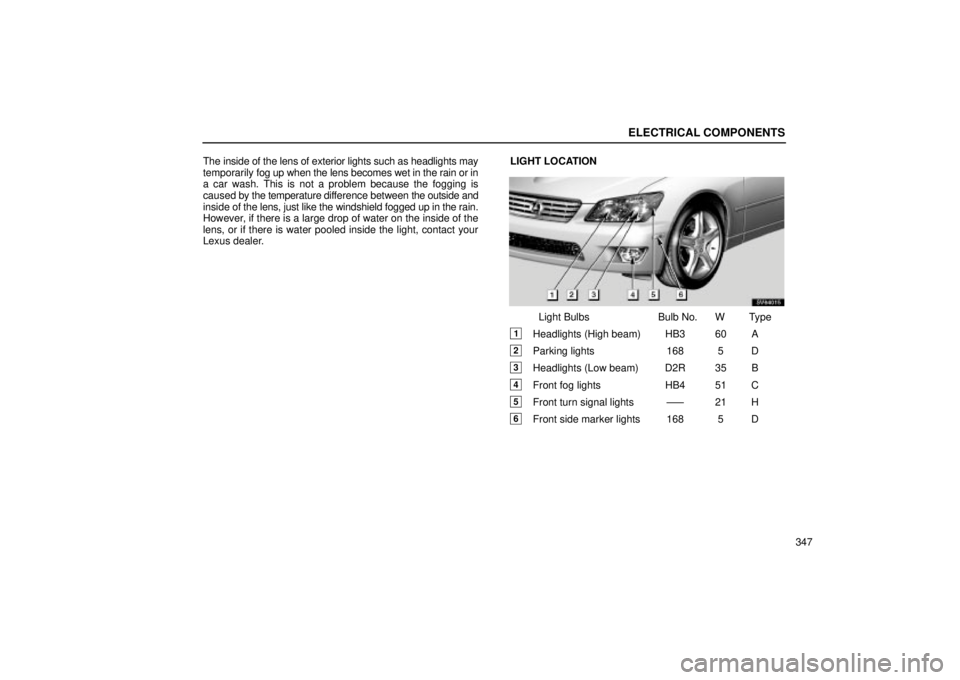

Lexus dealer. LIGHT LOCATION
SV64015
Light Bulbs
Bulb No. W Type
1Headlights (High beam) HB3 60 A
2Parking lights 168 5 D
3Headlights (Low beam) D2R 35 B
4Front fog lightsHB4 51 C
5Front turn signal lights ±±± 21 H
6Front side marker lights 168 5 D
