IN CASE OF AN EMERGENCY
268
IF YOU HAVE A FLAT TIRE
1. Reduce your speed gradually, keeping a straight line.
Move cautiously off the road to a safe place ± well away from
the traffic. Avoid stopping on the center divider of a highway.
Park on a level spot with firm ground.
2. Stop the engine and turn on your emergency flashers.
3. Firmly set the parking brake and put the transmission in ºPº
(automatic) or reverse (manual).
4. Have everyone get out of the vehicle on the side away from
traffic.
5. Read the following instructions thoroughly.

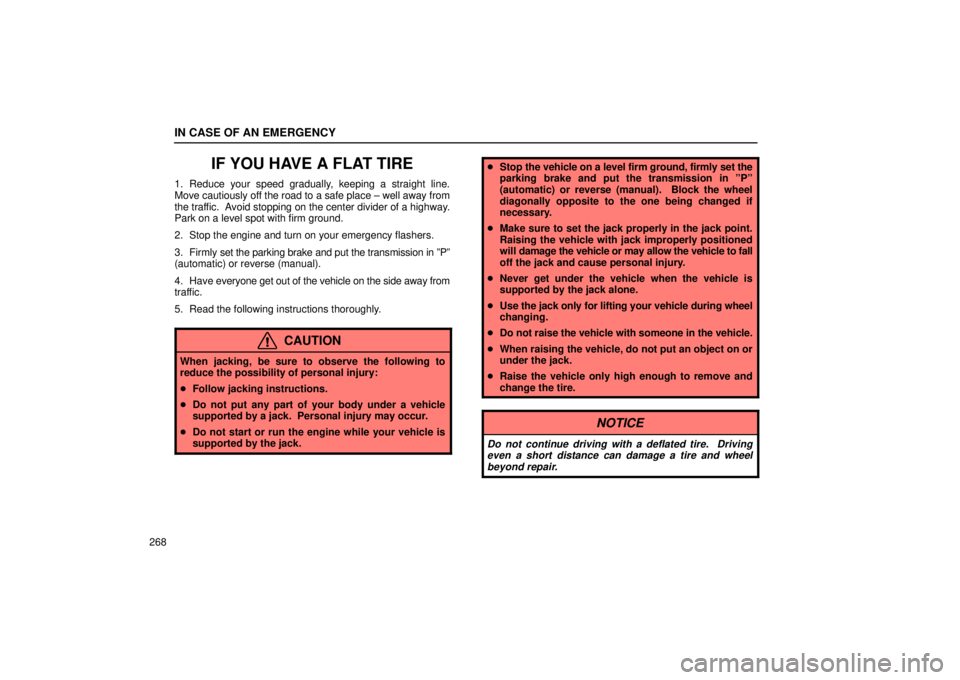

CAUTION
When jacking, be sure to observe the following to
reduce the possibility of personal injury:
 Follow jacking instructions.
 Do not put any part of your body under a vehicle
supported by a jack. Personal injury may occur.
 Do not start or run the engine while your vehicle is
supported by the jack.
Stop the vehicle on a level firm ground, firmly set the
parking brake and put the transmission in ºPº
(automatic) or reverse (manual). Block the wheel
diagonally opposite to the one being changed if
necessary.
 Make sure to set the jack properly in the jack point.
Raising the vehicle with jack improperly positioned
will damage the vehicle or may allow the vehicle to fall
off the jack and cause personal injury.
 Never get under the vehicle when the vehicle is
supported by the jack alone.
 Use the jack only for lifting your vehicle during wheel
changing.
 Do not raise the vehicle with someone in the vehicle.
 When raising the vehicle, do not put an object on or
under the jack.
 Raise the vehicle only high enough to remove and
change the tire.
NOTICE
Do not continue driving with a deflated tire. Driving
even a short distance can damage a tire and wheelbeyond repair.

INTRODUCTION
301
POSITIONING THE JACK
SV61006
Front of vehicle
When jacking up your vehicle with the jack, position the
jack correctly as shown in the illustration.
Jack position
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front± Front crossmember
Rear± Rear differential
Support position and Pantograph jack position
. . . . .
CAUTION
When jacking, be sure to observe the following to
reduce the possibility of personal injury:

Follow jacking instructions.

Do not put any part of your body under the vehicle
supported by a jack. Personal injury may occur.

Do not start or run the engine while your vehicle is
supported by the jack.

Stop the vehicle on a level firm ground, firmly set the
parking brake and put the transmission in ºPº
(automatic) or reverse (manual). Block the wheel
diagonally opposite to the one being changed if
necessary.

Make sure to set the jack properly in the jack point.
Raising the vehicle with jack improperly positioned
will damage the vehicle or may allow the vehicle to fall
off the jack and cause personal injury.

Never get under the vehicle when the vehicle is
supported by the jack alone; use vehicle support
stands.

Do not raise the vehicle with someone in the vehicle.

When raising the vehicle, do not put an object on or
under the jack.
