PICTORIAL INDEX
viii
Page
1Tachometer41
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2Headlight high beam indicator light 28
. . . . . . . . . . .
3Low engine oil level warning light 47
. . . . . . . . . . . . .
4Vehicle skid control system warning light 49 . . . . . .
5Turn signal indicator lights 28
. . . . . . . . . . . . . . . . . . .
6Cruise control indicator light 237
. . . . . . . . . . . . . . . .
7Momentary fuel consumption meter 40. . . . . . . . . . .
8Voltmeter40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9Automatic headlight leveling system warning
light 27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
10Engine coolant temperature gauge 39
. . . . . . . . . . . .
11Anti±lock brake system warning light 48
. . . . . . . . . .
12Malfunction indicator lamp 47
. . . . . . . . . . . . . . . . . . .
13Fuel gauge 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14Low fuel level warning light 49
. . . . . . . . . . . . . . . . . . .
15Odometer and trip meter 42
. . . . . . . . . . . . . . . . . . . . .
16Power mode indicator light 228
. . . . . . . . . . . . . . . . . . Page
17Snow mode indicator light
228
. . . . . . . . . . . . . . . . . . .
18ODO/TRIP knob 42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19Automatic transmission indicator lights 226 . . . . . .
20M mode indicator 229
. . . . . . . . . . . . . . . . . . . . . . . . . . .
21Gear position indicator for manual control 229 . . . .
22Discharge warning light 46
. . . . . . . . . . . . . . . . . . . . . .
23Rear light failure warning light 49
. . . . . . . . . . . . . . . .
24Security indicator light 172. . . . . . . . . . . . . . . . . . . . . .
25Traction control system
off indicator/warning light 49 . . . . . . . . . . . . . . . . . . . .
26Low engine oil pressure warning light 46
. . . . . . . . .
27Slip indicator light 240
. . . . . . . . . . . . . . . . . . . . . . . . . .
28Brake system warning light 43
. . . . . . . . . . . . . . . . . . .
29SRS warning light 45
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
30Open door warning light 48
. . . . . . . . . . . . . . . . . . . . . .
31Driver's seat belt reminder light 45
. . . . . . . . . . . . . . .

10.
For detailed information, refer to the description given in each section\
.
PICTORIAL INDEX
x
Page
1Tachometer41
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2Headlight high beam indicator light 28
. . . . . . . . . . .
3Low engine oil level warning light 47
. . . . . . . . . . . . .
4Vehicle skid control system warning light 49 . . . . . .
5Turn signal indicator lights 28
. . . . . . . . . . . . . . . . . . .
6Cruise control indicator light 237
. . . . . . . . . . . . . . . .
7Momentary fuel consumption meter 40. . . . . . . . . . .
8Voltmeter40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9Automatic headlight leveling system warning
light 27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
10Engine coolant temperature gauge 39
. . . . . . . . . . . .
11Anti±lock brake system warning light 48
. . . . . . . . . .
12Malfunction indicator lamp 47
. . . . . . . . . . . . . . . . . . .
13Fuel gauge 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14Low fuel level warning light 49
. . . . . . . . . . . . . . . . . . .
15Odometer and trip meter 42
. . . . . . . . . . . . . . . . . . . . .
16Power mode indicator light 228
. . . . . . . . . . . . . . . . . . Page
17Snow mode indicator light
228
. . . . . . . . . . . . . . . . . . .
18ODO/TRIP knob 42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19Automatic transmission indicator lights 226 . . . . . .
20M mode indicator 229
. . . . . . . . . . . . . . . . . . . . . . . . . . .
21Gear position indicator for manual control 229 . . . .
22Discharge warning light 46
. . . . . . . . . . . . . . . . . . . . . .
23Rear light failure warning light 49
. . . . . . . . . . . . . . . .
24Security indicator light 172. . . . . . . . . . . . . . . . . . . . . .
25Traction control system
off indicator/warning light 49 . . . . . . . . . . . . . . . . . . . .
26Low engine oil pressure warning light 46
. . . . . . . . .
27Slip indicator light 240
. . . . . . . . . . . . . . . . . . . . . . . . . .
28Brake system warning light 43
. . . . . . . . . . . . . . . . . . .
29SRS warning light 45
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
30Open door warning light 48
. . . . . . . . . . . . . . . . . . . . . .
31Driver's seat belt reminder light 45
. . . . . . . . . . . . . . .

SVPC021
12.
PICTORIAL INDEX
xii

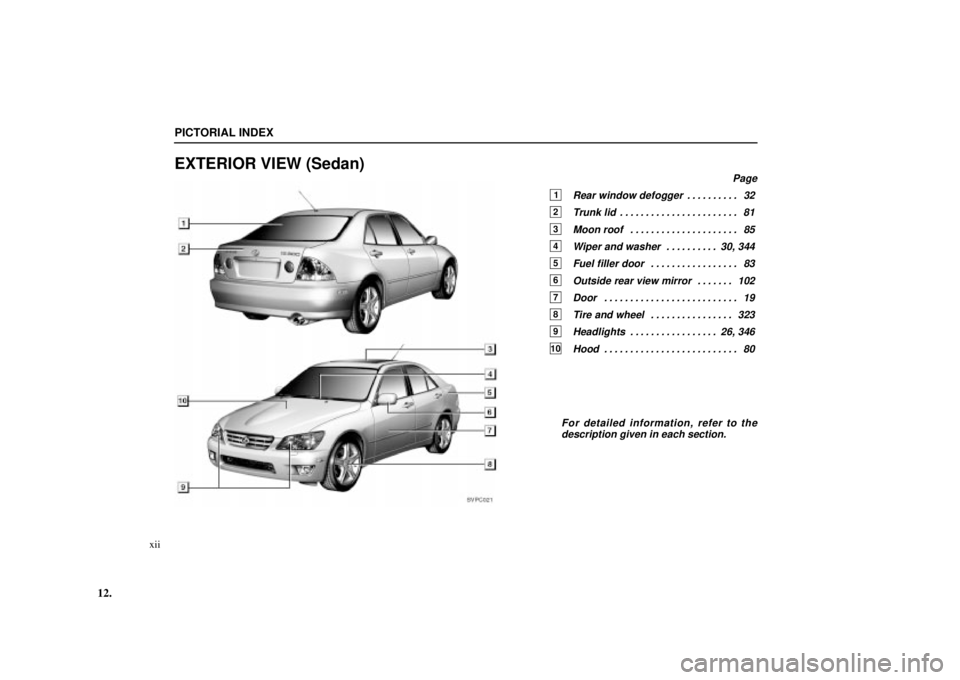

EXTERIOR VIEW (Sedan)
Page
1Rear window defogger32
. . . . . . . . . .
2Trunk lid 81
. . . . . . . . . . . . . . . . . . . . . . .
3Moon roof 85
. . . . . . . . . . . . . . . . . . . . .
4Wiper and washer 30, 344
. . . . . . . . . .
5Fuel filler door 83
. . . . . . . . . . . . . . . . .
6Outside rear view mirror 102 . . . . . . .
7Door 19
. . . . . . . . . . . . . . . . . . . . . . . . . .
8Tire and wheel 323
. . . . . . . . . . . . . . . .
9Headlights 26, 346
. . . . . . . . . . . . . . . . .
10Hood 80
. . . . . . . . . . . . . . . . . . . . . . . . . .
For detailed information, refer to the description given in each section.

SVPC022
13.
PICTORIAL INDEX
xiii

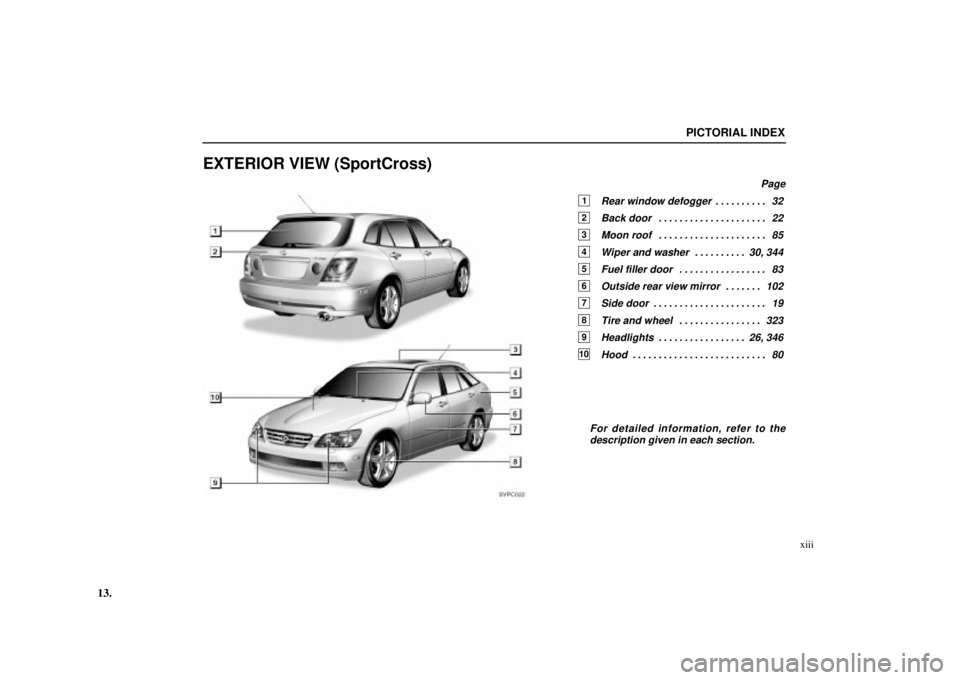

EXTERIOR VIEW (SportCross)
Page
1Rear window defogger32
. . . . . . . . . .
2Back door 22
. . . . . . . . . . . . . . . . . . . . .
3Moon roof 85
. . . . . . . . . . . . . . . . . . . . .
4Wiper and washer 30, 344
. . . . . . . . . .
5Fuel filler door 83
. . . . . . . . . . . . . . . . .
6Outside rear view mirror 102 . . . . . . .
7Side door 19
. . . . . . . . . . . . . . . . . . . . . .
8Tire and wheel 323
. . . . . . . . . . . . . . . .
9Headlights 26, 346
. . . . . . . . . . . . . . . . .
10Hood 80
. . . . . . . . . . . . . . . . . . . . . . . . . .
For detailed information, refer to the description given in each section.

BASIC OPERATION ± QUICK REFERENCE
5
4. HEADLIGHT AND TURN SIGNAL
SWITCH
SVBA013
SVBA013

HEADLIGHT SWITCHWith the ignition OFF
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Automatic light control
Headlights also turn on.
With the engine started and parking brake
released Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Headlights also turn on
at full intensity.
Automatic light control
SVBA014
SSBA011b
Right or left turn
Lane change
(Right or left) High beam
Headlight flasher

TURN SIGNAL SWITCH

KEYS AND DOORS
15
At this time, two beeps sound* and the emergency flashers
flash twice.** Together with the activation of unlocking, the
interior
light comes on for 15 seconds if the interior light switch
is in ºDOORº position.*** However, this function does not
work when the ignition key is in the ºONº position. For further
information, see ºInterior lightsº on page 55.
You have 30 seconds to open a door after using the wireless
remote unlock feature.**** If a door is not opened by then, all
the doors will be automatically locked again.
Even if the ºLOCKº or ºUNLOCKº switch is kept pressed in, the
locking or unlocking operation is not repeated. Release the
button and then push again.
NOTE: *The beep sound can be set not to sound. **The emergency flashers can be set not to flash. ***The interiorlight can be set not to come on or the duration of lighting can
be changed. ****The time before automatic re±locking can be changed. Ask your Lexus dealer for details.
Unlocking the trunk lid
SV11009

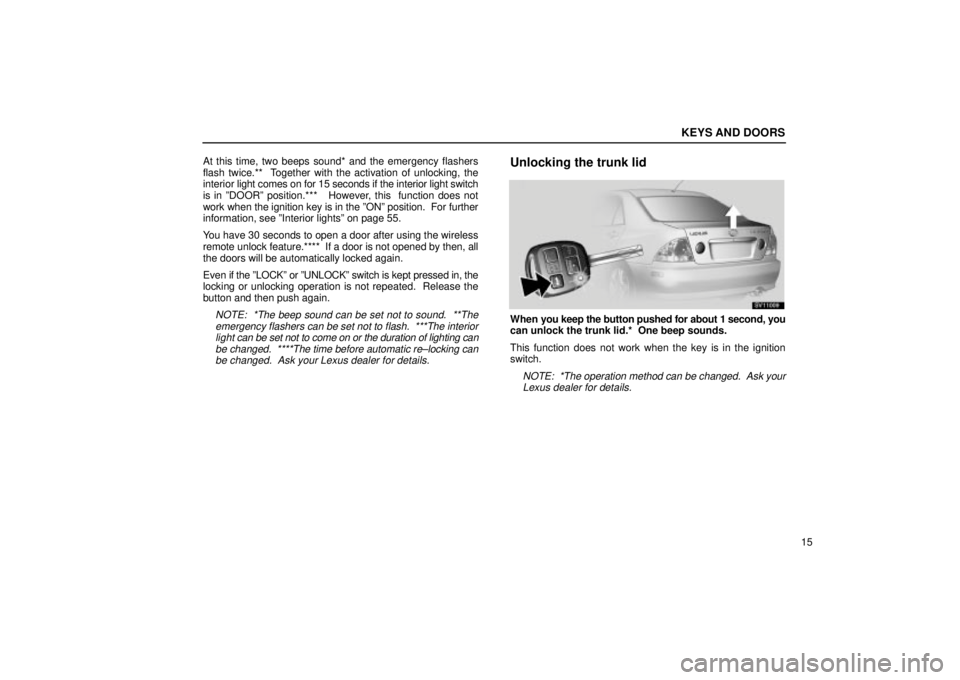

When you keep the button pushed for about 1 second, you
can unlock the trunk lid.* One beep sounds.
This function does not work when the key is in the ignition
switch.
NOTE: *The operation method can be changed. Ask your Lexus dealer for details.

KEYS AND DOORS
23
SV11023

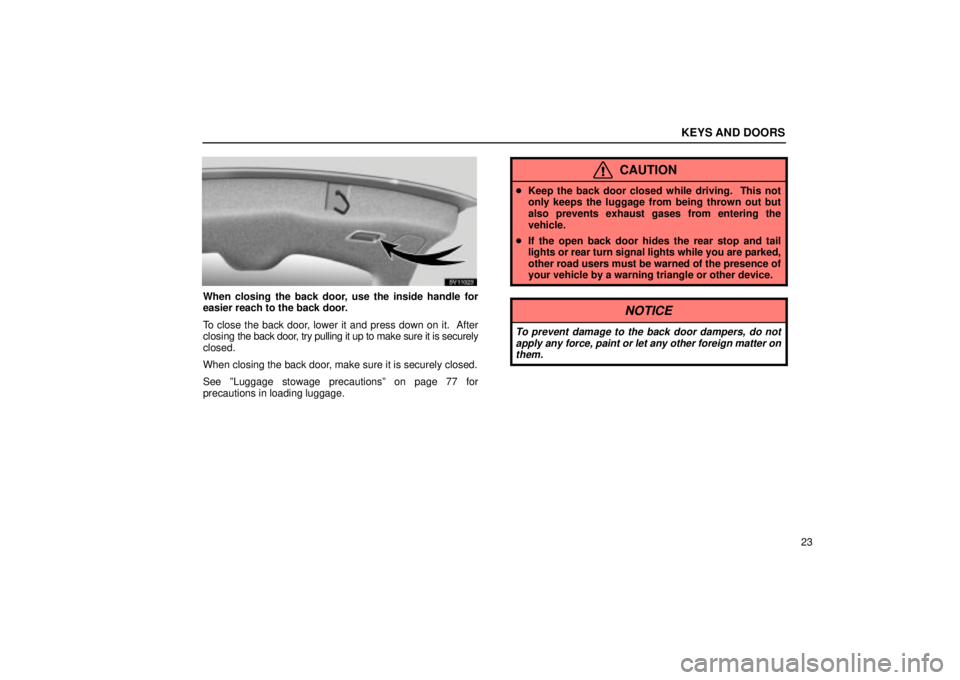

When closing the back door, use the inside handle for
easier reach to the back door.
To close the back door, lower it and press down on it. After
closing the back door, try pulling it up to make sure it is securely
closed.
When closing the back door, make sure it is securely closed.
See ºLuggage stowage precautionsº on page 77 for
precautions in loading luggage.
CAUTION
 Keep the back door closed while driving. This not
only keeps the luggage from being thrown out but
also prevents exhaust gases from entering the
vehicle.
 If the open back door hides the rear stop and tail
lights or rear turn signal lights while you are parked,
other road users must be warned of the presence of
your vehicle by a warning triangle or other device.
NOTICE
To prevent damage to the back door dampers, do not
apply any force, paint or let any other foreign matter onthem.

SWITCHES
26
HEADLIGHT SWITCH
SS12002a
To turn the lights on, twist the knob on the end of the lever.
FIRST CLICKSTOP: Only the parking, tail, license plate, side
marker and instrument panel lights turn on.
SECOND CLICKSTOP: Headlights also turn on.
THIRD CLICKSTOP (ºAUTOº): The headlights and all other
lights automatically turn on depending on the darkness of the
surroundings.*
Manually twist the knob to the second clickstop to turn on
the headlights if they are needed immediately when
entering a dark tunnel, parking structure, etc.
When the headlight switch is turned to the first or second
clickstop, the brightness of the instrument cluster will be
reduced slightly unless the instrument panel light control knob
is turned fully on.
NOTE: *The operating condition or sensitivity can be changed. Ask your Lexus dealer for details.
SV12024

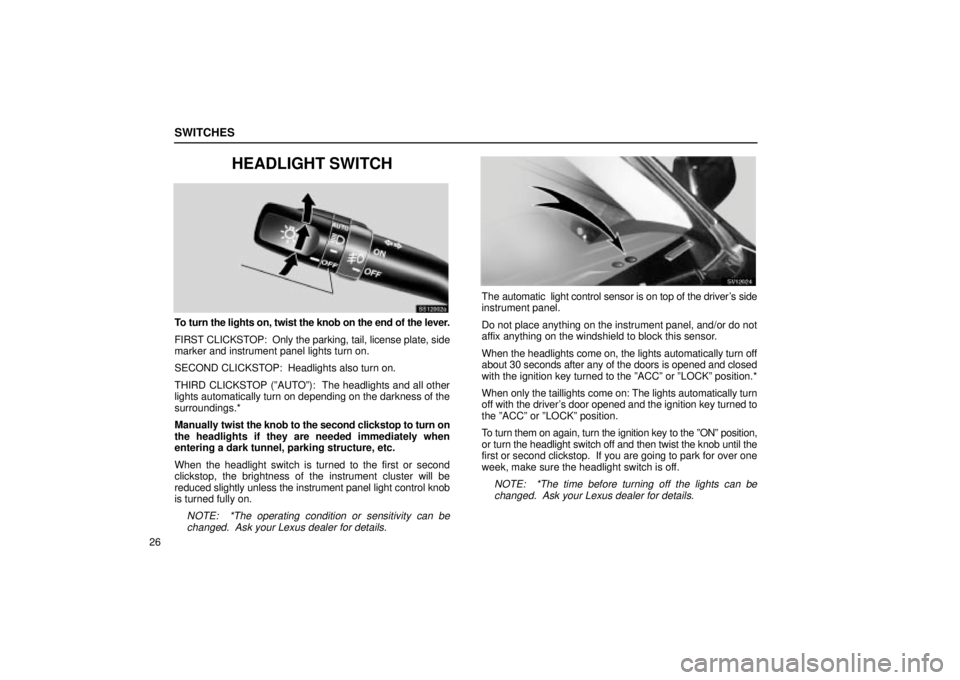

The automatic light control sensor is on top of the driver's side
instrument panel.
Do not place anything on the instrument panel, and/or do not
affix anything on the windshield to block this sensor.
When the headlights come on, the lights automatically turn off
about 30 seconds after any of the doors is opened and closed
with the ignition key turned to the ºACCº or ºLOCKº position\
.*
When only the taillights come on: The lights automatically turn
off with the driver's door opened and the ignition key turned to
the ºACCº or ºLOCKº position.
To turn them on again, turn the ignition key to the ºONº position,
or turn the headlight switch off and then twist the knob until the
first or second clickstop. If you are going to park for over one
week, make sure the headlight switch is off.
NOTE: *The time before turning off the lights can be changed. Ask your Lexus dealer for details.

SWITCHES
27
Daytime Running Light System
The headlights turn on at reduced intensity when the parking
brake is released with the engine started, even with the light
switch in the ºOFFº position. They will not go off until the
ignition switch is turned off.
To turn on the other exterior lights and instrument panel lights,
twist the knob to the first clickstop.
Twist
the knob to the second clickstop to turn on the headlights
to full intensity for driving at night.
When setting the knob to the third clickstop (ºAUTOº), the
headlights will automatically adjust to full intensity and/or turn
on the other lights depending on the darkness of the
surroundings. Likewise, as the surroundings become brighter,
the headlights will turn to reduced intensity, ultimately turning
off the other lights.
NOTICE
To prevent the battery from being discharged, do not leave the lights on longer than necessary when theengine is not running.
Automatic headlight leveling system
SV12022
As the headlight beam level is always maintained
automatically at the proper level in all loading conditions, your
headlights do not dazzle other road users.
If this system fails, the warning light in the instrument cluster
comes on. If this occurs, have your vehicle checked by Lexus
dealer.

SWITCHES
29

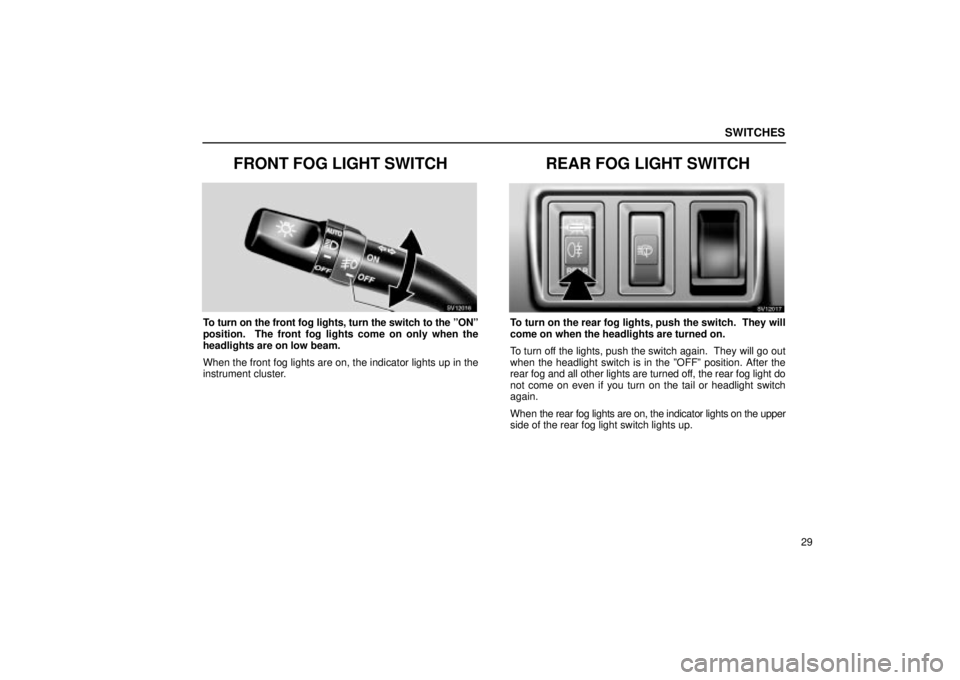

FRONT FOG LIGHT SWITCH
SV12016
To turn on the front fog lights, turn the switch to the ºONº
position. The front fog lights come on only when the
headlights are on low beam.
When the front fog lights are on, the indicator lights up in the
instrument cluster.
REAR FOG LIGHT SWITCH
SV12017
To turn on the rear fog lights, push the switch. They will
come on when the headlights are turned on.
To turn off the lights, push the switch again. They will go out
when the headlight switch is in the ºOFFº position. After the
rear fog and all other lights are turned off, the rear fog light do
not come on even if you turn on the tail or headlight switch
again.
When the rear fog lights are on, the indicator lights on the upper
side of the rear fog light switch lights up.
