PICTORIAL INDEX
xiv
EXTERIOR VIEW (Sedan)
Page
1Rear window defogger36
. . . . . . . . . .
2Trunk lid 87
. . . . . . . . . . . . . . . . . . . . . . .
3Moon roof 91
. . . . . . . . . . . . . . . . . . . . .
4Wiper and washer 34
. . . . . . . . . . . . . .
5Fuel filler door 89
. . . . . . . . . . . . . . . . .
6Outside rear view mirror 180 . . . . . . .
7Door 20
. . . . . . . . . . . . . . . . . . . . . . . . . .
8Tire and wheel 349
. . . . . . . . . . . . . . . .
9Headlights 30, 386
. . . . . . . . . . . . . . . . .
10Hood 86
. . . . . . . . . . . . . . . . . . . . . . . . . .
For detailed information, refer to the description given in each section.
03 07.09

SVPC022
15.
PICTORIAL INDEX
xv
EXTERIOR VIEW (SportCross)
Page
1Rear window defogger36
. . . . . . . . . .
2Back door 24
. . . . . . . . . . . . . . . . . . . . .
3Moon roof 91
. . . . . . . . . . . . . . . . . . . . .
4Wiper and washer 34
. . . . . . . . . . . . . .
5Fuel filler door 89
. . . . . . . . . . . . . . . . .
6Outside rear view mirror 180 . . . . . . .
7Side door 20
. . . . . . . . . . . . . . . . . . . . . .
8Tire and wheel 349
. . . . . . . . . . . . . . . .
9Headlights 30, 386
. . . . . . . . . . . . . . . . .
10Hood 86
. . . . . . . . . . . . . . . . . . . . . . . . . .
For detailed information, refer to the description given in each section.
03 07.09

INTERIOR EQUIPMENT
61
INTERIOR LIGHT
SS14003
To turn on the interior light, slide the switch.
With the switch in the ºDOORº position, the light comes on
when any door is opened. After all the doors are closed, the
light remains on for about 15 seconds and then goes out.
However, in the following cases, the light goes out
immediately:
1. All the doors are closed when the ignition key is in ºACCº
or ºONº position.
2. The ignition key is turned to ºACCº or ºONº when the light
is still on.
3. All the doors are locked when the light is still on.
4. One door is closed with the lock button pushed in while the
other doors are locked.
PERSONAL LIGHTS
SS14005

With moon roof
SS14006

Without moon roof
To turn on the personal light, push the switch. To turn it
off, push the switch again.
03 07.09

SECTION 1 - 5
85
INSTRUMENTS AND CONTROLS
Exterior equipment
Hood86
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk lid 87
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap 89
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Moon roof 91
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
03 07.09

EXTERIOR EQUIPMENT
91
MOON ROOF
SV15003

1Open 2Close
To slide open the moon roof, push the switch on the rear
side briefly. The moon roof will open and stop partway 80
mm (3.2 in.) from the fully opened position. When you
push the switch again, the moon roof will open fully. To
stop partway, push the same switch or ºTILTº switch
briefly while the moon roof is moving.
As driving with the moon roof opened fully will cause wind
throbs, we recommend you to drive with the moon roof partway
80 mm (3.2 in.) from the fully opened position.
To operate the moon roof, the ignition key must be in the ºONº
position.
The sun shade can be opened or closed manually. However,
if you open the moon roof, the sun shade will be opened with
the moon roof. To close the moon roof, push the switch on the front side.
The moon roof will fully close. To stop partway, push the
same switch or ºTILTº switch.
SS15012

1Tilt up 2Lower
To tilt up the rear end of the moon roof fully, push the
switch on the rear side or on the front side to lower it.
To operate the moon roof, the ignition key must be in the ºONº
position.
Key off operation:
Even if the ignition key is turned to the
ºACCº or ºLOCKº position, the moon roof can be operated until
either of the front doors is opened (or for about 45 seconds).
03 07.09

EXTERIOR EQUIPMENT
92
Jam protection function
During closing operation, the moon roof stops and is open if
something gets caught into the roof opening.
If the moon roof receives a strong impact, this function may
work even if nothing is caught.
CAUTION
To avoid serious personal injury, you must do the
following.
While the vehicle is moving, always keep the heads,
hands and other parts of the bodies of all occupants
away from the roof opening. Otherwise, they could
be seriously injured if the vehicle stops suddenly or
if the vehicle is involved in an accident.
 Before you close the moon roof, always make sure
there is nobody around the moon roof. You must also
make sure nobody places his or her head, hands and
other parts of the body in the roof opening. If
someone's neck, head or hands get caught in the
closing roof, it could result in a serious injury. When
anyone closes the moon roof, first make sure it is safe
to do so.
 Be sure to remove the ignition key or turn the ignition
switch to the LOCKº position when you leave your
vehicle.
Never leave anyone (particularly a small child) alone
in your vehicle, especially with the ignition key still
inserted. Otherwise, he/she could use the moon roof
switches and get trapped in the roof opening.
Unattended person (p articularly a small child) can be
involved in a serious accident.
 Never sit on top of the vehicle around the roof
opening.
 Never try jamming any part of your body to activate
the jam protection function intentionally.
 The jam protection function may not work if
something gets caught just before the moon roof
fully closed.
03 07.09

OCCUPANT RESTRAINT SYSTEMS
133
SRS SIDE AIRBAGS AND CURTAINSHIELD AIRBAGS

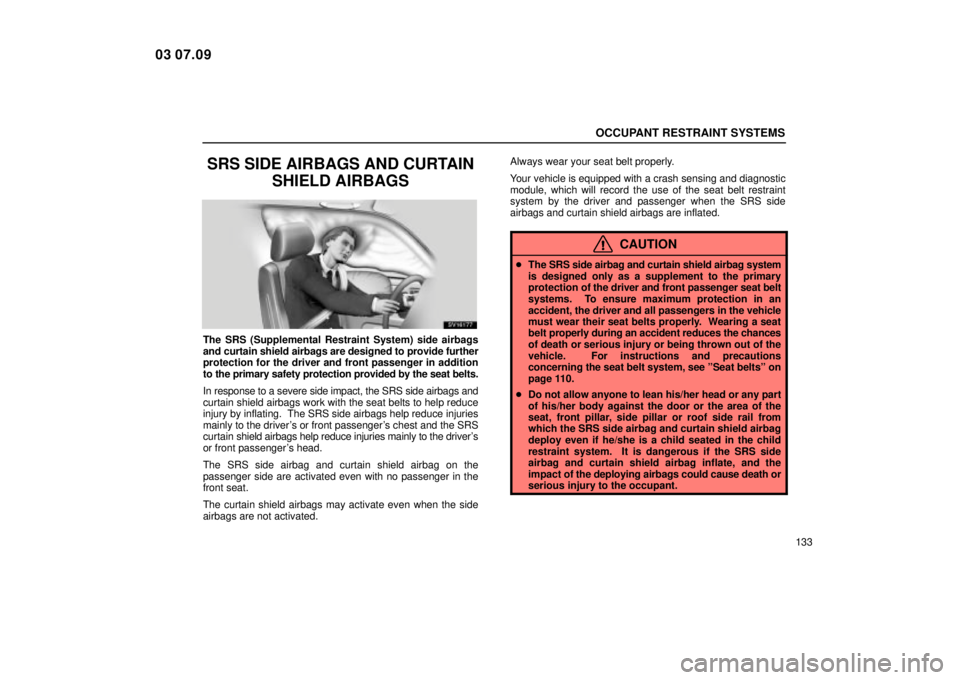

SV16177
The SRS (Supplemental Restraint System) side airbags
and curtain shield airbags are designed to provide further
protection for the driver and front passenger in addition
to the primary safety protection provided by the seat belts.
In response to a severe side impact, the SRS side airbags and
curtain shield airbags work with the seat belts to help reduce
injury by inflating. The SRS side airbags help reduce injuries
mainly to the driver's or front passenger's chest and the SRS
curtain shield airbags help reduce injuries mainly to the driver's
or front passenger's head.
The SRS side airbag and curtain shield airbag on the
passenger side are activated even with no passenger in the
front seat.
The curtain shield airbags may activate even when the side
airbags are not activated. Always wear your seat belt properly.
Your vehicle is equipped with a crash sensing and diagnostic
module, which will record the use of the seat belt restraint
system by the driver and passenger when the SRS side
airbags and curtain shield airbags are inflated.
CAUTION

The SRS side airbag and curtain shield airbag system
is designed only as a supplement to the primary
protection of the driver and front passenger seat belt
systems. To ensure maximum protection in an
accident, the driver and all passengers in the veh icle
must wear their seat belts properly. Wearing a seat
belt pro perly during an accident reduces the chances
of death or serious injury or being thrown out of the
vehicle. For instructions and precautions
concerning the seat belt system, see ºSeat beltsº on
page 110.
 Do not allow anyone to lean his/her head or any part
of his/her body against the door or the area of the
seat, front pillar, side pillar or roof side rail from
which the SRS side airbag and curtain shield airbag
deploy even if he/she is a child seated in the child
restraint system. It is dangerous if the SRS side
airbag and curtain shield airbag inflate, and the
impact of the deploying airbags could cause death or
serious injury to the occupant.
03 07.09

OCCUPANT RESTRAINT SYSTEMS
136When the airbags inflate, they produce a fairly loud noise and
release some smoke and residue along with non-toxic gas.
This
does not indicate a fire. This smoke may remain inside the
vehicle for some time, and may cause some minor irritation to
the eyes, skin or breathing. Be sure to wash off any residue as
soon as possible to prevent any potential skin irritation with
soap and water. If you can safely exit from the vehicle, you
should do so immediately.
Deployment of the airbags happens in a fraction of a second,
so the airbags must inflate with considerable force. While the
system is designed to reduce serious injuries, it may also
cause minor burns abrasions and swelling.
Front seats as well as parts of the front and rear pillars, and roof
side rail may be hot for several minutes, but the airbags
themselves will not be hot. The airbags are designed to inflate
only once.
CAUTION
SRS side airbags and curtain shield airbags inflate with
considerable force. To reduce the possibility of death
or serious injury when they inflate, the driver and front
passenger must:
 Wear their seat belts properly.
 Remain properly seated with their backs upright and
against the seats at all times.
SV16025
Do not allow anyone lean against the front door when
the vehicle is in use. When the side and curtain
shield airbag could inflate with considerable speed
and force. Otherwise, he/she may be killed or
seriously injured. Special care should be taken
especially when you have a small child in the vehicle.
 Sit up straight and well back in the seat, distributing
your weight evenly in the seat. Do not apply
excessive weight to the outer side of the seats with a
side airbag, and to the front pillar, side pillar and roof
side rail with a curtain shield airbag.
03 07.09

OCCUPANT RESTRAINT SYSTEMS
138
SV16150
Do not attach a microphone or any other device or
object around the area where the curtain shield air-
bag activates such as on the windshield glass, side
door glass, front and side pillars, roof side rail and
assist grips. When the curtain shield airbag inflates,
the microphone or other device or object will be
thrown away with great force or the curtain shield
airbag may not activate correctly, resulting in death
or serious injury.
Do not use seat accessories which cover the parts
where the side air bags inflate. Such accessories may
prevent the side airbags from activating correctly,
causing death or serious injury.
 Do not modify or replace the seats or upholstery of
the seats with side airbags. Such changes may
prevent the side airbag system from activating
correctly, disable the system or cause the side
airbags to inflate accidentally, resulting in death or
serious injury.
 Do not disassemble or repair the front and side pillars
and roof side rails containing the curtain shield
airbags. Such changes may disable the system or
cause the curtain shield airbags to inflate
accidentally, resulting in death or serious injury.
Failure to follow these instructions can result in death
or serious injury. Consult your Lexus dealer about any
repair and modification.
03 07.09

OCCUPANT RESTRAINT SYSTEMS
141

The surface of the seats with the side airbag (shaded in the
illustration) is scratched, cracked, or otherwise damaged.
 The portion of the front pillars, side pillars or roof side rail
garnishes (padding) containing the curtain shield airbags
inside (shaded in the illustration) is scratched, cracked, or otherwise damaged.
NOTICE
Do not disconnect the battery cables before contactingyour Lexus dealer.
CHILD RESTRAINT
Child restraint precautions
Lexus strongly urges the use of appropriate child
restraint systems for children.
The laws of all 50 states in the U.S.A. and Canada now require
the use of a child restraint system.
Your vehicle conforms to SAE J1819.
If a child is too large for a child restraint system, the child should
sit in the rear seat and must be restrained using the vehicle's
seat belt. See ºSeat beltsº on page 110 for details.
CAUTION
 For effective protection in automobile accidents and
sudden stops, a child must be properly restrained,
using a seat belt or child restraint system depending
on age and size of the child. Holding a child in your
arms is not a substitute for a child restraint system.
In an accident, the child can be crushed against the
windshield, or between you and the vehicle's interior.
 Lexus strongly urges use of a proper child restraint
system which conforms to the size of the child,
installed on the rear seat. According to accident
statistics, the child is safer when properly restrained
in the rear seat than in the front seat.
03 07.09
