EXTERIOR EQUIPMENT
86
HOOD
SS15001
1. To open the hood, pull the hood lock release lever
under the instrument panel. The hood will spring up
slightly.
SV15010
2. Insert your fingers under the hood, push up the
auxiliary catch lever and lift the hood.
SV15002
3. Hold the hood open by inserting the support rod into
the slot.
CAUTION
After inserting the support rod into the slot, make sure
the rod supports the hood securely from falling down on
to your head or body.
NOTICE
Be sure to return the support rod to its clip beforeclosing the hood. Closing the hood with the support rod
up could cause the hood to bend.
03 07.09

EXTERIOR EQUIPMENT
87
SS15021
In case of unlocking the support rod, lift up the hood a
little, move the support rod and unlock it as shown by the
arrow marks in the illustration.
Before closing the hood, check to see that you have not
forgotten any tools, rags, etc. and return the support rod to its
clips-this prevents rattles. Then lower the hood and make
sure it locks into place. If necessary, press down gently on the
front edge to lock it.
CAUTION
Before driving, be sure that the hood is securely locked.
Otherwise, the hood may open unexpectedly while
driving and an accident may occur.
TRUNK LID
SS15005c
To unlock the trunk lid, insert the master key and turn it
clockwise.
To close the trunk lid, lower it and press down on it. After
closing the trunk lid, try pulling it up to make sure it is securely
closed.
The trunk lid can be unlocked using the wireless remote control
key. For details, see page 16.
If you unlock the trunk lid while the theft deterrent system is in
set, the theft deterrent system will be cancelled. (For details,
see page 27.)
03 07.09

EXTERIOR EQUIPMENT
88

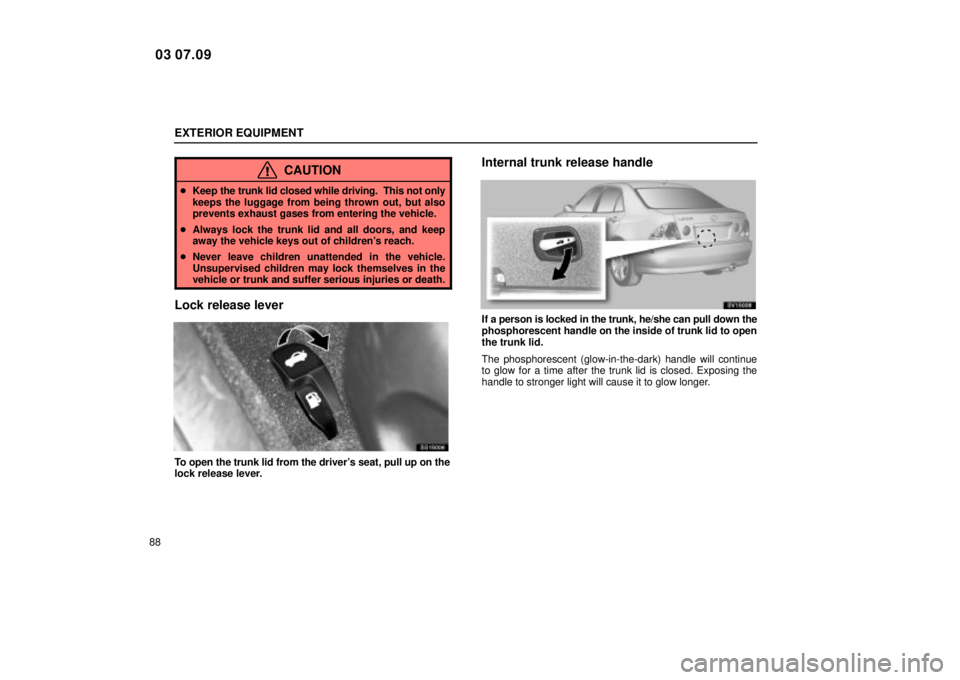

CAUTION
Keep the trunk lid closed while driving. This not only
keeps the luggage from being thrown out, but also
prevents exhaust gases from entering the vehicle.
 Always lock the trunk lid and all doors, and keep
away the vehicle keys out of children's reach.
 Never leave children unattended in the vehicle.
Unsupervised children may lock themselves in the
vehicle or trunk and suffer serious injuries or death.
Lock release lever
SS15006
To open the trunk lid from the driver's seat, pull up on the
lock release lever.
Internal trunk release handle
SV15008
If a person is locked in the trunk, he/she can pull down the
phosphorescent handle on the inside of trunk lid to open
the trunk lid.
The phosphorescent (glow-in-the-dark) handle will continue
to glow for a time after the trunk lid is closed. Exposing the
handle to stronger light will cause it to glow longer.
03 07.09

EXTERIOR EQUIPMENT
89
Luggage security system
SS15013
After closing the trunk lid, insert the master key and turn
it counterclockwise to deactivate the lock release lever.
At this time, the trunk lid can be opened only by the
phosphorescent handle lever inside the trunk.
FUEL TANK CAP
SS15008
1. To open the fuel filler door, pull the lever up.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or allow open flames
when refueling. The fumes are flammable.
 When opening the cap, do not remove the cap
quickly. In hot weather, fuel under pressure could
cause injury by spraying out of the filler neck if the
cap is suddenly removed.
03 07.09

EXTERIOR EQUIPMENT
90
SV15011a
2. To remove the fuel tank cap, turn the cap slowly
counterclockwise, then pause slightly before removing it.
The removed cap can be stored on the back side of the fuel
filler door.
It is not unusual to hear a slight swoosh when the cap is
opened. When installing the cap, turn the cap clockwise until
you hear a click.
If the cap is not tightened securely, the malfunction indicator
lamp comes on. Make sure the cap is tightened securely.
The indicator lamp goes off after driving several times. If the
indicator lamp does not go off, contact your Lexus dealer as
soon as possible.
CAUTION
 Make sure the cap is tightened securely to prevent
fuel spillage in the event of an accident.
 Use only a genuine Lexus fuel tank cap for
replacement. It is designed to regulate fuel tank
pressure.
Refueling the vehicle
As soon as the correctly operated nozzle switches off
automatically for the first time, the tank is full. Do not try
to add more fuel, because fuel may spill out.
03 07.09

EXTERIOR EQUIPMENT
91
MOON ROOF
SV15003

1Open 2Close
To slide open the moon roof, push the switch on the rear
side briefly. The moon roof will open and stop partway 80
mm (3.2 in.) from the fully opened position. When you
push the switch again, the moon roof will open fully. To
stop partway, push the same switch or ºTILTº switch
briefly while the moon roof is moving.
As driving with the moon roof opened fully will cause wind
throbs, we recommend you to drive with the moon roof partway
80 mm (3.2 in.) from the fully opened position.
To operate the moon roof, the ignition key must be in the ºONº
position.
The sun shade can be opened or closed manually. However,
if you open the moon roof, the sun shade will be opened with
the moon roof. To close the moon roof, push the switch on the front side.
The moon roof will fully close. To stop partway, push the
same switch or ºTILTº switch.
SS15012

1Tilt up 2Lower
To tilt up the rear end of the moon roof fully, push the
switch on the rear side or on the front side to lower it.
To operate the moon roof, the ignition key must be in the ºONº
position.
Key off operation:
Even if the ignition key is turned to the
ºACCº or ºLOCKº position, the moon roof can be operated until
either of the front doors is opened (or for about 45 seconds).
03 07.09

EXTERIOR EQUIPMENT
92
Jam protection function
During closing operation, the moon roof stops and is open if
something gets caught into the roof opening.
If the moon roof receives a strong impact, this function may
work even if nothing is caught.

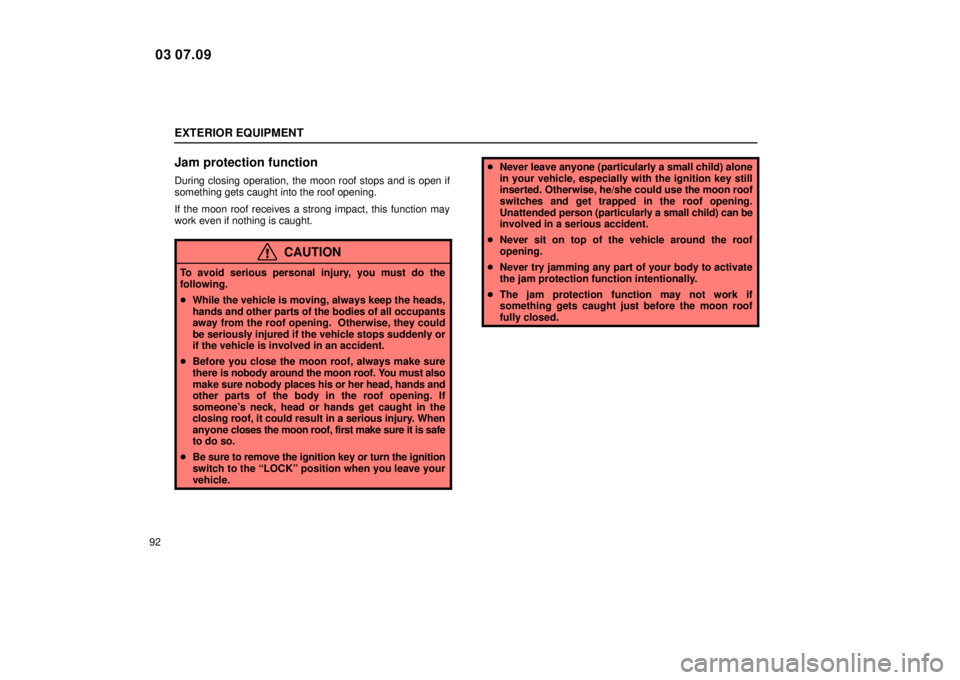

CAUTION
To avoid serious personal injury, you must do the
following.
While the vehicle is moving, always keep the heads,
hands and other parts of the bodies of all occupants
away from the roof opening. Otherwise, they could
be seriously injured if the vehicle stops suddenly or
if the vehicle is involved in an accident.
 Before you close the moon roof, always make sure
there is nobody around the moon roof. You must also
make sure nobody places his or her head, hands and
other parts of the body in the roof opening. If
someone's neck, head or hands get caught in the
closing roof, it could result in a serious injury. When
anyone closes the moon roof, first make sure it is safe
to do so.
 Be sure to remove the ignition key or turn the ignition
switch to the LOCKº position when you leave your
vehicle.
Never leave anyone (particularly a small child) alone
in your vehicle, especially with the ignition key still
inserted. Otherwise, he/she could use the moon roof
switches and get trapped in the roof opening.
Unattended person (p articularly a small child) can be
involved in a serious accident.
 Never sit on top of the vehicle around the roof
opening.
 Never try jamming any part of your body to activate
the jam protection function intentionally.
 The jam protection function may not work if
something gets caught just before the moon roof
fully closed.
03 07.09

SECTION 1 - 6
93
INSTRUMENTS AND CONTROLS
Occupant restraint systems
Seats94
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front seats 94
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fold-down rear seats 105
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk storage extension 107
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . .
Armrests 108
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Head restraints 109
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat belts 11 0
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SRS driver airbag and front passenger airbag 124
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
SRS side airbags and curtain shield airbags 133
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Child restraint 141
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Driving position memory system 176
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
03 07.09

OCCUPANT RESTRAINT SYSTEMS
94

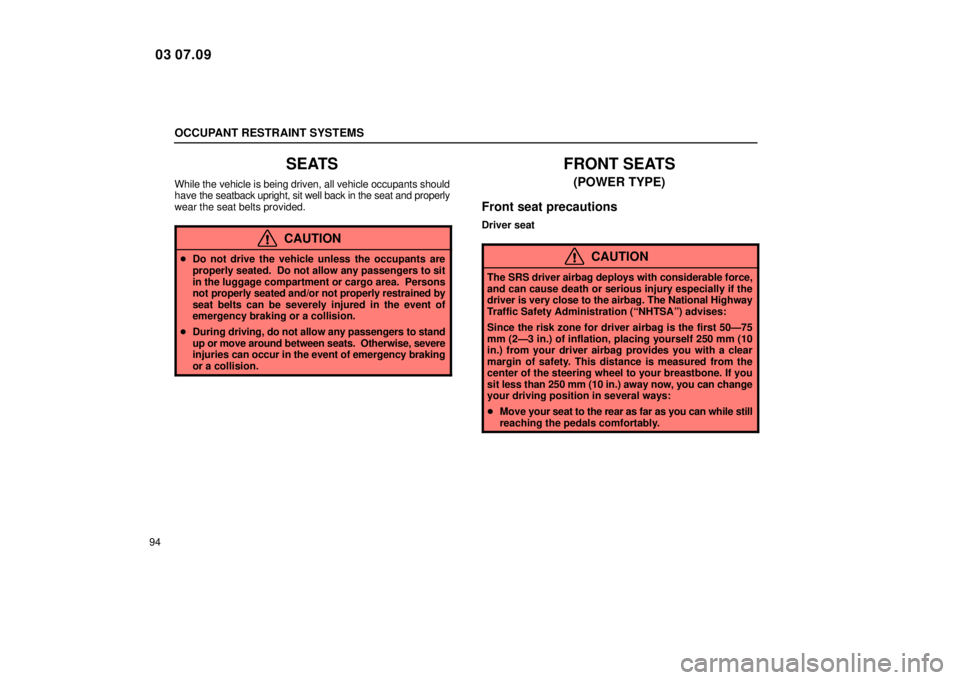

SEATS
While the vehicle is being driven, all vehicle occupants should
have the seatback upright, sit well back in the seat and properly
wear the seat belts provided.
CAUTION
Do not drive the vehicle unless the occupants are
properly seated. Do not allow any passengers to sit
in the luggage compartment or cargo area. Persons
not properly seated and/or not properly restrained by
seat belts can be severely injured in the event of
emergency braking or a collision.
 During driving, do not allow any passengers to stand
up or move around between seats. Otherwise, severe
injuries can occur in the event of emergency braking
or a collision.
FRONT SEATS
(POWER TYPE)
Front seat precautions
Driver seat
CAUTION
The SRS driver airbag deploys with considerable force,
and can cause death or serious injury especially if the
driver is very close to the airbag. The National Highway
Traffic Safety Administration (NHTSAº) advises:
Since the risk zone for driver airbag is the first 50Ð75
mm (2Ð3 in.) of inflation, placing yourself 250 mm (10
in.) from your driver airbag provides you with a clear
margin of safety. This distance is measured from the
center of the steering wheel to your breastbone. If you
sit less than 250 mm (10 in.) away now, you can change
your driving position in several ways:
 Move your seat to the rear as far as you can while still
reaching the pedals comfortably.
03 07.09

OCCUPANT RESTRAINT SYSTEMS
95

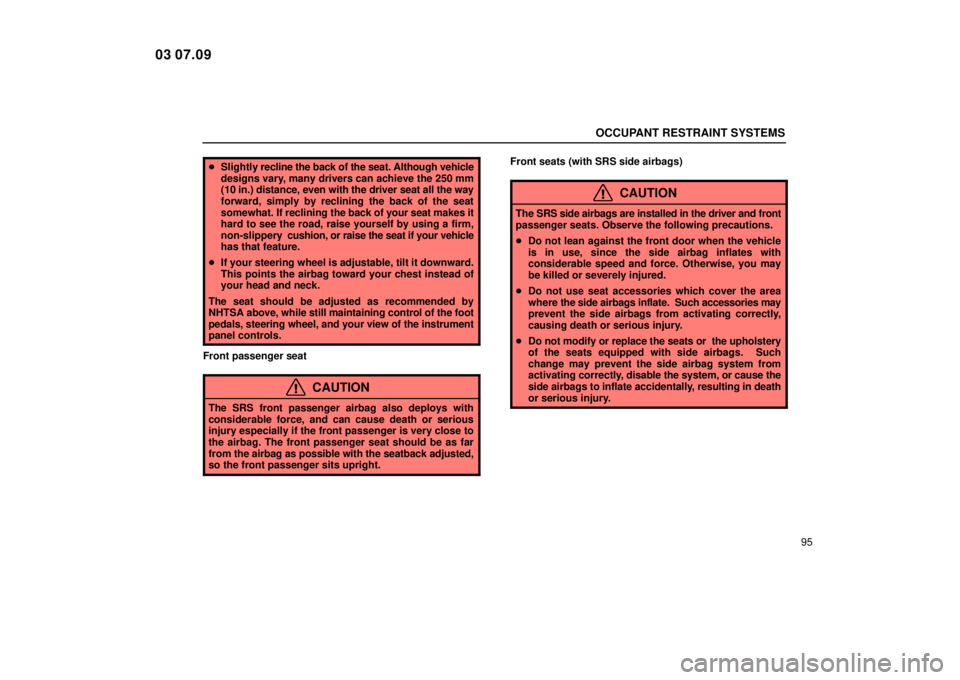

Slightly recline the back of the seat. Although vehicle
designs vary, many drivers can achieve the 250 mm
(10 in.) distance, even with the driver seat all the way
forward, simply by reclining the back of the seat
somewhat. If reclining the back of your seat makes it
hard to see the road, raise yourself by using a firm,
non-slippery cushion, or raise the seat if your vehicle
has that feature.
 If your steering wheel is adjustable, tilt it downward.
This points the airbag toward your chest instead of
your head and neck.
The seat should be adjusted as recommended by
NHTSA above, while still maintaining control of the foot
pedals, steering wheel, and your view of the instrument
panel controls.
Front passenger seat
CAUTION
The SRS front passenger airbag also deploys with
considerable force, and can cause death or serious
injury especially if the front passenger is very close to
the airbag. The front passenger seat should be as far
from the airbag as possible with the seatback adjusted,
so the front passenger sits upright.
Front seats (with SRS side airbags)
CAUTION
The SRS side airbags are installed in the driver and front
passenger seats. Observe the following precautions.
 Do not lean against the front door when the vehicle
is in use, since the side airbag inflates with
considerable speed and force. Otherwise, you may
be killed or severely injured.
 Do not use seat accessories which cover the area
where the side airbags inflate. Such accessories may
prevent the side airbags from activating correctly,
causing death or serious injury.
 Do not modify or replace the seats or the upholstery
of the seats equipped with side airbags. Such
change may prevent the side airbag system from
activating correctly, disable the system, or cause the
side airbags to inflate accidentally, res ulting in death
or serious injury.
03 07.09
