INTRODUCTION
316

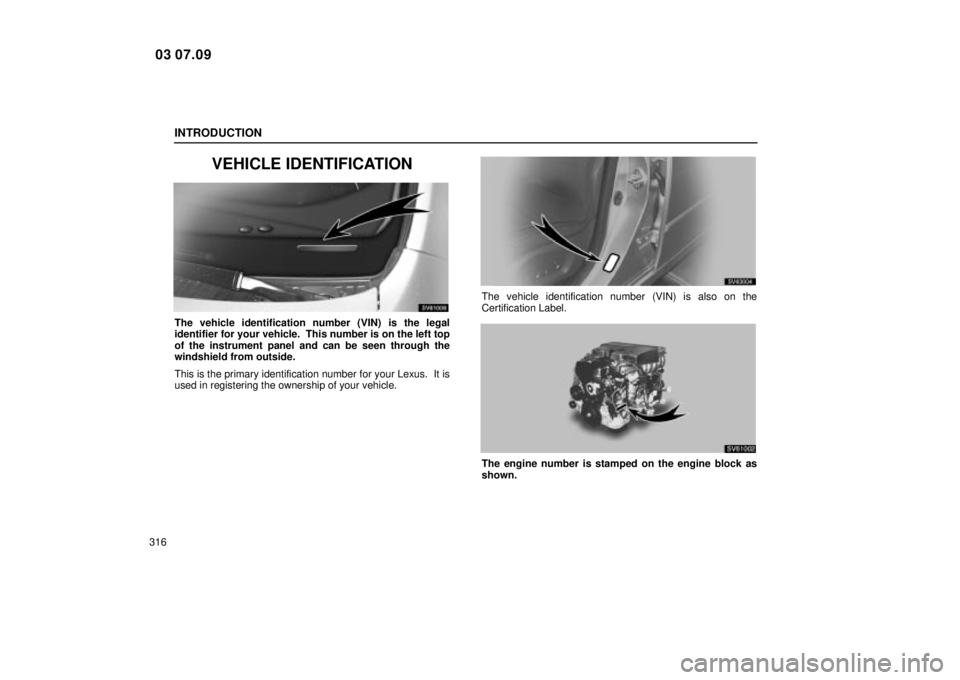

VEHICLE IDENTIFICATION
SV61008
The vehicle identification number (VIN) is the legal
identifier for your vehicle. This number is on the left top
of the instrument panel and can be seen through the
windshield from outside.
This is the primary identification number for your Lexus. It is
used in registering the ownership of your vehicle.
SV63004
The vehicle identification number (VIN) is also on the
Certification Label.
SV61002
The engine number is stamped on the engine block as
shown.
03 07.09

INTRODUCTION
317

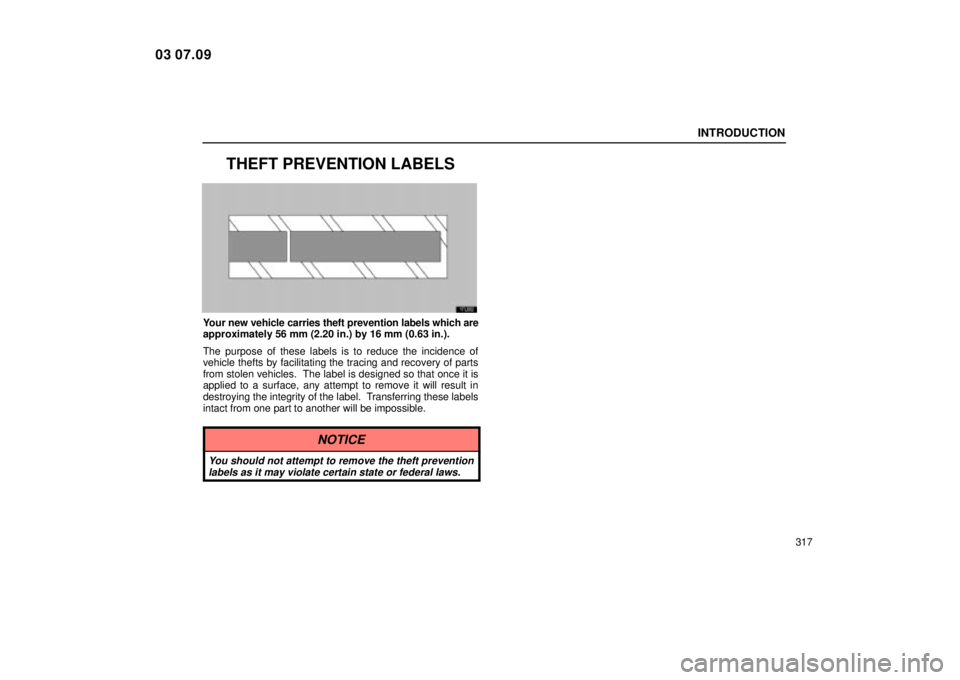

THEFT PREVENTION LABELS
17L002
Your new vehicle carries theft prevention labels which are
approximately 56 mm (2.20 in.) by 16 mm (0.63 in.).
The purpose of these labels is to reduce the incidence of
vehicle thefts by facilitating the tracing and recovery of parts
from stolen vehicles. The label is designed so that once it is
applied to a surface, any attempt to remove it will result in
destroying the integrity of the label. Transferring these labels
intact from one part to another will be impossible.
NOTICE
You should not attempt to remove the theft preventionlabels as it may violate certain state or federal laws.
03 07.09

INTRODUCTION
318
ENGINE COMPARTMENT OVERVIEW
1Battery
2Fuse box
3Engine oil filler cap
4Engine oil leveldipstick
5Brake fluid reservoir
6Washer fluid tank
7Power steering fluidreservoir
8Engine coolantreservoir
9Electric cooling fans
10Condenser
11Radiator
03 07.09
SV61007a

INTRODUCTION
319
DO-IT-YOURSELF SERVICEPRECAUTIONS
If you perform maintenance yourself, be sure to follow the
correct procedure given in this Section.
You should be aware that improper or incomplete servicing
may result in operating problems.
Performing do-it-yourself maintenance during the warranty
period may affect your warranty coverage. Read the separate
Lexus Warranty statement for details and suggestions.
This Section gives instructions only for those items that are
relatively easy for an owner to perform. As explained in
Section 5, there are still a number of items that must be
performed by a qualified technician with special tools.
For information on tools and parts for do-it-yourself
maintenance, see ºParts and toolsº on page 320.
Utmost care should be taken when working on your vehicle to
prevent accidental injury. Here are a few precautions that you
should be especially careful to observe:
CAUTION

When the engine is running, keep hands, clothing,
and tools away from the moving fan and engine drive
belt. (Removing rings, watches, and ties is
advisable.)

Right after driving, the engine compartment - the
engine, radiator, exhaust manifold and power
steering fluid reservoir, etc. - will be hot. So be
careful not to touch them. Oil and other fluids may
also be hot.

Do not smoke, cause sparks or allow open flames
around fuel or the battery. Their fumes are
flammable.

Do not get under your vehicle with just the body jack
supporting it. Always use automotive jack stands or
other solid supports.

Be sure the ignition is off if you work near the electric
cooling fan or radiator grille. With the ignition on, the
electric cooling fan may automatically start to run if
the air conditioning is on and/or if the coolant
temperature is high.

Use eye protection whenever you work on or under
your vehicle where you may be exposed to flying or
falling material, fluid spray, etc.

Be extremely cautious when working on the battery.
It contains poisonous and corrosive sulfuric acid.
03 07.09

INTRODUCTION
320
NOTICE

Remember that battery and ignition cables carry high
currents or voltages. Be careful of accidentally causing a short circuit.

Before closing the engine hood, check to see that you
have not forgotten any tools, rags, etc.

Do not drive with the air cleaner removed, or excessive engine wear could result. Also backfiringcould cause a fire in the engine compartment.

Do not overfill automatic transmission fluid, or thetransmission could be damaged.

Be careful not to scratch the glass surface with thewiper frame.
PARTS AND TOOLS
Here is a list of parts and tools you will need to perform
do-it-yourself maintenance. Remember all Lexus parts are
designed in metric sizes, so your tools must be metric.
CHECKING THE ENGINE OIL LEVEL
Parts (if level is low):

ºToyota Genuine Motor Oilº or equivalent
Oil grade: API grade SL ºEnergy-Conservingº or ILSAC
multigrade engine oil. For recommended oil viscosity, see page 335.
Tools:

Rag or paper towel

Funnel (only for adding oil)
CHECKING THE ENGINE COOLANT LEVEL
Parts (if level is low):

Toyota Super Long Life Coolantº or similar high quality
ethylene glycol based non-silicate, non-amine, non-nitrite,
and non-borate coolant with long-life hybrid organic acid technology.
Toyota Super Long Life Coolantº is pre-mixed with 50% coolant and 50% deionized water.
Tools:

Funnel (only for adding coolant)
03 07.09

INTRODUCTION
321
CHECKING BRAKE FLUID
Parts (if level is low):

FMVSS No. 116 DOT 3 or SAE J1703 brake fluid
Tools:

Funnel (only for adding fluid)
CHECKING POWER STEERING FLUID
Parts (if level is low):

Automatic transmission fluid DEXRON
II or III
Tools:

Rag or paper towel

Funnel (only for adding fluid)
CHECKING BATTERY CONDITION
Tools:

Warm water

Baking soda

Grease

Conventional wrench (for terminal clamp bolts)
CHECKING AND REPLACING THE BLADE
TYPE FUSES
Parts (if replacement is necessary):

Fuse with same amperage rating as original
CHECKING THE CARTRIDGE TYPE FUSES
Parts (if replacement is necessary):

Genuine Lexus fuse or equivalent with same amperage
rating as original
ADDING WASHER FLUID
Parts:

Water

Washer fluid containing antifreeze (for winter use)
Tools:

Funnel
03 07.09

INTRODUCTION
322

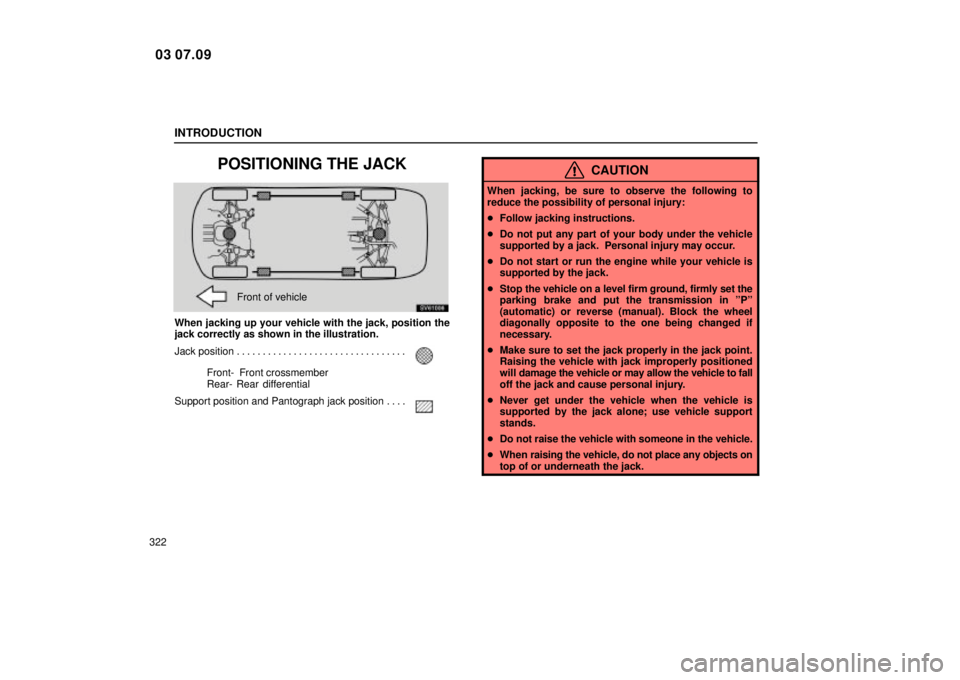

POSITIONING THE JACK
SV61006
Front of vehicle
When jacking up your vehicle with the jack, position the
jack correctly as shown in the illustration.
Jack position
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front- Front crossmember
Rear- Rear differential
Support position and Pantograph jack position
. . . .
CAUTION
When jacking, be sure to observe the following to
reduce the possibility of personal injury:

Follow jacking instructions.

Do not put any part of your body under the vehicle
supported by a jack. Personal injury may occur.

Do not start or run the engine while your vehicle is
supported by the jack.

Stop the vehicle on a level firm ground, firmly set the
parking brake and put the transmission in ºPº
(automatic) or reverse (manual). Block the wheel
diagonally opposite to the one being changed if
necessary.

Make sure to set the jack properly in the jack point.
Raising the vehicle with jack improperly positioned
will damage the vehicle or may allow the vehicle to fall
off the jack and cause personal injury.

Never get under the vehicle when the vehicle is
supported by the jack alone; use vehicle support
stands.

Do not raise the vehicle with someone in the vehicle.

When ra ising the vehicle, do not place any objects on
top of or underneath the jack.
03 07.09

INTRODUCTION
323
NOTICE
Make sure to place the jack correctly, or your vehiclemay be damaged.
03 07.09

INTRODUCTION
324
03 07.09

SECTION 6 - 2
325
SERVICE PROCEDURES AND
SPECIFICATIONS
Engine
Specifications326
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel 329
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel pump shut off system 331
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . .
Facts about engine oil consumption 331
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . .
Used engine oil 333
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the engine oil level 333
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . .
Checking the engine coolant level 337
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . .
Checking the radiator and condenser 338
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Spark plugs 338
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
