ENGINE
326
SPECIFICATIONS
- GENERALModel
2JZ-GE
Type6 cylinder in line, 4 cycle, gasoline
Bore and stroke86.0 X 86.0 mm (3.39 X 3.39 in.)
Displacement2997 cm3 (182.9 cu.in.)
Valve clearance (engine cold) Intake
Exhaust0.15 - 0.25 mm (0.006 - 0.010 in.)
0.25 - 0.35 mm (0.010 - 0.014 in.)
Drive belt tensionAutomatic adjustment
03 07.09

ENGINE
327
- LUBRICATION SYSTEM
Oil capacity Drain and refillwith filter
without filter
5.4 L (5.7 qt., 4.8 lmp.qt.)
5.1 L (5.4 qt., 4.5 lmp.qt.)
Oil gradeAPI grade SL ºEnergy-Conservingº or ILSAC multigrade engine oil

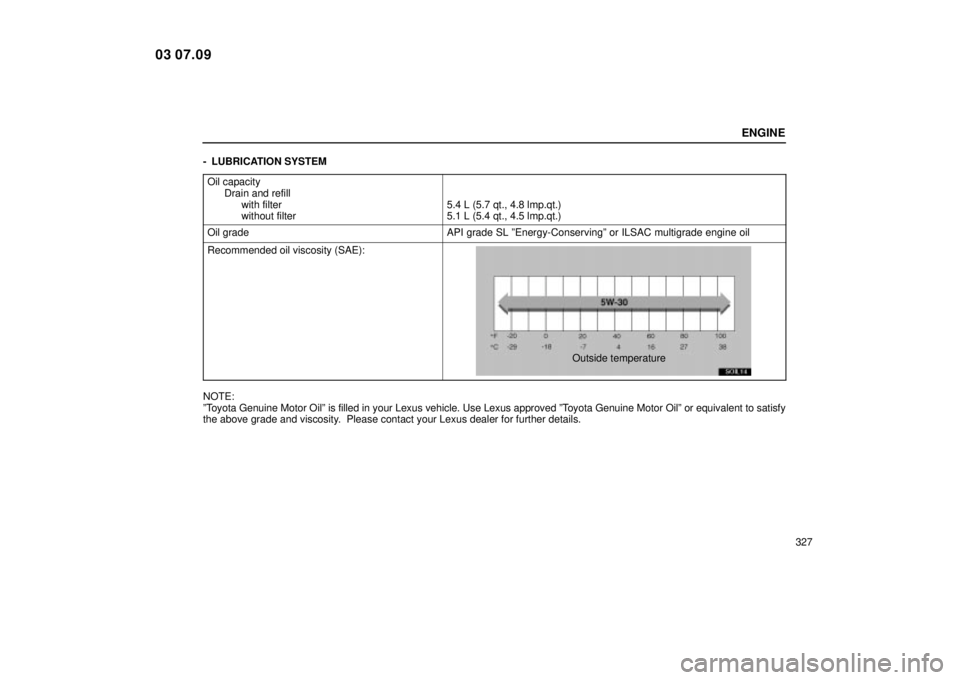

Recommended oil viscosity (SAE):
62L005-1S
OIL14
Outside temperature
NOTE:
ºToyota Genuine Motor Oilº is filled in your Lexus vehicle. Use Lexus a\
pproved ºToyota Genuine Motor Oilº or equivalent to sati sfy
the above grade and viscosity. Please contact your Lexus dealer for further details.
03 07.09

ENGINE
328- COOLING SYSTEM
Capacity
7.5 L (7.9 qt., 6.6 lmp.qt.)
Coolant typeºToyota Super Long Life Coolantº or similar high quality ethylene glyc\
ol
based non-silicate, non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology
Do not use plain water alone.
NOTE:
ºToyota Super Long Life Coolantº is filled in your Lexus vehicle at fac\
tory fill. In order to avoid technical problems, only us e Toyota
Super Long Life Coolantº or similar high quality ethylene glycol base\
d non-silicate, non-amine, non-nitrite, and non-borate coo lant
with long-life hybrid organic acid technology. Please contact your Lexus dealer for further details.
- FUEL
Fuel type
Only UNLEADED
Octane rating91 (Research octane number 96) or higher
- IGNITION SYSTEMSpark plug - Make DENSO - Gap
SK16R-P1 1
1.1 mm (0.043 in.)
- ELECTRICAL SYSTEM
Battery - Open voltage at 20 C (68F):
Charging rates
12.7 V Fully charged
12.3 V Half charged
11.9 V Discharged
[Voltage that is checked 20 minutes after the key is removed with all the
lights turned off]
5A max.
03 07.09

ENGINE
329
FUEL
Fuel type
Your vehicle must use only unleaded gasoline.
To help prevent gas station mixups, your Lexus has a smaller
fuel tank opening. The special nozzle on pumps with unleaded
fuel will fit it, but the larger standard nozzle on pumps with
leaded gas will not.
At a minimum, the gasoline you use should meet the
specifications of ASTM D4814 in the U.S.A. and CGSB
3.5-M93 in Canada.
NOTICE
Do not use leaded gasoline. Use of leaded gasoline will cause the three-way catalytic converter to lose itseffectiveness and the emission control system tofunction improperly. Also, this can increasemaintenance costs.
Octane rating
Select premium unleaded gasoline with an Octane Rating
of 91 (Research Octane Number 96) or higher for optimum
engine performance. However, if such premium type
cannot be obtained, you may temporarily use unleaded
gasoline with an Octane Rating as low as 87 (Research
Octane Number 91). Use of unleaded fuel with an octane number or rating lower
than stated above will cause persistent heavy knocking. If
severe, this will lead to engine damage.
If your engine knocks ...
If you detect heavy knocking even when using the
recommended fuel, or if you hear steady knocking while
holding a steady speed on level roads, consult your Lexus
dealer.
However, occasionally, you may notice light knocking for a
short time while accelerating or driving up hills. This is normal
and there is no need for concern.
Gasoline containing detergent additives
Lexus recommends the use of gasoline that contains
detergent additives to avoid build-up of engine deposits.
However, all gasoline sold in the U.S. contains detergent
additives to keep clean and/or clean intake systems.
Quality gasoline
Automotive manufacturers in the U.S., Europe and Japan
have developed a specification for quality fuel named
World-W ide Fuel Charter (WWFC) that is expected to be
applied world wide. The WWFC consists of four
categories
that depend on required emission levels. In the
U.S., category 3 has been adopted. The WWFC improves
air quality by providing for better emissions in vehicle
fleets, and customer satisfaction through better vehicle
performance.
03 07.09

ENGINE
330
Cleaner burning gasoline
Cleaner burning gasoline, including reformulated
gasoline that contains oxygenates such as ethanol or
MTBE is available in many areas.
Lexus recommends the use of cleaner burning gasoline and
appropriately blended reformulated gasoline. These types of
gasoline provide excellent vehicle performance, reduce
vehicle emissions, and improve air quality.
Oxygenates in gasoline
Lexus allows the use of oxygenate blended gasoline
where the oxygenate content is up to 10% ethanol or 15%
MTBE. If you use gasohol in your Lexus, be sure that it has
an octane rating no lower than 87.
Lexus does not recommend the use of gasoline containing
methanol.
Gasoline containing MMT
Some gasoline contain an octane enhancing additive
called MMT (Methylcyclopentadienyl Manganese
Tricarbonyl).
Lexus does not recommend the use of gasoline that contains
MMT. If fuel containing MMT is used, your emission control
system may be adversely affected. The Malfunction Indicator
Lamp on the instrument cluster may come on. If this happens,
contact your Lexus dealer for service.
Gasoline quality
In a very few cases, you may experience driveability problems
caused by the particular gasoline that you are using. If you
continue to have unacceptable driveability, try changing
gasoline brands. If this does not rectify your problem, then
consult your Lexus dealer.
NOTICE
Do not use gasohol other than stated above. It will cause fuel system damage or vehicle performanceproblems.
If driveability problems are encountered (poor hotstarting, vaporizing, engine knock, etc.), discontinueits use.
Take care not to spill gasohol during refueling.Gasohol may cause paint damage.
Fuel tank capacity
66 L (17.5 gal., 14.5 lmp.gal.)
03 07.09

ENGINE
331
FUEL PUMP SHUT OFF SYSTEM
The fuel pump shut off system stops supplying fuel to the
engine to minimize the risk of fuel leakage when the engine
stalls or an airbag inflates upon collision. To restart the engine
after the fuel pump shut off system activates, turn the ignition
switch to ºACCº or ºLOCKº once and start it.
CAUTION
Inspect the ground under the vehicle before restarting
the engine. If you find that liquid has leaked onto the
ground, it is the fuel system has been damaged and it is
in need of repair. In this case, do not restart the engine.
FACTS ABOUT ENGINE OILCONSUMPTION
Functions of engine oil
Engine oil has the primary function of lubricating and cooling
the inside of the engine, and plays a major role in maintaining
the engine in proper working order.
Engine oil consumption
It is normal that an engine should consume some engine
oil during normal engine operation. The causes of oil
consumption in a normal engine are as follows.
Oil is used to lubricate pistons, piston rings and cylinders.
A thin film of oil is left on the cylinder wall when a piston
moves downwards in the cylinder. High negative pressure
generated when the vehicle is decelerating sucks some of
this oil into the combustion chamber. This oil as well as
some part of the oil film left on the cylinder wall is burned by
the high temperature combustion gases during the combustion process.
 Oil is also used to lubricate the stems of the intake valves.
Some of this oil is sucked into the combustion chamber
together with the intake air and is burned along with the fuel.
High temperature exhaust gases also burn the oil used to lubricate the exhaust valve stems.
03 07.09

ENGINE
332The amount of engine oil consumed depends on the
viscosity of the oil, the quality of the oil and the way the
vehicle is driven.
More oil is consumed under driving conditions such as high
speeds and frequent acceleration and deceleration.
A new engine consumes more oil, since its pistons, piston rings
and cylinder walls have not become conditioned.
Oil consumption:
Max. 1.0L per 1000 km (1.1 qts./600 miles,
0.9 Imp. qts./600 miles)
When judging the amount of oil consumption, keep in
mind that the oil may have become diluted, making it
difficult to judge the true level accurately.
For example, if a vehicle is used for repeated short trips and
consumes a normal amount of oil, the dipstick may not show
any drop in the oil level at all, even after 1000 km (600 miles)
or more. This is because the oil is gradually becoming diluted
with fuel or moisture, making it appear that the oil level has not
changed.
The diluting ingredients evaporate out when the vehicle is then
driven at high speeds, as on an expressway, making it appear
that oil is excessively consumed after driving at high speeds.
Importance of engine oil level check
One of the most important points in proper vehicle
maintenance is to keep the engine oil at the optimum level so
that oil function will not be impaired. Therefore, it is essential
that the oil level be checked regularly. Lexus recommends that
the oil level be checked every time you refuel the vehicle.
NOTICE
Failure to check the oil level regularly could lead to serious engine trouble due to insufficient oil.
For detailed information on oil level check, see ºChecking the
engine oil levelº on page 333.
03 07.09

ENGINE
333
USED ENGINE OIL
CAUTION
Used engine oil contains potentially harmful
contaminants which may cause skin disorders such
as inflammation or skin cancer, so care should be
taken to avoid prolonged and repeated contact with
it. To remove used engine oil from your skin, wash
thoroughly with soap and water.
 Do not leave used oil within the reach of children.
 Dispose of used oil and used oil filters only in a safe
and acceptable manner. Do not dispose of used oil
and used oil filters in household trash, in sewers or
onto the ground. Call your Lexus dealer or a service
station for information concerning recycling or
disposal.
CHECKING THE ENGINE OIL LEVEL
SV62004
With the engine at operating temperature and turned off,
check the oil level on the dipstick.
1. To get a true reading, the vehicle should be on a level
ground. After turning off the engine, wait a few minutes for the
oil to drain back into the bottom of the engine.
2. Pull the dipstick out, hold a rag under the end and wipe it
clean.
3. Reinsert the dipstick and push it in as far as it will go, or the
reading will not be correct.
03 07.09

ENGINE
334
SV62002

1Add oil 2O.K. 3Too full
4. Pull the dipstick out and look at the oil level while holding a
rag under the end. If it is between the low level mark ( 4 ) and
the full level mark ( 5 ), it is O.K.
NOTICE
Be careful not to drop the engine oil on the vehicle
components.
SV62008
If the oil level is below or only slightly above the low level
mark, add engine oil of the same type as already in the
engine.
Remove the oil filler cap and add engine oil a little at a time,
checking the dipstick. We recommend that you use a funnel
when adding oil.
The approximate quantity of oil needed to fill between the low
level mark and the full level mark on the dipstick is indicated
below for reference.
When the level reaches within the correct range, return the
filler cap and turn the cap clockwise until you hear a click.
Oil quantity. L (qt., lmp. qt.) 1.8 (1.9, 1.6)
03 07.09

ENGINE
335
NOTICE
Be careful not to spill the engine oil on the vehiclecomponents.
Avoid overfilling, or the engine could be damaged.Check the oil level on the dipstick once again afteradding the oil.
Engine oil selection
ºToyota Genuine Motor Oilº is filled in your Lexus vehicle. Use
Lexus approved ºToyota Genuine Motor Oilº or equivalent to
satisfy the following grade and viscosity.
Oil grade:
API grade SL ºEnergy-Conservingº or ILSAC multigrade
engine oil.
Recommended viscosity (SAE):
SOIL14
Outside temperature
SAE 5W-30 is the best choice for good fuel economy, and
good starting in cold weather.
If SAE 5W-30 oil is not available, SAE 10W-30 oil may be
used. However, it should be replaced with SAE 5W-30 at
the next oil change.
03 07.09
