Lexus IS300 2004  Electrical Components / LEXUS 2004 IS300 OWNERS MANUAL (OM53461U) ELECTRICAL COMPONENTS
377
No.FUSEAMPERECIRCUIT
26 MPX-B10
Power window system,
Air conditioning,
Gauges and meters,
Theft deterrent system
27 P RR P/W20Power window system
28 SRS-B7.5SRS system, Do

Page 392 of 420

Lexus IS300 2004  Electrical Components / LEXUS 2004 IS300 OWNERS MANUAL (OM53461U) ELECTRICAL COMPONENTS
378
CHECKING BATTERY CONDITION
Precautions
CAUTION

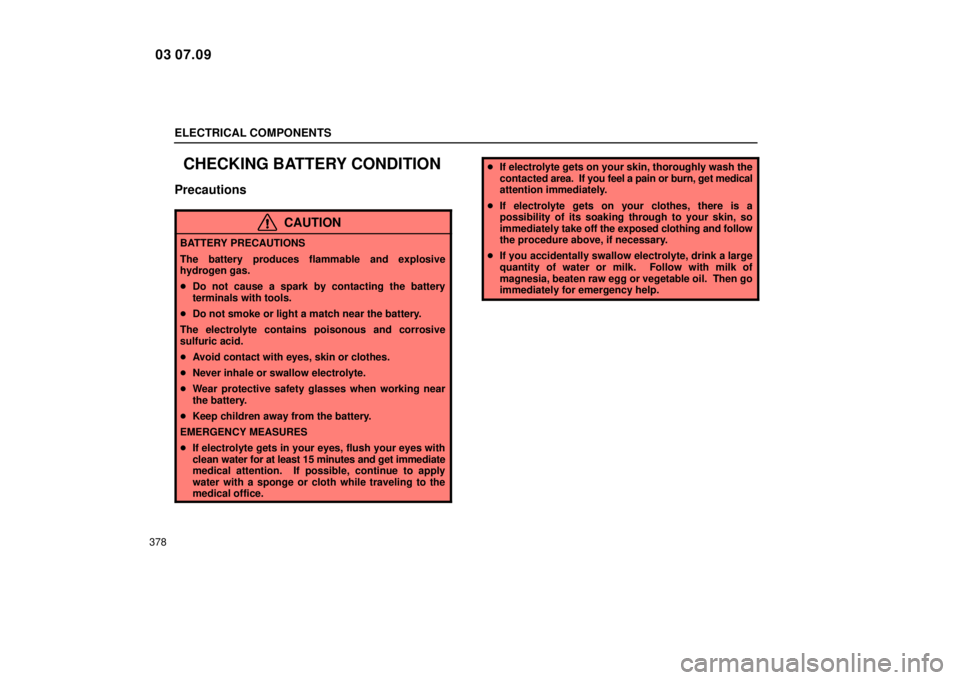

BATTERY PRECAUTIONS
The battery produces flammable and explosive
hydrogen gas.
Do not cause a spark by contacting the battery

Page 393 of 420

Lexus IS300 2004  Electrical Components / LEXUS 2004 IS300 OWNERS MANUAL (OM53461U) ELECTRICAL COMPONENTS
379
Checking battery exterior
SV64002
 1Terminals   2Hold-down clamp
Check the battery for corroded or loose connections,
cracks, or loose hold-down clamps.
1. If the battery is

Page 394 of 420

Lexus IS300 2004  Electrical Components / LEXUS 2004 IS300 OWNERS MANUAL (OM53461U) ELECTRICAL COMPONENTS
380
Checking battery condition
Checking by indicator
SV64016
Check the battery condition by the indicator color.
1BLUE - Good condition.
2WHITE - Charging necessary.  Have the ba

Page 395 of 420

Lexus IS300 2004  Electrical Components / LEXUS 2004 IS300 OWNERS MANUAL (OM53461U) ELECTRICAL COMPONENTS
381
CHECKING AND REPLACING THEBLADE TYPE FUSES
SS64009
Drivers side kick panel
SS64012a
Passengers side kick panel
SV64017
Engine  compartment   1Spare fuses   2Pull-out   t

Page 396 of 420

Lexus IS300 2004  Electrical Components / LEXUS 2004 IS300 OWNERS MANUAL (OM53461U) ELECTRICAL COMPONENTS
382
64L013
2. Make sure the inoperative component is turned off.  Pull
the suspected fuse straight out with the pull-out tool and
check it.  If it has blown, push a new fuse into

Page 397 of 420

Lexus IS300 2004  Electrical Components / LEXUS 2004 IS300 OWNERS MANUAL (OM53461U) ELECTRICAL COMPONENTS
383
It is a good idea to purchase a set of spare fuses and keep them
in your vehicle for emergencies.
If the new fuse immediately blows out, there is a problem with
the electrica

Page 398 of 420

Lexus IS300 2004  Electrical Components / LEXUS 2004 IS300 OWNERS MANUAL (OM53461U) ELECTRICAL COMPONENTS
384
CAUTION
Always use a genuine Lexus fuse or equivalent for
replacement.  Never install an ordinary wire - even for
a temporary fix.  This may cause extensive damage and
possib

Page 399 of 420

Lexus IS300 2004  Electrical Components / LEXUS 2004 IS300 OWNERS MANUAL (OM53461U) ELECTRICAL COMPONENTS
385
CHECKING THE HEADLIGHT AIM
SV64027
 1Vertical movement adjusting bolt 1
 2Vertical movement adjusting bolt 2
Before checking the headlight aim:
1. Be sure that the body arou

Page 400 of 420

Lexus IS300 2004  Electrical Components / LEXUS 2004 IS300 OWNERS MANUAL (OM53461U) ELECTRICAL COMPONENTS
386
SB64028
2. Turn the vertical movement adjusting bolt 2 the same
number of turns and in the same direction as step 1.
REPLACING LIGHT BULBS
The illustration on the following p
