CHASSIS
366
The effectiveness of snow tires is lost if the tread
wears down below 4 mm (0.16 in.).
If you have tire damage such as cuts, splits, cracks
deep enough to expose the fabric, or bulges
indicating internal damage, the tire should be
replaced.
If a tire often goes flat or cannot be properly repaired due
to the size or location of a cut or other damage, it should
be replaced. If you are not sure, consult with your Lexus
dealer.
If an air loss occurs while driving, do not continue driving
with a deflated tire. Driving even a short distance can
damage a tire beyond repair.
Any tires which are over 6 years old must be
checked by a qualified technician even if damage is
not obvious.
Tires deteriorate with age even if they have never or
seldom been used.
This also applies to the spare tire and tires stored for
future use.Tire selection
When replacing a tire, use a tire of the same size and
construction, and the same or greater maximum
load as the originally installed tires.
Using any other size or type of tire may seriously affect
handling, ride, speedometer/odometer calibration,
ground clearance, and clearance between the body and
tires or snow chains.
Check that the maximum load of the replaced tire is
greater than 1/2 of the Gross Axle Weight Ratings
(GAWR) of either the front axle or the rear axle,
whichever greater. As for the maximum load of the tire,
see the load limit at maximum cold tire inflation pressure
mentioned on the sidewall of the tire, and as for the
Gross Axle Weight Ratings (GAWR), see the
Certification Label. For details about the Certification
Label and sidewall of the tire, see pages 316 and 352.
03 07.09

CHASSIS
367
CAUTION
Observe the following instructions. Otherwise, an
accident may occur resulting in death or serious
injuries.
Do not mix radial, bias belted, or bias-ply tires
on your vehicle, as this may cause dangerous
handling characteristics resulting in loss of
control.
 Do not use tires other than the manufacturer's
recommended size, as this may cause
dangerous handling characteristics resulting in
loss of control.
If you need to change from conventional tires to radial
tires or vice versa, replace them as a set.
INSTALLING SNOW TIRES AND
CHAINS
When to use snow tires or chains
Snow tires or chains are recommended when driving on
snow or ice.
On wet or dry roads, conventional or radial tires provide better
traction than snow or studded tires.
Snow tire selection
If you need snow tires, select tires of the same size,
construction and load capacity as the originally installed
tires.
Do not use tires other than stated above. Since your vehicle
has radial tires as original equipment, make sure your snow
tires also have radial construction. Do not install studded tires
without first checking local regulations for possible restrictions.
CAUTION
Observe the following instructions. Otherwise, an
accident may occur resulting in death or serious
injuries.
Do not use snow tires other than the manufacturer's
recommended size, as this may cause dangerous
handling characteristics resulting in loss of control.
03 07.09

CHASSIS
368
Snow tire installation
Snow tires should be installed on all wheels.
Installing snow tires on the rear wheels only can lead to an
excessive difference in road grip capability between the front
and rear tires which could cause loss of vehicle control.
CAUTION
Do not drive with the snow tires incorrectly inflated.
 Never drive over 120 km/h (75 mph) with any type of
snow tires.
Tire chain selection
63L009a

1Side chain 2Cross chain
Use the tire chains of correct size.
For 225/45ZR17 tires, use the following type chains.
mm (in.)
A: Diameter of side chain 3.0 (0.12)
B: Diameter of cross chain 4.0 (0.16)
For P205/55R16 or 215/45ZR17 tires, use SAE Class ºSº type
radial tire chains, with the exception of radial cable chains or
V-bar type chains.
Regulations regarding the use of tire chains vary
according to location or type of road. Always check the
local regulations before installing chains.
03 07.09

CHASSIS
369
NOTICE
If the wrong combination of tire and chain is used, thechains could damage the vehicle body.
Chain installation
Install the chains on the rear tires as tightly as possible.
Do not use tire chains on the front tires. Retighten chains
after driving 0.5 - 1.0 km (1/4 - 1/2 mile).
When installing chains on your tires, carefully follow the
instructions of the chain manufacturer.
CAUTION
 Do not exceed 50 km/h (30 mph) or the chain
manufacturer's recommended speed limit,
whichever is lower.
 Drive carefully avoiding bumps, holes, and sharp
turns, which may cause the vehicle to bounce.
 Avoid sharp turns or locked-wheel braking, as use of
chains may adversely affect vehicle handling.
 When driving with chains installed, be sure to drive
carefully. Slow down before entering curves to avoid
losing control of the vehicle, it may cause an
accident.
NOTICE
Do not attempt to use a tire chain on the compact spare
tire, as it may result in damage to the vehicle as well asthe tire.
03 07.09

CHASSIS
370
REPLACING WHEELS
When to replace your wheels
If you have wheel damage such as bends, cracks or heavy
corrosion, the wheel should be replaced.
If you fail to replace a damaged wheel, the tire may slip off the
wheel or cause loss of handling control.
Replacement with used wheels is not recommended as they
may have been subjected to rough treatment or high mileage
and could fail without warning. Also, bent wheels which have
been straightened may have hidden structural damage and
therefore should not be used. Never use an inner tube in a
leaking wheel which is designed for a tubeless tire.
Wheel selection
When replacing wheels, care should be taken to ensure
that they are equivalent to those removed in load capacity,
diameter, rim width, and offset.
Correct replacement wheels are available at your Lexus
dealer.
A wheel of a different size or type may adversely affect
handling, wheel and bearing life, brake cooling,
speedometer/odometer calibration, stopping ability, headlight
aim, bumper height, vehicle ground clearance, and tire or snow
chain clearance to the body and chassis.
CAUTION
Observe the following instructions. Otherwise, an
accident may occur resulting in death or serious
injuries.
Do not use wheels other than the manufacturer's
recommended size, as this may cause dangerous
handling characteristics resulting in loss of control.
03 07.09

CHASSIS
371
ALUMINUM WHEEL PRECAUTIONS
When installing aluminum wheels, check that the wheel
nuts are tight after driving your vehicle the first 1600 km (1000 miles).
 If you have rotated, repaired, or changed your tires, check
that the wheel nuts are still tight after driving 1600 km (1000
miles).
 When using tire chains, be careful not to damage the
aluminum wheels.
 Use only the Lexus wheel nuts and wrench designed for
your aluminum wheels.
 When balancing your wheels, use only Lexus balance
weights or equivalent and a plastic or rubber hammer.
 As with any wheel, periodically check your aluminum
wheels for damage. If damaged, replace immediately.
SUSPENSION AND CHASSIS
CAUTION
Do not modify the suspension/chassis with lift kits,
spacers, springs, etc. It can cause dangerous handling
characteristics, resulting in loss of control.
03 07.09

SECTION 6 ± 4
373
SERVICE PROCEDURES AND
SPECIFICATIONS
Electrical components
Specifications374
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking battery condition 378
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . .
Battery recharging precautions 380
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Checking and replacing the blade type fuses 381
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Checking the cartridge type fuses 383
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . .
Adding washer fluid 384
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the headlight aim 385
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . .
Replacing light bulbs 386
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . .
03 07.09

ELECTRICAL COMPONENTS
374

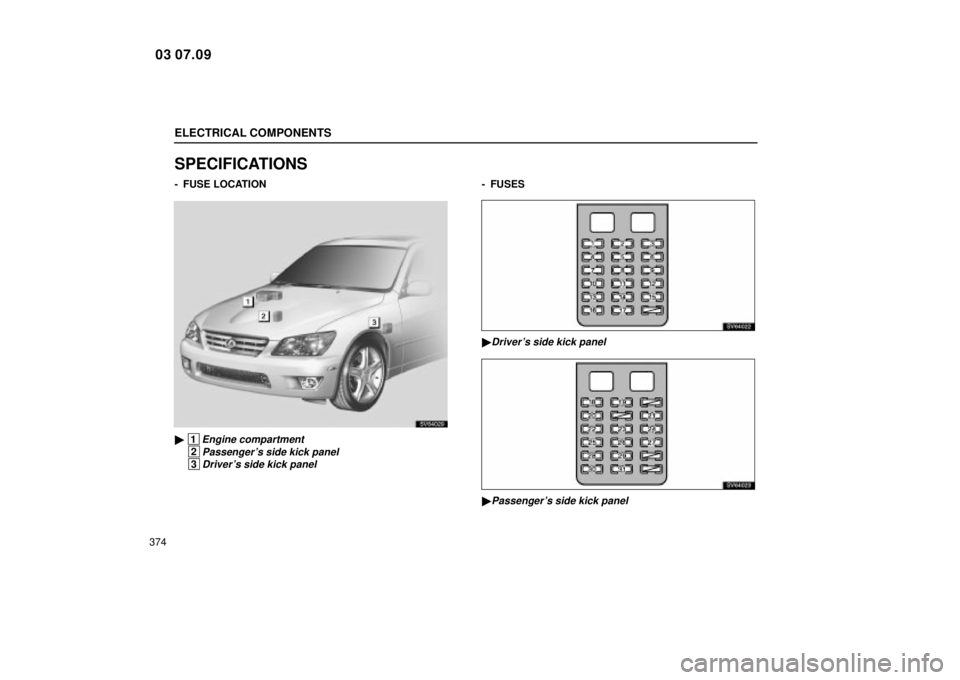

SPECIFICATIONS
- FUSE LOCATION
SV64029

1Engine compartment
2Passenger's side kick panel
3Driver's side kick panel
- FUSES
SV64022

Driver's side kick panel
SV64023

Passenger's side kick panel
03 07.09

ELECTRICAL COMPONENTS
375
SV64031

Engine compartment
03 07.09

ELECTRICAL COMPONENTS
376
No.FUSEAMPERECIRCUIT
1 D FR P/W20Power window system
2 TAIL10Tail lights, Side marker lights,
License plate lights,
Parking lights
3 GAUGE10
Back-up lights, Power window,
Gauges and meters,
Service reminder indicators and
buzzers,
Emergency flashers,
Windshield defogger,
Outside rear view mirror
defogger
4 DOOR20Door lock system
5 PANEL7.5
Instrument panel lights,
Seat heater, Cigarette lighter,
Automatic transmission system,
Traction control system,
Rear fog light, Ashtray light
6 WASHER15Windshield washer,
Headlight cleaner
7 STARTER7.5Starting system
8 FR DEF20Windshield wiper deicer
9 A/C10Air conditioning system
10 SEAT HTR15Seat heater
11 CIG15Cigarette lighter, Power outlet
12 S/ROOF30Moon roof
No.FUSEAMPERECIRCUIT
13 ECU-IG10
Radiator fan,
Anti-lock brake system,
Moon roof, Shift lock system,
Air conditioning system,
Door lock system,
Headlight beam level control,
Theft deterrent system
14 SRS-ACC10SRS system
15 STOP15Stop lights, Shift lock system,
Anti-lock brake system
16 WIPER25Windshield wipers
17 RADIONO.210Audio, Air conditioning,
Outside rear view mirror,
Shift lock system
18 DOOR DL15Power seat system
19 DOME7.5
Interior lights, Trunk light,
Vanity lights,
Ignition switch light, Map light,
Door courtesy lights
20 FR FOG15Fog lights
21 P FR P/W20Power window system
22 PWR
OUTLET15Power outlets
23 ECU-B27.5Theft deterrent system,
Door lock system
24 D RR P/W20Power window system
25 MIR HTR15Outside rear view mirror
03 07.09
