audio Lexus IS300 2005 Basic Functions / LEXUS 2005 IS300 (OM53489U) Owner's Guide

AUDIO
220
SV22085
Ejecting a single CD alone:
1. Push the button under the ªDISC º or ªDISC  º
signal on the display to display the CD number you want
to eject.
2. Push the ªEJECTº button for the CD briefly.
At this time, the display shows ªEJECTº, and the indicators at
both ends of the slot as well as the CD number light up.
 Ejecting all the CDs:
Push the ªEJECTº button until you hear a beep.
However, if you accidentally pushed the ªEJECTº button, push
the ªDISCº or ªLOADº button to insert the CD again.
Do not push in the CD which is being ejected forcibly. With single CD player
SV22046a
When you i
nsert a CD, lightly push it in with the label side
up.
The CD player will grab the CD and slide it into place to play
it from the track 1 program.
As this is done, ªCDº appears on the display. Also, the track
number and elapsed playback time will appear on the display.
04 06.30

AUDIO
221
SV22047
To eject the CD, push the ªEJECTº button.(b) Playing a CD
SV22086
Push the ªDISCº button if the CDs are already loaded in
the player.
The CDs set in the player are played continuously, starting with
CD number 1. The CD number of the CD currently being
played,
the track number and the time from the beginning of the
program appear on the display.
When play of one CD ends, the first track of the following CD
starts. W hen play of the final CD ends, play of the first CD starts
again.
The player will skip any empty CD trays.
04 06.30

AUDIO
222(c) Selecting a desired CD (with six CD changer only)
SV22087
Push the ªDISC
º or ªDISC º button to select the CD
number.
Push the button several times until the desired CD number
appears on the display. When you release the button, the
player will start playing the selected CD from the first track. (d) Searching for a desired track
SV22088
Push the ªSCANº button briefly.
ªSCANº will appear on the display. The CD player will play the
next track for 10 seconds, then scan again. To select a track,
push the ªSCANº button a second time. If the player reaches
the end of the CD, it will continue scanning at track 1.
After all the tracks are scanned in one pass, normal play
resumes.
04 06.30

AUDIO
223
(e) Searching
for a desired CD (with six CD changer only)
SV22089
Push the ªSCANº button until you hear a beep.
With ªD´SCANº on the display, the program at the beginning of
each CD will be played for 10 seconds. To continue listening
to the program of your choice, push the ªSCANº button a
second time.
After all the CDs in the player are scanned in one pass, the
scan function is cancelled. (f) Selecting a desired track
SV22090
ªTRACKº button: Use for direct access to a desired track.
Push either side of the ªTRACKº button several times until the
desired track number appears on the display. As you release
the button, the player will start playing the selected track from
the beginning.
ªFast forwardº button.
Push
the ª

º button and hold it to fast forward the CD. When
you release the button, the CD player will resume playing from
that position.
ªReverseº button.
Push the ª º button and hold it to reverse the CD. When you
release the button, the CD player will resume playing.
04 06.30

AUDIO
224(g) Other CD player functions
SV22091
ªRPTº button
: Use it for automatic repeat of the track you are
currently listening to.
In order to repeat the track you are currently listening to, push
the button briefly while the track is playing. ªRPTº will appear
on the display. When the track is finished, the player will
automatically go back to the beginning of the track and play the
track again. To cancel it, push the button briefly once again.
In order to repeat the CD you are currently listening to, push
the button until you hear a beep. ªD´RPTº will appear on the
display. When the last track of the CD you are listening to is
finished, the player will automatically go back to the first track
on the CD and play the CD again. To cancel it, push the button
once again. ªRANDº button:
Use it for automatic track selection and play
by the system.
When the button is pushed briefly, the system selects a track
in the CD which are set and plays it and ªRANDº will appear on
the display. To cancel it, push the button briefly once again.
When the button is pushed until you hear a beep, the system
selects a track in the all CDs which are set and plays it and
ªD´RANDº will appear on the display. To cancel it, push the
button once again.
When a t rack is skipped or the system is inoperative, push the
button to reset.
04 06.30

AUDIO
225
(h) If the player malfunctions
If the player or another unit equipped with the player
malfunctions, your audio system will display one of the four
following error messages.
If ªERR 1º appears on the display:
It indicates that the CD
is dirty, damaged, or it was inserted up±side down. Clean the
CD or insert it correctly.
If ªERR 3º or ªERR 4º appears on the display: It indicates
there is a trouble inside the system. Eject the CD.
If the malfunction is not rectified: Take your vehicle to your
Lexus dealer.
Audio system operating hints
NOTICE
To ensure correct audio system operations:
Be careful not to spill beverages over the audio system.
Do not put anything other than a cassette tape or CDinto the cassette tape slot or CD slot.
The use of a cellular phone inside or near the vehiclemay cause a noise from the speakers of the audio
system which you are listening to. However, thisdoes not indicate a malfunction.
Radio reception
Usually, the problem with radio reception does not mean there
is a problem with your radio ± it is just the normal result of
conditions outside the vehicle.
For example, nearby buildings and terrain can interfere with
FM reception. Power lines or telephone wires can interfere with
AM signals. And of course, radio signals have a limited range.
The farther you are from a station, the weaker its signal will be.
In addition, reception conditions change constantly as your
vehicle moves.
Here are some common reception problems that probably do
not indicate a problem with your radio:
04 06.30

AUDIO
226FM
Fading and drifting stations
± Generally, the effective range
of FM is about 40 km (25 miles). Once outside this range, you
may notice fading and drifting, which increase with the
distance from the radio transmitter. They are often
accompanied by distortion.
Multi±path ± FM signals are reflective, making it possible for
two signals to reach your antenna at the same time. If this
happens, the signals will cancel each other out, causing a
momentary flutter or loss of reception.
Static and fluttering ± These occur when signals are blocked
by buildings, trees, or other large objects. Increasing the bass
level may reduce static and fluttering.
Station swapping ± If the FM signal you are listening to is
interrupted or weakened, and there is another strong station
nearby on the FM band, your radio may tune in the second
station until the original signal can be picked up again. AM
Fading
± AM broadcasts are reflected by the upper
atmosphere ± especially at night. These reflected signals can
interfere with those received directly from the radio station,
causing the radio station to sound alternately strong and weak.
Station interference ± When a reflected signal and a signal
received directly from a radio station are very nearly the same
frequency, they can interfere with each other, making it dif ficult
to hear the broadcast.
Static ± AM is easily affected by external sources of electrical
noise, such as high tension power lines, lightening, or electrical
motors. This results in static.
04 06.30

AUDIO
227
Caring for your cassette player and tapes
For the best performance for your cassette player and tapes:
Clean the tape head and other parts regularly.

A dirty tape head or tape path can decrease sound quality
and tangle your cassette tapes. The easiest way to clean
them is by using a cleaning tape. (A wet type is recommended.)
Use high±quality cassettes:
 Low±quality cassette tapes can cause many problems,
including poor sound, inconsistent playing speed, and
constant auto±reversing. They can also get stuck or tangled
in the cassette player.
 Do not use a cassette if it has been damaged or tangled or
if its label is peeling off.
 Do not leave a cassette in the player if you are not listening
to it, especially if it is hot outside.
 Store cassettes in their cases and out of direct sunlight.
 Avoid using cassettes with a total playing time longer than
100 minutes (50 minutes per side). The tape used in these
cassettes is thin and could get stuck or tangled in the cassette player. Caring for your CD player and CDs

Your CD player is intended for use with 12 cm (4.7 in.) CDs
only.
 Extremely high temperature can keep your CD player from
working. On hot days, use air conditioning to cool the vehicle interior before you listen to a CD.
 Bumpy roads or other vibrations may make your CD player
skip.
 If moisture gets into your CD player, you may not hear any
sound even though your CD player appears to be working.
Eject all CDs from the player and wait until the player dries.
CAUTION
CD players use an invisible laser beam which could
cause hazardous radiation exposure if directed outside
the unit. Be sure to operate the player correctly.
04 06.30

AUDIO
228
20L037

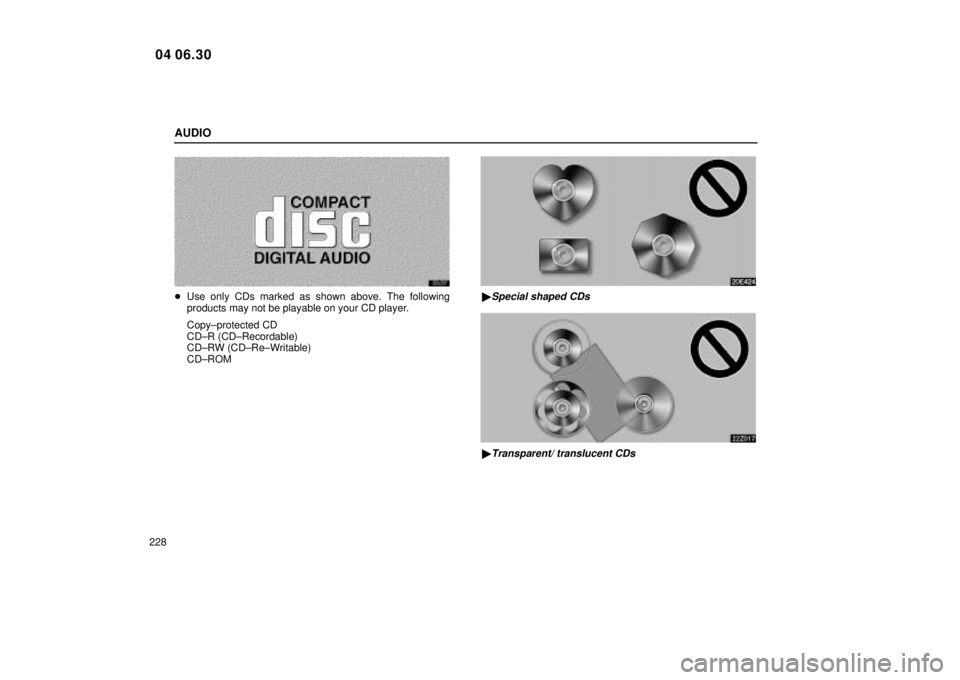

Use only CDs marked as shown above. The following
products may not be playable on your CD player.
Copy±protected CD
CD±R (CD±Recordable)
CD±RW (CD±Re±Writable)
CD±ROM
20E424

Special shaped CDs
22Z017

Transparent/ translucent CDs
04 06.30

AUDIO
229
20E425

Low quality CDs
20E423

Labeled CDs
NOTICE
Do not use special shaped, transparent/translucent, lowquality or labeled CDs such as those shown in the il-lustrations. The use of such CDs may damage the player
or changer, or it may be impossible to eject the CD.
04 06.30
