MAINTENANCE
310Brake fluid level
Make sure the brake fluid level is correct. See page 349 for
additional information.
Engine oil level
Check the level on the dipstick with the engine turned off and
the vehicle parked on a level spot. See page 333 for additional
information.
Power steering fluid level
Check the level on the dipstick. The level should be in the
ªHOTº or ªCOLDº range depending on the fluid temperature.
See page 350 for additional information.
Exhaust system
If you notice any change in the sound of the exhaust or smell
exhaust fumes, have the cause located and corrected
immediately. (See ªEngine exhaust cautionº on page 233 in
Section 3±1.)
Vehicle interior
Items
listed below should be checked regularly, e.g. while
performing periodic services, cleaning the vehicle, etc.
Lights
Make sure the headlight, stop lights, tail lights, turn signal
lights, and other lights are working. Check headlight aim.
Service reminder indicators and warning buzzers
Check that all service reminder indicators and warning
buzzers function properly. Steering wheel
Check that it has the specified free play. Be alert for changes
in steering condition, such as hard steering, excessive free
play or strange noise.
Seats
Check that all front seat controls such as seat adjusters,
seatback recliner, etc. operate smoothly. Check that the head
restraints
move up and down smoothly and that the locks hold
securely in any latched position. For folding±down rear
seatbacks, check that the latches lock securely.
Seat belts
Check that the seat belt system such as buckles, retractors
and anchors operate properly and smoothly. Make sure the
belt webbing is not cut, frayed, worn or damaged.
Accelerator pedal
Check the pedal for smooth operation and uneven pedal ef fort
or catching.
Clutch pedal
Check the pedal for smooth operation.
Brake pedal
Check the pedal for smooth operation and the proper
clearance and freeplay. Check the brake booster function.
Brakes
In a safe place, check that the brakes do not pull to one side
when applied.
04 06.30

MAINTENANCE
311
Parking brake
Check that the lever has the proper travel and that, on a safe
incline, your vehicle is held securely with only the parking
brake applied.
Automatic transmission ªParkº mechanism
On a safe incline, check that your vehicle is held securely with
the selector lever in ªPº position and all brakes released.
Vehicle exterior
Items
listed below should be performed from time to time,
unless otherwise specified.
Wheel nuts
When checking the tires, make sure to check the nuts for
looseness. Tighten them if necessary.
Fluid leaks
Check underneath for leaking fuel, oil, water or other fluid after
the vehicle has been parked for a while. If you smell fuel fumes
or notice any leak, have the cause found and corrected
immediately.
Doors and engine hood
Check that all doors, including trunk lid or back door, operate
smoothly and all latches lock securely. Make sure the engine
hood secondary latch secures the hood when the primary latch
is released.
Tire inflation pressure
Check the tire inflation pressure with a gauge every two
weeks, or at least once a month and adjust as shown on
the tire and loading information label. See page 351 for
additional information.
Tire surface
Check the tires carefully for cuts, damage or excessive
wear. See page 368 for additional information.
Tire rotation
Rotate the tires according to the maintenance schedule.
(For scheduled maintenance information, please refer to
the ªOwner's Manual Supplementº or ªScheduled
Maintenanceº.) See page 366 or 367 for additional
information.
04 06.30

INTRODUCTION
322
POSITIONING THE JACK
SV61006
Front of vehicle
When jacking up your vehicle with the jack, position the
jack correctly as shown in the illustration.
Jack position
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front± Front crossmember
Rear± Rear differential
Support position and Pantograph jack position
. . . .
CAUTION
When jacking, be sure to observe the following to
reduce the possibility of personal injury:

Follow jacking instructions.

Do not put any part of your body under the vehicle
supported by a jack. Personal injury may occur.

Do not start or run the engine while your vehicle is
supported by the jack.

Stop the vehicle on a level firm ground, firmly set the
parking brake and put the transmission in ªPº
(automatic) or reverse (manual). Block the wheel
diagonally opposite to the one being changed if
necessary.

Make sure to set the jack properly in the jack point.
Raising the vehicle with jack improperly positioned
will damage the vehicle or may allow the vehicle to fall
off the jack and cause personal injury.

Never get under the vehicle when the vehicle is
supported by the jack alone; use vehicle support
stands.

Do not raise the vehicle with someone in the vehicle.

When ra ising the vehicle, do not place any objects on
top of or underneath the jack.
04 06.30

SECTION 6 ± 3
341
SERVICE PROCEDURES AND
SPECIFICATIONS
Chassis
Specifications342
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking brake fluid 349
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking power steering fluid 350
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . .
Checking tire inflation pressure 351
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . Tire information
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 354
Types of tires365
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rotating tires 366
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing tires 368
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . .
Installing snow tires and chains 370
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Replacing wheels 373
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Aluminum wheel precautions 374
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . .
Suspension and chassis 374
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . .
04 06.30

CHASSIS
344
± TIRES AND WHEELS (Type A)
Standard tire:Tire sizeFront
Rear
215/45ZR17
225/45ZR17
Tire inflation pressureRecommended cold tire inflation pressure
Front 230 kPa (2.3 kgf/cm2 or bar, 33 psi)
Rear 240 kPa (2.4 kgf/cm2 or bar, 35 psi)
For sustained high speeds above 160 km/h (100 mph), in
countries where such speeds are permitted by law, add 70 kPa
(0.8 kgf/cm
2, 0.7 bar, 10 psi) to the front tires and rear tires, but
never exceed the maximum cold tire pressure molded on the tire
sidewall.
Wheel size
Front
Rear
17 x 7 JJ
17 x 7 1/2 JJ
Wheel nut torque103 N´m (10.5 kgf´m, 76 ft´lbf.)
Spare tire:
Tire size
215/45ZR17
Tire inflation pressureRecommended cold tire inflation pressure
240 kPa (2.4 kgf/cm2 or bar, 35 psi)
04 06.30

CHASSIS
345
Wheel size17 x 7 JJ
Wheel nut torque103 N´m (10.5 kgf´m, 76 ft´lbf.)
NOTE:
For complete information on tires (e.g. replacing tires or replacing wh\
eels), see ªChecking tire inflation pressureº
through ªAluminum wheel precautionsº on page 351 through 374.
04 06.30

CHASSIS
346
± TIRES AND WHEELS (Type B)Tire size
215/45ZR17
Tire inflation pressure
Recommended cold tire inflation pressure
Front 230 kPa (2.3 kgf/cm2 or bar, 33 psi)
Rear 230 kPa (2.3 kgf/cm2 or bar, 33 psi)
For sustained high speeds above 160 km/h (100 mph), in
countries where such speeds are permitted by law, add 70 kPa
(0.8 kgf/cm
2, 0.7 bar, 10 psi) to the front tires and rear tires, but
never exceed the maximum cold tire pressure molded on the tire
sidewall.
Wheel size17 x 7 JJ
Wheel nut torque103 N´m (10.5 kgf´m, 76 ft´lbf.)
NOTE:
For complete information on tires (e.g. replacing tires or replacing wh\
eels), see ªChecking tire inflation pressureº
through ªAluminum wheel precautionsº on page 351 through 374.
04 06.30

CHASSIS
347
± TIRES AND WHEELS (Type C)
Standard tire:Tire size
P205/55R16 89V
Tire inflation pressureRecommended cold tire inflation pressure
Front 230 kPa (2.3 kgf/cm2 or bar, 33 psi)
Rear 230 kPa (2.3 kgf/cm2 or bar, 33 psi)
For sustained high speeds above 160 km/h (100 mph), in
countries where such speeds are permitted by law, add the tire
pressure given below to the front tires and rear tires, but never
exceed the maximum cold tire pressure molded on the tire
sidewall.
Sedan 70 kPa (0.8 kgf/cm
2, 0.7 bar, 10 psi)
SportCross Front: 70 kPa (0.8 kgf/cm
2, 0.7 bar, 10 psi)
Rear: 90 kPa (0.9 kgf/cm2, 0.9 bar, 15 psi)
Wheel size16 x 6 1/2JJ
Wheel nut torque103 N´m (10.5 kgf´m, 76 ft´lbf.)
Compact spare tire (IS300 sold in Canada only):
Tire size
T125/70D17 98M
Tire inflation pressure420 kPa (4.2 kgf/cm2 or bar, 60 psi)
04 06.30

CHASSIS
348
Wheel size17 x 4T
Wheel nut torque103 N´m (10.5 kgf´m, 76 ft´lbf.)
NOTE:
For complete information on tires (e.g. replacing tires or replacing wh\
eels), see ªChecking tire inflation pressureº
through ªAluminum wheel precautionsº on page 351 through 374.
04 06.30

CHASSIS
353
6. Install the tire valve cap.
If a gauge and air pump are not available, have your
vehicle checked by your Lexus dealer.

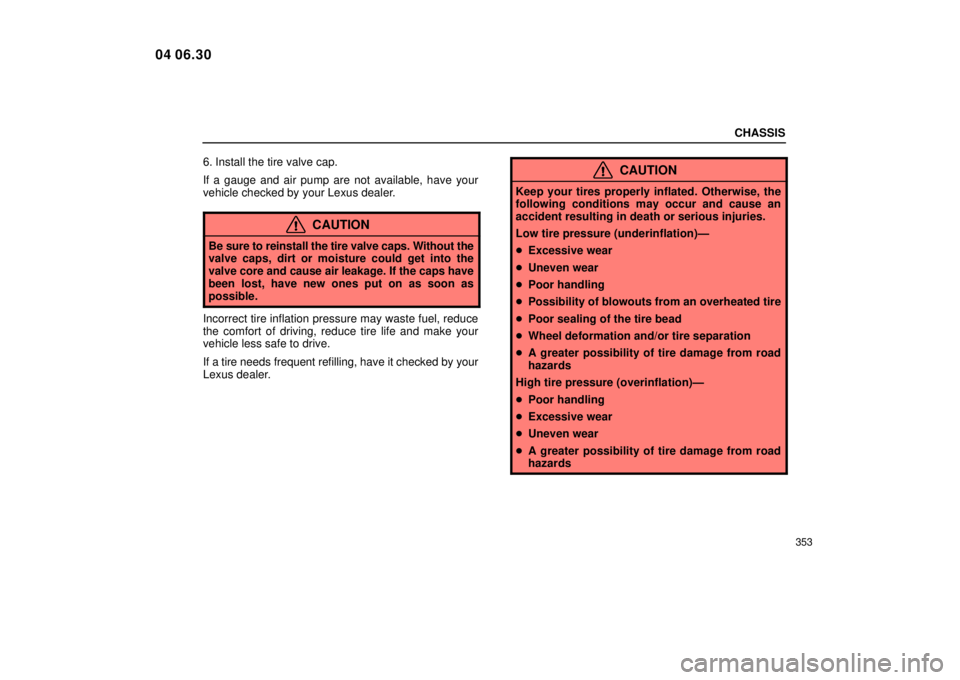

CAUTION
Be sure to reinstall the tire valve caps. Without the
valve caps, dirt or moisture could get into the
valve core and cause air leakage. If the caps have
been lost, have new ones put on as soon as
possible.
Incorrect tire inflation pressure may waste fuel, reduce
the comfort of driving, reduce tire life and make your
vehicle less safe to drive.
If a tire needs frequent refilling, have it checked by your
Lexus dealer.
CAUTION
Keep your tires properly inflated. Otherwise, the
following conditions may occur and cause an
accident resulting in death or serious injuries.
Low tire pressure (underinflation)Ð
Excessive wear
 Uneven wear
 Poor handling
 Possibility of blowouts from an overheated tire
 Poor sealing of the tire bead
 Wheel deformation and/or tire separation
 A greater possibility of tire damage from road
hazards
High tire pressure (overinflation)Ð
 Poor handling
 Excessive wear
 Uneven wear
 A greater possibility of tire damage from road
hazards
