CHASSIS
344
± TIRES AND WHEELS (Type A)
Standard tire:Tire sizeFront
Rear
215/45ZR17
225/45ZR17
Tire inflation pressureRecommended cold tire inflation pressure
Front 230 kPa (2.3 kgf/cm2 or bar, 33 psi)
Rear 240 kPa (2.4 kgf/cm2 or bar, 35 psi)
For sustained high speeds above 160 km/h (100 mph), in
countries where such speeds are permitted by law, add 70 kPa
(0.8 kgf/cm
2, 0.7 bar, 10 psi) to the front tires and rear tires, but
never exceed the maximum cold tire pressure molded on the tire
sidewall.
Wheel size
Front
Rear
17 x 7 JJ
17 x 7 1/2 JJ
Wheel nut torque103 N´m (10.5 kgf´m, 76 ft´lbf.)
Spare tire:
Tire size
215/45ZR17
Tire inflation pressureRecommended cold tire inflation pressure
240 kPa (2.4 kgf/cm2 or bar, 35 psi)
04 06.30

CHASSIS
345
Wheel size17 x 7 JJ
Wheel nut torque103 N´m (10.5 kgf´m, 76 ft´lbf.)
NOTE:
For complete information on tires (e.g. replacing tires or replacing wh\
eels), see ªChecking tire inflation pressureº
through ªAluminum wheel precautionsº on page 351 through 374.
04 06.30

CHASSIS
346
± TIRES AND WHEELS (Type B)Tire size
215/45ZR17
Tire inflation pressure
Recommended cold tire inflation pressure
Front 230 kPa (2.3 kgf/cm2 or bar, 33 psi)
Rear 230 kPa (2.3 kgf/cm2 or bar, 33 psi)
For sustained high speeds above 160 km/h (100 mph), in
countries where such speeds are permitted by law, add 70 kPa
(0.8 kgf/cm
2, 0.7 bar, 10 psi) to the front tires and rear tires, but
never exceed the maximum cold tire pressure molded on the tire
sidewall.
Wheel size17 x 7 JJ
Wheel nut torque103 N´m (10.5 kgf´m, 76 ft´lbf.)
NOTE:
For complete information on tires (e.g. replacing tires or replacing wh\
eels), see ªChecking tire inflation pressureº
through ªAluminum wheel precautionsº on page 351 through 374.
04 06.30

CHASSIS
347
± TIRES AND WHEELS (Type C)
Standard tire:Tire size
P205/55R16 89V
Tire inflation pressureRecommended cold tire inflation pressure
Front 230 kPa (2.3 kgf/cm2 or bar, 33 psi)
Rear 230 kPa (2.3 kgf/cm2 or bar, 33 psi)
For sustained high speeds above 160 km/h (100 mph), in
countries where such speeds are permitted by law, add the tire
pressure given below to the front tires and rear tires, but never
exceed the maximum cold tire pressure molded on the tire
sidewall.
Sedan 70 kPa (0.8 kgf/cm
2, 0.7 bar, 10 psi)
SportCross Front: 70 kPa (0.8 kgf/cm
2, 0.7 bar, 10 psi)
Rear: 90 kPa (0.9 kgf/cm2, 0.9 bar, 15 psi)
Wheel size16 x 6 1/2JJ
Wheel nut torque103 N´m (10.5 kgf´m, 76 ft´lbf.)
Compact spare tire (IS300 sold in Canada only):
Tire size
T125/70D17 98M
Tire inflation pressure420 kPa (4.2 kgf/cm2 or bar, 60 psi)
04 06.30

CHASSIS
348
Wheel size17 x 4T
Wheel nut torque103 N´m (10.5 kgf´m, 76 ft´lbf.)
NOTE:
For complete information on tires (e.g. replacing tires or replacing wh\
eels), see ªChecking tire inflation pressureº
through ªAluminum wheel precautionsº on page 351 through 374.
04 06.30

CHASSIS
349
CHECKING BRAKE FLUID
SV63001

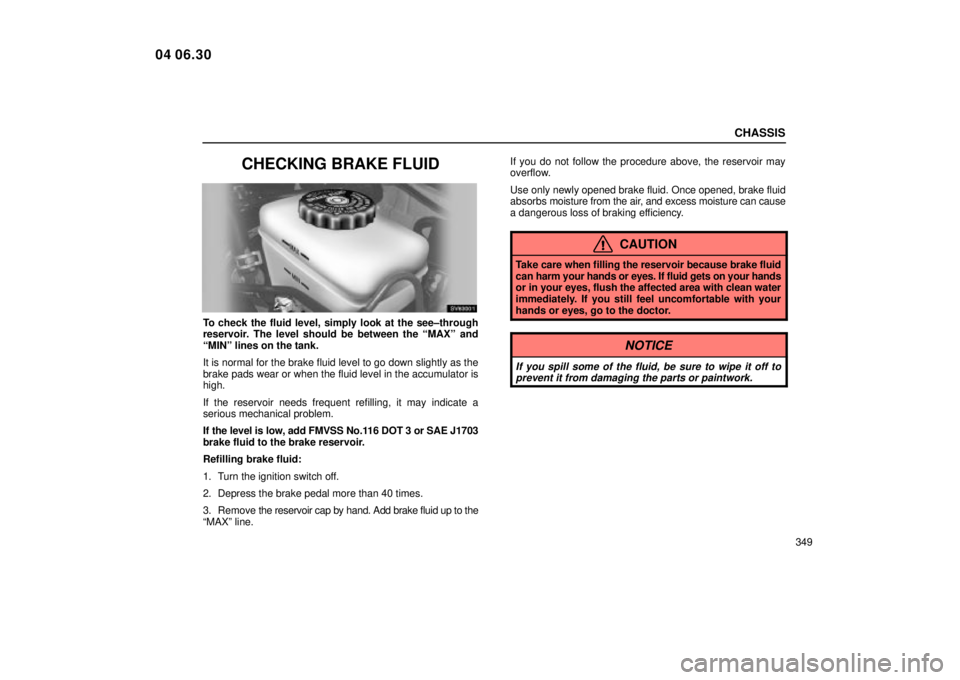

To check the fluid level, simply look at the see±through
reservoir. The level should be between the ªMAXº and
ªMINº lines on the tank.
It is normal for the brake fluid level to go down slightly as the
brake pads wear or when the fluid level in the accumulator is
high.
If the reservoir needs frequent refilling, it may indicate a
serious mechanical problem.
If the level is low, add FMVSS No.116 DOT 3 or SAE J1703
brake fluid to the brake reservoir.
Refilling brake fluid:
1. Turn the ignition switch off.
2. Depress the brake pedal more than 40 times.
3. Remove the reservoir cap by hand. Add brake fluid up to the
ªMAXº line. If you do not follow the procedure above, the reservoir may
overflow.
Use only newly opened brake fluid. Once opened, brake fluid
absorbs
moisture from the air, and excess moisture can cause
a dangerous loss of braking efficiency.
CAUTION
Take care when filling the reservoir because brake fluid
can harm your hands or eyes. If fluid gets on your hands
or in your eyes, flush the affected area with clean water
immediately. If you still feel uncomfortable with your
hands or eyes, go to the doctor.
NOTICE
If you spill some of the fluid, be sure to wipe it off to prevent it from damaging the parts or paintwork.
04 06.30

CHASSIS
350
CHECKING POWER STEERINGFLUID
SV63002

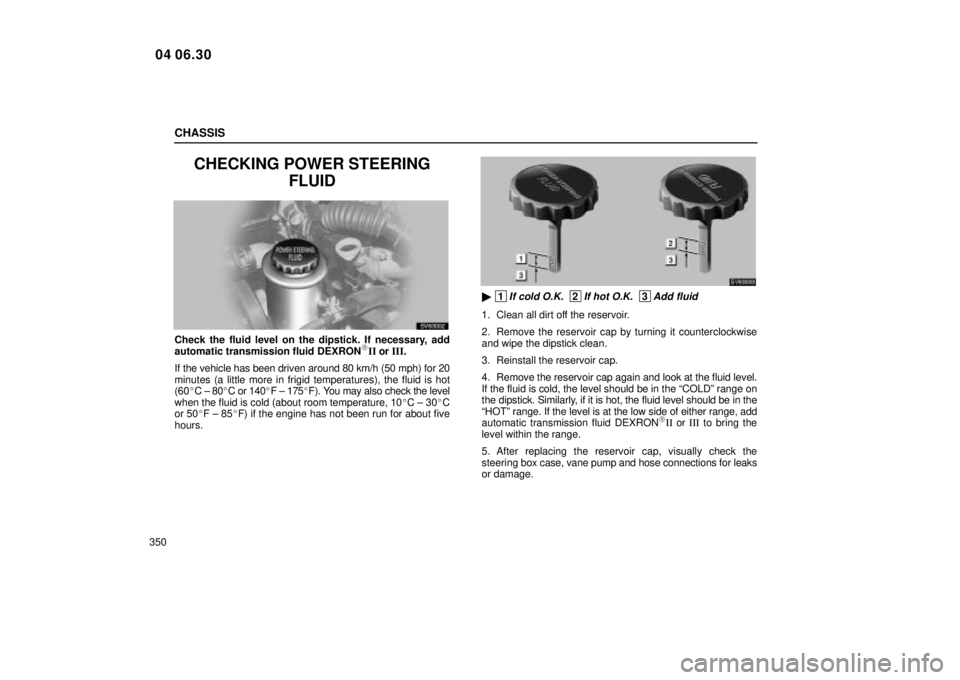

Check the fluid level on the dipstick. If necessary, add
automatic transmission fluid DEXRONII or III.
If the vehicle has been driven around 80 km/h (50 mph) for 20
minutes (a little more in frigid temperatures), the fluid is hot
(60 C ± 80C or 140F ± 175F). You may also check the level
when the fluid is cold (about room temperature, 10 C ± 30C
or 50F ± 85F) if the engine has not been run for about five
hours.
SV63003

1If cold O.K. 2If hot O.K. 3Add fluid
1. Clean all dirt off the reservoir.
2. Remove the reservoir cap by turning it counterclockwise
and wipe the dipstick clean.
3. Reinstall the reservoir cap.
4. Remove the reservoir cap again and look at the fluid level.
If the fluid is cold, the level should be in the ªCOLDº range on
the dipstick. Similarly, if it is hot, the fluid level should be in the
ªHOTº range. If the level is at the low side of either range, add
automatic transmission fluid DEXRON
II or III to bring the
level within the range.
5. After replacing the reservoir cap, visually check the
steering box case, vane pump and hose connections for leaks
or damage.
04 06.30

CHASSIS
351
CAUTION
The reservoir may be hot so be careful not to burn
yourself.
NOTICE
Avoid overfilling, or the power steering could bedamaged.
When adding the power steering fluid, avoid spillingit. The generator under the power steering reservoircould be damaged if fluid is spilled on it.
CHECKING TIRE INFLATION PRESSURE
SV61010a
The recommended cold tire inflation pressure, tire
size and the combined weight of occupants and
cargo (vehicle capacity weight) are described on the
tire and loading information label.
04 06.30

CHASSIS
352
You should check the tire inflation pressure every two
weeks, or at least once a month. And do not forget the
spare. The inflation pressure for the spare tire should be
adjusted according to the conditions in the table on page
344, 346 or 347.
The following instructions for checking tire inflation
pressure should be observed:
 The inflation pressure should be checked only
when the tires are cold. If your vehicle has been
parked for at least 3 hours and has not been driven for
more than 1.5 km or 1 mile since, you will get an accurate cold tire inflation pressure reading.
 Always use a tire pressure gauge. The appearance
of the tire can be misleading. Besides, tire inflation
pressures that are even just a few pounds off can
degrade ride and handling.
 Do not bleed or reduce tire inflation pressure after
driving. It is normal for the tire inflation pressure to be
higher after driving.
 Never exceed the vehicle capacity weight.
Passengers and luggage weight should be located so that the vehicle is balanced.
CAUTION
The inflation pressure for the compact spare tire
must be 420 kPa (4.3 kgf/cm2, 4.2 bar, 60 psi).
Inspection and adjustment procedure

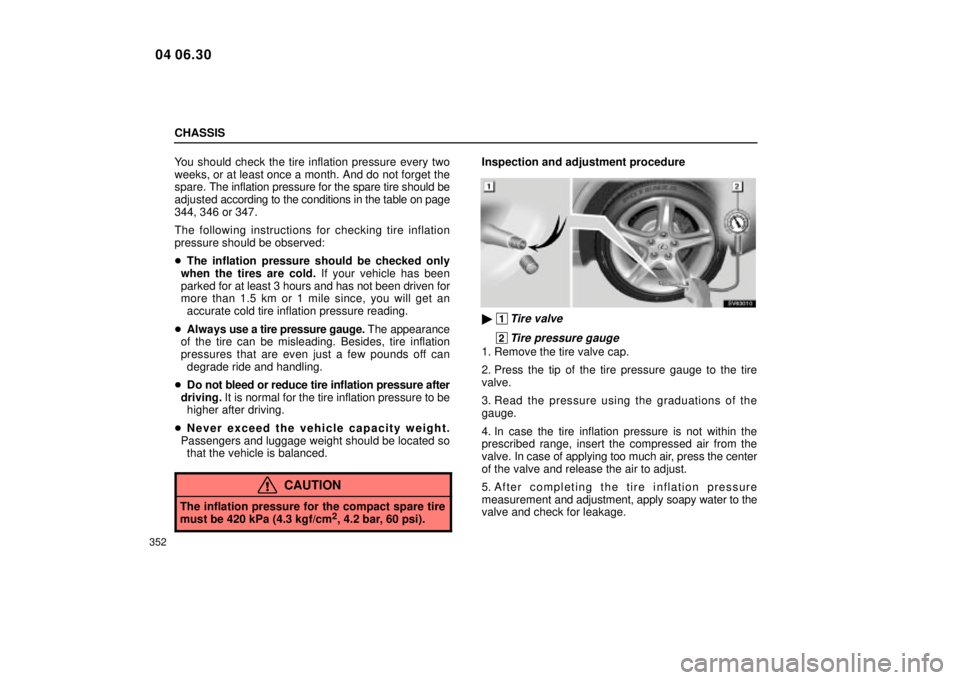

SV63010

1Tire valve
2Tire pressure gauge
1. Remove the tire valve cap.
2. Press the tip of the tire pressure gauge to the tire
valve.
3. Read the pressure using the graduations of the
gauge.
4. In case the tire inflation pressure is not within the
prescribed range, insert the compressed air from the
valve. In case of applying too much air, press the center
of the valve and release the air to adjust.
5. After completing the tire inflation pressure
measurement and adjustment, apply soapy water to the
valve and check for leakage.
04 06.30

CHASSIS
353
6. Install the tire valve cap.
If a gauge and air pump are not available, have your
vehicle checked by your Lexus dealer.
CAUTION
Be sure to reinstall the tire valve caps. Without the
valve caps, dirt or moisture could get into the
valve core and cause air leakage. If the caps have
been lost, have new ones put on as soon as
possible.
Incorrect tire inflation pressure may waste fuel, reduce
the comfort of driving, reduce tire life and make your
vehicle less safe to drive.
If a tire needs frequent refilling, have it checked by your
Lexus dealer.
CAUTION
Keep your tires properly inflated. Otherwise, the
following conditions may occur and cause an
accident resulting in death or serious injuries.
Low tire pressure (underinflation)Ð
Excessive wear
 Uneven wear
 Poor handling
 Possibility of blowouts from an overheated tire
 Poor sealing of the tire bead
 Wheel deformation and/or tire separation
 A greater possibility of tire damage from road
hazards
High tire pressure (overinflation)Ð
 Poor handling
 Excessive wear
 Uneven wear
 A greater possibility of tire damage from road
hazards
