Page 371 of 425

Lexus IS300 2005  Electrical Components / LEXUS 2005 IS300 OWNERS MANUAL (OM53489U) CHASSIS
354
TIRE INFORMATION
Tire symbols (Standard tire)
SV63011c
The illustration indicates typical tire symbols.
04 06.30

Page 372 of 425

Lexus IS300 2005  Electrical Components / LEXUS 2005 IS300 OWNERS MANUAL (OM53489U) CHASSIS
355
1Tire size: For details, see ªTire sizeº on page
358.
2DOT and Tire Identification Number (TIN): For
details, see ªDOT and Tire Identification Number
(TIN)º on page 358.
3Maximum cold

Page 373 of 425

Lexus IS300 2005  Electrical Components / LEXUS 2005 IS300 OWNERS MANUAL (OM53489U) CHASSIS
356
Tire symbols (Compact spare tire)
SV63017
The illustration indicates typical tire symbols.
04 06.30

Page 374 of 425

Lexus IS300 2005  Electrical Components / LEXUS 2005 IS300 OWNERS MANUAL (OM53489U) CHASSIS
357
1ªTEMPORARY USE ONLYº: A compact spare
tire is identified by the phrase ªTEMPORARY
USE ONLYº molded into its sidewall. This tire is
designed for temporary emergency use only. For
detai

Page 375 of 425

Lexus IS300 2005  Electrical Components / LEXUS 2005 IS300 OWNERS MANUAL (OM53489U) CHASSIS
358

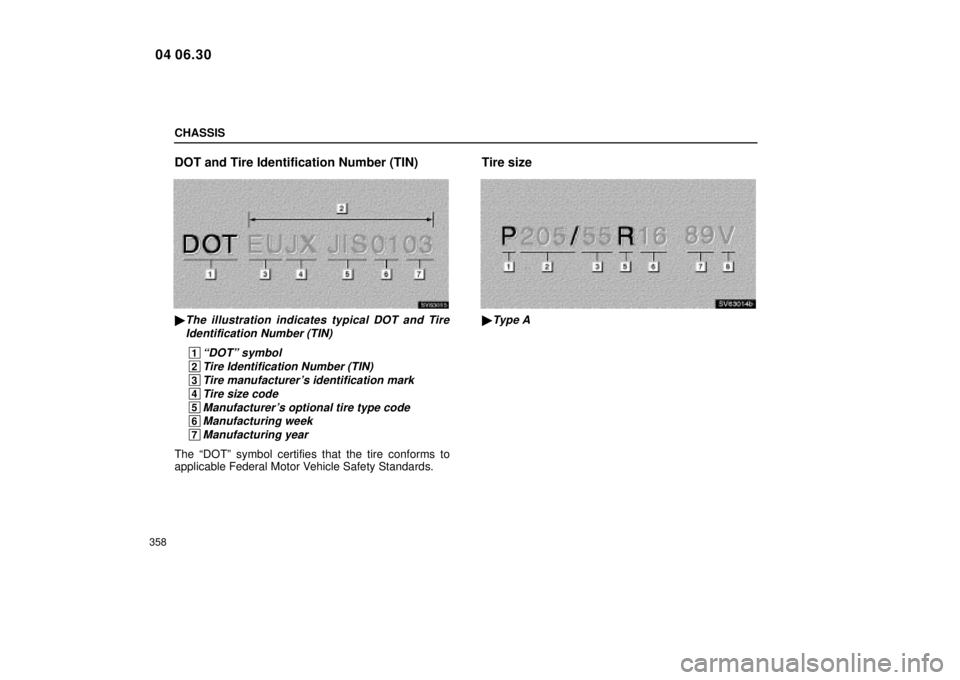

DOT and Tire Identification Number (TIN)
SV63015
The illustration indicates typical DOT and TireIdentification Number (TIN)
 1ªDOTº symbol
 2Tire Identification Number (TIN)
 3Tire manu

Page 376 of 425

Lexus IS300 2005  Electrical Components / LEXUS 2005 IS300 OWNERS MANUAL (OM53489U) CHASSIS
359
SV63013a

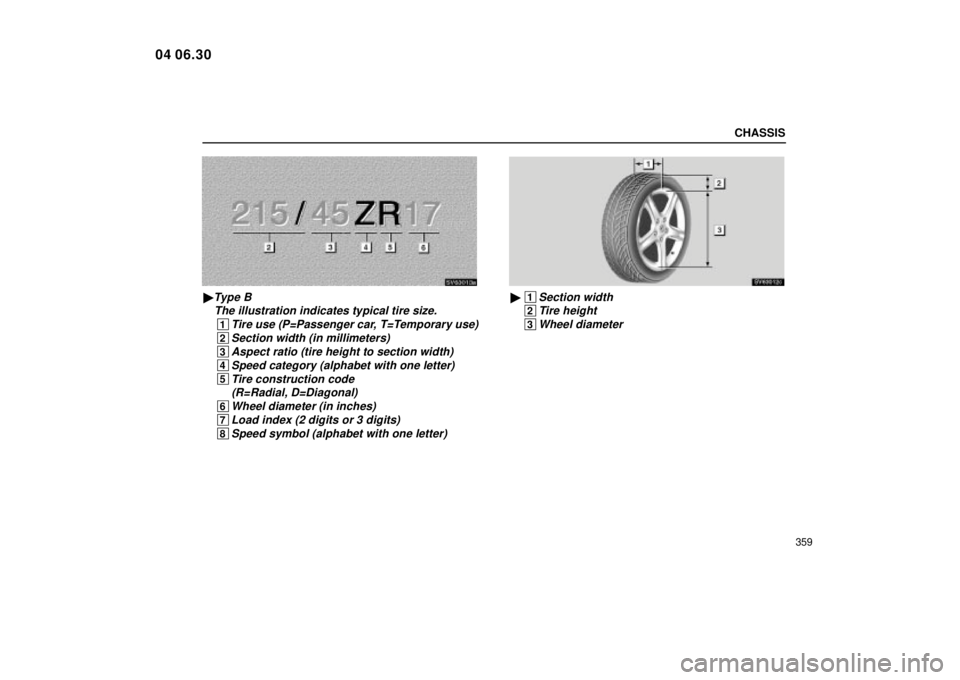

Type BThe illustration indicates typical tire size.
 1Tire use (P=Passenger car, T=Temporary use)
 2Section width (in millimeters)
 3Aspect ratio (tire height to section width)

Page 377 of 425

Lexus IS300 2005  Electrical Components / LEXUS 2005 IS300 OWNERS MANUAL (OM53489U) CHASSIS
360
Name of each section of tire
SV63016
 1Bead
 2Sidewall
 3Shoulder
 4Tread
 5Belt
 6Inner liner
 7Reinforcing rubber
 8Carcass
 9Rim lines
 10Bead wires
 11Chafer
Uniform tire quality grad

Page 378 of 425

Lexus IS300 2005  Electrical Components / LEXUS 2005 IS300 OWNERS MANUAL (OM53489U) CHASSIS
361
Traction AA, A, B, C ± The traction grades, from highest
to lowest, are AA, A, B and C, and they represent the
tires  ability to stop on wet pavement as measured under
controlled conditi

Page 379 of 425

Lexus IS300 2005  Electrical Components / LEXUS 2005 IS300 OWNERS MANUAL (OM53489U) CHASSIS
362
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation
pressuretire pressure when the vehicle has been parked for at least 3 hours or m\
ore, or it
has not been driven m

Page 380 of 425

Lexus IS300 2005  Electrical Components / LEXUS 2005 IS300 OWNERS MANUAL (OM53489U) CHASSIS
363
Tire related termMeaning
Normal occupant weight68 kg (150 lb.) times the number of occupants specified in the second \
column of
Table 1 that follows.
Production options weight
the combine
