SWITCHES
34

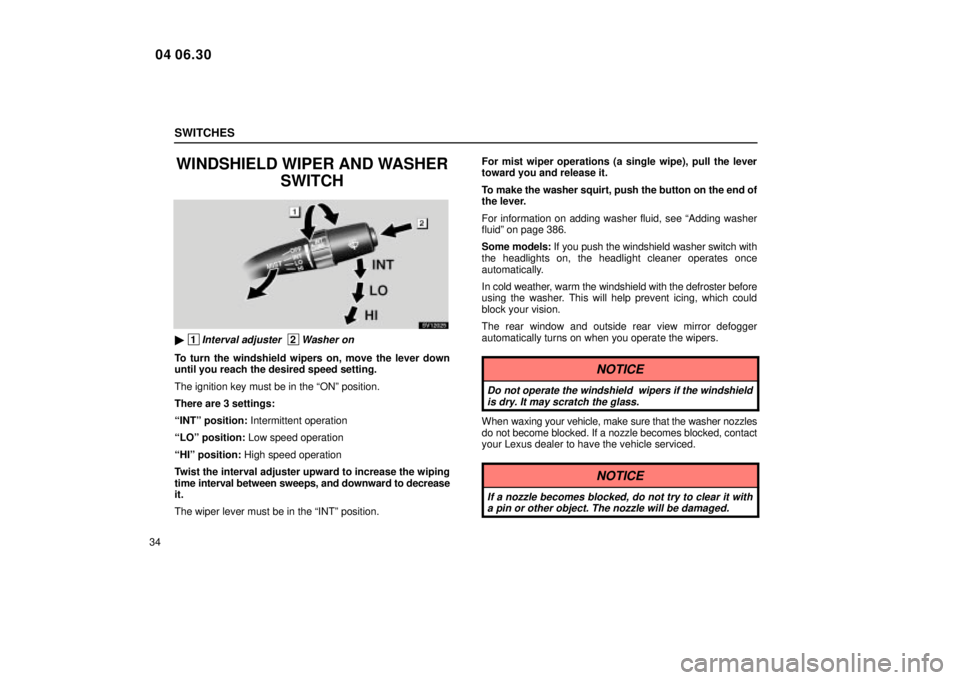

WINDSHIELD WIPER AND WASHERSWITCH
SV12025

1Interval adjuster 2Washer on
To turn the windshield wipers on, move the lever down
until you reach the desired speed setting.
The ignition key must be in the ªONº position.
There are 3 settings:
ªINTº position: Intermittent operation
ªLOº position: Low speed operation
ªHIº position: High speed operation
Twist the interval adjuster upward to increase the wiping
time interval between sweeps, and downward to decrease
it.
The wiper lever must be in the ªINTº position. For mist wiper operations (a single wipe), pull the lever
toward you and release it.
To make the washer squirt, push the button on the end of
the lever.
For information on adding washer fluid, see ªAdding washer
fluidº on page 386.
Some m
odels: If you push the windshield washer switch with
the headlights on, the headlight cleaner operates once
automatically.
In cold weather, warm the windshield with the defroster before
using the washer. This will help prevent icing, which could
block your vision.
The rear window and outside rear view mirror defogger
automatically turns on when you operate the wipers.
NOTICE
Do not operate the windshield wipers if the windshield is dry. It may scratch the glass.
When waxing your vehicle, make sure that the washer nozzles
do not become blocked. If a nozzle becomes blocked, contact
your Lexus dealer to have the vehicle serviced.
NOTICE
If a nozzle becomes blocked, do not try to clear it with
a pin or other object. The nozzle will be damaged.
04 06.30

SWITCHES
35
REAR WINDOW WIPER ANDWASHER SWITCH

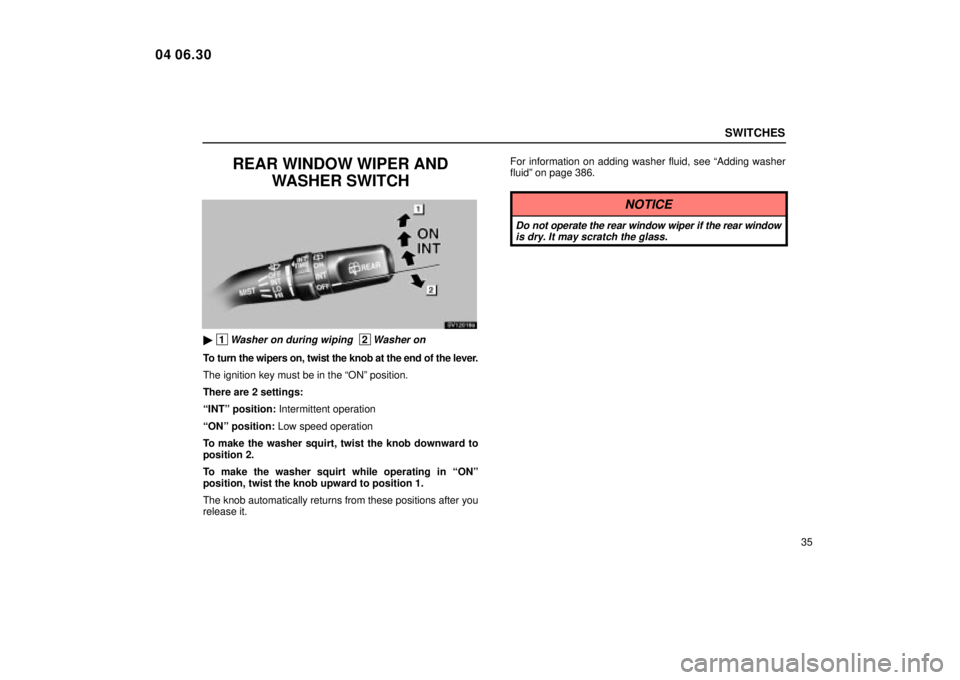

SV12018a

1Washer on during wiping 2Washer on
To turn the wipers on, twist the knob at the end of the lever.
The ignition key must be in the ªONº position.
There are 2 settings:
ªINTº position: Intermittent operation
ªONº position: Low speed operation
To make the washer squirt, twist the knob downward to
position 2.
To make the washer squirt while operating in ªONº
position, twist the knob upward to position 1.
The knob automatically returns from these positions after you
release it. For information on adding washer fluid, see ªAdding washer
fluidº on page 386.
NOTICE
Do not operate the rear window wiper if the rear window
is dry. It may scratch the glass.
04 06.30

SWITCHES
36

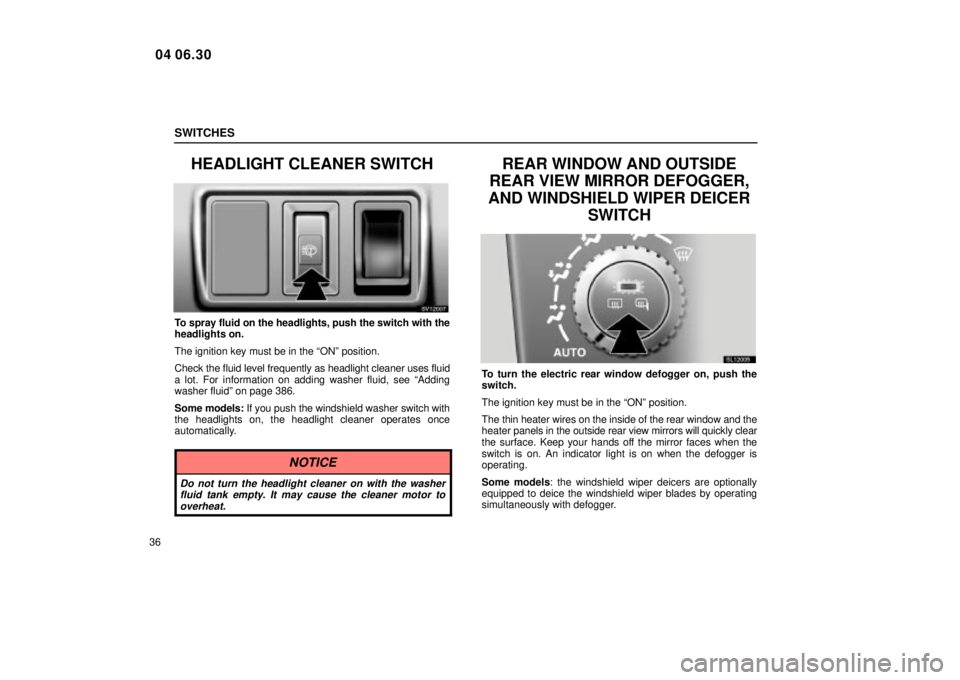

HEADLIGHT CLEANER SWITCH
SV12007
To spray fluid on the headlights, push the switch with the
headlights on.
The ignition key must be in the ªONº position.
Check the fluid level frequently as headlight cleaner uses fluid
a lot. For information on adding washer fluid, see ªAdding
washer fluidº on page 386.
Some models: If you push the windshield washer switch with
the headlights on, the headlight cleaner operates once
automatically.
NOTICE
Do not turn the headlight cleaner on with the washer
fluid tank empty. It may cause the cleaner motor tooverheat.
REAR WINDOW AND OUTSIDE
REAR VIEW MIRROR DEFOGGER,
AND WINDSHIELD WIPER DEICER SWITCH
SL12005
To turn the electric rear window defogger on, push the
switch.
The ignition key must be in the ªONº position.
The thin heater wires on the inside of the rear window and the
heater panels in the outside rear view mirrors will quickly clear
the surface. Keep your hands off the mirror faces when the
switch is on. An indicator light is on when the defogger is
operating.
Some models: the windshield wiper deicers are optionally
equipped to deice the windshield wiper blades by operating
simultaneously with defogger.
04 06.30

SWITCHES
37
The system will automatically shut off when the defogger has
operated about 15 minutes.
CAUTION
Since
the mirror surfaces can get hot, do not touch them
when the switch is on or operate the wipers.
If further defrosting or defogging is desired, simply actuate the
switch again. When the surface has cleared, push the switch
once again to turn the defogger off. Continuous use may cause
the battery to discharge, especially during stop±and±go
driving. The defogger is not designed to dry rain water or to
melt snow.
NOTICE
When cleaning the inside of the rear window, be careful not to scratch or damage the heater wires orconnectors.
To prevent the battery from being discharged, do notoperate the defogger continuously longer thannecessary.
POWER WINDOW SWITCHES

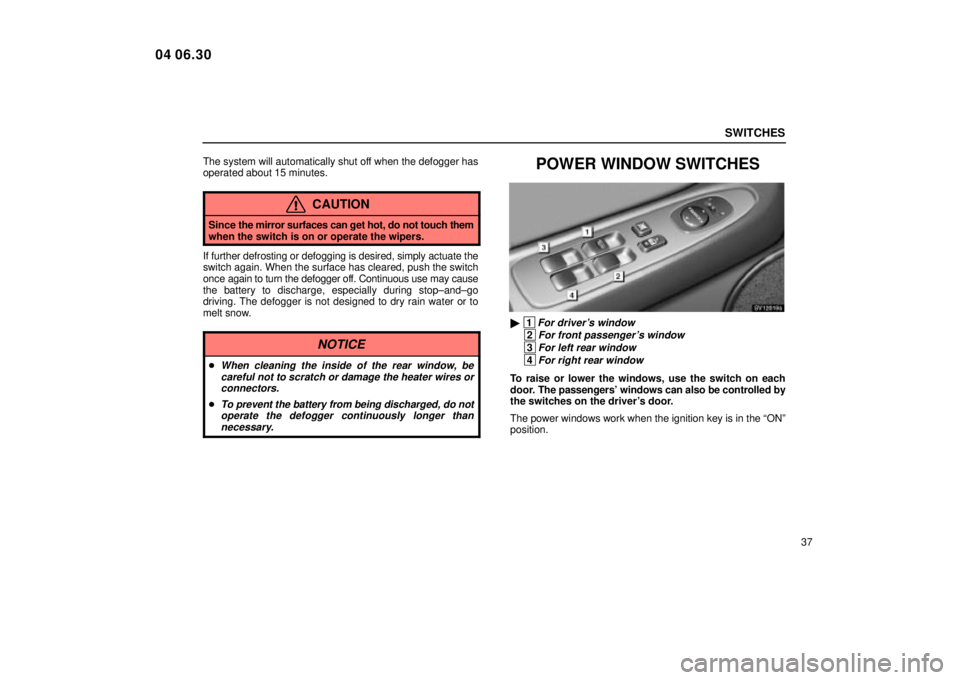

SV12019a

1For driver's window
2For front passenger's window
3For left rear window
4For right rear window
To raise or lower the windows, use the switch on each
door. The passengers' windows can also be controlled by
the switches on the driver's door.
The power windows work when the ignition key is in the ªONº
position.
04 06.30

SWITCHES
38

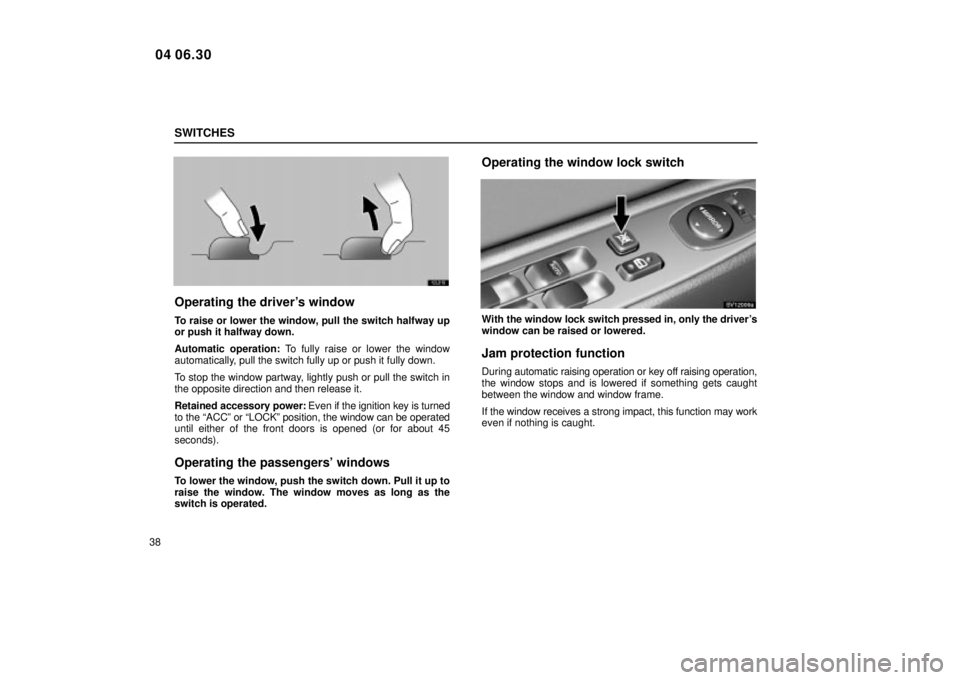

12L010
Operating the driver's window
To raise or lower the window, pull the switch halfway up
or push it halfway down.
Automatic operation: To fully raise or lower the window
automatically, pull the switch fully up or push it fully down.
To stop the window partway, lightly push or pull the switch in
the opposite direction and then release it.
Retained accessory power: Even if the ignition key is turned
to the ªACCº or ªLOCKº position, the window can be operated
until either of the front doors is opened (or for about 45
seconds).
Operating the passengers' windows
To lower the window, push the switch down. Pull it up to
raise the window. The window moves as long as the
switch is operated.
Operating the window lock switch
SV12009a
With the window lock switch pressed in, only the driver's
window can be raised or lowered.
Jam protection function
During automatic raising operation or key off raising operation,
the window stops and is lowered if something gets caught
between the window and window frame.
If the window receives a strong impact, this function may work
even if nothing is caught.
04 06.30

SWITCHES
39

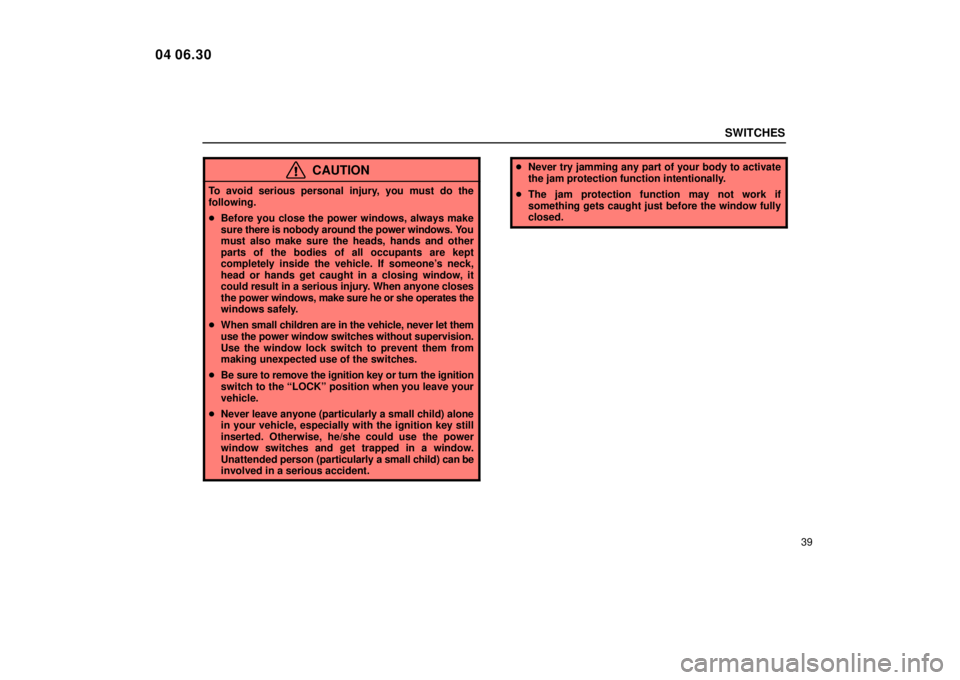

CAUTION
To avoid serious personal injury, you must do the
following.
Before you close the power windows, always make
sure there is nobody around the power windows. You
must also make sure the heads, hands and other
parts of the bodies of all occupants are kept
completely inside the vehicle. If someone's neck,
head or hands get caught in a closing window, it
could result in a serious injury. When anyone closes
the power windows, make sure he or she operates the
windows safely.
 When small children are in the vehicle, never let them
use the power window switches without supervision.
Use the window lock switch to prevent them from
making unexpected use of the switches.
 Be sure to remove the ignition key or turn the ignition
switch to the ªLOCKº position when you leave your
vehicle.
 Never leave anyone (particularly a small child) alone
in your vehicle, especially with the ignition key still
inserted. Otherwise, he/she could use the power
window switches and get trapped in a window.
Unattended p erson (particularly a small child) can be
involved in a serious accident.
 Never try jamming any part of your body to activate
the jam protection function intentionally.
 The jam protection function may not work if
something gets caught just before the window fully
closed.
04 06.30

SWITCHES
40
EMERGENCY FLASHER SWITCH

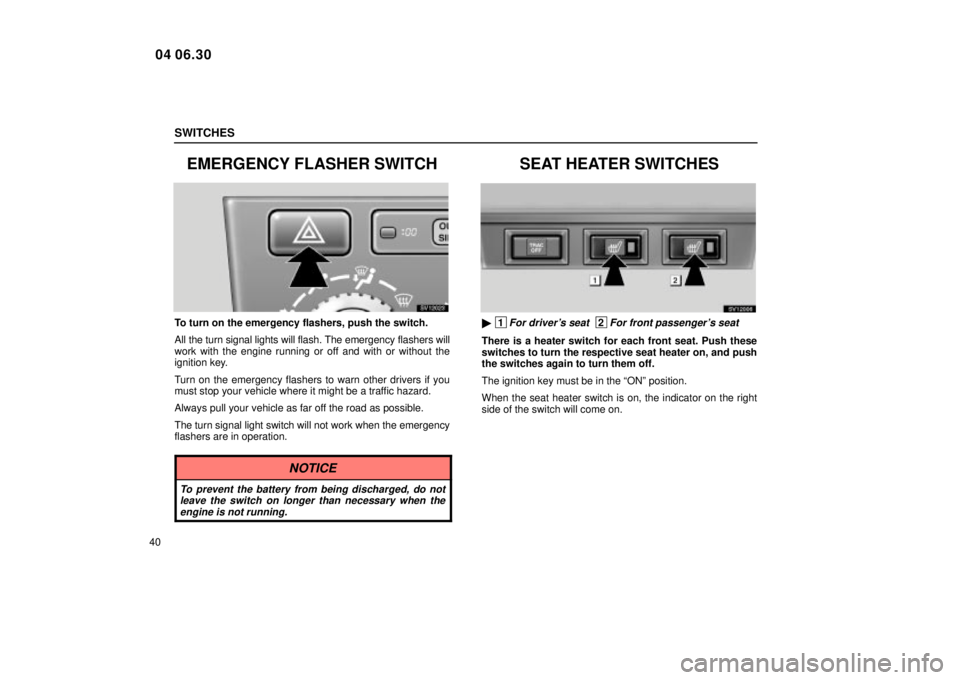

SV12023
To turn on the emergency flashers, push the switch.
All the turn signal lights will flash. The emergency flashers will
work with the engine running or off and with or without the
ignition key.
Turn on the emergency flashers to warn other drivers if you
must stop your vehicle where it might be a traffic hazard.
Always pull your vehicle as far off the road as possible.
The turn signal light switch will not work when the emergency
flashers are in operation.
NOTICE
To prevent the battery from being discharged, do notleave the switch on longer than necessary when theengine is not running.
SEAT HEATER SWITCHES
SV12006

1For driver's seat 2For front passenger's seat
There is a heater switch for each front seat. Push these
switches to turn the respective seat heater on, and push
the switches again to turn them off.
The ignition key must be in the ªONº position.
When the seat heater switch is on, the indicator on the right
side of the switch will come on.
04 06.30

SWITCHES
41

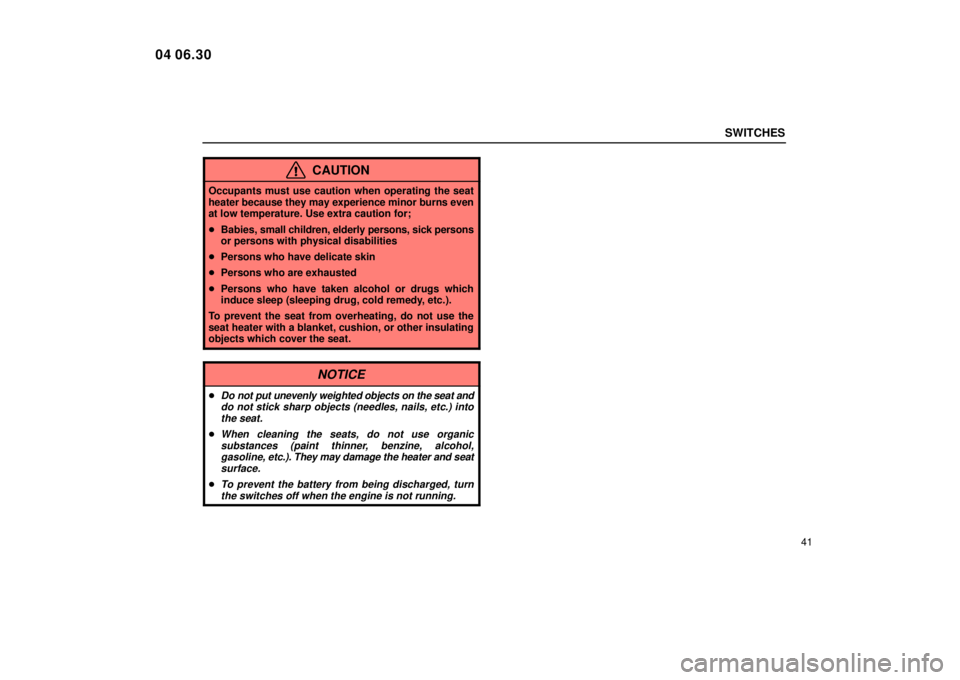

CAUTION
Occupants must use caution when operating the seat
heater because they may experience minor burns even
at low temperature. Use extra caution for;
Babies, small children, elderly persons, sick persons
or persons with physical disabilities
 Persons who have delicate skin
 Persons who are exhausted
 Persons who have taken alcohol or drugs which
induce sleep (sleeping drug, cold remedy, etc.).
To prevent the seat from overheating, do not use the
seat heater with a blanket, cushion, or other insulating
objects which cover the seat.
NOTICE
Do not put unevenly weighted objects on the seat and do not stick sharp objects (needles, nails, etc.) intothe seat.
When cleaning the seats, do not use organicsubstances (paint thinner, benzine, alcohol,gasoline, e tc.). They may damage the heater and seat
surface.
To prevent the battery from being discharged, turn the switches off when the engine is not running.
04 06.30

SWITCHES
42
04 06.30
