INTERIOR EQUIPMENT
64
CIGARETTE LIGHTER ANDASHTRAY
SV14002

Cigarette lighter and front ashtray
SS14011

Rear ashtray
Cigarette Lighter
To use the cigarette lighter, press it in. After it finishes
heating up, it automatically pops out ready for use.
Do not hold the cigarette lighter pressed in.
If the engine is not running, the ignition key must be in the
ªACCº position to use the lighter.
Use a Lexus genuine cigarette lighter or equivalent for
replacement.
Ashtray
To use the ashtray, open the cover.
When finished with your cigarette, thoroughly extinguish it in
the ashtray to prevent other cigarette butts from catching fire.
After using the ashtray, close the ashtray cover completely.
To remove the ashtray, open the ashtray cover and pull it out.
CAUTION
To reduce the chance of injury in case of an accident or
sudden stop while driving, always completely close the
ashtray after use.
04 06.30

INTERIOR EQUIPMENT
65
POWER OUTLET
SV14029a

In the console box
SV14010

In the luggage compartment (SportCross only)
The power outlet is designed for power supply for car
accessories.
The ignition key must be in the ªACCº or ªONº position for t\
he
power outlet to be used.
NOTICE
In the console: To prevent the fuse from being blown,do not use the electricity over the total vehiclecapacity of 12V 3.5A.
In the luggage compartment: To prevent the fusefrom being blown, do not use the electricity over thetotal vehicle capacity of 12V/120W.
To prevent the battery from being discharged, do notuse the power outlet longer than necessary when theengine is not running.
Close the power outlet lid when the power outlet isnot in use. Inserting anything other than anappropriate plug that fits the outlet, or allowing anyliquid to get into the outlet may cause electrical
failure or short circuits.
04 06.30

INTERIOR EQUIPMENT
66
GLOVE BOX
SS14012

1Unlock 2Open 3Lock
To open the glove box door, pull the lever. To lock the
glove box door, insert the master key and turn it
clockwise.
With the tail lights on, the glove box light will come on when the
glove box door is open.
CAUTION
To reduce the chance of injury in case of an accident or
a sudden stop, always keep the glove box door closed
while driving.
GARAGE DOOR OPENER
The garage door opener (HomeLink Universal
Transceiver) is manufactured under license from
HomeLink
 and can be programmed to operate garage
doors, gates, entry doors, door locks, home lighting
systems, and security systems, etc.
(a) Programming the HomeLink
SV14007

1Buttons 2Indicator light
The HomeLink in your vehicle has 3 buttons and you can
store one program for each button.
To ensure correct programming into the HomeLink
, install a
new battery in the hand± held transmitter prior to
programming.
04 06.30

INTERIOR EQUIPMENT
67
The battery side of the hand±held transmitter must be pointed
away from the HomeLink
 during the programming process.
For Canadian users, follow the procedure in ªProgramming an
entrance gate/Programming all devices in the Canadian
marketº.
1. Decide which of 3 HomeLink
 buttons you want to
program.
2. Place your hand±held garage transmitter 25 to 75 mm (1 to
3 in.) away from the surface of the HomeLink
.
Keep the indicator light on the HomeLink
 in view while
programming.
3. Simultaneously press and hold the hand±held garage
transmitter button along with the selected HomeLink
 button.
4. When the indicator light on the HomeLink
 changes from
a slow to a rapid flash after 20 seconds, you can release both
buttons.
5. Test the operation of the HomeLink
 by pressing the newly
programmed button. If programming a garage door opener,
check to see if the garage door opens and closes.
If the garage door does not operate, identify if your garage
transmitter is of the ªRolling Codeº type. Press and hold the
programmed HomeLink
 button. The garage door has the
rolling code feature if the indicator light (on the HomeLink)
flashes rapidly and then remains lit after 2 seconds. If your
garage transmitter is the ªRolling Codeº type, proceed to the
heading ªProgramming a rolling code systemº.
6. Repeat steps 2 through 5 for each remaining HomeLink

button to program another device.
Programming a rolling code system
If your device is ªRolling Codeº equipped, it is necessary
to follow steps 1 through 4 under the heading
ªProgramming the HomeLink
º before proceeding with
the steps listed below.
1. Locate the ªtrainingº button on the ceiling mounted garage
door opener motor. The exact location and color of the button
may vary by brand of garage door opener. Refer to the owner's
guide supplied by the garage door opener manufacturer for the
location of this ªtrainingº button.
2. Press the ªtrainingº button on the ceiling mounted garage
door opener motor.
Following this step, you have 30 seconds in which to initiate
step 3 below.
3. Press and release the vehicle's programmed HomeLink

button twice. The garage door may open. If the door does
open, the programming process in complete. If the door does
not open, press and release the button a third time. This third
press and release will complete the programming process by
opening the garage door.
The ceiling mounted garage door opener motor should now
recognize the HomeLink
 unit and be able to activate the
garage door up/down.
4. Repeat steps 1 through 3 for each remaining HomeLink

button to program another rolling code system.
04 06.30

INTERIOR EQUIPMENT
68
Programming an entrance gate /
Programming all devices in the Canadian
market
1. Decide which of the 3 HomeLink buttons you want to
program.
2. Place your hand± held gate/device transmitter 25 to 75 mm
(1 to 3 in.) away from the surface of the HomeLink
.
Keep the indicator light on the HomeLink
 in view while
programming.
3. Press and hold the selected HomeLink
 button.
4. Continuously press and release (cycle) the hand± held
gate/device transmitter button every two seconds until step 5
is complete.
5. When the indicator light on the HomeLink
 changes from
a slow to a rapid flash after 20 seconds, you can release both
buttons.
6. Test the operation of the HomeLink
 by pressing the newly
programmed button. Check to see if the gate/device operates
correctly.
7. Repeat steps 1 through 6 for each remaining HomeLink

button to program another device.
Programming other devices
To program other devices such as home security systems,
home door locks or lighting, contact your authorized Lexus
dealer for assistance.
Reprogramming a button
Individual HomeLink buttons cannot be erased, however, to
reprogram a single button, follow the procedure ªProgramming
the HomeLink
º.
(b) Operating the HomeLink
To operate the HomeLink, press the appropriate HomeLink
button to activate the programmed device. The HomeLink
indicator light should come on. The HomeLink continues to
send the signal for up to 20 seconds as long as the button is
pressed.
(c) Erasing the entire HomeLink memory
(all three programs)
To erase all previously programmed codes at one time, press
and hold down the 2 outside buttons for 20 seconds until the
indicator light flashes.
If you sell your vehicle, be sure to erase the programs stored
in the HomeLink
 memory.
04 06.30

INTERIOR EQUIPMENT
69
CAUTION
When programming the HomeLink Universal
Transceiver, you may be operating a garage door or
other device. Make sure people and objects are out of
the way of the garage door or other device to prevent
potential harm or damage.
 Do not use this HomeLink
 Universal Transceiver
with any garage door opener that lacks the safety
stop and reverse feature as required by federal safety
standards. (This includes any garage door opener
model manufactured before April 1, 1982.) A garage
door opener which cannot detect an object (signaling
the door to stop and reverse), does not meet current
federal safety standards. Using a garage door opener
without these features increases risk of serious
injury or death.
This device complies with Part 15 of the FCC Rules
and with RSS±210 of the IC Rules. Operation is
subject to the following two conditions: (1) This
device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
WARNING: This transmitter has been tested and
complies with FCC and IC rules. Changes or
modifications not expressly approved by the
party responsible for compliance could void the
user's authority to operate the device.
04 06.30

INTERIOR EQUIPMENT
70
CUPHOLDERS
SV14047

Front (Type A)
SV14018

Center (Type A)
To use the cupholder, open the cupholder lid.
You can use it as an accessory box by removing the holder
inside.
SV14049
Front (type A): The cupholder can be adjustable to the size
of the cups or drink±cans by changing the holder position.
CAUTION
 Do not place anything else other than cups or
drink±cans in the cupholder, as such items may be
thrown about in the compartment and possibly injure
people in the vehicle during sudden braking or in an
accident.
 To reduce the chance of injury in case of an accident
or sudden stop while driving, keep the cupholder
closed when not in use.
04 06.30

INTERIOR EQUIPMENT
71

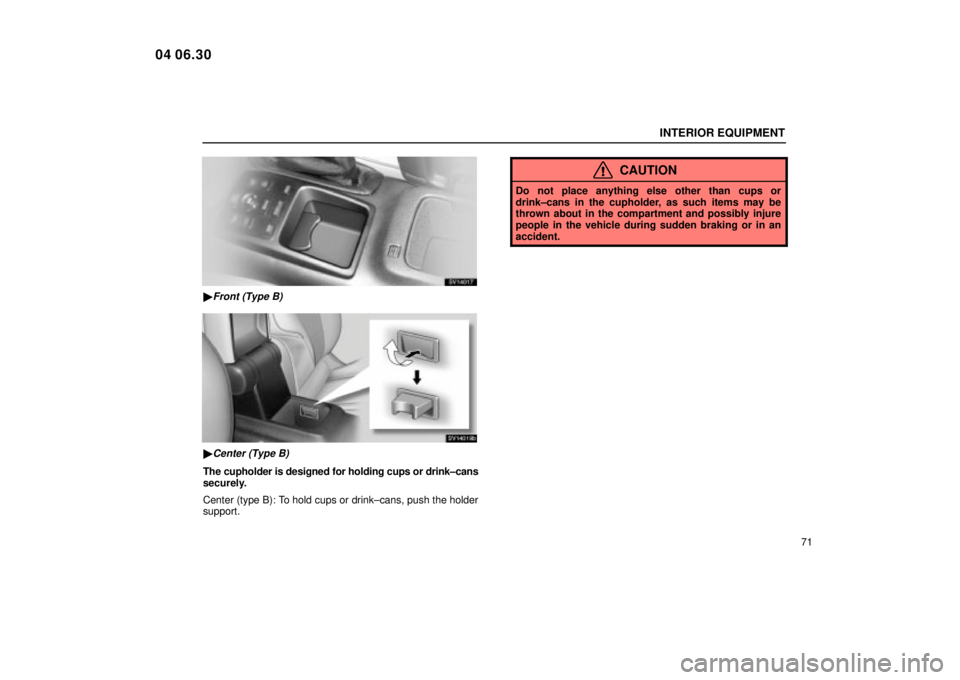

SV14017

Front (Type B)
SV14019b

Center (Type B)
The cupholder is designed for holding cups or drink±cans
securely.
Center (type B): To hold cups or drink±cans, push the holder
support.
CAUTION
Do not place anything else other than cups or
drink±cans in the cupholder, as such items may be
thrown about in the compartment and possibly injure
people in the vehicle during sudden braking or in an
accident.
04 06.30

INTERIOR EQUIPMENT
72

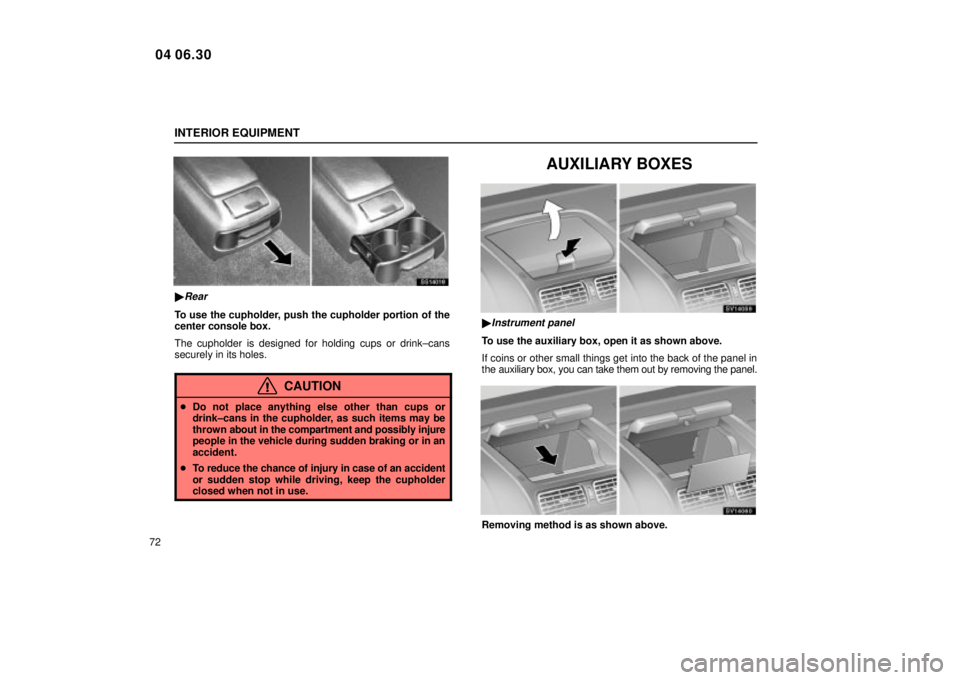

SS14018

Rear
To use the cupholder, push the cupholder portion of the
center console box.
The cupholder is designed for holding cups or drink±cans
securely in its holes.
CAUTION
Do not place anything else other than cups or
drink±cans in the cupholder, as such items may be
thrown about in the compartment and possibly injure
people in the vehicle during sudden braking or in an
accident.
 To reduce the chance of injury in case of an accident
or sudden stop while driving, keep the cupholder
closed when not in use.
AUXILIARY BOXES
SV14059

Instrument panel
To use the auxiliary box, open it as shown above.
If coins or other small things get into the back of the panel in
the auxiliary box, you can take them out by removing the panel.
SV14060
Removing method is as shown above.
04 06.30

INTERIOR EQUIPMENT
73

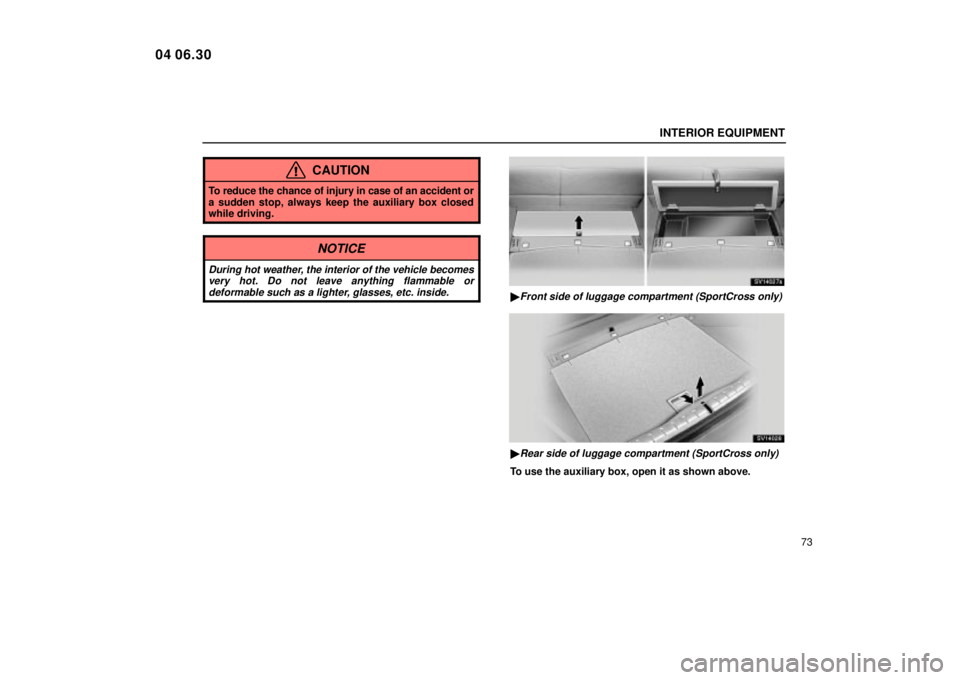

CAUTION
To reduce the chance of injury in case of an accident or
a sudden stop, always keep the auxiliary box closed
while driving.
NOTICE
During hot weather, the interior of the vehicle becomesvery hot. Do not leave anything flammable ordeformable such as a lighter, glasses, etc. inside.
SV14027a

Front side of luggage compartment (SportCross only)
SV14028

Rear side of luggage compartment (SportCross only)
To use the auxiliary box, open it as shown above.
04 06.30
