832. Instrument cluster
2
Instrument cluster
IS350/300/200t_U (OM53D76U)
■The meters and display illuminate when
The engine switch is in IGNITION ON mode.
■Instrument panel brightness adjustment
The instrument panel brightness levels when the tail lights are on and off can be adjusted
individually. However, when the surroundings are bright (daytime, etc.), turning on the tail
lights will not change the inst rument panel brightness. At th is time, any adjustments made
to the instrument panel brightness levels will be applied to both settings at once.
■Outside temperature display
In the following situations, the correct outside temperature may not be displayed, or the
display may take longer than normal to change.
●When stopped, or driving at low speeds (less than 12 mph [20 km/h])
●When the outside temperature has changed suddenly (at the entrance/exit of a garage,
tunnel, etc.)
■Pop-up display
●In some situations, such as when a switch operation is performed, a pop-up display will
be temporarily displayed on the multi-information display or the odometer/trip meter
screen (F SPORT models).
●Some pop-up displays can be set on/off. ( →P. 92)
■Customization
The meter display can be customized on the multi-information display. (→P. 92)
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indicates
the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the red
zone (H). In this case, immediately stop the vehicle in a safe place, and check the
engine after it has cooled completely. ( →P. 566)

4567-2. Maintenance
IS350/300/200t_U (OM53D76U)

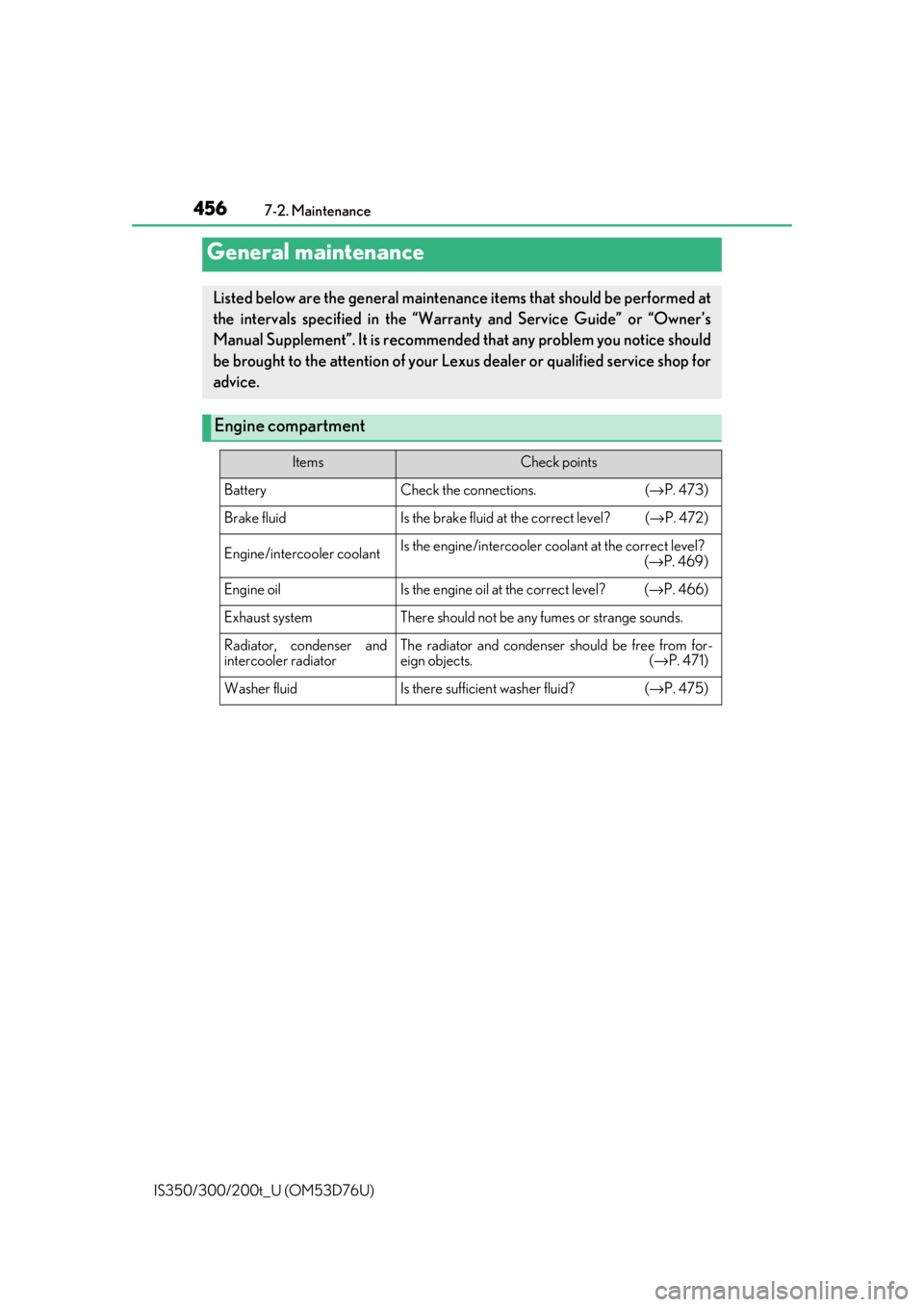

General maintenance
Listed below are the general maintenanc e items that should be performed at
the intervals specified in the “Warranty and Service Guide” or “Owner’s
Manual Supplement”. It is recommende d that any problem you notice should
be brought to the attention of your Lexu s dealer or qualified service shop for
advice.
Engine compartment
ItemsCheck points
BatteryCheck the connections. (→ P. 473)
Brake fluidIs the brake fluid at the correct level? ( →P. 472)
Engine/intercooler coolantIs the engine/intercooler c oolant at the correct level?
(→ P. 469)
Engine oilIs the engine oil at the correct level? ( →P. 466)
Exhaust systemThere should not be any fumes or strange sounds.
Radiator, condenser and
intercooler radiatorThe radiator and condenser should be free from for-
eign objects. ( →P. 471)
Washer fluidIs there sufficient washer fluid? ( →P. 475)

460
IS350/300/200t_U (OM53D76U)7-3. Do-it-yourself maintenance
Do-it-yourself service precautions
If you perform maintenance by yourself, be sure to follow the correct proce-
dure as given in these sections.
ItemsParts and tools
Battery condition
(
→ P. 473)•Warm water• Baking soda•Grease
• Conventional wrench (for terminal clamp bolts)
Brake fluid level
(→ P. 472)• SAE J1703 or FMVSS No.116 DOT 3 brake fluid
• Rag or paper towel
• Funnel (used only for adding brake fluid)
Engine/intercooler
coolant level
(→ P. 469)
• “Toyota Super Long Life Coolan t” or a similar high quality
ethylene glycol-based non-silicate, non-amine, non-nitrite
and non-borate coolant with long-life hybrid organic acid
technology
For the U.S.A.:
“Toyota Super Long Life Coolant” is pre-mixed with 50%
coolant and 50% deionized water.
For Canada:
“Toyota Super Long Life Cool ant” is pre-mixed with 55%
coolant and 45% deionized water.
• Funnel (used only for adding coolant)
Engine oil level
( → P. 466)
• “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses
(→ P. 495)• Fuse with same amperage rating as original
Light bulbs
(→ P. 498)
• Bulb with same number and wattage rating as original
• Phillips-head screwdriver•Flathead sc rewdriver
•Wrench
Radiator, condenser
and intercooler radi-
ator (→P. 471)
⎯
Tire inflation pres-
sure (→P. 486)• Tire pressure gauge• Compressed air source
Washer fluid
(→ P. 475)• Water or washer fluid containing antifreeze (for winter use)
• Funnel (used only for adding water or washer fluid)

4647-3. Do-it-yourself maintenance
IS350/300/200t_U (OM53D76U)
IS350/IS300
Engine compartment
Fuse boxes (→ P. 495)
Battery ( →P. 473)
Engine oil level dipstick (→ P. 466)
Engine coolant reservoir (→P. 469)
Engine oil filler cap (→ P. 467)Brake fluid reservoir (
→P. 472)
Washer fluid tank ( →P. 475)
Electric cooling fans
Condenser ( →P. 471)
Radiator ( →P. 471)1
2
3
4
5
6
7
8
9
10

4657-3. Do-it-yourself maintenance
7
Maintenance and care
IS350/300/200t_U (OM53D76U)
IS200t
Fuse boxes (→P. 495)
Battery ( →P. 473)
Intercooler
Engine oil level dipstick (→ P. 466)
Engine oil filler cap (→ P. 467)
Engine coolant reservoir (→P. 469) Brake fluid reservoir (
→P. 472)
Washer fluid tank ( →P. 475)
Electric cooling fans
Condenser ( →P. 471)
Intercooler radiator (→ P. 469)
Radiator (→ P. 471)
Intercooler coolant reservoir (→P. 469)1
2
3
4
5
6
7
8
9
10
11
12
13

4697-3. Do-it-yourself maintenance
7
Maintenance and care
IS350/300/200t_U (OM53D76U)

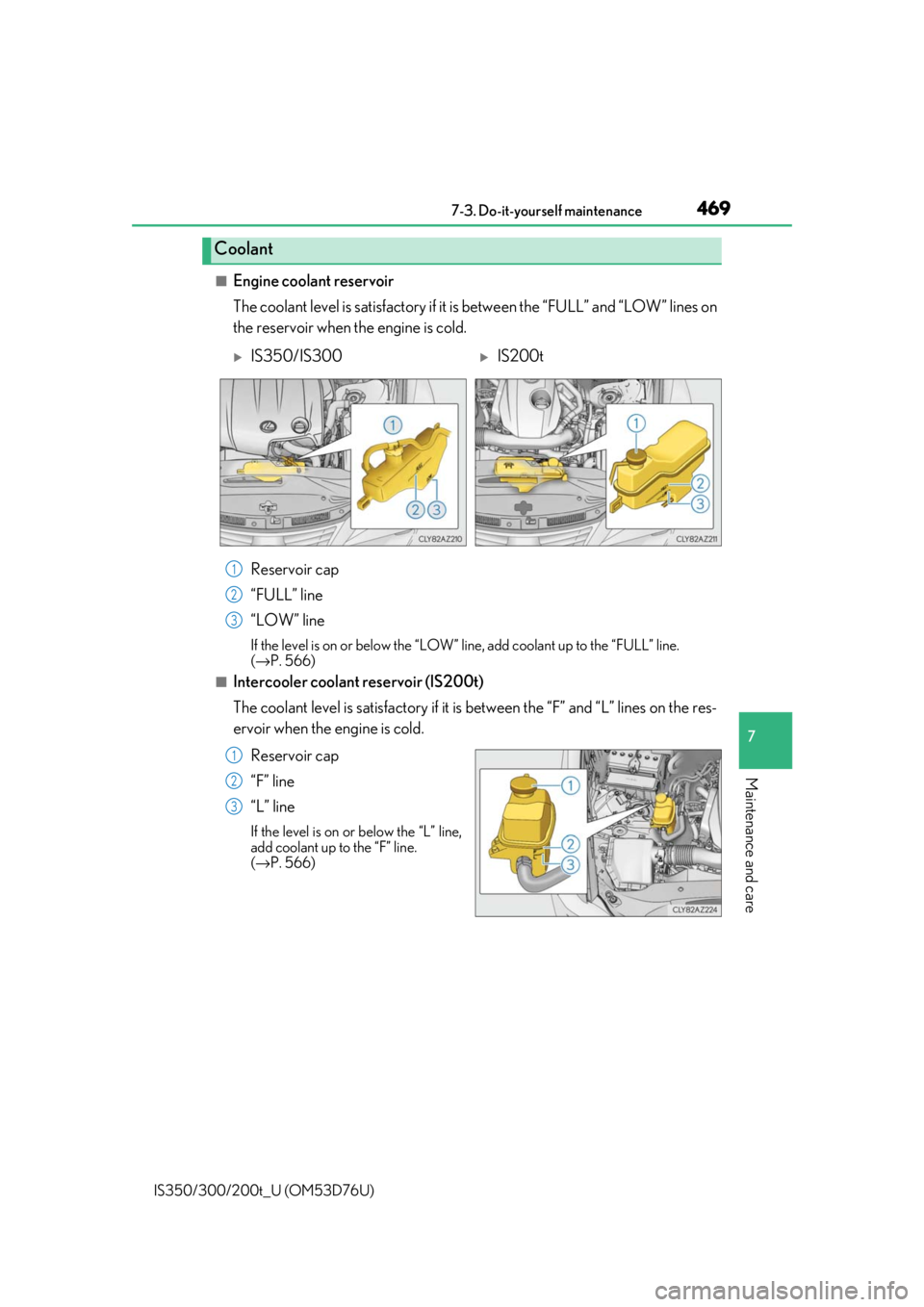

■Engine coolant reservoir
The coolant level is satisfactory if it is between the “FULL” and “LOW” lines on
the reservoir when the engine is cold.
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the “LOW” lin e, add coolant up to the “FULL” line.
( → P. 566)
■Intercooler coolant reservoir (IS200t)
The coolant level is satisfactory if it is between the “F” and “L” lines on the res-
ervoir when the engine is cold.
Reservoir cap
“F” line
“L” line
If the level is on or below the “L” line,
add coolant up to the “F” line.
(→ P. 566)
Coolant
IS350/IS300IS200t
1
2
3
1
2
3

4707-3. Do-it-yourself maintenance
IS350/300/200t_U (OM53D76U)
■Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene glycol
based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid
organic acid technology.
U.S.A.:
“Toyota Super Long Life Coolant” is a mixt ure of 50% coolant and 50% deionized water.
(Minimum temperature: -31 °F [-35 °C])
Canada:
“Toyota Super Long Life Cool ant” is a mixture of 55% coolant and 45% deionized water.
(Minimum temperature: -44° F [-42°C])
For more details about engine coolant, contact your Lexus dealer.
■If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine coolant reservoir cap, drain cock and water
pump.
If you cannot find a leak, have your Lexus de aler test the cap and check for leaks in the
cooling system.
WARNING
■When the engine is hot
Do not remove the engine co olant reservoir cap, radiator cap (IS350/IS300) or inter-
cooler coolant reservoir cap (IS200t). ( →P. 569)
The cooling system may be under pressure and may spray hot coolant if the cap is
removed, causing serious injuries, such as burns.
NOTICE
■When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of water and
antifreeze must be used to provide proper lubrication, corrosion protection and cool-
ing. Be sure to read the antifreeze or coolant label.
■If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.

5148-2. Steps to take in an emergency
IS350/300/200t_U (OM53D76U)
●Fluid leaks under the vehicle.
(Water dripping from the air conditioning after use is normal.)
●Flat-looking tires or uneven tire wear
●Engine coolant temperature gauge needle continually points higher than nor-
mal.
●Changes in exhaust sound
●Excessive tire squeal when cornering
●Strange noises related to the suspension system
●Pinging or other noises related to the engine
●Engine missing, stumbling or running roughly
●Appreciable loss of power
●Vehicle pulls heavily to one side when braking
●Vehicle pulls heavily to one side when driving on a level road
●Loss of brake effectiveness, spongy feeling, pedal almost touches the floor
If you think something is wrong
If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact your Lexus dealer as soon as possible.
Visible symptoms
Audible symptoms
Operational symptoms

5678-2. Steps to take in an emergency
8
When trouble arises
IS350/300/200t_U (OM53D76U)

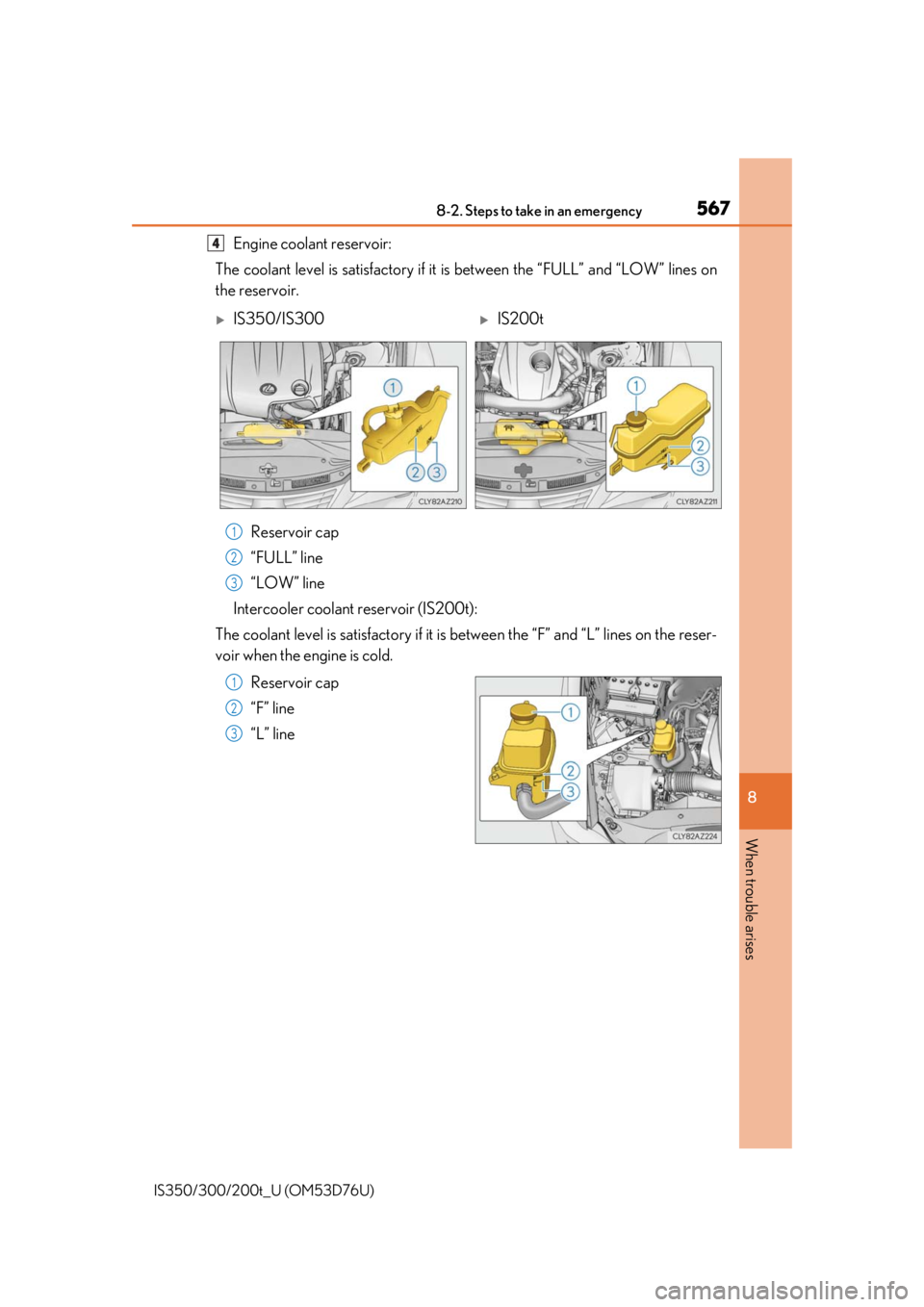

Engine coolant reservoir:
The coolant level is satisfactory if it is between the “FULL” and “LOW” lines on
the reservoir.
Reservoir cap
“FULL” line
“LOW” line
Intercooler coolant reservoir (IS200t):
The coolant level is satisfactory if it is between the “F” and “L” lines on the reser-
voir when the engine is cold.
Reservoir cap
“F” line
“L” line4
IS350/IS300IS200t
1
2
3
1
2
3

5979-1. Specifications
9
Vehicle specifications
IS350/300/200t_U (OM53D76U)

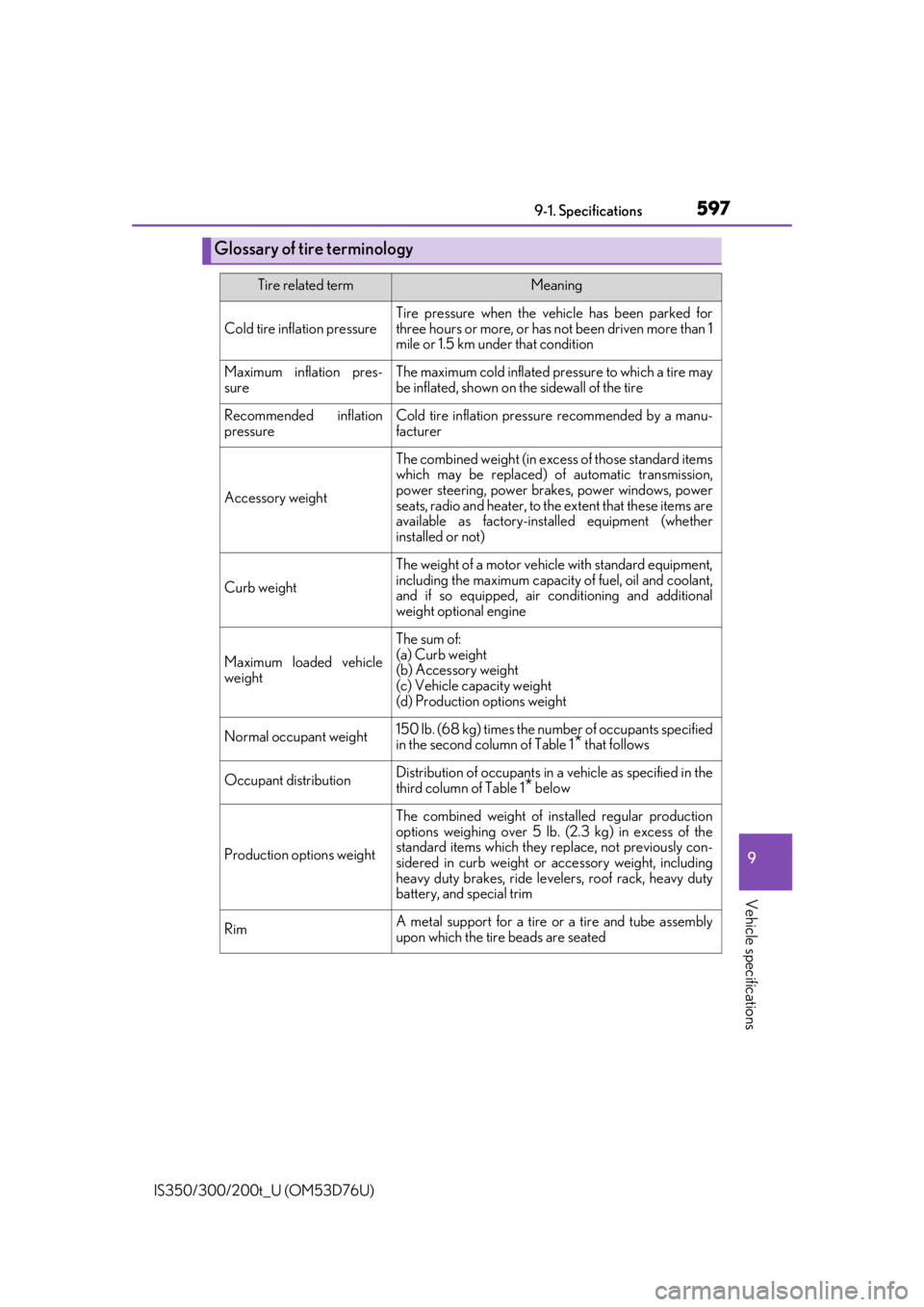

Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pressure
Tire pressure when the vehicle has been parked for
three hours or more, or has not been driven more than 1
mile or 1.5 km un der that condition
Maximum inflation pres-
sureThe maximum cold inflated pr essure to which a tire may
be inflated, shown on the sidewall of the tire
Recommended inflation
pressureCold tire inflation pressure recommended by a manu-
facturer
Accessory weight
The combined weight (in exce ss of those standard items
which may be replaced) of automatic transmission,
power steering, power brakes, power windows, power
seats, radio and heater, to the extent that these items are
available as factory-installed equipment (whether
installed or not)
Curb weight
The weight of a motor vehicle with standard equipment,
including the maximum capacity of fuel, oil and coolant,
and if so equipped, air co nditioning and additional
weight optional engine
Maximum loaded vehicle
weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight150 lb. (68 kg) times the numb er of occupants specified
in the second column of Table 1* that follows
Occupant distributionDistribution of occupants in a vehicle as specified in the
third column of Table 1
* below
Production options weight
The combined weight of in stalled regular production
options weighing over 5 lb. (2.3 kg) in excess of the
standard items which they re place, not previously con-
sidered in curb weight or accessory weight, including
heavy duty brakes, ride levelers, roof rack, heavy duty
battery, and special trim
RimA metal support for a tire or a tire and tube assembly
upon which the tire beads are seated
