stop start Lexus IS300 2020 / LEXUS 2020 IS300,IS350 (OM53F29U) Owner's Guide

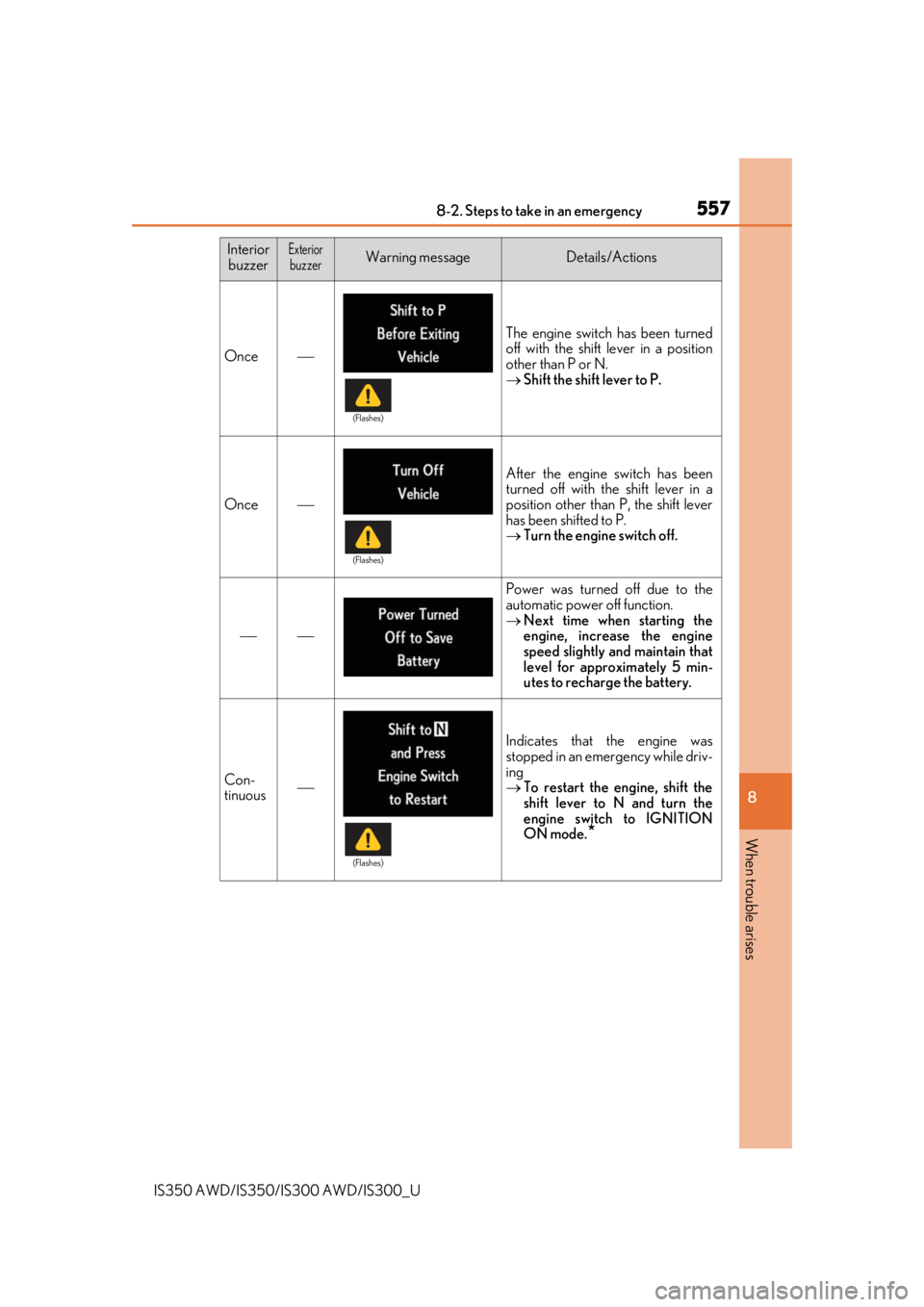

5578-2. Steps to take in an emergency
8
When trouble arises
IS350 AWD/IS350/IS300 AWD/IS300_U
Once
The engine switch has been turned
off with the shift lever in a position
other than P or N.
Shift the shift lever to P.
Once
After the engine switch has been
turned off with the shift lever in a
position other than P, the shift lever
has been shifted to P.
Turn the engine switch off.

Power was turned off due to the
automatic power off function.
Next time when starting the
engine, increase the engine
speed slightly and maintain that
level for approximately 5 min-
utes to recharge the battery.
Con-
tinuous
Indicates that the engine was
stopped in an emergency while driv-
ing
To restart the engine, shift the
shift lever to N and turn the
engine switch to IGNITION
ON mode.
*
Interior
buzzerExteriorbuzzerWarning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)

5588-2. Steps to take in an emergency
IS350 AWD/IS350/IS300 AWD/IS300_U
*: The engine may not be restarted depending on the vehicle condition.
■Warning messages
P. 552
■Warning buzzer
P. 529
Once
Indicates that the engine switch has
been pressed while driving
 Except when emergency stop-
ping of the vehicle is needed,
immediately release the engine
switch.
Interior
buzzerExteriorbuzzerWarning messageDetails/Actions
(Flashes)

5748-2. Steps to take in an emergency
IS350 AWD/IS350/IS300 AWD/IS300_U
■Stopping the engine
Shift the shift lever to P and press the engine switch as you normally do when stopping
the engine.
■Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the electronic
key battery be replaced immediately when the battery is depleted. ( P. 502)
■Changing engine switch modes
Release the brake pedal and press the engine switch in step above.
The engine does not start and modes will be changed each time the switch is pressed.
(  P. 187)
■When the electronic key does not work properly
●Make sure that the smart access system wi th push-button start has not been deacti-
vated in the customization setting. If it is off, turn the function on.
(Customizable features:  P. 613)
●Check if battery-saving mode is set. If it is set, cancel the function. ( P. 136)
WARNING
■When using the mechanical key and operating the power windows or moon roof
Operate the power window or moon roof after checking to make sure that there is no
possibility of any passenger having any of their body parts caught in the window or
moon roof.
Also, do not allow children to operate the mechanical key. It is possible for children and
other passengers to get caught in the power window or moon roof.
3

5818-2. Steps to take in an emergency
8
When trouble arises
IS350 AWD/IS350/IS300 AWD/IS300_U
Add coolant if necessary.
Water can be used in an emergency if coolant is unavailable.
Start the engine and turn the air conditio ning system on to check that the radi-
ator cooling fans operate and to check for coolant leaks from the radiator or
hoses.
The fans operate when the air conditioning system is turned on immediately after a
cold start. Confirm that the fans are operating by checking the fan sound and air flow.
If it is difficult to check these, turn the air conditioning system on and off repeatedly.
(The fans may not operate in freezing temperatures.)
If the fans are not operating:
Stop the engine immediately an d contact your Lexus dealer.
If the fans are operating:
Have the vehicle inspected at the nearest Lexus dealer.
Check if “Engine Coolant Temp High St op in a Safe Place See Owner’s Man-
ual” is shown on the multi-information display.
If the message does not disappear:
Stop the engine and contact your Lexus dealer.
If the message is not displayed:
Have the vehicle inspected at the nearest Lexus dealer.
5
Engine (IS350 AWD/IS350/
IS300 AWD)Engine (IS300)
Intercooler (IS300)
6
7
8

5838-2. Steps to take in an emergency
8
When trouble arises
IS350 AWD/IS350/IS300 AWD/IS300_U
Stop the engine. Set the parking brake and shift the shift lever to P.
Remove the mud, snow or sand from around the rear wheels.
Place wood, stones or some other materi al under the rear wheels to help pro-
vide traction.
Restart the engine.
Shift the shift lever to D or R and rele ase the parking brake. Then, while exer-
cising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
If the vehicle becomes stuck
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt or snow:
Press to turn off TRAC.
1
2
3
4
5

637What to do if... (Troubleshooting)
IS350 AWD/IS350/IS300 AWD/IS300_U
●The function to prevent the electronic key from being left inside the trunk will
operate and you can open the trunk as usual. Take the key out from the trunk.
( P. 132)
●Did you press the engine switch while firmly depressing the brake pedal?
( P. 186)
●Is the shift lever in P? ( P. 188)
●Is the electronic key anywhere detectable inside the vehicle? ( P. 135)
●Is the steering wheel unlocked? ( P. 188)
●Is the electronic key battery weak or depleted?
In this case, the engine can be started in a temporary way. (P. 573)
●Is the battery discharged? ( P. 575)
●Is the engine switch in IGNITION ON mode?
If you cannot release the shift lever by depressing the brake pedal with the
engine switch in IGNITION ON mode. ( P. 196)
●It is locked automatically to prevent theft of the vehicle. ( P. 188)
The trunk lid is closed with the electronic key left inside
If you think something is wrong
The engine does not start
The shift lever cannot be shifted from
P even if you depress the brake
pedal
The steering wheel cannot be turned after the engine is stopped

638What to do if... (Troubleshooting)
IS350 AWD/IS350/IS300 AWD/IS300_U
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be operated
if the window lock switch is pressed. ( P. 162)
●The auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not running) for a period of
time. ( P. 188)
●The seat belt reminder light is flashing
Are the driver and the front passe nger wearing the seat belts? (P. 527)
●The parking brake indicator is on
Is the parking brake released? ( P. 200)
Depending on the situation, other types of warning buzzer may also sound.
( P. 525, 532)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( P. 78)
Do one of the following to de activate or stop the alarms:
• Unlock the doors or open the trunk.
• Turn the engine switch to ACCESSOR Y or IGNITION ON mode, or start
the engine. The windows do not open or close by operating the power window
switches
The engine switch is turned off automatically
A warning buzzer sounds during driving
An alarm is activated and the horn sounds

645Alphabetical index
IS350 AWD/IS350/IS300 AWD/IS300_U
E-mail.........................................................380
Eco drive mode ..................................... 297
Eco Driving Indicator........................... 109
EDR (Event data recorder) ...................10
Elapsed time .............................................. 112
Electric Power Steering (EPS) ....... 302Warning light .......................................526
Electronic key ........................................... 118 Battery-saving function .....................137
If the electronic key does not operate properly............................. 572
Replacing the battery ...................... 502
Emergency, in case of If a warning message is displayed ........................................532
If the electronic key does not operate properly ........ 572
If the engine will not start............... 570
If the vehicle battery is discharged .........................................575
If the vehicle is trapped in rising water ......................................... 516
If the warning buzzer sounds................................................. 525
If the warning light turns on.......... 525
If you have a flat tire ......................... 559
If you think something is wrong...............................................523
If your vehicle becomes stuck ..................................................... 583
If your vehicle has to be stopped in an emergency ........... 515
If your vehicle needs to be towed ........................................ 517
If your vehicle overheats ................579 Emergency flashers .............................. 514
Engine ....................................................... 589
ACCESSORY mode .......................187
Compartment ..................................... 473
Engine switch ....................................... 186
Hood........................................................ 470
How to start the engine................... 186
Identification number...................... 588
If the engine will not start ............... 570
Ignition switch (engine switch) .... 186
Overheating......................................... 579
Engine coolant .......................................478 Capacity................................................. 592
Checking ............................................... 478
Preparing and checking before winter ....................................306
Engine coolant temperature gauge ........................................................ 89
Engine immobilizer system .................. 76
Engine oil ..................................................475 Capacity................................................ 590
Checking ............................................... 475
Preparing and checking before winter ....................................306
Engine oil maintenance data ............ 477
Engine switch ...........................................186
Enhanced VSC .......................................301
EPS (Electronic Power Steering) ........ 302 Warning light ....................................... 526
Event data recorder (EDR)................... 10
E

654Alphabetical index
IS350 AWD/IS350/IS300 AWD/IS300_U
Smart access system with push-button start ...................... 135 Antenna location ................................. 135
Entry functions ............................ 124, 130
Starting the engine ............................. 186
SMS (Short message service).........380
Snow mode ...............................................192
Snow tires ................................................308
Spare tire.................................................. 559 Inflation pressure ............................... 595
Storage location ................................ 560
Spark plug ............................................... 592
Specifications ......................................... 586
Speedometer ............................................ 89
Speed indicator ..........................................91
Steering lock ........................................... 188 Column lock release .........................188
Steering wheel ........................................ 155 Adjustment ............................................. 155
Audio switches ..................................... 318
Heated steering wheel ....................426
Power easy access system .............147
Steering wheel position memory...............................147 Stop lights
Replacing light bulbs .......................... 511
Storage feature ....................................... 431
Stuck If the vehicle becomes stuck........583
Sun visors..................................................437
Sunshade Rear .......................................................... 439
Roof ............................................................ 167
Switches ASC (Active Sound Control) .......201
Audio remote control switches ............................................... 318
BSM (Blind Spot Monitor) switch ...................................................285
Door lock switches ............................. 126
Driving mode select switch .......... 297
Driving position memory switches ................................................ 147
Dynamic radar cruise control switch................................... 248
Emergency flashers switch .............514
Engine switch ....................................... 186
