5428-2. Steps to take in an emergency
IS350 AWD/IS350/IS300 AWD/IS300_U

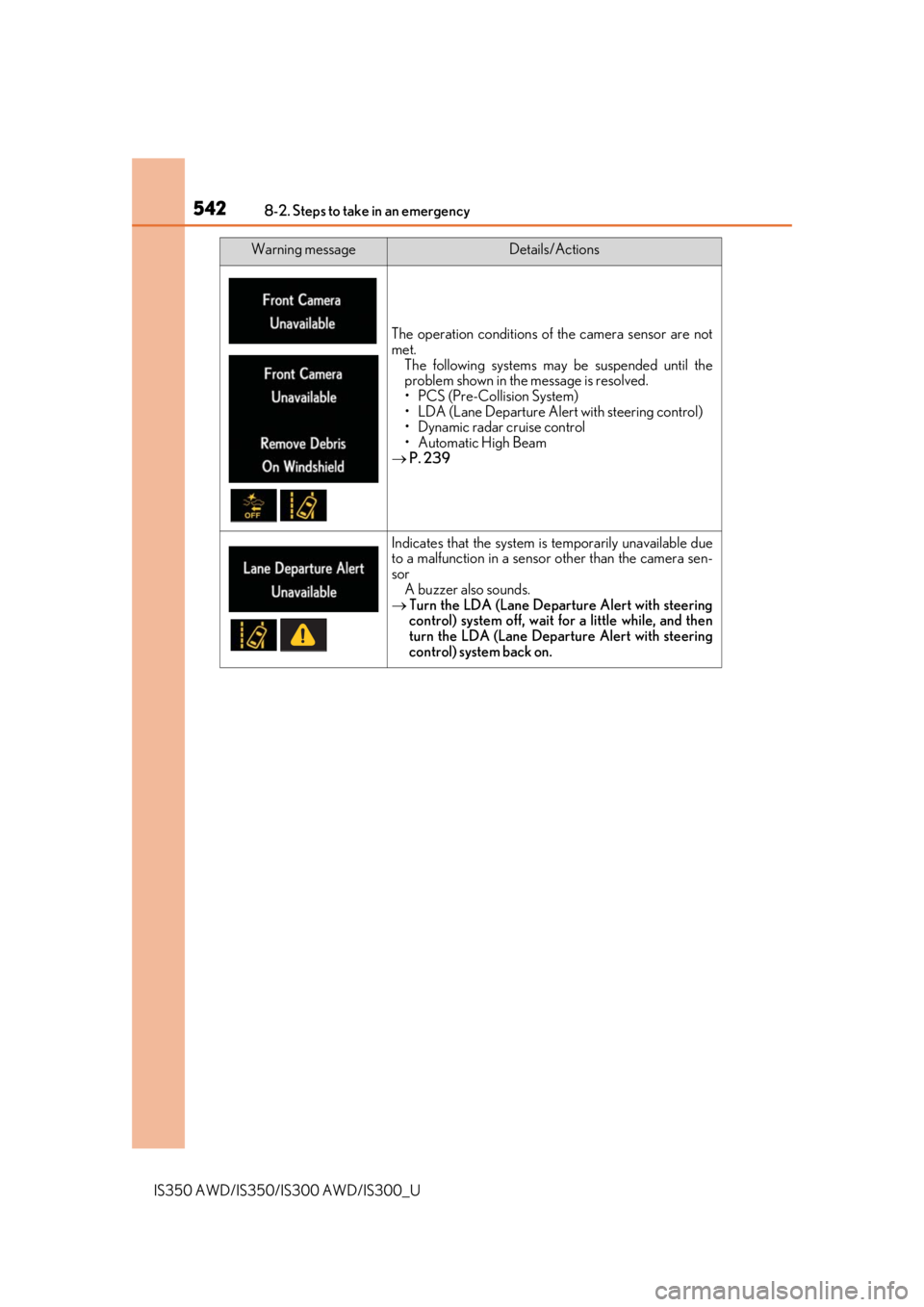

The operation conditions of the camera sensor are not
met.The following systems may be suspended until the
problem shown in the message is resolved.
• PCS (Pre-Collision System)
• LDA (Lane Departure Alert with steering control)
• Dynamic radar cruise control
•Automatic High Beam
 P. 239
Indicates that the system is temporarily unavailable due
to a malfunction in a sensor other than the camera sen-
sor
A buzzer also sounds.
 Turn the LDA (Lane Departure Alert with steering
control) system off, wait for a little while, and then
turn the LDA (Lane Depart ure Alert with steering
control) system back on.
Warning messageDetails/Actions

5518-2. Steps to take in an emergency
8
When trouble arises
IS350 AWD/IS350/IS300 AWD/IS300_U
*: Refer to the separate “Scheduled Maintenance” or “Owner’s Manual Supplement”
for the maintenance interval applicable to your vehicle.

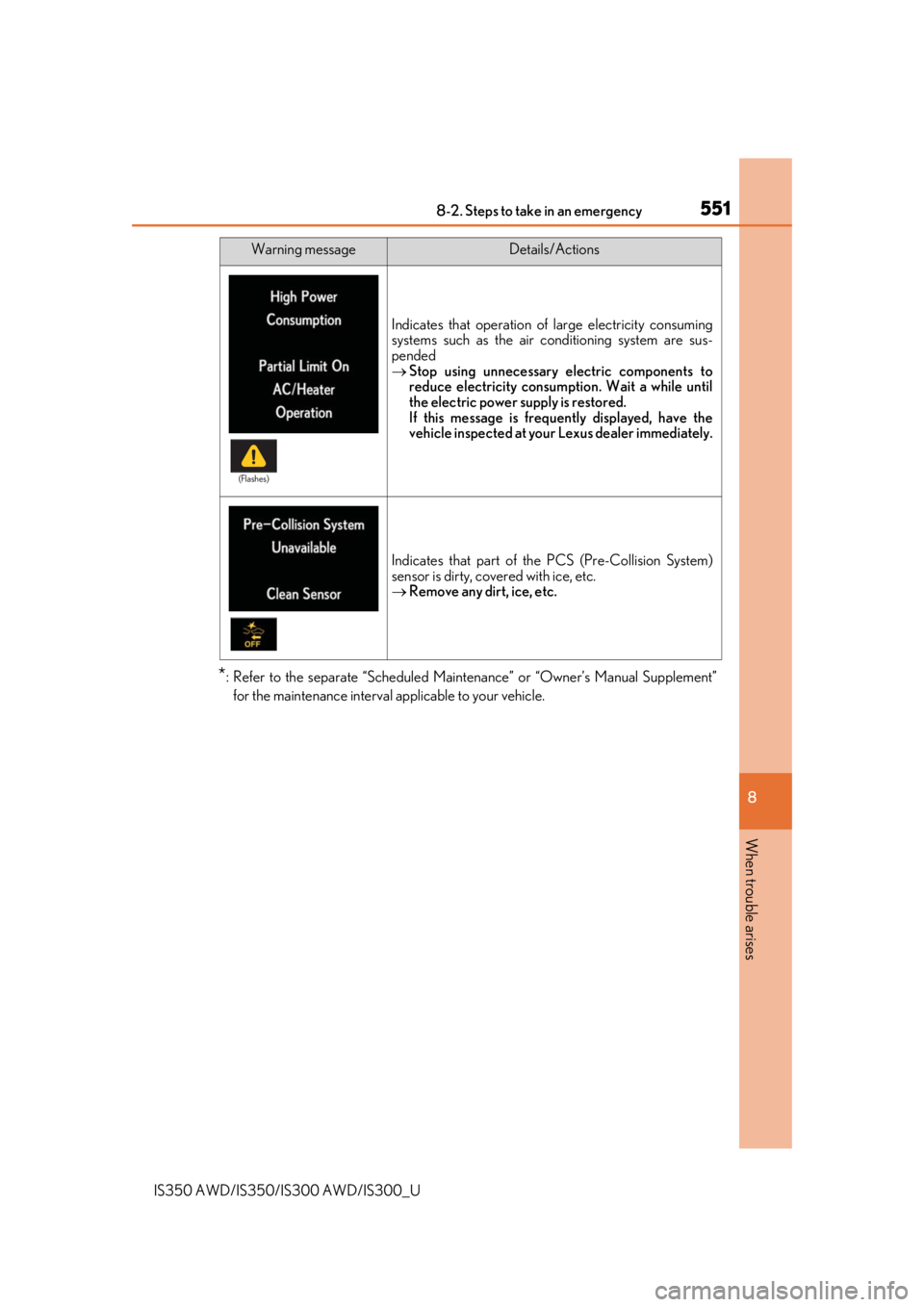

Indicates that operation of large electricity consuming
systems such as the air conditioning system are sus-
pended
 Stop using unnecessary electric components to
reduce electricity consumpt ion. Wait a while until
the electric power supply is restored.
If this message is freque ntly displayed, have the
vehicle inspected at your Lexus dealer immediately.
Indicates that part of th e PCS (Pre-Collision System)
sensor is dirty, covered with ice, etc.
 Remove any dirt, ice, etc.
Warning messageDetails/Actions
(Flashes)

6189-2. Customization
IS350 AWD/IS350/IS300 AWD/IS300_U

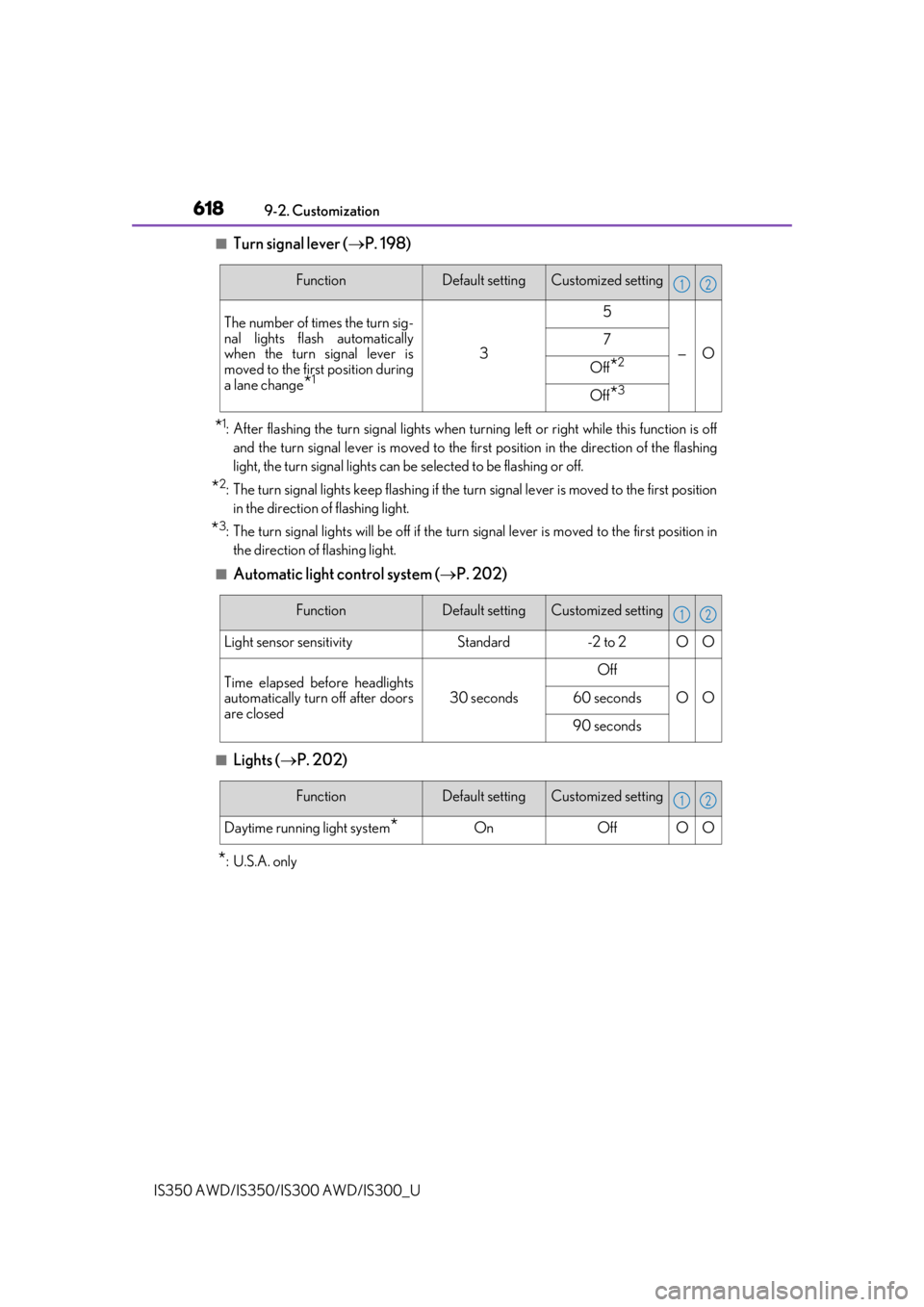

■Turn signal lever ( P. 198)
*1: After flashing the turn signal lights when turn ing left or right while this function is off
and the turn signal lever is moved to the first position in the direction of the flashing
light, the turn signal lights can be selected to be flashing or off.
*2: The turn signal lights keep flashing if the tu rn signal lever is moved to the first position
in the direction of flashing light.
*3: The turn signal lights will be off if the turn signal lever is moved to the first position in
the direction of flashing light.
■Automatic light control system ( P. 202)
■Lights ( P. 202)
*: U.S.A. only
FunctionDefault settingCustomized setting
The number of times the turn sig-
nal lights flash automatically
when the turn signal lever is
moved to the first position during
a lane change
*1
3
5
—O7
Off*2
Off*3
12
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2OO
Time elapsed before headlights
automatically turn off after doors
are closed
30 seconds
Off
OO60 seconds
90 seconds
12
FunctionDefault settingCustomized setting
Daytime runnin g light system*OnOffOO
12

6199-2. Customization
9
Vehicle specifications
IS350 AWD/IS350/IS300 AWD/IS300_U

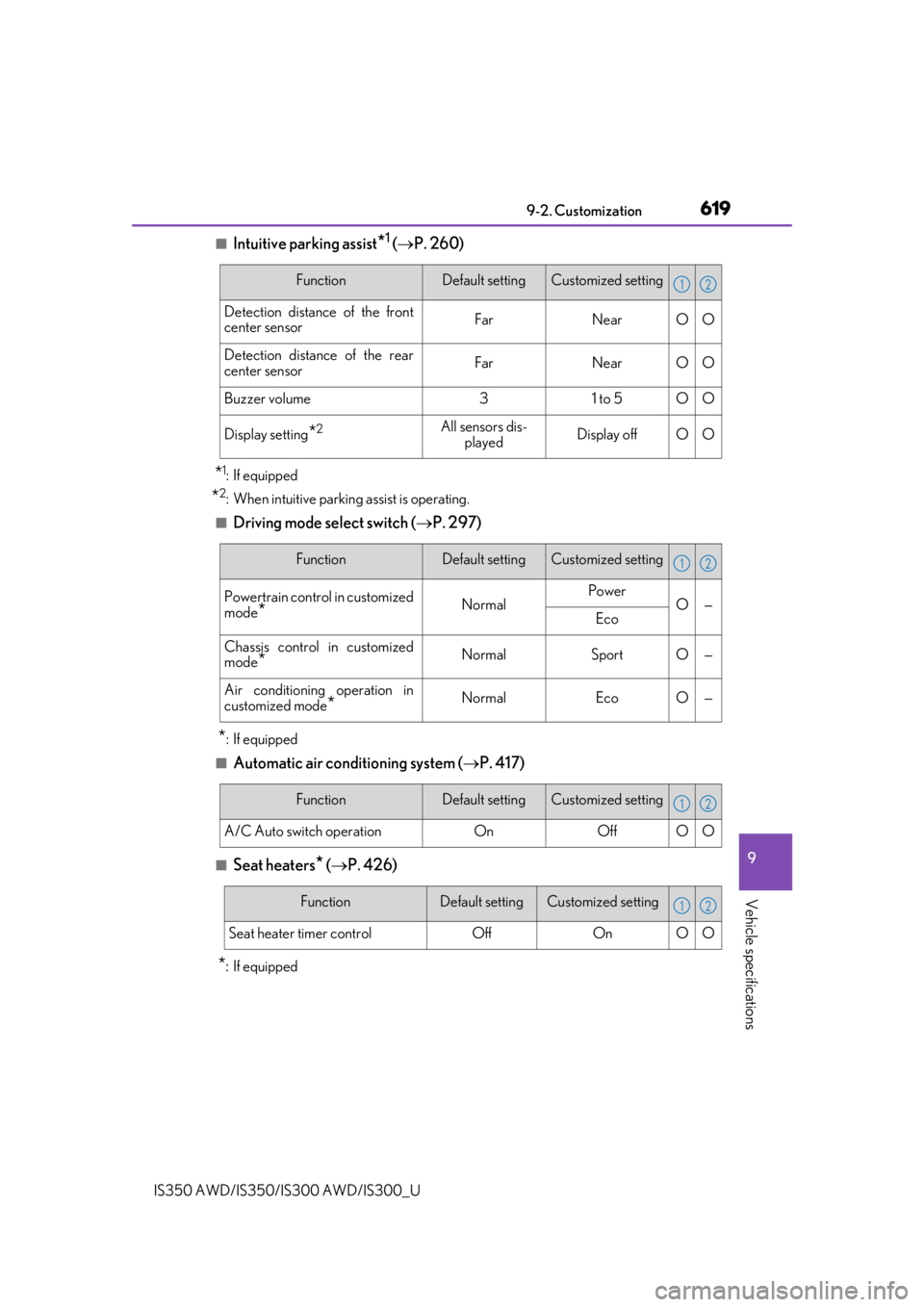

■Intuitive parking assist*1 ( P. 260)
*1: If equipped
*2: When intuitive parking assist is operating.
■Driving mode select switch ( P. 297)
*: If equipped
■Automatic air conditioning system ( P. 417)
■Seat heaters* ( P. 426)
*:If equipped
FunctionDefault settingCustomized setting
Detection distance of the front
center sensorFarNearOO
Detection distance of the rear
center sensorFarNearOO
Buzzer volume31 to 5OO
Display setting*2All sensors dis-
playedDisplay offOO
12
FunctionDefault settingCustomized setting
Powertrain control in customized
mode
*NormalPowerO—Eco
Chassis control in customized
mode*NormalSportO—
Air conditioning operation in
customized mode
*NormalEcoO—
12
FunctionDefault settingCustomized setting
A/C Auto switch operationOnOffOO
12
FunctionDefault settingCustomized setting
Seat heater timer controlOffOnOO
12

638What to do if... (Troubleshooting)
IS350 AWD/IS350/IS300 AWD/IS300_U
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be operated
if the window lock switch is pressed. ( P. 162)
●The auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not running) for a period of
time. ( P. 188)
●The seat belt reminder light is flashing
Are the driver and the front passe nger wearing the seat belts? (P. 527)
●The parking brake indicator is on
Is the parking brake released? ( P. 200)
Depending on the situation, other types of warning buzzer may also sound.
( P. 525, 532)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( P. 78)
Do one of the following to de activate or stop the alarms:
• Unlock the doors or open the trunk.
• Turn the engine switch to ACCESSOR Y or IGNITION ON mode, or start
the engine. The windows do not open or close by operating the power window
switches
The engine switch is turned off automatically
A warning buzzer sounds during driving
An alarm is activated and the horn sounds

651Alphabetical index
IS350 AWD/IS350/IS300 AWD/IS300_U
Paddle shift switches .............................193
Parking assist sensors (intuitive parking assist) .................. 260
Parking brake.........................................200
Parking lights .......................................... 202 Light switch ...........................................202
Replacing light bulbs ........................... 511
PCS (Pre-Collision System) ............ 229 Warning light .......................................526
Personal lights........................................ 429 Wattage ..................................................597
Pop-up display ........................................ 103
Power easy access system ................. 147
Power outlet ........................................... 438
Power steering (Electric power steering system)................................. 302 Warning light .......................................526
Power windows .......................................162 Door lock linked window operation ........................... 164
Jam protection function ................... 163
Operation ............................................... 162
Window lock switch.......................... 162
Pre-Collision System (PCS) ............ 229 Warning light .......................................526 Radar cruise control (dynamic
radar cruise control)........................ 248
Radiator.................................................... 480
Radio ......................................................... 338
Rear passengers’ seat belt reminder lights ....................................527
Rear personal lights .............................429 Wattage ................................................. 597
Rear seats .................................................. 145 Fold down the seatback...................145
Luggage security system...................131
Rear sunshade....................................... 439 Operation.............................................. 439
Reverse operation feature ............ 439
Rear turn signal lights ...........................198 Replacing light bulbs ...................... 509
Turn signal lever .................................. 198
Wattage ................................................. 597
PR
*: For vehicles with a naviga tion system, refer to the
“NAVIGATION SYSTEM OWNER’S MANUAL”.

653Alphabetical index
IS350 AWD/IS350/IS300 AWD/IS300_U
Seats, Front ...............................................143Adjustment ............................................. 143
Adjustment precautions .................. 144
Child seats/child restraint system installation.............................. 57
Cleaning ................................................ 458
Driving position memory .................147
Head restraints ..................................... 152
Power easy access system .............147
Properly sitting in the seat ................ 28
Seat heaters .......................................... 427
Seat position memory........................147
Seat ventilators .................................... 427
Seats, Rear ................................................145 Fold down the seatback .................. 145
Luggage security system .................. 131
Sensor Automatic headlight system .........204
Inside rear view mirror ..................... 158
Intuitive parking assist ..................... 260
LDA (Lane Departure Alert with steering control) ...................240
Radar sensor ........................... 224, 288
Rain-sensing windshield wipers .................................................... 216
Service reminder indicators ............... 84 Shift lever .................................................... 191
Automatic transmission ..................... 191
If the shift lever cannot be shifted from P ..............196
Shift lock system ..................................... 196
Shift position and gear position ......... 89
Side airbags ................................................36
Side marker lights ................................ 202 Light switch........................................... 202
Replacing light bulbs .......................... 511
Side mirrors .............................................. 159 Adjusting and folding ........................159
BSM (Blind Spot Monitor) ........... 260
Linked mirror function when reversing................................. 160
Mirror position memory .................. 147
Side turn signal lights ............................198 Replacing light bulbs .......................... 511
Turn signal lever .................................. 198
Side windows ........................................... 162
Slip indicator .......................................... 526
*: For vehicles with a naviga tion system, refer to the
“NAVIGATION SYSTEM OWNER’S MANUAL”.
