LEXUS IS300 2022 Owners Manual

3597-2. Steps to take in an emergency
7
When trouble arises
Intercooler (IS300)Reservoir cap
“F” line
“L” line
5 Add coolant if necessary.
Water can be used in an emergency if
coolant is unavailable.
Engine (IS350
AWD/IS350/IS300 AWD)
Engine (IS300)
Engine (IS500)
Intercooler (IS300)
6 Start the engine and turn the air
conditioning system on to check
that the radiator cooling fans oper-
ate and to check for coolant leaks
from the radiator or hoses.
The fans operate when the air conditioning
system is turned on immediately after a
cold start. Confirm that the fans are oper-
ating by checking the fan sound and air
flow. If it is difficult to check these, turn the
air conditioning system on and off repeat-
edly. (The fans may not operate in freezing
temperatures.)
7 If the fans are not operating:
Stop the engine immediately and
contact your Lexus dealer.
If the fans are operating:
Have the vehicle inspected at the
nearest Lexus dealer.
8 Check if “Engine Coolant Temp
High Stop in a Safe Place See
Owner’s Manual” is shown on the
A
B
C

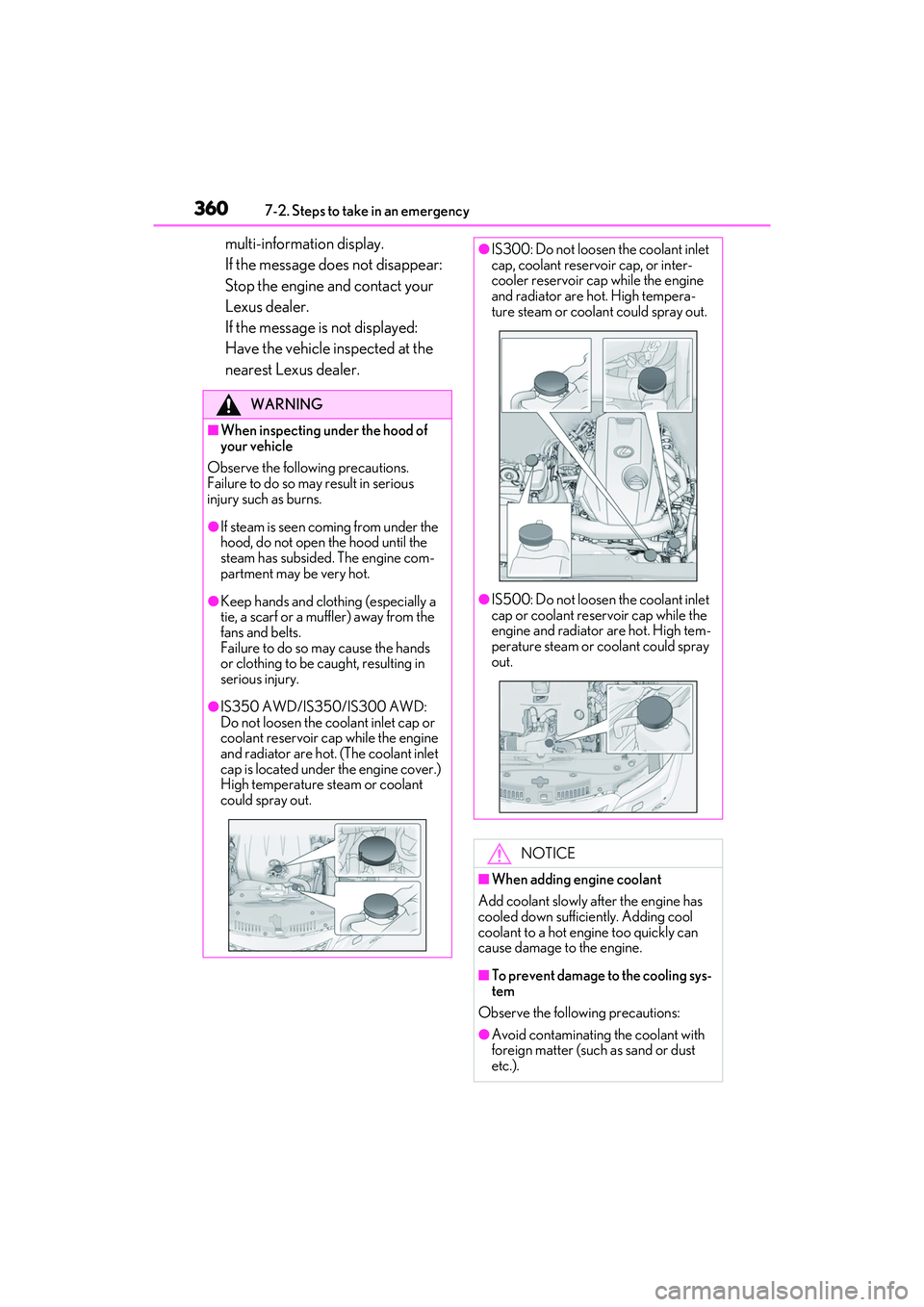

3607-2. Steps to take in an emergency
multi-information display.
If the message does not disappear:
Stop the engine and contact your
Lexus dealer.
If the message is not displayed:
Have the vehicle inspected at the
nearest Lexus dealer.
WARNING
■When inspecting under the hood of
your vehicle
Observe the following precautions.
Failure to do so may result in serious
injury such as burns.
●If steam is seen coming from under the
hood, do not open the hood until the
steam has subsided. The engine com-
partment may be very hot.
●Keep hands and clothing (especially a
tie, a scarf or a muffler) away from the
fans and belts.
Failure to do so may cause the hands
or clothing to be caught, resulting in
serious injury.
●IS350 AWD/IS350/IS300 AWD:
Do not loosen the coolant inlet cap or
coolant reservoir cap while the engine
and radiator are hot. (The coolant inlet
cap is located under the engine cover.)
High temperature steam or coolant
could spray out.
●IS300: Do not loosen the coolant inlet
cap, coolant reservoir cap, or inter-
cooler reservoir cap while the engine
and radiator are hot. High tempera-
ture steam or coolant could spray out.
●IS500: Do not loosen the coolant inlet
cap or coolant reservoir cap while the
engine and radiator are hot. High tem-
perature steam or coolant could spray
out.
NOTICE
■When adding engine coolant
Add coolant slowly after the engine has
cooled down sufficiently. Adding cool
coolant to a hot engine too quickly can
cause damage to the engine.
■To prevent damage to the cooling sys-
tem
Observe the following precautions:
●Avoid contaminating the coolant with
foreign matter (such as sand or dust
etc.).

3617-2. Steps to take in an emergency
7
When trouble arises
1Stop the engine. Set the parking
brake and shift the shift lever to P.
2 Remove the mud, snow or sand
from around the rear wheels.
3 Place wood, stones or some other
material under the rear wheels to
help provide traction.
4 Restart the engine.
5 Shift the shift lever to D or R and
release the parking brake. Then,
while exercising caution, depress
the accelerator pedal.
■When it is difficult to free the vehicle
Press the switch to turn off TRAC.
NOTICE
●Do not use any coolant additive.
If the vehicle becomes stuck
Carry out the following proce-
dures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Recovering procedure

3627-2. Steps to take in an emergency
WARNING
■When attempting to free a stuck vehi-
cle
If you choose to push the vehicle back
and forth to free it, make sure the sur-
rounding area is clear to avoid striking
other vehicles, objects or people. The
vehicle may also lunge forward or lunge
back suddenly as it becomes free. Use
extreme caution.
■When shifting the shift lever
Be careful not to shift the shift lever with
the accelerator pedal depressed.
This may lead to unexpected rapid accel-
eration of the vehicle that may cause an
accident resulting in death or serious
injury.
NOTICE
■To avoid damaging the transmission
and other components
●Avoid spinning the rear wheels and
depressing the accelerator pedal
more than necessary.
●If the vehicle remains stuck even after
these procedures are performed, the
vehicle may require towing to be freed.

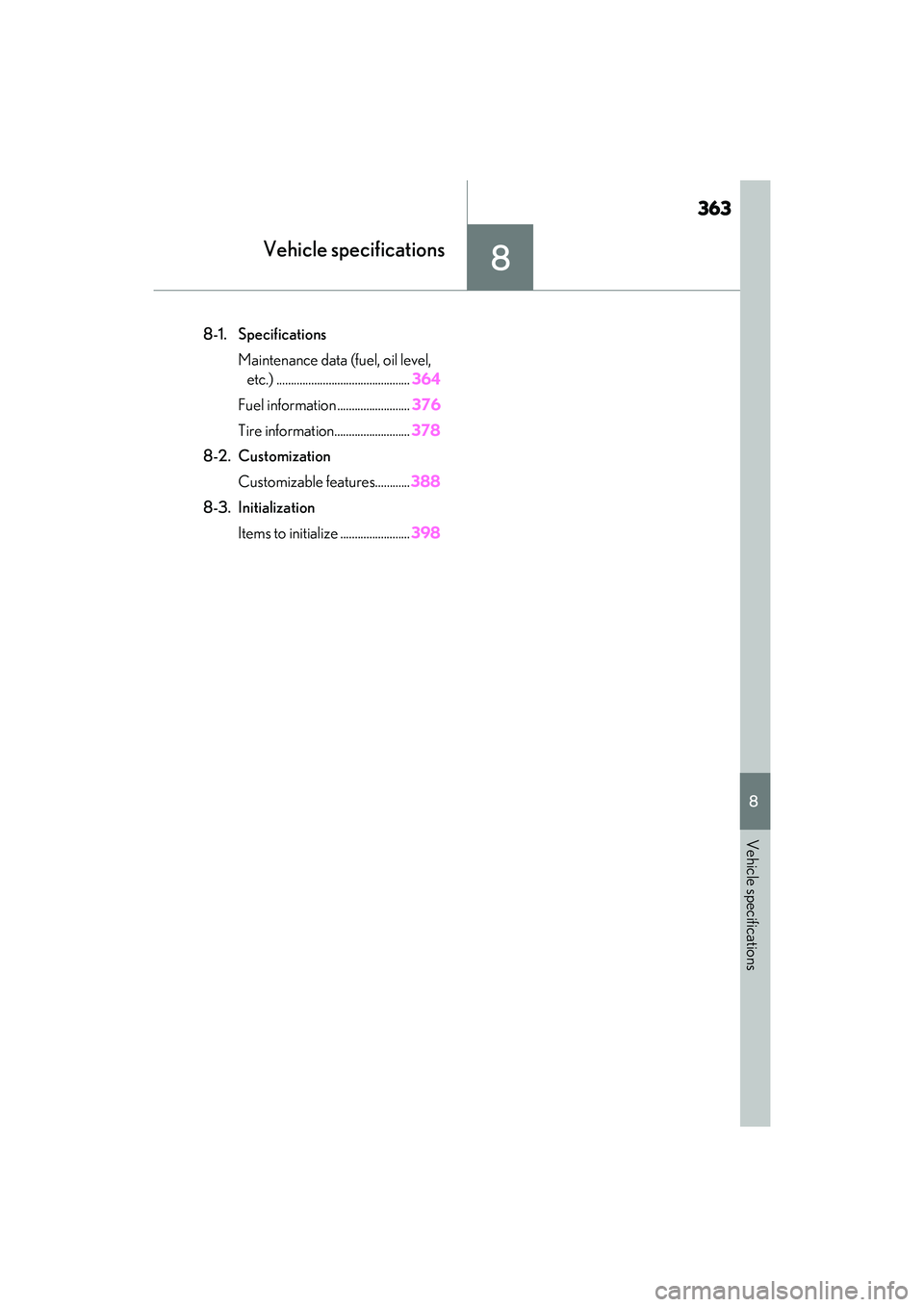

363
8
8
Vehicle specifications
Vehicle specifications
.8-1. SpecificationsMaintenance data (fuel, oil level, etc.) .............................................. 364
Fuel information ......................... 376
Tire information.......................... 378
8-2. Customization Customizable features............ 388
8-3. Initialization Items to initialize ........................ 398

3648-1. Specifications
8-1.Specifications
*1: IS350 AWD/IS350/IS300 AWD/IS300
*2:IS500
*3: Unladen vehicles
*4:2WD models
*5:AWD models
*6: Vehicles with 235/45R18 or 235/40R19 rear tires
*7: Vehicles with 265/35R19 rear tires
■Vehicle identification number
The vehicle identification number
(VIN) is the legal identifier for your
vehicle. This is the primary identifica-
tion number for your Lexus. It is used in registering the ownership of your vehi-
cle.
This number is stamped on the top left
of the instrument panel and in the
engine compartment.
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
Overall length185.4 in. (4710 mm)*1
187.3 in. (4758 mm)*2
Overall width72.4 in. (1840 mm)
Overall height*356.5 in. (1435 mm)*4
56.7 in. (1440 mm)*5
Wheelbase110.2 in. (2800 mm)
Tread*1
Front62.2 in. (1580 mm)
Rear63.0 in. (1600 mm)*6
61.8 in. (1570 mm)*7
Vehicle capacity weight
(Occupants + luggage)825 lb. (375 kg)
Seating capacity
Seating capacity5 (Front 2, Rear 3)
Vehicle identification

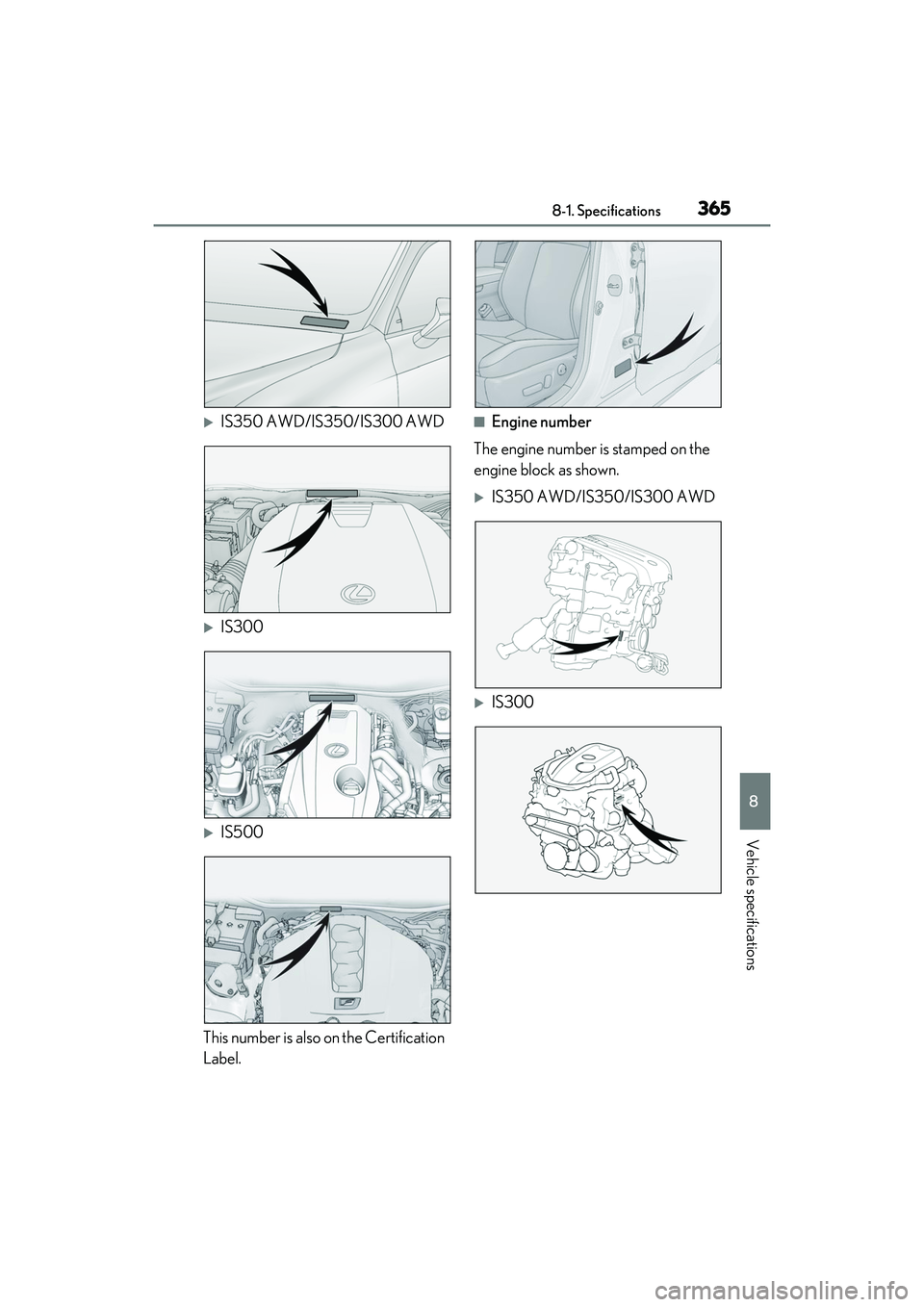

3658-1. Specifications
8
Vehicle specifications
IS350 AWD/IS350/IS300 AWD
IS300
IS500
This number is also on the Certification
Label.
■Engine number
The engine number is stamped on the
engine block as shown.
IS350 AWD/IS350/IS300 AWD
IS300

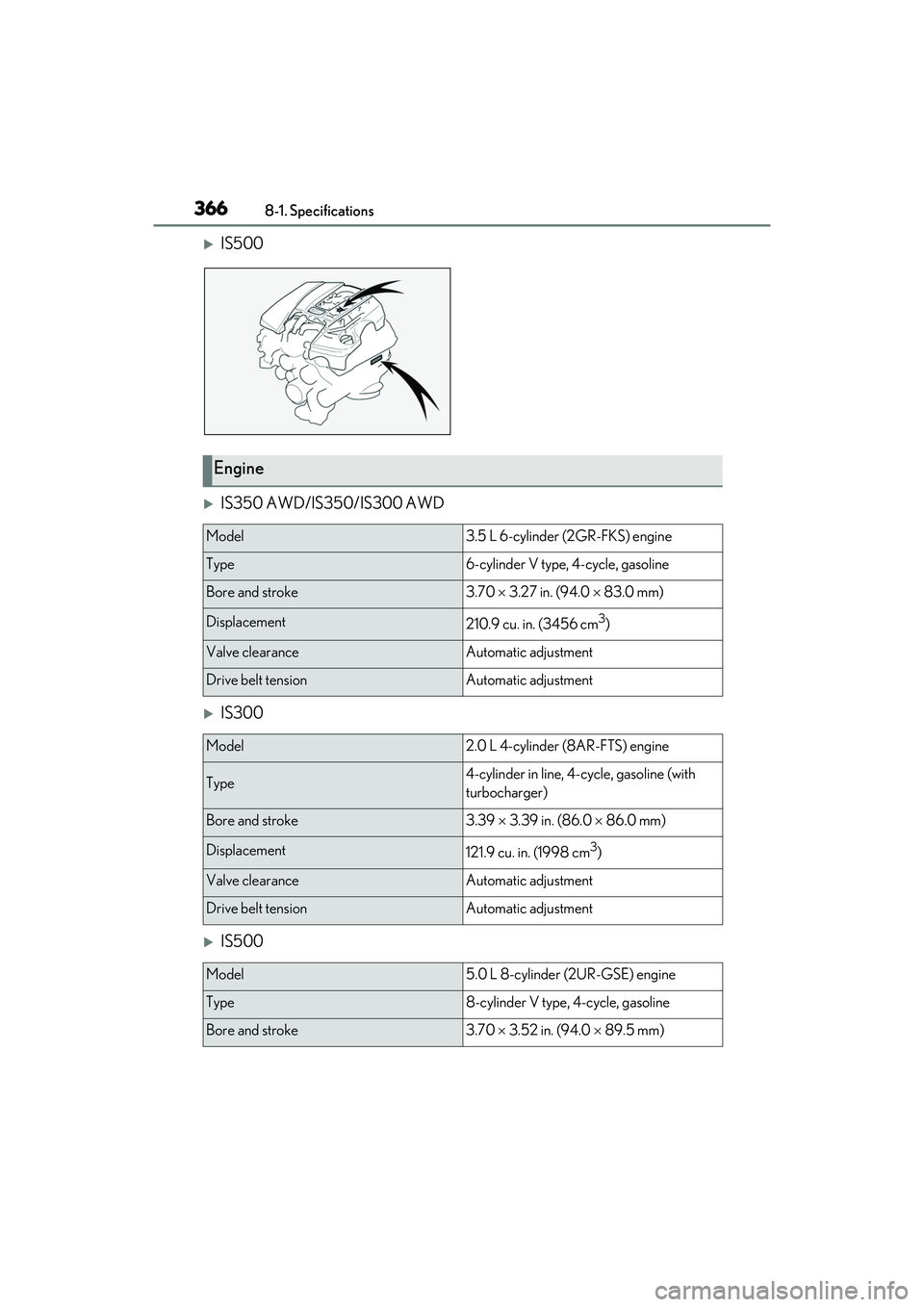

3668-1. Specifications
IS500
IS350 AWD/IS350/IS300 AWD
IS300
IS500
Engine
Model3.5 L 6-cylinder (2GR-FKS) engine
Type6-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70  3.27 in. (94.0  83.0 mm)
Displacement210.9 cu. in. (3456 cm3)
Valve clearanceAutomatic adjustment
Drive belt tensionAutomatic adjustment
Model2.0 L 4-cylinder (8AR-FTS) engine
Type4-cylinder in line, 4-cycle, gasoline (with
turbocharger)
Bore and stroke3.39  3.39 in. (86.0  86.0 mm)
Displacement121.9 cu. in. (1998 cm3)
Valve clearanceAutomatic adjustment
Drive belt tensionAutomatic adjustment
Model5.0 L 8-cylinder (2UR-GSE) engine
Type8-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70  3.52 in. (94.0  89.5 mm)

3678-1. Specifications
8
Vehicle specifications
■Oil capacity (Drain and refill [Ref-
erence
*])
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the
engine, wait more than 5 minutes, and
check the oil level on the dipstick.
■Engine oil selection (IS350
AWD/IS350/IS300
AWD/IS300)
“Toyota Genuine Motor Oil” is used in
your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil”
or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-6A multigrade
engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good starting
in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20 at
the next oil change.
Displacement303.2 cu. in. (4969 cm3)
Drive belt tensionAutomatic adjustment
Fuel
Fuel typeUnleaded gasoline only
Octane Rating91 (Research Octane Number 96) or higher
Fuel tank capacity
(Reference)17.5 gal. (66.5 L, 14.6 Imp. gal.)
Lubrication system
With filter
IS350 (2WD)
6.0 qt. (5.7 L, 5.0 Imp. qt.)
IS350 AWD/IS300
AWD (AWD)
6.8 qt. (6.4 L, 5.6 Imp. qt.)
IS300
4.9 qt. (4.6 L, 4.0 Imp. qt.)
IS500
9.1 qt. (8.6 L, 7.6 Imp. qt.)
Without fil- ter
IS350 (2WD)
5.8 qt. (5.5 L, 4.8 Imp. qt.)
IS350 AWD/IS300
AWD (AWD)
6.3 qt. (6.0 L, 5.3 Imp. qt.)
IS300
4.5 qt. (4.3 L, 3.8 Imp. qt.)
IS500
8.3 qt. (7.9 L, 7.0 Imp. qt.)

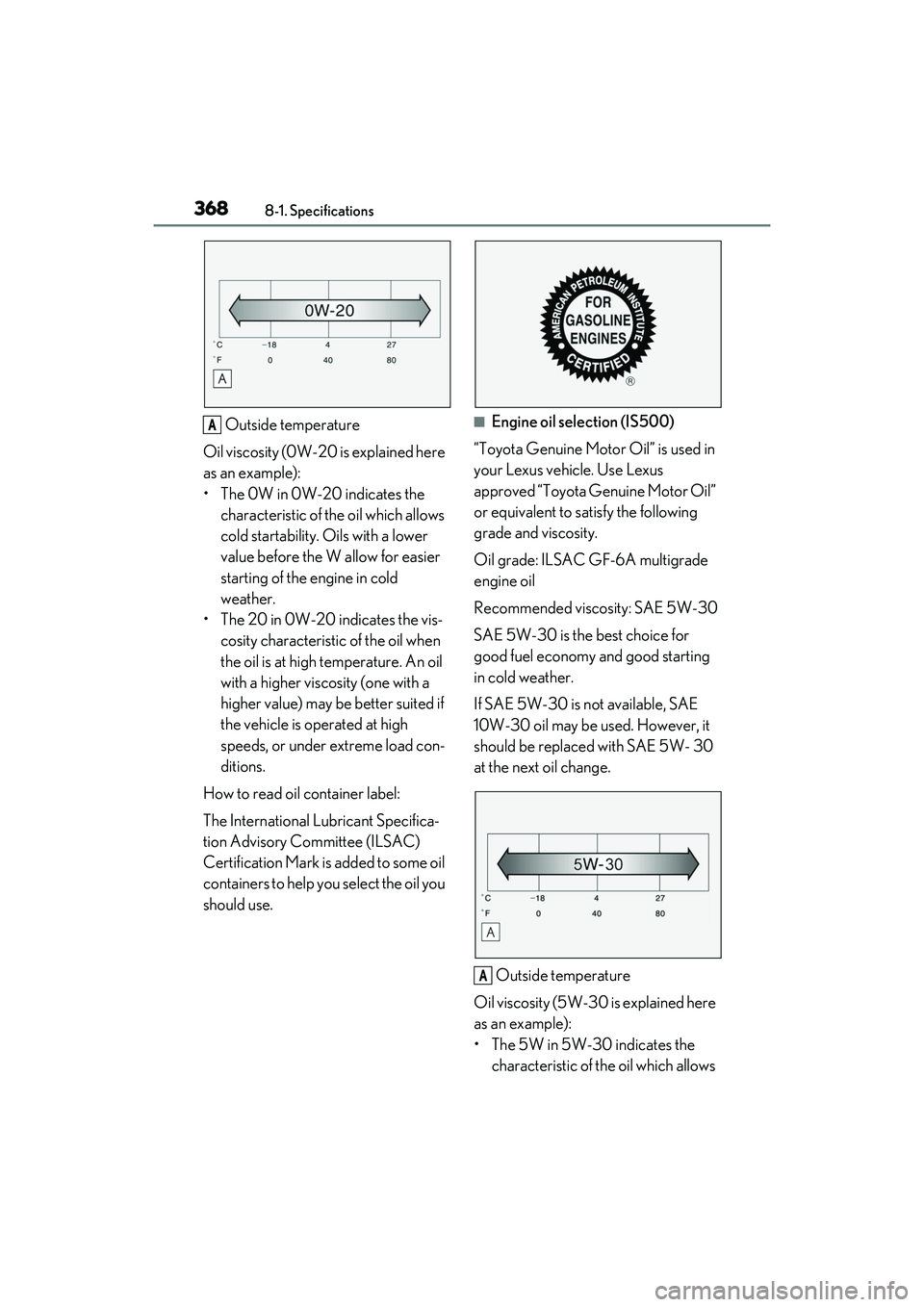

3688-1. Specifications
Outside temperature
Oil viscosity (0W-20 is explained here
as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower
value before the W allow for easier
starting of the engine in cold
weather.
• The 20 in 0W-20 indicates the vis- cosity characteristic of the oil when
the oil is at high temperature. An oil
with a higher viscosity (one with a
higher value) may be better suited if
the vehicle is operated at high
speeds, or under extreme load con-
ditions.
How to read oil container label:
The International Lubricant Specifica-
tion Advisory Committee (ILSAC)
Certification Mark is added to some oil
containers to help you select the oil you
should use.■Engine oil selection (IS500)
“Toyota Genuine Motor Oil” is used in
your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil”
or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-6A multigrade
engine oil
Recommended viscosity: SAE 5W-30
SAE 5W-30 is the best choice for
good fuel economy and good starting
in cold weather.
If SAE 5W-30 is not available, SAE
10W-30 oil may be used. However, it
should be replaced with SAE 5W- 30
at the next oil change.
Outside temperature
Oil viscosity (5W-30 is explained here
as an example):
• The 5W in 5W-30 indicates the characteristic of the oil which allows A
A
