Lexus IS300h 2013 Owner's Manual

2294-3. Operating the lights and wipers
4
Driving
IS300h_EE(OM53B95E)
Push the lever away from you
with the headlight switch in the
or position.
Press the Automatic High Beam
switch.
The Automatic High Beam indicator
will come on when the headlights
are turned on automatically to indi-
cate that the system is active.
Automatic High Beam

: If equipped
The Automatic High Beam uses an in-vehicle camera sensor to assess the
brightness of streetlights, the lights of oncoming and preceding vehicles,
etc., and automatically turns the high beam on or off as necessary.
Activating the Automatic High Beam system
1
2

2304-3. Operating the lights and wipers
IS300h_EE(OM53B95E)
When all of the following conditions are met, the high beam will be auto-
matically turned on (after approximately 1 second):
Vehicle speed is above approximately 40 km/h (25 mph).
The area ahead of the vehicle is dark.
There are no oncoming or preceding vehicles with headlights or tail
lights turned on.
There are few streetlights on the road ahead.
If any of the following conditions are met, the high beam will be automat-
ically turned off:
Vehicle speed drops below approximately 30 km/h (19 mph).
The area ahead of the vehicle is not dark.
Oncoming or preceding vehicles have headlights or tail lights turned
on.
There are many streetlights on the road ahead.
Switching to low beam
Pull the lever to the original posi-
tion.
The Automatic High Beam indi-
cator will turn off.
Push the lever away from you to
activate the Automatic High
Beam system again.
Switching to high beam
Press the Automatic High Beam
switch.
The Automatic High Beam indi-
cator will turn off and the high
beam indicator will turn on.
Press the switch to activate the
Automatic High Beam system
again.
High beam automatic turning on or off conditions
Turning the high beam on/off manually

2314-3. Operating the lights and wipers
4
Driving
IS300h_EE(OM53B95E)
The Automatic High Beam can be operated when
The power switch is in ON mode.
Camera sensor detection information
High beam may not be automatically turned off in the following situations:
• When oncoming vehicles suddenly appear from a curve
• When the vehicle is cut in front of by another vehicle
• When oncoming or preceding vehicles are hidden from sight due to repeated
curves, road dividers or roadside trees
High beam may be turned off if an oncoming vehicle that is using fog lights
without using the headlights is detected.
House lights, street lights, red traffic signals, and illuminated billboards or signs
may cause the high beam to turn off.
The following factors may affect the amount of time taken to turn high beam on
or off:
• The brightness of headlights, fog lights, and tail lights of oncoming and pre-
ceding vehicles
• The movement and direction of oncoming and preceding vehicles
• When an oncoming or preceding vehicle only has operational lights on one
side
• When an oncoming or preceding vehicle is a two-wheeled vehicle
• The condition of the road (gradient, curve, condition of the road surface etc.)
• The number of passengers and amount of luggage
High beam may be turned on or off when unexpected by the driver.
Small vehicles, such as bicycles, may not be detected.
In the situations below, the system may not be able to correctly detect the sur-
rounding brightness levels, and may flash or expose nearby pedestrians to the
high beam. Therefore, you should consider turning the high beams on or off
manually rather than relying on the Automatic High Beam system.
• In bad weather (rain, snow, fog, sandstorms etc.)
• The windshield is obscured by fog, mist, ice, dirt etc.
• The windshield is cracked or damaged.
• The camera sensor is deformed or dirty.
• Surrounding brightness levels are equal to those of headlights, tail lights or
fog lights.
• Vehicles ahead have headlights or tail lights that are either switched off,
dirty, changing color, or have improperly adjusted aim.
• When driving through an area of intermittently changing brightness and
darkness.
• When frequently and repeatedly driving ascending/descending roads, or
roads with rough, bumpy or uneven surfaces (such as stone-paved roads,
gravel tracks etc.).
• When frequently and repeatedly taking curves or driving on a winding road.
• There is a highly reflective object ahead of the vehicle, such as a sign or a
mirror.
• The vehicle’s headlights are damaged or dirty.
• The vehicle is listing or titling, due to a flat tire, a trailer being towed etc.
• The driver believes that the high beam may be causing problems or distress
to other drivers or pedestrians nearby.

2324-3. Operating the lights and wipers
IS300h_EE(OM53B95E)• The vehicle is used in a territory in which vehicles travel on the opposite side
of the road of the country for which the vehicle is approved, for example
using a vehicle designed for right-hand traffic in a left-hand traffic territory,
or vice versa.
CAUTION
Limitations of the Automatic High Beam
Do not rely on the Automatic High Beam. Always drive safely, taking care to
observe your surroundings and turning high beam on or off manually if neces-
sary.
NOTICE
Notes when using the Automatic High Beam system
Do not touch the camera sensor.
Do not subject the camera sensor to a strong impact.
Do not disassemble the camera sensor.
Do not spill liquid onto the camera sensor.
Do not apply window tinting or stickers to the camera sensor or the area of
windshield near the camera sensor.
Do not place items on the dashboard. There is a possibility that the camera
sensor will mistake items reflected in the windshield for streetlights, the head-
lights of other vehicles, etc.
Do not install a parking tag or any other accessories near or around the cam-
era sensor.
Do not overload the vehicle.
Do not modify the vehicle.
Do not replace windshield with non-genuine windshield.
Contact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
Observe the following to ensure that the
Automatic High Beam functions correctly.

2334-3. Operating the lights and wipers
4
Driving
IS300h_EE(OM53B95E)
Front and rear fog light switch
Turns the front and rear fog
lights off
Turns the front fog lights on
Turns both front and rear
fog lights on
Releasing the switch ring returns it
to .
Operating the switch ring again turns
only the rear fog light off.
Rear fog light switch
Turns the rear fog light off
Turns the rear fog light on
Releasing the switch ring returns it
to .
Operating the switch ring again turns
only the rear fog light off.
Fog light switch
The fog lights secure excellent visibility in difficult driving conditions,
such as in rain and fog.
1
2
3
1
2

2344-3. Operating the lights and wipers
IS300h_EE(OM53B95E)
Fog lights can be used when
Vehicles with a front and rear fog light switch
Front fog lights: The headlights or the front position lights are turned on.
Rear fog light: The front fog lights are turned on.
Vehicles with a rear fog light switch
The headlights or the front position lights are turned on.
Operation guide display (vehicles with rain-sensing windshield wipers only)
When the fog light switch is operated, the current status is displayed on the
meters for a few seconds. (P. 1 1 9 )

2354-3. Operating the lights and wipers
4
Driving
IS300h_EE(OM53B95E)
Operate the lever as follows to operate the wipers. The lever will return to
its original position immediately after operation.
Intermittent windshield wipers with interval adjuster
Move the lever up by 2 lev-
els
Move the lever up by 1 level
Move the lever down by 1
level
Move the lever down by 2
levels

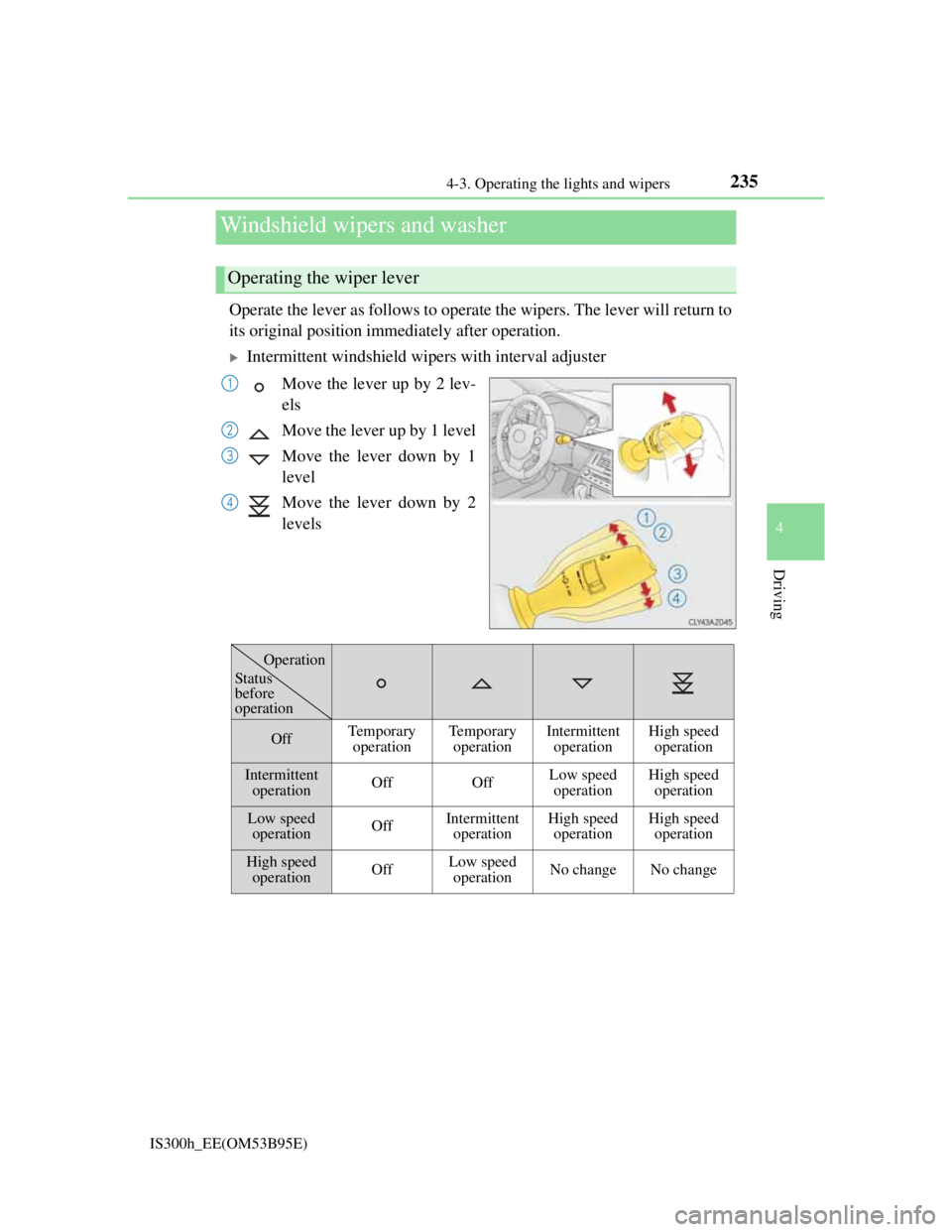

Windshield wipers and washer
Operating the wiper lever
1
2
3
4
OffTemporary
operationTemporary
operationIntermittent
operationHigh speed
operation
Intermittent
operationOffOffLow speed
operationHigh speed
operation
Low speed
operationOffIntermittent
operationHigh speed
operationHigh speed
operation
High speed
operationOffLow speed
operationNo changeNo change
Status
before
operation
Operation

2364-3. Operating the lights and wipers
IS300h_EE(OM53B95E)
Wiper intervals can be adjusted when intermittent operation is selected.
Increases the intermittent wind-
shield wiper frequency
Decreases the intermittent wind-
shield wiper frequency
Washer/wiper dual operation
The wipers will automatically oper-
ate a couple of times after the washer
squirts.
When the headlights are on and the
lever is pulled and held, the head-
light cleaners will operate once.
After this, the headlight cleaners will
operate every 5th time the lever is
pulled.
5
6
7

2374-3. Operating the lights and wipers
4
Driving
IS300h_EE(OM53B95E)
Rain-sensing windshield wipers
Move the lever up by 2 lev-
els
Move the lever up by 1 level
Move the lever down by 1
level
Move the lever down by 2
levels
AUTO mode on/off switch
With AUTO mode selected, the wip-
ers will operate automatically when
the sensor detects falling rain. The
system automatically adjusts wiper
timing in accordance with rain vol-
ume and vehicle speed.
The AUTO mode indicator will turn
on when AUTO mode is selected.
*1: After temporary operation, the mode will return to AUTO mode.
*2: AUTO mode will be canceled.
AUTO mode
indicator
1
2
3
4
5
OffTemporary
operationTemporary
operationLow speed
operationHigh speed
operation
Low speed
operationOffOffHigh speed
operationHigh speed
operation
High speed
operationOffLow speed
operationNo changeNo change
AUTO
mode
Intermittent
operation
Off
Temporary
operation
*1Low speed
operation
*2High speed
operation
*2Continu-
ouslyNo change
Operation
Status
before
operation

2384-3. Operating the lights and wipers
IS300h_EE(OM53B95E)
When AUTO mode is selected, the sensor sensitivity can be adjusted by
turning the switch ring.
Increases the sensitivity
Decreases the sensitivity
Washer/wiper dual operation
The wipers will automatically oper-
ate a couple of times after the washer
squirts.
When the headlights are on and the
lever is pulled and held, the head-
light cleaners will operate once.
After this, the headlight cleaners will
operate every 5th time the lever is
pulled.
The wipers can be used as intermittent windshield wipers, which operate
regardless of vehicle speed or amount of raindrops. The intermittent
windshield wiper operation can be switched when the vehicle is stopped
and the wiper is off. The wiper operation cannot be switched during
AUTO mode or while the intermittent windshield wipers are operating.
Press and hold until the AUTO
mode indicator stops flashing.
If is pressed and held until the
AUTO mode indicator stops flashing
again, it will return to its previous
state.
The wiper can be switched when the
vehicle is stopped and the wipers are
off.
6
7
8
Switching between the intermittent windshield wipers and rain-
sensing windshield wipers (vehicles with rain-sensing windshield
wipers)
