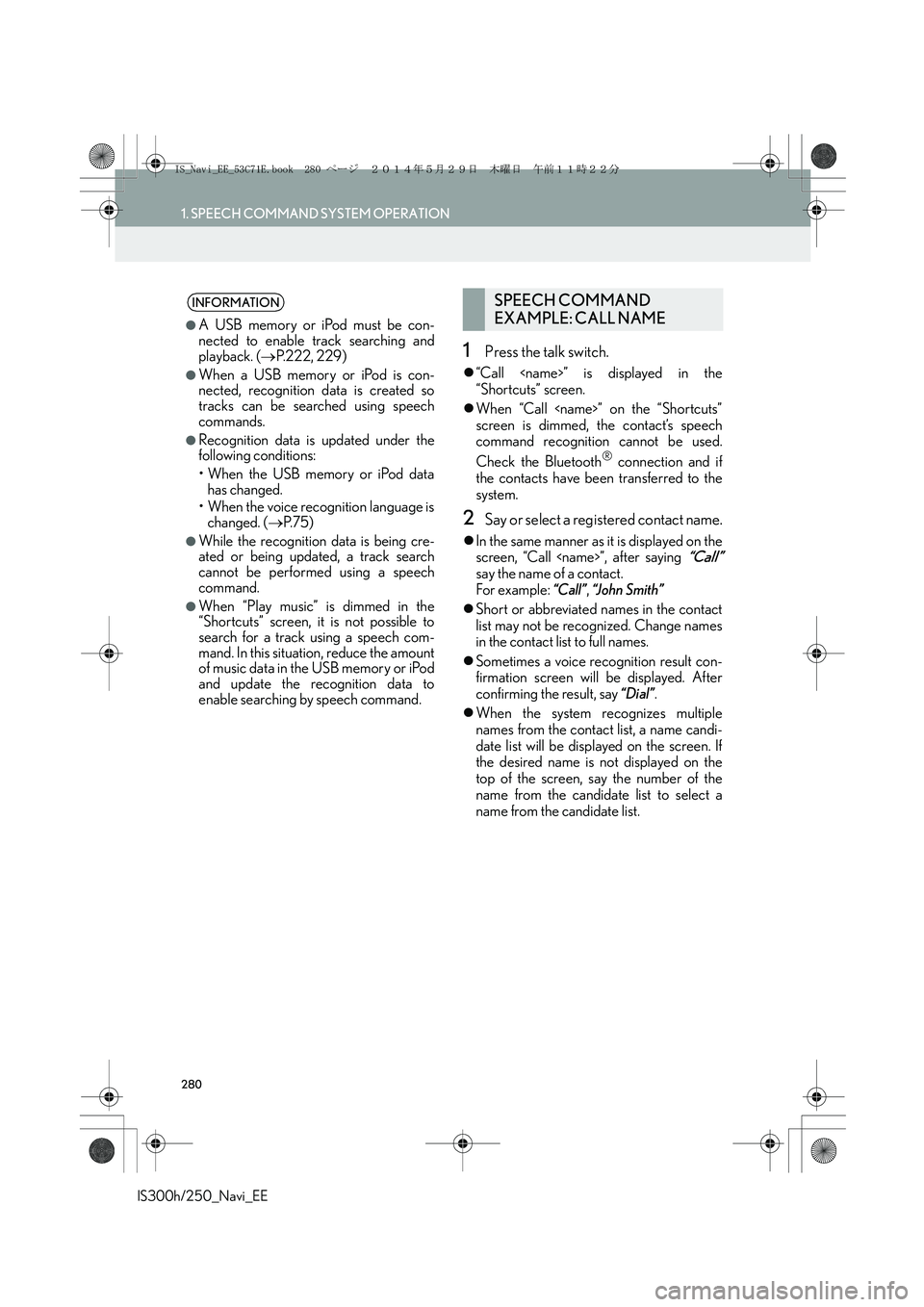

1. SPEECH COMMAND SYSTEM OPERATION
IS300h/250_Navi_EE
1Press the talk switch.
z“Call ” is displayed in the
“Shortcuts” screen.
zWhen “Call ” on the “Shortcuts”
screen is dimmed, the contact’s speech
command recognition cannot be used.
Check the Bluetooth
® connection and if
the contacts have been transferred to the
system.
2Say or select a registered contact name.
zIn the same manner as it is displayed on the
screen, “Call ”, after saying
“Call”
say the name of a contact.
For example: “Call”, “J o h n S m i t h”
zShort or abbreviated names in the contact
list may not be recognized. Change names
in the contact list to full names.
zSometimes a voice recognition result con-
firmation screen will be displayed. After
confirming the result, say “Dial”.
zWhen the system recognizes multiple
names from the contact list, a name candi-
date list will be displayed on the screen. If
the desired name is not displayed on the
top of the screen, say the number of the
name from the candidate list to select a
name from the candidate list.
INFORMATION
●
A USB memory or iPod must be con-
nected to enable track searching and
playback. (→P.222, 229)
●When a USB memory or iPod is con-
nected, recognition data is created so
tracks can be searched using speech
commands.
●Recognition data is updated under the
following conditions:
• When the USB memory or iPod data
has changed.
• When the voice recognition language is
changed. (→P. 7 5 )
●While the recognition data is being cre-
ated or being updated, a track search
cannot be performed using a speech
command.
●When “Play music” is dimmed in the
“Shortcuts” screen, it is not possible to
search for a track using a speech com-
mand. In this situation, reduce the amount
of music data in the USB memory or iPod
and update the recognition data to
enable searching by speech command.
SPEECH COMMAND
EXAMPLE: CALL NAME
IS_Navi_EE_53C71E.book 280 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

281
1. SPEECH COMMAND SYSTEM OPERATION
SPEECH COMMAND SYSTEM
IS300h/250_Navi_EE
5
zWhen a contact has multiple telephone
numbers registered in the contact list, a
candidate list will be displayed. If the
desired telephone number is not displayed
on the top of the screen, say the number of
the desired telephone number from the
candidate list to select a telephone number
from the candidate list.
3Say or select “Dial” to call the telephone
number.
1Press the talk switch.
z“Dial ” is displayed in the
“Shortcuts” screen.
zWhen “Dial ” on the “Shortcuts”
screen is dimmed, the telephone number
voice recognition cannot be used. Check
the Bluetooth
® phone connection.
2Say the telephone number.
zIn the same manner as it is displayed on the
screen, “Dial ”, after saying “Dial”
say the telephone number.
zSay the telephone number one digit at a
time.
For example, if the telephone number is
2345678:
Say “two three four five six seven eight”
zAs the system cannot recognize additional
numbers, say the complete number without
stopping.
zWhen the system recognizes multiple tele-
phone numbers, a telephone number can-
didate list will be displayed on the screen. If
the desired telephone number is not dis-
played on the top of the screen, say the
number of the desired telephone number
from the candidate list to select a telephone
number from the candidate list.
3Say or select “Dial” to call the telephone
number.
SPEECH COMMAND
EXAMPLE: DIAL NUMBER
IS_Navi_EE_53C71E.book 281 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

7
323
IS300h/250_Navi_EE
7 2
1
3
4
5
6
8
1. QUICK REFERENCE ........................... 324
2. SOME BASICS ........................................ 325
REGISTERING/CONNECTING
A Bluetooth® PHONE...................................... 326
USING THE TELEPHONE
SWITCH/MICROPHONE ............................ 326
SPEECH COMMAND SYSTEM ................... 327
ABOUT THE CONTACTS IN
THE CONTACT LIST ...................................... 328
WHEN SELLING OR DISPOSING OF
THE VEHICLE ..................................................... 328
3. CALLING ON THE Bluetooth®
PHONE ................................................... 329
BY FAVOURITES LIST ....................................... 330
BY CALL HISTORY ............................................. 330
BY CONTACTS LIST ........................................... 332
BY DIAL PAD ........................................................... 334
BY OFF HOOK SWITCH ................................. 335
SOS ............................................................................... 335
4. RECEIVING ON THE Bluetooth®
PHONE ................................................... 337
INCOMING CALLS............................................. 337
5. TALKING ON THE Bluetooth®
PHONE ................................................... 338
INCOMING CALL WAITING....................... 340
6. Bluetooth® PHONE MESSAGE
FUNCTION ............................................ 341
RECEIVING A MESSAGE ................................ 342
CHECKING MESSAGES.................................. 343
REPLYING TO A MESSAGE
(QUICK REPLY) ................................................. 344
CALLING THE MESSAGE SENDER ......... 345
1. TELEPHONE SETTINGS ..................... 347
TELEPHONE SETTINGS SCREEN .............. 347
“Sound settings” SCREEN .................................. 348
“Messaging settings” SCREEN.......................... 349
“Telephone display settings” SCREEN.......... 350
“Lexus Euro assistance 24 settings”
SCREEN ................................................................... 351
2. CONTACT SETTINGS ......................... 353
“Contacts” SCREEN ............................................. 354
“Favourites” SCREEN........................................... 359
“Delete call history” SCREEN ............................ 363
1. TROUBLESHOOTING ........................ 364
1
TELEPHONE OPERATION
(HANDS-FREE SYSTEM FOR
CELLULAR PHONES)
2SETUP
3WHAT TO DO IF...
TELEPHONE
For vehicles sold outside Europe, some of the functions cannot be operated while driving.
IS_Navi_EE_53C71E.book 323 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

324
IS300h/250_Navi_EE
1. TELEPHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
1. QUICK REFERENCE
The telephone top screen can be used to make a telephone call. To display this screen,
press the “MENU” button on the Remote Touch and select “Telephone”, or the
switch on the steering wheel.
FunctionPage
Telephone operation
Registering/connecting Bluetooth® device50
Calling on the Bluetooth® phone329
Receiving on the Bluetooth® phone337
Talking on the Bluetooth® phone338
Message functionUsing the Bluetooth® phone message function341
Setting up a telephone
Telephone settings347
Contact settings353
Bluetooth® settings56
IS_Navi_EE_53C71E.book 324 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

325
1. TELEPHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
IS300h/250_Navi_EE
TELEPHONE
7
2. SOME BASICS
The hands-free system enables calls to
be made and received without having to
take your hands off the steering wheel.
This system supports Bluetooth
®.
Bluetooth® is a wireless data system
that enables cellular phones to be used
without being connected by a cable or
placed in a cradle.
The operating procedure of the tele-
phone is explained here.
CAUTION
●Use a cellular phone or connect the
Bluetooth® phone only when safe and
legal to do so.
●Your audio unit is fitted with Bluetooth
®
antennas. People with implantable car-
diac pacemakers, cardiac resynchroniza-
tion therapy-pacemakers or implantable
cardioverter defibrillators should main-
tain a reasonable distance between
themselves and the Bluetooth
® antennas.
The radio waves may affect the operation
of such devices.
●Before using Bluetooth
® devices, users
of any electrical medical device other
than implantable cardiac pacemakers,
cardiac resynchronization therapy-pace-
makers or implantable cardioverter
defibrillators should consult the manufac-
turer of the device for information about
its operation under the influence of radio
waves. Radio waves could have unex-
pected effects on the operation of such
medical devices.
NOTICE
●Do not leave your cellular phone in the
vehicle. The temperature inside may rise
to a level that could damage the tele-
phone.
INFORMATION
●If your cellular phone does not support
Bluetooth®, this system cannot function.
●In the following conditions, the system
may not function:
• The cellular phone is turned off.
• The current position is outside the com-
munication area.
• The cellular phone is not connected.
• The cellular phone has a low battery.
●When using Bluetooth
® audio and
hands-free system at the same time, the
following problems may occur:
•The Bluetooth
® connection may be cut.
• Noise may be heard on the Bluetooth
®
audio playback.
IS_Navi_EE_53C71E.book 325 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

326
1. TELEPHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
IS300h/250_Navi_EE
XSteering switch
Volume control switch
zPress the “+” side to increase the volume.
zPress the “-” side to decrease the volume.
Off hook switch
On hook switch
XMicrophone
REGISTERING/
CONNECTING A Bluetooth®
PHONE
To use the hands-free system for cellular
phones, it is necessary to register a cel-
lular phone with the system. (→
P. 5 0)
Bluetooth® PHONE
CONDITION DISPLAY
The condition of the Bluetooth
® phone
appears on the upper right side of the
screen. (→P.18)
USING THE TELEPHONE
SWITCH/MICROPHONE
By pressing the telephone switch, a call
can be received or ended without taking
your hands off the steering wheel.
The microphone is used when talking on
the telephone.
IS_Navi_EE_53C71E.book 326 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

329
1. TELEPHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
IS300h/250_Navi_EE
TELEPHONE
7
3. CALLING ON THE Bluetooth® PHONE
1Press the “MENU” button on the
Remote Touch.
2Select “Telephone”.
3Select the desired button to call from.
zThe telephone top screen can be displayed
by pressing the switch on the steering
wheel.
*: With navigation function
After a Bluetooth® phone has been reg-
istered, a call can be made using the
hands-free system. There are several
methods by which a call can be made, as
described below.
How to make a call listPage
By favourites list330
By call history330
By contacts list332
By dial pad33 4
By e-mail/SMS/MMS345
By POI call*107
SOS335
By off hook switch335
By speech command system280
IS_Navi_EE_53C71E.book 329 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

332
1. TELEPHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
IS300h/250_Navi_EE
1Display the telephone top screen.
(→P.329)
2Select “Contacts”.
3Select the desired contact.
4Select the desired number.
5Check that the “Call” screen is dis-
played.
■FOR PBAP COMPATIBLE
Bluetooth
® PHONES
XWhen “Automatic contact/history trans-
fer” is set to on (→P.350)
1Select “Contacts”.
zContacts are transferred automatically.
2Check that a confirmation screen is dis-
played when the operation is complete.
BY CONTACTS LIST
Calls can be made by using contact data
which is transferred from a registered
cellular phone. (→P.353)
Up to 2500 contacts (maximum of 4
telephone numbers and e-mail address-
es per contact) can be registered in the
contact list.
WHEN THE CONTACT IS
EMPTY
IS_Navi_EE_53C71E.book 332 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

333
1. TELEPHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
TELEPHONE
IS300h/250_Navi_EE
7
XWhen “Automatic contact/history trans-
fer” is set to off (→P.350)
1Select “Contacts”.
2Select the desired item.
3Check that a confirmation screen is dis-
played when the operation is complete.
■FOR PBAP INCOMPATIBLE BUT
OPP COMPATIBLE Bluetooth
®
PHONES
1Select “Contacts”.
2Select the desired item.
No.Function
Select to always transfer all the con-
tacts from a connected cellular
phone automatically.
Select to transfer all the contacts
from a connected cellular phone
only once.
Select to cancel transferring.
No.Function
Select to transfer the contacts from
the connected cellular phone.
Select to add a new contact manual-
ly.
Select to cancel transferring.
IS_Navi_EE_53C71E.book 333 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

334
1. TELEPHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
IS300h/250_Navi_EE
XWhen “Transfer” is selected
3Follow the steps in “FOR PBAP IN-
COMPATIBLE BUT OPP COMPATI-
BLE Bluetooth
® PHONES” from
“STEP 3”. (→P.355)
XWhen “Add” is selected
3Follow the steps in “REGISTERING A
NEW CONTACT TO THE CON-
TACTS LIST” from “STEP 2”.
(→P.356)
1Display the telephone top screen.
(→P.329)
2Enter the telephone number.
3Select or press the switch on
the steering wheel.
4Check that the “Call” screen is dis-
played.
INFORMATION
●Manual transfer operation cannot be per-
formed while driving.
●If your cellular phone is neither PBAP nor
OPP compatible, the contacts cannot be
transferred.
●Depending on the type of Bluetooth
®
phone:
• It may be necessary to perform addi-
tional steps on the telephone when
transferring contact data.
• The registered image in the contact list
may not transfer depending on the type
of Bluetooth
® phone connected.
BY DIAL PAD
INFORMATION
●Depending on the type of Bluetooth®
phone being connected, it may be neces-
sary to perform additional steps on the
telephone.
IS_Navi_EE_53C71E.book 334 ページ ２０１４年５月２９日　木曜日　午前１１時２２分
