Lexus IS300h 2014 Owners Manual

911-3. Theft deterrent system
1
For safety and security
IS300h_EE(OM53C61E)

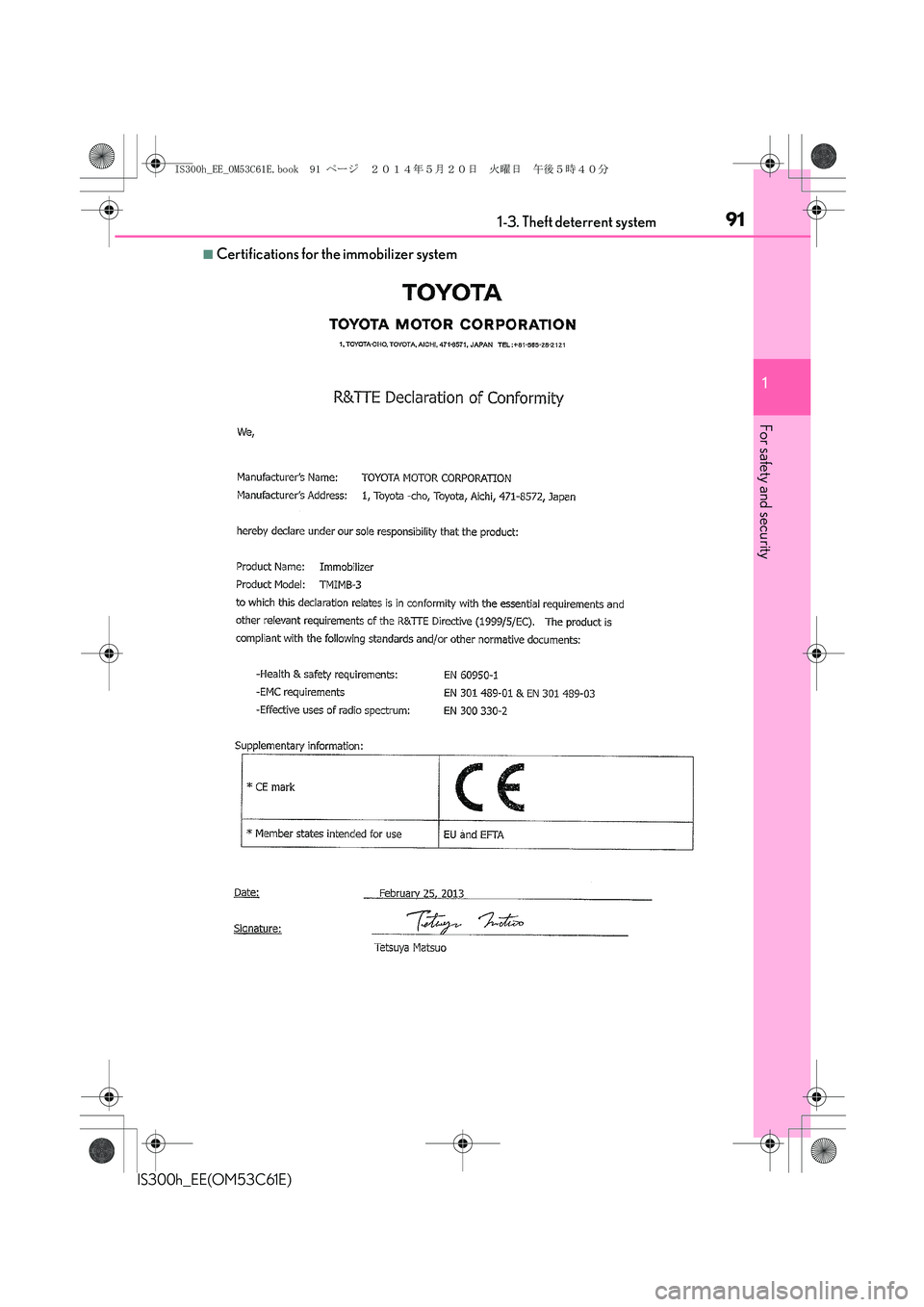

■Certifications for the immobilizer system
IS300h_EE_OM53C61E.book 91 ページ ２０１４年５月２０日　火曜日　午後５時４０分

921-3. Theft deterrent system
IS300h_EE(OM53C61E)
IS300h_EE_OM53C61E.book 92 ページ ２０１４年５月２０日　火曜日　午後５時４０分

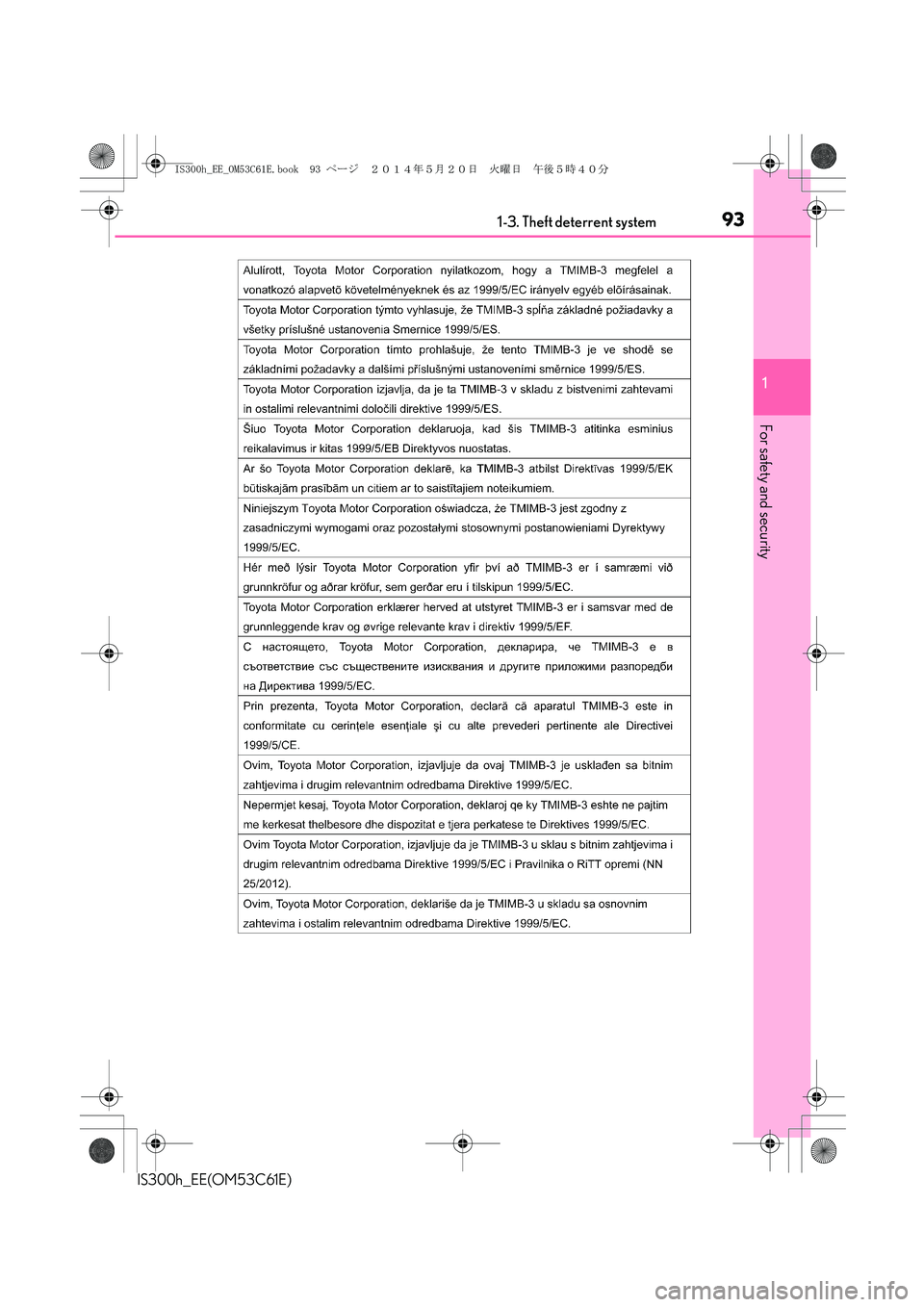

931-3. Theft deterrent system
1
For safety and security
IS300h_EE(OM53C61E)
IS300h_EE_OM53C61E.book 93 ページ ２０１４年５月２０日　火曜日　午後５時４０分

941-3. Theft deterrent system
IS300h_EE(OM53C61E)

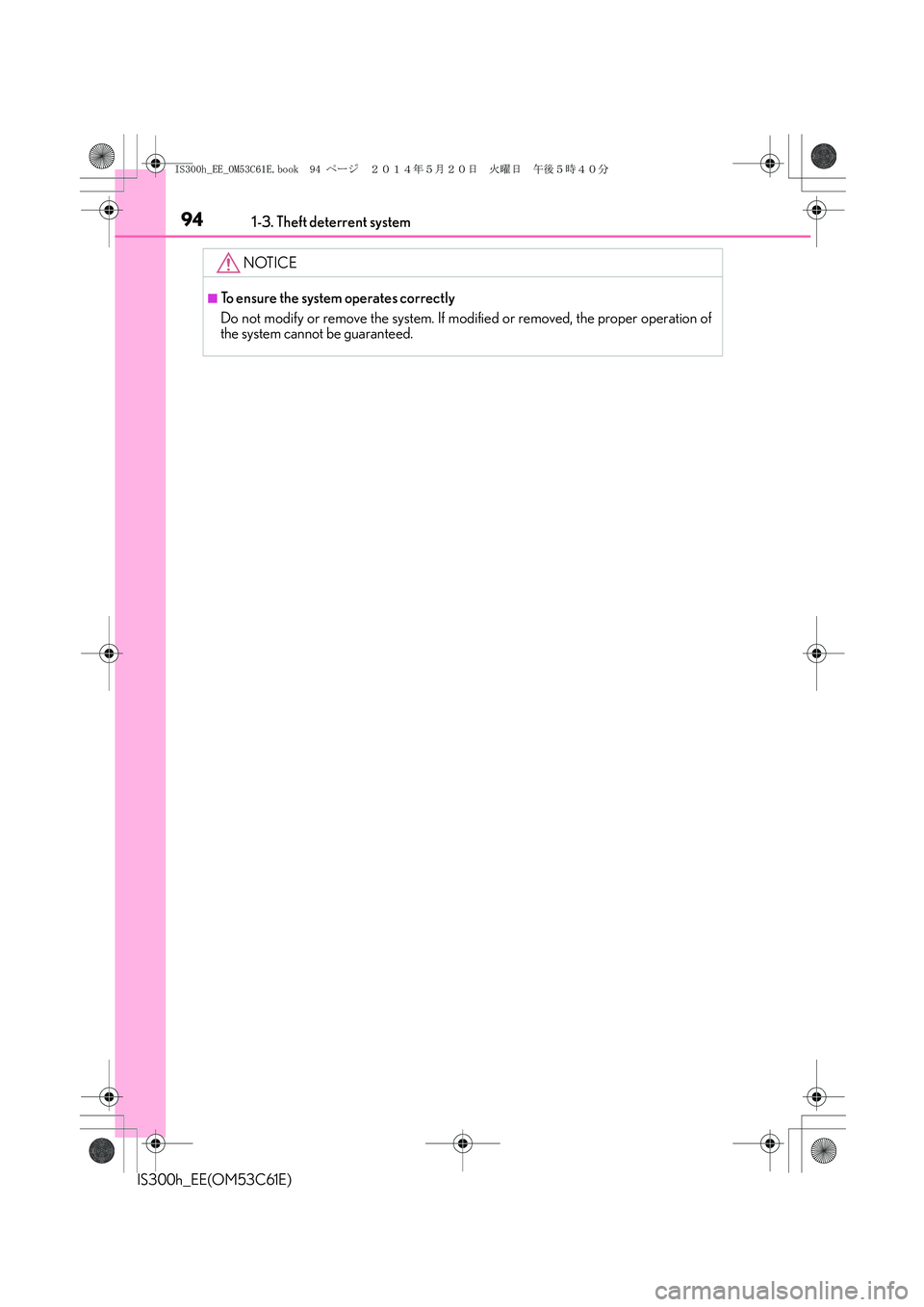

NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation of
the system cannot be guaranteed.
IS300h_EE_OM53C61E.book 94 ページ ２０１４年５月２０日　火曜日　午後５時４０分

951-3. Theft deterrent system
1
For safety and security
IS300h_EE(OM53C61E)
Vehicles employing this system have
labels on the window glass of both front
doors.
Turn the power switch off, have all the passengers exit the vehicle and ensure that
all the doors are closed.
Using the entry function:
Touch the sensor area on the outside door handle twice within 5 seconds.
Using the wireless remote control:
Press twice within 5 seconds.
Using the entry function: Hold the outside door handle.
Using the wireless remote control: Press .
Double locking system
Unauthorized access to the vehicle is prevented by disabling the door unlock-
ing function from both the interior and exterior of the vehicle.
Setting the double locking system
Canceling the double locking system
CAUTION
■Double locking system precaution
Never activate the double locking system when there are people in the vehicle
because all the doors cannot be opened from inside the vehicle.
IS300h_EE_OM53C61E.book 95 ページ ２０１４年５月２０日　火曜日　午後５時４０分

961-3. Theft deterrent system
IS300h_EE(OM53C61E)
The alarm uses light and sound to give an alert when an intrusion is detected.
The alarm is triggered in the following situations when the alarm is set:
●A locked door or trunk is unlocked or opened in any way other than using the
entry function or wireless remote control. (The door will lock again automati-
cally.)
●The hood is opened.
●The intrusion sensor detects something moving inside the vehicle. (An
intruder gets in the vehicle.) (if equipped)
●The tilt sensor detects a change of vehicle inclination. (if equipped)
Close the doors, trunk and hood, and
lock all the doors using the entry func-
tion or wireless remote control. The
system will be set automatically after
30 seconds.
The indicator light changes from being
on to flashing when the system is set.
Alarm∗
∗
: If equipped
The alarm
Setting the alarm system
IS300h_EE_OM53C61E.book 96 ページ ２０１４年５月２０日　火曜日　午後５時４０分

971-3. Theft deterrent system
1
For safety and security
IS300h_EE(OM53C61E)
Do one of the following to deactivate or stop the alarm:
●Unlock the doors or open the trunk using the entry function or wireless
remote control.
●Start the hybrid system. (The alarm will be deactivated or stopped after a few
seconds.)
■System maintenance
The vehicle has a maintenance-free type alarm system.
■Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of the follow-
ing:
●Nobody is in the vehicle.
●The windows and moon roof (if equipped) are closed before the alarm is set.
●No valuables or other personal items are left in the vehicle.
Deactivating or stopping the alarm
IS300h_EE_OM53C61E.book 97 ページ ２０１４年５月２０日　火曜日　午後５時４０分

981-3. Theft deterrent system
IS300h_EE(OM53C61E)
■Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
■Alarm-operated door lock
In the following situations, the doors are locked automatically to prevent intruders:
●The doors are unlocked manually without the mechanical key and the alarm is trig-
gered.
●While the alarm is operating, the doors are unlocked manually without the mechanical
key.
●The doors or trunk are unlocked using the
mechanical key.
●A person inside the vehicle opens a door, the
trunk or hood, or unlocks the vehicle using a
inside lock button.
●The 12-volt battery is recharged or replaced
when the vehicle is locked. (→P. 5 4 9 )
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation of
the system cannot be guaranteed.
IS300h_EE_OM53C61E.book 98 ページ ２０１４年５月２０日　火曜日　午後５時４０分

991-3. Theft deterrent system
1
For safety and security
IS300h_EE(OM53C61E)
●The intrusion sensor detects intruders or movement in the vehicle.
●The tilt sensor detects changes in vehicle inclination, such as when the vehicle
is towed away.
This system is designed to deter and prevent vehicle theft but does not guarantee
absolute security against all intrusions.
■Setting the intrusion sensor and tilt sensor
The intrusion sensor and tilt sensor will be set automatically when the alarm is
set. (→P. 9 6 )
■Canceling the intrusion sensor and tilt sensor
If you are leaving pets or other moving things inside the vehicle, make sure to
disable the intrusion sensor and tilt sensor before setting the alarm, as they will
respond to movement inside the vehicle.
Turn the power switch off.
Press the intrusion sensor and tilt
sensor cancel switch.
Press the switch again to re-enable
the intrusion sensor and tilt sensor.
Each time the intrusion sensor is can-
celed/set, a message will be shown
on the multi-information display in
the instrument cluster.
Intrusion sensor and tilt sensor (if equipped)
1
2
IS300h_EE_OM53C61E.book 99 ページ ２０１４年５月２０日　火曜日　午後５時４０分

1001-3. Theft deterrent system
IS300h_EE(OM53C61E)
■Canceling and automatic re-enabling of the intrusion sensor and tilt sensor
●The alarm will still be set even when the intrusion sensor and tilt sensor are canceled.
●After the intrusion sensor and tilt sensor are canceled, pressing the power switch or
unlocking the doors using the entry function or wireless remote control will re-enable
the intrusion sensor and tilt sensor.
●The intrusion sensor and tilt sensor will automatically be re-enabled when the alarm
system is deactivated.
■Intrusion sensor detection considerations
The sensor may trigger the alarm in the following situations:
●Places with extreme vibrations or noises, or situations in which the vehicle is subject to
repeated impacts or vibrations:
• When parked in a parking garage
• When the vehicle is transported on a ferry, trailer, train, etc.
• When ice adhering to the vehicle is removed
• When the vehicle is in an automatic or high-pressure car wash
• When in a hail or lightning storm
●A window or the moon roof is open.
In this case, the sensor may detect the follow-
ing:
• Wind or the movement of objects such as
leaves and insects inside the vehicle
• Ultrasonic waves emitted from devices
such as the intrusion sensors of other vehi-
cles
• The movement of people outside the vehi-
cle
●Unstable items, such as dangling accessories
or clothes hanging on the coat hooks, are in
the vehicle.
