Energy monitor/consumption screen
You can view the status of your hybrid system on the multi-information display,
the Lexus Display Audio system and/or the navigation system.
XNavigation systemXLexus Display Audio system
Multi-information display
Navigation system screen
Meter control switches
“MENU” button
Remote Touch knobMulti-information display
Lexus Display Audio screen
Meter control switches
“MENU” button
Lexus Display Audio controller
1
2
3
4
5
1
2
3
4
5
IS300h_EE_OM53C61E.book 121 ページ ２０１４年５月２０日　火曜日　午後５時４０分

1222. Instrument cluster
IS300h_EE(OM53C61E)
XNavigation system
Press the “MENU” button on the
Remote Touch, and then select
“Car” on the “Menu” screen.
If the “Trip information” or “Past
record” screen is displayed, select
“Energy”.
XLexus Display Audio system
Press the “MENU” button on the
Lexus Display Audio controller, and
then select “Car” on the “MENU”
screen.
If the “Energy monitor” screen does
not appear, move the controller to
the right and select “Energy”.
XMulti-information display
Press the meter control switches several times to select the energy monitor
display.
Energy monitor
IS300h_EE_OM53C61E.book 122 ページ ２０１４年５月２０日　火曜日　午後５時４０分

1232. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53C61E)
Navigation system screenLexus Display Audio
screenMulti-information display
When the vehicle is powered by the electric motor (traction motor)
When the vehicle is powered by both the gasoline engine and the electric motor (trac-
tion motor)
When the vehicle is powered by the gasoline engine
When the vehicle is charging the hybrid battery (traction battery)
When there is no energy flow
IS300h_EE_OM53C61E.book 123 ページ ２０１４年５月２０日　火曜日　午後５時４０分

1242. Instrument cluster
IS300h_EE(OM53C61E)These images are examples only.
■Trip information
XNavigation system
Press the “MENU” button on the Remote Touch, and then select “Car” on the
“Menu” screen.
If the “Energy monitor” or “Past record” screen is displayed, select “Trip informa-
tion”.
Resetting the consumption data
Fuel consumption in the past 15
minutes
Regenerated energy in the past
15 minutes
One symbol indicates 30 Wh.
Up to 5 symbols are shown.
Displays the average vehicle
speed since the hybrid system
was started.
Displays the elapsed time since the hybrid system was started.
Cruising range (→P. 1 2 7 )
Hybrid battery (traction battery) status
Fuel consumption
Navigation system screenLexus Display Audio
screenMulti-information display
LowFull LowFullLowFull
1
2
3
4
5
6
IS300h_EE_OM53C61E.book 124 ページ ２０１４年５月２０日　火曜日　午後５時４０分

1252. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53C61E)
XLexus Display Audio system
Press the “MENU” button on the Lexus Display Audio controller, and then
select “Car” on the “MENU” screen.
If the “Trip information” screen does not appear, move the controller to the right
and select “Trip information”.
Fuel consumption in the past 15
minutes
Regenerated energy in the past
15 minutes
One symbol indicates 30 Wh.
Up to 5 symbols are shown.
Displays the average vehicle
speed since the hybrid system
was started.
Displays the elapsed time since the hybrid system was started.
Cruising range (→P. 1 2 7 )
Average fuel consumption for the past 15 minutes is divided by color into past
averages and averages attained since the power switch was last turned to ON
mode. Use the displayed average fuel consumption as a reference.
The image is an example only.1
2
3
4
5
IS300h_EE_OM53C61E.book 125 ページ ２０１４年５月２０日　火曜日　午後５時４０分

1262. Instrument cluster
IS300h_EE(OM53C61E)
■Pa s t re c o r d
XNavigation system
Press the “MENU” button on the Remote Touch, and then select “Car” on the
“Menu” screen.
If the “Energy monitor” or “Trip information” screen is displayed, select “Past
record”.
Resetting the past record data
Best recorded fuel consumption
Average fuel consumption
Previous fuel consumption record
Updating the average fuel con-
sumption data
XLexus Display Audio system
Press the “MENU” button on the Lexus Display Audio controller, and then
select “Car” on the “MENU” screen.
If the “Past record” screen does not appear, move the controller to the right and
select “Past record”.
Previous fuel consumption record
Average fuel consumption
Best recorded fuel consumption
The average fuel consumption history is divided by color into past averages
and the average fuel consumption since the last updated. Use the displayed
average fuel consumption as a reference.
The image is an example only.
1
2
3
4
5
1
2
3
IS300h_EE_OM53C61E.book 126 ページ ２０１４年５月２０日　火曜日　午後５時４０分

1272. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53C61E)
■Updating the past record data
XNavigation system
Update the average fuel consumption by selecting “Update” to measure the current fuel
consumption again.
XLexus Display Audio system
Update the average fuel consumption by moving the controller to the left and select
“Update” to measure the current fuel consumption again.
■Resetting the data
XNavigation system
The fuel consumption data can be deleted by selecting “Clear”.
XLexus Display Audio system
The fuel consumption data can be deleted by moving the controller to the left and select
“Clear ”.
■Cruising range
Displays the estimated maximum distance that can be driven with the quantity of fuel
remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that displayed.
IS300h_EE_OM53C61E.book 127 ページ ２０１４年５月２０日　火曜日　午後５時４０分

1282. Instrument cluster
IS300h_EE(OM53C61E)
IS300h_EE_OM53C61E.book 128 ページ ２０１４年５月２０日　火曜日　午後５時４０分

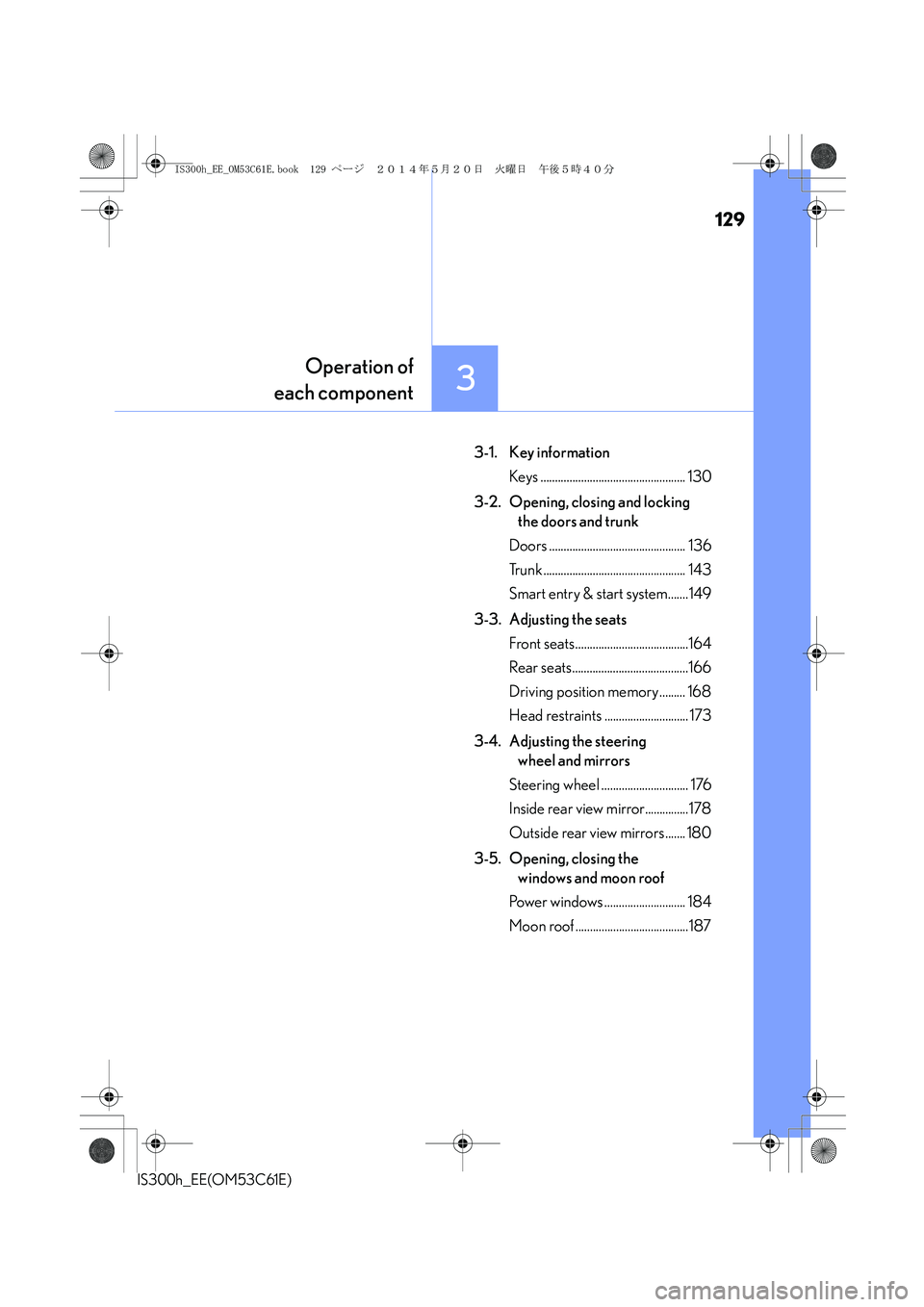

129
