Lexus IS300h 2014 Owner's Manual

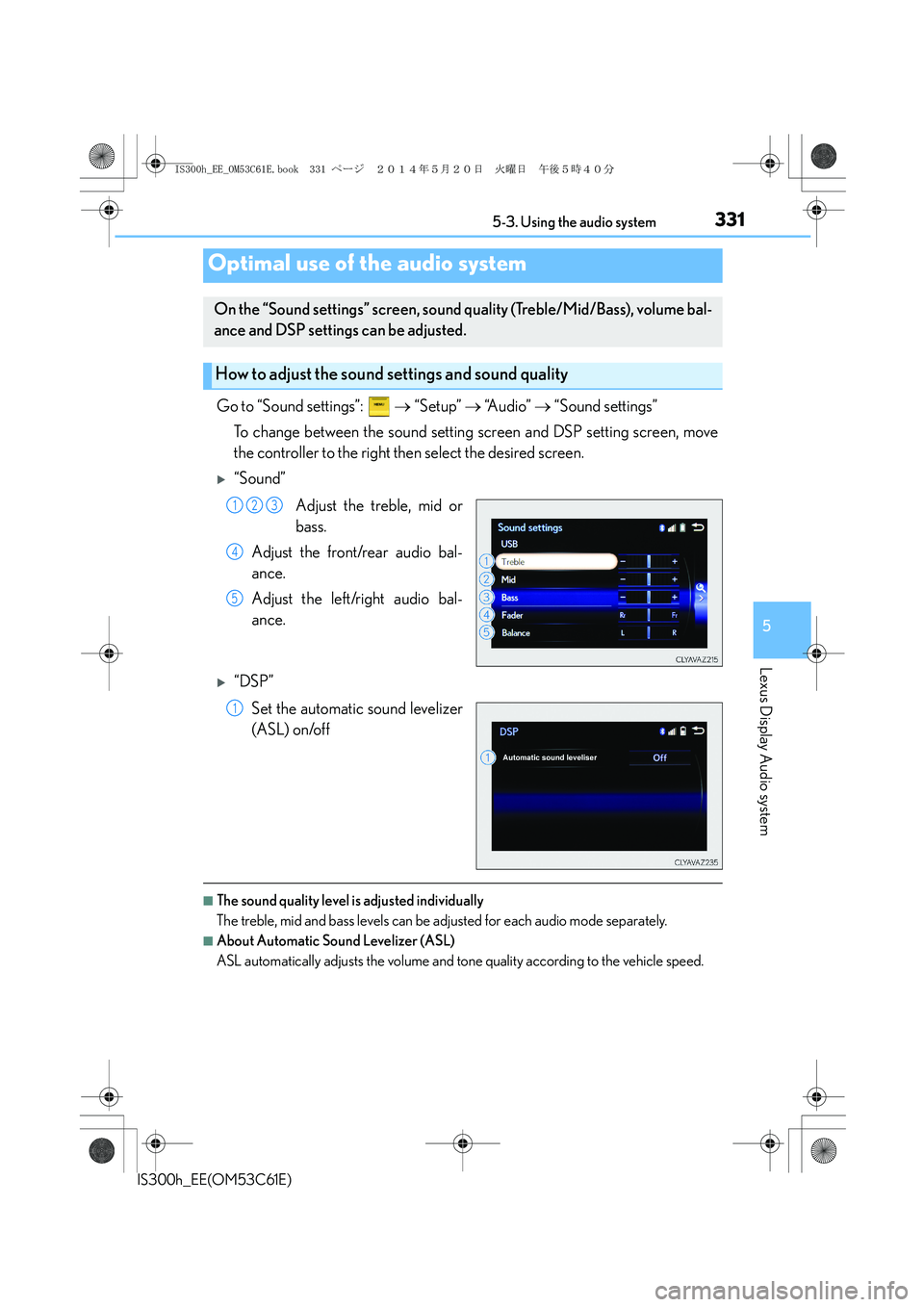

3315-3. Using the audio system
5
Lexus Display Audio system
IS300h_EE(OM53C61E)
Go to “Sound settings”: → “Setup” → “A u d i o ” → “Sound settings”
To change between the sound setting screen and DSP setting screen, move
the controller to the right then select the desired screen.
X“Sound”
Adjust the treble, mid or
bass.
Adjust the front/rear audio bal-
ance.
Adjust the left/right audio bal-
ance.
X“DSP”
Set the automatic sound levelizer
(ASL) on/off
■The sound quality level is adjusted individually
The treble, mid and bass levels can be adjusted for each audio mode separately.
■About Automatic Sound Levelizer (ASL)
ASL automatically adjusts the volume and tone quality according to the vehicle speed.
Optimal use of the audio system
On the “Sound settings” screen, sound quality (Treble/Mid/Bass), volume bal-
ance and DSP settings can be adjusted.
How to adjust the sound settings and sound quality
123
4
5
1
IS300h_EE_OM53C61E.book 331 ページ ２０１４年５月２０日　火曜日　午後５時４０分

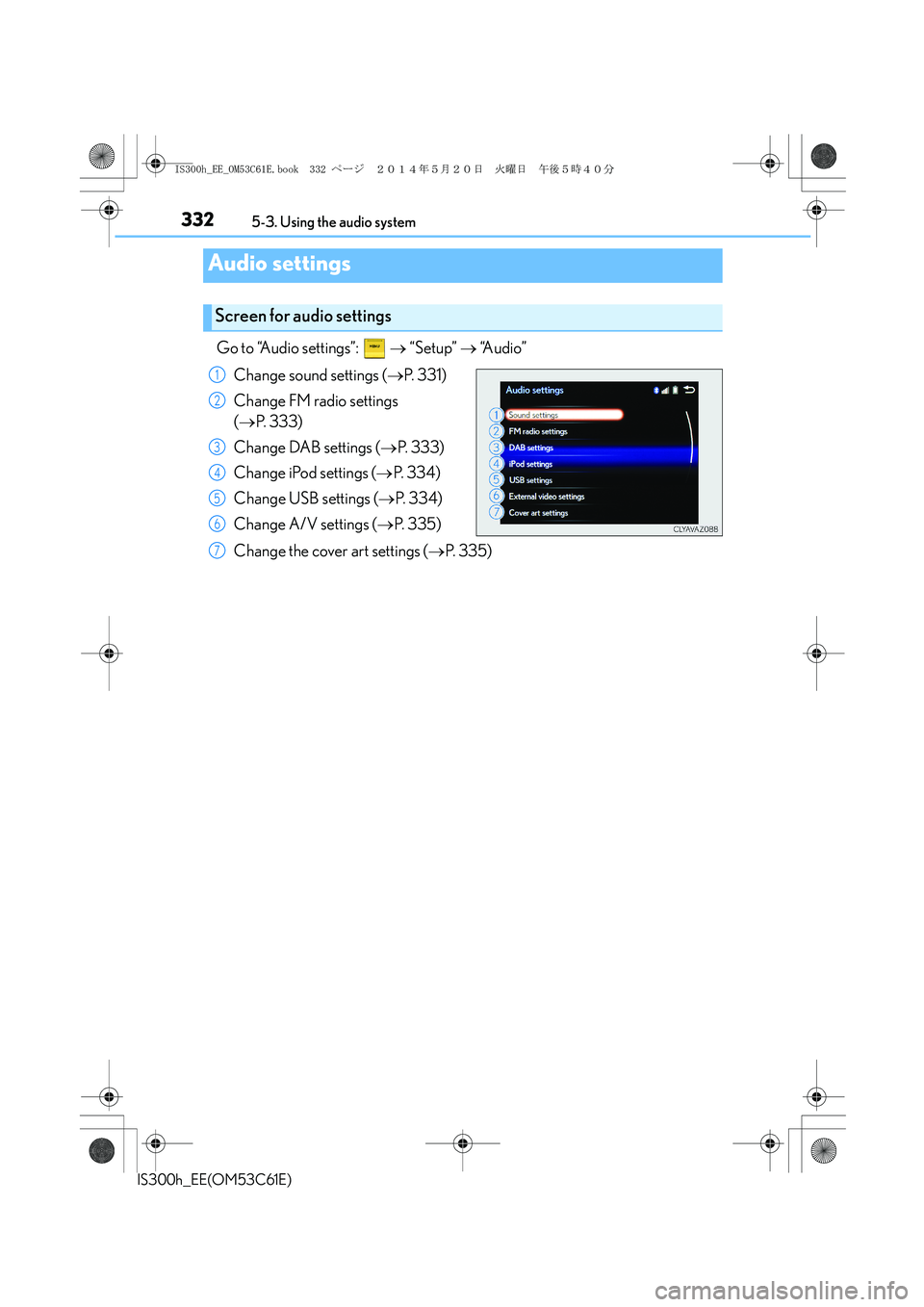

3325-3. Using the audio system
IS300h_EE(OM53C61E)
Go to “Audio settings”: → “Setup” → “Audio”
Change sound settings (→P. 3 3 1 )
Change FM radio settings
(→P. 3 3 3 )
Change DAB settings (→P. 333)
Change iPod settings (→P. 3 3 4 )
Change USB settings (→P. 3 3 4 )
Change A/V settings (→P. 335)
Change the cover art settings (→P. 3 3 5 )
Audio settings
Screen for audio settings
1
2
3
4
5
6
7
IS300h_EE_OM53C61E.book 332 ページ ２０１４年５月２０日　火曜日　午後５時４０分

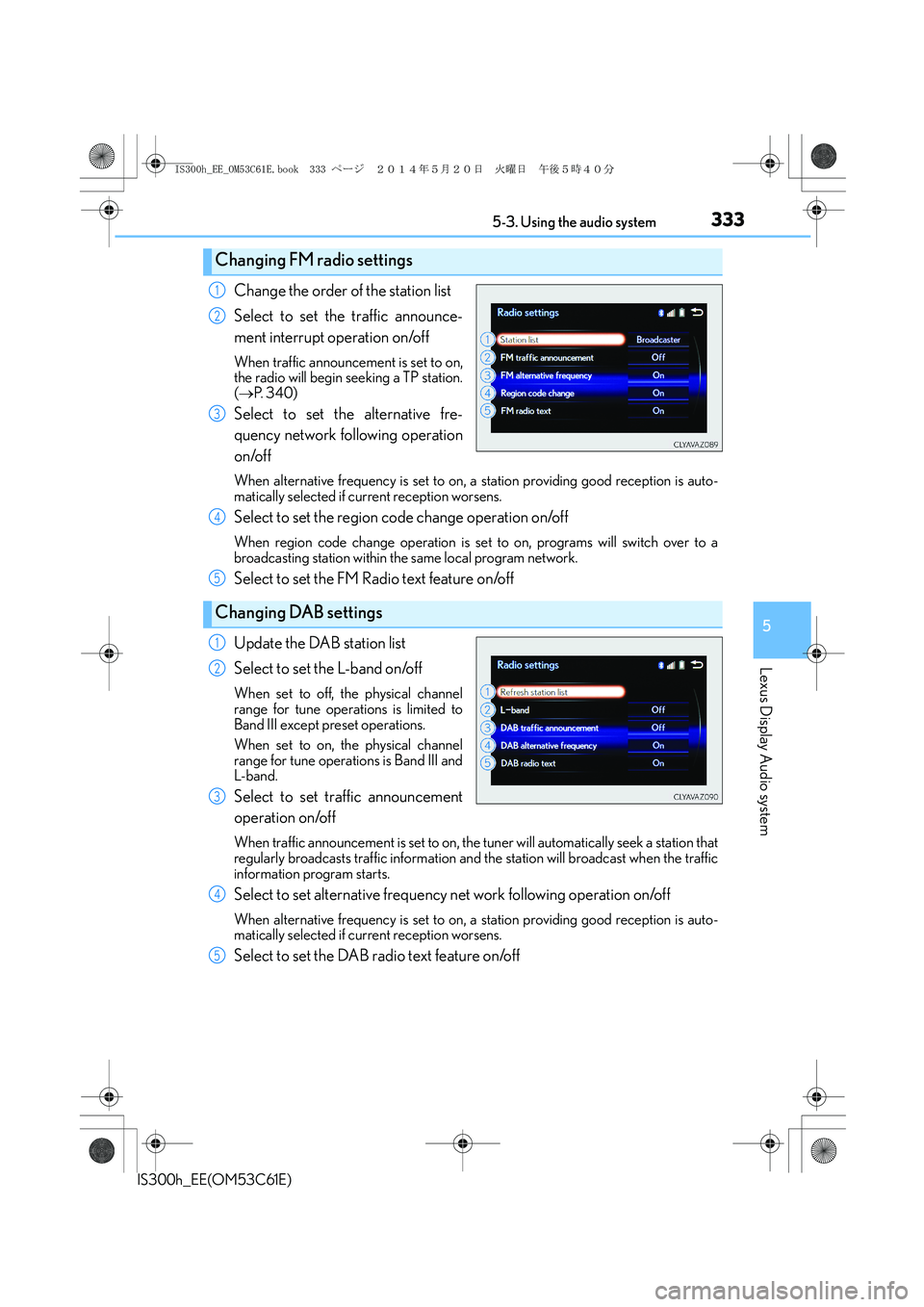

3335-3. Using the audio system
5
Lexus Display Audio system
IS300h_EE(OM53C61E)
Change the order of the station list
Select to set the traffic announce-
ment interrupt operation on/off
When traffic announcement is set to on,
the radio will begin seeking a TP station.
(→P. 3 4 0 )
Select to set the alternative fre-
quency network following operation
on/off
When alternative frequency is set to on, a station providing good reception is auto-
matically selected if current reception worsens.
Select to set the region code change operation on/off
When region code change operation is set to on, programs will switch over to a
broadcasting station within the same local program network.
Select to set the FM Radio text feature on/off
Update the DAB station list
Select to set the L-band on/off
When set to off, the physical channel
range for tune operations is limited to
Band III except preset operations.
When set to on, the physical channel
range for tune operations is Band III and
L-band.
Select to set traffic announcement
operation on/off
When traffic announcement is set to on, the tuner will automatically seek a station that
regularly broadcasts traffic information and the station will broadcast when the traffic
information program starts.
Select to set alternative frequency net work following operation on/off
When alternative frequency is set to on, a station providing good reception is auto-
matically selected if current reception worsens.
Select to set the DAB radio text feature on/off
Changing FM radio settings
1
2
3
Changing DAB settings
4
5
1
2
3
4
5
IS300h_EE_OM53C61E.book 333 ページ ２０１４年５月２０日　火曜日　午後５時４０分

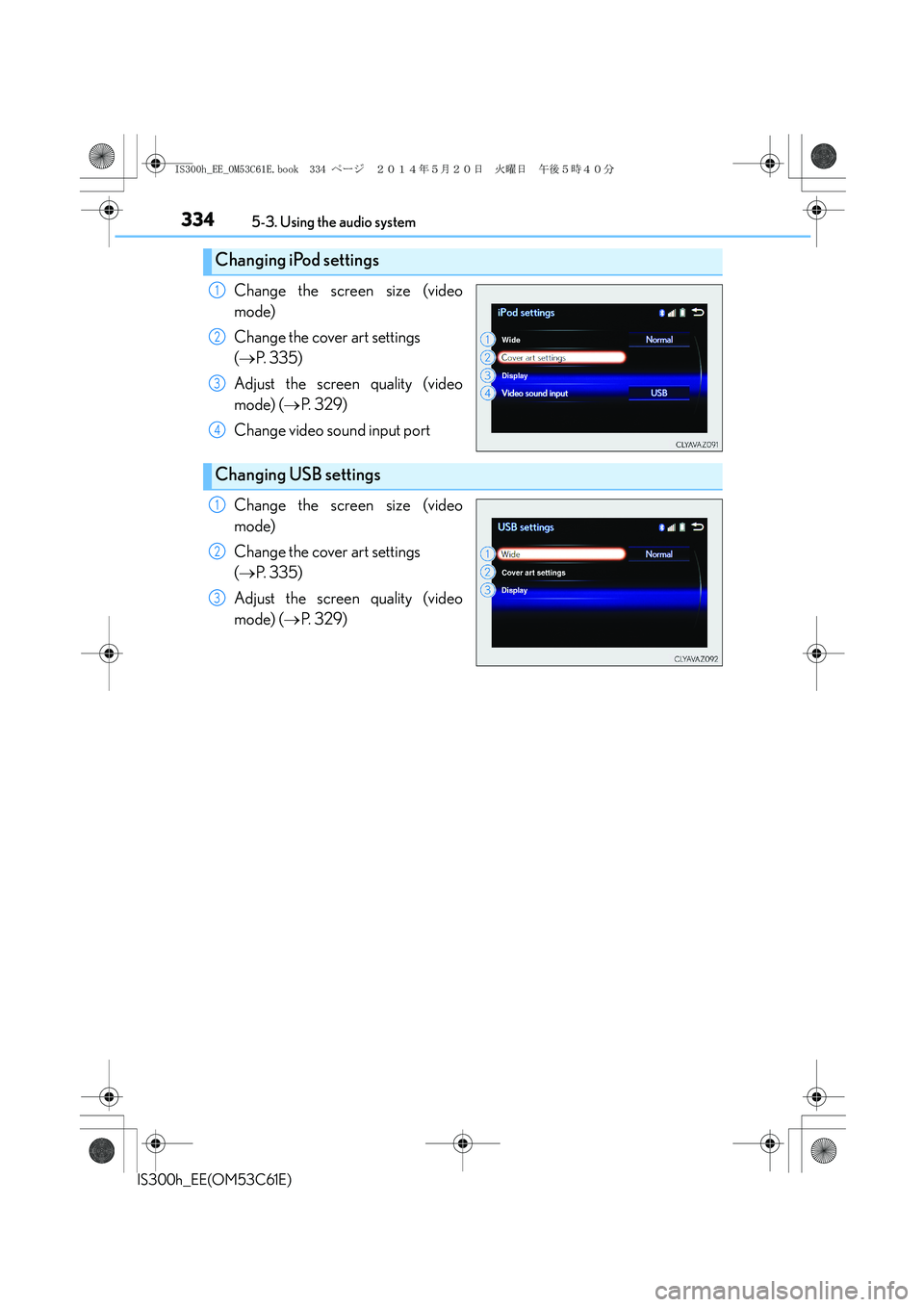

3345-3. Using the audio system
IS300h_EE(OM53C61E)
Change the screen size (video
mode)
Change the cover art settings
(→P. 3 3 5 )
Adjust the screen quality (video
mode) (→P. 3 2 9 )
Change video sound input port
Change the screen size (video
mode)
Change the cover art settings
(→P. 3 3 5 )
Adjust the screen quality (video
mode) (→P. 3 2 9 )
Changing iPod settings
1
2
3
4
Changing USB settings
1
2
3
IS300h_EE_OM53C61E.book 334 ページ ２０１４年５月２０日　火曜日　午後５時４０分

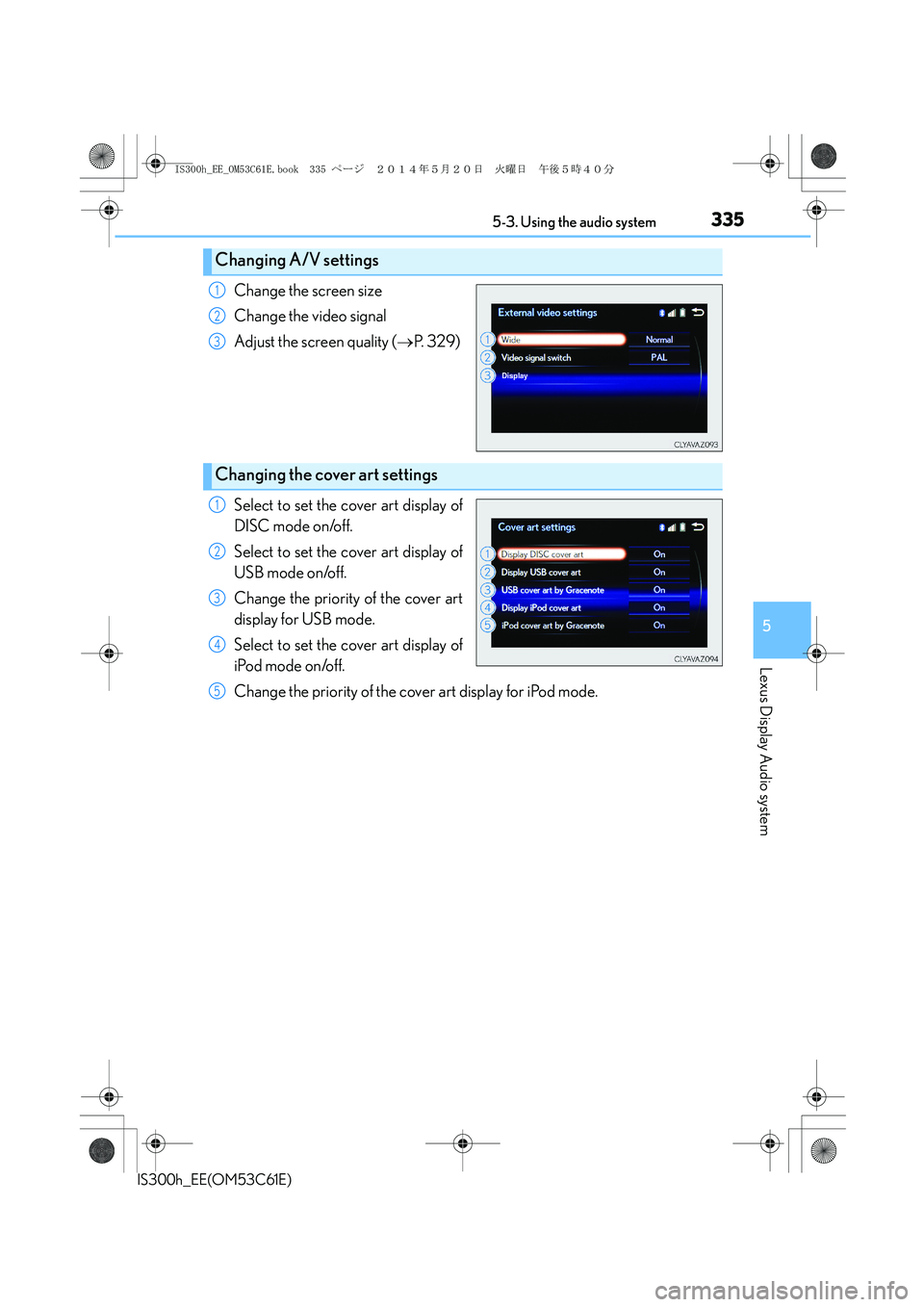

3355-3. Using the audio system
5
Lexus Display Audio system
IS300h_EE(OM53C61E)
Change the screen size
Change the video signal
Adjust the screen quality (→P. 3 2 9 )
Select to set the cover art display of
DISC mode on/off.
Select to set the cover art display of
USB mode on/off.
Change the priority of the cover art
display for USB mode.
Select to set the cover art display of
iPod mode on/off.
Change the priority of the cover art display for iPod mode.
Changing A/V settings
1
2
3
Changing the cover art settings
1
2
3
4
5
IS300h_EE_OM53C61E.book 335 ページ ２０１４年５月２０日　火曜日　午後５時４０分

3365-3. Using the audio system
IS300h_EE(OM53C61E)
To display the audio menu screen, move the controller to the left while on an
audio top screen.
XFM or AM radio
Seek a station of the nearest fre-
quency (stops when a station is
found) (manual mode)
Change FM radio settings
(→P. 333)
Change DAB settings (→P. 333)
XDAB
Adjust the playback offset time on
time shift mode
Cancel time shift operation
Select an ensemble (manual
mode)
Select a service (manual mode)
Change FM radio settings
(→P. 333)
Change DAB settings (→P. 333)
Audio menu screen operation
You can change the settings and control functions for each audio source.
Audio menu screen
1
2
3
1
2
3
4
5
6
IS300h_EE_OM53C61E.book 336 ページ ２０１４年５月２０日　火曜日　午後５時４０分

3375-3. Using the audio system
5
Lexus Display Audio system
IS300h_EE(OM53C61E)
XCD, MP3/WMA/AAC disc, USB, Bluetooth® or iPod
Play or pause a track/file/song
Select a track/file/song
Select a folder/album (MP3/
WMA/AAC disc or USB)
Select and hold: Fast-forward or
reverse a track/file/song
Select a repeat mode. (→P. 3 3 8 )
Select a random/shuffle play
mode. (→P. 3 3 8 )
Select the full screen mode. (USB
video or iPod video mode)
Change USB settings (USB)
(→P. 3 3 4 )
Change iPod settings (iPod)
(→P. 3 3 4 )
Connect a Bluetooth
® device (Bluetooth®) (→P. 360)
Change the cover art settings (→P. 335) (CD or MP3/WMA/AAC disc)
XAUX or A/V
Select the full screen mode (A/V)
Change A/V settings (A/V)
(→P. 3 3 5 )
1
2
3
4
5
6
7
8
9
10
11
1
2
IS300h_EE_OM53C61E.book 337 ページ ２０１４年５月２０日　火曜日　午後５時４０分

3385-3. Using the audio system
IS300h_EE(OM53C61E)
Repeat play
ModeActionTa r g e t a u d i o s o u r c e
File/track/song repeat All media
Folder repeat MP3 /WMA/AAC disc, USB
Album repeat USB, Bluetooth
®
Random/shuffle playback
ModeActionTa r g e t a u d i o s o u r c e
Random/shuffle play of the disc/
folder/albumAll media
Random play of all folders MP3/WMA/AAC disc, USB
Random/shuffle play of all albums USB, iPod, Bluetooth
®
IS300h_EE_OM53C61E.book 338 ページ ２０１４年５月２０日　火曜日　午後５時４０分

339
5
Lexus Display Audio system
IS300h_EE(OM53C61E)5-4. Using the radio
Pressing the “RADIO” button displays the radio top screen from any screen of
the selected source.
■Menu screen
→P. 3 3 6
Move the controller to the right to display the right menu screen.
Change the radio top screen to the
preset selection screen.
Change the radio top screen to the
station list selection screen. (FM and
DAB)
Change the radio top screen to the
manual selection screen.
Change the radio top screen to the
time shift operation screen. (DAB)
(→P. 3 4 0 )
Tune in to the desired station using one of the following methods.
■Seek tuning
Manual screen: Press or press and hold “<” or “>” button.
Preset or station list screen: Press and hold “<” or “>” button.
Seek turning can also be operated on the menu screen. (→P. 3 3 6 )
The radio will begin seeking up or down for a station of the nearest frequency
and will stop when a station is found.
Radio operation
Select “AM”, “FM” or “DAB” on the “Source” screen to begin listening to the
radio.
Radio top screen
Changing the top screen mode
1
2
3
4
Selecting a station
IS300h_EE_OM53C61E.book 339 ページ ２０１４年５月２０日　火曜日　午後５時４０分

3405-4. Using the radio
IS300h_EE(OM53C61E)
■Manual tuning (manual screen)
Turn the right side knob (left-hand drive vehicle) or left side knob (right-hand
drive vehicle) on the audio panel or turn the controller.
■Station list (preset or station list screen)
Select the desired station by pressing “<” or “>”, turn the right side knob (left-
hand drive vehicle) or left side knob (right-hand drive vehicle) on the audio
panel or controller.
Radio stations can be preset.
Search for desired stations.
Turn the controller to select one of the preset stations and then press the con-
troller until you hear a beep while on the preset selection screen.
The broadcast you are currently listening to can be re-listened to at any time.
Move the controller to the right and then select “Time shift”.
Turn the right side knob (left-hand drive vehicle) or left side knob (right-hand
drive vehicle) on the audio panel to set the desired offset.
An offset playback time can also be set on the menu screen. (→P. 3 3 6 )
To cancel the time shift operation while in time shift mode, move the controller to the
left and select “Time shift off”. If the time shift display is left showing “-0' 00”” for 6
seconds without any operation, the time shift operation will be canceled.
■Reception sensitivity
●Maintaining perfect radio reception at all times is difficult due to the continually chang-
ing position of the antenna, differences in signal strength and surrounding objects, such
as trains, transmitters, etc.
●The radio antenna is mounted inside the rear window. To maintain clear radio reception,
do not attach metallic window tinting or other metallic objects to the antenna wire
mounted inside the rear window.
■Traffic announcement operation
When traffic announcement is set to on, “TP” will appear on the screen and the radio will
begin seeking a TP station. If the radio seeks out a TP station, the program name will
appear on the screen. If a traffic announcement station is received, the radio will be
switched to the traffic information program automatically. When the program ends, the
initial operation will resume.
Setting station presets (preset screen)
Time shift operation (DAB)
1
2
1
2
IS300h_EE_OM53C61E.book 340 ページ ２０１４年５月２０日　火曜日　午後５時４０分
