Lexus IS300h 2014 Owner's Manual

3114-6. Driving tips
4
Driving
IS300h_EE(OM53C61E)
●Use fluids that are appropriate to the prevailing outside temperatures.
•Engine oil
• Engine/power control unit coolant
•Washer fluid
●Have a service technician inspect the condition of the 12-volt battery.
●Have the vehicle fitted with four snow tires or purchase a set of tire chains for
the rear tires.
*
Ensure that all tires are the specified size and brand, and that chains match the size
of the tires.
*: Tire chains cannot be mounted on the 18-inch tires.
Perform the following according to the driving conditions:
●Do not try to forcibly open a window or move a wiper that is frozen. Pour
warm water over the frozen area to melt the ice. Wipe away the water imme-
diately to prevent it from freezing.
●To ensure proper operation of the climate control system fan, remove any
snow that has accumulated on the air inlet vents in front of the windshield.
●Check for and remove any excess ice or snow that may have accumulated on
the exterior lights, vehicle’s roof, chassis, around the tires or on the brakes.
●Remove any snow or mud from the bottom of your shoes before getting in the
vehicle.
Accelerate the vehicle slowly, keep a safe distance between you and the vehicle
ahead, and drive at a reduced speed suitable to road conditions.
Winter driving tips
Carry out the necessary preparations and inspections before driving the vehi-
cle in winter. Always drive the vehicle in a manner appropriate to the prevail-
ing weather conditions.
Preparation for winter
Before driving the vehicle
When driving the vehicle
IS300h_EE_OM53C61E.book 311 ページ ２０１４年５月２０日　火曜日　午後５時４０分

3124-6. Driving tips
IS300h_EE(OM53C61E)
Park the vehicle and move the shift lever to P without setting the parking brake.
The parking brake may freeze up, preventing it from being released. If necessary,
block the wheels to prevent inadvertent sliding or creeping.
XExcept vehicles with 18-inch tires
Use the correct tire chain size when mounting the tire chains.
Chain size is regulated for each tire size.
Side chain
(3 mm [0.12 in.] in diameter)
Cross chain
(4 mm [0.16 in.] in diameter)
XVehicles with 18-inch tires
Tire chains cannot be mounted on the 18-inch tires.
Snow tires should be used instead.
Regulations regarding the use of tire chains vary depending on location and type
of road. Always check local regulations before installing chains.
■Tire chain installation
Observe the following precautions when installing and removing chains:
●Install and remove tire chains in a safe location.
●Install tire chains on the rear tires. Do not install tire chains on the front tires.
●Install tire chains on rear tires as tightly as possible. Retighten chains after driving 0.5
 1.0 km (1 /4  1 /2 mile).
●Install tire chains following the instructions provided with the tire chains.
When parking the vehicle
Selecting tire chains
1
2
Regulations on the use of tire chains
IS300h_EE_OM53C61E.book 312 ページ ２０１４年５月２０日　火曜日　午後５時４０分

3134-6. Driving tips
4
Driving
IS300h_EE(OM53C61E)
CAUTION
■Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in a loss of vehicle control and cause death or serious injury.
●Use tires of the specified size.
●Maintain the recommended level of air pressure.
●Do not drive at speeds in excess of the speed limit or the speed limit specified for the
snow tires being used.
●Use snow tires on all, not just some wheels.
■Driving with tire chains (except vehicles with 18-inch tires)
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in the vehicle being unable to be driven safely, and may
cause death or serious injury.
●Do not drive in excess of the speed limit specified for the tire chains being used, or 50
km/h (30 mph), whichever is lower.
●Avoid driving on bumpy road surfaces or over potholes.
●Avoid sudden acceleration, abrupt steering, sudden braking and shifting operations
that cause sudden engine braking.
●Slow down sufficiently before entering a curve to ensure that vehicle control is main-
tained.
●Do not use LDA (Lane Departure Alert) system.
NOTICE
■Repairing or replacing snow tires
Request repairs or replacement of snow tires from Lexus dealers or legitimate tire
retailers.
This is because the removal and attachment of snow tires affects the operation of the
tire pressure warning valves and transmitters.
■Fitting tire chains (except vehicles with 18-inch tires)
The tire pressure warning valves and transmitters may not function correctly when tire
chains are fitted.
IS300h_EE_OM53C61E.book 313 ページ ２０１４年５月２０日　火曜日　午後５時４０分

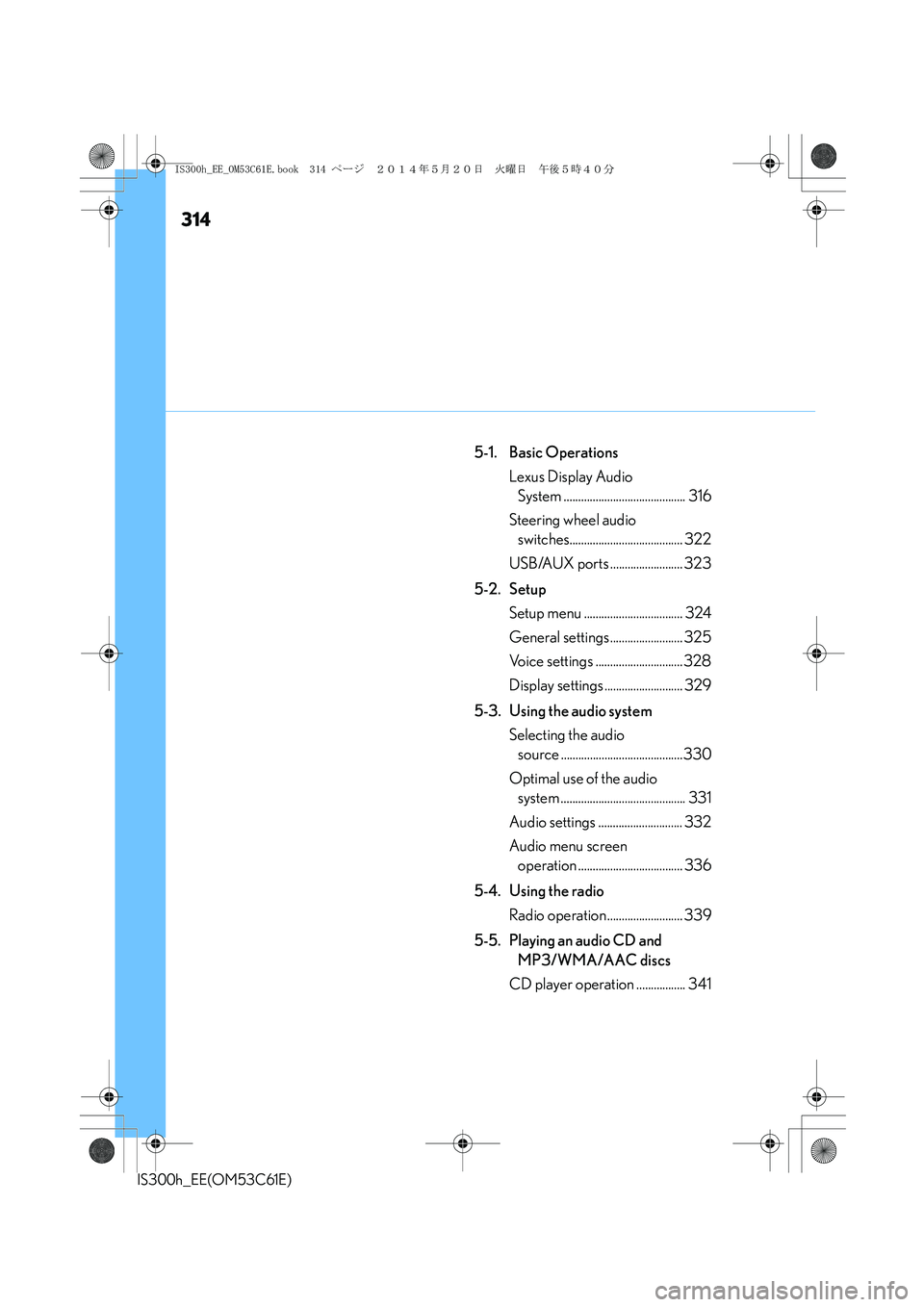

314
IS300h_EE(OM53C61E)
5-1. Basic Operations
Lexus Display Audio
System .......................................... 316
Steering wheel audio
switches....................................... 322
USB/AUX ports ......................... 323
5-2. Setup
Setup menu .................................. 324
General settings......................... 325
Voice settings .............................. 328
Display settings ........................... 329
5-3. Using the audio system
Selecting the audio
source ..........................................330
Optimal use of the audio
system ........................................... 331
Audio settings ............................. 332
Audio menu screen
operation .................................... 336
5-4. Using the radio
Radio operation .......................... 339
5-5. Playing an audio CD and
MP3/WMA/AAC discs
CD player operation ................. 341
IS300h_EE_OM53C61E.book 314 ページ ２０１４年５月２０日　火曜日　午後５時４０分

315
5
Lexus Display
Audio system
IS300h_EE(OM53C61E)
5-6. Using an external device
Listening to an iPod .................. 348
Using USB memory
device ............................................ 351
Using the AUX port..................356
5-7. Connecting Bluetooth
®
Steps for using Bluetooth®
devices......................................... 357
Registering a Bluetooth
®
device ...........................................359
Selecting a Bluetooth
®
device .......................................... 360
Connecting a Bluetooth
®
audio player ................................ 361
Connecting a Bluetooth
®
phone ........................................... 362
Displaying a Bluetooth
®
device details ............................363
Detailed Bluetooth
®
settings.........................................364
5-8. Bluetooth
® Audio
Listening to Bluetooth
®
Audio............................................3655-9. Bluetooth
® Phone
Using a Bluetooth
®
Phone........................................... 367
Making a call................................ 369
Receiving a call ............................372
Speaking on the phone ........... 373
Using a Bluetooth
® phone
messages.................................... 375
Using the steering wheel
switches....................................... 378
Bluetooth
® phone
settings ........................................ 379
5-10. Phonebook
Contact settings .......................... 381
Messaging setting......................384
5-11. Bluetooth
®
Bluetooth®..................................385
5-12. Other function
“Information” screen .................390
MirrorLink................................. 391
USB photo .................................... 393
Speech command system ...... 395
IS300h_EE_OM53C61E.book 315 ページ ２０１４年５月２０日　火曜日　午後５時４０分

316
IS300h_EE(OM53C61E)5-1. Basic Operations
Lexus Display Audio System∗
∗
: If equipped
Use the following buttons to start listening to the audio system.
Display Audio operation buttons
Eject a disc.
Seek up or down for a radio station, or to access a desired track or file.
Except radio and A/V mode: Pause or resume playing a track.
Radio and A/V mode: Turn mute on/off
Select a radio station band, track or file.
Disc slot
Display the media top screen.
Display the radio top screen.
Press to turn the audio system on/off, and turn to adjust the volume.1
2
3
4
5
6
7
8
IS300h_EE_OM53C61E.book 316 ページ ２０１４年５月２０日　火曜日　午後５時４０分

3175-1. Basic Operations
5
Lexus Display Audio system
IS300h_EE(OM53C61E)

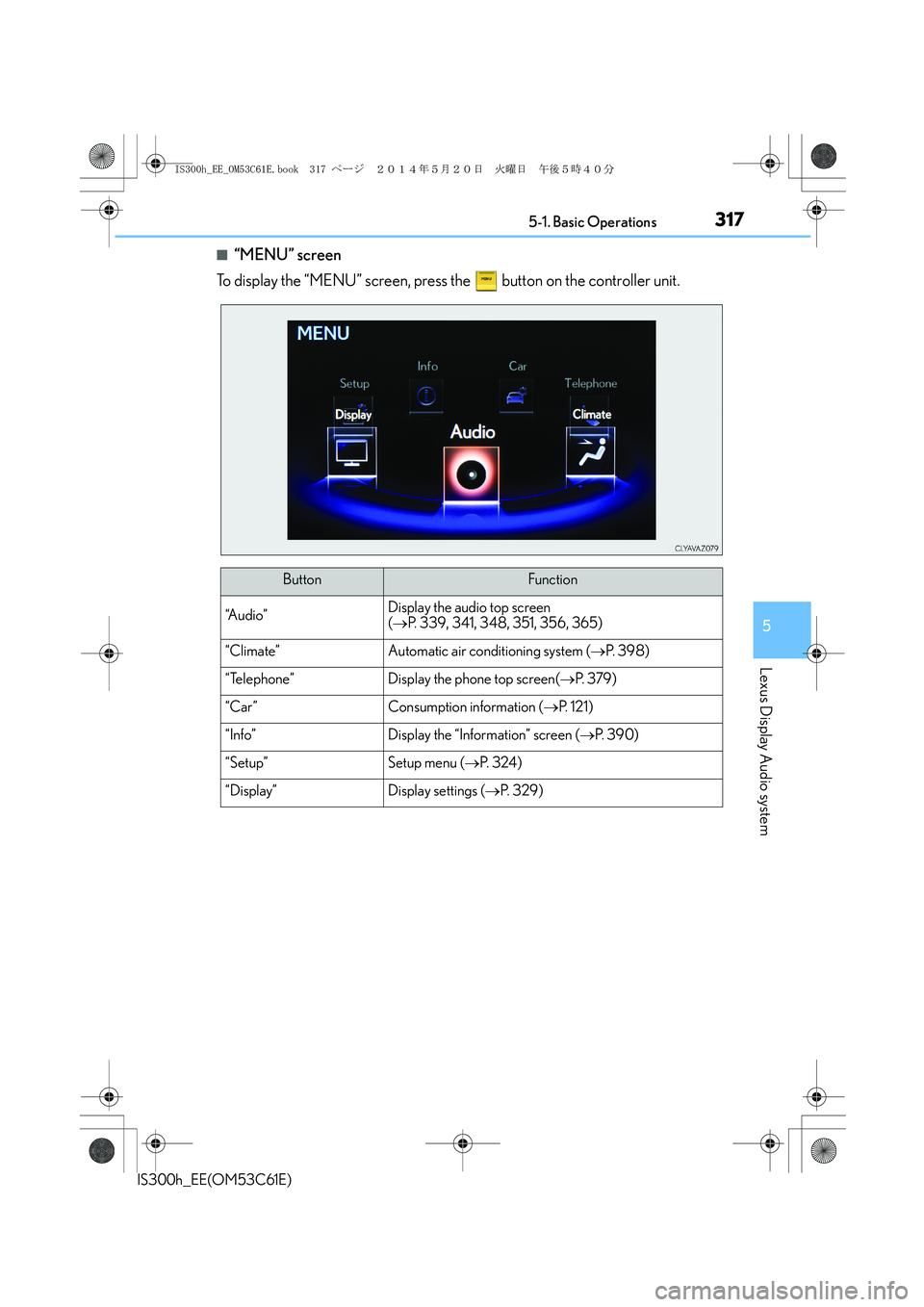

■“MENU” screen
To display the “MENU” screen, press the button on the controller unit.
ButtonFunction
“A u d i o ”Display the audio top screen
(→P. 339, 341, 348, 351, 356, 365)
“Climate”Automatic air conditioning system (→P. 3 9 8 )
“Telephone”Display the phone top screen(→P. 3 7 9 )
“Car” Consumption information (→P. 1 2 1 )
“Info”Display the “Information” screen (→P. 3 9 0 )
“Setup”Setup menu (→P. 3 2 4 )
“Display”Display settings (→P. 3 2 9 )
IS300h_EE_OM53C61E.book 317 ページ ２０１４年５月２０日　火曜日　午後５時４０分

3185-1. Basic Operations
IS300h_EE(OM53C61E)

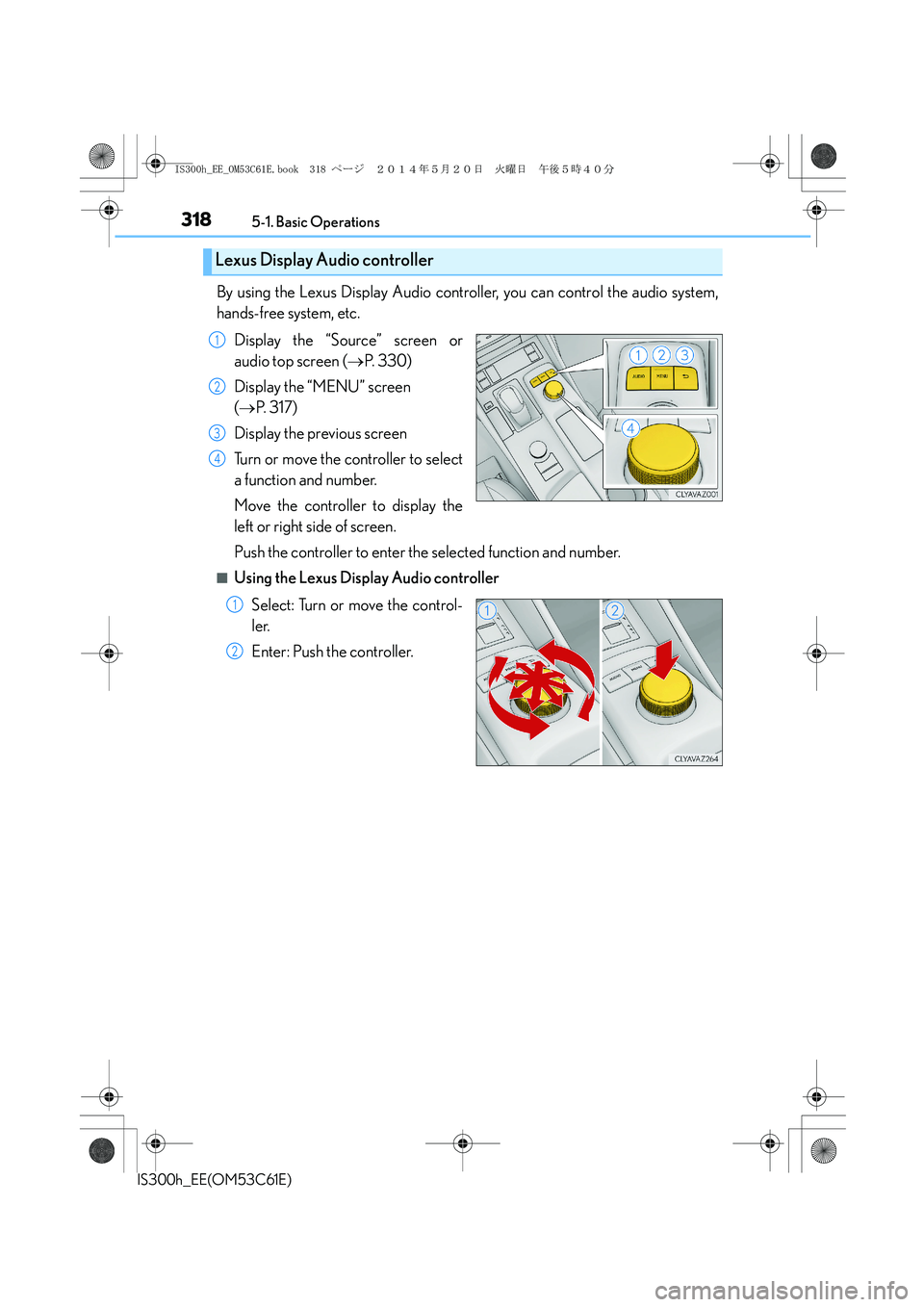

By using the Lexus Display Audio controller, you can control the audio system,
hands-free system, etc.
Display the “Source” screen or
audio top screen (→P. 3 3 0 )
Display the “MENU” screen
(→P. 3 1 7 )
Display the previous screen
Turn or move the controller to select
a function and number.
Move the controller to display the
left or right side of screen.
Push the controller to enter the selected function and number.
■Using the Lexus Display Audio controller
Select: Turn or move the control-
ler.
Enter: Push the controller.
Lexus Display Audio controller
1
2
3
4
1
2
IS300h_EE_OM53C61E.book 318 ページ ２０１４年５月２０日　火曜日　午後５時４０分

3195-1. Basic Operations
5
Lexus Display Audio system
IS300h_EE(OM53C61E)

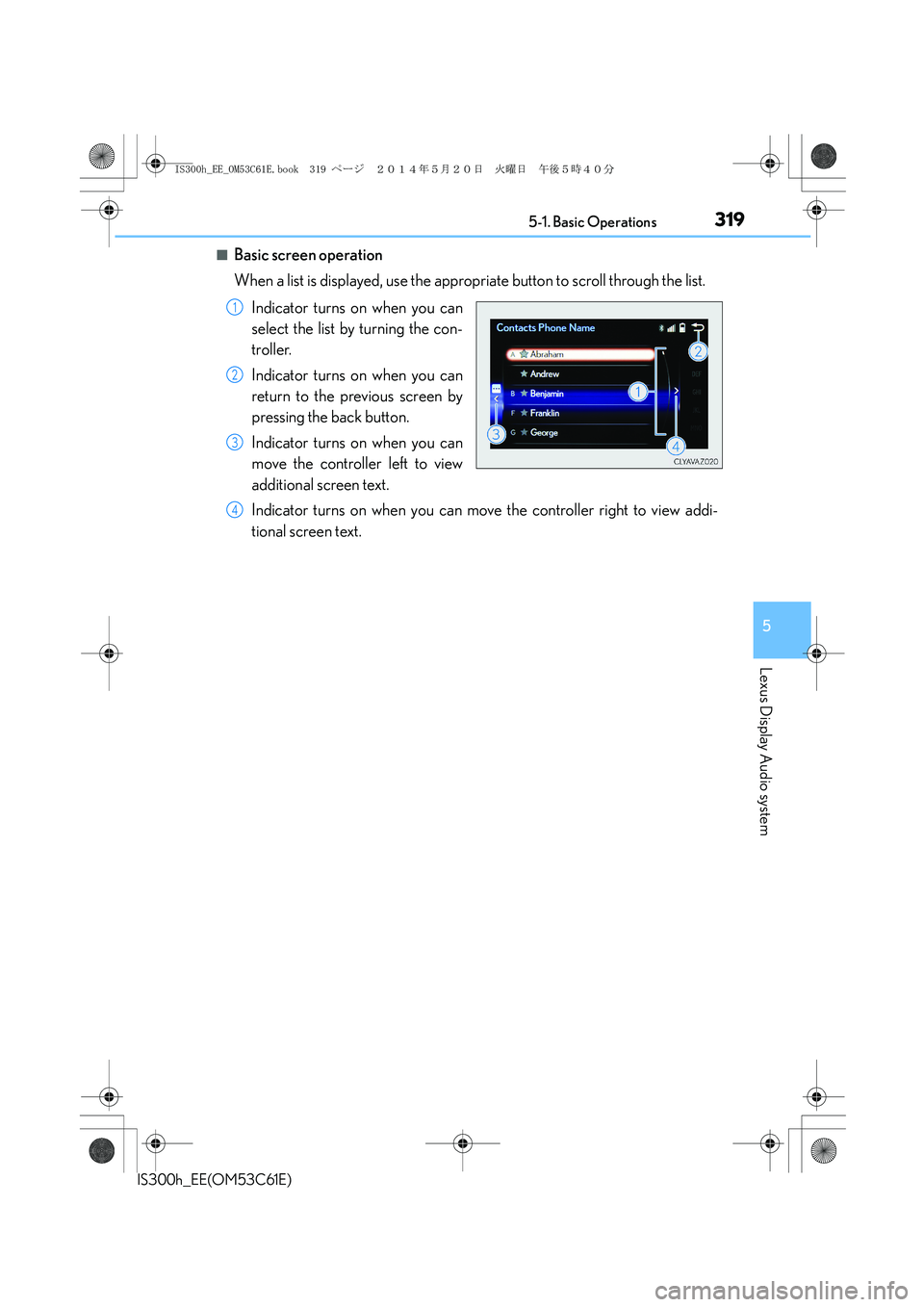

■Basic screen operation
When a list is displayed, use the appropriate button to scroll through the list.
Indicator turns on when you can
select the list by turning the con-
troller.
Indicator turns on when you can
return to the previous screen by
pressing the back button.
Indicator turns on when you can
move the controller left to view
additional screen text.
Indicator turns on when you can move the controller right to view addi-
tional screen text.
1
2
3
4
IS300h_EE_OM53C61E.book 319 ページ ２０１４年５月２０日　火曜日　午後５時４０分

3205-1. Basic Operations
IS300h_EE(OM53C61E)

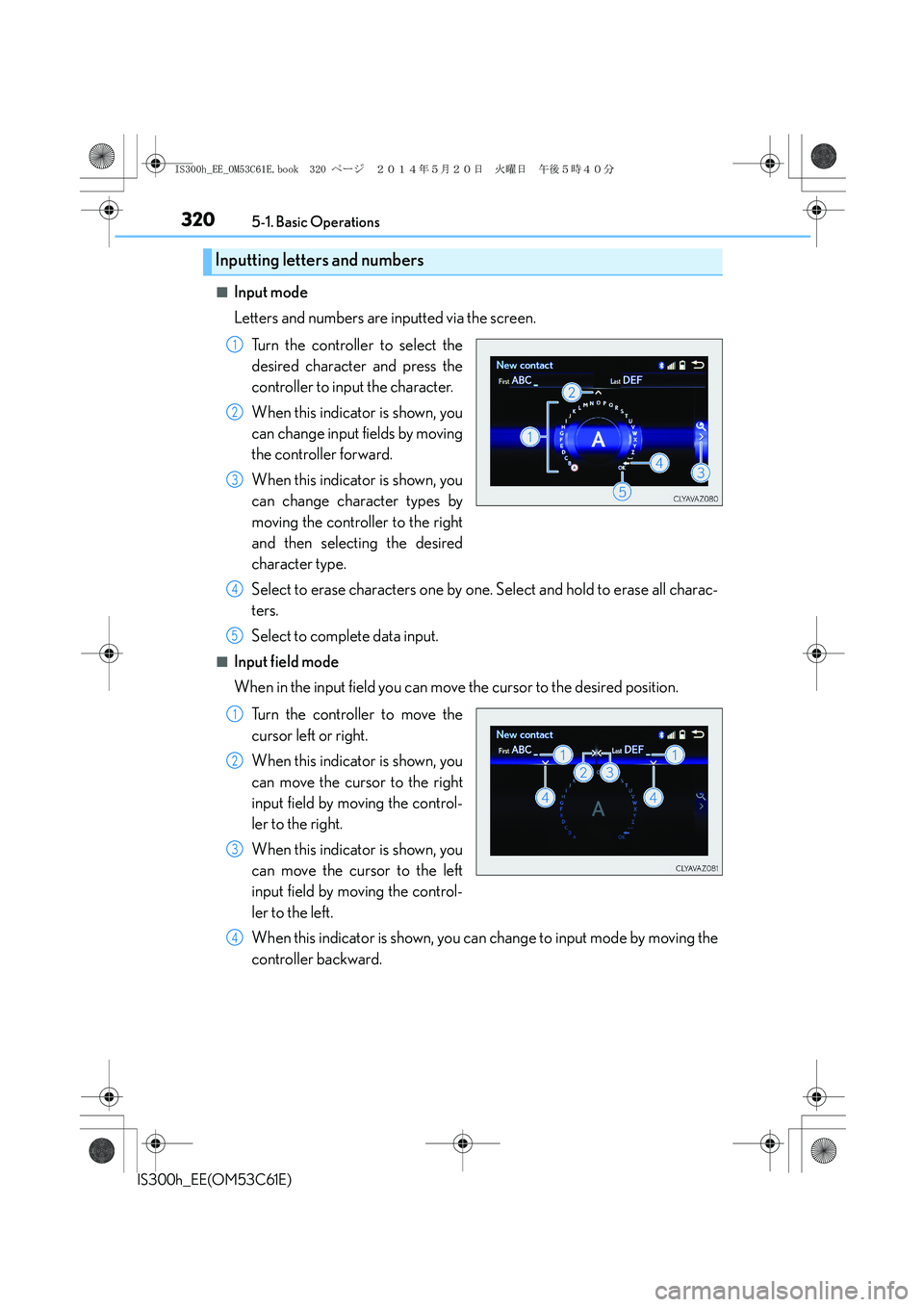

■Input mode
Letters and numbers are inputted via the screen.
Turn the controller to select the
desired character and press the
controller to input the character.
When this indicator is shown, you
can change input fields by moving
the controller forward.
When this indicator is shown, you
can change character types by
moving the controller to the right
and then selecting the desired
character type.
Select to erase characters one by one. Select and hold to erase all charac-
ters.
Select to complete data input.
■Input field mode
When in the input field you can move the cursor to the desired position.
Turn the controller to move the
cursor left or right.
When this indicator is shown, you
can move the cursor to the right
input field by moving the control-
ler to the right.
When this indicator is shown, you
can move the cursor to the left
input field by moving the control-
ler to the left.
When this indicator is shown, you can change to input mode by moving the
controller backward.
Inputting letters and numbers
1
2
3
4
5
1
2
3
4
IS300h_EE_OM53C61E.book 320 ページ ２０１４年５月２０日　火曜日　午後５時４０分
