Lexus IS300h 2014 Owner's Manual

561
9 9-1. Specifications
Vehicle specifications
IS300h_EE(OM53C61E)

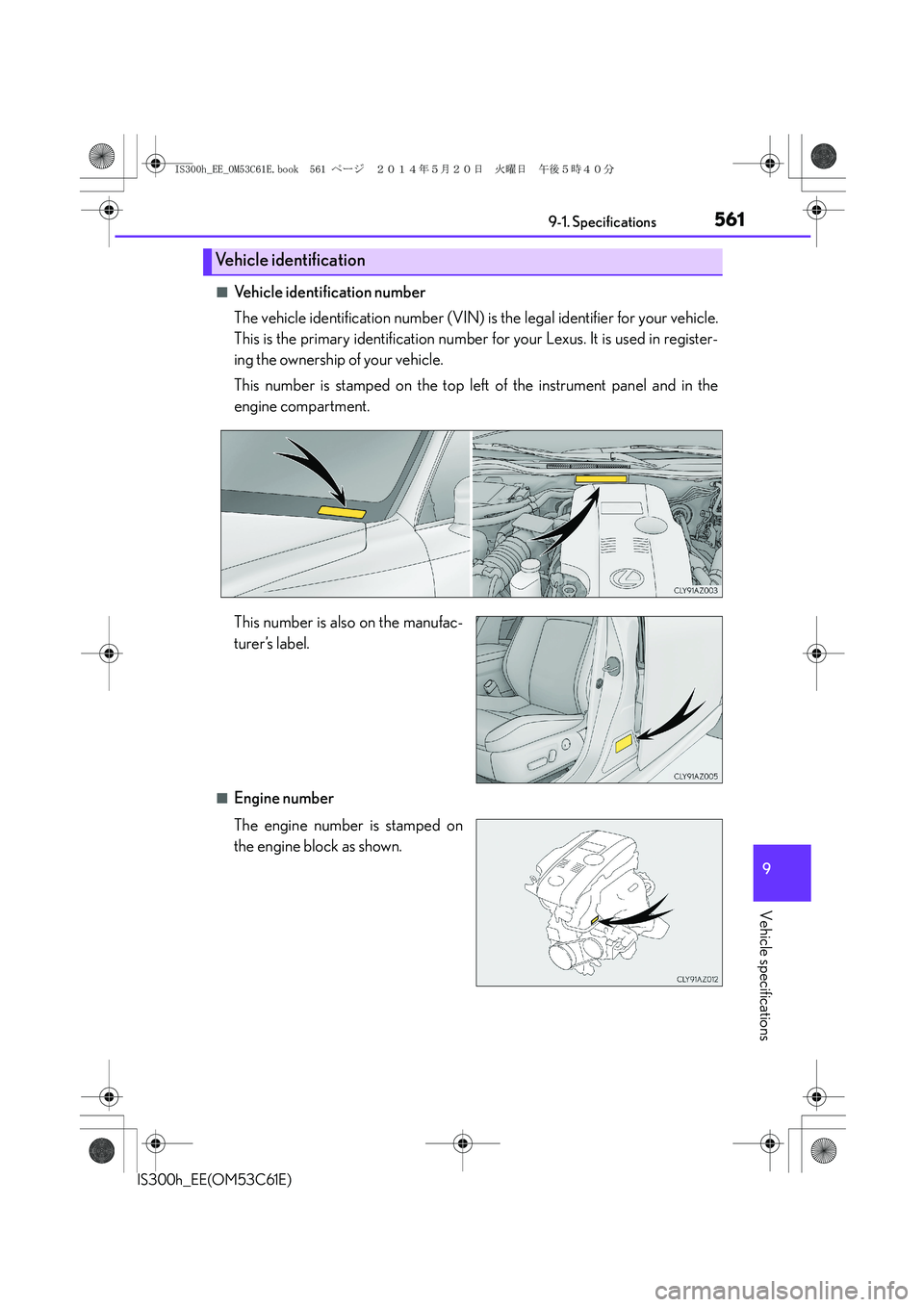

■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number for your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top left of the instrument panel and in the
engine compartment.
This number is also on the manufac-
turer’s label.
■Engine number
The engine number is stamped on
the engine block as shown.
Vehicle identification
IS300h_EE_OM53C61E.book 561 ページ ２０１４年５月２０日　火曜日　午後５時４０分

5629-1. Specifications
IS300h_EE(OM53C61E)

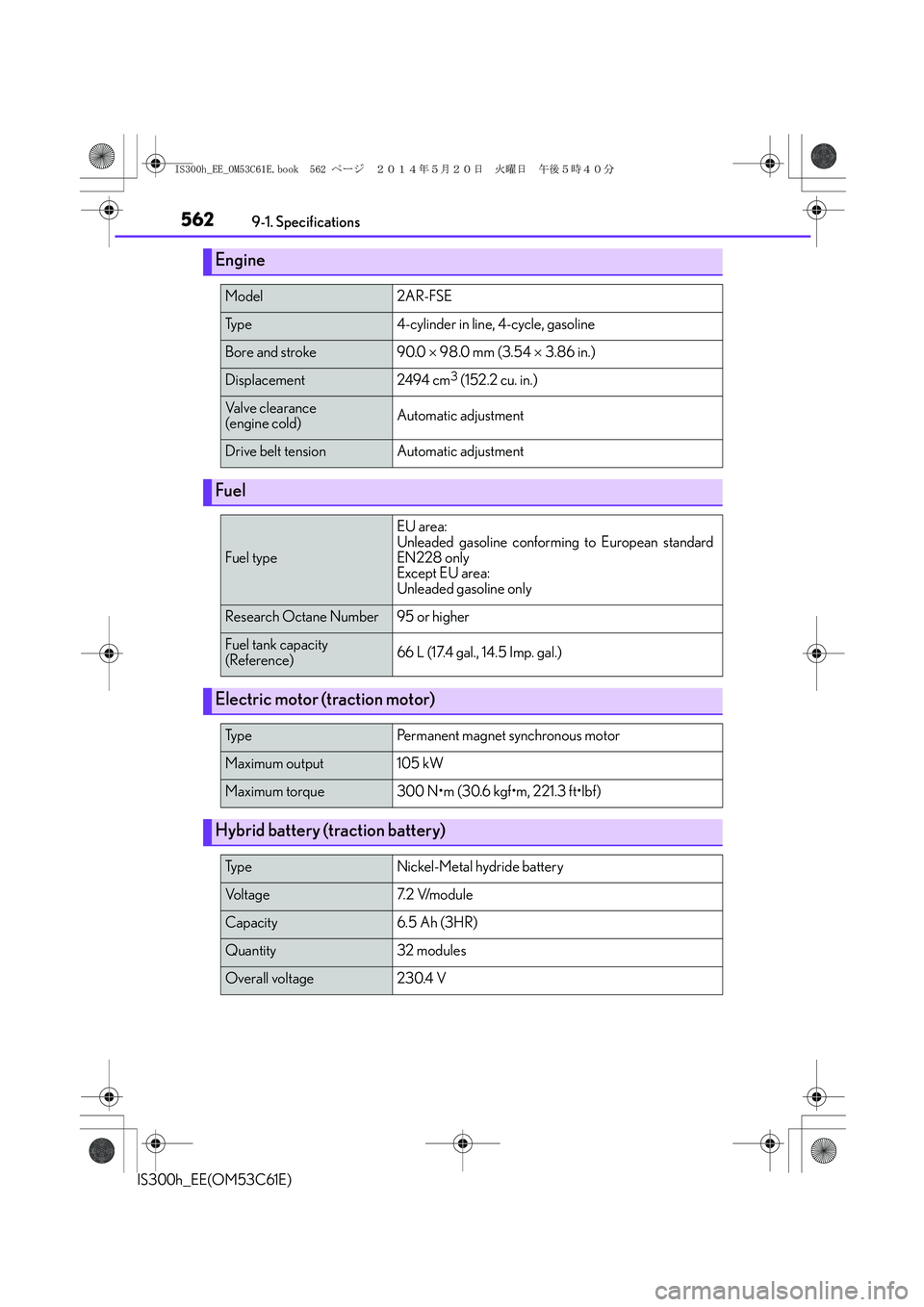

Engine
Model2AR-FSE
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke90.0 × 98.0 mm (3.54 × 3.86 in.)
Displacement2494 cm3 (152.2 cu. in.)
Va l v e c l e a r a n c e
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Fuel
Fuel type
EU area:
Unleaded gasoline conforming to European standard
EN228 only
Except EU area:
Unleaded gasoline only
Research Octane Number95 or higher
Fuel tank capacity
(Reference)66 L (17.4 gal., 14.5 Imp. gal.)
Electric motor (traction motor)
Ty p ePermanent magnet synchronous motor
Maximum output105 kW
Maximum torque300 N•m (30.6 kgf•m, 221.3 ft•lbf)
Hybrid battery (traction battery)
Ty p eNickel-Metal hydride battery
Vo l t a g e7. 2 V/m o d u l e
Capacity6.5 Ah (3HR)
Quantity32 modules
Overall voltage230.4 V
IS300h_EE_OM53C61E.book 562 ページ ２０１４年５月２０日　火曜日　午後５時４０分

563
9 9-1. Specifications
Vehicle specifications
IS300h_EE(OM53C61E)
■Oil capacity (Drain and refill [Reference*])
*: The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up the engine and turn off the hybrid system, wait more than 5 minutes, and
check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Lexus recom-
mends the use of approved “Toyota Genuine Motor Oil”. Another motor oil of
matching quality can also be used.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
1 5 W- 4 0 a n d 2 0 W- 5 0 :
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your Lexus
vehicle at manufacturing, and the
best choice for good fuel economy
and good starting in cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used. How-
ever, it should be replaced with SAE
0W-20 at the next oil change.
If you use SAE 10W-30 or a higher
viscosity engine oil in extremely low
temperatures, the engine may
become difficult to start, so SAE
0 W-20, 5W-20 or 5W-30 engine
oil is recommended.
Lubrication system
With filter4.5 L (4.8 qt., 4.0 Imp. qt.)
Without filter4.1 L (4.3. qt., 3.6 Imp. qt.)
Temperature range anticipated
before next oil change.Preferred
IS300h_EE_OM53C61E.book 563 ページ ２０１４年５月２０日　火曜日　午後５時４０分

5649-1. Specifications
IS300h_EE(OM53C61E)
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil containers to help
you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designation by
American Petroleum Institute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-
Conserving” means that the oil has
fuel-saving and environmental pro-
tection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC) Certifica-
tion Mark is displayed on the front of the container.
1
2
IS300h_EE_OM53C61E.book 564 ページ ２０１４年５月２０日　火曜日　午後５時４０分

565
9 9-1. Specifications
Vehicle specifications
IS300h_EE(OM53C61E)
■Spark plug
Cooling system
Gasoline engine
Po w e r c o n t ro l u n i t
Left-hand drive
vehiclesRight-hand drive
vehicles
Capacity8.2 L (8.7 qt.,
7. 2 I m p . q t . )2.0 L (2.1 qt.,
1.8 Imp. qt.)2.2 L (2.3 qt.,
1.9 Imp. qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate,
non-amine, non-nitrite, and non-borate coolant with long-
life hybrid organic acid technology
Do not use plain water alone.
Ignition system
Make DENSO FK20HBR8
Gap 0.8 mm (0.031 in.)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
IS300h_EE_OM53C61E.book 565 ページ ２０１４年５月２０日　火曜日　午後５時４０分

5669-1. Specifications
IS300h_EE(OM53C61E)
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.

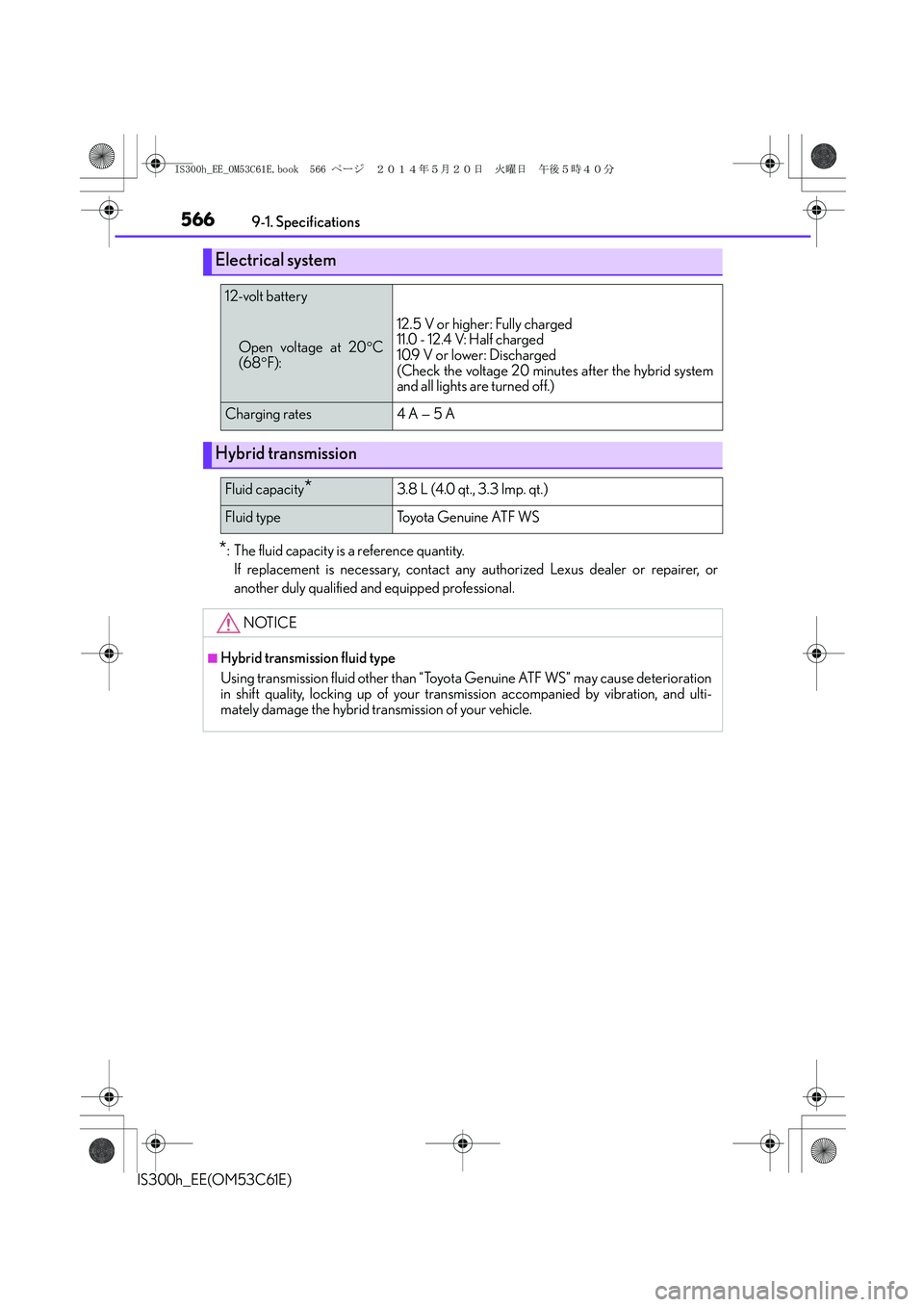

Electrical system
12-volt battery
Open voltage at 20°C
(68°F):
12.5 V or higher: Fully charged
11.0 - 12.4 V: Half charged
10.9 V or lower: Discharged
(Check the voltage 20 minutes after the hybrid system
and all lights are turned off.)
Charging rates4 A — 5 A
Hybrid transmission
Fluid capacity*3.8 L (4.0 qt., 3.3 Imp. qt.)
Fluid typeTo y o t a G e n u i n e AT F W S
NOTICE
■Hybrid transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration
in shift quality, locking up of your transmission accompanied by vibration, and ulti-
mately damage the hybrid transmission of your vehicle.
IS300h_EE_OM53C61E.book 566 ページ ２０１４年５月２０日　火曜日　午後５時４０分

567
9 9-1. Specifications
Vehicle specifications
IS300h_EE(OM53C61E)Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory.
Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of match-
ing quality to satisfy the above specification. Please contact any authorized Lexus dealer
or repairer, or another duly qualified and equipped professional for further details.
*1: Minimum pedal clearance when depressed with a force of 500 N (51.0 kgf, 112.4 lbf)
while the hybrid system is operating.
*2: Parking brake pedal travel when depressed with a force of 300 N (30.6 kgf, 67.4 lbf)
Differential
Oil capacity1.35 L (1.42 qt., 1.19 Imp. qt.)
Oil type and viscosityToyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
Brakes
Pe d a l c l e a r a n c e*1117 mm (4.6 in.) Min.
Pedal free play1.0 — 2.0 mm (0.04 — 0.08 in.)
Parking brake pedal travel*27 - 10 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3, or
SAE J1704 or FMVSS No.116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)
IS300h_EE_OM53C61E.book 567 ページ ２０１４年５月２０日　火曜日　午後５時４０分

5689-1. Specifications
IS300h_EE(OM53C61E)

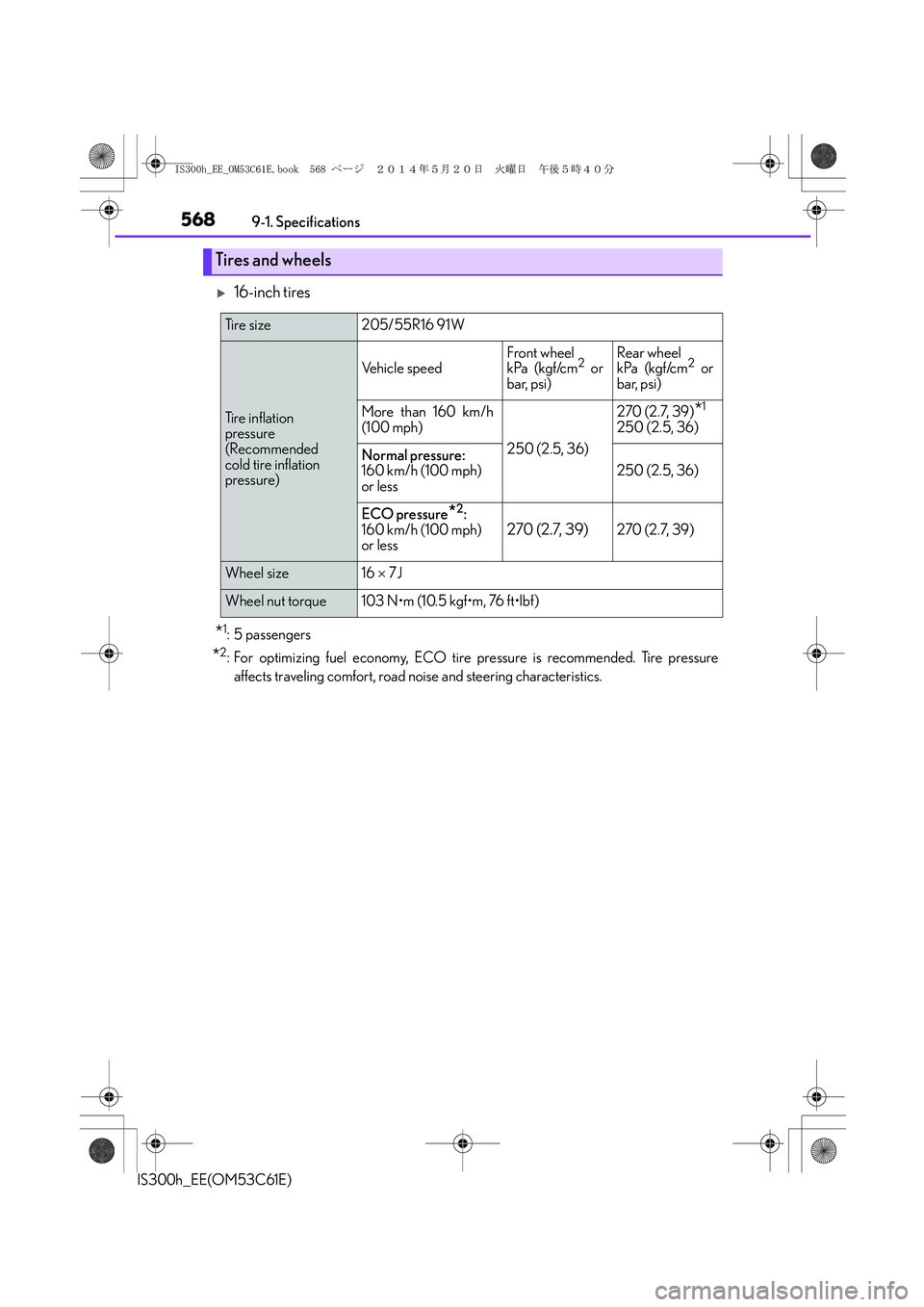

X16-inch tires
*1: 5 passengers
*2: For optimizing fuel economy, ECO tire pressure is recommended. Tire pressure
affects traveling comfort, road noise and steering characteristics.
Tires and wheels
Ti r e s i z e205/55R16 91W
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)
Vehicle speedFront wheel
kPa (kgf/cm2 or
bar, psi)Rear wheel
kPa (kgf/cm2 or
bar, psi)
More than 160 km/h
(100 mph)
250 (2.5, 36)
270 (2.7, 39)*1
250 (2.5, 36)
Normal pressure:
160 km/h (100 mph)
or less250 (2.5, 36)
ECO pressure*2:
160 km/h (100 mph)
or less
270 (2.7, 39)270 (2.7, 39)
Wheel size16 × 7J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
IS300h_EE_OM53C61E.book 568 ページ ２０１４年５月２０日　火曜日　午後５時４０分

569
9 9-1. Specifications
Vehicle specifications
IS300h_EE(OM53C61E)

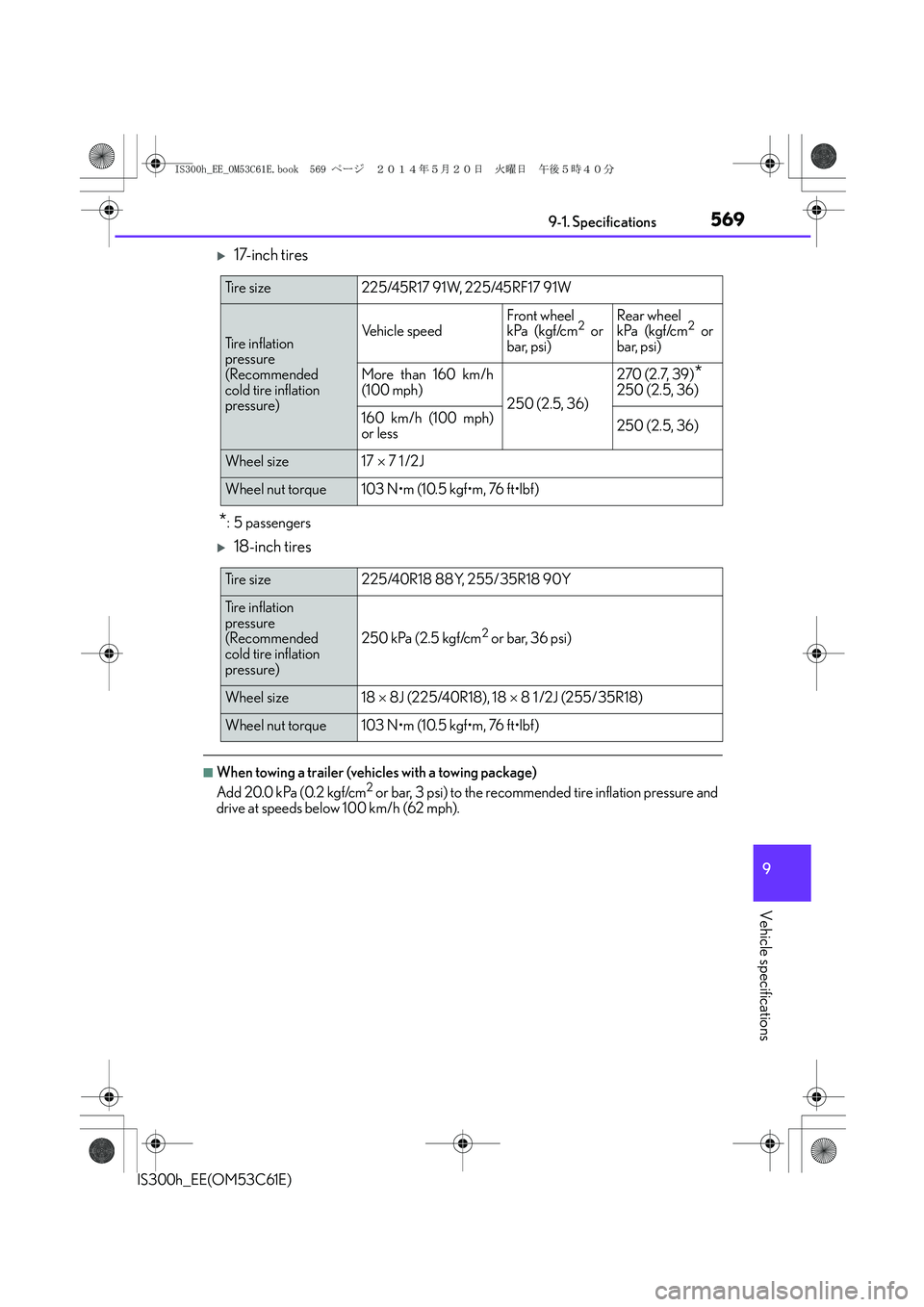

X17-inch tires
*: 5 passengers
X18-inch tires
■When towing a trailer (vehicles with a towing package)
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended tire inflation pressure and
drive at speeds below 100 km/h (62 mph).
Ti r e s i z e225/45R17 91W, 225/45RF17 91W
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)Vehicle speedFront wheel
kPa (kgf/cm2 or
bar, psi)Rear wheel
kPa (kgf/cm2 or
bar, psi)
More than 160 km/h
(100 mph)
250 (2.5, 36)
270 (2.7, 39)*250 (2.5, 36)
160 km/h (100 mph)
or less250 (2.5, 36)
Wheel size17 × 7 1 /2J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Ti r e s i z e225/40R18 88Y, 255/35R18 90Y
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)
250 kPa (2.5 kgf/cm2 or bar, 36 psi)
Wheel size18 × 8J (225/40R18), 18 × 8 1 /2J (255/35R18)
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
IS300h_EE_OM53C61E.book 569 ページ ２０１４年５月２０日　火曜日　午後５時４０分

5709-1. Specifications
IS300h_EE(OM53C61E)
Light bulbs*1
Light bulbsWTy p e
Exterior
Discharge headlights*235A
Front turn signal lights21B
Rear turn signal lights21B
Back-up lights16C
Outer foot lights5C
Interior
Door courtesy lights5C
Vanity lights8C
Interior light8C
Personal lights8C
Footwell lights3.8C
Trunk light*25C
A: D4S discharge bulbs
B: Wedge base bulbs (amber)
C: Wedge base bulbs (clear)
*1: Light bulbs not listed in this table are LED bulbs.
*2: If equipped
IS300h_EE_OM53C61E.book 570 ページ ２０１４年５月２０日　火曜日　午後５時４０分
