Lexus IS300h 2014 Owner's Manual

571
9 9-1. Specifications
Vehicle specifications
IS300h_EE(OM53C61E)
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that only accom-
modates the special nozzle on unleaded fuel pumps.
■If your engine knocks
●Consult any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
●You may occasionally notice light knocking for a short time while accelerating or driv-
ing uphill. This is normal and there is no need for concern.
Fuel information
EU area:
Your vehicle must use only unleaded gasoline conforming to European stan-
dard EN228.
For optimum engine performance, select unleaded gasoline with a Research
Octane Number of 95 or higher.
Except EU area:
Your vehicle must use only unleaded gasoline.
For optimum engine performance, select unleaded gasoline with a Research
Octane Number of 95 or higher.
IS300h_EE_OM53C61E.book 571 ページ ２０１４年５月２０日　火曜日　午後５時４０分

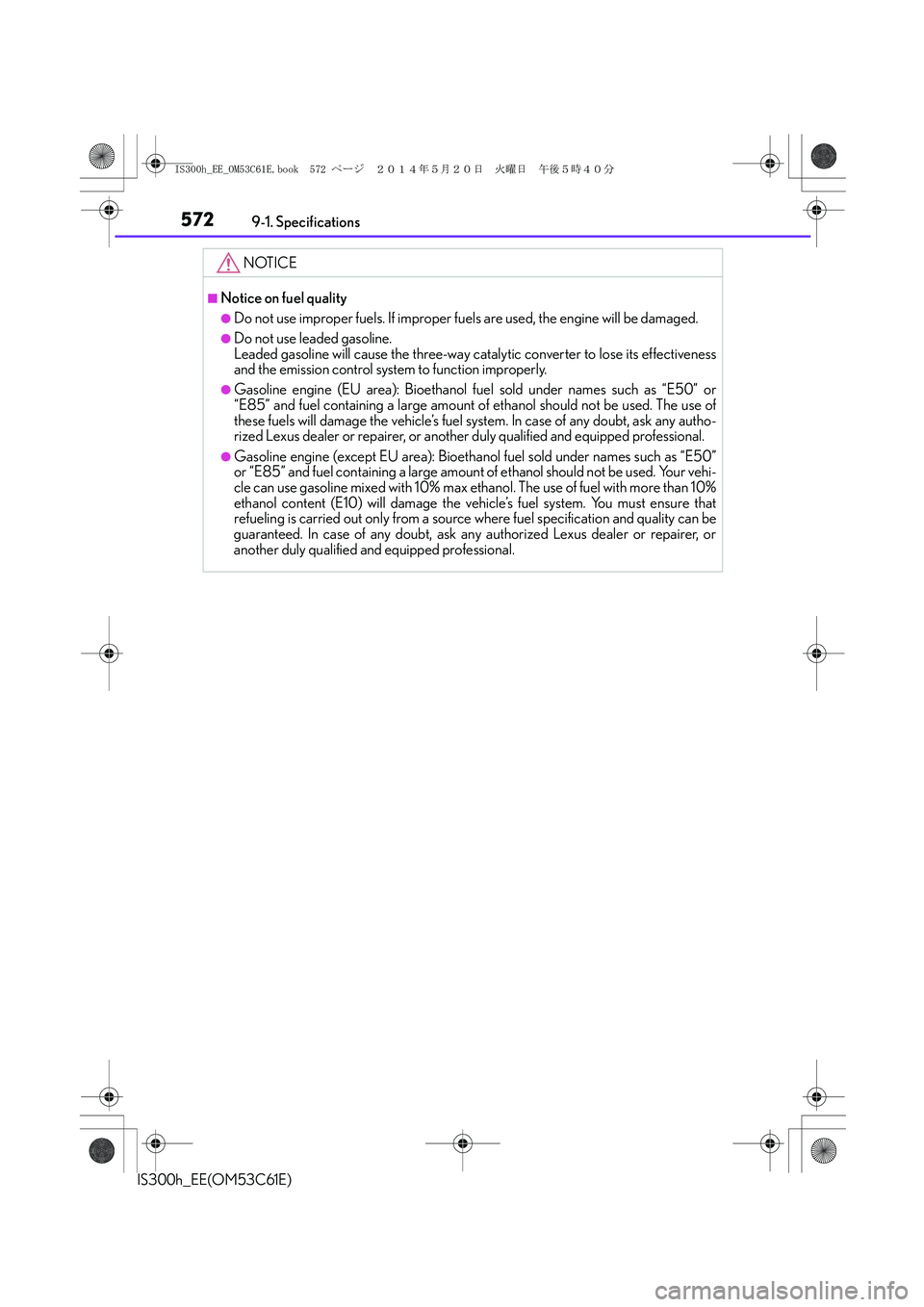

5729-1. Specifications
IS300h_EE(OM53C61E)
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used, the engine will be damaged.
●Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its effectiveness
and the emission control system to function improperly.
●Gasoline engine (EU area): Bioethanol fuel sold under names such as “E50” or
“E85” and fuel containing a large amount of ethanol should not be used. The use of
these fuels will damage the vehicle’s fuel system. In case of any doubt, ask any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped professional.
●Gasoline engine (except EU area): Bioethanol fuel sold under names such as “E50”
or “E85” and fuel containing a large amount of ethanol should not be used. Your vehi-
cle can use gasoline mixed with 10% max ethanol. The use of fuel with more than 10%
ethanol content (E10) will damage the vehicle’s fuel system. You must ensure that
refueling is carried out only from a source where fuel specification and quality can be
guaranteed. In case of any doubt, ask any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
IS300h_EE_OM53C61E.book 572 ページ ２０１４年５月２０日　火曜日　午後５時４０分

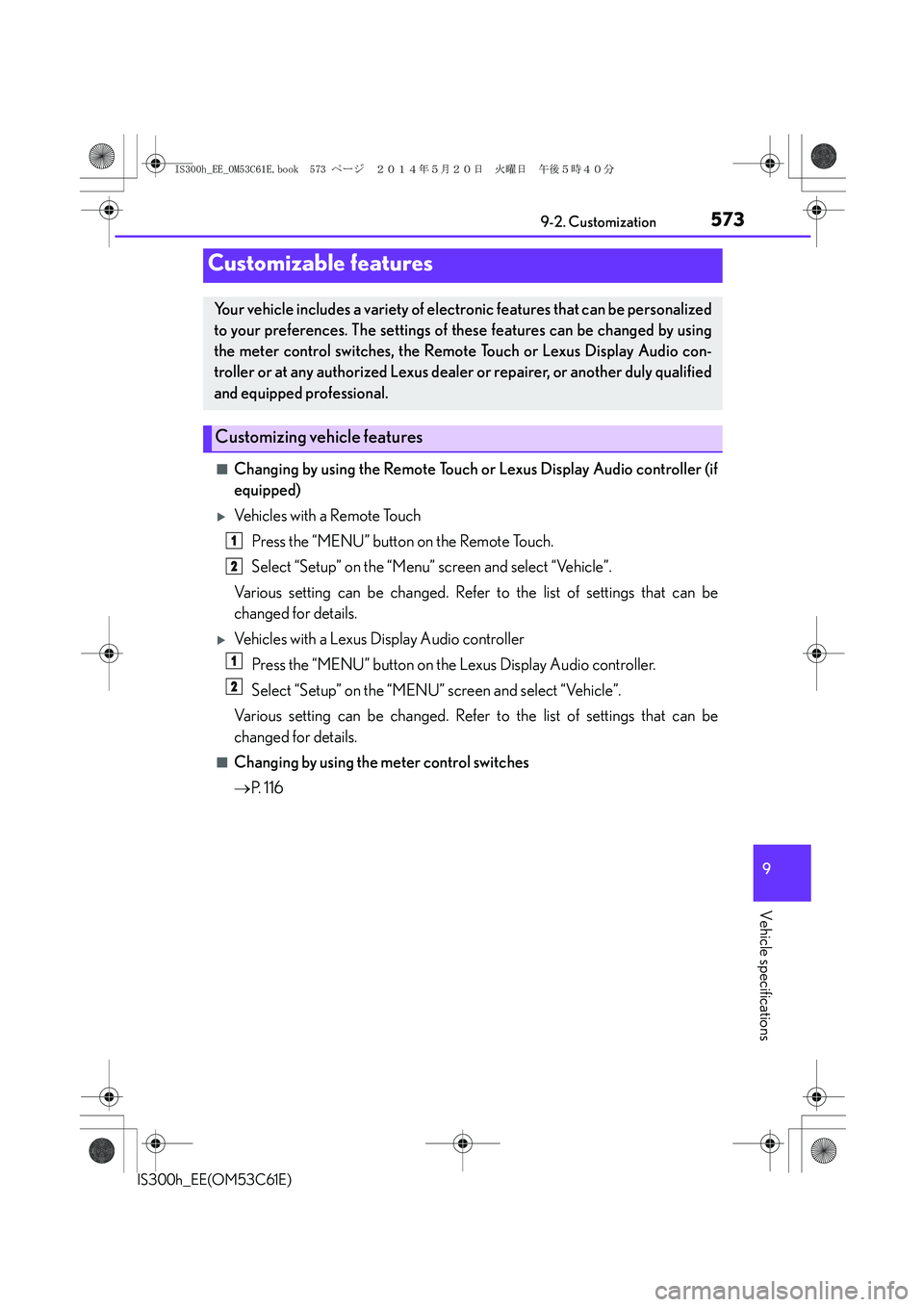

573
IS300h_EE(OM53C61E)
9
Vehicle specifications
9-2. Customization
■Changing by using the Remote Touch or Lexus Display Audio controller (if
equipped)
XVehicles with a Remote Touch
Press the “MENU” button on the Remote Touch.
Select “Setup” on the “Menu” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
XVehicles with a Lexus Display Audio controller
Press the “MENU” button on the Lexus Display Audio controller.
Select “Setup” on the “MENU” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
■Changing by using the meter control switches
→P. 116
Customizable features
Your vehicle includes a variety of electronic features that can be personalized
to your preferences. The settings of these features can be changed by using
the meter control switches, the Remote Touch or Lexus Display Audio con-
troller or at any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
Customizing vehicle features
1
2
1
2
IS300h_EE_OM53C61E.book 573 ページ ２０１４年５月２０日　火曜日　午後５時４０分

5749-2. Customization
IS300h_EE(OM53C61E)
Some function settings are changed simultaneously with other functions being
customized. Contact any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional.
Vehicles with a Remote Touch or Lexus Display Audio controller: Settings that
can be changed using the Remote Touch or Lexus Display Audio controller
Vehicles with a Remote Touch or Lexus Display Audio controller: Settings that
can be changed using the meter control switches
Vehicles without a Remote Touch or Lexus Display Audio controller: Settings
that can be changed using the meter control switches
Settings that can be changed by any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional
Definition of symbols: O = Available, — = Not available
■Gauges, meters and multi-information display (→P. 104, 109, 115)
Customizable features
1
2
3
4
Function*1Default settingCustomized setting
Language*2English
French
—OO—
German
Spanish
Italian
Russian
Units*2km (L/100 km)km (km/L)—OO—miles (MPG)
Maintenance system
initializationOFFON—OO—
EV indicatorON
(Self-lighting)OFF—OO—
switch settings*3Drive
information 1Desired status
screen
*4—OO—
Drive information 1
Current fuel
economy
*5—OO—Average fuel
economy (after
reset)
1234
IS300h_EE_OM53C61E.book 574 ページ ２０１４年５月２０日　火曜日　午後５時４０分

575
9 9-2. Customization
Vehicle specifications
IS300h_EE(OM53C61E)
*1: For details about each function: →P. 1 1 7
*2: The default setting varies according to country.
*3:Except F SPORT models
*4: Some status screens cannot be registered (indicated on multi-information display).
*5: 2 of the following items: current fuel consumption, average fuel economy (after reset),
average fuel economy (after refuel), average fuel economy (after start), average vehi-
cle speed (after reset), average vehicle speed (after start), distance (driving range),
distance (after start), elapsed time (after reset), elapsed time (after start), blank.
*6:F SPORT models
*7: The customized setting varies according to country.
Drive information 2
Distance
(range)
*5—OO—Average speed
(after reset)
Pop-up displayONOFF—OO—
Accent color*3BlueRedOOO—
Tachometer settingsON (Self-
changing)
Hybrid System Indi-
cator (Always)
—OO—Tachometer
(Always)
Needle*6BlueRed—OO—White
Speed indicator*6OFF
50 to 200 km/h
(30 to 125 mph)
*7
—OO—50 to 160 km/h
(30 to 100 mph)*7
REV indicator*64000 r/min
2000 to 6000
r/m i n
—OO—
OFF
REV peak*6ONOFF—OO—
Function*1Default settingCustomized setting1234
IS300h_EE_OM53C61E.book 575 ページ ２０１４年５月２０日　火曜日　午後５時４０分

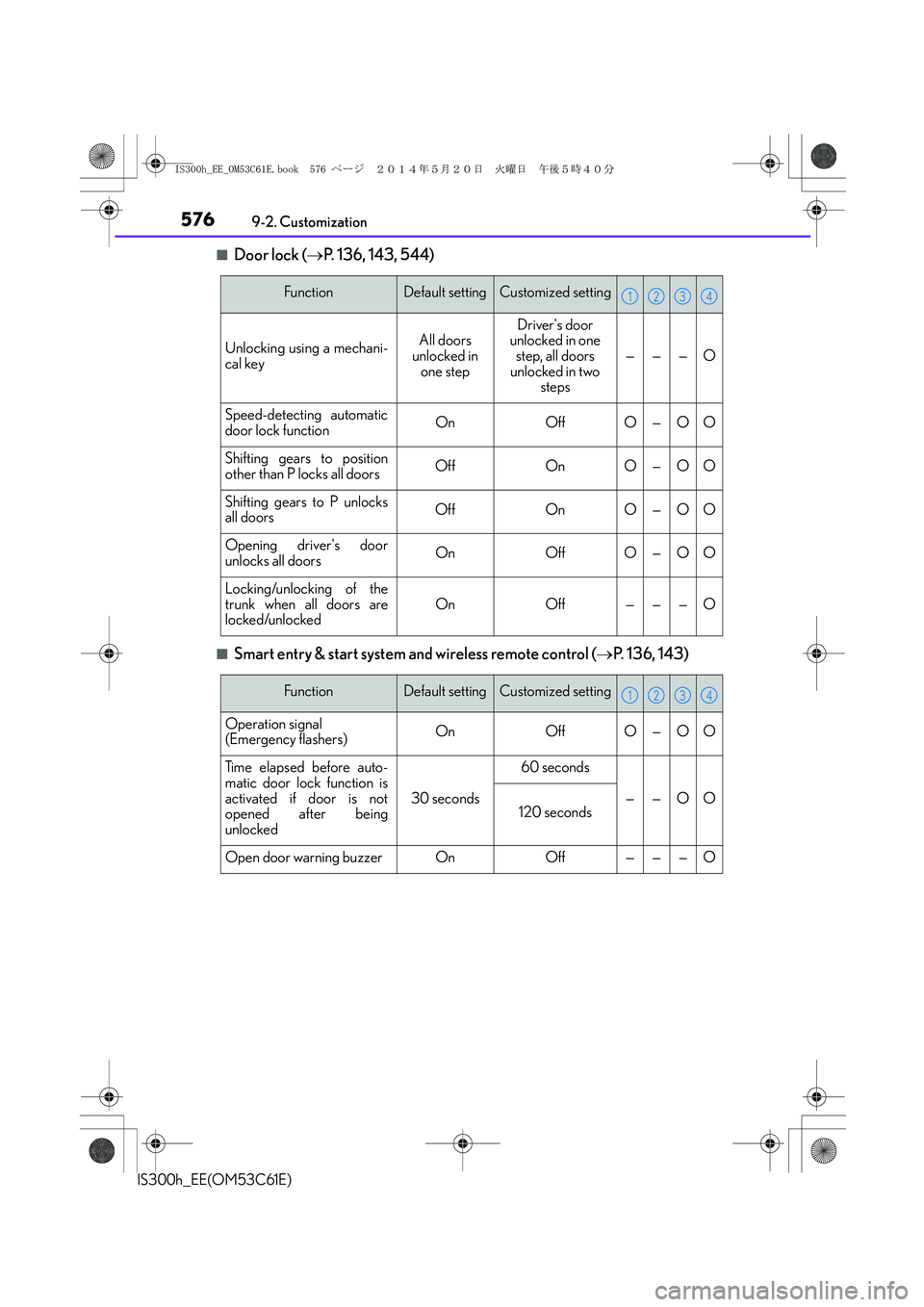

5769-2. Customization
IS300h_EE(OM53C61E)
■Door lock (→P. 136, 143, 544)
■Smart entry & start system and wireless remote control (→P. 136, 143)
FunctionDefault settingCustomized setting
Unlocking using a mechani-
cal keyAll doors
unlocked in
one stepDriver's door
unlocked in one
step, all doors
unlocked in two
steps
———O
Speed-detecting automatic
door lock functionOnOffO—OO
Shifting gears to position
other than P locks all doorsOffOnO—OO
Shifting gears to P unlocks
all doorsOffOnO—OO
Opening driver's door
unlocks all doorsOnOffO—OO
Locking/unlocking of the
trunk when all doors are
locked/unlockedOnOff———O
1234
FunctionDefault settingCustomized setting
Operation signal
(Emergency flashers)OnOffO—OO
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked
30 seconds
60 seconds
——OO120 seconds
Open door warning buzzerOnOff———O
1234
IS300h_EE_OM53C61E.book 576 ページ ２０１４年５月２０日　火曜日　午後５時４０分

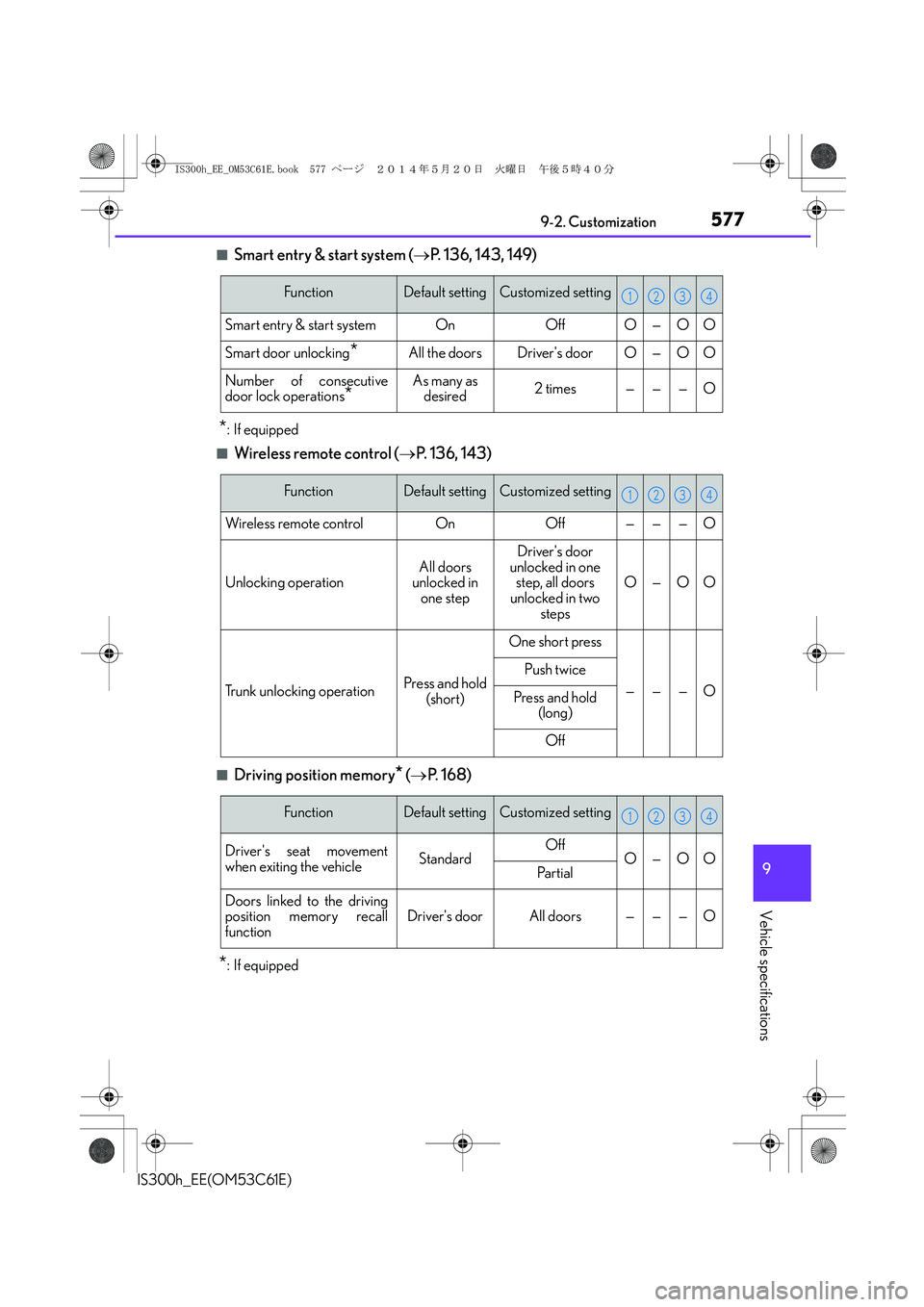

577
9 9-2. Customization
Vehicle specifications
IS300h_EE(OM53C61E)
■Smart entry & start system (→P. 136, 143, 149)
*: If equipped
■Wireless remote control (→P. 136, 143)
■Driving position memory* (→P. 1 6 8 )
*: If equipped
FunctionDefault settingCustomized setting
Smart entry & start systemOnOffO—OO
Smart door unlocking*All the doorsDriver's doorO—OO
Number of consecutive
door lock operations*As many as
desired2 times———O
1234
FunctionDefault settingCustomized setting
Wireless remote controlOnOff———O
Unlocking operationAll doors
unlocked in
one stepDriver's door
unlocked in one
step, all doors
unlocked in two
steps
O—OO
Trunk unlocking operationPress and hold
(short)
One short press
———O
Push twice
Press and hold
(long)
Off
1234
FunctionDefault settingCustomized setting
Driver's seat movement
when exiting the vehicleStandardOffO—OOPa r t i a l
Doors linked to the driving
position memory recall
functionDriver's doorAll doors———O
1234
IS300h_EE_OM53C61E.book 577 ページ ２０１４年５月２０日　火曜日　午後５時４０分

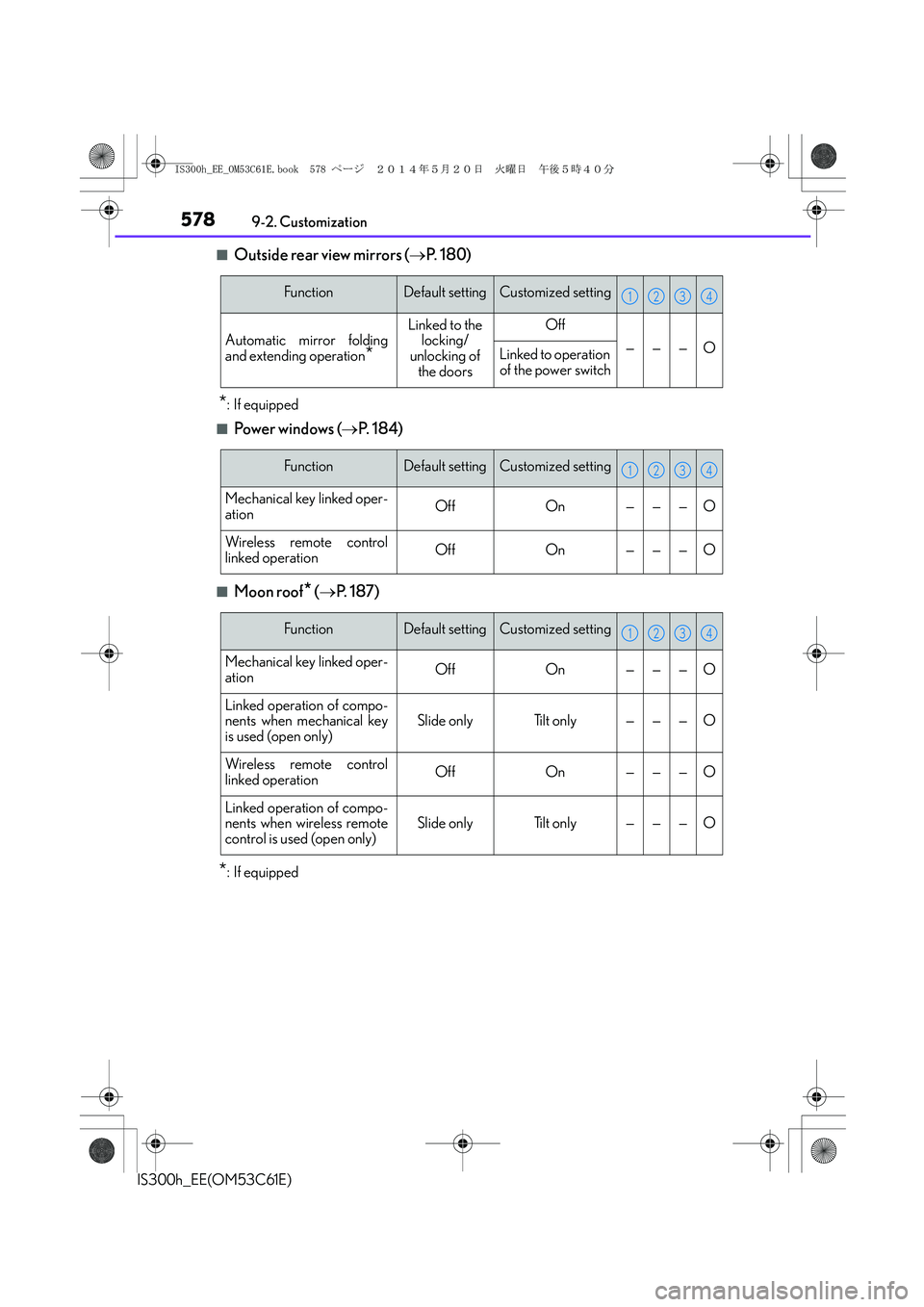

5789-2. Customization
IS300h_EE(OM53C61E)
■Outside rear view mirrors (→P. 1 8 0 )
*: If equipped
■Powe r w i n d ows (→P. 1 8 4 )
■Moon roof* (→P. 1 8 7 )
*: If equipped
FunctionDefault settingCustomized setting
Automatic mirror folding
and extending operation
*
Linked to the
locking/
unlocking of
the doorsOff
———OLinked to operation
of the power switch
1234
FunctionDefault settingCustomized setting
Mechanical key linked oper-
ationOffOn———O
Wireless remote control
linked operationOffOn———O
1234
FunctionDefault settingCustomized setting
Mechanical key linked oper-
ationOffOn———O
Linked operation of compo-
nents when mechanical key
is used (open only)Slide onlyTilt only———O
Wireless remote control
linked operationOffOn———O
Linked operation of compo-
nents when wireless remote
control is used (open only)Slide onlyTilt only———O
1234
IS300h_EE_OM53C61E.book 578 ページ ２０１４年５月２０日　火曜日　午後５時４０分

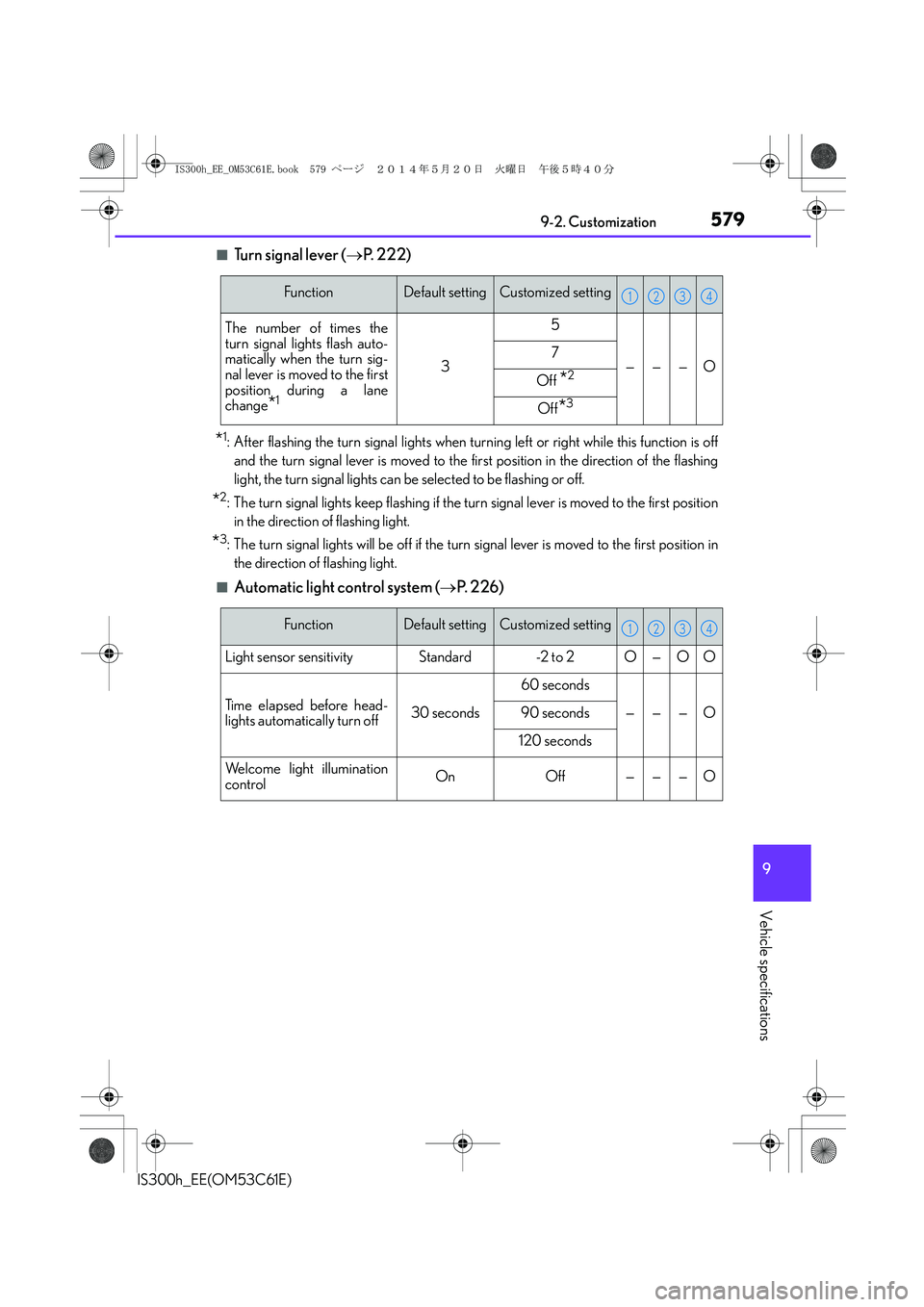

579
9 9-2. Customization
Vehicle specifications
IS300h_EE(OM53C61E)
■Tu r n s i g n a l l e v e r (→P. 222)
*1: After flashing the turn signal lights when turning left or right while this function is off
and the turn signal lever is moved to the first position in the direction of the flashing
light, the turn signal lights can be selected to be flashing or off.
*2: The turn signal lights keep flashing if the turn signal lever is moved to the first position
in the direction of flashing light.
*3: The turn signal lights will be off if the turn signal lever is moved to the first position in
the direction of flashing light.
■Automatic light control system (→P. 2 2 6 )
FunctionDefault settingCustomized setting
The number of times the
turn signal lights flash auto-
matically when the turn sig-
nal lever is moved to the first
position during a lane
change
*1
3
5
———O7
Off *2
Off*3
1234
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2O—OO
Time elapsed before head-
lights automatically turn off30 seconds
60 seconds
———O90 seconds
120 seconds
Welcome light illumination
controlOnOff———O
1234
IS300h_EE_OM53C61E.book 579 ページ ２０１４年５月２０日　火曜日　午後５時４０分

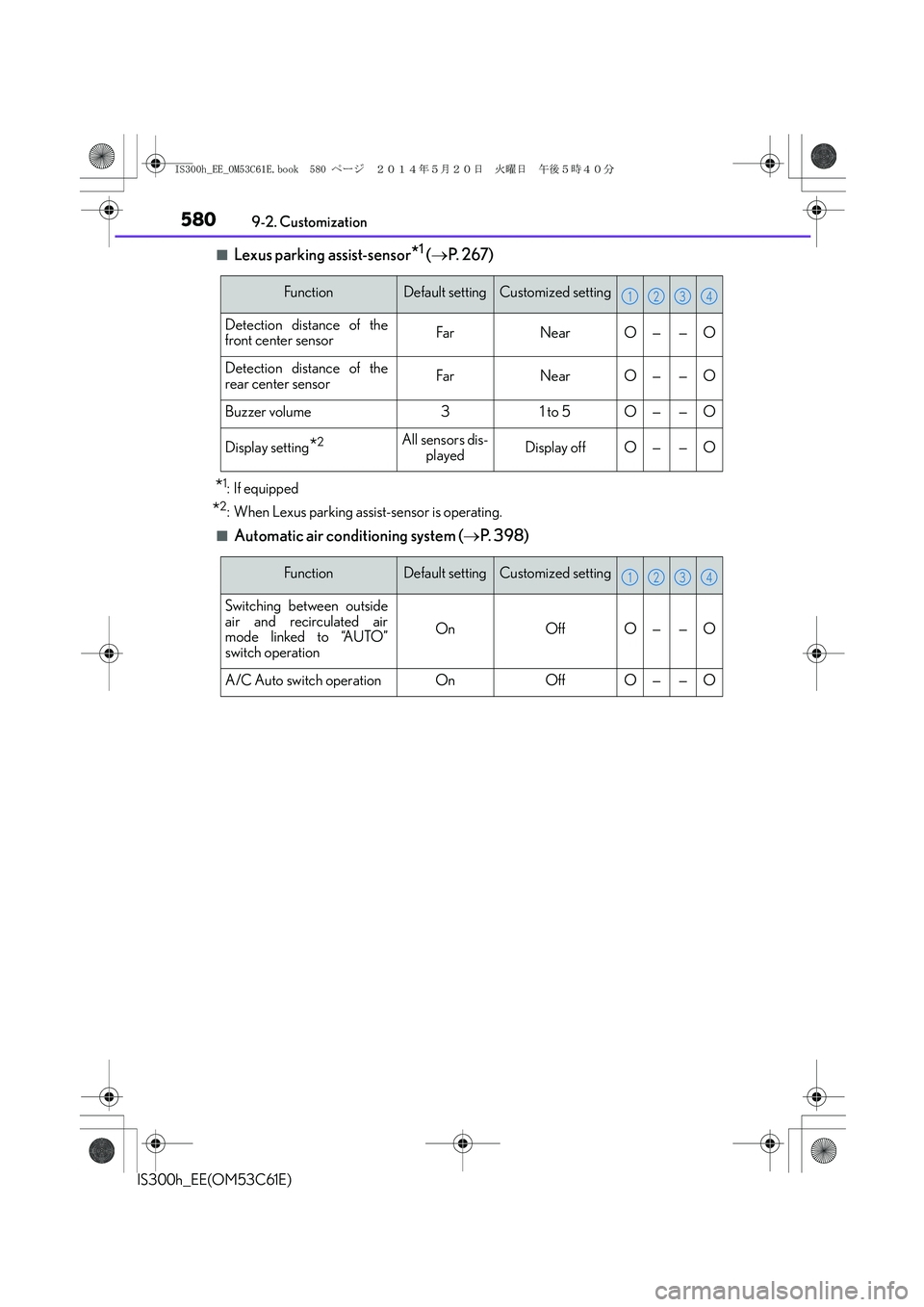

5809-2. Customization
IS300h_EE(OM53C61E)
■Lexus parking assist-sensor*1 (→P. 2 6 7 )
*1: If equipped
*2: When Lexus parking assist-sensor is operating.
■Automatic air conditioning system (→P. 3 9 8 )
FunctionDefault settingCustomized setting
Detection distance of the
front center sensorFarNearO——O
Detection distance of the
rear center sensorFarNearO——O
Buzzer volume31 to 5O——O
Display setting*2All sensors dis-
playedDisplay offO——O
1234
FunctionDefault settingCustomized setting
Switching between outside
air and recirculated air
mode linked to “AUTO”
switch operation
OnOffO——O
A/C Auto switch operationOnOffO——O
1234
