Lexus IS300h 2017 Owner's Manual

1212. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53D89E)
■ RSA (Road Sign Assist) (if equipped) (P. 288)
The following RSA settings can be changed:
*: Vehicles with a navigation system
■Vehicle settings
ItemSettingsDetails
RSA On Select to enable/disable the RSA.Off
Excess speed
notification
No notificationSelect to set the notification method
used to warn the driver if the vehicle
speed exceeds the speed displayed on the speed limit sign on the multi-
information display.
Display only
Display and buzzer
Excess speed notifica-
tion level
10 km/h (5 mph)Select to set the speed threshold over
which the excess speed notification will start to operate when a speed
limit sign is disp layed on the multi-
information display.
5 km/h (3 mph)
2 km/h (1 mph)
Other notifications
No notificationSelect to set the notification method used to warn the driver if the system
detects the following:
• The vehicle is overtaking when a no overtaking sign is displayed on the
multi-information display.
• The vehicle is entering a no-entry
area when a no-entry sign is dis- played on the multi-information dis-
play.*
Display only
Display and buzzer
ItemSettingsDetails
Oil maintenance
Engine oil maintenance data reset
Select to reset the engine oil mainte- nance information (message indicat-
ing maintenance is required and
distance until the next oil change) after engine oil ma intenance is per-
formed. ( P. 518)

1222. Instrument cluster
IS300h_EE(OM53D89E)
■Meter settings
ItemSettingsDetails
Language Select to change the language dis-
played.
UnitsSelect to change the units of measure
displayed.
(EV indicator)OnSelect to enable/dis able the EV indi-
cator. ( P. 79)Off
Switch settings (except F SPORT mod- els)Select to display how to change thetop screen.
Drive information 1Select to select up to 2 items that will
be displayed on ea ch Drive informa-
tion screen (Drive information 1 screen, Drive information 2 screen,
and Drive information 3 screen)
respectively. (Selectable items: P. 116)
Drive information 2
Drive information 3
Pop-up display
Intersection guid-
ance (if equipped)
Select to enable/disable the pop-up
display.
Incoming calls (if
equipped)
Brightness adjust-
ment
Color (except F SPORT models)2 available colorsSelect to set the color of the cursor onthe multi-information display.
Needle (F SPORT
models)3 available colorsSelect to set the tachometer needle
color.
Tachometer setting
Change according
to driving modeSelect to set the tachometer or Hybrid System Indicator to always be
displayed or be changed to automati-
cally according to the driving mode.
Always tachometer
Always Hybrid Sys- tem Indicator

1232. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53D89E)
Rev indicator (F SPORT models)
OnSelect to enable/disable the Rev indi-
cator. ( P. 107)Off
Rev setting
Select to set the desired engine speed at which the Rev indicator will begin
to be displayed.
Selectable engine speed range: 2000 r/min to 6000 r/min
Rev peak (F SPORT
models)
OnSelect to enable/disable the Rev peak.
( P. 107)Off
Default settingSelect to reset the meter display set-
tings to the default setting.
ItemSettingsDetails

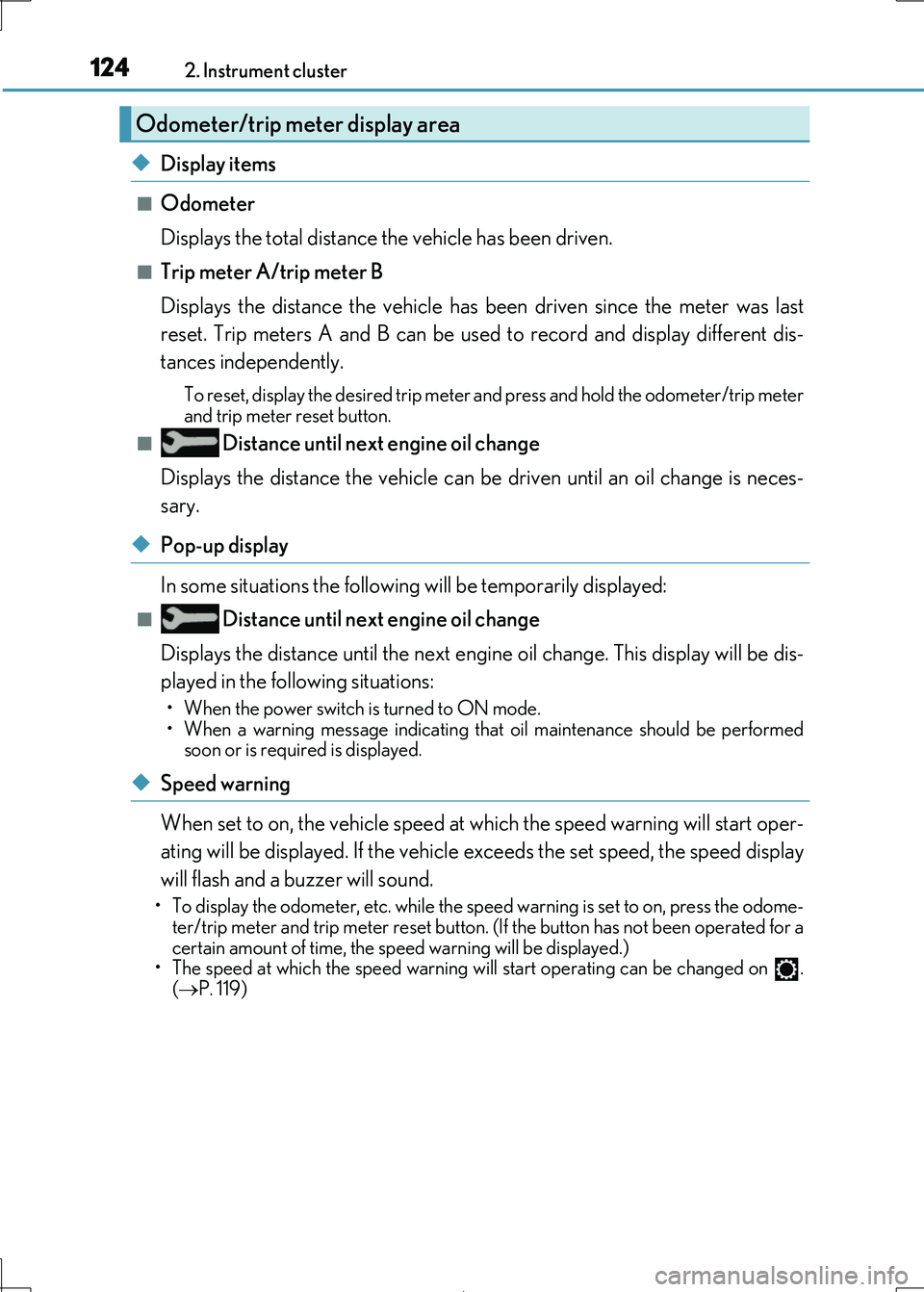

1242. Instrument cluster
IS300h_EE(OM53D89E)
◆Display items
■Odometer
Displays the total distance the vehicle has been driven.
■Trip meter A/trip meter B
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters A and B can be used to record and display different dis-
tances independently.
To reset, display the desired trip meter and press and hold the odometer/trip meter
and trip meter reset button.
■ Distance until next engine oil change
Displays the distance the vehicle can be driven until an oil change is neces-
sary.
◆Pop-up display
In some situations the following will be temporarily displayed:
■ Distance until next engine oil change
Displays the distance until the next engi ne oil change. This display will be dis-
played in the following situations:
• When the power switch is turned to ON mode.
• When a warning message indicating that oil maintenance should be performed soon or is required is displayed.
◆Speed warning
When set to on, the vehicl e speed at which the speed warning will start oper-
ating will be displayed. If the vehicle exceeds the set speed, the speed display
will flash and a buzzer will sound.
• To display the odometer, etc. while the sp eed warning is set to on, press the odome-
ter/trip meter and trip meter reset button. (If the button has not been operated for a
certain amount of time, the sp eed warning will be displayed.) • The speed at which the speed warning wi ll start operating can be changed on .
( P. 119)
Odometer/trip meter display area

1252. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53D89E)
■Background color of the indicator/shift position display area (except F SPORT models)
The background color of the indicator/shift po sition display area is changed according to
the driving mode as follows ( P. 348):
●Eco drive mode: Blue
●Sport mode: Red
■G-force display (if equipped)
The G-force values may not be zero even when the vehicle is parked, such as when it is
parked on an incline.
■Suspension of the settings display
●Some settings cannot be changed while driv ing. When changing settings, park the
vehicle in a safe place.
●If a warning message is displayed, operatio n of the settings display will be suspended.
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is characteristic
of liquid crystal displays, and there is no problem continuing to use the display.
■Customization
Some functions can be customized. ( P. 119, 657)
WARNING
■Caution for use while driving
●When operating the multi-information display while driving, pay extra attention to the
safety of the area around the vehicle.
●Do not look continuously at the multi-info rmation display while driving as you may fail to see pedestrians, objects on the road, etc. ahead of the vehicle.
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information display. At extremely low temperatures, th e information display monitor may respond
slowly, and display changes may be delayed.
For example, there is a lag between the dr iver’s shifting and the new gear number appearing on the display. This lag could ca use the driver to downshift again, causing
rapid and excessive engine braking and possibly an accident resulting in death or
injury.
■Cautions during setting up the display
As the hybrid system needs to be operating during setting up the display, ensure that
the vehicle is parked in a pl ace with adequate ventilation. In a closed area such as a garage, exhaust gases including harmful carbon monoxide (CO) may collect and enter
the vehicle. This may lead to de ath or a serious health hazard.

1262. Instrument cluster
IS300h_EE(OM53D89E)
NOTICE
■While setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is operating while
setting up the display features.

1272. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53D89E)
Energy monitor/consumption screen
You can view the status of your hybrid system on the multi-information display
and the audio system.
Vehicles with a 10.3-inch display: Th e energy monitor or consumption screen
can be displayed and operat ed on the side display.
Multi-information display
Audio system screen
Meter control switches
“MENU” button
Lexus Display Audio controller
Remote Touch knob
“ENTER” button
*1: Vehicles with a Lexus Display Audio sys-
tem
*2: Vehicles with a 10.3-inch display
1
2
3
4
5
6
7
*1*2

1282. Instrument cluster
IS300h_EE(OM53D89E)
Lexus Display Audio screen
Press the “MENU” button on the Lexus
Display Audio controller, and then
select “Car” on the “MENU” screen.
If the “Energy monitor” screen does not appear, move the controller to the right
and select “Energy”.
10.3-inch display
Press the “MENU” button on the
Remote Touch, and then select on
the “Menu” screen.
If the “Trip information” or “Past record” screen is displayed, select “Energy”.
Multi-information display
Press the “ ” or “” of the meter control switches and select , and then press
the “ ” or “” to select the energy monitor display.
These images are examples only, and may vary slightly from actual conditions.
Energy monitor
Audio system screenMulti-information display
When the vehicle is
powered by the elec- tric motor (traction
motor)

1292. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53D89E)
These images are examples only, and may vary slightly from actual conditions.
When the vehicle is
powered by both the gasoline engine and
the electric motor
(traction motor)
When the vehicle is powered by the gaso-
line engine
When the vehicle is
charging the hybrid battery (traction bat-
tery)
When there is no energy flow
Hybrid battery (trac-
tion battery) status
LowFullLowFull
Audio system screenMulti-information display

1302. Instrument cluster
IS300h_EE(OM53D89E)
■Trip information
Lexus Display Audio screen
Press the “MENU” button on the Lexu s Display Audio controller, and then
select “Car” on the “MENU” screen.
If the “Trip information” screen does not appear, move the controller to the right
and select “Trip information”.
Fuel consumption in the past 15
minutes
Current fuel consumption
Regenerated energy in the past
15 minutes
One symbol indicates 50 Wh.
Up to 5 symbols are shown.
Average vehicle speed since the
hybrid system was started.
Elapsed time since the hybrid system was started.
Cruising range ( P. 133)
Fuel consumption
1
2
3
4
5
6
