1312. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53D89E)
10.3-inch display
Press the “MENU” button on the Remote Touch, and then select on the
“Menu” screen.
If the “Energy monitor” or “Past record” sc reen is displayed, select “Trip informa-
tion”.
Resetting the consumption data
Fuel consumption in the past 15
minutes
Current fuel consumption
Regenerated energy in the past
15 minutes
One symbol indicates 50 Wh.
Up to 5 symbols are shown.
Average vehicle speed since the hybrid system was started.
Elapsed time since the hybrid system was started.
Cruising range ( P. 133)
Average fuel consumption for the past 15 minutes is divided by color into past
averages and averages attained since the power switch was last turned to ON
mode. Use the displayed average fuel consumption as a reference.
The image is an example only.
1
2
3
4
5
6
7

1322. Instrument cluster
IS300h_EE(OM53D89E)

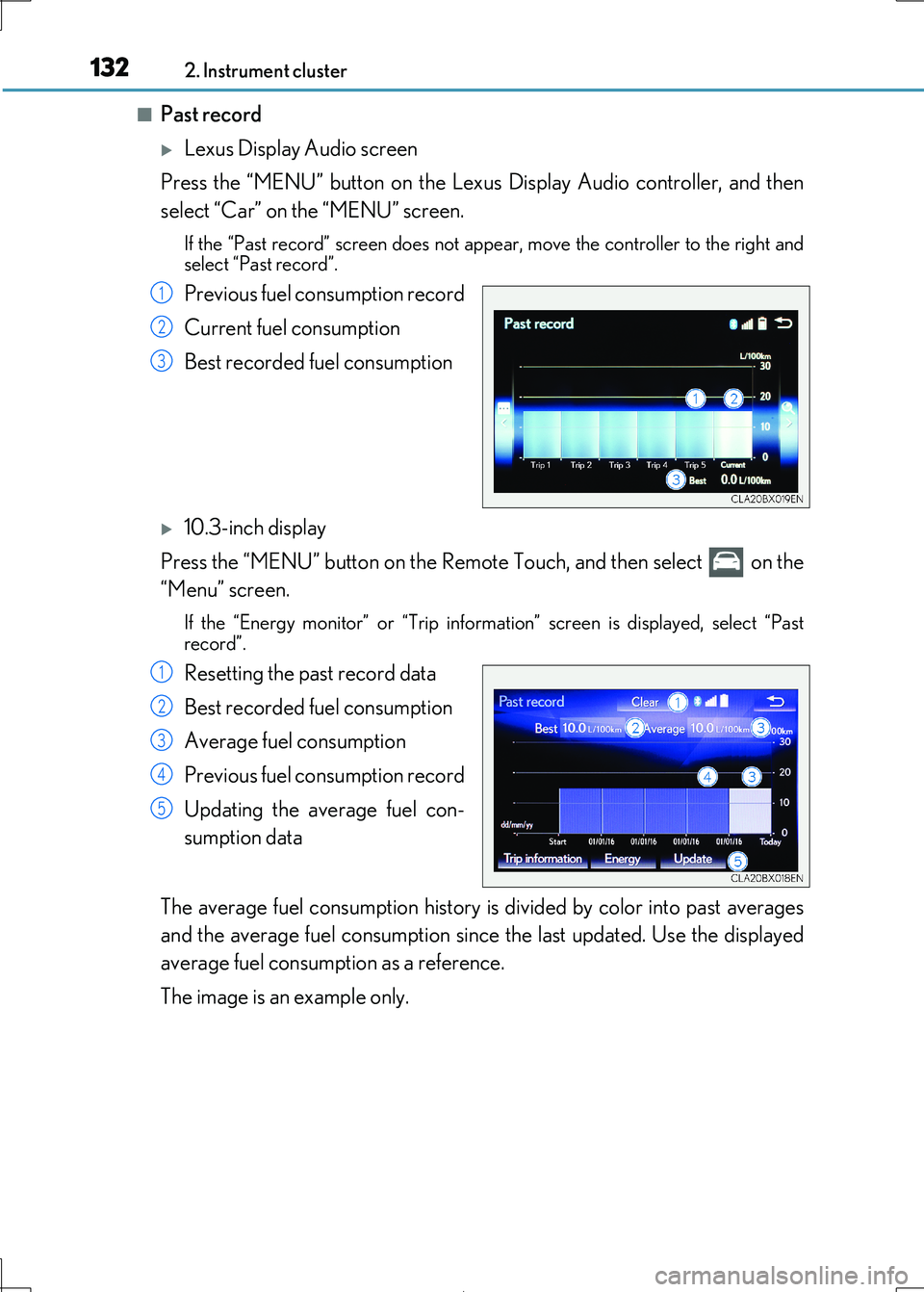

■Past record
Lexus Display Audio screen
Press the “MENU” button on the Lexu s Display Audio controller, and then
select “Car” on the “MENU” screen.
If the “Past record” screen does not appe ar, move the controller to the right and
select “Past record”.
Previous fuel consumption record
Current fuel consumption
Best recorded fuel consumption
10.3-inch display
Press the “MENU” button on the Remote Touch, and then select on the
“Menu” screen.
If the “Energy monitor” or “Trip informat ion” screen is displayed, select “Past
record”.
Resetting the past record data
Best recorded fuel consumption
Average fuel consumption
Previous fuel consumption record
Updating the average fuel con-
sumption data
The average fuel consumption history is divided by color into past averages
and the average fuel consumption since the last updated. Use the displayed
average fuel consumption as a reference.
The image is an example only.
1
2
3
1
2
3
4
5

1332. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53D89E)

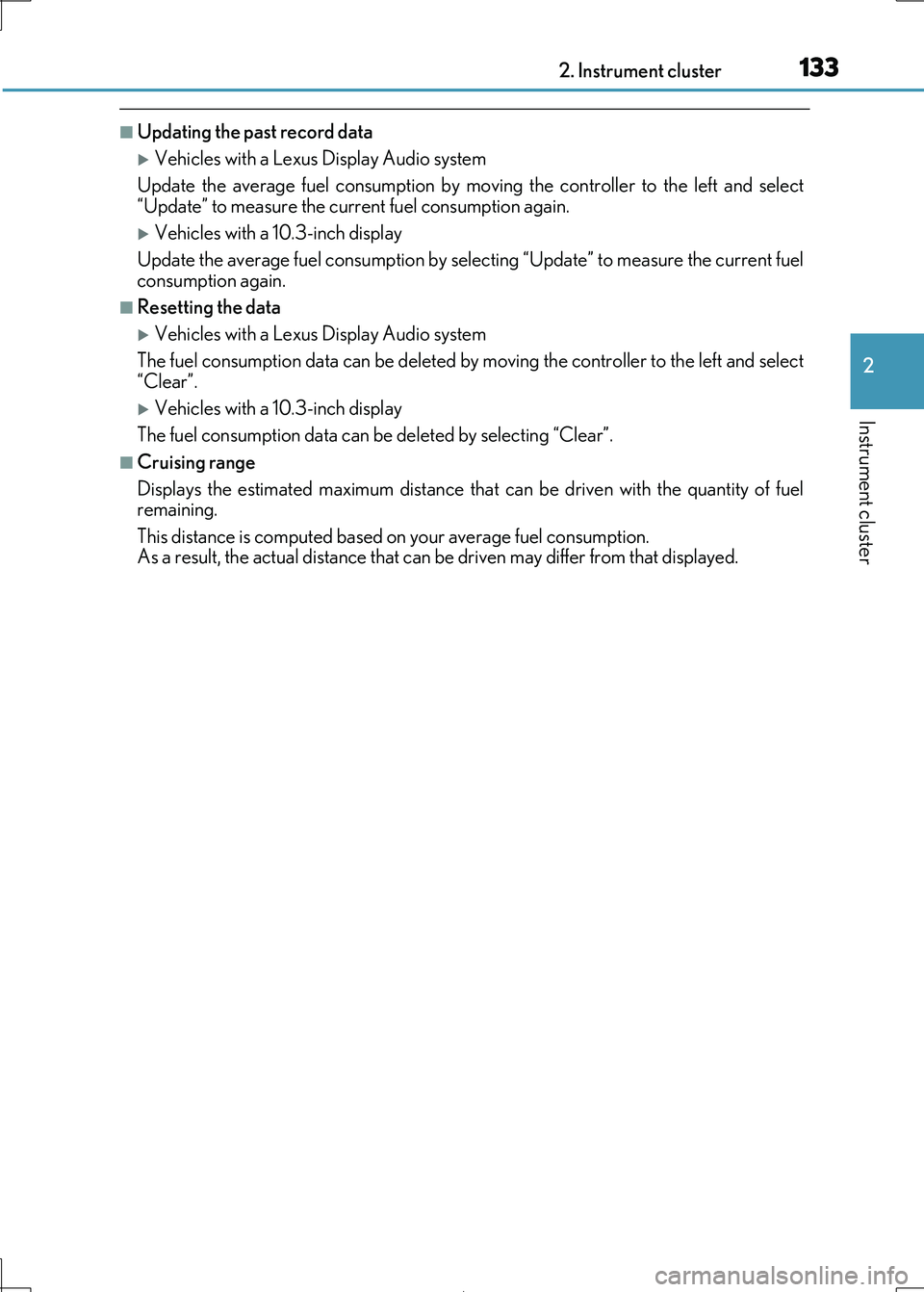

■Updating the past record data
Vehicles with a Lexus Display Audio system
Update the average fuel consumption by mo ving the controller to the left and select “Update” to measure the curre nt fuel consumption again.
Vehicles with a 10.3-inch display
Update the average fuel consumption by selecting “Update” to measure the current fuel consumption again.
■Resetting the data
Vehicles with a Lexus Display Audio system
The fuel consumption data can be deleted by moving the controller to the left and select
“Clear”.
Vehicles with a 10.3-inch display
The fuel consumption data can be deleted by selecting “Clear”.
■Cruising range
Displays the estimated maximum distance that can be driven with the quantity of fuel remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that displayed.

1342. Instrument cluster
IS300h_EE(OM53D89E)

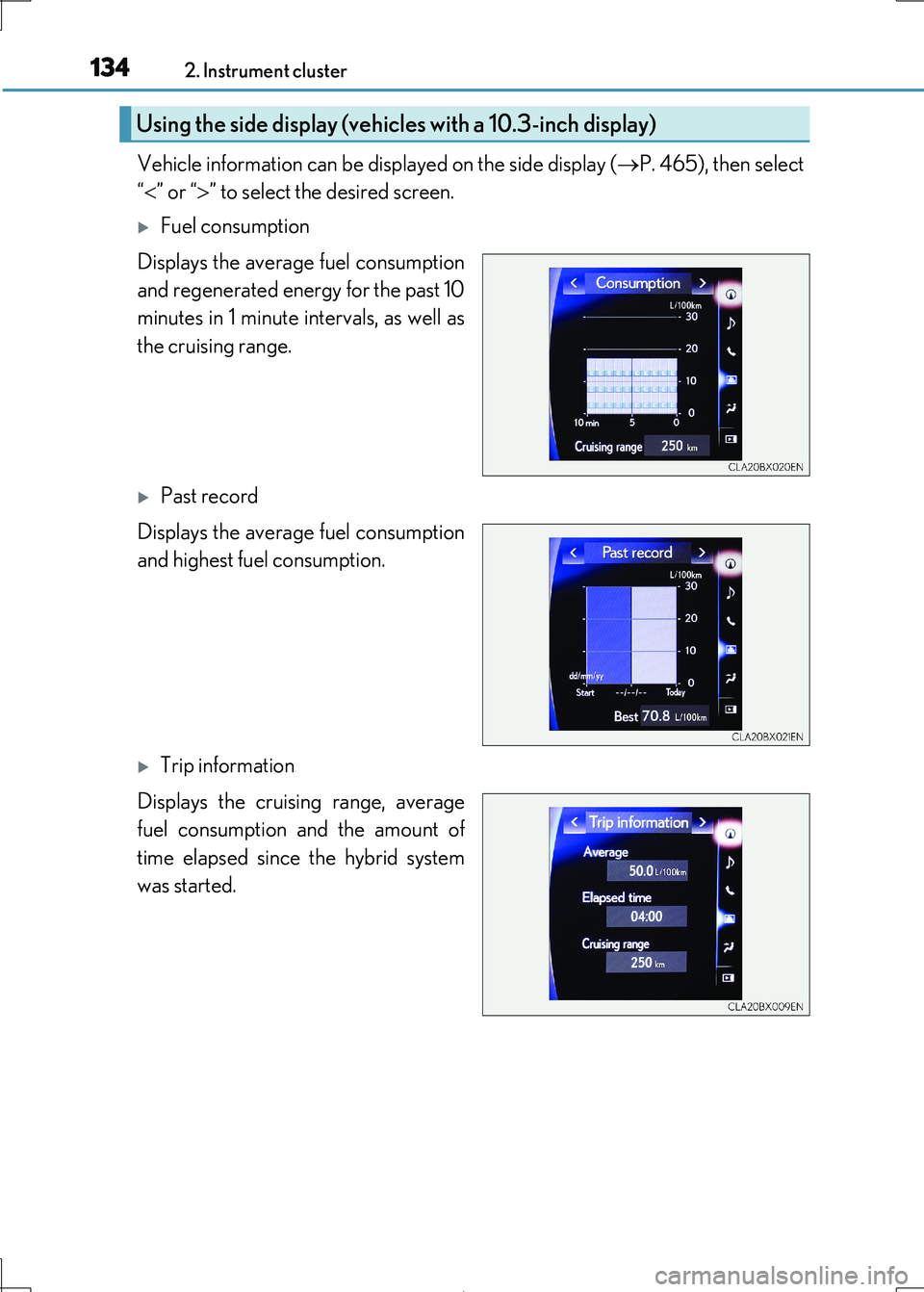

Vehicle information can be displayed on the side display (P. 465), then select
“ ” or “” to select the desired screen.
Fuel consumption
Displays the average fuel consumption
and regenerated energy for the past 10
minutes in 1 minute intervals, as well as
the cruising range.
Past record
Displays the average fuel consumption
and highest fuel consumption.
Trip information
Displays the cruising range, average
fuel consumption and the amount of
time elapsed since the hybrid system
was started.
Using the side display (vehicles with a 10.3-inch display)

1352. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53D89E)

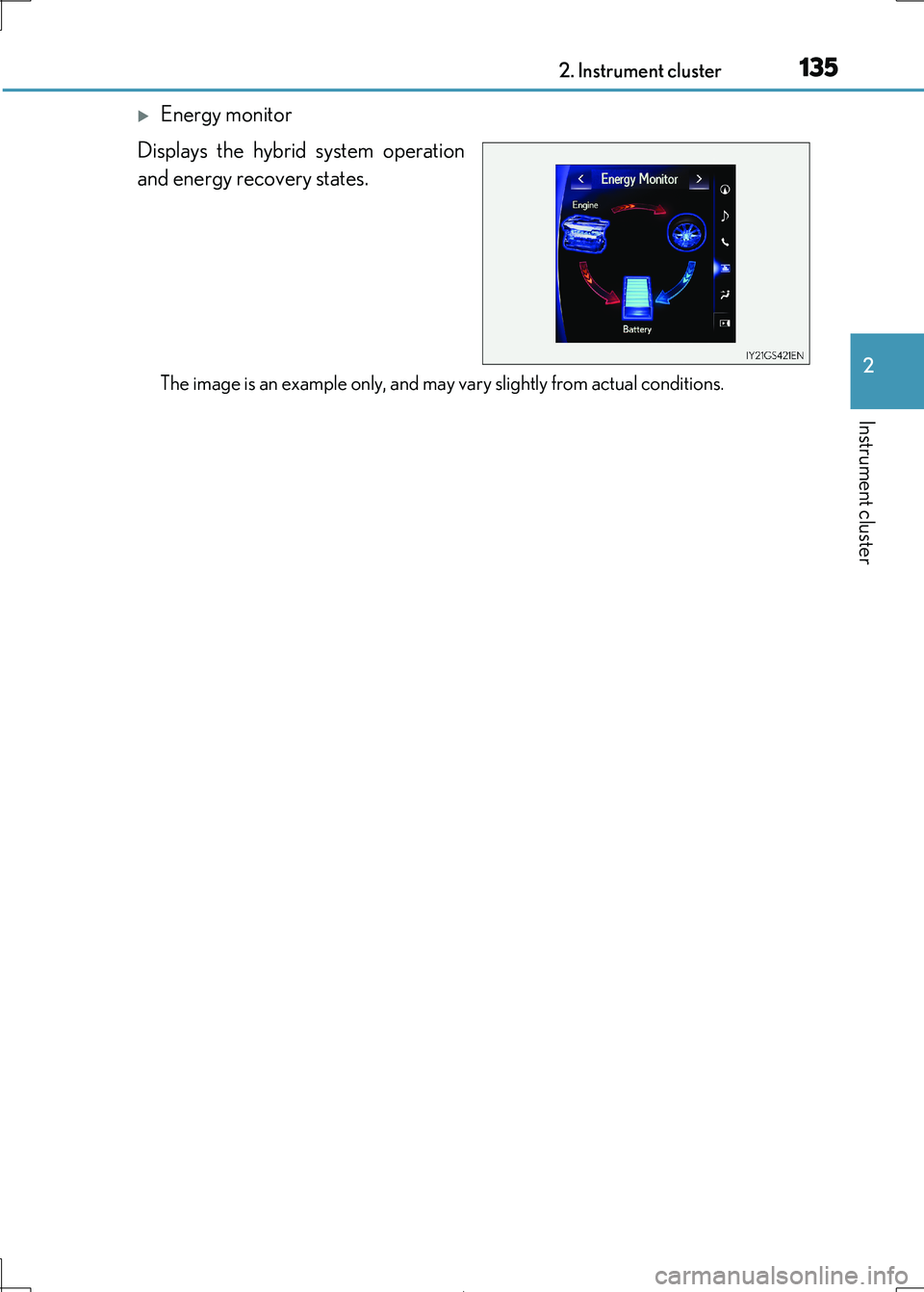

Energy monitor
Displays the hybrid system operation
and energy recovery states.
The image is an example only, and may va ry slightly from actual conditions.

1362. Instrument cluster
IS300h_EE(OM53D89E)

137
3
Operation of
each component
IS300h_EE(OM53D89E)
3-1. Key information
Keys .................................................. 138
3-2. Opening, closing and
locking the doors and
trunk
Doors ................................................144
Trunk .................................................. 151
Smart entry & start system .......157
3-3. Adjusting the seats
Front seats.......................................173
Rear seats (folding type) ...........175
Driving position memory .......... 177
Head restraints ............................ 182
3-4. Adjusting the steering
wheel and mirrors
Steering wheel ............................. 185
Inside rear view mirror ............. 187
Outside rear view mirrors....... 189
3-5. Opening, closing the
windows and moon roof
Power windows ........................... 193
Moon roof .......................................197

138
IS300h_EE(OM53D89E)
3-1. Key information
The following keys are provided with the vehicle.
Electronic keys
• Operating the smart entry & start system ( P. 157)
• Operating the wireless remote con-
trol function
Mechanical keys
Key number plate
Card key (electronic key)
(if equipped)
Operating the smart entry & start sys-
tem ( P. 157)
Locks the doors (P. 144)
Closes the windows and moon roof*
( P. 144)
Unlocks the doors ( P. 144)
Opens the windows and moon roof*
( P. 144)
Opens the trunk ( P. 152)
*: These settings must be customized at any authorized Lexus retailer or Lexus autho-
rized repairer, or an y reliable repairer.
Keys
The keys
1
2
3
4
Wireless remote control
1
2
3
4
5

1393-1. Key information
3
Operation of each component
IS300h_EE(OM53D89E)

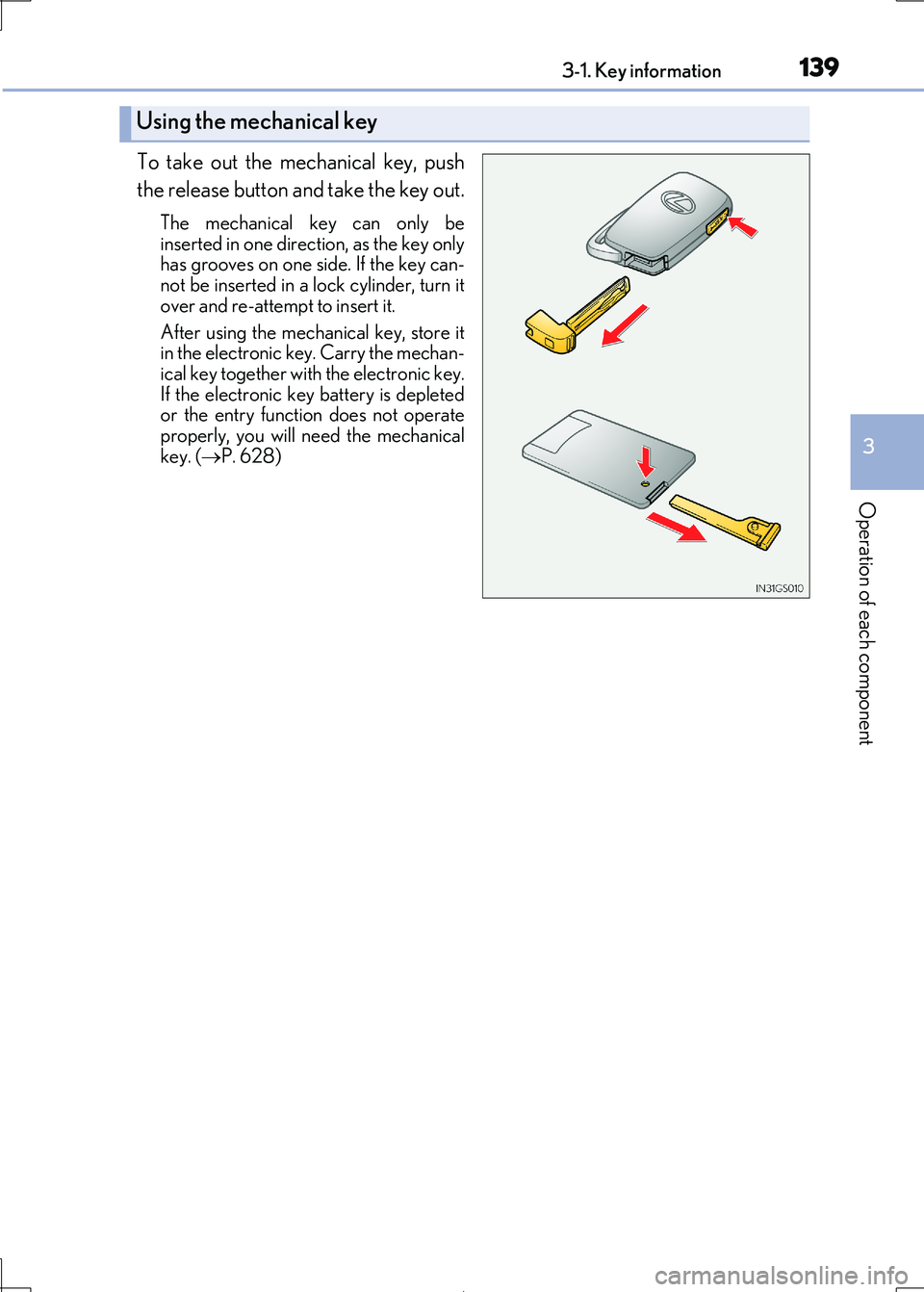

To take out the mechanical key, push
the release button and take the key out.
The mechanical key can only be
inserted in one direction, as the key only
has grooves on one side. If the key can- not be inserted in a lock cylinder, turn it
over and re-attempt to insert it.
After using the mechanical key, store it in the electronic ke y. Carry the mechan-
ical key together with the electronic key.
If the electronic key battery is depleted or the entry function does not operate
properly, you will ne ed the mechanical
key. ( P. 628)
Using the mechanical key

1403-1. Key information
IS300h_EE(OM53D89E)

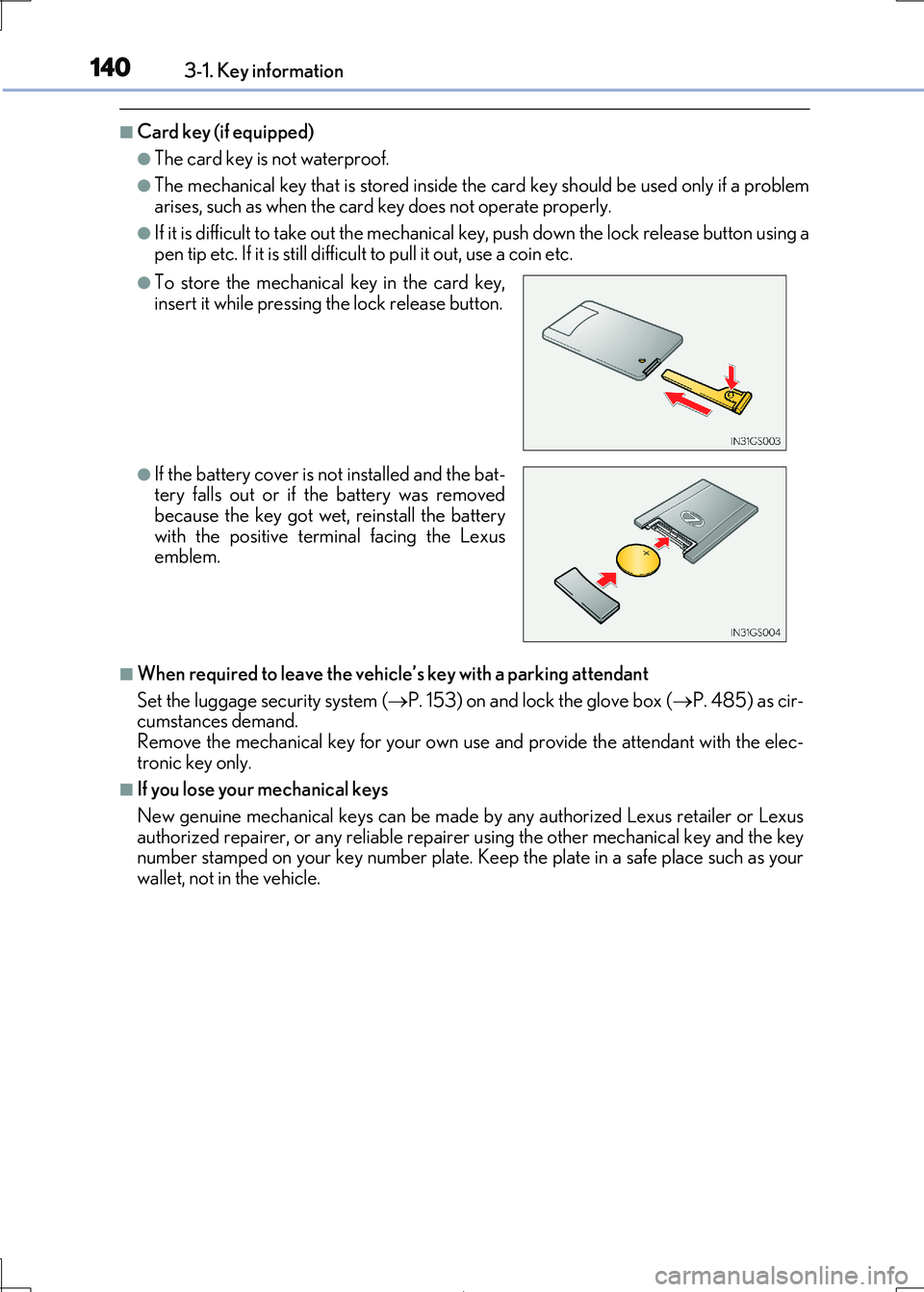

■Card key (if equipped)
●The card key is not waterproof.
●The mechanical key that is stored inside the card key should be used only if a problem arises, such as when the card key does not operate properly.
●If it is difficult to take out the mechanical key, push down the lock release button using a
pen tip etc. If it is still difficul t to pull it out, use a coin etc.
■When required to leave the vehicle’s key with a parking attendant
Set the luggage security system ( P. 153) on and lock the glove box (P. 485) as cir- cumstances demand.
Remove the mechanical key for your own use and provide the attendant with the elec-
tronic key only.
■If you lose your mechanical keys
New genuine mechanical keys can be made by any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer using the other mechanical key and the key number stamped on your key number plate. Keep the plate in a safe place such as your
wallet, not in the vehicle.
●To store the mechanical key in the card key,
insert it while pressing the lock release button.
●If the battery cover is not installed and the bat- tery falls out or if the battery was removed
because the key got wet, reinstall the battery
with the positive terminal facing the Lexus emblem.
