Lexus IS300h 2017 Owner's Manual

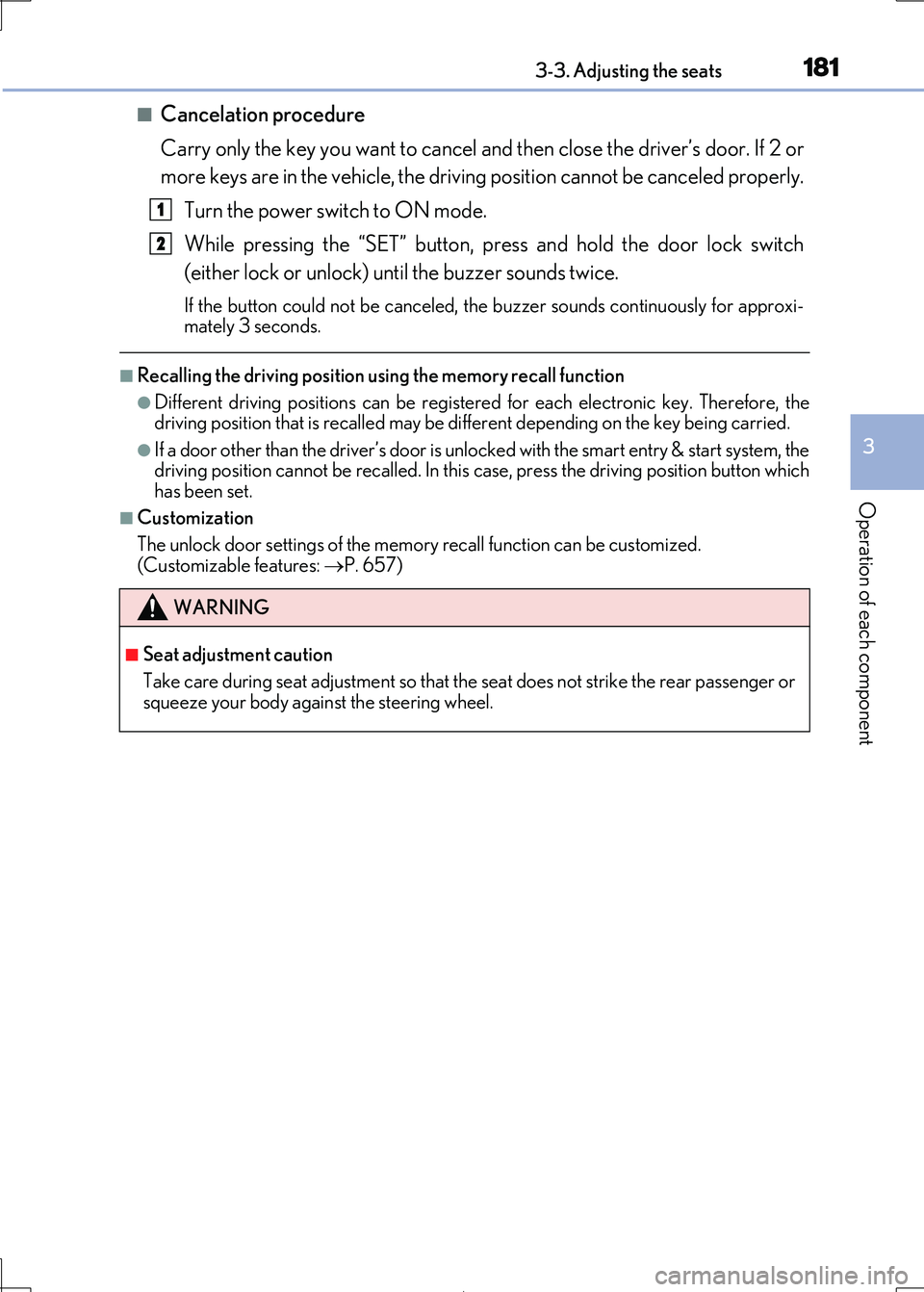

1813-3. Adjusting the seats
3
Operation of each component
IS300h_EE(OM53D89E)
■Cancelation procedure
Carry only the key you want to cancel an d then close the driver’s door. If 2 or
more keys are in the vehicle, the driv ing position cannot be canceled properly.
Turn the power switch to ON mode.
While pressing the “SET” button, pr ess and hold the door lock switch
(either lock or unlock) un til the buzzer sounds twice.
If the button could not be canceled, the buzzer sounds continuously for approxi-
mately 3 seconds.
■Recalling the driving position using the memory recall function
●Different driving positions can be registered for each electronic key. Therefore, the driving position that is recalled may be di fferent depending on the key being carried.
●If a door other than the driver’s door is unlocked with the smart entry & start system, the
driving position cannot be recalled. In this case, press the driving position button which has been set.
■Customization
The unlock door settings of the memo ry recall function can be customized. (Customizable features: P. 657)
WARNING
■Seat adjustment caution
Take care during seat adjustme nt so that the seat does not strike the rear passenger or squeeze your body against the steering wheel.
1
2

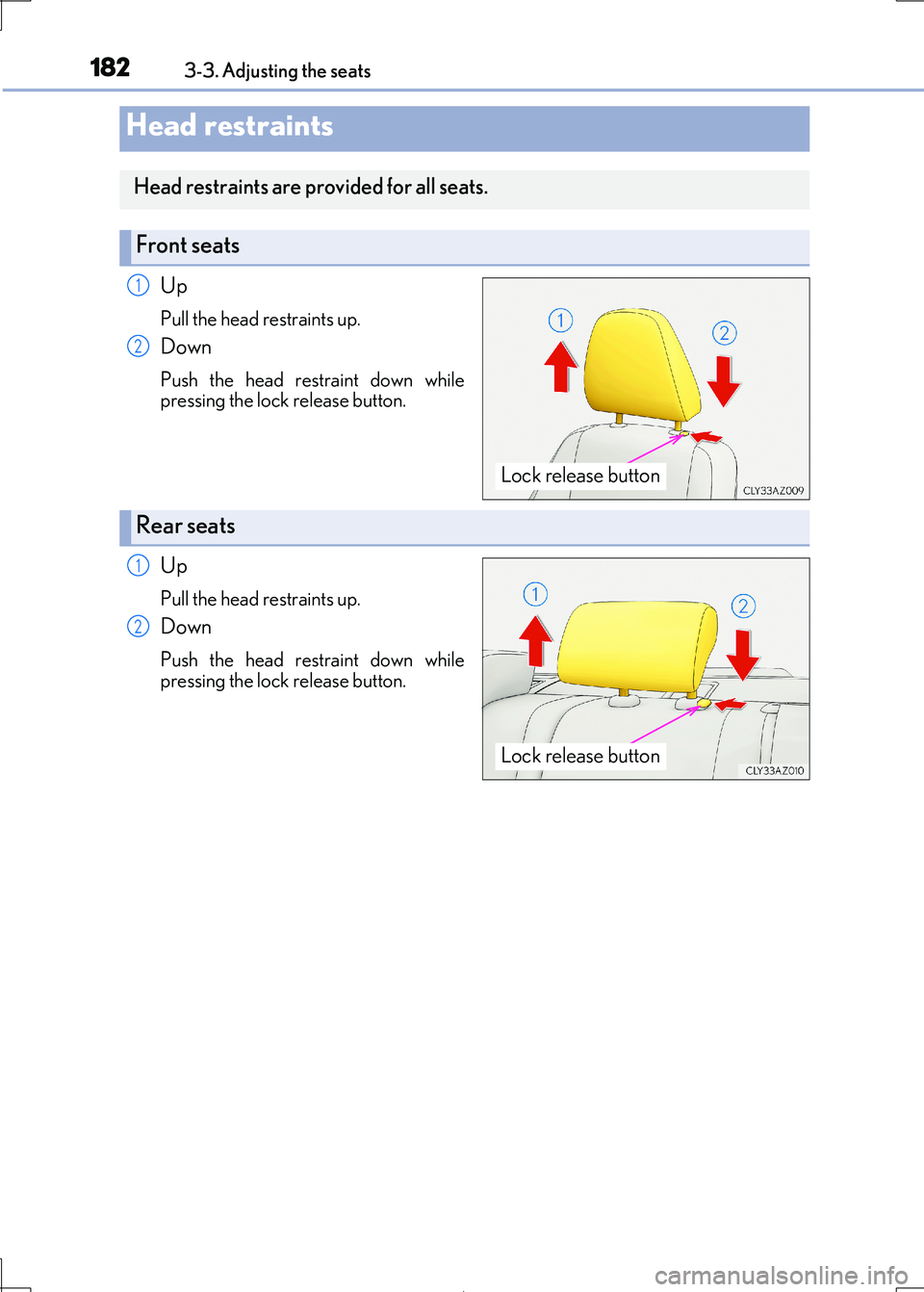

1823-3. Adjusting the seats
IS300h_EE(OM53D89E)
Up
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
Up
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
Head restraints
Head restraints are provided for all seats.
Front seats
Lock release button
1
2
Rear seats
Lock release button
1
2

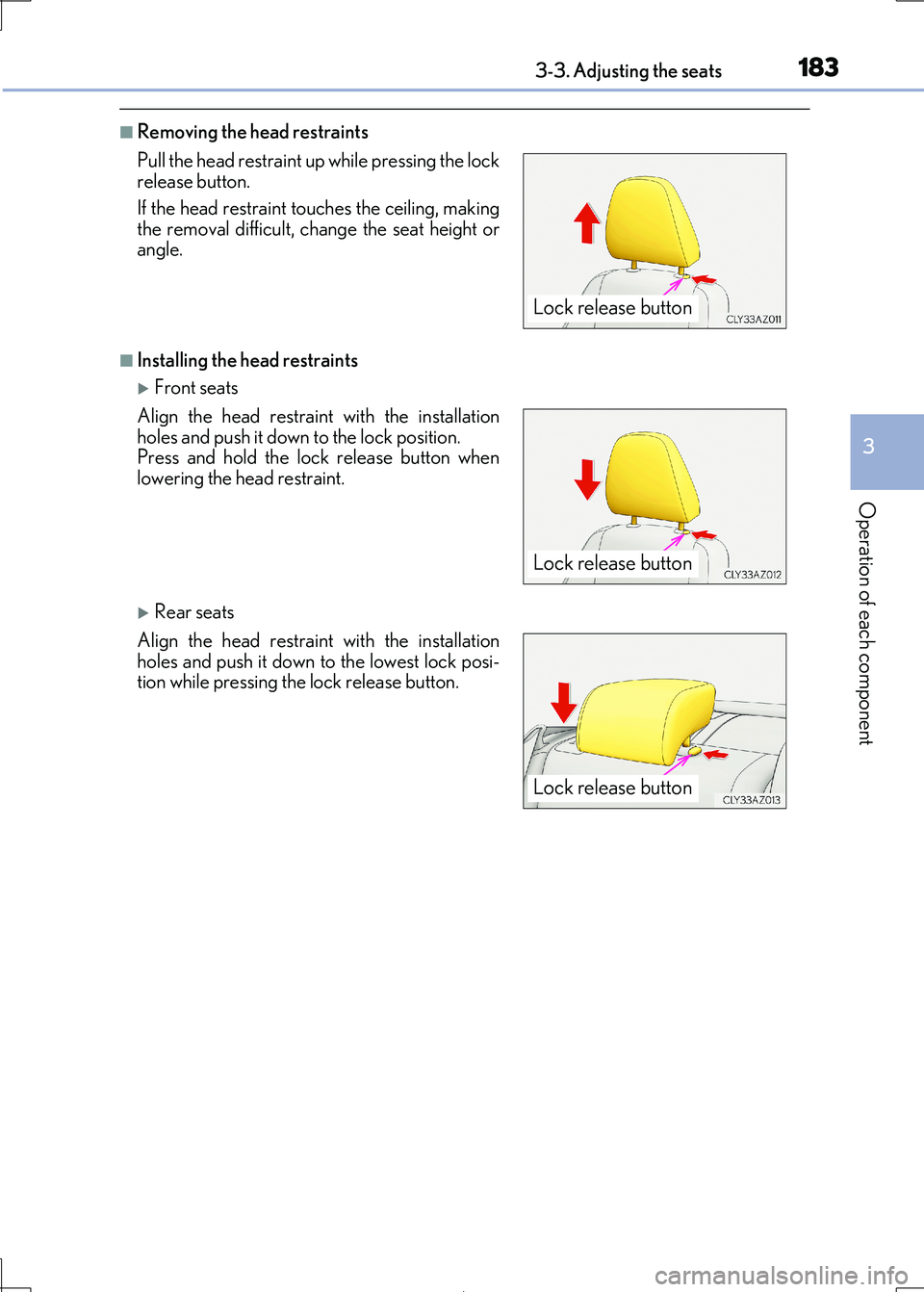

1833-3. Adjusting the seats
3
Operation of each component
IS300h_EE(OM53D89E)
■Removing the head restraints
■Installing the head restraints
Front seats
Rear seats
Pull the head restraint up while pressing the lock release button.
If the head restraint touches the ceiling, making
the removal difficult, change the seat height or angle.
Align the head restrain t with the installation
holes and push it down to the lock position. Press and hold the lock release button when
lowering the head restraint.
Align the head restrain t with the installation
holes and push it down to the lowest lock posi-
tion while pressing the lock release button.
Lock release button
Lock release button
Lock release button

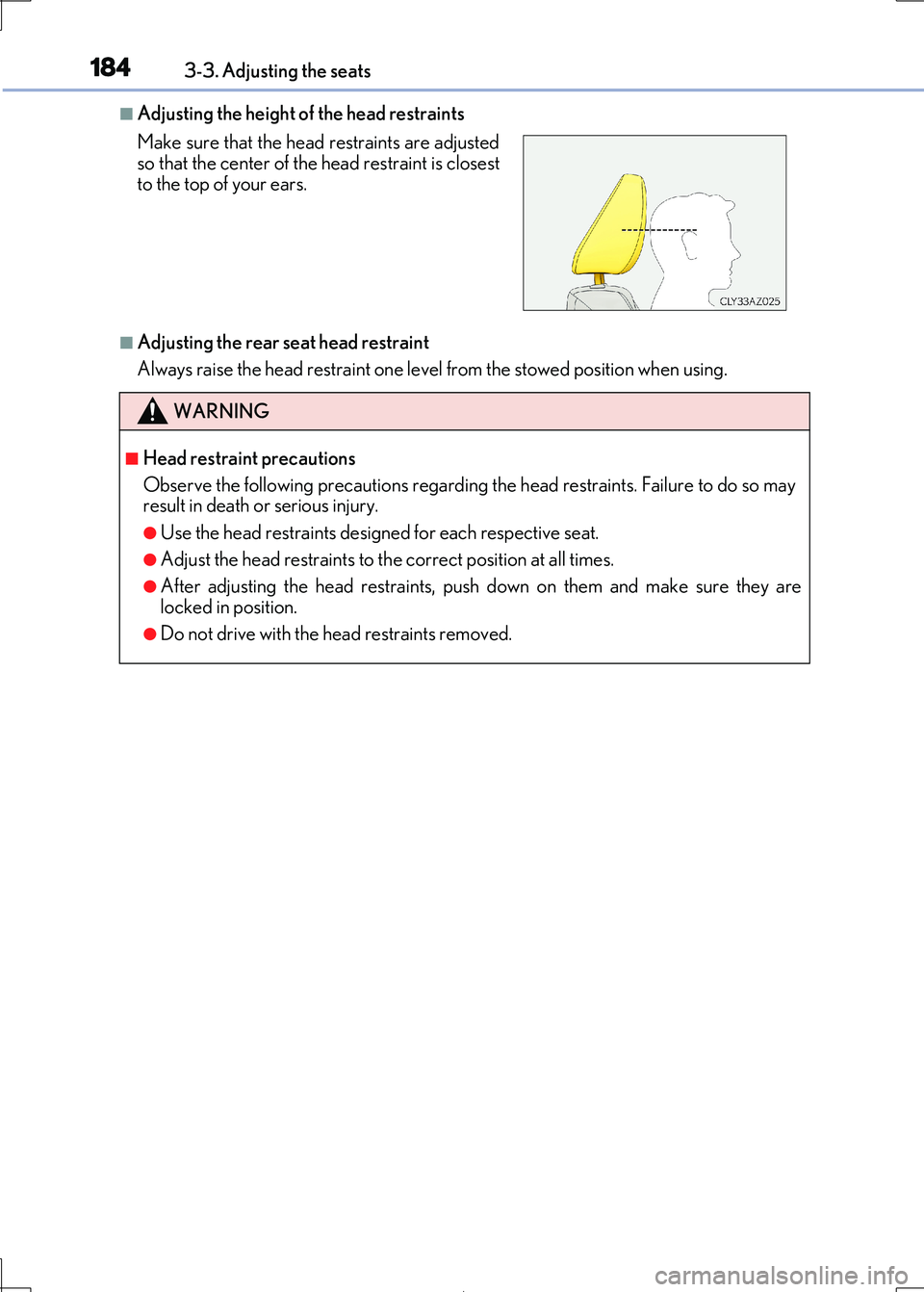

1843-3. Adjusting the seats
IS300h_EE(OM53D89E)
■Adjusting the height of the head restraints
■Adjusting the rear seat head restraint
Always raise the head restraint one leve l from the stowed position when using.
Make sure that the head restraints are adjusted
so that the center of the head restraint is closest
to the top of your ears.
WARNING
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to do so may result in death or serious injury.
●Use the head restraints design ed for each respective seat.
●Adjust the head restraints to the correct position at all times.
●After adjusting the head restraints, push down on them and make sure they are
locked in position.
●Do not drive with the head restraints removed.

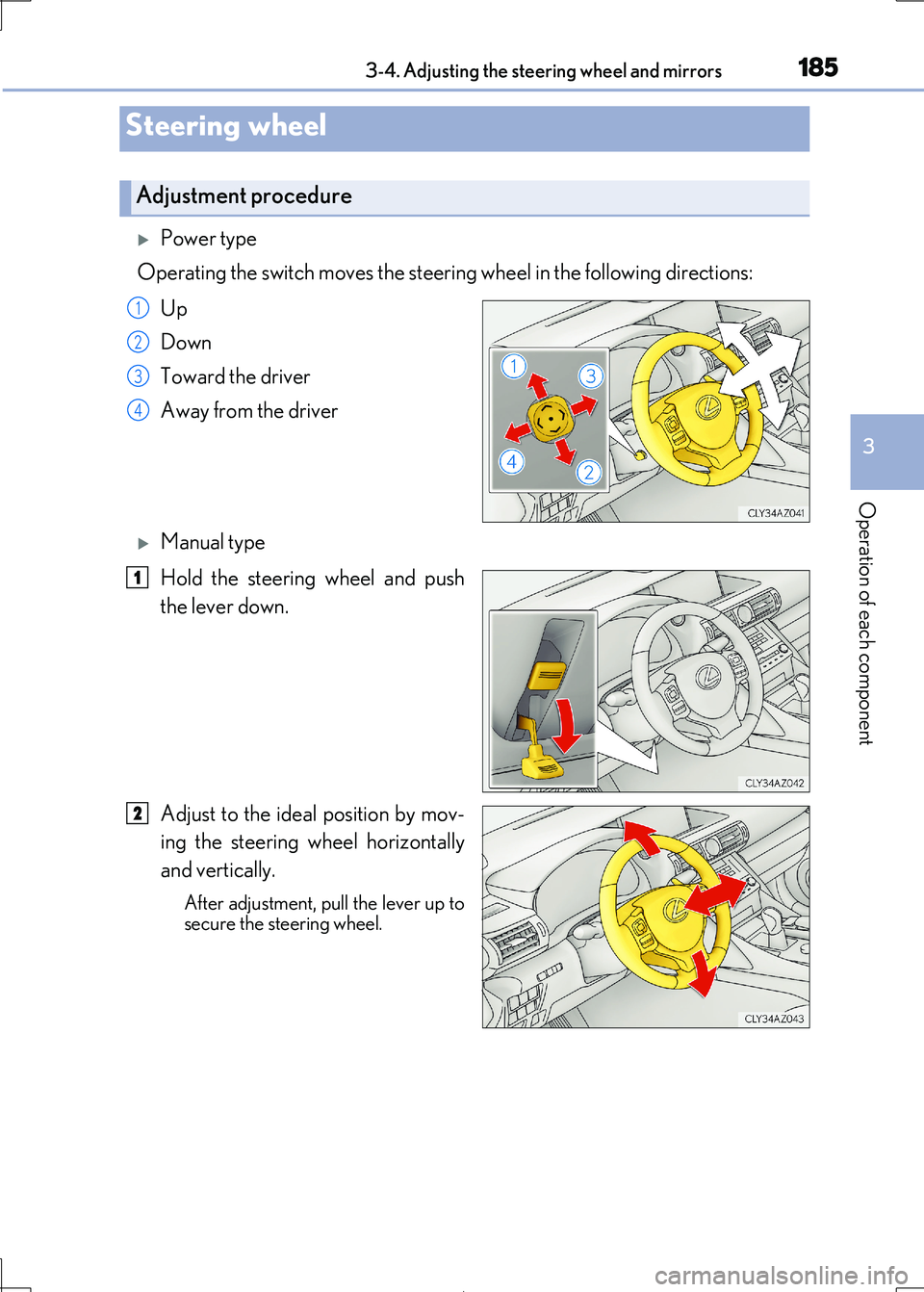

185
3
Operation of each component
IS300h_EE(OM53D89E)
3-4. Adjusting the steering wheel and mirrors
Power type
Operating the switch moves the steerin g wheel in the following directions:
Up
Down
Toward the driver
Away from the driver
Manual type
Hold the steering wheel and push
the lever down.
Adjust to the ideal position by mov-
ing the steering wheel horizontally
and vertically.
After adjustment, pull the lever up to
secure the steering wheel.
Steering wheel
Adjustment procedure
1
2
3
4
1
2

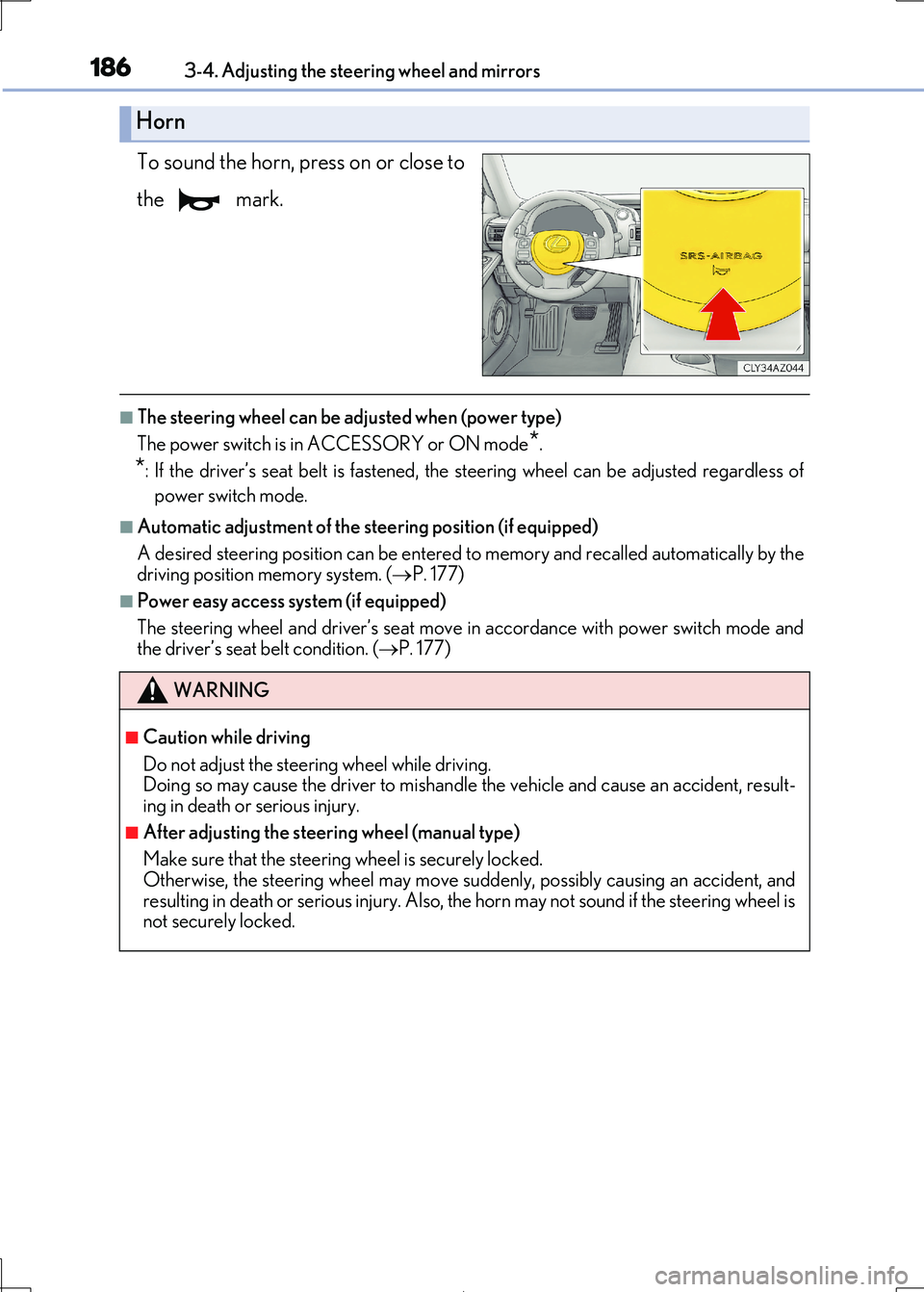

1863-4. Adjusting the steering wheel and mirrors
IS300h_EE(OM53D89E)
To sound the horn, press on or close to
the mark.
■The steering wheel can be adjusted when (power type)
The power switch is in ACCESSORY or ON mode*.
*: If the driver’s seat belt is fastened, the steering wheel can be adjusted regardless of
power switch mode.
■Automatic adjustment of the steering position (if equipped)
A desired steering position ca n be entered to memory and recalled automatically by the
driving position memory system. ( P. 177)
■Power easy access system (if equipped)
The steering wheel and driver’s seat move in accordance with power switch mode and
the driver’s seat belt condition. ( P. 177)
Horn
WARNING
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an accident, result- ing in death or serious injury.
■After adjusting the steering wheel (manual type)
Make sure that the steering wheel is securely locked. Otherwise, the steering wheel may move su ddenly, possibly causing an accident, and
resulting in death or serious injury. Also, th e horn may not sound if the steering wheel is
not securely locked.

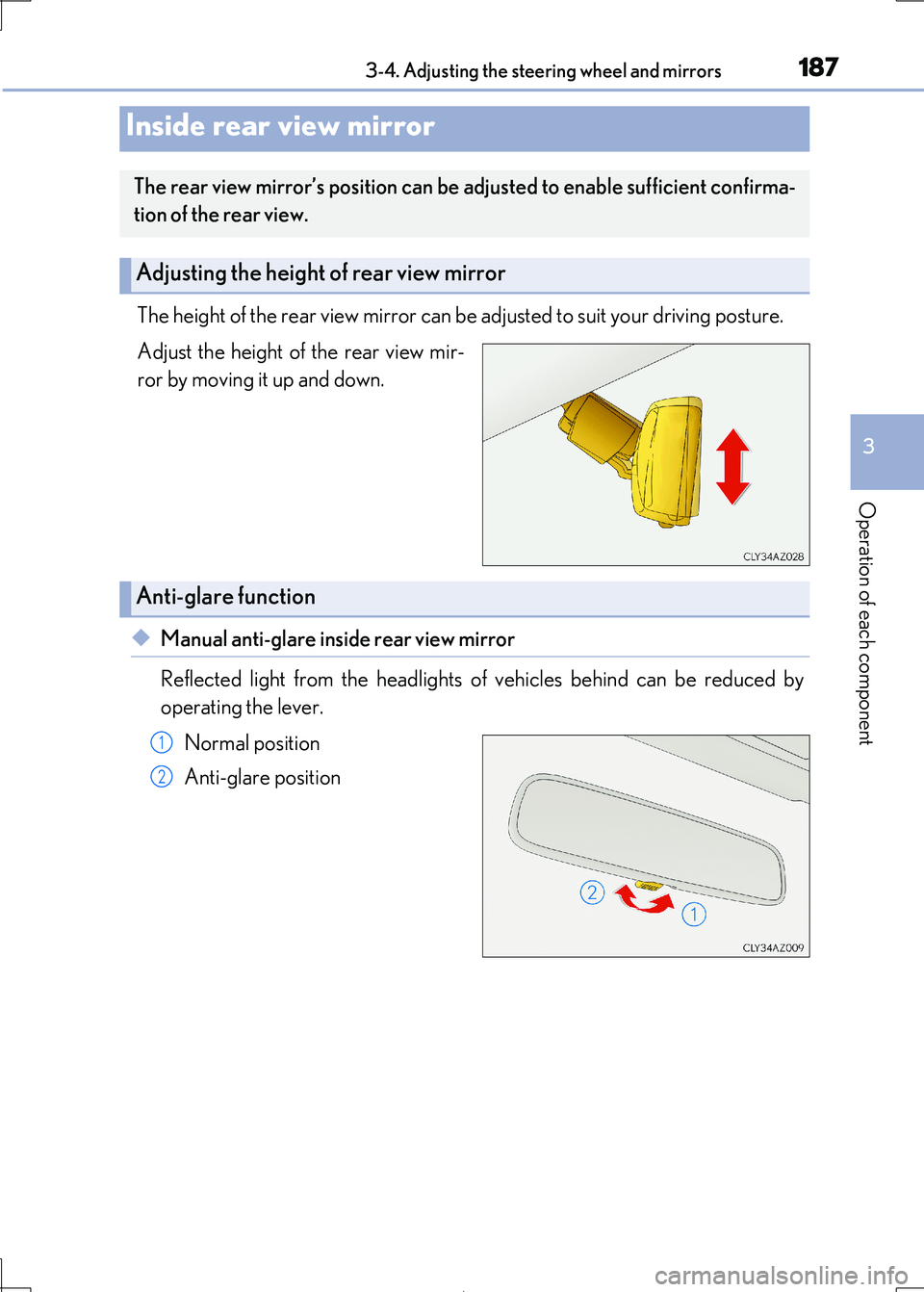

1873-4. Adjusting the steering wheel and mirrors
3
Operation of each component
IS300h_EE(OM53D89E)
The height of the rear view mirror can be adjusted to suit your driving posture.
Adjust the height of the rear view mir-
ror by moving it up and down.
◆Manual anti-glare insi de rear view mirror
Reflected light from the headlights of vehicles behind can be reduced by
operating the lever.
Normal position
Anti-glare position
Inside rear view mirror
The rear view mirror’s position can be adjusted to enable sufficient confirma-
tion of the rear view.
Adjusting the height of rear view mirror
Anti-glare function
1
2

1883-4. Adjusting the steering wheel and mirrors
IS300h_EE(OM53D89E)
◆Auto anti-glare inside rear view mirror
Responding to the level of brightness of the headlights of vehicles behind, the
reflected light is automatically reduced.
Changing automatic anti-glare func-
tion mode
ON/OFF
When the automatic anti-glare func-
tion is in ON mode, the indicator illu- minates.
The function will set to ON mode
each time the power switch is turned to ON mode.
Pressing the button turns the function
to OFF mode. (The indicator also turns off.)
■To prevent sensor error (veh icles with auto anti-glare inside rear view mirror)
Indicator
To ensure that the sensors operate properly, do
not touch or cover them.
WARNING
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident, resulting in
death or serious injury.

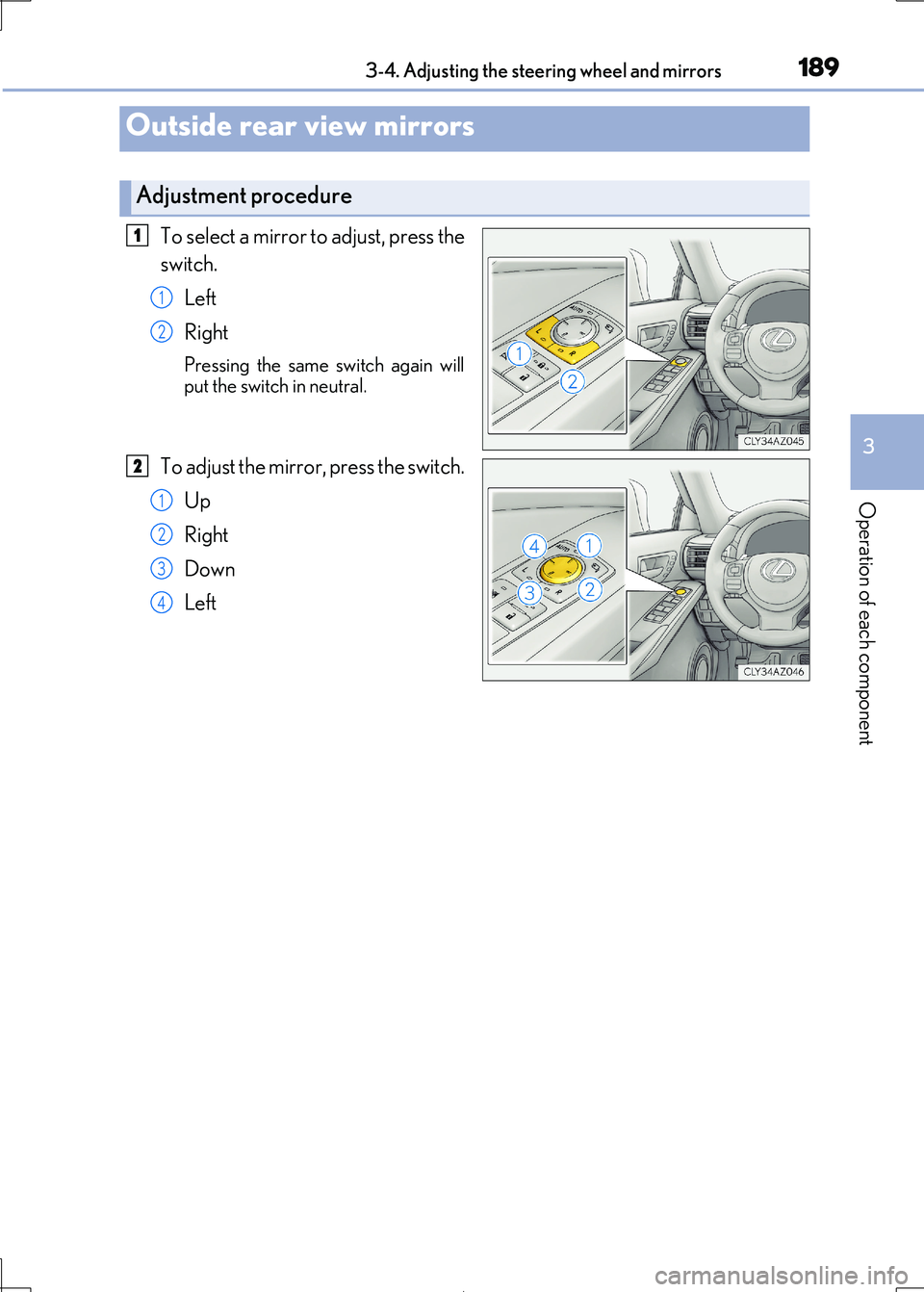

1893-4. Adjusting the steering wheel and mirrors
3
Operation of each component
IS300h_EE(OM53D89E)
To select a mirror to adjust, press the
switch.
Left
Right
Pressing the same switch again will
put the switch in neutral.
To adjust the mirror, press the switch.
Up
Right
Down
Left
Outside rear view mirrors
Adjustment procedure
1
1
2
2
1
2
3
4

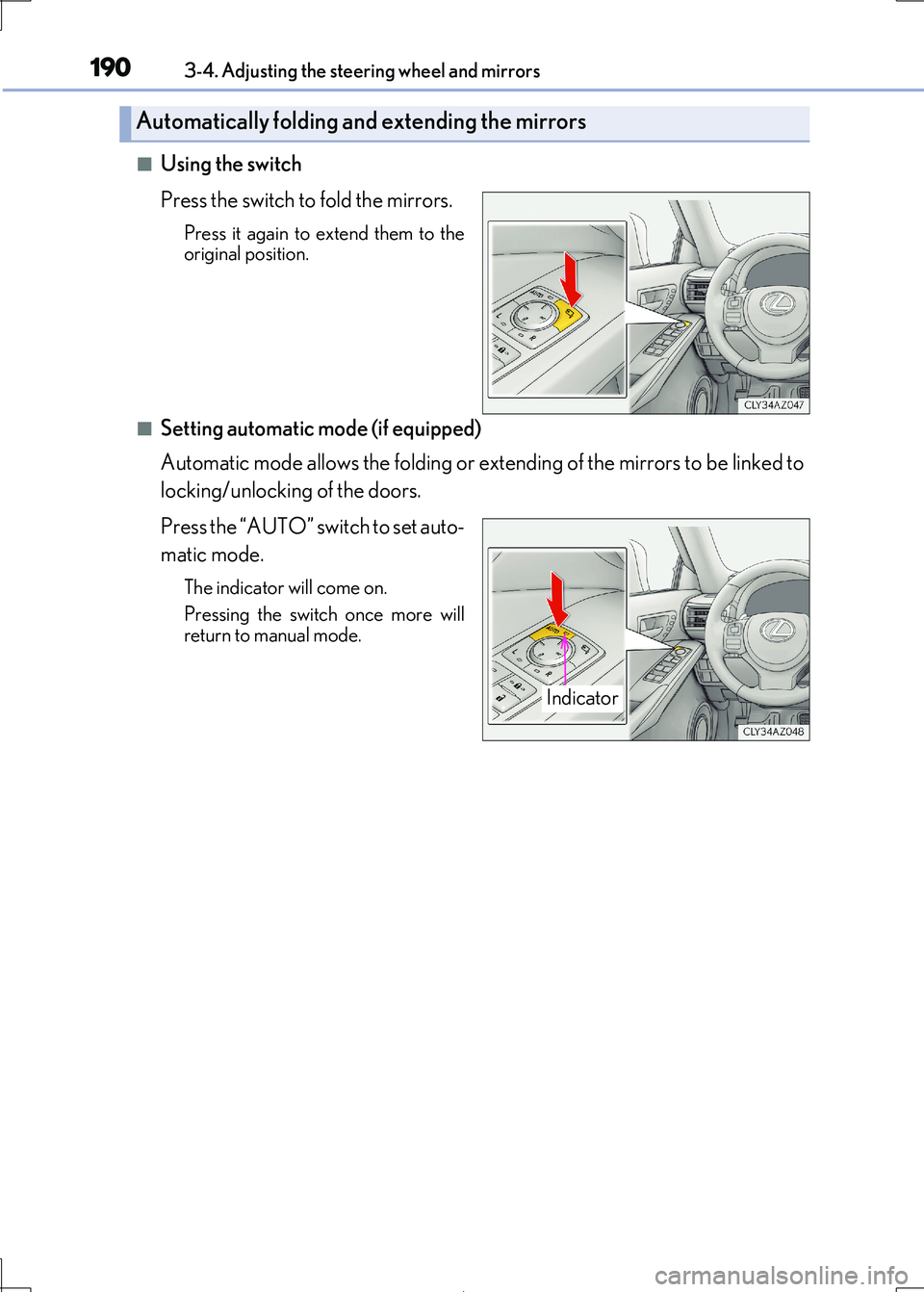

1903-4. Adjusting the steering wheel and mirrors
IS300h_EE(OM53D89E)
■Using the switch
Press the switch to fold the mirrors.
Press it again to extend them to the original position.
■Setting automatic mode (if equipped)
Automatic mode allows the folding or ex tending of the mirrors to be linked to
locking/unlocking of the doors.
Press the “AUTO” switch to set auto-
matic mode.
The indicator will come on.
Pressing the switch once more will
return to manual mode.
Automatically folding and extending the mirrors
Indicator
