Lexus IS300h 2017 Owner's Manual

491
IS300h_EE(OM53D89E)
6
Interior features
6-5. Using the other interior features
To set the visor in the forward posi-
tion, flip it down.
To set the visor in the side position,
flip down, unhook, and swing it to the
side.
Slide the cover to open.
The light turns on when the cover is
opened.
The clock can be adjusted.
Pressing and holding will move the
clock hands backward.
Pressing and holding will move the
clock hands forward.
Other interior features
Sun visors
1
2
Vanity mirrors
Clock
1
2

4926-5. Using the other interior features
IS300h_EE(OM53D89E)
The power outlet can be used for 12 V accessories that run on less than 10 A.
Open the lid.
●The power outlet can be used when the power switch is in ACCESSORY or ON mode.
Power outlet
●On some models: To fully close the console
box with the cable routed to outside the con-
sole box, insert the cable into the holder.
NOTICE
●To avoid the damaging the power outlet, close the power outlet lid when the power outlet is not in use. Foreign objects or li quids that enter the power outlet may cause a
short circuit.
●To prevent blown fuse, do not use an acce ssory that uses more than 12 V 10 A.
●To prevent 12-volt battery discharge, do not use the power outlet longer than neces-
sary when the hybr id system is off.

4936-5. Using the other interior features
6
Interior features
IS300h_EE(OM53D89E)
Fold down the armrest for use.
The rear sunshade can be raised and lowered.
Raise/lower
Armrest (if equipped)
NOTICE
To prevent damage to the armrest, do not apply too much load on the armrest.
Rear sunshade (if equipped)

4946-5. Using the other interior features
IS300h_EE(OM53D89E)
●The rear sunshade can be used when the power switch is in ON mode.
●The rear sunshade can be operated for approximately 1 minute even after the power switch is turned to ACCESSORY mode or turned off.
●Reverse operation feature: To ensure adequate rear visibility, the rear sunshade auto-
matically lowers when the sh ift lever is shifted to R.
However, the rear sunshade is raised again if any of the following occurs:
• The button is pressed again.*
• The shift lever is shifted into P. • The shift lever is shifted out of R, and the vehicle reaches a speed of 15 km/h (9
mph).
If the hybrid system is off when the rear sunshade has been lowered due to the reverse operation feature, it will not be raised even when the hybrid system is turned on again
and the vehicle reaches a speed of 15 km/h (9 mph). To raise the sunshade again,
press the button.
*: Occasionally, the reverse function may not be carried out after the switch has been
pressed. Repeat the above oper ation to operate the function.
WARNING
When the rear sunshade is being operated, do not place fingers or other objects in the
fastener section or in the opening. They may get caught, causing injury.
NOTICE
●To prevent 12-volt battery discharge, do not operate the rear sunshade when the
hybrid system is off.
●Observe the following precautions to ensure normal operation of the rear sunshade.
• Do not place excessive load on the moto r or other components of the rear sun-
shade.
• Do not place objects where they may hinder opening and closing operations. • Do not attach items to the rear sunshade.
• Keep the opening clean and clear of obstructions.
• Do not operate the rear sunshade cont inuously for long periods of time.

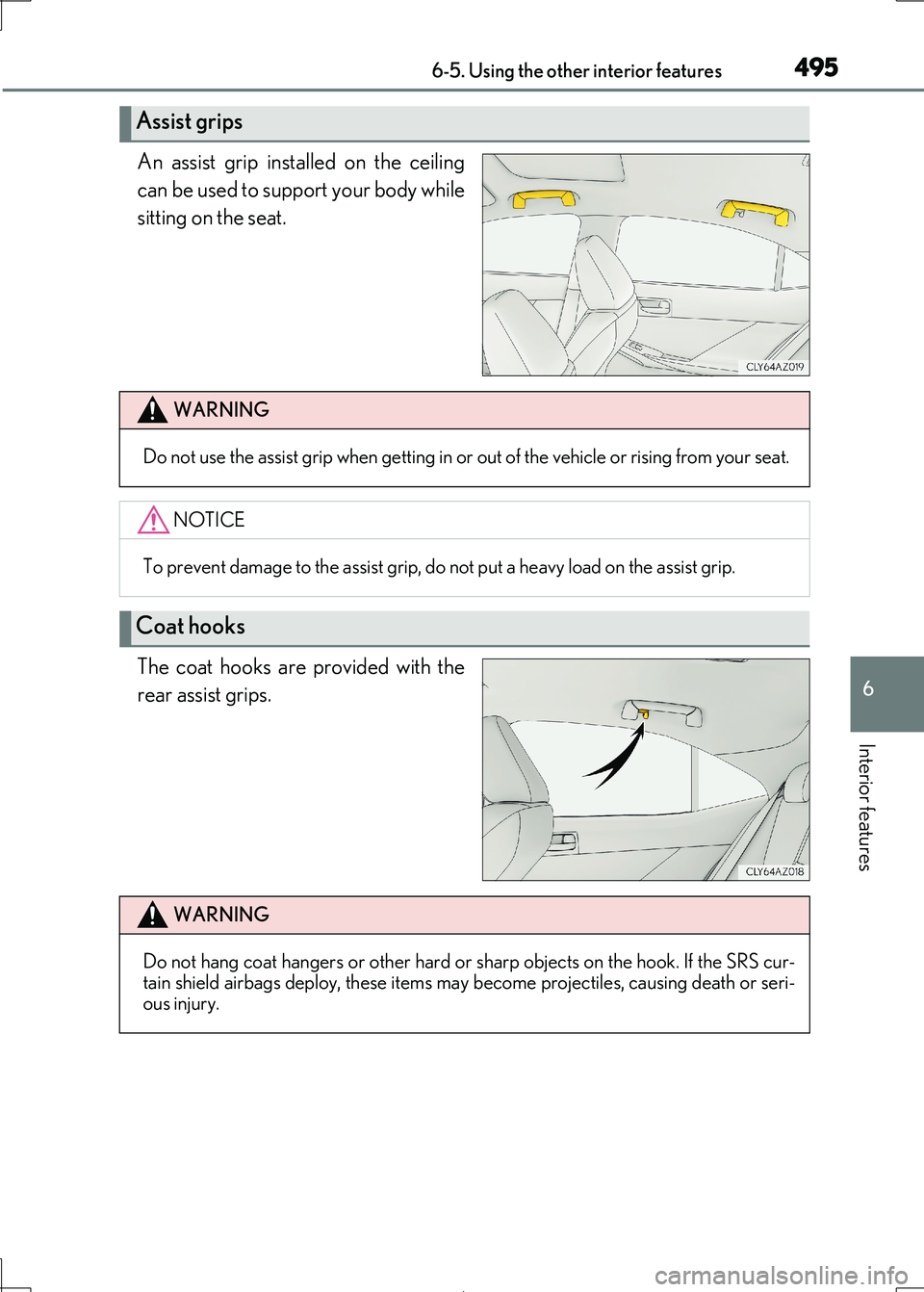

4956-5. Using the other interior features
6
Interior features
IS300h_EE(OM53D89E)
An assist grip installed on the ceiling
can be used to support your body while
sitting on the seat.
The coat hooks are provided with the
rear assist grips.
Assist grips
WARNING
Do not use the assist grip when getting in or out of the vehicle or rising from your seat.
NOTICE
To prevent damage to the assist grip, do not put a heavy load on the assist grip.
Coat hooks
WARNING
Do not hang coat hangers or other hard or sharp objects on the hook. If the SRS cur-
tain shield airbags deploy, these items may become projectiles, causing death or seri-
ous injury.

4966-5. Using the other interior features
IS300h_EE(OM53D89E)
“SOS” button
Indicator lights
Microphone
■Automatic Collision Notification
If any airbag deploys, the system is designed to automatically call the Public
Safety Answering Point (PSAP).* The responding agent receives the vehicle's
location and attempts to speak with the vehicle occupants to assess the level
of emergency. If the o ccupants are unable to communicate, the agent auto-
matically treats the call as an emergency, contacts the nearest emergency
services provider to describe the situ ation, and requests that assistance be
sent to the location.
*: In some cases, the call cannot be made.( P. 498)
ERA-GLONASS
: If equipped
ERA-GLONASS is a telematics service th at uses Global Navigation Satellite
System (GLONASS) data and embedded cellular technology to enable the
following emergency calls to be ma de: Automatic emergency calls (Auto-
matic Collision Notificati on) and manual emergency calls (by pressing the
“SOS” button). This service is required by Eurasian Customs Union Regula-
tions.
System components
1
2
3
Emergency Notification Services

4976-5. Using the other interior features
6
Interior features
IS300h_EE(OM53D89E)
■Emergency Assistance Button (“SOS”)
In the event of an emergency, push the “SOS” button to reach the Public
Safety Answering Point (PSAP). The answering agent will determine your
vehicle's location, assess the emergency, and dispatch the necessary assis-
tance required.
If you accidentally press the “SOS” button, tell the agent that you are not experi-
encing an emergency.
When the power switch is turned to ON mode, the red indicator light will illumi-
nate for 10 seconds and then the green indicator light will illuminate for 2 sec-
onds, indicating that the system is en abled. The indicator lights indicate the
following:
●If the green indicator light illuminates and stays on, the system is enabled.
●If the green indicator light flashes, an emergency call is being made (either
automatically or manually).
●If no indicator lights illuminate , the system is not enabled.
●If the red indicator light illuminates any time other than immediately after the
power switch is turned to ON mode, the system may be malfunctioning or the
backup battery may be depleted. Cont act any authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer.
The service life of the backup battery is 3 years or more.
Indicator lights

4986-5. Using the other interior features
IS300h_EE(OM53D89E)
WARNING
■When the Emergency Call may not be made
●Any of the followings may occur. In such cases, report to the Public Safety Answering
Point (PSAP) by other means su ch as nearby public phones.
• It may sometimes be difficult to connect to the public Safety Answering Point (PSAP) even in the reception area of t he cellular phone due to the reception level,
or if the line is busy. In such cases, you may not be able to connect to the Public
Safety Answering Point (PSAP) and thus will not be able to make emergency calls and report to the emergency departments even though the system tries to con-
nect to the Public Safety Answering Point (PSAP).
• When the vehicle is out of the cellular phone service area, the Emergency Call cannot be made.
• When any related equipment (such as the “SOS” button panel, indicator lights,
microphone, speaker, DCM, antenna, or any wires connecting the equipment.) has an abnormality, is damaged or brok en, the Emergency Call cannot be made.
• During the Emergency Call, the system makes repeated attempts to connect to
the Public Safety Answerin g Point (PSAP). However, if it cannot connect to the Public Safety Answering Point (PSAP) due to poor radio wave reception, the sys-
tem may not be able to connect to the ce llular network and the call may finish with-
out connecting. The red indi cator light will blink for approximately 30 seconds to indicate this disconnection.
• This device may not function if a shock is applied to it.
●If the 12-volt battery’s voltage decreases or there is a disconnection, the system may
not be able to access the Public Safety Answering Point (PSAP).
■When replacing DCM to a new one
ERA-GLONASS have to be activated. Contac t any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer.

4996-5. Using the other interior features
6
Interior features
IS300h_EE(OM53D89E)
WARNING
■For your safety
●Please drive safely.
The function of this system is to assist you in making the Emergency Call in case of
accidents as traffic accidents or sudden medical emergencies, and it does not pro- tect the driver or the passengers in any way. Please drive safely and fasten your seat-
belts at all times for your safety.
●In case of an emergency, make lives the top priority.
●If you smell anything burning or another unusual smell, do not stay inside the vehicle
and evacuate to a safe area immediately.
●Since the system dete cts shocks, the automatic reporting may not always occur syn- chronized with the operation of the airbag system. (If the vehicle is bumped from
behind, etc.)
●The airbag may not inflate even in case of an accident, if it does not involve high impact. In such cases, the system may no t make emergency calls automatically. The
system may also not make automatic emer gency calls even if the airbag has been
inflated. If any of these should occur, please report to the Public Safety Answering Point (PSAP) by operating the “SOS” button.
●For safety, do not make the Emergency Call while driving.
Making calls during driving may cause mish andling of the steering wheel, which may lead to unexpected accidents.
Stop the vehicle and confirm the safety of the area before making the Emergency
Call.
●When changing fuses, please use fuses th at correspond to the described standard. If
you use fuses other than those described, it may cause ignition or smoke in the circuit
and may lead to a fire.
●Using the system while there is smoke or an unusual smell may cause a fire. Stop
using the system immediately and consult any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer.

5006-5. Using the other interior features
IS300h_EE(OM53D89E)
NOTICE
■To prevent damage
Do not pour any liquid on to the “SOS” butt on panel etc. and make any impact to it.
■If the “SOS” button panel malfunctions
It may not be able to make the Emergency Call or inform you of the correct condition of the system. If the “SOS” button panel has been broken, please consult any autho-
rized Lexus retailer or Lexus authorized repairer, or any reliable repairer.
■If there is any malfunction of the speaker or the microphone during the Emergency Call or the Manual Maintenance Check
You will not be able to communicate with the Public Safety Answering Point (PSAP)
operator.
If any of this equipment has been broken, please consult any authorized Lexus retailer
or Lexus authorized repairer , or any reliable repairer.
