Lexus IS300h 2017 Owner's Manual

501
7Maintenance and care
IS300h_EE(OM53D89E)
7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ................502
Cleaning and protecting
the vehicle interior..................506
7-2. Maintenance
Maintenance
requirements ............................509
7-3. Do-it-yourself maintenance
Do-it-yourself service
precautions................................... 511
Hood ................................................ 513
Positioning a floo r jack ............. 514
Engine compartment ................ 515
12-volt battery ............................. 522
Tires ................................................. 525
Replacing the tire....................... 537
Tire inflation pressure .............. 543
Wheels ........................................... 545
Air conditioning filter ............... 547
Electronic key battery.............. 549
Checking and replacing
fuses.............................................. 552
Light bulbs..................................... 556

502
IS300h_EE(OM53D89E)
7-1. Maintenance and care
●Working from top to bottom, liberally apply water to the vehicle body, wheel
wells and underside of the vehicl e to remove any dirt and dust.
●Wash the vehicle body using a sponge or soft cloth, such as a chamois.
●For hard-to-remove marks, use car wash soap and rinse thoroughly with
water.
●Wipe away any water.
●Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle body is cool.
■Self-restoring coat
The vehicle body has a self-restoring coating that is resistant to small surface scratches caused in a car wash etc.
●The coating lasts for 5 to 8 years from when the vehicle is delivered from the plant.
●The restoration time differs depending on the depth of the scratch and outside tem- perature.
The restoration time may be come shorter when the coating is warmed by applying
warm water.
●Deep scratches caused by keys, coins, etc. cannot be restored.
●Do not use wax that contain abrasives.
■Automatic car washes
●Fold the mirrors before washin g the vehicle. Start washing from the front of the vehicle.
Make sure to extend th e mirrors before driving.
●Brushes used in automatic car washes may scratch the vehicle surface and harm your vehicle’s paint.
■High pressure car washes
●Do not allow the nozzles of the car wash to come within close proximity of the windows.
●Before using the car wash, check that the fuel filler door on your vehicle is closed prop-
erly.
Cleaning and protecting the vehicle exterior
Perform the following to protect the ve hicle and maintain it in prime condi-
tion:

5037-1. Maintenance and care
7
Maintenance and care
IS300h_EE(OM53D89E)
■When using a car wash (vehicles with entry function)
If the door handle becomes wet while the electronic key is within the effective range, the door may lock and unlock repeatedly. In that case, follow the following correction proce-
dures to wash the vehicle:
●Place the key in a position 2 m (6 ft.) or more separate from the vehicle while the vehi- cle is being washed. (Take care to ensure that the key is not stolen.)
●Set the electronic key to battery-saving mode to disable the smart entry & start system.
( P. 158)
■Aluminum wheels
●Remove any dirt immediately by using a neutral detergent. Do not use hard brushes or
abrasive cleaners. Do not use stro ng or harsh chemical cleaners. Use the same mild detergent and wax as used on the paint.
●Do not use detergent on the wheels when they are hot, for example after driving a long
distance in hot weather.
●Wash detergent from the wheels immediately after use.
■Bumpers
Do not scrub with abrasive cleaners.
■Front side windows water-repellent coating
●The following precautions can extend the effectiveness of the water-repellent coating.
• Remove any dirt, etc. from th e front side windows regularly. • Do not allow dirt and dust to accumula te on the windows for a long period.
Clean the windows with a soft, damp cloth as soon as possible.
• Do not use wax or glass cleaners that contain abrasives when cleaning the windows. • Do not use any metallic objects to remove condensation build up.
●When the water-repellent performance has become insufficient, the coating can be
repaired. Contact any authorized Lexus retail er or Lexus authorized repairer, or any reliable repairer.

5047-1. Maintenance and care
IS300h_EE(OM53D89E)

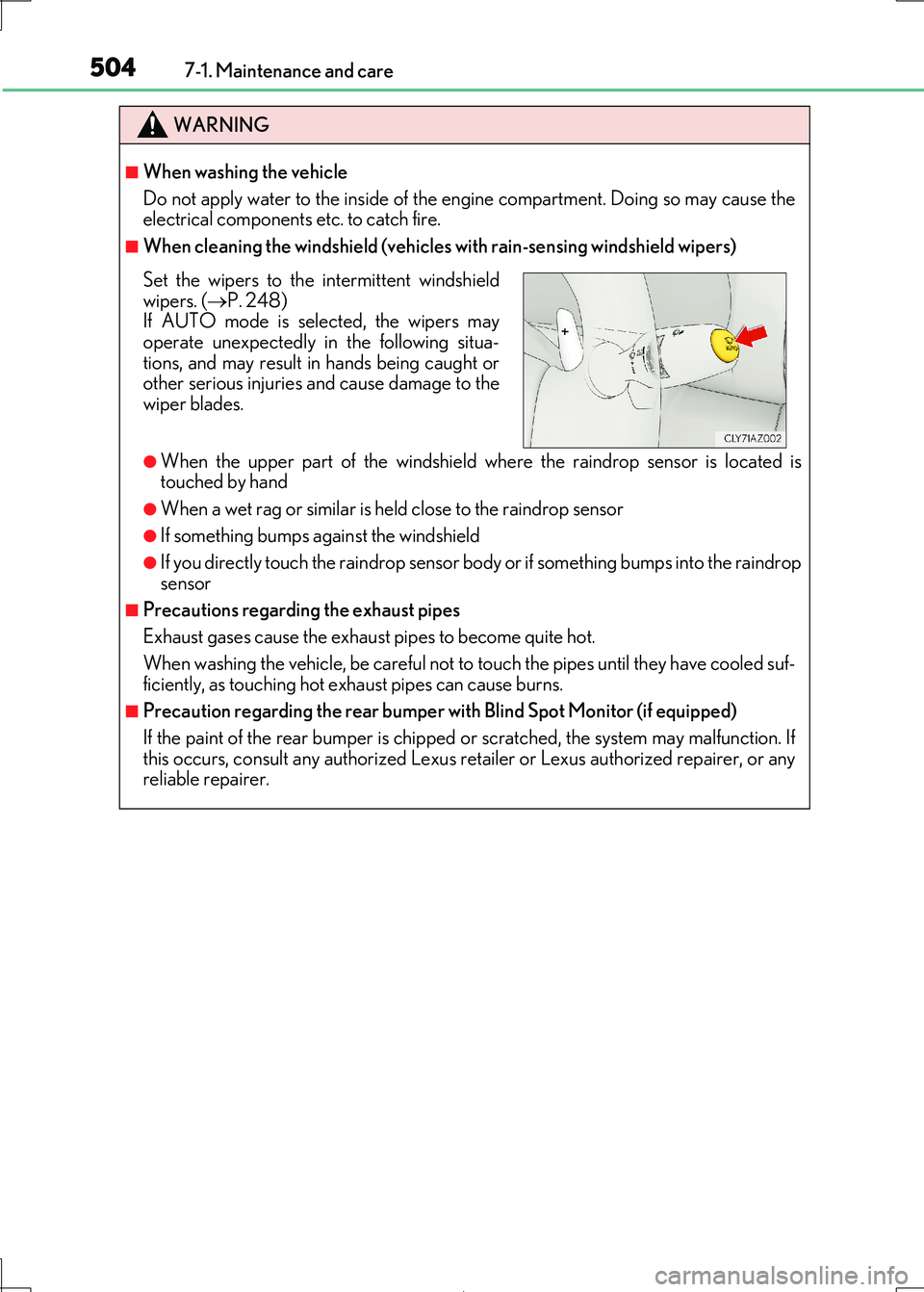

WARNING
■When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may cause the
electrical components etc. to catch fire.
■When cleaning the windshield (vehicles with rain-sensing windshield wipers)
●When the upper part of the windshield where the raindrop sensor is located is touched by hand
●When a wet rag or similar is held close to the raindrop sensor
●If something bumps ag ainst the windshield
●If you directly touch the raindrop sensor body or if something bumps into the raindrop
sensor
■Precautions regarding the exhaust pipes
Exhaust gases cause the exhaus t pipes to become quite hot.
When washing the vehicle, be careful not to touch the pipes until they have cooled suf-
ficiently, as touching hot exhaust pipes can cause burns.
■Precaution regarding the rear bumper with Blind Spot Monitor (if equipped)
If the paint of the rear bumper is chipped or scratched, the system may malfunction. If
this occurs, consult any authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer.
Set the wipers to the intermittent windshield
wipers. ( P. 248)
If AUTO mode is sele cted, the wipers may operate unexpectedly in the following situa-
tions, and may result in hands being caught or
other serious injuries and cause damage to the wiper blades.

5057-1. Maintenance and care
7
Maintenance and care
IS300h_EE(OM53D89E)

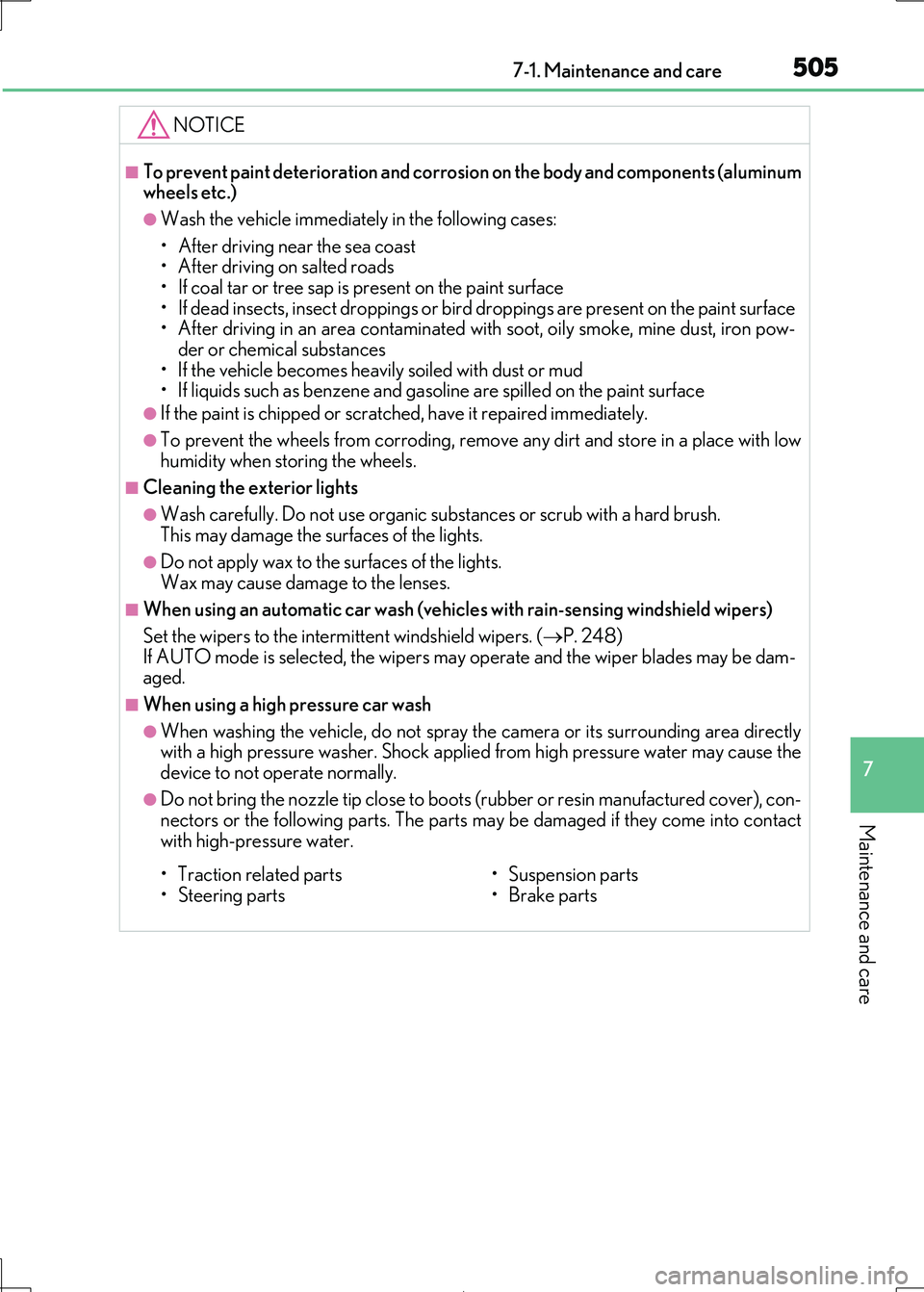

NOTICE
■To prevent paint deterioration and corrosion on the body and components (aluminum wheels etc.)
●Wash the vehicle immediately in the following cases:
• After driving near the sea coast • After driving on salted roads
• If coal tar or tree sap is present on the paint surface
• If dead insects, insect droppings or bird droppings are present on the paint surface • After driving in an area contaminated wi th soot, oily smoke, mine dust, iron pow-
der or chemical substances
• If the vehicle becomes heavily soiled with dust or mud • If liquids such as benzene and gaso line are spilled on the paint surface
●If the paint is chipped or scratched, have it repaired immediately.
●To prevent the wheels from corroding, remove any dirt and store in a place with low
humidity when storing the wheels.
■Cleaning the exterior lights
●Wash carefully. Do not use organic subs tances or scrub with a hard brush.
This may damage the surfaces of the lights.
●Do not apply wax to the surfaces of the lights. Wax may cause damage to the lenses.
■When using an automatic car wash (vehicle s with rain-sensing windshield wipers)
Set the wipers to the intermittent windshield wipers. ( P. 248) If AUTO mode is selected, the wipers may operate and the wiper blades may be dam-
aged.
■When using a high pressure car wash
●When washing the vehicle, do not spray the camera or its surrounding area directly
with a high pressure washer. Shock applie d from high pressure water may cause the
device to not operate normally.
●Do not bring the nozzle tip close to boots (rubber or resin manufactured cover), con-
nectors or the following parts. The parts may be damaged if they come into contact
with high-pressure water.
• Traction related parts
• Steering parts
• Suspension parts
• Brake parts

5067-1. Maintenance and care
IS300h_EE(OM53D89E)
●Remove dirt and dust using a vacuum cleaner. Wipe dirty surfaces with a cloth
dampened with lukewarm water.
●If dirt cannot be removed, wipe it off with a soft cloth dampened with neutral
detergent diluted to approximately 1%.
Wring out any excess water from the clot h and thoroughly wipe off remaining
traces of detergent and water.
●Remove dirt using a soft cloth or synthetic chamois dampened in a baking
soda (sodium bicarbonate) solution.
Use a solution of approximately 9% baking soda dissolved in water.
●Wipe the surface with a dry, soft cloth to remove any remaining moisture.
●Remove dirt and dust using a vacuum cleaner.
●Wipe off any excess dirt and dust with a soft cloth dampened with diluted
detergent.
Use a diluted water solution of appr oximately 5% neutral wool detergent.
●Wring out any excess water from the cloth and thoroughly wipe off all remain-
ing traces of detergent.
●Wipe the surface with a dry, soft cl oth to remove any remaining moisture.
Allow the leather to dry in a shaded and ventilated area.
●Remove dirt and dust using a vacuum cleaner.
●Wipe it off with a soft cloth dampened with neutral detergent diluted to
approximately 1%.
●Wring out any excess water from the clot h and thoroughly wipe off remaining
traces of detergent and water.
Cleaning and protecting the vehicle interior
The following procedures will help prot ect your vehicle’s interior and keep it
in top condition:
Protecting the vehicle interior
Cleaning the areas with satin-finish metal accents
Cleaning the leather areas
Cleaning the synthetic leather areas

5077-1. Maintenance and care
7
Maintenance and care
IS300h_EE(OM53D89E)

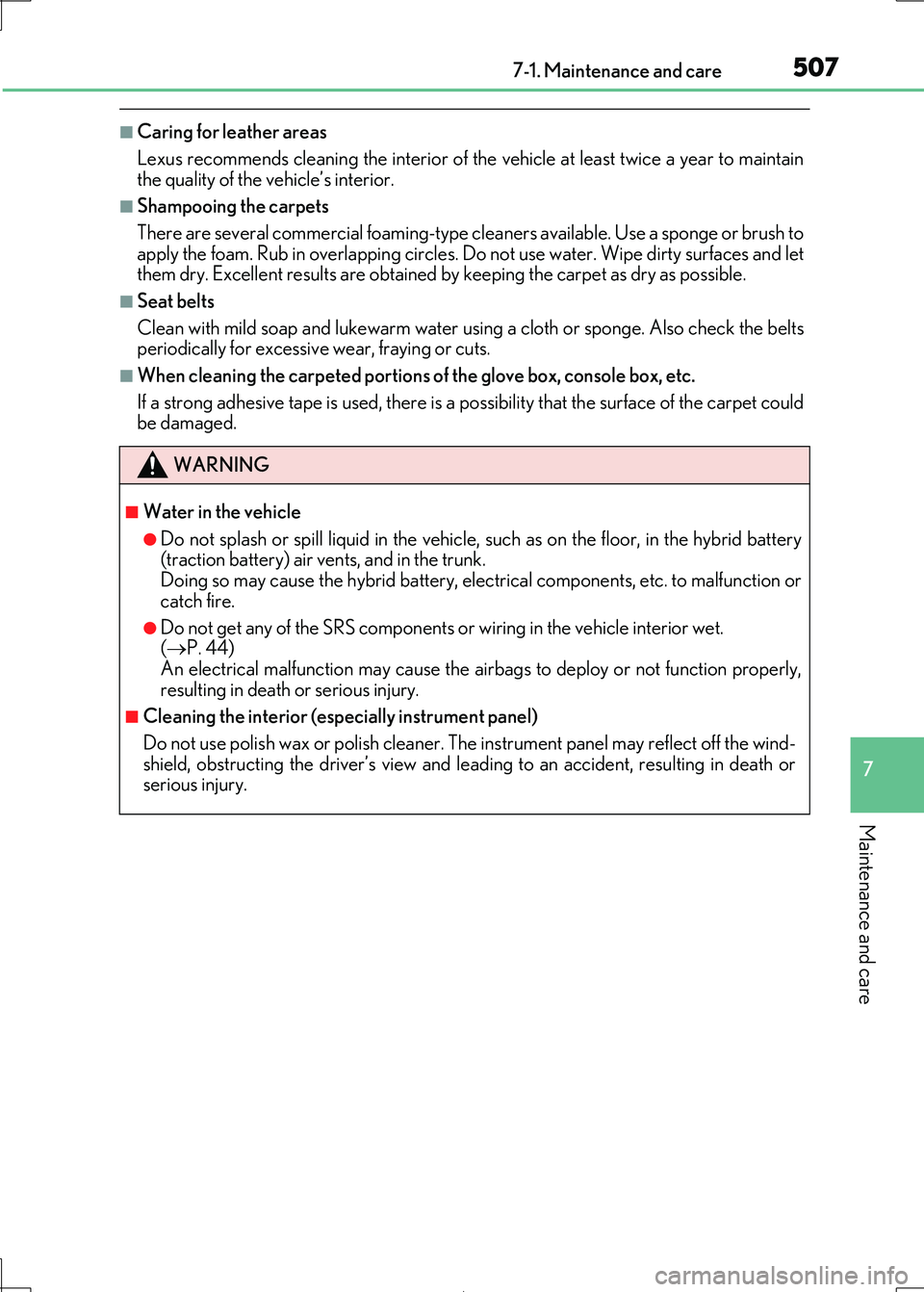

■Caring for leather areas
Lexus recommends cleaning the interior of the vehicle at least twice a year to maintain
the quality of the vehicle’s interior.
■Shampooing the carpets
There are several commercial foaming-type cl eaners available. Use a sponge or brush to
apply the foam. Rub in overlapping circles. Do not use water. Wipe dirty surfaces and let them dry. Excellent results are obtained by keeping the carpet as dry as possible.
■Seat belts
Clean with mild soap and luke warm water using a cloth or sponge. Also check the belts periodically for excessive wear, fraying or cuts.
■When cleaning the carpeted portions of the glove box, console box, etc.
If a strong adhesive tape is used, there is a possibility that the surface of the carpet could be damaged.
WARNING
■Water in the vehicle
●Do not splash or spill liquid in the vehicle, su ch as on the floor, in the hybrid battery (traction battery) air vents, and in the trunk.
Doing so may cause the hybrid battery, elec trical components, etc. to malfunction or
catch fire.
●Do not get any of the SRS components or wiring in the vehicle interior wet.
( P. 44)
An electrical malfunction ma y cause the airbags to deploy or not function properly, resulting in death or serious injury.
■Cleaning the interior (especially instrument panel)
Do not use polish wax or polish cleaner. The instrument panel may reflect off the wind- shield, obstructing the driver’s view and le ading to an accident, resulting in death or
serious injury.

5087-1. Maintenance and care
IS300h_EE(OM53D89E)
NOTICE
■Cleaning detergents
●Do not use the following liquids, as they may discolor the vehicle interior or cause
streaks or damage to painted surfaces:
• Audio system screen: Organic substances such as benzine or gasoline, alkaline solutions, and alcohol
• Seats: Alkaline solutions, organic substances such as thinner or benzine, and alco-
hol • Other parts: Organic substances such as benzine or gasoline, alkaline or acidic
solutions, dye, and bleach
●Do not use polish wax or polish cleaner. The instrument panel’s or other interior part’s
painted surface may be damaged.
■Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of leather
surfaces:
●Remove any dust or dirt from leather surfaces immediately.
●Do not expose the vehicle to direct sunlight for extended periods of time. Park the
vehicle in the shade, especially during summer.
●Do not place items made of vinyl, plastic, or containing wax on the upholstery, as they may stick to the leather surface if the vehicle interior heats up significantly.
■Water on the floor
Do not wash the vehicle floor with water. Vehicle systems such as the audio system ma y be damaged if water comes into contact
with electrical components such as the au dio system above or under the floor of the
vehicle. Water may also cause the body to rust.
■When cleaning the inside of the windshie ld (vehicles with Lexus Safety System+)
Do not allow glass cleaner to contact the lens. Also, do not touch the lens. ( P. 259)
■Cleaning the inside of the rear window
●Do not use glass cleaner to clean the rear window, as this may cause damage to the
rear window defogger heater wires or antenna. Use a cloth dampened with luke-
warm water to gently wipe the window clean. Wipe the window in strokes running parallel to the heater wires or antenna.
●Be careful not to scratch or dama ge the heater wires or antenna.

509
7
Maintenance and care
IS300h_EE(OM53D89E)

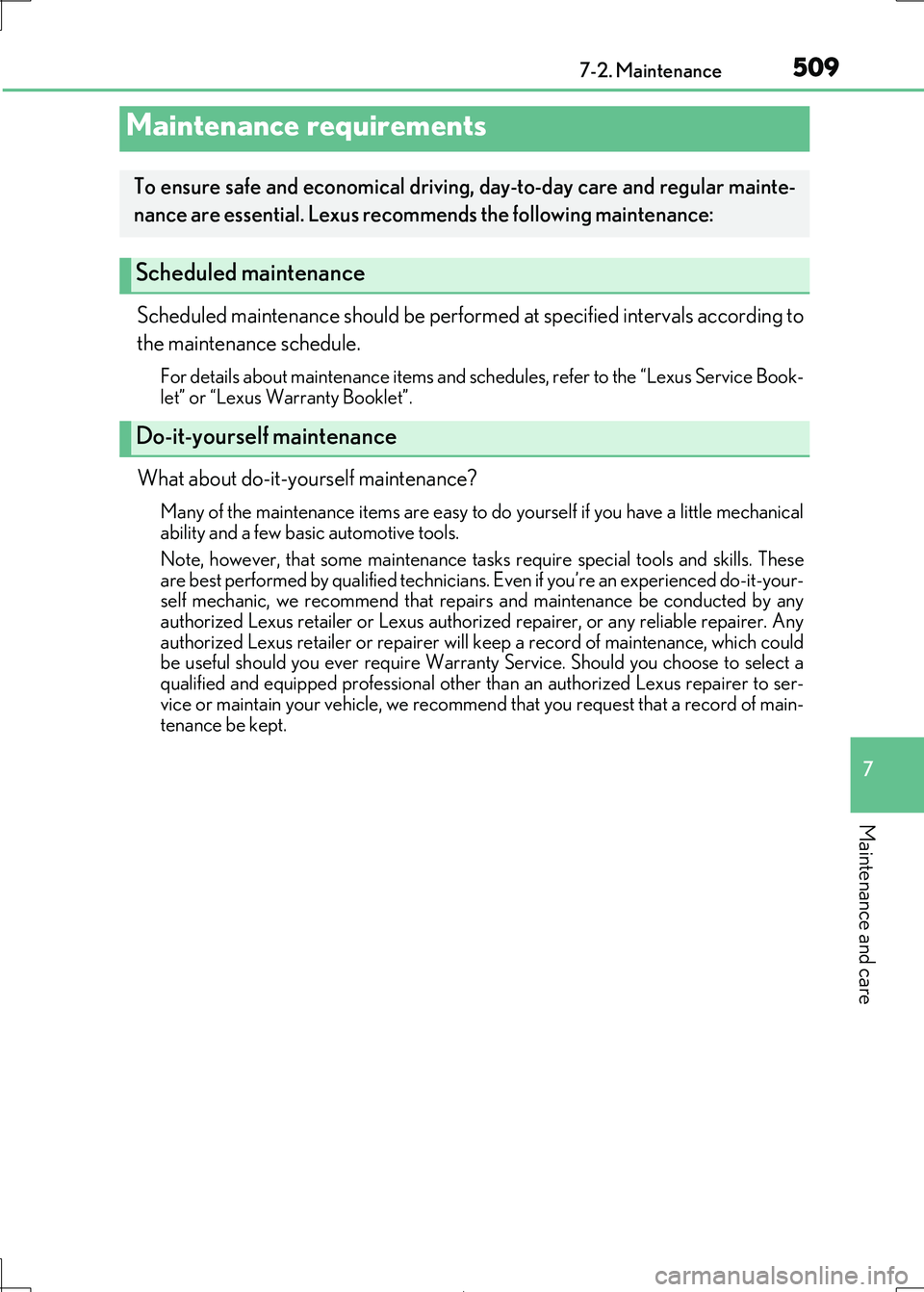

7-2. Maintenance
Scheduled maintenance should be perfor med at specified intervals according to
the maintenance schedule.
For details about maintenance items and schedules, refer to the “Lexus Service Book-
let” or “Lexus Warranty Booklet”.
What about do-it-yourself maintenance?
Many of the maintenance items are easy to do yourself if you have a little mechanical ability and a few basic automotive tools.
Note, however, that some maintenance tasks require special tools and skills. These
are best performed by qualified technicians. Even if you’re an experienced do-it-your- self mechanic, we recommend that repair s and maintenance be conducted by any
authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer. Any
authorized Lexus retailer or re pairer will keep a record of maintenance, which could be useful should you ever require Warrant y Service. Should you choose to select a
qualified and equipped professional other th an an authorized Lexus repairer to ser-
vice or maintain your vehicle, we recommen d that you request that a record of main-
tenance be kept.
Maintenance requirements
To ensure safe and econom ical driving, day-to-day care and regular mainte-
nance are essential. Lexus recommends the following maintenance:
Scheduled maintenance
Do-it-yourself maintenance

5107-2. Maintenance
IS300h_EE(OM53D89E)
■Where to go for maintenance service?
In order to maintain your vehicle in the be st possible condition, Lexus recommends that
maintenance service operations as well as other inspections and repairs be carried out by authorized Lexus reta ilers or Lexus authorized repairers, or any reliable repairers. For
repairs and services covered by your warranty, please visit an authorized Lexus retailer
or repairer, who will use genuine Lexus pa rts in repairing any difficulties you may encounter. There can also be advantages in utilizing authorized Lexus retailers or repair-
ers for non-warranty repairs an d services, as members of the Lexus network will be able
to expertly assist you with an y difficulties you may encounter.
Your authorized Lexus retailer or Lexus author ized repairer, or any reliable repairer will
perform all of the scheduled maintenance on your vehicle reliably and economically due
to their experience with Lexus vehicles.
■Does your vehicle need repairs?
Be on the alert for changes in performance an d sounds, and visual tip-offs that indicate
service is needed. Some important clues are:
●Engine missing, stumbling or pinging
●Appreciable loss of power
●Strange engine noises
●A fluid leak under the vehicle (However, wate r dripping from the air conditioning sys-
tem after use is normal.)
●Change in exhaust sound (This may indicate a dangerous carbon monoxide leak. Drive with the windows open and have the exhaust system checked immediately.)
●Flat-looking tires, excessive tire squeal when cornering, uneven tire wear
●Vehicle pulls to one side when driven straight on a level road
●Strange noises related to suspension movement
●Loss of brake effectiveness, spongy feeling brake pedal, pedal almost touches the floor,
vehicle pulls to one side when braking
●Engine coolant temperature cont inually higher than normal (P. 105)
If you notice any of these clues, take your vehicle to any authorized Lexus retailer or
Lexus authorized re pairer, or any reliable repairer as soon as possible. Your vehicle may need adjustment or repair.
WARNING
■If your vehicle is not properly maintained
Improper maintenance could result in se rious damage to the vehicle and possible death or serious injury.
■Handling of the 12-volt battery
12-volt battery posts, terminals and related accessories contain lead and lead com- pounds which are known to cause brain da mage. Wash your hands after handling.
( P. 522)
