71
●Destination Assist
Destination Assist provides you with live assistance for finding destinations via the Lexus
Enform with Safety Connect response center. You can request either a specific business,
address, or ask for help locating your desired destination by category, such as restau-
rants, gas stations, shopping centers or other points of interest (POI).
After you tell the agent your choice of destination, its coordinates are sent wirelessly to
your vehicle’s navigation system.
●eDestination
With the eDestination feature, you can go online, via the Lexus.com owner’s Web site, to
select and organize destinations of your choice and then wirelessly send them to your
vehicle’s navigation system.
Up to 200 locations can be stored online and accessed or updated at any time. 
Locations can be organized into up to 20 personalized folders.
You must first go online at www.lexus.com/drivers/
to view the Owners site where you
will need to register and log in. After this, personalized folders that contain the locations
to be sent to your vehicle can be created. (See Lexus Enform with Safety Connect Guide
for more information.)
●Lexus Insider
Lexus Insider is an optional service that can send audio messages, or articles, to partici-
pating owners’ vehicles via the navigation system. Potential Lexus Insider subjects might
include, for example, Lexus vehicle technology tips, updates on regional Lexus events, or
audio excerpts from Lexus Magazine articles.
■Subscription
After you have signed the Telematics Subscription Service Agreement and are enrolled,
you can begin receiving services. A variety of subscription terms is available for purchase.
Contact your Lexus dealer, call 1-800-25-LEXUS (1-800-255-3987), or select the “Des-
tination Assist” in your vehicle for further subscription details.
■Function achieved by using DCM
■
Services
Of the functions included with Lexus Enform with Safety Connect, Safety Connect can be
achieved by using DCM.
●Safety Connect (P. 6 8 )

72
XM Satellite Radio
■Subscription
For XM Services requiring a subscription (such as XM Radio), the following paragraph shall
be included.
Required XM Radio monthly subscriptions sold separately after trial period. Subscription
fee is consumer only. All fees and programming subject to change. Subscriptions are sub-
ject to the Customer Agreement available at www.siriusxm.com.
(U.S.A.) or www.xmra-
dio.ca (Canada) XM service only available in the 48 contiguous United States and 10
Canadian provinces.
For more information, program schedules, and to subscribe or extend subscription after
complimentary trial period; more information is available at:
U.S.A. Customers:
Visit www.siriusxm.com
or call 1-877-515-3987
Canadian Customers: 
Visit ww w.xmradio.ca
or call 1-877-438-9677
An XM Satellite Radio is a tuner designed exclusively to receive broadcasts provided
under a separate subscription.
For details, refer to the “Owner’s Manual” and “Navigation System Owner’s Manual”.

What to do if...
73
List of Warning/Indicator Lights
Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.
(U.S.A.)
Brake system warning light
(Canada)
Stop the vehicle immediately.
Charging system warning light
Have the vehicle inspected immediately.
(U.S.A.)Malfunction 
indicator lamp(Flashes)
Pre-collision system warning 
light (if equipped)
(Canada)Slip indicator
SRS warning lightAutomatic headlight leveling
system warning light
(U.S.A.)
ABS warning light(Blinking
and then
continu-
ously on)Tire pressure warning light
(Canada)
Electric power steering 
system warning light
For further information, refer to the Owner’s Manual.

74
What to do if...
Follow the correction procedures.
Open door warning lightMaster warning light
Low fuel level warning light
(Illuminates
without
blinking)Tire pressure warning light*1
Seat belt reminder light
See the Owner’s Manual
Tu r n s i g n a l i n d i c a t o rIntuitive parking assist 
indicator (if equipped)
Headlight indicator (U.S.A.)
(Flashes)
Slip indicator
Tail light indicator (Canada)VSC OFF indicator
Headlight high beam indicator(Flashes
faster)
Pre-collision system warning 
light (if equipped)
Automatic High Beam 
indicator (if equipped) BSM (Blind Spot Monitor) 
outside rear view mirror 
indicators (if equipped)
Fog light indicator 
(if equipped) Security indicator
Cruise control indicatorLow outside temperature 
indicator
Dynamic radar cruise control
indicator (if equipped)Eco Driving Indicator Light
Cruise control “SET” indicatorEco drive mode indicator*2
LDA (Lane Departure Alert) 
indicator (if equipped)

What to do if...
75
*1: It also comes on due to natural causes such as natural air leaks and tire inflation pressure
changes caused by temperature. Adjust the tire inflation pressure to the specified level.
The light will turn off after a few minutes. In case the light does not turn off even if the tire
inflation pressure is adjusted, have the system checked by your Lexus dealer.
*2:Except F SPORT models
*3:F SPORT models
If the engine doesn’t start
Make sure that the correct operating procedures have been followed.
Make sure that the brake pedal is firmly
depressed when attempting to start the
engine.
Eco drive mode indicator*3“SPORT S+” indicator 
(if equipped)
*3
“SPORT” indicator*2Snow mode indicator*2
“SPORT” indicator 
(if equipped)
*3Snow mode indicator*3
“SPORT S” indicator 
(if equipped)
*3“A I R B A G O N / O F F ”
indicator
For further information, refer to the Owner’s Manual.
Brake pedal
If the engine still does not start, see the Owner’s Manual for more information or contact
your Lexus dealer.

76
What to do if...
If the electronic key does not operate properly
■Unlocking and locking the doors
Use the mechanical key in order to perform
the following operations:
Locks all the doors
Closes the windows and moon roof
(turn and hold)
*
Unlocks all the doors
Turning the key rearward unlocks the
driver’s door. Turning the key once
again within 5 seconds unlocks the
other doors.
Opens the windows and moon roof
(turn and hold)
*
*
: This setting must be customized at your
Lexus dealer.
■Unlocking the trunk
Turn the mechanical key clockwise to open.
1
2
3
4

What to do if...
77
■Starting the engine
Ensure that the shift lever is in P and
depress the brake pedal.
Touch the Lexus emblem side of the
electronic key to the engine switch.
When the electronic key is detected, a
buzzer sounds and the engine switch
will turn to IGNITION ON mode.
When the smart access system with
push-button start is deactivated in cus-
tomization setting, the engine switch
will turn to ACCESSORY mode.
Firmly depress the brake pedal and
check that is shown on the
multi-information display.
Press the engine switch.
In the event that the engine still cannot be started, contact your Lexus dealer.
If equipped
1
2
3
4
If the electronic key battery is depleted, a warning message will be shown on the multi-
information display. Replace the battery with a new one. For instructions on replacing the
battery, refer to the “Owner’s Manual”. If you need further assistance, contact your Lexus
dealer.

78

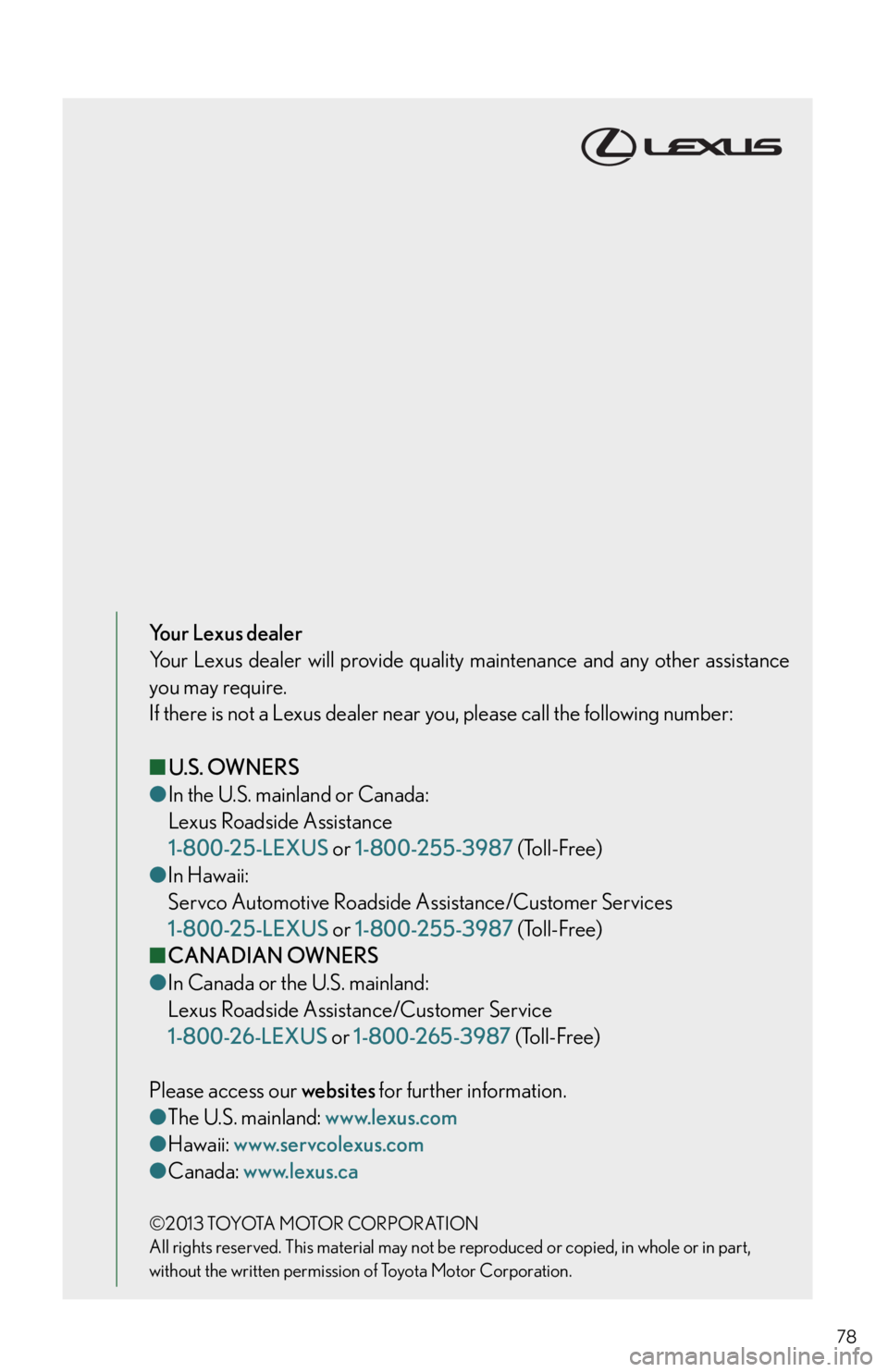

Your Lexus dealer
Your Lexus dealer will provide quality maintenance and any other assistance
you may require.
If there is not a Lexus dealer near you, please call the following number:
■U.S. OWNERS
●In the U.S. mainland or Canada: 
Lexus Roadside Assistance
1-800-25-LEXUS or 1-800-255-3987 (Toll-Free)
●In Hawaii: 
Servco Automotive Roadside Assistance/Customer Services
1-800-25-LEXUS or 1-800-255-3987 (Toll-Free)
■CANADIAN OWNERS
●In Canada or the U.S. mainland: 
Lexus Roadside Assistance/Customer Service
1-800-26-LEXUS or 1-800-265-3987 (Toll-Free)
Please access our websites for further information.
●The U.S. mainland: www.lexus.com
●Hawaii: www.servcolexus.com
●Canada: www.lexus.ca
© 2 0 1 3 TOYOTA M OTO R CO R P O R AT I O N
All rights reserved. This material may not be reproduced or copied, in whole or in part, 
without the written permission of Toyota Motor Corporation.
