tow lexus LC500 2018 Navigation Manual

29
2
-$@-$I@/BWJ@0.&@ &&

2-1. Basic information before operation
Basic function
that button and the Remote Touch
feedback force (vibration) is gener-
ated by the touchpad.
This feedback force can be
adjusted. ( P.56)
 Press the “MENU” button on the
Remote Touch to display the menu
screen. ( P.16)
 The map screen can be displayed by
pressing the “MAP” button on the
Remote Touch. ( P.69)
 When is displayed on the
screen, select or press the
button on the Remote Touch
to return to the previous screen.
●Perform touchpad operations using a fin- ger. Do not use nails or other objects like
pens, etc.
●Perform pointer movement operations
using only one finger. The pointer can not be operated by using more than one fin-ger.
●When water or othe r foreign materials are on the touchpad, a malfunction may
occur. In those cases, wipe off the water or foreign materials and wait about 30 seconds before operating the touchpad.
●In the following cases, there is a possibility that the touchpad may not react nor-
mally: • When wearing gloves, etc.• When operated with a wet hand.
• When a film, paint-like substance, etc., is on the touchpad.• Near a TV tower, electrical power plant,
gas station, large display, airport or other facility that generate s strong radio waves or electrical noise.
• When wireless devices, such as portable radios and mobile phones are nearby.• When the following metal items are
placed on the touchpad: Coins
Keys Metal parts of a wallet or purseA card in which aluminum foil, etc., is
attached A box of cigarettes that uses aluminum foil
Disposable hand warmers Media such as CD/DVDs, USB cables, etc.
• When the temperature is -20°C (-4°F) or less
●If a hand or object was placed on the touchpad when the engine switch is in ACCESSORY or IGNI-
TION ON mode , the touchpad may not react normally. In those cases, remove what was set on the
touchpad and operate it after waiting about 30 seconds. If there still no reac-tion, turn off the engine switch switch> and then turn it to ACCESSORY or IGNITION ON mode again.
●Clean the touchpad frequently, as the reaction of the touch operation may
worsen if the touchpad is dirty. In order to prevent malfunctions when cleaning the touchpad, turn the engine switch switch> off.
Operations are performed by touching
the touchpad with your finger.
NOTICE
●Do not allow the Remote Touch to
come into contact with food, liquid, stickers or lit cigarettes as doing so may cause damage.
●Do not subject the Remote Touch to
excessive pressure or strong impact as doing so may cause damage.
●Do not push the touchpad with a strong force or use a sharp pointed
object to operate the pad, as it is possi- ble to cause damage.
Touchpad gestures

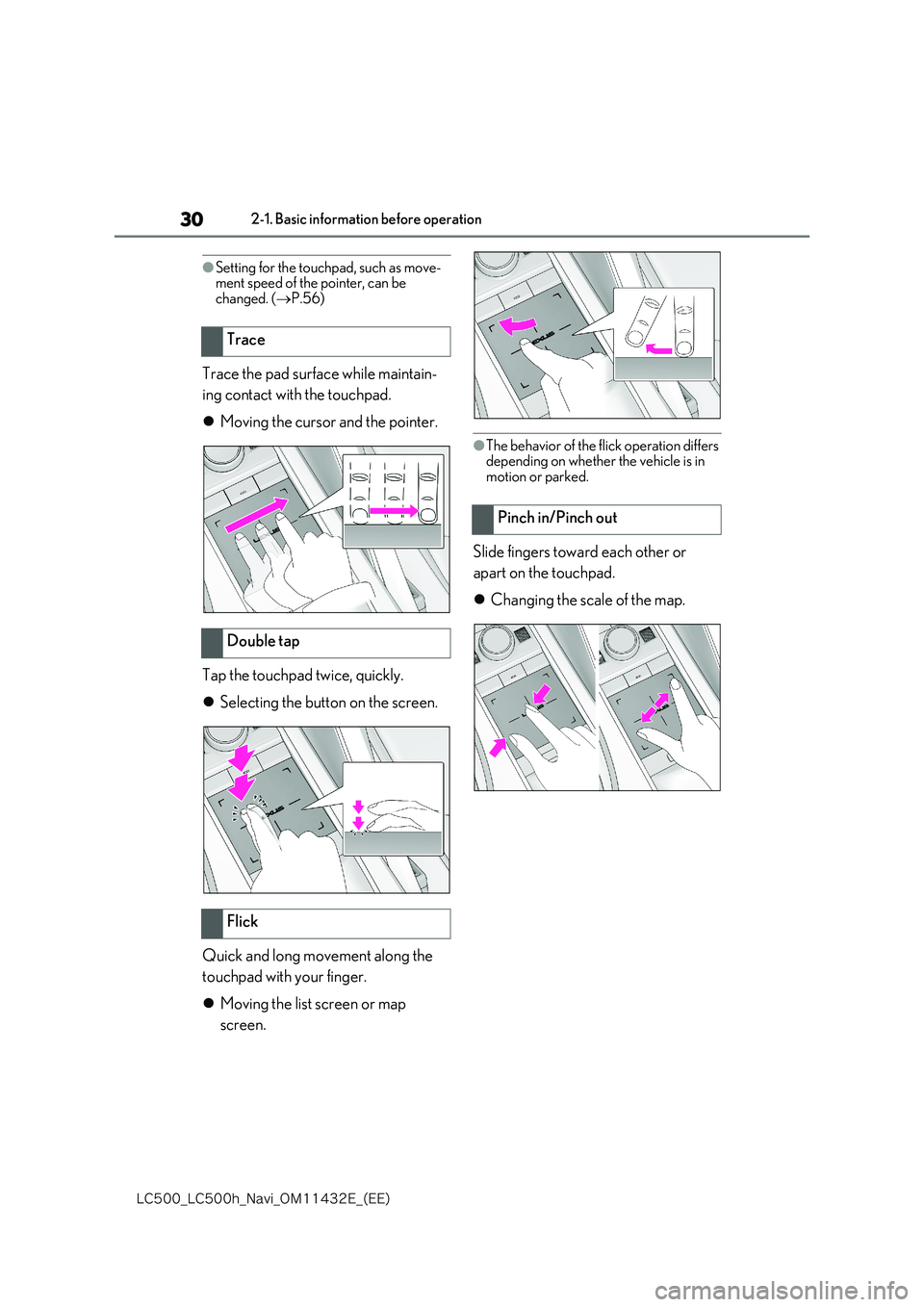

30
-$@-$I@/BWJ@0.&@ &&

2-1. Basic information before operation
●Setting for the touchpad, such as move-
ment speed of the pointer, can be
changed. (P.56)
Trace the pad surface while maintain-
ing contact with the touchpad.
 Moving the cursor and the pointer.
Tap the touchpad twice, quickly.
 Selecting the button on the screen.
Quick and long movement along the
touchpad with your finger.
 Moving the list screen or map
screen.
●The behavior of the flick operation differs
depending on whether the vehicle is in
motion or parked.
Slide fingers toward each other or
apart on the touchpad.
Changing the scale of the map.
Trace
Double tap
Flick
Pinch in/Pinch out

85
3
-$@-$I@/BWJ@0.&@ &&

3-2. Destination search
Navigation system
6Select “Town” or “Code” to enter
the town name or postal code.
7 Select “No.” or “Intersection” to
enter a house number or intersec-
tion name.
 It is not possible to enter a house
number and intersection at the
same time.
8 Select “Calculate”.
●If a unique street name is entered (only 1
in the country), then “Calculate” can also be selected. If “Calculate” is selected when only “Town” or “Code” has been
entered, a route search starts with the centre of the town entered as the destina-
tion.
●When is selected, entered data other
than “Country” will be deleted.
Search for a destination from POI
database in the system.
When the system is connected to the
internet, a web search is available.
1 Press the “MAP” button on the
Remote Touch.
2 Select “Other”.
3 Select “POI”.
4 Enter the POI name and select
“Search”.
Select to change the searching
area. ( P.86)
Select to narrow down the POI cat-
egory. ( P.87)
Select to display the list of previous
search word. ( P.87)
5 Check that the search results are
displayed. Select the desired POI.
Select to display a full list view. The
distance to the POIs can be
checked.
 When button on the Remote
Touch is pressed, the search method
buttons are displayed.
POIs can be searched using web
search.
• For detailed setting about online search:
 P.229
Searching by POIs
A
B
C
A

86
-$@-$I@/BWJ@0.&@ &&

3-2. Destination search
6Select “Go”.
Select to display the Street View.
( P.224)
Select to call the phone number.
• If no Bluetooth® phone is available, this
button is greyed out.
Select to register the entry in the
favourites list. ( P.101)
• If a destination has already been set,
“Replace”, “Add” and “Cancel” will be
displayed.
“Replace”: Select to delete the existing
destination(s) and set a new one.
“Add”: Select to add a destination.
“Cancel”: Select to return to the current
destination.
1 Select “Nearby”, “At destination”,
“Along route”, “In a town” or “Select
on map” on the POI screen.
 The text on this button is always
showing the current search criteria.
2 Select the desired search method.
Select to set the search around the
current position.
Select to set the search around the
destination.
Select to set the search around the
current route.
Select to set the search around the
desired town.
Select to set the point from the
map.
3 If map screen is available, select the
desired point on the map.
4 Enter the POI name and select
“Search” or the list button.
5 Check that the search results are
displayed. Select the desired POI.
6 Select “Go”.
Setting the search area
A
B
C
A
B
C
D
E

168
-$@-$I@/BWJ@0.&@ &&

5-1. Speech command system operation
5-1.Sp eech command sy ste m op eration
●Voice recognition language can be changed. P.56
●This function is compatible with the fol- lowing languages:•English
•French •German•Spanish
• Italian •Dutch•Portuguese
• Polish •Czech•Danish
•Norwegian •Swedish•Finnish
• Russian • Greek•Turkish
•Flemish
■Steering switches for the speech
command system
Talk switch
• Press the talk switch to start the speech
command system.
• Press and hold the talk switch to cancel
the speech command system.
■Microphone
It is unnecessary to speak directly into
the microphone when giving a com-
mand.
Type A
Type B
●Wait for the confirmation beep before speaking a command.
●Speech commands may not be recog-nized if:• Spoken too quickly.
• Spoken at a low or high volume. • The windows are open.• Passengers are talking while speech
commands are spoken. • The air conditioning speed is set high.• The air conditioning vents are turned
towards the microphone.
Speech command system
The speech command system
enables the navigation, audio,
hands-free systems and applica-
tions to be operated using speech
commands.
Using the speech command sys-
tem
A

174
-$@-$I@/BWJ@0.&@ &&

5-2. Mobile Assistant operation
can be adjusted using the
“PWR·VOL” knob or steering wheel
volume control switches. The
Mobile Assistant and phone call vol-
umes are synchronized.
●If the user uses Siri play song feature and
the iPhone is not connected as an audio source, the song will start playing only on the iPhone.
●While a phone call is active, the Mobile Assistant cannot be used.
●If using the navigation feature of the cellu-lar phone, ensure the active audio source
is Bluetooth® audio or iPod in order to hear turn by turn direction prompts.
●Wait for the listening beeps before using the Mobile Assistant.
●The Mobile Assistant may not recognize commands in the following situations:
• Spoken too quickly. • Spoken at a low or high volume.• The roof or windows are open.
• Passengers are talking while the Mobile Assistant is being used.• The air conditioning speed is set high.
• The air conditioning vents are turned toward the microphone.

191
7
-$@-$I@/BWJ@0.&@ &&

7-1. Phone operation (Hands-free system for cellular phones)
Phone
ated. (P.168)
●The other party’s voice will be heard from
the front speakers. The audio/visual sys- tem will be muted during phone calls or when hands-free speech commands are
used.
●Talk alternately with the other party on
the phone. If both parties speak at the same time, the other party may not hear what has been said. (This is not a malfunc-
tion.)
●Keep call volume down. Otherwise, the
other party’s voice may be audible out- side the vehicle and voice echo may increase. When talking on the phone,
speak clearly towards the microphone.
●The other party may not hear you clearly when:• Driving on an unpaved road. (Making
excessive traffic noise.) • Driving at high speeds.• The roof or windows are open.
• The air conditioning vents are pointed towards the microphone.• The sound of the air conditioning fan is
loud. • There is a negative effect on sound qual-ity due to the phone and/or network
being used.
 The following data is stored for
every registered phone. When
another phone is connected, the fol-
lowing registered data cannot be
read:
•Contact data
• Call history data
• Favourites data
•Image data
• All phone settings
• Message settings
●When a phone’s registration is deleted, the above-mentioned data is also
deleted.
A lot of personal data is registered
when the hands-free system is used.
When selling or disposing of the vehi-
cle, initialize the data. ( P.59)
 The following data in the system can
be initialized:
•Contact data
•Call history data
• Favourites data
• Image data
• All phone settings
• Message settings
●Once initialized, the da ta and settings will
be erased. Pay much attention when ini- tializing the data.
About the contacts in the con-
tact list
When selling or disposing of the
vehicle
