sensor lexus LC500 2018 Owner's Guide

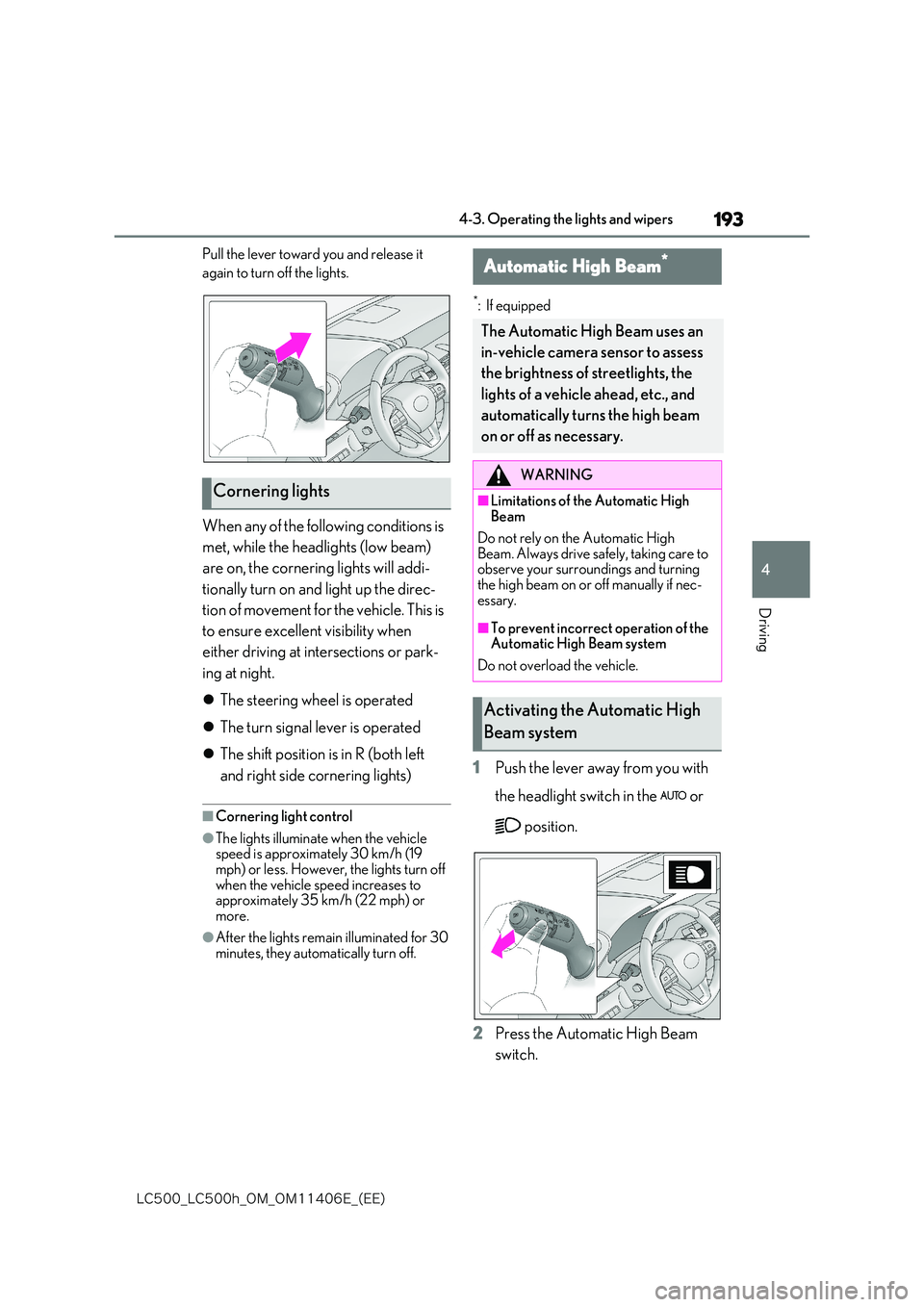

193
4
-$@-$I@0.@0.&@ &&

4-3. Operating the lights and wipers
Driving
Pull the lever toward you and release it
again to turn off the lights.
When any of the following conditions is
met, while the headlights (low beam)
are on, the cornering lights will addi-
tionally turn on and light up the direc-
tion of movement for the vehicle. This is
to ensure excellent visibility when
either driving at intersections or park-
ing at night.
 The steering wheel is operated
 The turn signal lever is operated
 The shift position is in R (both left
and right side cornering lights)
■Cornering light control
●The lights illuminate when the vehicle speed is approximately 30 km/h (19
mph) or less. However, the lights turn off when the vehicle speed increases to approximately 35 km/h (22 mph) or
more.
●After the lights remain illuminated for 30
minutes, they automatically turn off.
*:If equipped
1 Push the lever away from you with
the headlight switch in the or
position.
2 Press the Automatic High Beam
switch.
Cornering lights
Automatic High Beam*
The Automatic High Beam uses an
in-vehicle camera sensor to assess
the brightness of streetlights, the
lights of a vehicle ahead, etc., and
automatically turns the high beam
on or off as necessary.
WARNING
■Limitations of the Automatic High Beam
Do not rely on the Automatic High Beam. Always drive safely, taking care to observe your surroundings and turning
the high beam on or off manually if nec- essary.
■To prevent incorrect operation of the Automatic High Beam system
Do not overload the vehicle.
Activating the Automatic High
Beam system

194
-$@-$I@0.@0.&@ &&

4-3. Operating the lights and wipers
The Automatic High Beam indicator will come on when the headlights are turned on automatically to indicate that the system
is active.
■High beam automatic turning on or off
conditions
●When all of the following conditions are
met, the high beam will be automatically turned on (after approximately 1 second):• Vehicle speed is above approximately 40
km/h (25 mph). • The area ahead of the vehicle is dark.• There are no vehicles ahead with head-
lights or tail lights turned on. • There are few streetlights on the road ahead.
●If any of the following conditions are met, the high beam will be automatically
turned off: • Vehicle speed drops below approxi-mately 30 km/h (19 mph).
• The area ahead of the vehicle is not dark. • Vehicles ahead have headlights or tail lights turned on.
• There are many streetlights on the road ahead.
■Camera sensor detection information
●The high beam may not be automatically turned off in the following situations:• When oncoming vehicles suddenly
appear from a curve • When the vehicle is cut in front of by another vehicle
• When vehicles ahead are hidden from sight due to repeated curves, road divid-ers or roadside trees
• When vehicles ahead appear from the faraway lane on wide road
• When vehicles ahead have no lights
●The high beam may be turned off if a
vehicle ahead that is using fog lights with- out using the headlights is detected.
●House lights, street lights, traffic signals, and illuminated billboards or signs may cause the high beam to switch to the low
beams, or the low beams to remain on.
●The following factors may affect the
amount of time taken to turn the high beam on or off:• The brightness of headlights, fog lights,
and tail lights of vehicles ahead • The movement and direction of vehicles ahead
• When a vehicle ahead only has opera- tional lights on one side• When a vehicle ahead is a two-wheeled
vehicle • The condition of the road (gradient, curve, condition of the road surface etc.)
• The number of passengers and amount of luggage
●The high beam may be turned on or off when the driver does not expect it.
●Bicycles or similar objects may not be detected.
●In the situations shown below, the system may not be able to accurately detect sur-
rounding brightness levels. This may cause the low beams to remain on or the high beams to cause problems for pedes-
trians, vehicles ahead or other parties. In these cases, manually switch between the high and low beams.
• In bad weather (rain, snow, fog, sand- storms etc.)• The windshield is obscured by fog, mist,
ice, dirt etc. • The windshield is cracked or damaged.• The camera sensor is deformed or dirty.
• Surrounding brightness levels are equal to those of headlights, tail lights or fog lights.
• Vehicles ahead have headlights or tail lights that are either switched off, dirty, changing color, or have improperly
adjusted aim. • When driving through an area of inter-mittently changing brightness and dark-

196
-$@-$I@0.@0.&@ &&

4-3. Operating the lights and wipers
Turns the rear fog light on
Releasing the switch ring returns it to .
Operating the switch ring again turns the
rear fog light off.
■Rear fog light can be used when
The headlights are turned on.
Each time the headlights are turned off, the rear fog light is turned off.
Operate the lever and switch as fol-
lows to use the wipers. When AUTO is
selected, the wipers will operate auto-
matically when the sensor detects fall-
ing rain. The system automatically
adjusts wiper timing in accordance
with rain volume and vehicle speed.
Fog light switch
When in difficult driving conditions,
such as in rain and fog, turn on the
rear fog light to notify following
vehicles the existence of your vehi-
cle.
Turning on the rear fog light
Windshield wipers and
washer
Operating the lever can switch
between automatic operation and
manual operation, or can use the
washer.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may dam-
age the windshield.
Operating the wiper lever

197
4
-$@-$I@0.@0.&@ &&

4-3. Operating the lights and wipers
Driving
1 Off
2 Rain-sensing operation
3 Low speed operation
4 High speed operation
5 Temporary operation
When AUTO is selected, the sensor
sensitivity can be adjusted by turning
the switch ring.
6 Increases the sensitivity
7 Decreases the sensitivity
8 Washer/wiper dual operation
The wipers will automatically operate a
couple of times after the washer squirts.
(After operating several times, the wipers
operate once more time after a short delay
to prevent dripping. However, the dripping
prevention does not operate while the
vehicle is moving.)
When the engine switch is
in IGNITION ON mode and
the headlights are on, if the lever is pulled,
the headlight cleaners will operate once.
After this, the headlight cleaners will oper-
ate every 5th time the lever is pulled.
■The windshield wiper and washer can be
operated when
The engine switch

is in
IGNITION ON mode .
■Raindrop sensor
●The raindrop sensor judges the amount
of raindrops. An optical sensor is adopted. It may not operate properly when sunlight from the
rising or setting of the sun intermittently strikes the windshield, or if bugs etc. are present on the windshield.
●If the wiper is turned to AUTO position while the engine switch is
in IGNITION ON mode , the wipers will operate once to show that AUTO mode is activated.
●If the temperature of the raindrop sensor is 85°C (185°F) or higher, or -30°C (-
22°F) or lower, automatic operation may not occur. In this case, operate the wipers in any mode other than AUTO.
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the wind-
shield washer fluid reservoir.

198
-$@-$I@0.@0.&@ &&

4-3. Operating the lights and wipers
■Door opening linked windshield wiper stop function
When AUTO is selected and the wind- shield wipers are operating, if a door is opened, the operation of the windshield
wipers will be stopped to prevent anyone near the vehicle from being sprayed by water from the wipers, provided the vehicle
is stopped. When the door is closed, wiper operation will resume.
■To protect the windshield wipers
If movement of the windshield wipers is largely restricted by a foreign object such as snow, the operation of the windshield wip-
ers may be stopped automatically to pro- tect the windshield wipers. In this case, turn the windshield wiper switch off and remove
the foreign object, and then use the wind- shield wipers.
■When stopping the engine tem> in an emergency while driving
If the windshield wipe rs are operating when
the engine is stopped, the windshield wipers will operate in high speed operation. After the vehicle is stopped,
operation will return to normal when the engine switch is turned to IGNITION ON mode , or
operation will stop when the driver’s door is opened.
■Customization
The rain-sensing operation setting can be changed. (Customizable features: P.423)
When the windshield wipers are not
being used, they retract to below the
hood. To enable the windshield wipers
to be lifted when parking in cold condi-
tions or when replacing a windshield
wiper insert, change th e rest position of
the windshield wipers to the service
WARNING
■Caution regarding the use of wind- shield wipers in AUTO mode
The windshield wipers may operate unexpectedly if the sensor is touched or the windshield is subject to vibration in
AU TO mod e . T ak e c are t ha t you r fin ge rs or anything else do not become caught in the windshield wipers.
■Caution regarding the use of washer
fluid
When it is cold, do not use the washer
fluid until the windshield becomes warm. The fluid may freeze on the windshield and cause low visibility. This may lead to
an accident, resulting in death or serious injury.
NOTICE
■When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled toward
you and held continually.
■When a nozzle becomes blocked
In this case, contact any authorized
Lexus retailer or Lexus authorized repairer, or any reliable repairer. Do not try to clear it with a pin or other
object. The nozzle will be damaged.
Changing the windshield wiper
rest position/Lifting the wind-
shield wipers

204
-$@-$I@0.@0.&@ &&

4-5. Using the driving support systems
• With the consent of the vehicle owner or
with the consent of the lessee if the vehi-
cle is leased
• In response to an official request by the
police, a court of law or a government
agency
• For use by Lexus in a lawsuit
• For research purposes where the data is
not tied to a specific vehicle or vehicle
owner
Two types of sensors, located behind
the front grille and windshield, detect
information necessary to operate the
drive assist systems.
Radar sensor
Camera sensor
Sensors
A
B

208
-$@-$I@0.@0.&@ &&

4-5. Using the driving support systems
WARNING
■To avoid malfunction of the radar sen- sor
Observe the following precautions.
Otherwise, the radar sensor may not
operate properly, possibly leading to an accident resulting in death or serious injury.
●Keep the radar sensor and front grille
emblem clean at all times.
Radar sensor
Front grille emblem
If the front of the radar sensor or the front
or back of the front grille emblem is dirty
or covered with water droplets, snow,
etc., clean it.
Clean the radar sensor and front grille
emblem with a soft cloth so you do not
mark or damage them.
●Do not attach accessories, stickers
(including transparent stickers), or other items to the radar sensor, front grille emblem or surrounding area.
●Do not subject the radar sensor or sur-
rounding area to a strong impact. If the radar sensor, front grille, or front bumper has been subjected to a
strong impact, have the vehicle inspected by any authorized Lexus retailer or Lexus authorized repairer,
or any reliable repairer.
●Do not disassemble the radar sensor.
A
B
●Do not modify or paint the radar sen- sor, front grille emblem or surrounding
area.
●If the radar sensor, front grille, or front bumper needs to be removed and installed, or replaced, contact any
authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer.
■To avoid malfunction of the camera
sensor
Observe the following precautions.
Otherwise, the camera sensor may not operate properly, possibly leading to an
accident resulting in death or serious injury.
●Keep the windshield clean at all times.
• If the windshield is dirty or covered with an oily film, water droplets, snow, etc., clear the windshield.
• If a glass coating agent is applied to the windshield, it will still be necessary to
use the windshield wipers to remove water droplets, etc. from the area of
the windshield in front of the camera sensor.
• If the inner side of the windshield where the camera sensor is installed is dirty, contact any authorized Lexus
retailer or Lexus authorized repairer, or any reliable repairer.
●Do not install an antenna or attach stickers (including transparent stick-
ers) or other items to the area of the windshield in front of the camera sen-sor (shaded area in the illustration).

209
4
-$@-$I@0.@0.&@ &&

4-5. Using the driving support systems
Driving
WARNING
●If the part of the windshield in front of the camera sensor is fogged up or covered with condensation or ice, use
the windshield defogger to remove the fog, condensation or ice. ( P.281)
●If water droplets cannot be properly removed from the area of the wind-
shield in front of the camera sensor by the windshield wipers, replace the wiper insert or wiper blade.
If the wiper inserts or wiper blades need to be replaced, contact any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer.
●Do not attach window tinting to the windshield.
●Replace the windshield if it is damaged
or cracked. If the windshield needs to be replaced, contact any authorized Lexus retailer
or Lexus authorized repairer, or any reliable repairer.
●Do not get the camera sensor wet.
●Do not allow bright lights to shine into the camera sensor.
●Do not dirty or damage the camera
sensor. When cleaning the inside of the wind-shield, do not allow glass cleaner to
contact the lens. Also, do not touch the lens. If the lens is dirty or damaged, contact
any authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer.
●Do not subject the camera sensor to a
strong impact.
●Do not change the installation position or direction of the camera sensor or remove it.
●Do not disassemble the camera sen-
sor.
●Do not install an electronic device or device that emits strong electric waves
near the camera sensor.
●Do not modify any components of the vehicle around the camera sensor (inside rear view mirror, etc.) or ceiling.
●Do not attach any accessories that
may obstruct the camera sensor to the hood, front grille or front bumper. Contact any authorized Lexus retailer
or Lexus authorized repairer, or any reliable repairer for details.
●If a surfboard or other long object is to be mounted on the roof, make sure
that it will not obstruct the camera sen- sor.
●Do not modify the headlights or other lights.

210
-$@-$I@0.@0.&@ &&

4-5. Using the driving support systems
*: If equipped
■Pre-collision warning
When the system determines that the
possibility of a frontal collision is high, a
buzzer will sound and a warning mes-
sage will be displayed on the multi-
information display to urge the driver
to take evasive action.
■Pre-collision brake assist
When the system determines that the
possibility of a frontal collision is high,
the system applies greater braking
force in relation to how strongly the
brake pedal is depressed.
■Pre-collision braking
When the system determines that the
possibility of a frontal collision is high,
the system warns the driver. If the sys-
tem determines that the possibility of a
frontal collision is extremely high, the
brakes are automatically applied to
help avoid the collision or reduce the
collision speed.
■Suspension control
When the system determines that the
possibility of a frontal collision is high,
the Adaptive Variable Suspension sys-
tem ( P.262) will control the damping
force of the shock absorbers to help
maintain an appropriate vehicle pos-
ture.
■Steering control (if equipped)
When the system determines that the
possibility of a frontal collision is high
PCS (Pre-Collision System)*
The pre-collision system uses a
radar sensor and camera sensor to
detect vehicles and pedestrians*1 in
front of your vehicle. When the sys-
tem determines that the possibility
of a frontal collision with a vehicle
or pedestrian is high, a warning
operates to urge the driver to take
evasive action and the potential
brake pressure is increased to help
the driver avoid the collision. If the
system determines that the possi-
bility of a frontal collision with a
vehicle or pedestrian is extremely
high, the brakes are automatically
applied to help avoid the collision or
help reduce the impact of the colli-
sion.
The pre-collision system can be dis-
abled/enabled and the warning tim-
ing can be changed. ( P.212)
*1: Depending on the region in which
the vehicle was sold, the pedestrian
detection function may not be avail-
able. Contact any authorized Lexus
retailer or Lexus authorized repairer,
or any reliable repairer for details.
System functions

212
-$@-$I@0.@0.&@ &&

4-5. Using the driving support systems
■Enabling/disabling the pre-colli-
sion system
The pre-collision system can be
enabled/disabled on ( P.92) of
the multi-information display.
The system is automatically enabled each
time the engine switch is
turned to IGNITION ON mode mode>.
If the system is disabled, the PCS warn-
ing light will turn on and a message will
be displayed on the multi-information
display.
■Changing the pre-collision warn-
ing timing
The pre-collision warning timing can
be changed on ( P.92) of the
multi-information display.
The operation timing setting is retained
when the engine switch is
turned off.
1 Far
The warning will begin to operate earlier
than with the default timing.
WARNING
●When inspecting the vehicle using a drum tester such as a chassis dyna-mometer or speedo meter tester, or
when using an on vehicle wheel bal- ancer
●When a strong impact is applied to the front bumper or front grille, due to an
accident or other reasons
●If the vehicle cannot be driven in a sta- ble manner, such as when the vehicle has been in an accident or is malfunc-
tioning
●When the vehicle is driven in a sporty manner or off-road
●When the tires are not properly inflated
●When the tires are very worn
●When tires of a size other than speci-
fied are installed
●When tire chains are installed
●When a compact spare tire or an emergency tire puncture repair kit is used
●If equipment (snow plow, etc.) that may
obstruct the radar sensor or camera sensor is temporarily installed to the vehicle
Changing settings of the pre-col-
lision safety system
