lexus LC500 2018 Owner's Manual

341
6
-$@-$I@0.@0.&@ &&

6-3. Do-it-yourself maintenance
Maintenance and care
2Slightly loosen the wheel nuts (one
turn).
3 Turn the tire jack portion by
hand until the notch of the jack is in
contact with the jack point.
The jack point guides are located under the rocker panel. They indicate the jack
point positions.
4 Raise the vehicle until the tire is
slightly raised off the ground.
5 Remove all the wheel nuts and the
tire.
When resting the tire on the ground, place
the tire so that the wheel design faces up to avoid scratching the wheel surface.
1 Remove any dirt or foreign matter
from the wheel contact surface.
TireWheel chock positions
Front left-
hand side
Behind the rear right-hand
side tire
Front right-
hand side
Behind the rear left-hand
side tire
Rear left-
hand side
In front of the front right-
hand side tire
Rear right-
hand side
In front of the front left-hand
side tire
A
WARNING
■Replacing a tire
Do not touch the disc wheels or the area around the brakes immediately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around the brakes will be extremely hot. Touching these
areas with hands, feet or other body parts while changing a tire, etc. may result in burns.
Installing the tire

342
-$@-$I@0.@0.&@ &&

6-3. Do-it-yourself maintenance
If foreign matter is on the wheel contact surface, the wheel nuts may loosen while the vehicle is in motion, causing the tire to
come off.
2 Install the tire and loosely tighten
each wheel nut by hand by approxi-
mately the same amount.
Turn the wheel nuts until the washers come
into contact with the disc wheel.
Disc wheel
Washer
3 Lower the vehicle.
4 Firmly tighten each wheel nut two
or three times in the order shown in
the illustration.
Tightening torque: 140 N•m (14.3 kgf•m, 103.3 ft•lbf)
5 Stow the jack and all tools.
A
B

343
6
-$@-$I@0.@0.&@ &&

6-3. Do-it-yourself maintenance
Maintenance and care

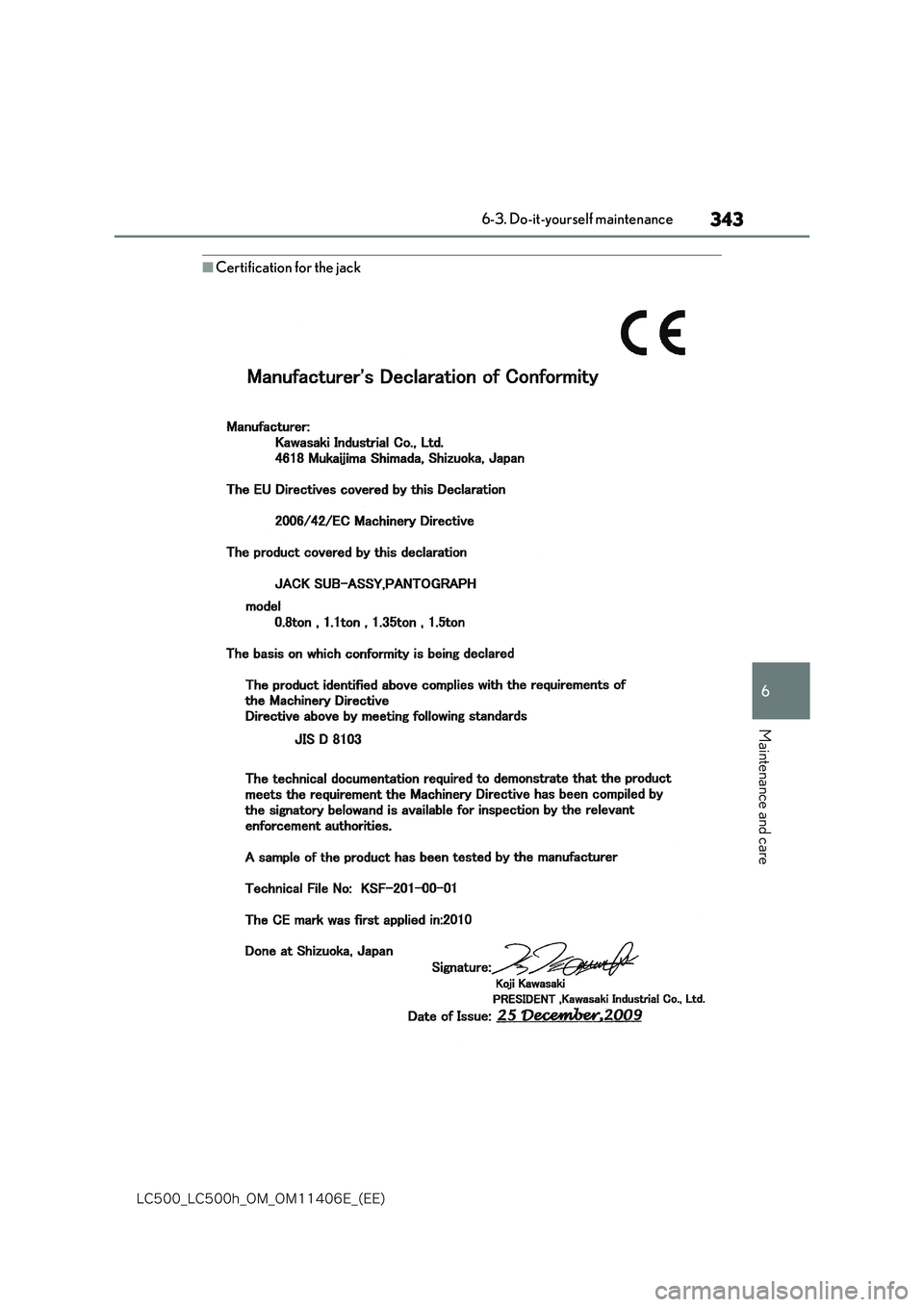

■Certification for the jack

344
-$@-$I@0.@0.&@ &&

6-3. Do-it-yourself maintenance
WARNING
■When installing the tire
Failure to follow these precautions could cause the wheel nuts to loosen and the tire to fall off, resulting in death or serious
injury.
●Never use oil or grease on the wheel bolts or wheel nuts.Oil and grease may cause the wheel
nuts to be excessively tightened, lead- ing to bolt or disc wheel damage. In addition, the oil or grease can cause
the wheel nuts to loosen and the wheel may fall off, causing a serious accident. Remove any oil or grease from the
wheel bolts or wheel nuts.
●Have the wheel nuts tightened with a torque wrench to 140 N•m (14.3 kgf•m, 103.3 ft•lbf) as soon as possible
after changing wheels.
●Do not attach a heavily damaged wheel ornament, as it may fly off the wheel while the vehicle is moving.
●When installing a ti re, only use wheel
nuts that have been specifically designed for that wheel.
●If there are any cracks or deformations in the bolt screws, nut threads or bolt
holes of the wheel, have the vehicle inspected by any authorized Lexus retailer or Lexus authorized repairer,
or any reliable repairer.
■After using the tools and jack
Before driving, make sure all the tools and jack are stored securely in place. Failure to do so may cause injury in case
of a collision or sudden braking.
NOTICE
■Repairing or replacing tires, wheels, tire pressure warning valves, trans-mitters and tire valve caps
 P.335

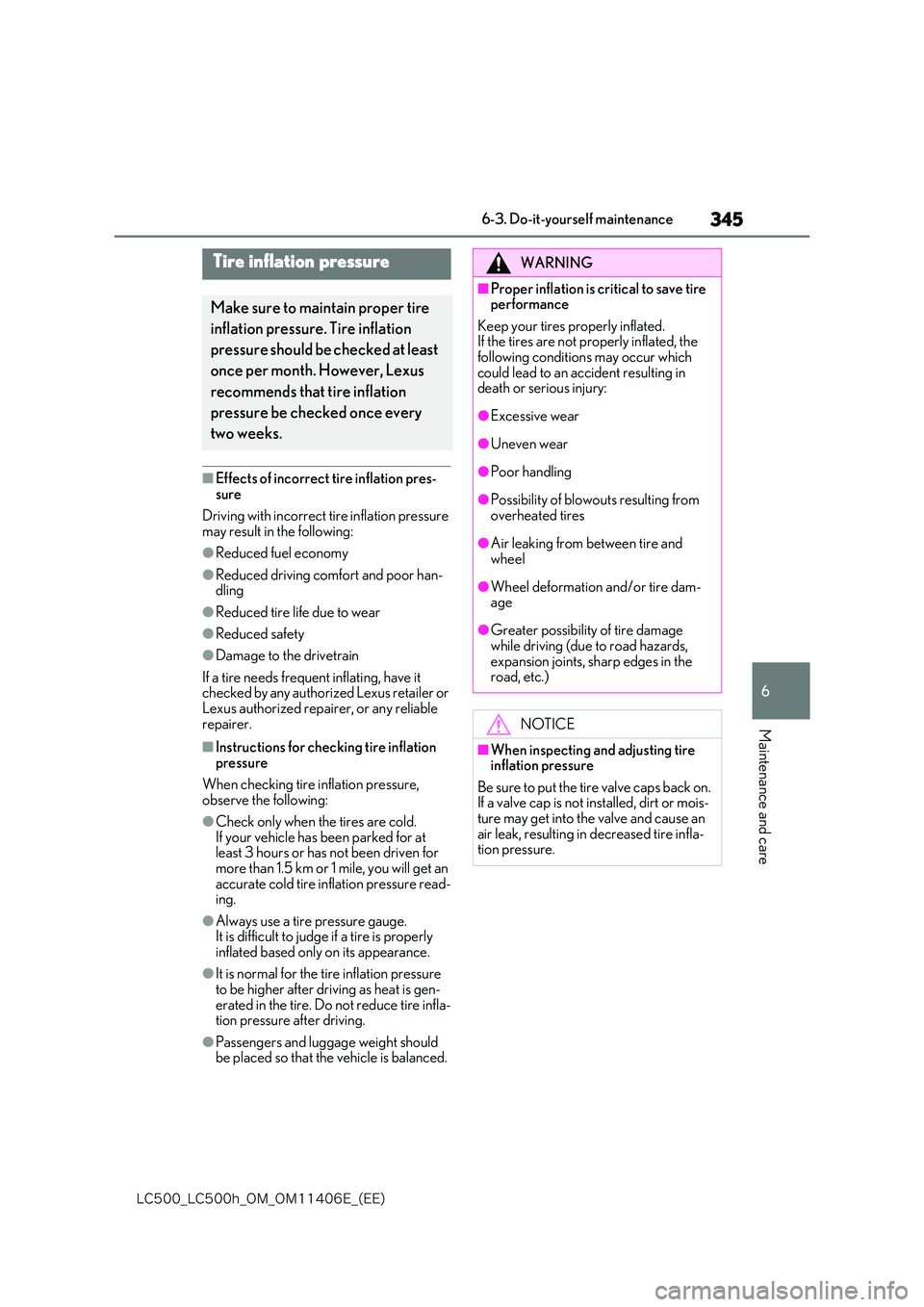

345
6
-$@-$I@0.@0.&@ &&

6-3. Do-it-yourself maintenance
Maintenance and care
■Effects of incorrect tire inflation pres- sure
Driving with incorrect tire inflation pressure may result in the following:
●Reduced fuel economy
●Reduced driving comfort and poor han-dling
●Reduced tire life due to wear
●Reduced safety
●Damage to the drivetrain
If a tire needs frequent inflating, have it checked by any authorized Lexus retailer or Lexus authorized repairer, or any reliable
repairer.
■Instructions for checking tire inflation pressure
When checking tire inflation pressure, observe the following:
●Check only when the tires are cold.If your vehicle has been parked for at least 3 hours or has not been driven for
more than 1.5 km or 1 mile, you will get an accurate cold tire inflation pressure read-ing.
●Always use a tire pressure gauge.It is difficult to judge if a tire is properly
inflated based only on its appearance.
●It is normal for the tire inflation pressure
to be higher after driving as heat is gen- erated in the tire. Do not reduce tire infla-tion pressure after driving.
●Passengers and luggage weight should be placed so that the vehicle is balanced.
Tire inflation pressure
Make sure to maintain proper tire
inflation pressure. Tire inflation
pressure should be checked at least
once per month. However, Lexus
recommends that tire inflation
pressure be checked once every
two weeks.
WARNING
■Proper inflation is critical to save tire performance
Keep your tires properly inflated. If the tires are not properly inflated, the following conditions may occur which
could lead to an accident resulting in death or serious injury:
●Excessive wear
●Uneven wear
●Poor handling
●Possibility of blowouts resulting from overheated tires
●Air leaking from between tire and
wheel
●Wheel deformation and/or tire dam- age
●Greater possibility of tire damage while driving (due to road hazards,
expansion joints, sh arp edges in the road, etc.)
NOTICE
■When inspecting and adjusting tire inflation pressure
Be sure to put the tire valve caps back on. If a valve cap is not installed, dirt or mois-
ture may get into the valve and cause an air leak, resulting in decreased tire infla-tion pressure.

346
-$@-$I@0.@0.&@ &&

6-3. Do-it-yourself maintenance
When replacing wheels, care should
be taken to ensure that they are equiv-
alent to those removed in load capac-
ity, diameter, rim width and inset*.
Replacement wheels are available at
any authorized Lexus retailer or Lexus
authorized repairer, or any reliable
repairer.
*: Conventionally referred to as offset.
Lexus does not recommend using the
following:
 Wheels of different sizes or types
 Used wheels
 Bent wheels that have been straight-
ened
■When replacing wheels
The wheels of your vehicle are equipped with tire pressure warning valves and trans-
mitters that allow the tire pressure warning system to provide advance warning in the event of a loss in tire inflation pressure.
Whenever wheels are replaced, tire pres- sure warning valves and transmitters must be installed. ( P.335)Use only Lexus wheel nuts and
wrenches designed for use with
your aluminum wheels.
 When rotating, repairing or chang-
Wheels
If a wheel is bent, cracked or heavily
corroded, it should be replaced.
Otherwise, the tire may separate
from the wheel or cause a loss of
handling control.
Wheel selection
WARNING
■When replacing wheels
●Do not use wheels that are a different
size from those recommended in the Owner’s Manual, as this may result in a loss of handling control.
●Never use an inner tube in a leaking
wheel which is designed for a tubeless tire. Doing so may result in an acci-dent, causing death or serious injury.
■Use of defective wheels prohibited
Do not use cracked or deformed wheels.
Doing so could cause the tire to leak air during driving, possibly causing an acci-dent.
NOTICE
■Replacing tire pressure warning
valves and transmitters
●Because tire repair or replacement
may affect the tire pressure warning valves and transmitters, make sure to have tires serviced by any authorized
Lexus retailer or Lexus authorized repairer, or any reliable repairer or other qualified service shop. In addi-
tion, make sure to purchase your tire pressure warning valves and transmit-ters at any authorized Lexus retailer or
Lexus authorized repairer, or any reli- able repairer.
●Ensure that only genuine Lexus wheels are used on your vehicle.
Tire pressure warning valves and trans- mitters may not work properly with non-genuine wheels.
Aluminum wheel precautions

347
6
-$@-$I@0.@0.&@ &&

6-3. Do-it-yourself maintenance
Maintenance and care
ing your tires, check that the wheel
nuts are still tight after driving 1600
km (1000 miles).
 Be careful not to damage the alumi-
num wheels when using tire chains.
 Use only Lexus genuine balance
weights or equivalent and a plastic
or rubber hammer when balancing
your wheels.
1 Turn the engine switch switch> off.
2 Open the glove box.
3 Remove the panel.
4 Unlock the filter cover ( ), pull
the filter cover out of the claws
( ), and remove the filter cover.
Air conditioning filter
The air conditioning filter must be
changed regularly to maintain air
conditioning efficiency.
Removing the air conditioning
filter
A
B

348
-$@-$I@0.@0.&@ &&

6-3. Do-it-yourself maintenance

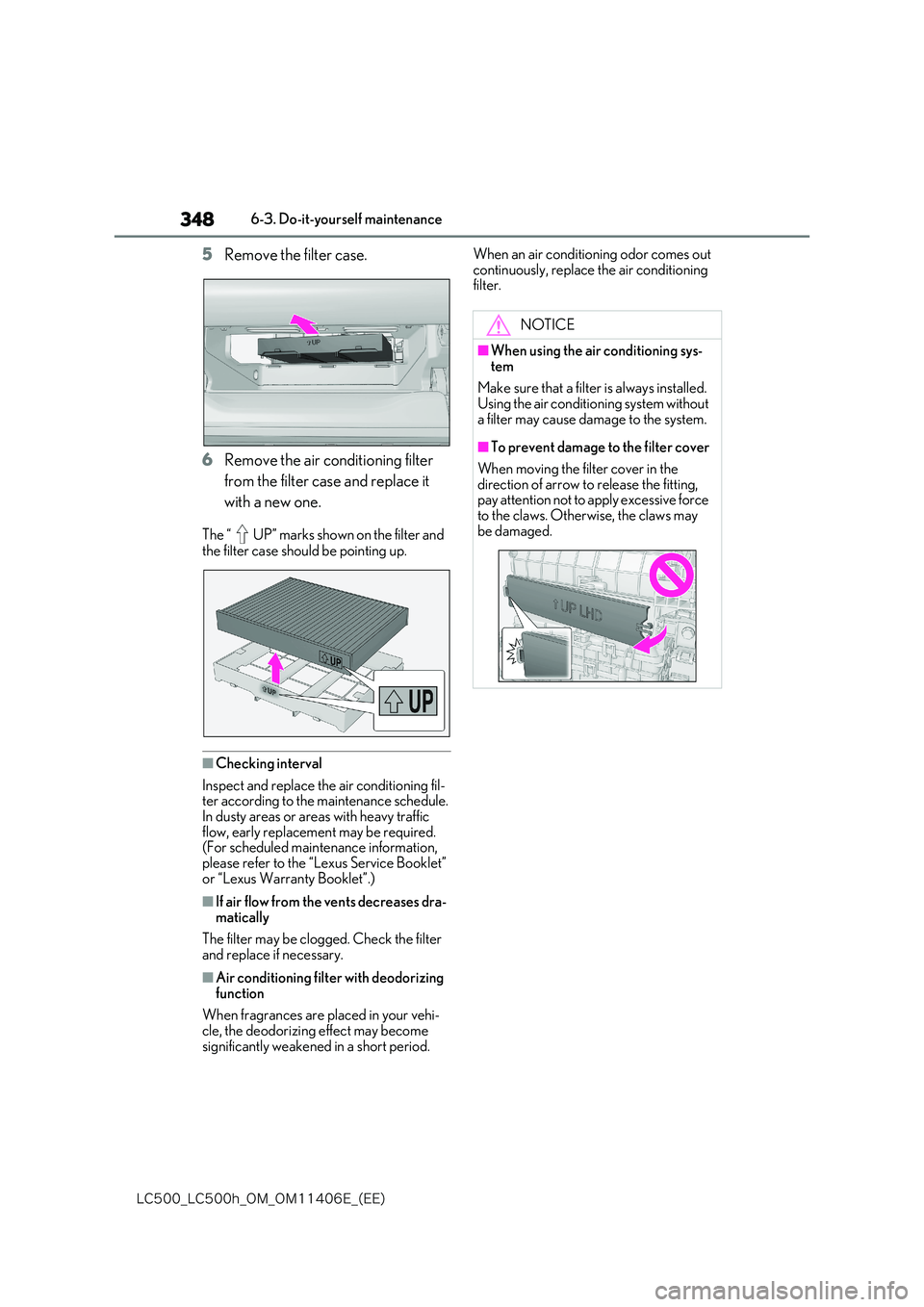

5Remove the filter case.
6 Remove the air conditioning filter
from the filter case and replace it
with a new one.
The “ UP” marks shown on the filter and
the filter case should be pointing up.
■Checking interval
Inspect and replace the air conditioning fil- ter according to the maintenance schedule. In dusty areas or areas with heavy traffic
flow, early replacement may be required. (For scheduled maintenance information, please refer to the “Lexus Service Booklet”
or “Lexus Warranty Booklet”.)
■If air flow from the vents decreases dra- matically
The filter may be clogged. Check the filter and replace if necessary.
■Air conditioning filter with deodorizing function
When fragrances are placed in your vehi- cle, the deodorizing effect may become
significantly weakened in a short period.
When an air conditioning odor comes out continuously, replace the air conditioning filter.
NOTICE
■When using the air conditioning sys-tem
Make sure that a filter is always installed. Using the air conditioning system without
a filter may cause damage to the system.
■To prevent damage to the filter cover
When moving the filter cover in the
direction of arrow to release the fitting, pay attention not to apply excessive force to the claws. Otherwise, the claws may
be damaged.

349
6
-$@-$I@0.@0.&@ &&

6-3. Do-it-yourself maintenance
Maintenance and care

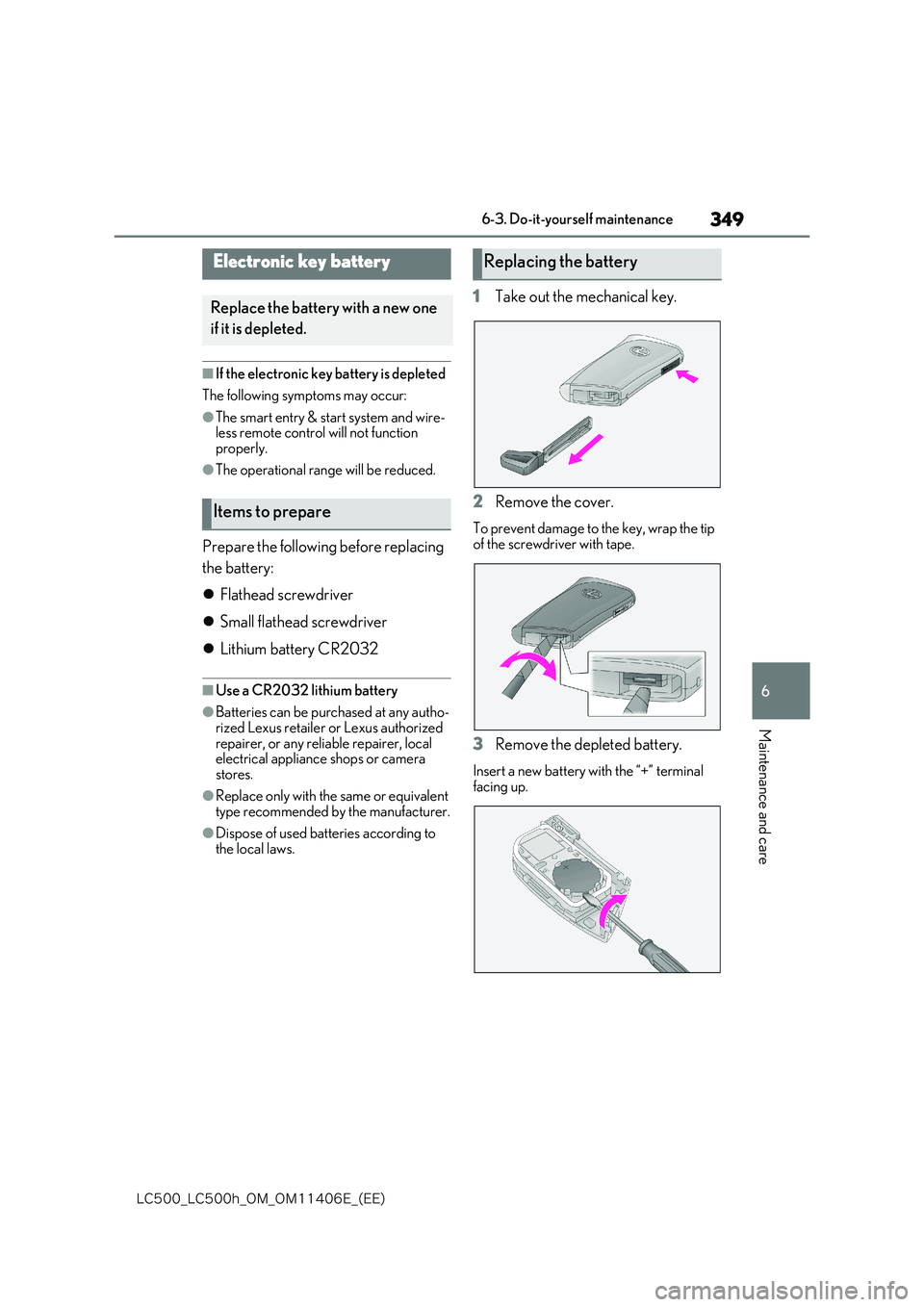

■If the electronic key battery is depleted
The following symptoms may occur:
●The smart entry & start system and wire- less remote control will not function properly.
●The operational range will be reduced.
Prepare the following before replacing
the battery:
 Flathead screwdriver
 Small flathead screwdriver
 Lithium battery CR2032
■Use a CR2032 lithium battery
●Batteries can be purchased at any autho-
rized Lexus retailer or Lexus authorized repairer, or any reliable repairer, local electrical appliance shops or camera
stores.
●Replace only with the same or equivalent
type recommended by the manufacturer.
●Dispose of used batteries according to
the local laws.
1 Take out the mechanical key.
2 Remove the cover.
To prevent damage to the key, wrap the tip
of the screwdriver with tape.
3 Remove the depleted battery.
Insert a new battery with the “+” terminal
facing up.
Electronic key battery
Replace the battery with a new one
if it is depleted.
Items to prepare
Replacing the battery

350
-$@-$I@0.@0.&@ &&

6-3. Do-it-yourself maintenance
1Turn the engine switch switch> off.
2 Open the fuse box cover.
Engine compartment: type A fuse
box (LC500)
Left-hand drive vehicles:
Push the tab in and lift the lid off.
Right-hand drive vehicles:
Push the tab in and lift the lid off.
WARNING
■Removed battery and other parts
These parts are small and if swallowed by
a child, they can cause choking. Keep away from children. Failure to do so could result in death or serious injury.
■Certification for the electronic key
battery
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
NOTICE
■When replacing the battery
Use a screwdriver of appropriate size. Applying excessive force may deform or
damage the cover.
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
●Always work with dry hands.Moisture may cause the battery to rust.
●Do not touch or move any other com-
ponent inside the remote control.
●Do not bend either of the battery ter- minals.
Checking and replacing
fuses
If any of the electrical components
do not operate, a fuse may have
blown. If this happens, check and
replace the fuses as necessary.
Checking and replacing fuses
