lexus LC500 2018 Owner's Manual

411
8
-$@-$I@0.@0.&@ &&

8-1. Specifications
Vehicle specifications
This number is also on the manufac-
turer’s label.
■Engine number
The engine number is located as
shown.
LC500
LC500h
LC500
LC500h
Engine
Model2UR-GSE
Type8-cylinder V type, 4-cycle, gasoline
Bore and stroke94.0  89.5 mm (3.70  3.52 in.)
Displacement4969 cm3 (303.2 cu.in.)
Drive belt tensionAutomatic adjustment
Model8GR-FXS
Type6-cylinder V type, 4-cycle, gasoline

412
-$@-$I@0.@0.&@ &&

8-1. Specifications
*: If unleaded gasoline with an octane rating of 98 RON is not available, unleaded gasoline
with an octane rating of 95 RON may be used with no detriment to engine durability or
driveability.
Bore and stroke94.0  83.0 mm (3.7  3.3 in.)
Displacement3456 cm3 (210.9 cu.in.)
Drive belt tensionAutomatic adjustment
Fuel
Fuel type
When you find these types of fuel label at the
gas station, use only the fuel with one of the fol-
lowing labels.

EU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane NumberLC50098 or higher*
LC500h95 or higher
Fuel tank capacity (Reference)82 L (21.7 gal., 18.0 Imp.gal.)
Electric motor (traction motor) (LC500h)
TypePermanent magnet synchronous motor
Maximum output131.9 kW
Maximum torque300 N•m (30.6 kgf•m, 221.3 ft•lbf)
Hybrid battery (traction battery) (LC500h)
TypeLithium-ion battery
Voltage3.7 V/cell

413
8
-$@-$I@0.@0.&@ &&

8-1. Specifications
Vehicle specifications
LC500
■Oil capacity (Drain and refill [Ref-
erence*])
*: The engine oil capacity is a reference
quantity to be used when changing the
engine oil. Warm up and turn off the
engine, wait more than 5 minutes, and
check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in
your Lexus vehicle. Lexus recom-
mends the use of approved “Toyota
Genuine Motor Oil”. Another motor
oil of matching quality can also be
used.
Oil grade:
5W-30 and 10W-30:
API grade SL “Energy-Conserving”,
SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC
multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade
engine oil
Recommended viscosity (SAE):
SAE 5W-30 is filled into your Lexus
vehicle at manufacturing, and the best
choice for good fuel economy and
good starting in cold weather.
If you use SAE 10W-30 or a higher vis-
cosity engine oil in extremely low tem-
peratures, the engine may become
difficult to start, so SAE 5W-30 engine
oil is recommended.
Temperature range anticipated
before next oil change.
Preferred
Oil viscosity (5W-30 is explained here
as an example):
• The 5W in 5W-30 indicates the
characteristic of the oil which allows
cold startability. Oils with a lower
value before the W allow for easier
starting of the engine in cold
weather.
• The 30 in 5W-30 indicates the vis-
cosity characteristic of the oil when
the oil is at high temperature. An oil
with a higher viscosity (one with a
Capacity3.6 Ah
Quantity84 cells
Overall voltage310.8 V
Lubrication system
With filter8.6 L (9.1 qt., 7.6 Imp.qt.)
Without filter7.9 L (8.4 qt., 7.0 Imp.qt.)
A
B

414
-$@-$I@0.@0.&@ &&

8-1. Specifications
higher value) may be better suited if
the vehicle is operated at high
speeds, or under extreme load con-
ditions.
How to read oil container labels:
Either or both API registered marks
are added to some oil containers to
help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN” means the
oil quality designation by American Petro-
leum Institute (API).
Center portion: “SAE 5W-30” means the
SAE viscosity grade.
Lower portion: “Resource-Conserving”
means that the oil has fuel-saving and envi-
ronmental protection capabilities.
ILSAC Certification Mark
The International Lubr icant Specification
Advisory Committee (ILSAC) Certifica-
tion Mark is displayed on the front of the
container.
LC500h
■Oil capacity (Drain and refill [Ref-
erence*])
*: The engine oil capacity is a reference
quantity to be used when changing the
engine oil. Warm up the engine and turn
off the hybrid system, wait more than 5
minutes, and check the oil level on the
dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in
your Lexus vehicle. Lexus recom-
mends the use of approved “Toyota
Genuine Motor Oil”. Another motor
oil of matching quality can also be
used.
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”,
SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC
multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade
engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your Lexus
vehicle at manufacturing, and the best
choice for good fuel economy and
good starting in cold weather.
If SAE 0W-20 oil is not available, SAE
5W-30 oil may be used. However, it
should be replaced with SAE 0W-20
at the next oil change.
If you use SAE 10W-30 or a higher vis-
cosity engine oil in extremely low tem-
peratures, the engine may become
difficult to start, so SAE 0W-20 or
5W-30 engine oil is recommended.With filter5.7 L (6.0 qt., 5.0 Imp.qt.)
Without filter5.5 L (5.8 qt., 4.8 Imp.qt.)
A
B

415
8
-$@-$I@0.@0.&@ &&

8-1. Specifications
Vehicle specifications
Temperature range anticipated
before next oil change.
Preferred
Oil viscosity (0W-20 is explained here
as an example):
• The 0W in 0W-20 indicates the
characteristic of the oil which allows
cold startability. Oils with a lower
value before the W allow for easier
starting of the engine in cold
weather.
• The 20 in 0W-20 indicates the vis-
cosity characteristic of the oil when
the oil is at high temperature. An oil
with a higher viscosity (one with a
higher value) may be better suited if
the vehicle is operated at high
speeds, or under extreme load con-
ditions.
How to read oil container labels:
Either or both API registered marks
are added to some oil containers to
help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN” means the
oil quality designation by American Petro-
leum Institute (API).
Center portion: “SAE 0W-20” means the
SAE viscosity grade.
Lower portion: “Resource-Conserving”
means that the oil has fuel-saving and envi-
ronmental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification
Advisory Committee (ILSAC) Certifica-
tion Mark is displayed on the front of the
container.
A
B
A
B

416
-$@-$I@0.@0.&@ &&

8-1. Specifications
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact any auth orized Lexus retailer or Lexus authorized
repairer, or any reliable repairer.
■Spark plug
■12-volt battery
Cooling system
Capacity*
LC50012.1 L (12.8 qt., 10.6 Imp.qt.)
LC500h
Gasoline engine
10.9 L (11.5 qt., 9.6 Imp.qt.)
Power control unit
2.3 L (2.4 qt., 2.0 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili-
cate, non-amine, non-nitrite, and non-borate coolant
with long-life hybrid organic acid technology
Do not use plain water alone.
Ignition system
LC500LC500h
MakeDENSO FK20HBR-J8DENSO FK20HBR8
Gap0.8 mm (0.031 in.)0.8 mm (0.031 in.)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system
Specific gravity reading at 20°C
(68°F):1.250 or higher

417
8
-$@-$I@0.@0.&@ &&

8-1. Specifications
Vehicle specifications
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact any auth orized Lexus retailer or Lexus authorized
repairer, or any reliable repairer.
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact any auth orized Lexus retailer or Lexus authorized
repairer, or any reliable repairer.
Charging rates:
Quick charge
Slow charge
15 A max.
5 A max.
Automatic transmission (LC500)
Fluid capacity*8.8 L (9.3 qt., 7.7 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■Automatic transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration in
shift quality, locking up of your transmission accompanied by vibration, and ultimately damage the transmission of your vehicle.
Hybrid transmission (LC500h)
Fluid capacity*6.8 L (7.2 qt., 6.0 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration in shift quality, locking up of your transmission accompanied by vibration, and ultimately damage the transmission of your vehicle.

418
-$@-$I@0.@0.&@ &&

8-1. Specifications
*: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory.
Use Lexus approved “Toyota Genuine Differentia l Gear Oil” or an equivalent of match-
ing quality to satisfy the above specification. Please contact any authorized Lexus retailer
or Lexus authorized repairer, or any reliable repairer for further details.
*1: Minimum pedal clearance when depressed with a force of 500 N (51.0 kgf, 112.4 lbf)
while the engine is running .
When performing the brake pedal inspection, also be sure to check that the brake sys-
tem warning light is not illuminated when the en gine is running ing>. (If the brake system warning light is illuminated, refer to P.368)
*2: Make sure to confirm that the brake system wa rning light (yellow) does not illuminate. (If
the brake system warning ligh t illuminates, refer to P.373)
Differential
Oil capacity0.85 L (0.90 qt., 0.75 Imp. qt.)
Oil type and viscosity
Without LSD (Limited Slip Differential)
Toyota Genuine Differential gear oil LT 75W-85 GL-
5 or equivalent*
With LSD (Limited Slip Differential)
Toyota Genuine Differential gear oil LX 75W-85 GL-
5 or equivalent*
Brakes
Pedal clearance*1132 mm (5.2 in.) Min.
Pedal free play1.0 - 6.0 mm (0.04 - 0.24 in.)
Brake pad wear limit1.0 mm (0.04 in.)
Parking brake indicator*2
When pushing the parking br ake switch for 1 to 4 sec-
onds: comes on
When pulling the pa rking brake switch for 1 to 4 sec-
onds: turns off
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3,
SAE J1704 or FMVSS No. 116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)

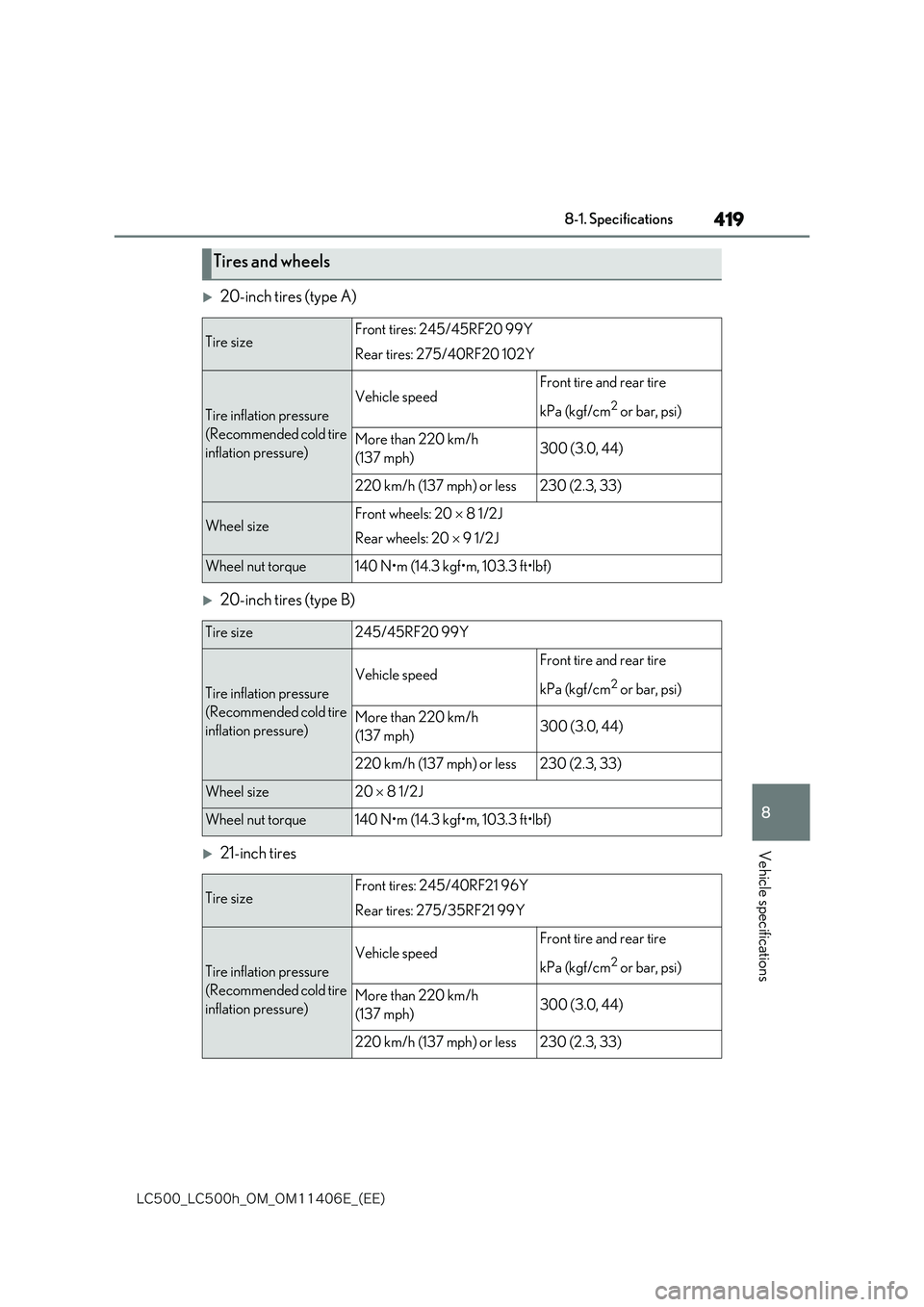

419
8
-$@-$I@0.@0.&@ &&

8-1. Specifications
Vehicle specifications
20-inch tires (type A)
20-inch tires (type B)
21-inch tires
Tires and wheels
Tire sizeFront tires: 245/45RF20 99Y
Rear tires: 275/40RF20 102Y
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Vehicle speedFront tire and rear tire
kPa (kgf/cm2 or bar, psi)
More than 220 km/h
(137 mph)300 (3.0, 44)
220 km/h (137 mph) or less230 (2.3, 33)
Wheel sizeFront wheels: 20  8 1/2J
Rear wheels: 20  9 1/2J
Wheel nut torque140 N•m (14.3 kgf•m, 103.3 ft•lbf)
Tire size245/45RF20 99Y
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Vehicle speedFront tire and rear tire
kPa (kgf/cm2 or bar, psi)
More than 220 km/h
(137 mph)300 (3.0, 44)
220 km/h (137 mph) or less230 (2.3, 33)
Wheel size20  8 1/2J
Wheel nut torque140 N•m (14.3 kgf•m, 103.3 ft•lbf)
Tire sizeFront tires: 245/40RF21 96Y
Rear tires: 275/35RF21 99Y
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Vehicle speedFront tire and rear tire
kPa (kgf/cm2 or bar, psi)
More than 220 km/h
(137 mph)300 (3.0, 44)
220 km/h (137 mph) or less230 (2.3, 33)

420
-$@-$I@0.@0.&@ &&

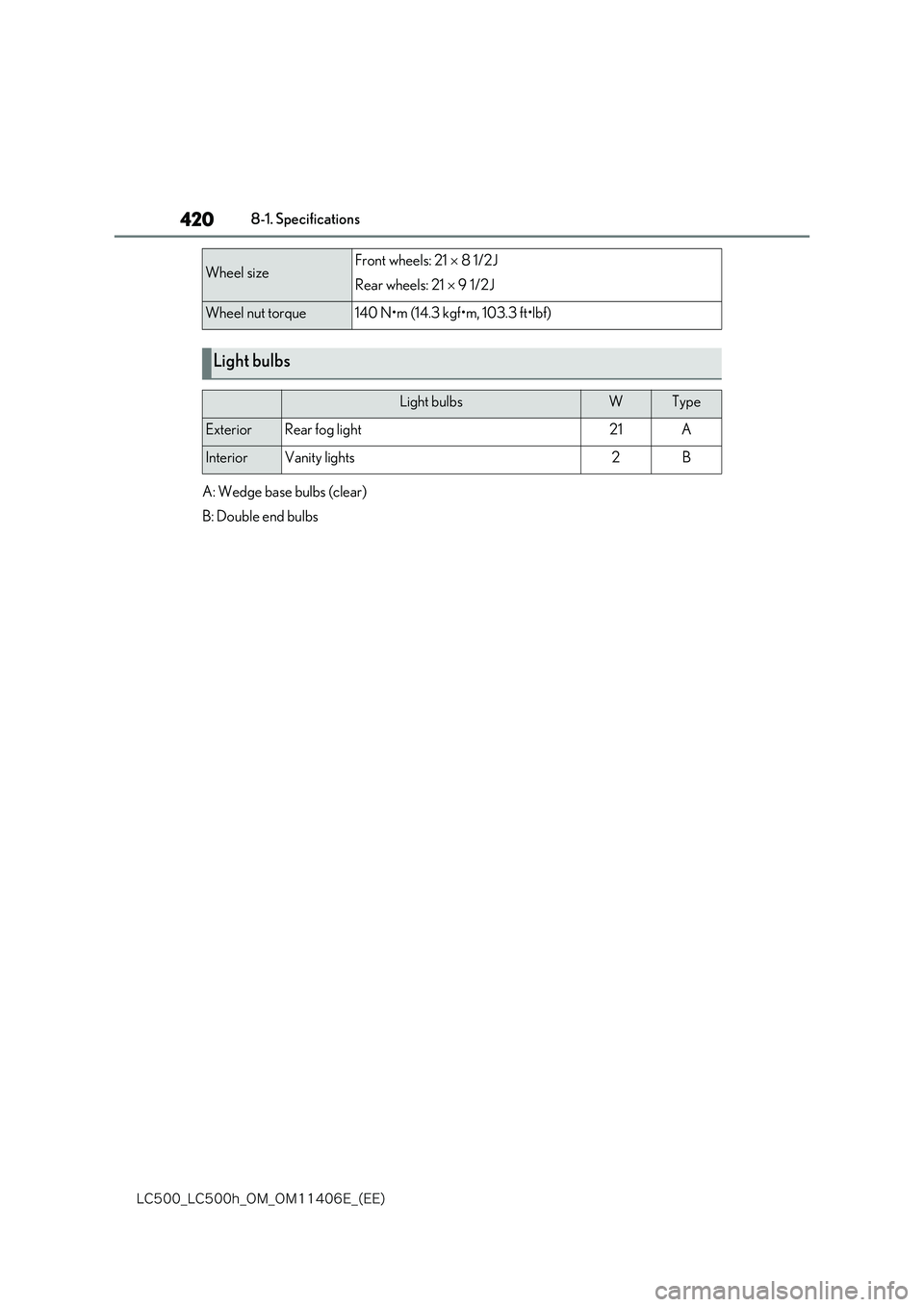

8-1. Specifications
Wheel sizeFront wheels: 21  8 1/2J
Rear wheels: 21  9 1/2J
Wheel nut torque140 N•m (14.3 kgf•m, 103.3 ft•lbf)
Light bulbs
Light bulbsWType
ExteriorRear fog light21A
InteriorVanity lights2B
A: Wedge base bulbs (clear)
B: Double end bulbs
