driver seat adjustment lexus LC500 2018 Owner's Manual

29
1
-$@-$I@0.@0.&@ &&

1-1. For safe use
For safety and security
Adjust the angle of the seatback so
that you are sitting straight up and
so that you do not have to lean for-
ward to steer. ( P.138)
Adjust the seat so that you can
depress the pedals fully and so that
your arms bend slightly at the
elbow when gripping the steering
wheel. ( P.138)
Lock the head restraint in place
with the center of the head restraint
closest to the top of your ears.
( P.143)
Wear the seat belt correctly.
( P.29)
Make sure that all occupants are wear-
ing their seat belts before driving the
vehicle. ( P.31)
Use a child restraint system appropri-
ate for the child until the child becomes
large enough to properly wear the
vehicle’s seat belt. ( P.48)

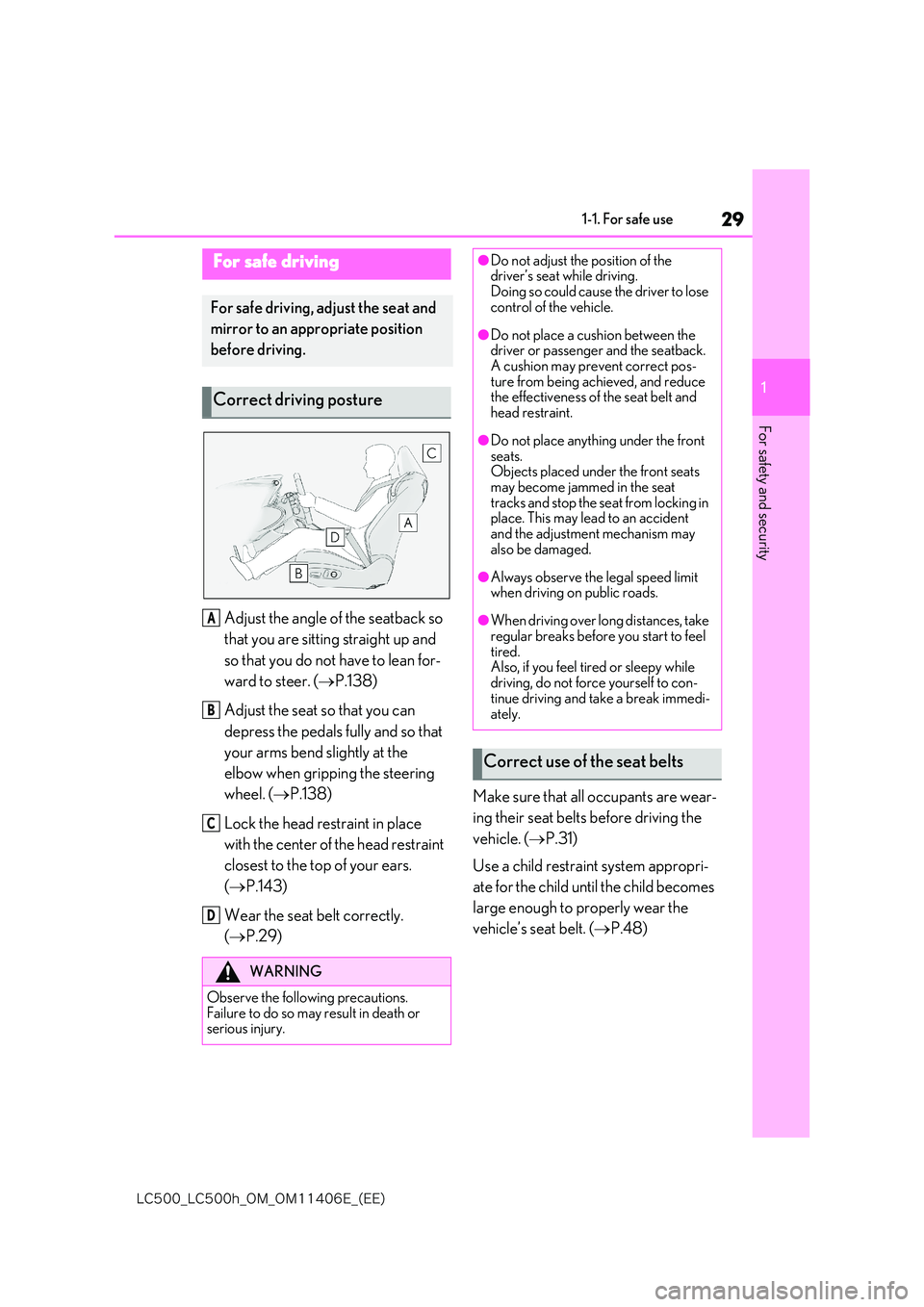

For safe driving
For safe driving, adjust the seat and
mirror to an appropriate position
before driving.
Correct driving posture
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
A
B
C
D
●Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
●Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct pos- ture from being achieved, and reduce the effectiveness of the seat belt and
head restraint.
●Do not place anything under the front seats.Objects placed under the front seats
may become jammed in the seat tracks and stop the seat from locking in place. This may lead to an accident
and the adjustment mechanism may also be damaged.
●Always observe the legal speed limit when driving on public roads.
●When driving over long distances, take
regular breaks before you start to feel tired. Also, if you feel tired or sleepy while
driving, do not force yourself to con- tinue driving and take a break immedi-
ately.
Correct use of the seat belts

138
-$@-$I@0.@0.&@ &&

3-3. Adjusting the seats
3-3.Adjusting the seats
Seat position adjustment
Seatback angle adjustment
Head restraint height adjustment (if
equipped) ( P.143)
Seat cushion (front) angle adjust-
ment
Vertical height adjustment
Lumbar support adjustment
■When adjusting the seat
●Make sure that any surrounding passen- gers or objects are not contact the seat.
●Take care when adjusting the seat so that the head restraint does not touch the ceil-ing.
■Seat-linked function
●This function operates when the seat is
moved forward, backward or in the reclining direction a certain distance or more.
●Vehicles with power head restraint: When the seat is adjusted forward a cer-
tain distance or more, the head restraint moves down.
●Vehicles with power head restraint: When the seat is raised a certain distance or more, the seat stops and the head
restraint moves down.
Front seats
The seats can be adjusted (longitu-
dinally, vertically, etc.).
Adjust the seat to ensure the cor-
rect driving posture.
Adjustment procedure
A
B
C
D
E
F
WARNING
■When adjusting the seat position
●Take care when adjusting the seat position to ensure that other passen-
gers are not injured by the moving seat.
●Do not put your hands under the seat or near the moving parts to avoid
injury. Fingers or hands may become jammed in the seat mechanism.
●Make sure to leave enough space
around the feet so they do not get stuck.
■Seat adjustment
To reduce the risk of sliding under the lap belt during a collision, do not recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply restraint forces directly to the abdomen, or your
neck may contact the shoulder belt, increasing the risk of death or serious injury in the event of an accident.
Adjustments should not be made while driving as the seat may unexpectedly move and cause the driver to lose control
of the vehicle.

141
3
-$@-$I@0.@0.&@ &&

3-3. Adjusting the seats
Before driving
will be overwritten.
■Seat positions that can be memorized
( P.138)
The adjusted positions other than the posi-
tion adjusted by lumbar support switch can be recorded.
■In order to correctly use the driving position memory function
If a seat position is already in the furthest possible position and the seat is operated in
the same direction, the recorded position may be slightly different when it is recalled.
1 Turn the engine switch switch> to IGNITION ON mode
.
2 Check that the shift position is in P.
3 Press one of the buttons for the
driving position you want to recall
until the buzzer sounds.
■To stop the position recall operation
part-way through
Perform any of the following:
●Press the “SET” button.
●Press button “1”, “2” or “3”.
●Operate any of the seat adjustment
switches (only cancels seat position recall).
●Operate the tilt and telescopic steering control switch (only cancels steering
wheel position recall).
■Operating the driving position memory after turning the engine switch off
Recorded seat positions can be activated up to 180 seconds after the driver’s door is
opened and another 60 seconds after it is closed again.
■Registering procedure
Record your driving position to button
“1”, “2” or “3” before performing the
following:
WARNING
■Seat adjustment caution
Take care during seat adjustment so that the seat does not strike the rear passen-
ger or squeeze your body against the steering wheel.
Recalling a driving position
Registering/cancel ing/recalling
a driving position to an elec-
tronic key (memor y recall func-
tion)
