29
1
-$@-$I@0.@0.&@ &&

1-1. For safe use
For safety and security
Adjust the angle of the seatback so
that you are sitting straight up and
so that you do not have to lean for-
ward to steer. ( P.138)
Adjust the seat so that you can
depress the pedals fully and so that
your arms bend slightly at the
elbow when gripping the steering
wheel. ( P.138)
Lock the head restraint in place
with the center of the head restraint
closest to the top of your ears.
( P.143)
Wear the seat belt correctly.
( P.29)
Make sure that all occupants are wear-
ing their seat belts before driving the
vehicle. ( P.31)
Use a child restraint system appropri-
ate for the child until the child becomes
large enough to properly wear the
vehicle’s seat belt. ( P.48)
For safe driving
For safe driving, adjust the seat and
mirror to an appropriate position
before driving.
Correct driving posture
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
A
B
C
D
●Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
●Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct pos- ture from being achieved, and reduce the effectiveness of the seat belt and
head restraint.
●Do not place anything under the front seats.Objects placed under the front seats
may become jammed in the seat tracks and stop the seat from locking in place. This may lead to an accident
and the adjustment mechanism may also be damaged.
●Always observe the legal speed limit when driving on public roads.
●When driving over long distances, take
regular breaks before you start to feel tired. Also, if you feel tired or sleepy while
driving, do not force yourself to con- tinue driving and take a break immedi-
ately.
Correct use of the seat belts

141
3
-$@-$I@0.@0.&@ &&

3-3. Adjusting the seats
Before driving
will be overwritten.
■Seat positions that can be memorized
( P.138)
The adjusted positions other than the posi-
tion adjusted by lumbar support switch can be recorded.
■In order to correctly use the driving position memory function
If a seat position is already in the furthest possible position and the seat is operated in
the same direction, the recorded position may be slightly different when it is recalled.
1 Turn the engine switch switch> to IGNITION ON mode
.
2 Check that the shift position is in P.
3 Press one of the buttons for the
driving position you want to recall
until the buzzer sounds.
■To stop the position recall operation
part-way through
Perform any of the following:
●Press the “SET” button.
●Press button “1”, “2” or “3”.
●Operate any of the seat adjustment
switches (only cancels seat position recall).
●Operate the tilt and telescopic steering control switch (only cancels steering
wheel position recall).
■Operating the driving position memory after turning the engine switch off
Recorded seat positions can be activated up to 180 seconds after the driver’s door is
opened and another 60 seconds after it is closed again.
■Registering procedure
Record your driving position to button
“1”, “2” or “3” before performing the
following:
WARNING
■Seat adjustment caution
Take care during seat adjustment so that the seat does not strike the rear passen-
ger or squeeze your body against the steering wheel.
Recalling a driving position
Registering/cancel ing/recalling
a driving position to an elec-
tronic key (memor y recall func-
tion)

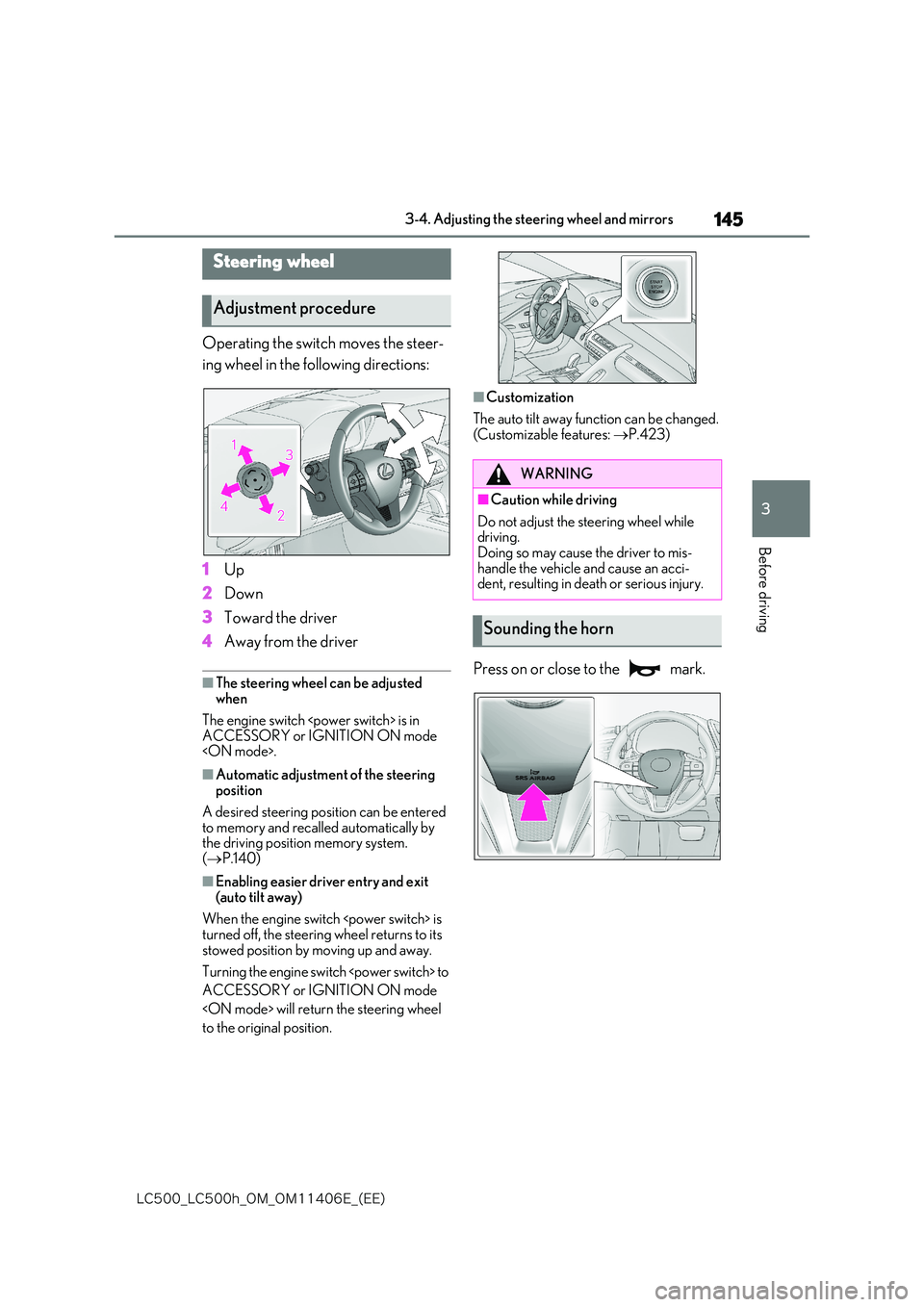

145
3
-$@-$I@0.@0.&@ &&

3-4. Adjusting the steering wheel and mirrors
Before driving
3-4.Adjusting the stee ring wheel and mirro rs
Operating the switch moves the steer-
ing wheel in the following directions:
1 Up
2 Down
3 Toward the driver
4 Away from the driver
■The steering wheel can be adjusted when
The engine switch

is in ACCESSORY or IGNITION ON mode .
■Automatic adjustment of the steering
position
A desired steering position can be entered
to memory and recalled automatically by the driving position memory system. ( P.140)
■Enabling easier driver entry and exit
(auto tilt away)
When the engine switch is
turned off, the steering wheel returns to its stowed position by moving up and away.
Turning the engine swit ch to
ACCESSORY or IGNITION ON mode
will return the steering wheel
to the original position.
■Customization
The auto tilt away function can be changed.
(Customizable features: P.423)
Press on or close to the mark.
Steering wheel
Adjustment procedure
WARNING
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mis- handle the vehicle and cause an acci-dent, resulting in death or serious injury.
Sounding the horn

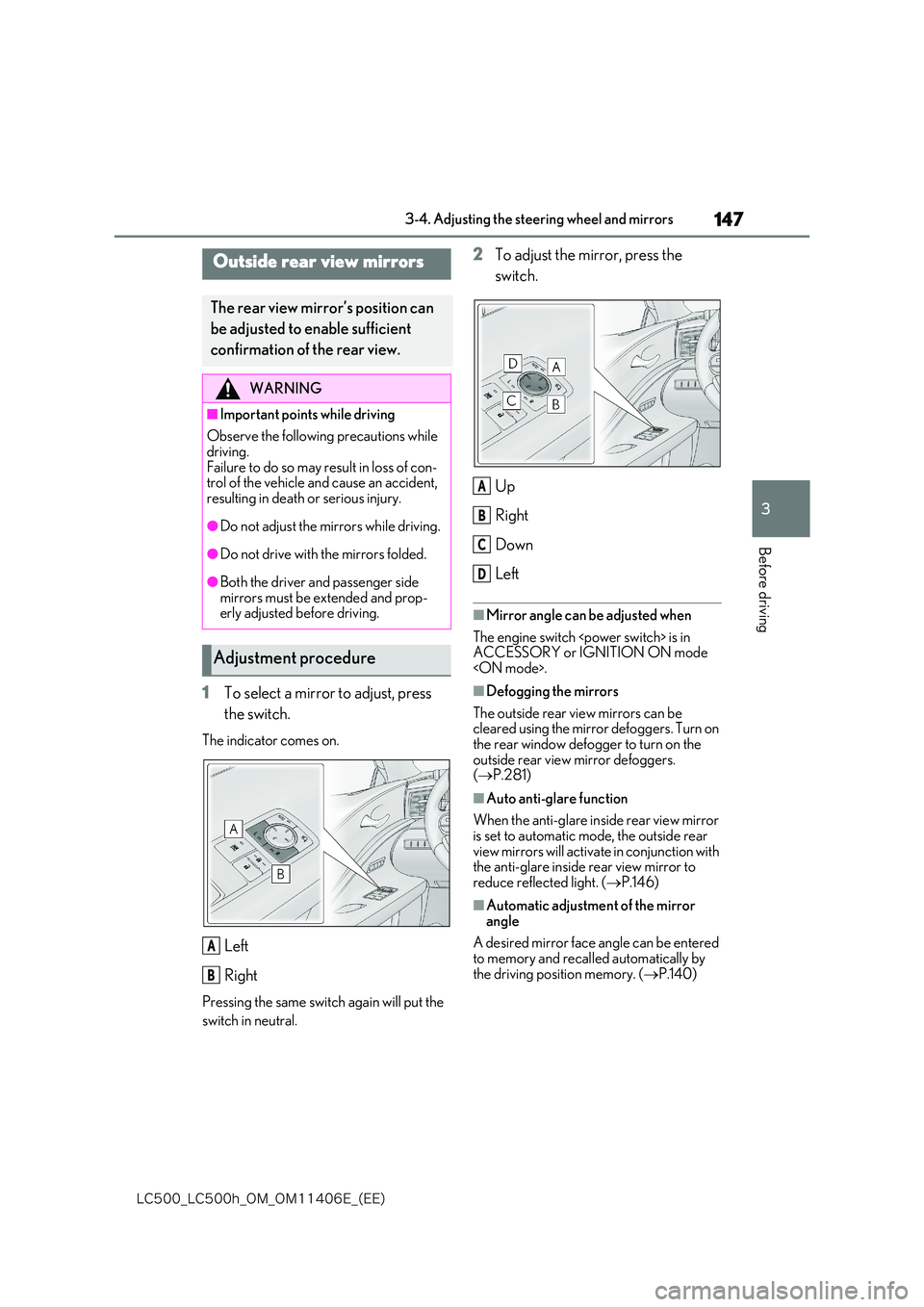

147
3
-$@-$I@0.@0.&@ &&

3-4. Adjusting the steering wheel and mirrors
Before driving
1To select a mirror to adjust, press
the switch.
The indicator comes on.
Left
Right
Pressing the same switch again will put the
switch in neutral.
2 To adjust the mirror, press the
switch.
Up
Right
Down
Left
■Mirror angle can be adjusted when
The engine switch

is in ACCESSORY or IGNITION ON mode .
■Defogging the mirrors
The outside rear view mirrors can be cleared using the mirror defoggers. Turn on
the rear window defogger to turn on the outside rear view mirror defoggers. ( P.281)
■Auto anti-glare function
When the anti-glare inside rear view mirror is set to automatic mode, the outside rear
view mirrors will activate in conjunction with the anti-glare inside rear view mirror to reduce reflected light. ( P.146)
■Automatic adjustment of the mirror
angle
A desired mirror face angle can be entered
to memory and recalled automatically by the driving position memory. ( P.140)
Outside rear view mirrors
The rear view mirror’s position can
be adjusted to enable sufficient
confirmation of the rear view.
WARNING
■Important points while driving
Observe the following precautions while
driving. Failure to do so may result in loss of con-trol of the vehicle and cause an accident,
resulting in death or serious injury.
●Do not adjust the mirrors while driving.
●Do not drive with the mirrors folded.
●Both the driver and passenger side mirrors must be extended and prop-erly adjusted before driving.
Adjustment procedure
A
B
A
B
C
D

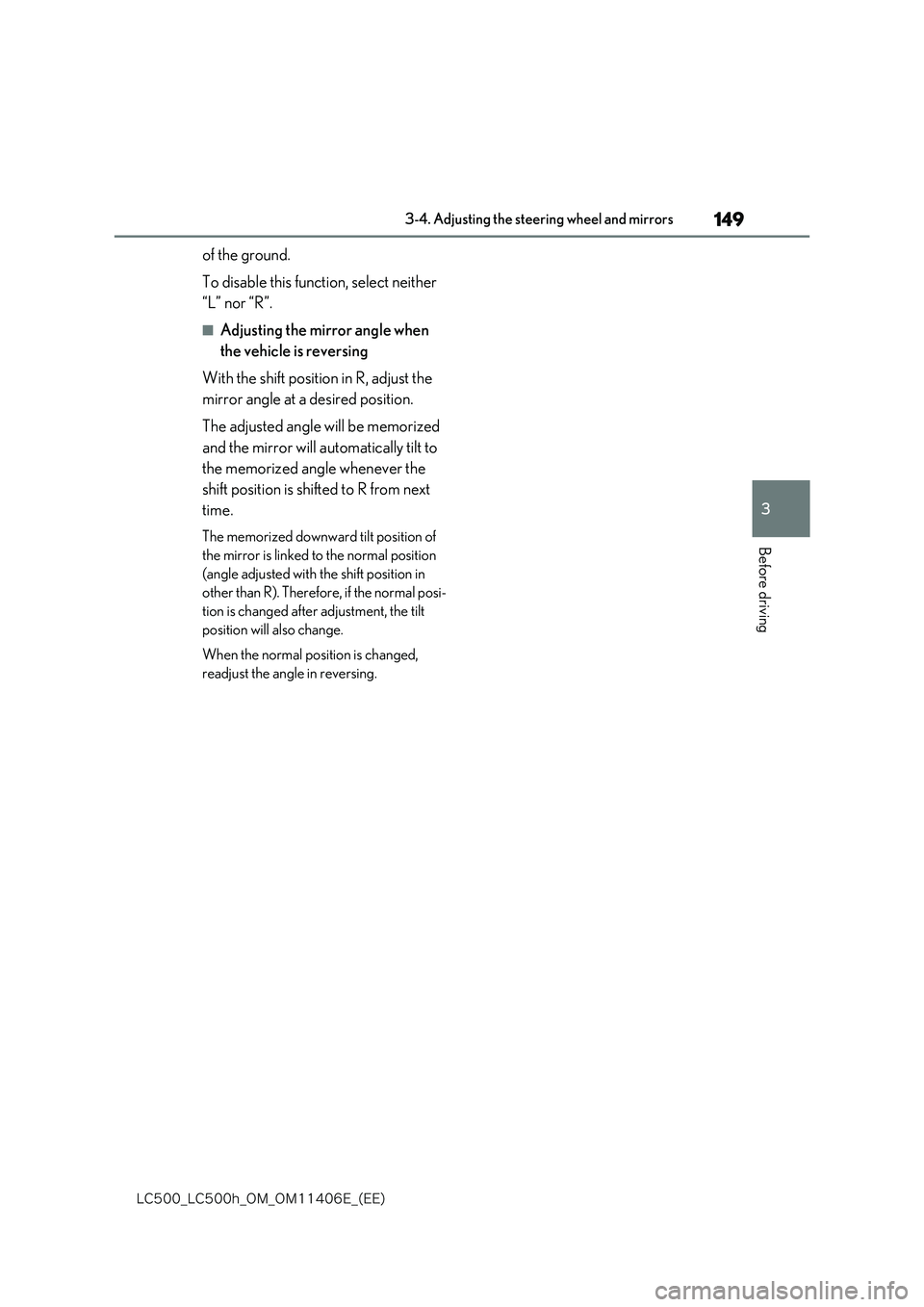

149
3
-$@-$I@0.@0.&@ &&

3-4. Adjusting the steering wheel and mirrors
Before driving
of the ground.
To disable this function, select neither
“L” nor “R”.
■Adjusting the mirror angle when
the vehicle is reversing
With the shift position in R, adjust the
mirror angle at a desired position.
The adjusted angle will be memorized
and the mirror will automatically tilt to
the memorized angle whenever the
shift position is shifted to R from next
time.
The memorized downward tilt position of
the mirror is linked to the normal position
(angle adjusted with the shift position in
other than R). Therefore, if the normal posi-
tion is changed after adjustment, the tilt
position will also change.
When the normal position is changed,
readjust the angle in reversing.

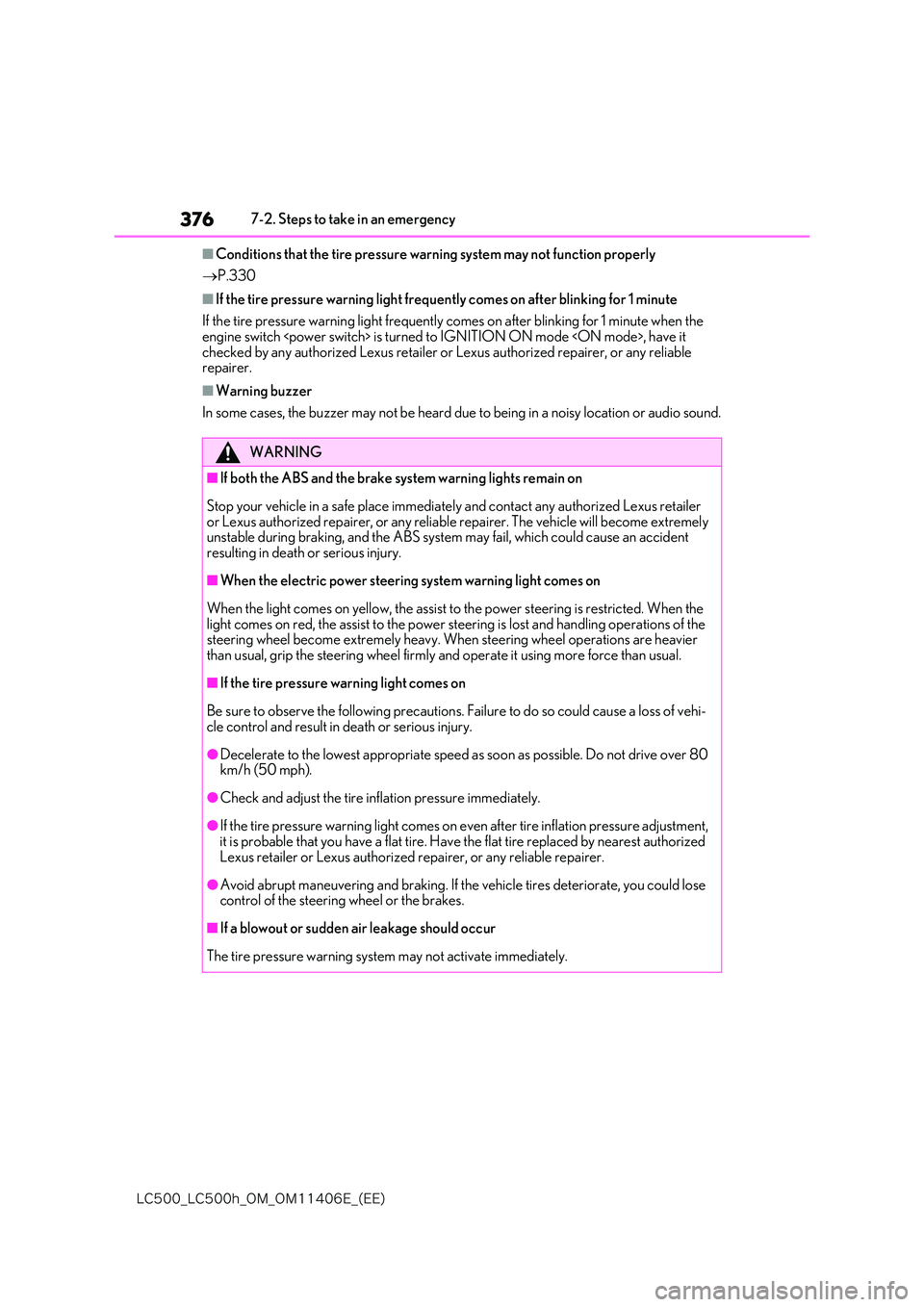

376
-$@-$I@0.@0.&@ &&

7-2. Steps to take in an emergency
■Conditions that the tire pressure warning system may not function properly
 P.330
■If the tire pressure warning light frequently comes on after blinking for 1 minute
If the tire pressure warning lig ht frequently comes on after blinking for 1 minute when the engine switch is turned to IGNITION ON mode , have it
checked by any authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer.
■Warning buzzer
In some cases, the buzzer may not be heard due to being in a noisy location or audio sound.
WARNING
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact any authorized Lexus retailer
or Lexus authorized repairer, or any reliabl e repairer. The vehicle will become extremely unstable during braking, and the ABS system may fail, which could cause an accident resulting in death or serious injury.
■When the electric power steering system warning light comes on
When the light comes on yellow, the assist to the power steering is restricted. When the
light comes on red, the assist to the power st eering is lost and handling operations of the steering wheel become extremely heavy. When steering wheel operations are heavier than usual, grip the steering wheel firmly and operate it using more force than usual.
■If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could cause a loss of vehi-
cle control and result in death or serious injury.
●Decelerate to the lowest appropriate speed as soon as possible. Do not drive over 80 km/h (50 mph).
●Check and adjust the tire inflation pressure immediately.
●If the tire pressure warning light comes on ev en after tire inflation pressure adjustment, it is probable that you have a flat tire. Have the flat tire replaced by nearest authorized
Lexus retailer or Lexus authorized repairer, or any reliable repairer.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.

450
-$@-$I@0.@0.&@ &&

Alphabetical index
Smart entry & start system ........................ 122
Antenna location.......................................... 122
Entry functions................................................ 115
Starting the engine ......................................163
Starting the hybrid system.......................167
Snow mode............................................ 177, 183
Snow tires ........................................................269
“SOS” button .................................................299
Spark plug ........................................................ 416
Specifications.................................................. 410
Speedometer ................................................... 88
Sport mode .....................................................229
Steering lock
Column lock release.......................164, 168
Steering lock system warning message
................................................................164, 168
Steering wheel ............................................... 145
Adjustment..................................................... 145
Auto tilt away ................................................ 145
Heated steering wheel........................... 288
Steering wheel position memory........ 140
Stop lights
Emergency brake signal ........................ 263
Replacing light bulbs................................355
Storage feature .............................................293
Stuck
If the vehicle becomes stuck ................407
Sunshade ........................................................ 298
Sun visors......................................................... 297
Switches
Active rear wing switch ..........................259
Automatic High Beam system..............193
Brake Hold switch...................................... 189
BSM (Blind spot monitor) switch......260
Cruise control switch ..................230, 239
Door lock switches .......................................117
Driving mode select switch .................. 242
Driving position memory switches .... 140
Emergency flashers switch .................. 360
Engine switch.................................................163
EV drive mode switch.................................171
Fog light switch ............................................ 196
Heated steering wheel switch ............ 288
HUD (Head-up display) switch ............99
Ignition switch ..................................... 163, 167
Instrument panel light control switch ....91
Lexus parking assist-sensor switch .. 244
Light switches ................................................. 191
LKA (Lane-Keeping Assist) switch ....221
Meter control switches ..............................93
Outside rear view mirror switches .....147
Paddle shift switches .. 177, 178, 183, 184
Parking brake switch................................. 187
PCS OFF switch ..........................................212
Power door lock switch............................. 117
Power switch................................................. 167
Power window switches .........................150
Rear window and outside rear view mir-
ror defoggers switch............................ 280
Seat heater switches................................ 288
Seat ventilator switches.......................... 288
Snow mode switch........................... 177, 183
Tilt and telescopic steering control switch
........................................................................... 145
Tire pressure warning reset switch.. 335
Trunk opener main switch.......................122
Trunk opener switch.................................. 120
Vehicle-to-vehicle distance switch.. 230
VSC OFF switch .......................................263
Window lock switch.................................. 152
Windshield wiper and washer switch196
Windshield wiper de-icer switch.......282
T
Tachometer ...................................................... 88
Variable red zone........................................ 90
Tail lights .............................................................191
Light switch ...................................................... 191
Replacing light bulbs ............................... 355
Theft deterrent system
Alarm................................................................... 76
