711-5. Theft deterrent system
1
For safety and security
■Items to check before locking the
vehicle
To prevent unexpected triggering of
the alarm and vehicle theft, make sure
of the following:
 Nobody is in the vehicle.
 The windows are closed before the
alarm is set.
 No valuables or other personal
items are left in the vehicle.
■Setting
Close the doors, trunk and hood, and
lock both side doors. The system will
be set automatically after 30 seconds.
The indicator light changes from being on
to flashing when the system is set.
■Canceling or stopping
Do one of the following to deactivate
or stop the alarms:
 Unlock the doors or open the trunk.
 Turn the engine switch switch> to ACCESSORY or IGNI-
TION ON mode , or
start the engine .
(The alarm will be deactivated or
stopped after a few seconds.)
■System maintenance
The vehicle has a maintenance-free type
alarm system.
■Triggering of the alarm
The alarm may be triggered in the following
situations:
(Stopping the alarm deactivates the alarm
system.)
●A person inside the vehicle opens a door,
the trunk or hood, or unlocks the vehicle
using a door lock switch.
●The 12-volt battery is recharged or
replaced when the vehicle is locked.
(  P.361)

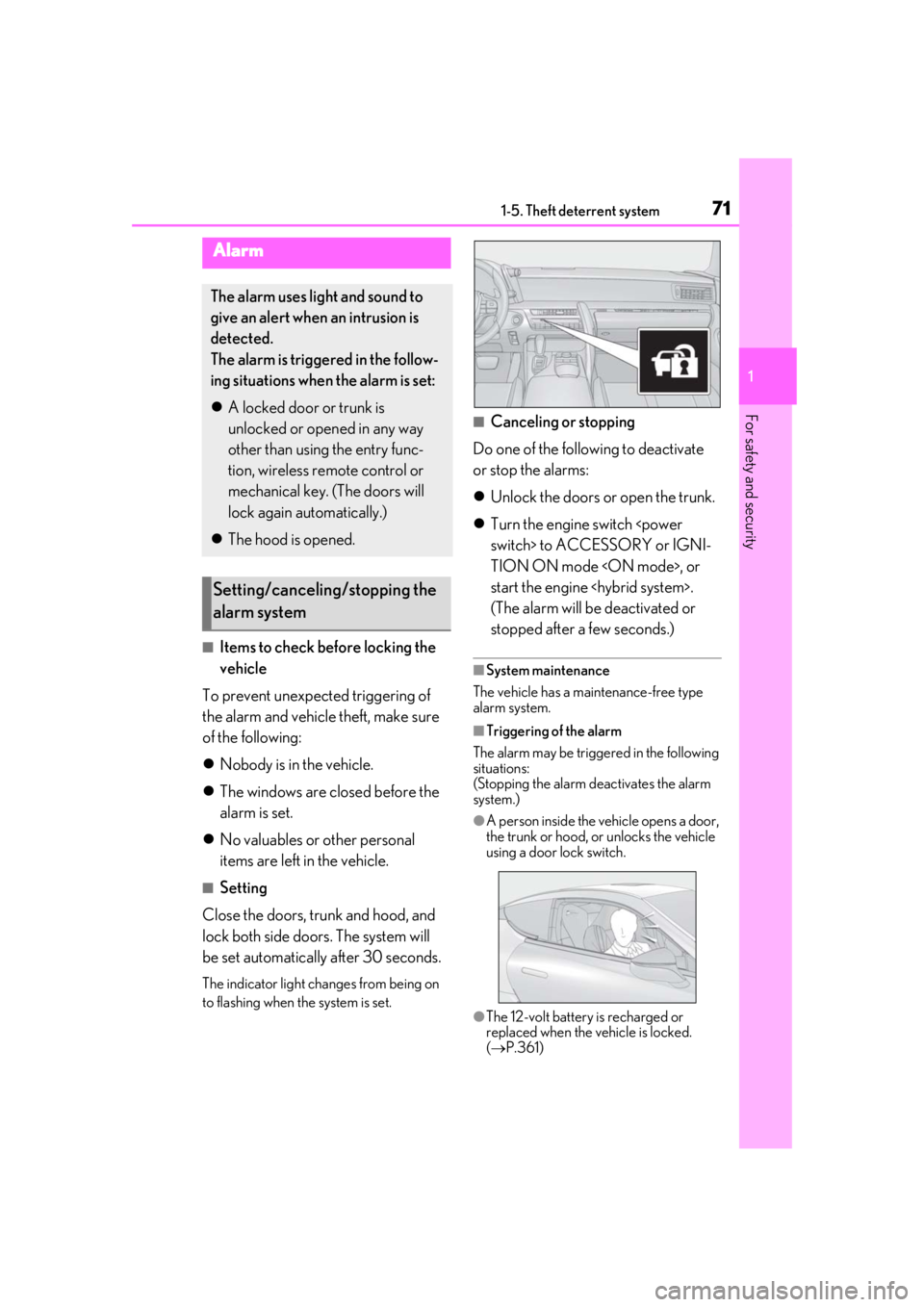

Alarm
The alarm uses light and sound to
give an alert when an intrusion is
detected.
The alarm is triggered in the follow-
ing situations when the alarm is set:
 A locked door or trunk is
unlocked or opened in any way
other than using the entry func-
tion, wireless remote control or
mechanical key. (The doors will
lock again automatically.)
 The hood is opened.
Setting/canceling/stopping the
alarm system

721-5. Theft deterrent system
■Alarm-operated door lock
In the following cases, depending on the sit-
uation, the door may automatically lock to
prevent improper entry into the vehicle:
●When a person remaining in the vehicle
unlocks the door and the alarm is acti-
vated.
●While the alarm is activated, a person
remaining in the vehicle unlocks the door.
●When recharging or replacing the 12-volt
battery
NOTICE
■To ensure the system operates cor-
rectly
Do not modify or remove the system. If
modified or removed, the proper opera-
tion of the system cannot be guaranteed.

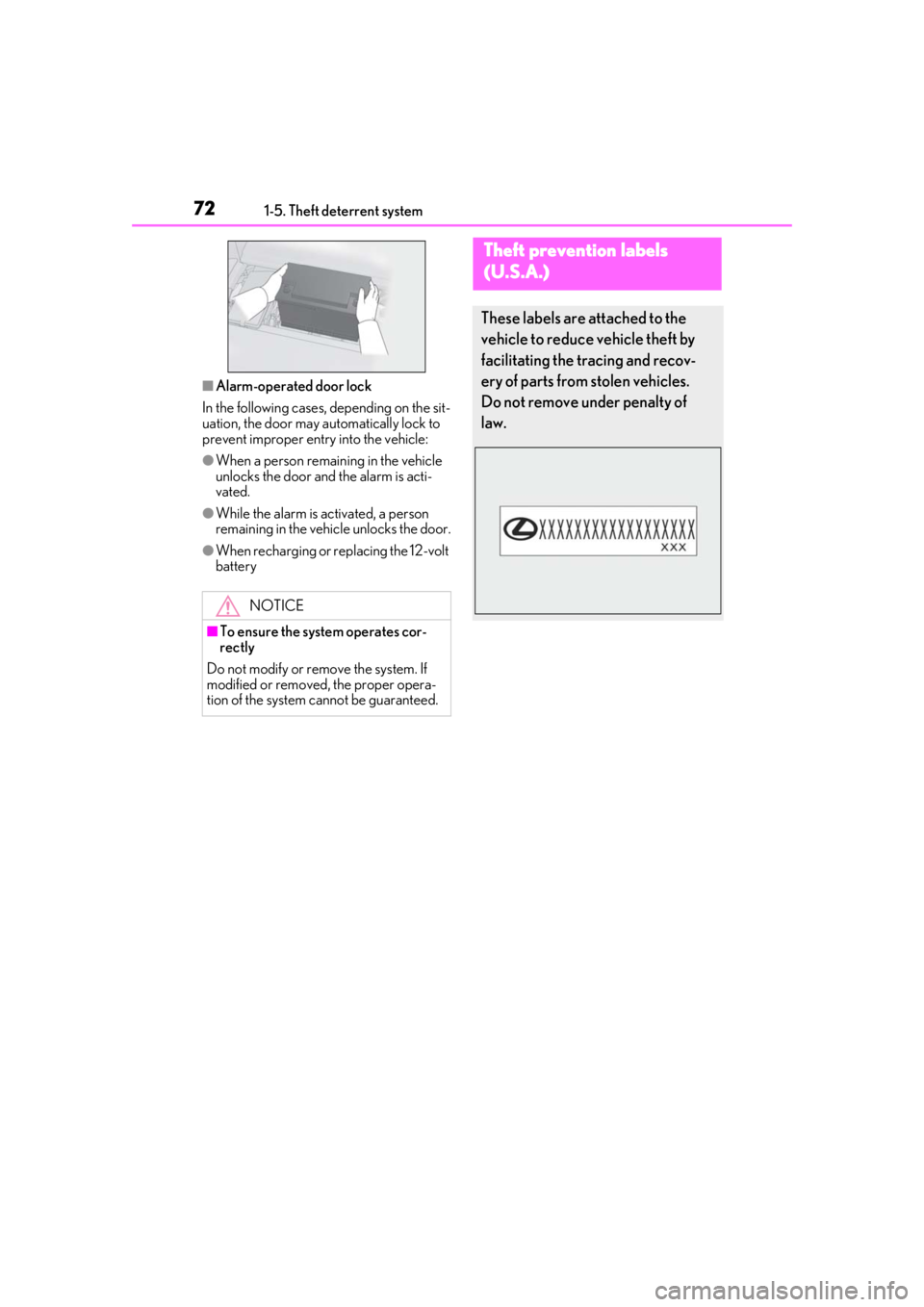

Theft prevention labels
(U.S.A.)
These labels are attached to the
vehicle to reduce vehicle theft by
facilitating the tracing and recov-
ery of parts from stolen vehicles.
Do not remove under penalty of
law.

73
2
2
Vehicle status information and indicators
Vehicle status informationand indicators
2-1. Instrument cluster
Warning lights and indicators . 74
Gauges and meters .................... 80
Multi-information display.......... 84
Head-up display ........................... 90
Energy monitor/consumption screen ............................................ 95

742-1. Instrument cluster
2-1.Instrument cluster
For the purpose of explanation, the following illustrations display all warning lights
and indicators illuminated.
LC500
LC500h
The units used on the meters and some indicators may differ depending on the target
region.

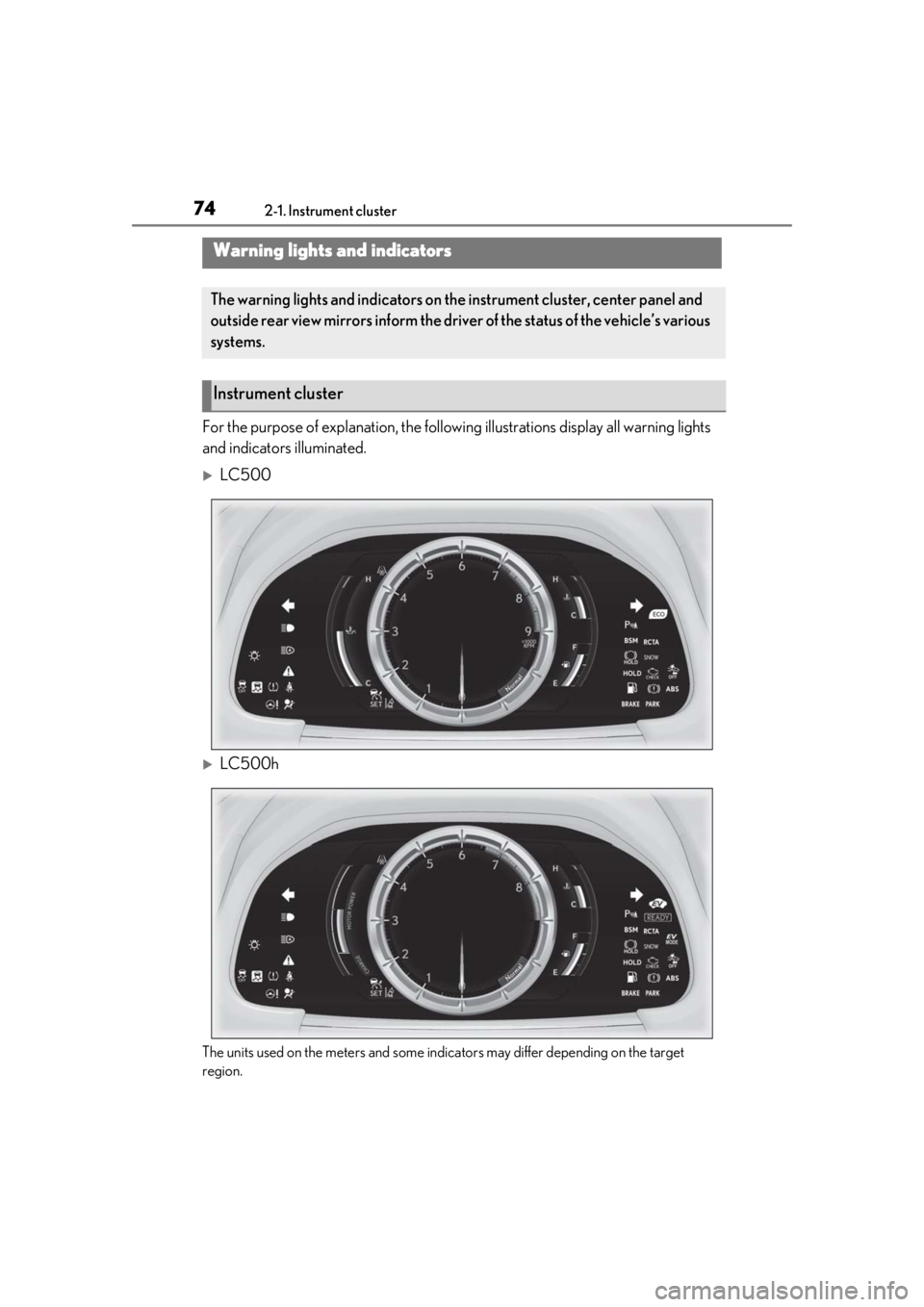

Warning lights and indicators
The warning lights and indicators on th e instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s various
systems.
Instrument cluster

752-1. Instrument cluster
2
Vehicle status information and indicators
Warning lights inform the driver of mal-
functions in the indicated vehicle sys-
tems.
*1: These lights turn on when the engine switch is turned to
IGNITION ON mode to
indicate that a system check is being
performed. They will turn off after the
engine is started, or
Warning lights
(U.S.A.)
Brake system warning light*1
(  P.335)
(red)
(Canada)
Brake system warning light*1
(  P.335)
Charging system warning
light
*2 (  P.335)
Low engine oil pressure
warning light
*2 (  P.335)
(U.S.A.)
Malfunction indicator lamp*1
(  P.336)
(Canada)
Malfunction indicator lamp*1
(  P.336)
SRS warning light
*1
(  P.336)
(U.S.A.)
ABS warning light*1
(  P.336)
(Canada)
ABS warning light*1
(  P.336)
(red)
Electric power steering sys-
tem warning light
*1 ( P.336)
(yellow)
Electric power steering sys-
tem warning light
*1 ( P.336)
PCS warning light
*1, 3
(  P.337)
(orange)
LKA indicator*2 ( P.337)
Slip indicator*1 ( P.337)
Brake Override System
warning light
(  P.338)/Drive-Start Con-
trol warning light
*2 (  P.338)
Brake hold operated indica-
tor
*1, 3 (  P.338)
(U.S.A.)
Parking brake indicator*3
(  P.338)
(Canada)
Parking brake indicator*3
(  P.338)
(yellow)
Brake system warning light*1
(  P.339)
Low fuel level warning light
(  P.339)
Driver’s and front passen-
ger’s seat belt reminder light
(  P.339)
Rear passengers’ seat belt
reminder lights
*4 (  P.340)
Master warning light
*1
(  P.340)
Tire pressure warning light
*1, 3
(  P.340)
High coolant temperature
warning light
*2 (  P.340)
(if equipped)
Hybrid system overheat
warning light
*2( P.341)

762-1. Instrument cluster
after a few seconds. There may be a
malfunction in a system if a light does
not come on, or turn off. Have the vehi-
cle inspected by your Lexus dealer.
*2: This light illuminates on the multi-infor-mation display.
*3: The light flashes to indicate a malfunc-tion.
*4: This light illuminates on the center panel.
The indicators inform the driver of the
operating state of the vehicle’s various
systems.
■Operation indicators
WARNING
■If a safety system warning light does
not come on
Should a safety system light such as the
ABS and SRS warning light not come on
when you start the engine tem>, this could mean that these systems
are not available to he lp protect you in an
accident, which could result in death or
serious injury. Have the vehicle inspected
by your Lexus dealer immediately if this
occurs.
Indicators
Turn signal indicator ( P.167)
(U.S.A.)
Headlight indicator ( P.173)
(Canada)
Tail light indicator ( P.173)
Headlight high beam indica-
tor ( P.175)
Automatic High Beam indica-
tor
*1 (  P.176)
Cruise control indicator*2
(  P.203)
Dynamic radar cruise control
indicator
*2 (  P.203)
Cruise control “SET” indica-
tor
*2 (  P.203)
(white)
LKA indicator*2 ( P.196)
(green)
LKA indicator*2 ( P.196)
(orange)
LKA indicator*2, 3 ( P.196)
(if equipped)
Intuitive parking assist indica-
tor ( P.214)
Slip indicator
*1, 3 (  P.232)
VSC OFF indicator
*1
(  P.233)
PCS warning light
*1, 4
(  P.191)
BSM (Blind Spot Monitor)
outside rear view mirror indi-
cators
*5, 6 (  P.220)
BSM (Blind Spot Monitor)
indicator ( P.220)
RCTA (Rear Cross Traffic
Alert) indicator ( P.220)
Brake hold standby indica-
tor
*1 (  P.171)
Brake hold operated indica-
tor
*1 (  P.171)
Security indicator
*7 (  P.69,
71)
Smart access system with
push-button start indicator
*2
(  P.146, 149)

772-1. Instrument cluster
2
Vehicle status information and indicators
*1: These lights turn on when the engine switch is turned to
IGNITION ON mode to
indicate that a system check is being
performed. They will turn off after the
engine is started, or
after a few seconds. There may be a
malfunction in a syst em if a light does
not come on, or turn off. Have the vehi-
cle inspected by your Lexus dealer.
*2: This light illuminates on the multi-infor- mation display.
*3: The light flashes to indicate that the sys-tem is operating.
*4: The light comes on when the system is turned off.
*5: In order to confirm operation, the BSM outside rear view mirror indicators illu-
minate in the following situations:
When the engine switch
is turned to IGNITION ON mode mode> while the BSM main switch is
turned on.
When the BSM main switch is turned
on while the engine switch switch> is in IGNITION ON mode
.
If the system is func tioning correctly, the
BSM outside rear view mirror indica-
tors will turn off after a few seconds.
If the BSM outside rear view mirror indi-
cators do not illuminate or do not turn
off, there may be a malfunction in the
system.
If this occurs, have the vehicle inspected
by your Lexus dealer.
(if equipped)
“READY” indicator ( P.149)
Low outside temperature
indicator
*2, 8 (  P.80)
(if equipped)
Eco Driving Indicator Light*1
(  P.78)
(if equipped)
EV indicator ( P.62)
(U.S.A.)
Parking brake indicator
( P.168)
(Canada)
Parking brake indicator
( P.168)
Snow mode indicator
(  P.159, 165)
(if equipped)
EV drive mode indicator
( P.153)
“Normal” indicator
*2
(  P.213)
“Eco” indicator
*2 (  P.213)
“Sport S” indicator
*2
(  P.213)
“Sport S+” indicator
*2
(  P.213)
“Comfort” indicator
*2
(  P.213)
“Custom” indicator
*2
(  P.213)
(U.S.A.)
“AIR BAG ON/OFF”
indicator
*7 ( P.38)
(Canada)
“AIR BAG ON/OFF”
indicator
*7 ( P.38)

782-1. Instrument cluster
*6: This light illuminates on the outside rear view mirrors.
*7: This light illuminates on the center panel.
*8: When the outside temperature is approximately 37°F (3°C) or lower, the
indicator will flash for approximately 10
seconds, then stay on.

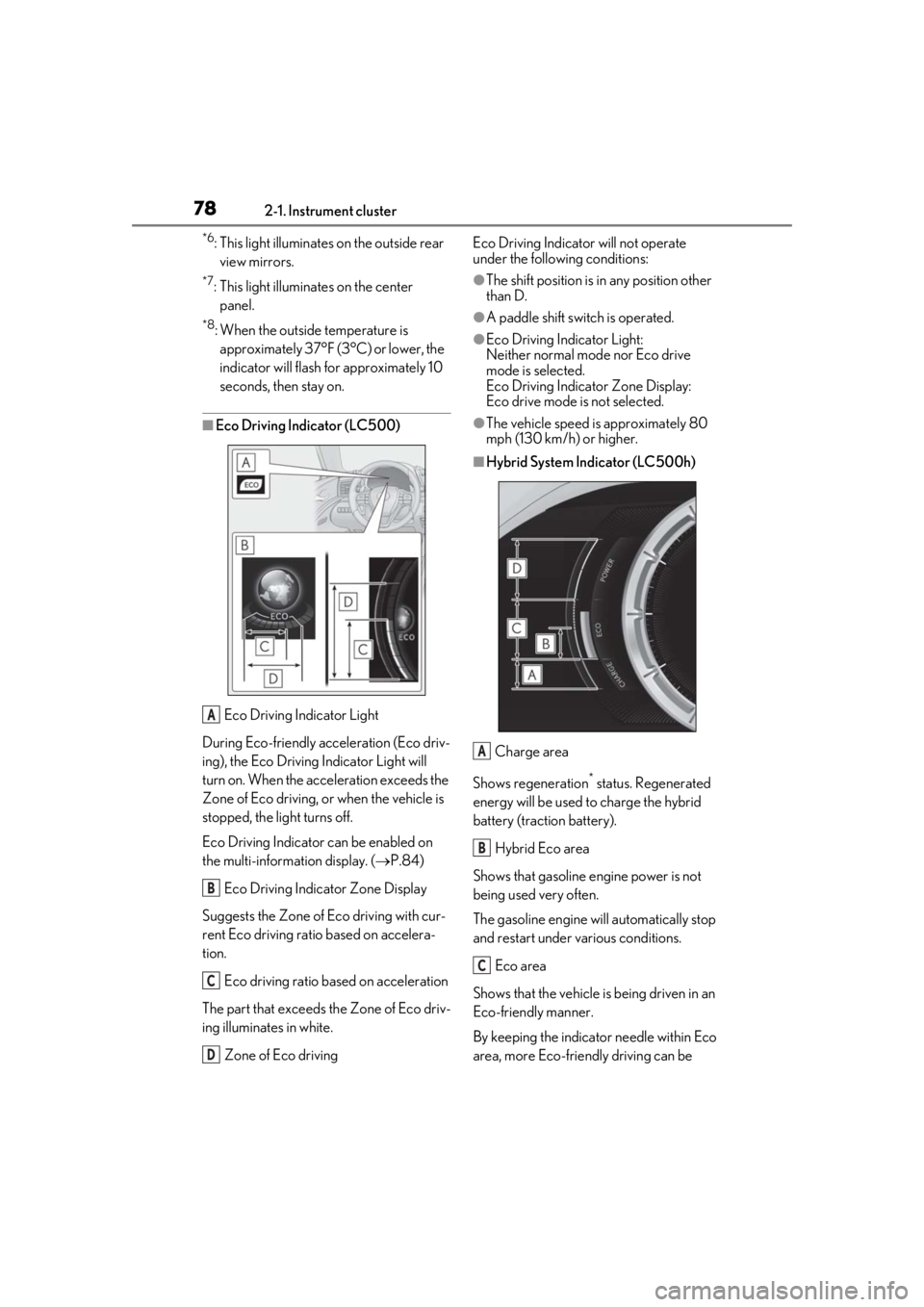

■Eco Driving Indicator (LC500)
Eco Driving Indicator Light
During Eco-friendly acceleration (Eco driv-
ing), the Eco Driving Indicator Light will
turn on. When the acceleration exceeds the
Zone of Eco driving, or when the vehicle is
stopped, the light turns off.
Eco Driving Indicator can be enabled on
the multi-information display. ( P.84)
Eco Driving Indicator Zone Display
Suggests the Zone of Eco driving with cur-
rent Eco driving ratio based on accelera-
tion.
Eco driving ratio based on acceleration
The part that exceeds the Zone of Eco driv-
ing illuminates in white.
Zone of Eco driving Eco Driving Indicator will not operate
under the following conditions:
●The shift position is in any position other
than D.
●A paddle shift swit
ch is operated.
●Eco Driving Indicator Light:
Neither normal mode nor Eco drive
mode is selected.
Eco Driving Indicator Zone Display:
Eco drive mode is not selected.
●The vehicle speed is approximately 80
mph (130 km/h) or higher.

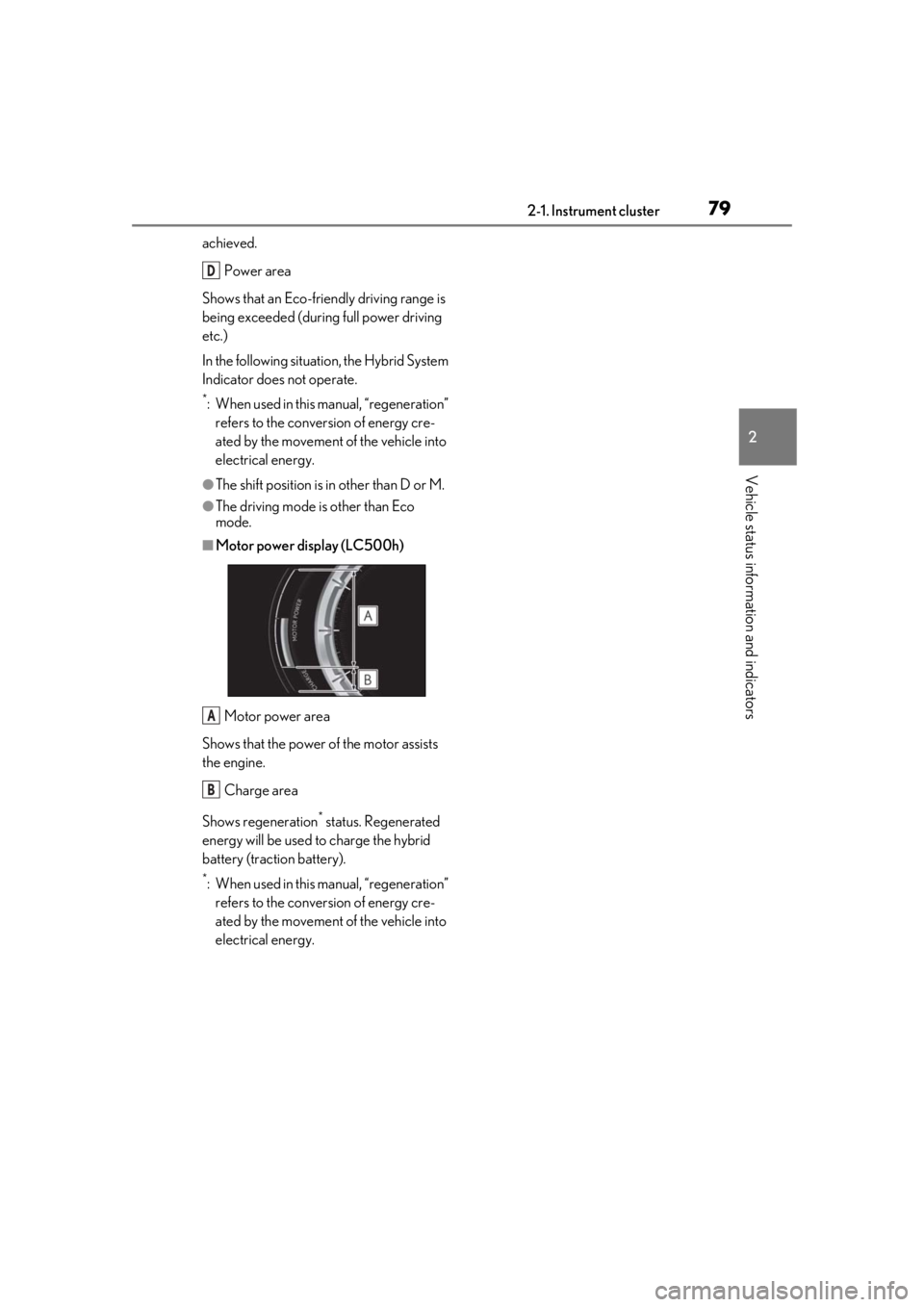

■Hybrid System Indicator (LC500h)
Charge area
Shows regeneration
* status. Regenerated
energy will be used to charge the hybrid
battery (traction battery).
Hybrid Eco area
Shows that gasoline en gine power is not
being used very often.
The gasoline engine will automatically stop
and restart under various conditions.
Eco area
Shows that the vehicle is being driven in an
Eco-friendly manner.
By keeping the indicator needle within Eco
area, more Eco-friend ly driving can be
A
B
C
D
A
B
C

792-1. Instrument cluster
2
Vehicle status information and indicators
achieved.Power area
Shows that an Eco-frie ndly driving range is
being exceeded (durin g full power driving
etc.)
In the following situation, the Hybrid System
Indicator does not operate.
*: When used in this manual, “regeneration” refers to the conversion of energy cre-
ated by the movement of the vehicle into
electrical energy.
●The shift position is in other than D or M.
●The driving mode is other than Eco
mode.
■Motor power display (LC500h)
Motor power area
Shows that the power of the motor assists
the engine.
Charge area
Shows regeneration
* status. Regenerated
energy will be used to charge the hybrid
battery (traction battery).
*: When used in this manual, “regeneration” refers to the conversion of energy cre-
ated by the movement of the vehicle into
electrical energy.
D
A
B

802-1. Instrument cluster
LC500
LC500h
The units used on the meters may diff er depending on the target region.
Engine oil temperature gauge/Eco Driving Indicator (LC500)
Displays the engine oil temperat ure or Eco Driving Indicator (P.78)
Outside temperature
Gauges and meters

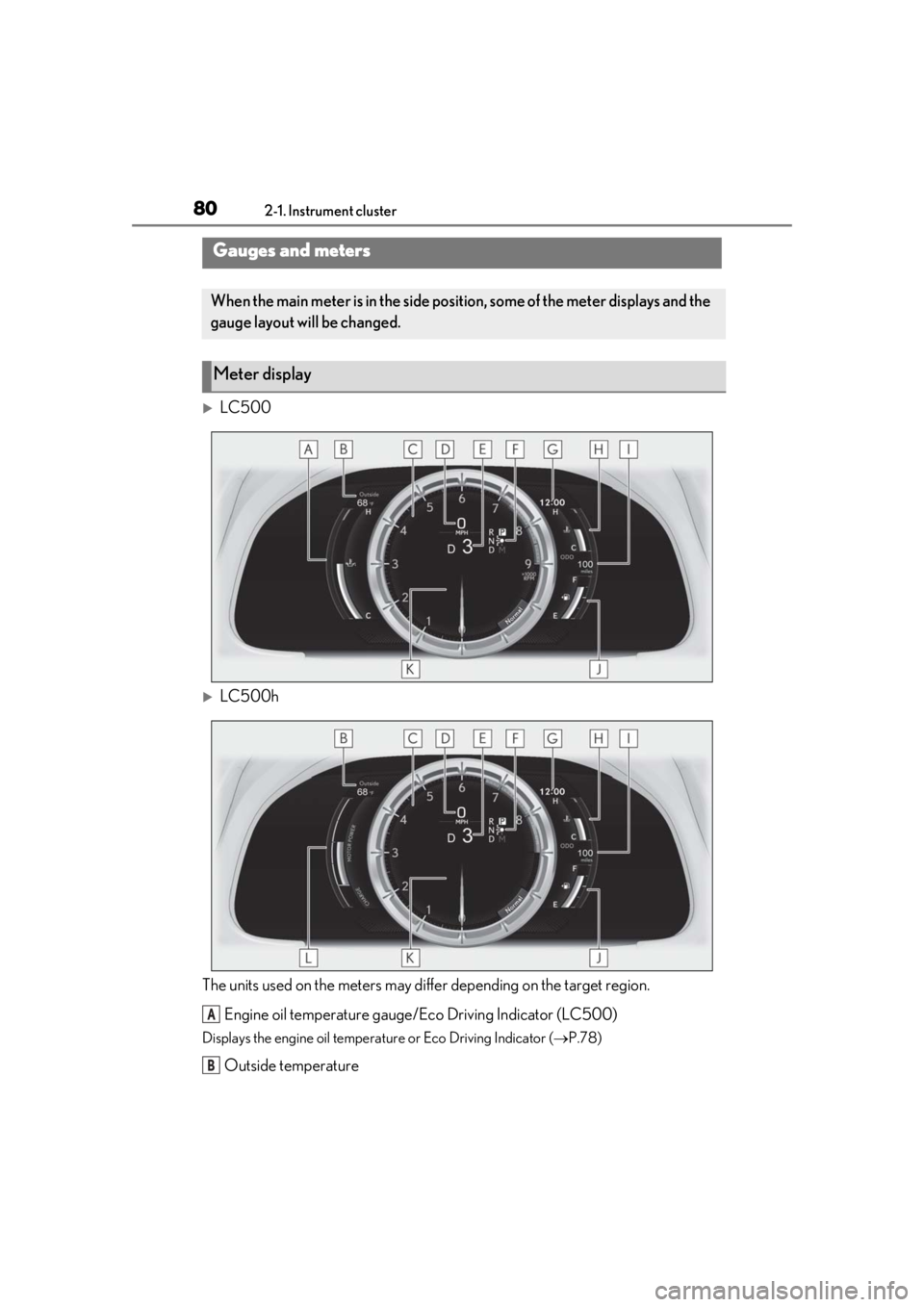

When the main meter is in the side posi tion, some of the meter displays and the
gauge layout will be changed.
Meter display
A
B
