low beam LEXUS LC500 2023 Owners Manual

41
LC500_LC500h_QG_OM11688U_(U)

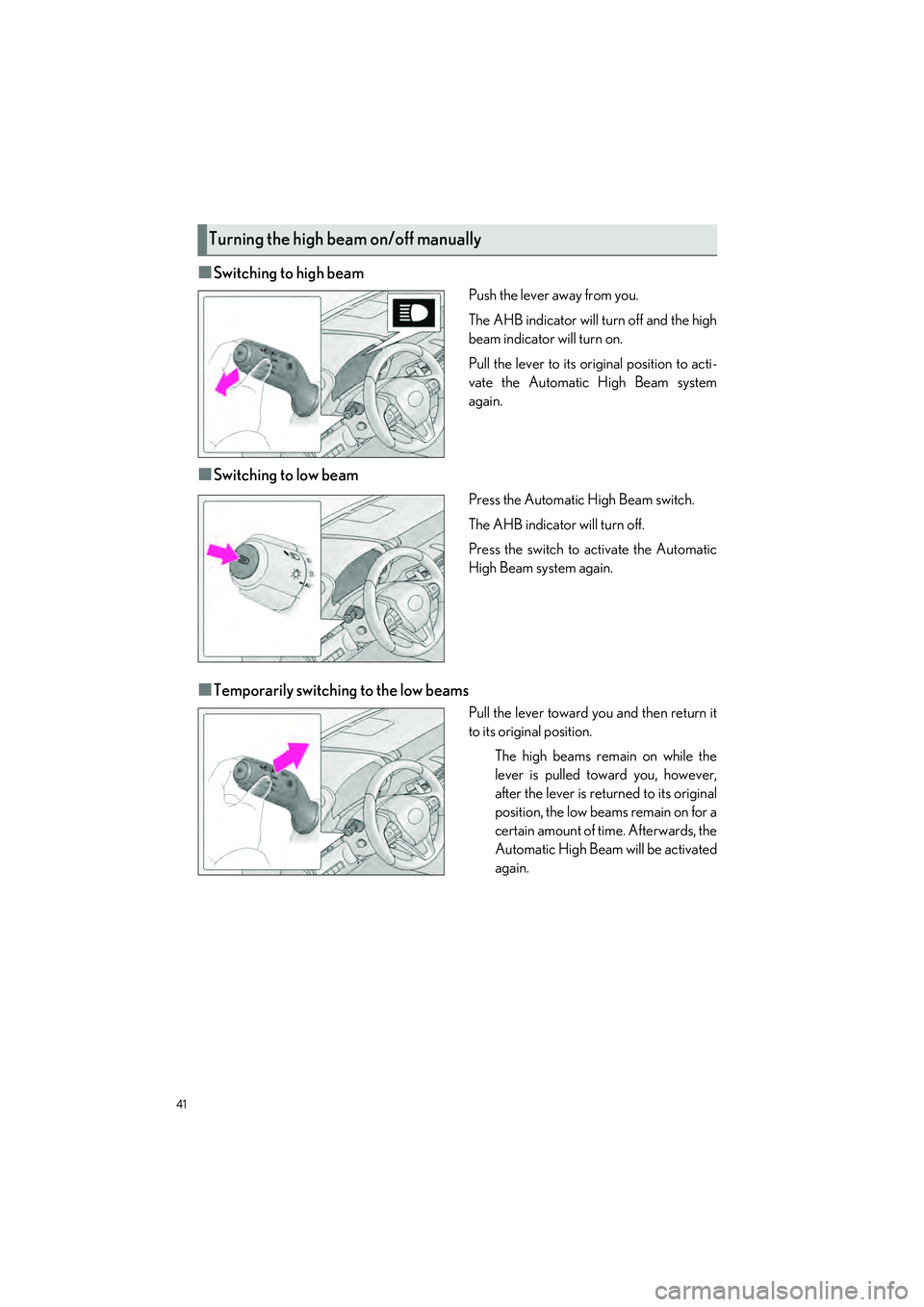

■Switching to high beam
Push the lever away from you.
The AHB indicator will turn off and the high
beam indicator will turn on.
Pull the lever to its original position to acti-
vate the Automatic High Beam system
again.
■Switching to low beam
Press the Automatic High Beam switch.
The AHB indicator will turn off.
Press the switch to activate the Automatic
High Beam system again.
■Temporarily switching to the low beams
Pull the lever toward you and then return it
to its original position.The high beams remain on while the
lever is pulled toward you, however,
after the lever is returned to its original
position, the low beams remain on for a
certain amount of time. Afterwards, the
Automatic High Beam will be activated
again.
Turning the high beam on/off manually

43
LC500_LC500h_QG_OM11688U_(U)
■PCS (Pre-Collision System)
The pre-collision system uses a radar sensor and front camera to detect vehicles and pedes-
trians in front of your vehicle. When the system determines that the possibility of a frontal
collision with a vehicle or pedestrian is high, a warning operates to urge the driver to take
evasive action and the pote ntial brake pressure is increased to help the driver avoid the col-
lision. If the system determin es that the possibility of a frontal collision with a vehicle or
pedestrian is extremely high, the brakes are au tomatically applied to help avoid the collision
or help reduce the impact of the collision.
■LKA (Lane-Keeping Assist)
 P.44
■AHB (Automatic High Beam)
P.40
■Dynamic radar cruise control with full-speed range
P.45
Lexus Safety System +
The Lexus Safety System + consists of the following drive assist systems and contributes to
a safe and comfortable driving experience:
Driving assist system

What to do if...
103
LC500_LC500h_QG_OM11688U_(U)
See the “OWNER’S MANUAL”
Turn signal indicator
BSM (Blind Spot Monitor)
outside rear view mirror indi-
cators
Headlight indicator (U.S.A.)BSM (Blind Spot Monitor)
indicator
Tail light indicator (Canada)RCTA (Rear Cross Traffic
Alert) indicator
Headlight high beam indicatorBrake hold standby indicator
AHB indicatorBrake hold operated
indicator
Cruise control indicatorSecurity indicator
Dynamic radar cruise control
indicatorSmart access system with
push-button start indicator
Cruise control “SET” indicator“READY” indicator
(if equipped)
(White or green)LKA indicatorLow outside temperature
indicator
(Flashes in orange)LKA indicatorEco Driving Indicator Light
(if equipped)
Intuitive parking assist
indicator (if equipped)EV indicator (if equipped)
(Flashes)
Slip indicator(U.S.A.)Parking brake
indicator
VSC OFF indicator(Canada)
PCS warning light
(U.S.A.)
“AIR BAG ON/
OFF” indicator
For further information, refer to the “OWNER’S MANUAL”.
