4
LC500_LC500h_QG_OM11688U_(U)
Parking brake switch ................................................................................................ P.31
Applying/releasing............................................................................................................... P.31
Precautions against winter season
*
Warning buzzer/message*
Turn signal lever ........................................................................................................ P.30
Headlight switch ....................................................................................................... P.39
Headlights/parking lights/tail lights/day time running lights .............................P.39
AHB (Automatic High Beam) ........................................................................................P.40
Windshield wiper and washer switch ................................................................. P.42
Usage .......................................................................................................................... .............. P.42
Adding washer fluid
*
Warning messages*
Emergency flasher switch*
Hood lock release lever*
Tilt and telescopic steering control switch*
Adjustment*
Driving position memory ..................................................................................................P.20
Air conditioning system .......................................................................................... P.78
Usage .......................................................................................................................... .............. P.79
Rear window defogger ......................................................................................................P.78
Audio system.............................................................................................................. P.70
Trunk opener main switch
*
*
: Refer to “OWNER’S MANUAL”.
E
F
G
H
I
J
K
L
M

14
LC500_LC500h_QG_OM11688U_(U)

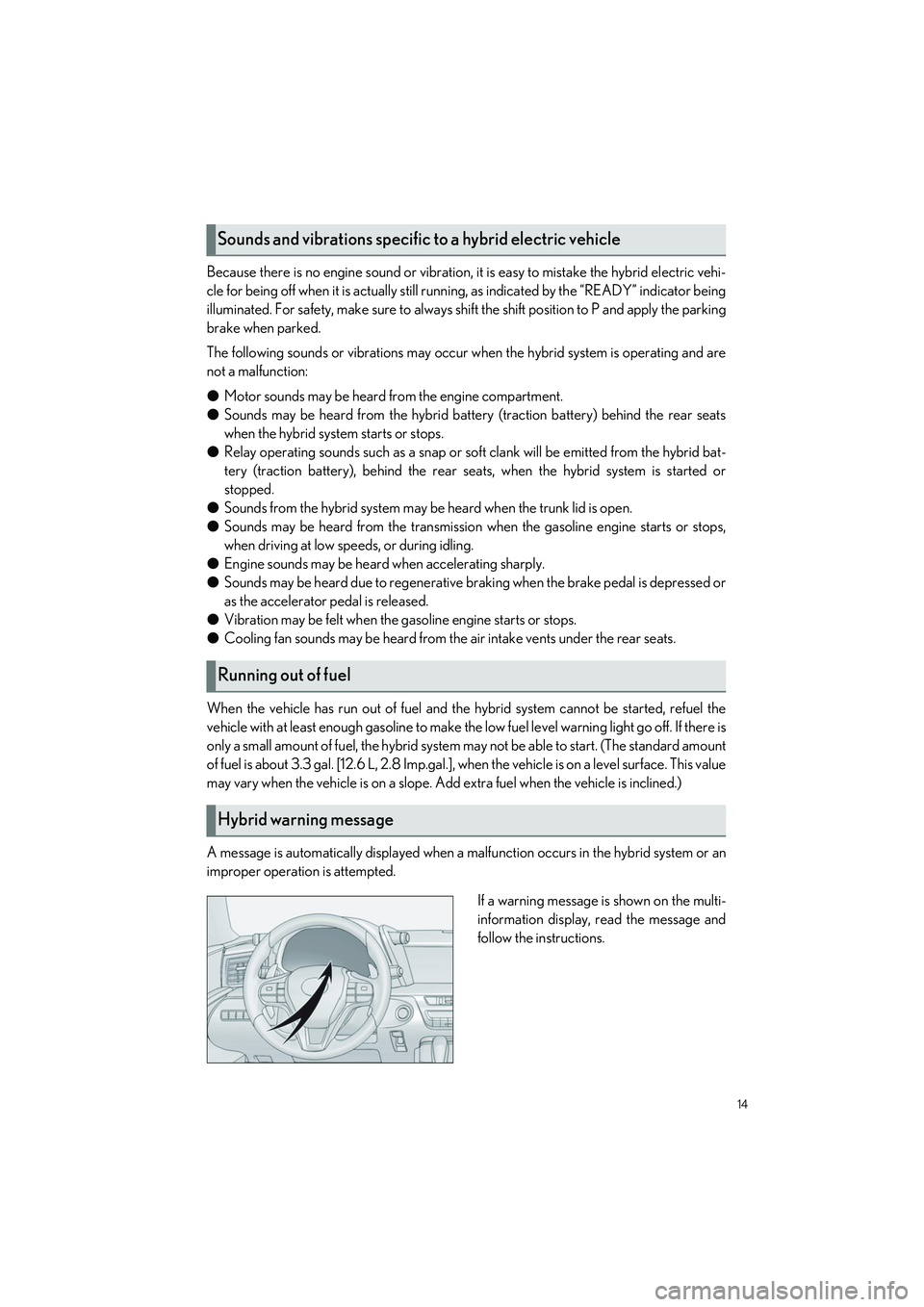

Because there is no engine sound or vibration, it is easy to mistake the hybrid electric vehi-
cle for being off when it is actually still runnin g, as indicated by the “READY” indicator being
illuminated. For safety, make sure to always shift the shift position to P and apply the parking
brake when parked.
The following sounds or vibrations may occur when the hybrid system is operating and are
not a malfunction:
● Motor sounds may be heard from the engine compartment.
● Sounds may be heard from the hybrid battery (traction battery) behind the rear seats
when the hybrid system starts or stops.
● Relay operating sounds such as a snap or so ft clank will be emitted from the hybrid bat-
tery (traction battery), behind the rear seats, when the hybrid system is started or
stopped.
● Sounds from the hybrid system may be heard when the trunk lid is open.
● Sounds may be heard from the transmission when the gasoline engine starts or stops,
when driving at low speeds, or during idling.
● Engine sounds may be heard when accelerating sharply.
● Sounds may be heard due to regenerative braking when the brake pedal is depressed or
as the accelerator pedal is released.
● Vibration may be felt when the gasoline engine starts or stops.
● Cooling fan sounds may be heard from the air intake vents under the rear seats.
When the vehicle has run out of fuel and the hybrid system cannot be started, refuel the
vehicle with at least enough gasoline to make th e low fuel level warning light go off. If there is
only a small amount of fuel, the hybrid system may not be able to start. (The standard amount
of fuel is about 3.3 gal. [12.6 L, 2.8 Imp.gal.], when the vehicle is on a level surface. This value
may vary when the vehicle is on a slope. Add extra fuel when the vehicle is inclined.)
A message is automatically displayed when a ma lfunction occurs in the hybrid system or an
improper operation is attempted.
If a warning message is shown on the multi-
information display, read the message and
follow the instructions.
Sounds and vibrations specific to a hybrid electric vehicle
Running out of fuel
Hybrid warning message
