Precautions against winter season ............................................................................ P.234
To prevent freezing (windshield wiper de-icer)
*................................................. P.246
Precautions against car wash ...................................................................................... P.275
Fuel filler door .......................................................................................................... P.176
Refueling method ............................................................................................................... P.176
Fuel type/fuel tank capacity ...... ................................................................................... P.373
Tires.......................................................................................................................... ...P.301
Tire size/inflation pressure ........................................................................................... P.379
Winter tires.......................................................................................................................... P.233
Checking/rotation/tire pressure warning system............................................... P.301
Coping with flat tires........................................................................................................P .350
Hood ......................................................................................................................... P. 289
Opening ........................................................................................................................ .......P.289
Engine oil ..................................................................................................................... ......... P.374
Coping with overheating ....................................................................................P.364, 366
Warning messages .......................................................................................................... P.344
Active rear wing
*...................................................................................................P.224
Headlights/side marker lights/cornering lights............................................ P.167
Parking lights/daytime running lights............................................................... P.167
Turn signal lights ....................................................................................................... P.161
Tail lights .................................................................................................................... P.167
License plate lights ................................................................................................. P.167
Back up lights
Shifting the shift lever to R ...................................................................................... P.151, 157
*:If equipped
Light bulbs of the exterior lights for driving
(Replacing method: P.324, Watts: P.380)
E
F
G
H
I
J
K
L
M
N

2334-6. Driving tips
LC500_LC500h_OM_OM11405U_(U)
4
Driving
 Use fluids that are appropriate to
the prevailing outside temperatures.
•Engine oil
• Engine coolant
• Power control unit coolant (LC500h)
•Washer fluid
Have a service technician inspect
the condition of the 12-volt battery.
 Have the vehicle fitted with four
snow tires.
Ensure that all tires are the specified size
and the same brand.
Perform the following according to the
driving conditions:
Do not try to forcibly open a window
or move a wiper that is frozen. Pour
warm water over the frozen area to
melt the ice. Wipe away the water
immediately to prevent it from
freezing.
 When the outside door handle is
frozen, unlock the doors using the
wireless remote control. If the out-
side door handles remain retracted
and do not move even if the doors
are unlocked using the wireless
remote control, pour warm water
over the frozen area to melt the ice
and wipe away the water immedi-
ately to prevent it from freezing. The
outside door handle may not retract
due to ice, however, the outside
door handle will return to the nor-
mal position after the ice melts.
 To ensure proper operation of the
climate control system fan, remove
Winter driving tips
Carry out the necessary prepara-
tions and inspections before driving
the vehicle in winter. Always drive
the vehicle in a manner appropriate
to the prevailing weather condi-
tions.
Preparation for winter
WARNING
■Driving with snow tires
Observe the following precautions to
reduce the risk of accidents.
Failure to do so may result in a loss of
vehicle control and cause death or seri-
ous injury.
●Use tires of the specified size.
●Maintain the recommended level of air
pressure.
●Do not drive in excess of 75 mph (120
km/h), regardless of the type of snow
tires being used.
●Use snow tires on all, not just some
wheels.
NOTICE
■Driving with tire chains
Do not fit tire chains. Tire chains may
damage the vehicle body and suspen-
sion, and adversely affect driving perfor-
mance.
■Repairing or replacing snow tires
Request repairs or replacement of snow
tires from Lexus dealers or legitimate tire
retailers.
This is because the removal and attach-
ment of snow tires affects the operation
of the tire pressure warning valves and
transmitters.
Before driving the vehicle

2936-3. Do-it-yourself maintenance
LC500_LC500h_OM_OM11405U_(U)
6
Maintenance and care
With the engine at operating tempera-
ture and turned off, check the oil level
on the dipstick.
■Checking the engine oil
1 Park the vehicle on level ground.
LC500
After warming up the en gine and turning it
off, wait more than 5 minutes for the oil to
drain back into the bottom of the engine.
LC500h
After warming up the engine and turning
off the hybrid system, wait more than 5
minutes for the oil to drain back into the
bottom of the engine.
2 Holding a rag under the end, pull
the dipstick out.
LC500
LC500h 3
Wipe the dipstick clean.
4 Reinsert the dipstick fully.
5 Holding a rag under the end, pull
the dipstick out and check the oil
level.
Low
Normal
Excessive
The shape of the dipstick may differ
depending on the type of vehicle or
engine.
6Wipe the dipstick and reinsert it
fully.
■Checking the oil type and prepar-
ing the items needed
Make sure to check the oil type and
prepare the items needed before add-
ing oil.
 Engine oil selection
P.374, 375
 Oil quantity (Low  Full)
1.6 qt. (1.5 L, 1.3 Imp.qt.)
Item
Clean funnel
■Adding engine oil
If the oil level is below or near the low
level mark, add engine oil of the same
Checking and adding the engine
oil
A
B
C

2946-3. Do-it-yourself maintenance
LC500_LC500h_OM_OM11405U_(U)
type as that already in the engine.
LC500
LC500h
1 Remove the oil filler cap by turning
it counterclockwise.
2 Add engine oil slowly, checking the
dipstick.
3 Install the oil filler cap by turning it
clockwise.
■Engine oil consumption
A certain amount of engine oil will be con-
sumed while driving. In the following situa-
tions, oil consumption may increase, and
engine oil may need to be refilled in
between oil maintenance intervals.
●When the engine is new, for example
directly after purchasing the vehicle or
after replacing the engine
●If low quality oil or oil of an inappropriate
viscosity is used
●When driving at high engine speeds or
with a heavy load, or when driving while
accelerating or decelerating frequently
●When leaving the engine idling for a long
time, or when driving frequently through
heavy traffic
■After changing the engine oil (LC500h)
The engine oil maintenance data should be
reset. Perform the following procedures:
1 While the vehicle is stopped, press
of the meter control switches.
2 Press or of the meter control
switches, and select .
3 Press or of the meter control
switches, select “Veh icle Settings”, and
then press “OK”.
4 Press or of the meter control
switches, select “Oil Maintenance”, and
then press “OK”.
5 Select “Yes” and then press “OK”.
A message will be displayed on the multi-
information display.
WARNING
■Used engine oil
●Used engine oil contains potentially
harmful contaminants which may
cause skin disorders such as inflamma-
tion and skin cancer, so care should be
taken to avoid prolonged and
repeated contact. To remove used
engine oil from your skin, wash thor-
oughly with soap and water.

3748-1. Specifications
LC500_LC500h_OM_OM11405U_(U)
LC500
■Oil capacity (Drain and refill [Ref-
erence
*])
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the
engine, wait more than 5 minutes, and
check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in
your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil”
or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade
engine oil
Recommended viscosity: SAE 5W-30 SAE 5W-30 is the best choice for
good fuel economy and good starting
in cold weather.
If SAE 5W-30 is not available, SAE
10W-30 oil may be used. However, it
should be replaced with SAE 5W-30
at the next oil change.
Outside temperature
Oil viscosity (5W-30 is explained here
as an example):
• The 5W in 5W-30 indicates the characteristic of the oil which allows
Electric motor (traction motor) (LC500h)
TypePermanent magnet synchronous motor
Maximum output131.9 kW
Maximum torque221.3 ft•lbf (300 N•m, 30.6 kgf•m)
Hybrid battery (traction battery) (LC500h)
TypeLithium-ion battery
Voltage3.7 V/cell
Capacity3.6 Ah
Quantity84 cells
Overall voltage310.8 V
Lubrication system
With filter9.1 qt. (8.6 L, 7.6 Imp.qt.)
Without filter8.3 qt. (7.9 L, 7.0 Imp.qt.)
A

3768-1. Specifications
LC500_LC500h_OM_OM11405U_(U)
higher value) may be better suited if
the vehicle is operated at high
speeds, or under extreme load con-
ditions.
How to read oil container label:
The International Lubricant Specifica-
tion Advisory Committee (ILSAC)
Certification Mark is added to some oil
containers to help you select the oil you should use.
■Spark plug
Cooling system
Capacity
LC50012.8 qt. (12.1 L, 10.6 Imp.qt.)
LC500h
Gasoline engine
11.5 qt. (10.9L, 9.6 Imp.qt.)
Power control unit
2.4 qt. (2.3L, 2.0 Imp.qt.)
Coolant type
Use either of the following:
 “Toyota Super Long Life Coolant”
 Similar high-quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite, and non-borate coolant with long-
life hybrid organic acid technology
Do not use plain water alone.
Ignition system
LC500LC500h
MakeDENSO FK20HBR-J8DENSO FK20HBR8
Gap0.031 in. (0.8 mm)0.031 in. (0.8 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

3788-1. Specifications
LC500_LC500h_OM_OM11405U_(U)
*: The fluid capacity is the quantity of reference.If replacement is necessary, contact your Lexus dealer.
*: Your Lexus vehicle is filled with “Toyota Genu ine Differential Gear Oil” at the factory.
Use Lexus approved “Toyota Genu ine Differential Gear Oil” or an equivalent of match-
ing quality to satisfy the above specification. Please contact your Lexus dealer for further
details.
Hybrid transmission (LC500h)
Fluid capacity*7.2 qt. (6.8 L, 6.0 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■Hybrid transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration in
shift quality and ultimately damage the transmission of your vehicle.
Differential
Oil capacity0.90 qt. (0.85 L, 0.75 Imp.qt.)
Oil type and viscosity
Without LSD (Limited Slip Differential)
Toyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
*

With LSD (Limited Slip Differential)
Toyota Genuine Differential gear oil LX
75W-85 GL-5 or equivalent
*
Brakes
Pedal clearance*15.2 in. (132 mm) Min.
Pedal free play0.04  0.24 in. (1.0  6.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)

3878-1. Specifications
LC500_LC500h_OM_OM11405U_(U)
8
Vehicle specifications
Accessory weight
The combined weight (in excess of those standard items which may
be replaced) of automatic transmi ssion , power
steering, power brakes, power wi ndows, power seats, radio and
heater, to the extent that these item s are available as factory-installed
equipment (whether installed or not)
Curb weight
The weight of a motor vehicle with standard equipment, including the
maximum capacity of fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional engine
Maximum loaded
vehicle weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant
weight150 lb. (68 kg) times the number of occupants specified in the sec-
ond column of Table 1
* that follows
Occupant distribu-
tionDistribution of occupants in a vehicl e as specified in the third column
of Table 1
* below
Production options
weight
The combined weight of installed regular production options weigh-
ing over 5 lb. (2.3 kg) in excess of the standard items which they
replace, not previously considered in curb weight or accessory
weight, including heavy duty brakes , ride levelers, roof rack, heavy
duty 12-volt battery, and special trim
RimA metal support for a tire or a tire and tube assembly upon which the
tire beads are seated
Rim diameter
(Wheel diameter)Nominal diameter of the bead seat
Rim size designationRim diameter and width
Rim type designa-
tionThe industry manufacturer’s designation for a rim by style or code
Rim widthNominal distance between rim flanges
Vehicle capacity
weight (Total load
capacity)The rated cargo and luggage load plus 150 lb. (68 kg) times the
vehicle’s designated seating capacity
Tire related termMeaning

423What to do if... (Troubleshooting)
LC500_LC500h_OM_OM11405U_(U)Alphabetical index423
Ignition switch (engine switch) ............ 140
Ignition switch (power switch) ..............143
Overheating.....................................364, 366
Power switch ................................................. 143
Engine coolant.............................................. 295 Capacity ......................................................... 376
Checking ....................................................... 295
Preparing and checking before winter......................................................................... 233
Engine coolant temperature gauge ........74
Engine immobilizer system ........................ 62
Engine oil ........................................................ 293 Capacity ......................................................... 374
Checking ....................................................... 293
Preparing and checking before winter......................................................................... 233
Warning light ............................................... 334
Warning message..................................... 347
Engine oil maintenance data .................. 294
Engine oil temperature gauge ...................74
Engine switch (power switch) ....... 140, 143 Auto power off function ................ 143, 146
Changing the engine switch (power switch) modes..................................142, 146
If your vehicle has to be stopped in an
emergency ................................................ 326
Starting the engine (hybrid system) 140,
143
EPS (Electric Power Steering) ...............227 Function ...........................................................227
Warning light ...............................................335
EV drive mode................................................ 147
Event data recorder (EDR) ............................7
EV indicator ...................................................... 55
F
First-aid kit storage belt ............................ 256
Flat tire ............................................................. 350 Tire pressure warning system .............303
Floor mats ...........................................................22
Fluid Automatic transmission ...........................377 Brake ................................................................378
Hybrid transmission..................................378
Washer ........................................................... 297
Footwell light ................................................. 252
Front passenger occupant classification system .............................................................. 38
Front seats ......................................................... 114 Adjustment ....................................................... 114
Cleaning ......................................................... 277
Correct driving posture ............................ 23
Driving position memory .......................... 116
Head restraints............................................... 119
Jam protection function ............................. 115
Memory recall function.............................. 117
Seat heaters .................................................. 249
Seat position memory ................................ 116
Seat ventilators ............................................ 249
Front side marker light ................................ 167 Light switch .....................................................167
Replacing light bulbs ................................ 324
Front turn signal lights .................................. 161 Replacing light bulbs ................................ 324
Turn signal lever ............................................ 161
Fuel ...................................................................... 176 Capacity ......................................................... 373
Fuel gauge ........................................................ 74
Fuel pump shut off system.....................333
Information ..................................................... 381
Refueling...........................................................176
Type .................................................................. 373
Warning light .............................................. 338
Fuel consumption Average fuel consumpt ion after refueling
............................................................................. 79
Average fuel economy .............................. 79
Current fuel consumption ........................ 79
Fuel filler door ................................................. 176 If the fuel filler do or cannot be opened
..........................................................................354
Refueling...........................................................176
Fuel gauge ..........................................................74
Fuel pump shut off system........................ 333

432
LC500_LC500h_OM_OM11405U_(U)

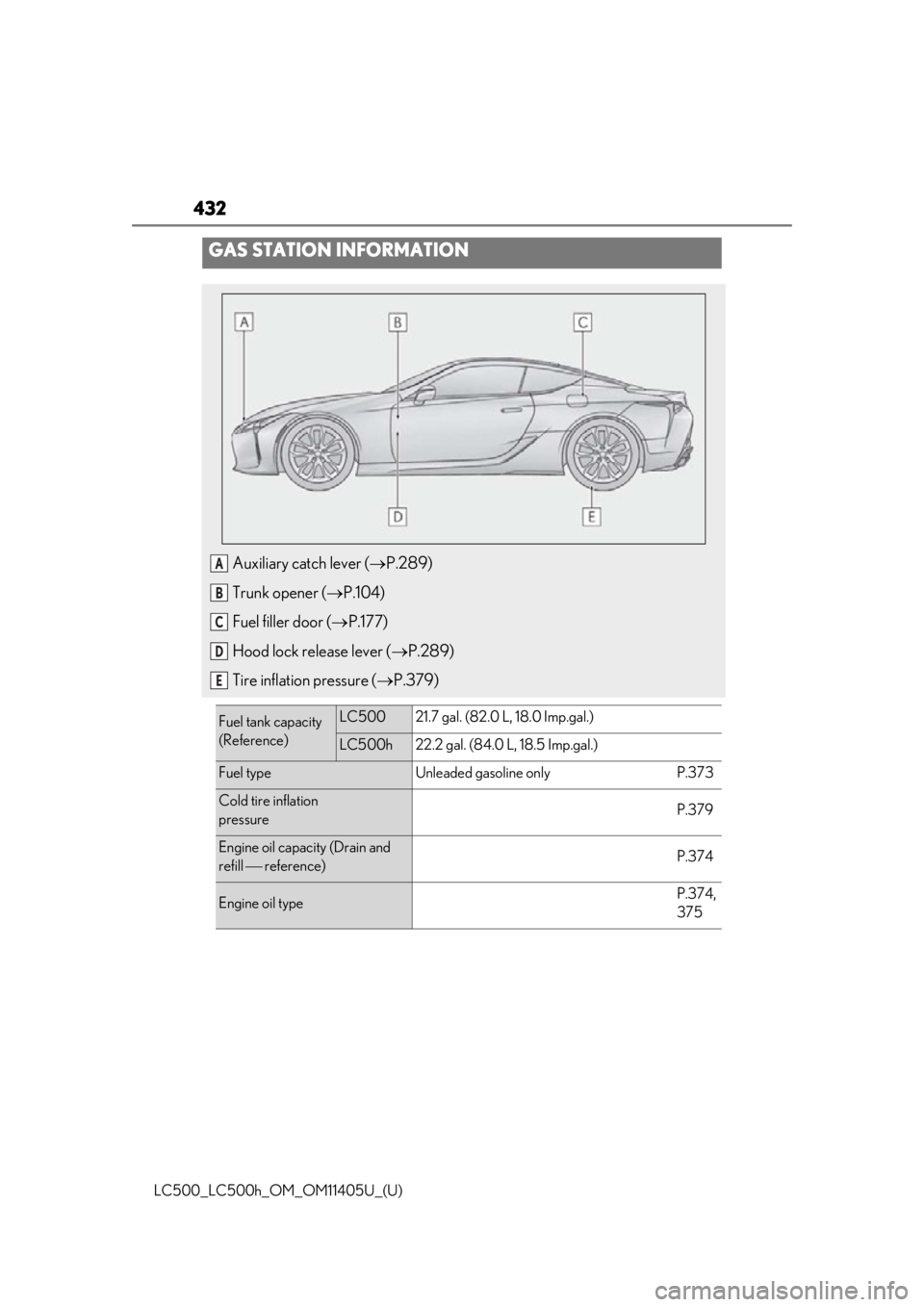

GAS STATION INFORMATION
Auxiliary catch lever (P.289)
Trunk opener ( P.104)
Fuel filler door ( P.177)
Hood lock release lever ( P.289)
Tire inflation pressure ( P.379)
Fuel tank capacity
(Reference)LC50021.7 gal. (82.0 L, 18.0 Imp.gal.)
LC500h22.2 gal. (84.0 L, 18.5 Imp.gal.)
Fuel typeUnleaded gasoline onlyP.373
Cold tire inflation
pressureP.379
Engine oil capacity (Drain and
refill  reference)P.374
Engine oil typeP.374,
375
A
B
C
D
E
