■Audio control switch
Turn to select a track/file.
Turn and hold to fast forward/rewind.
Turn to select a track/file.
Turn to move up/down the list.
■Control screen
Audio CD
Displays cover art.
Select to set repeat playback.
Select to change the track.
Select and hold to fast rewind.
Select to play/pause.
Select to change the track.
Select and hold to fast forward.
Select to set random playback.
 MP3/WMA/AAC disc
Displays cover art.
Select to change the folder.
Select to set repeat playback.
Select to change the file.
Select and hold to fast rewind.
Select to play/pause.
Select to change the file.
Select and hold to fast forward.
Select to set random playback.

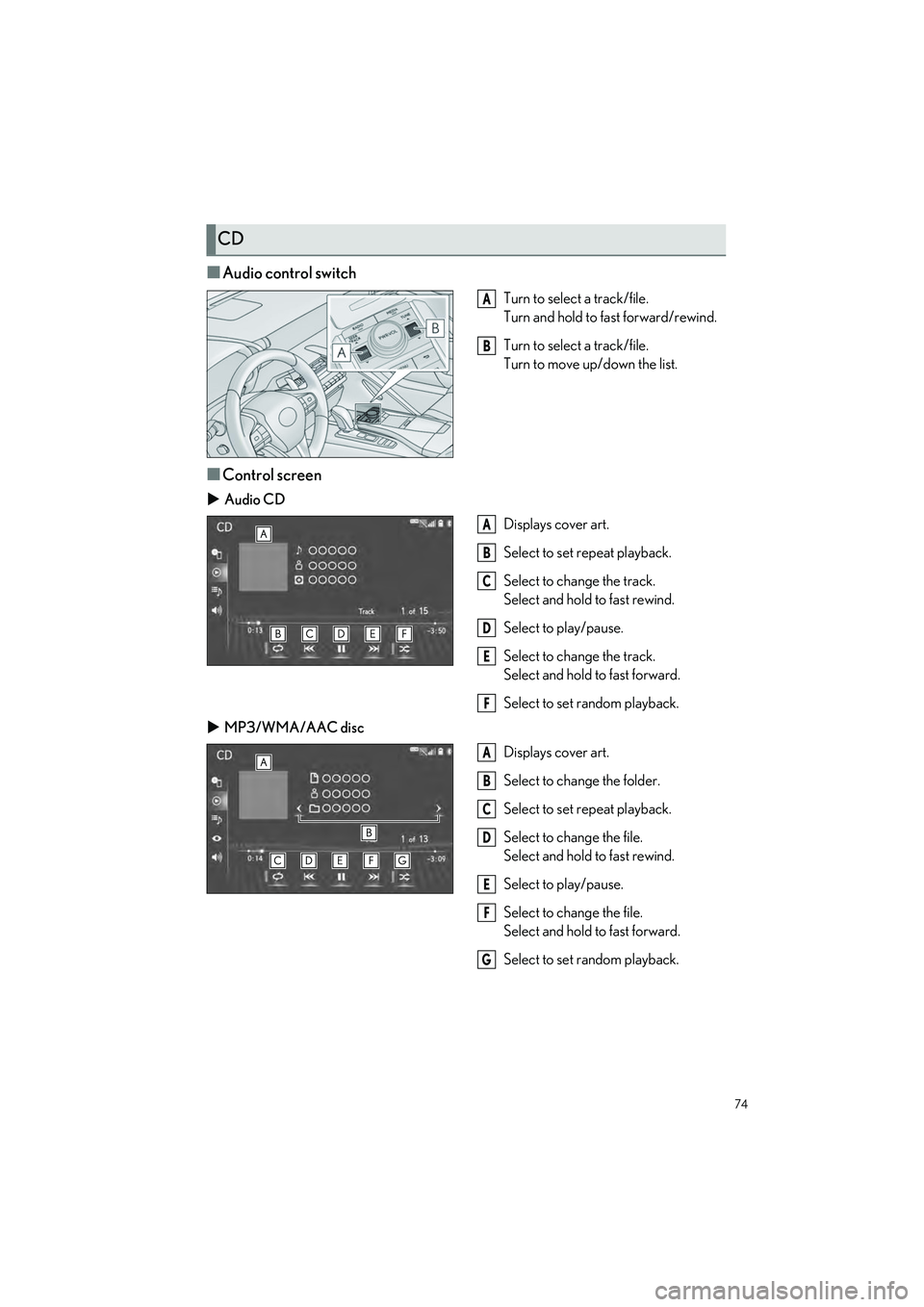

CD
A
B
A
B
C
D
E
F
A
B
C
D
E
F
G

75
LC500_LC500h_QG_OM11688U_(U)
■Audio control switch
Turn to select a chapter.
Turn and hold to fast forward/rewind.
Turn to select a chapter.
■Control screen
Select to display the menu control key.
Select to display the menu screen.
Select to change the chapter.
Select and hold to fast rewind.
Select to stop the video screen.
Select to play/pause.
Select to change the chapter.
During playback: Select and hold to
fast forward.
During a pause: Select and hold to
slow forward.
Select to display expanded screen
video.
DVD
A
B
A
B
C
D
E
F
G

76
LC500_LC500h_QG_OM11688U_(U)
*: This function is not made available in some countries or areas.
■Audio control switch
Turn to select a track.
Turn and hold to fast forward/rewind.
Turn to select a track.
Turn to move up/down the list.

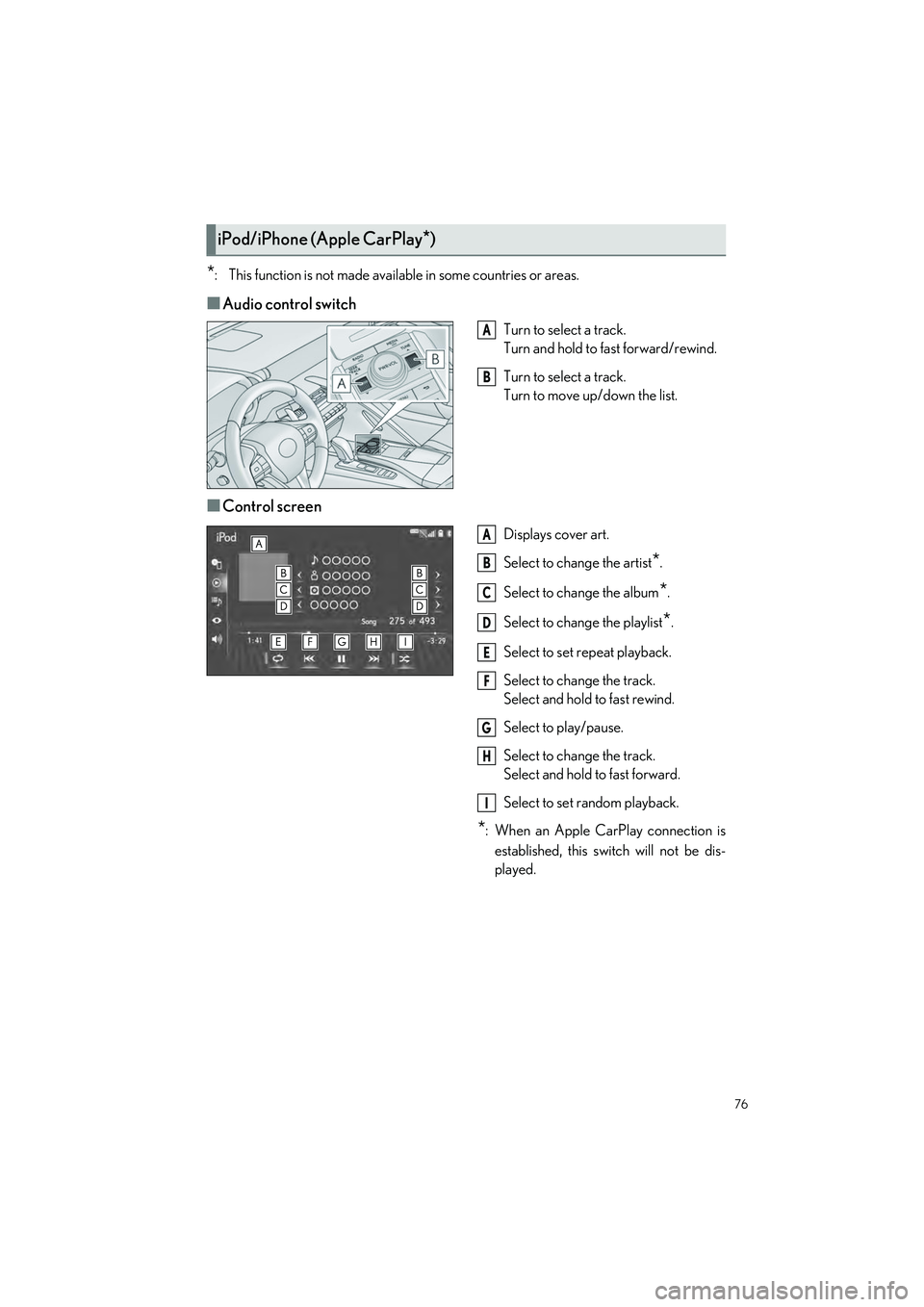

■Control screen
Displays cover art.
Select to change the artist
*.
Select to change the album
*.
Select to change the playlist
*.
Select to set repeat playback.
Select to change the track.
Select and hold to fast rewind.
Select to play/pause.
Select to change the track.
Select and hold to fast forward.
Select to set random playback.
*: When an Apple CarPlay connection is established, this switch will not be dis-
played.
iPod/iPhone (Apple CarPlay*)
A
B
A
B
C
D
E
F
G
H
I

77
LC500_LC500h_QG_OM11688U_(U)
Press the “MENU” button on the Remote Touch and select “Climate” to display the air con-
ditioning control screen. Then, select on the sub menu to display the Lexus Climate
Concierge control screen.
Select .
The indicator on the Lexus Climate Con-
cierge control screen illuminates and all of
the following systems operate in automatic
mode.
●Air conditioning system
● Seat heaters and ventilators
● Heated steering wheel (if equipped)
If any of the system is operated manually, the indicator turns off. However, all other functions
continue to operate in automatic mode.

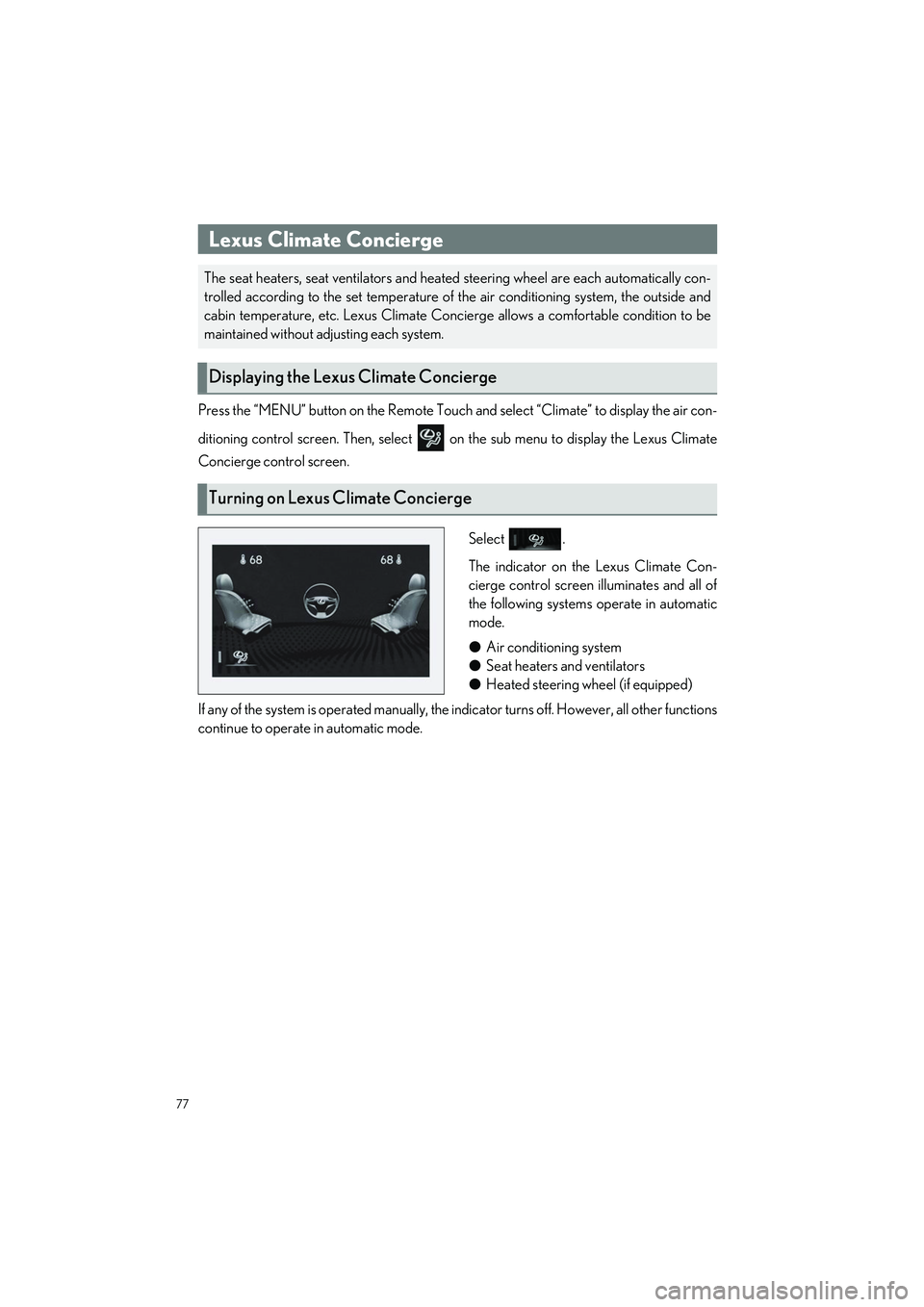

Lexus Climate Concierge
The seat heaters, seat ventila tors and heated steering wheel are each automatically con-
trolled according to the set temperature of the air conditioning system, the outside and
cabin temperature, etc. Lexus Climate Concierge allows a comfortable condition to be
maintained without adjusting each system.
Displaying the Lexus Climate Concierge
Turning on Lexus Climate Concierge

78
LC500_LC500h_QG_OM11688U_(U)
Automatic mode switch
Off switch
Left-hand side temperature control switch
Fan speed control switch
Outside/recirculated air mode switch
Right-hand side temperature control switch
Windshield defogger switch
Rear window and outside rear view mirror defoggers switch
■Adjusting the temperature
Operate the temperature control switch upwards to increase the temperature and down-
wards to decrease the temperature.
If the “A/C” indicator is turned off, the system will blow ambient temperature air or heated
air.
■Setting the fan speed
Operate the fan speed control switch upwards to increase the fan speed and downwards
to decrease the fan speed.
Press the off switch to turn the fan off.
■Changing the air flow mode
 P.79

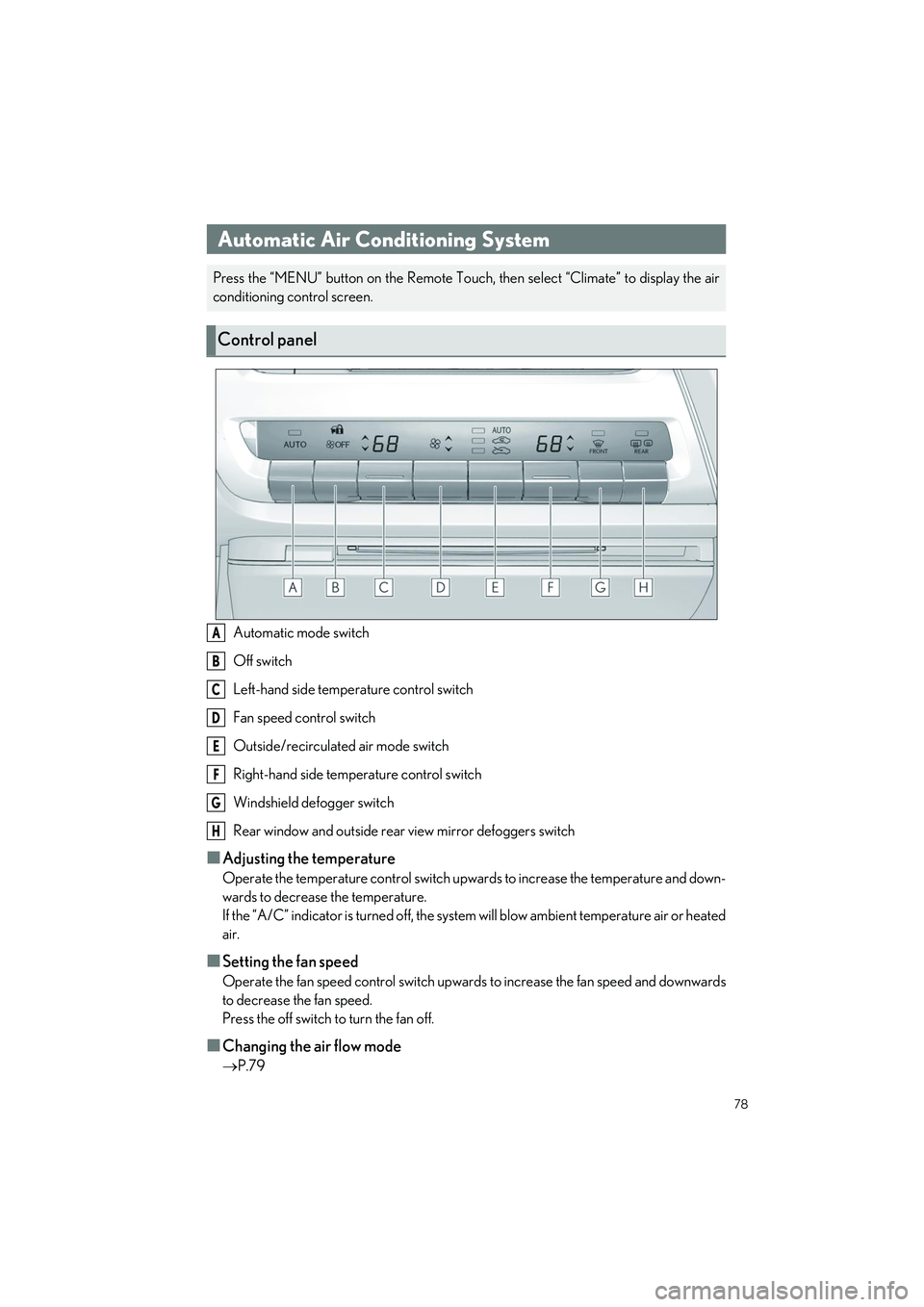

Automatic Air Conditioning System
Press the “MENU” button on the Remote Touch, then select “Climate” to display the air
conditioning control screen.
Control panel
A
B
C
D
E
F
G
H

79
LC500_LC500h_QG_OM11688U_(U)
■Main control screen
Using the touchpad of the Remote Touch, select the button on the screen. to can be adjusted by perf orming the following operations.
Flick operation: Move the pointer to the desi red item and flick the touchpad up or down.
The item can be adjusted by one level.
Trace operation: After selecting the desired item, trace the pad surface.
The item can be adjusted by the amount that you trace.
Trace operation cannot be used while driving.
Sub menu
Selecting the sub menu item to switch
the main screen.
: Display the air conditioning con-
trol screen
: Display the heated steering
wheel (if equipped)/seat heater/seat
ventilator control screen
: Display the Lexus Climate Con-
cierge control screen
: Display the option control
screen
Adjust the left-hand side temperature setting
Adjust the fan speed setting
Select the air flow mode
: Air flows to the upper body
: Air flows to the upper body and feet
: Air flows to the feet
: Air flows to the feet and the windshield defogger operates

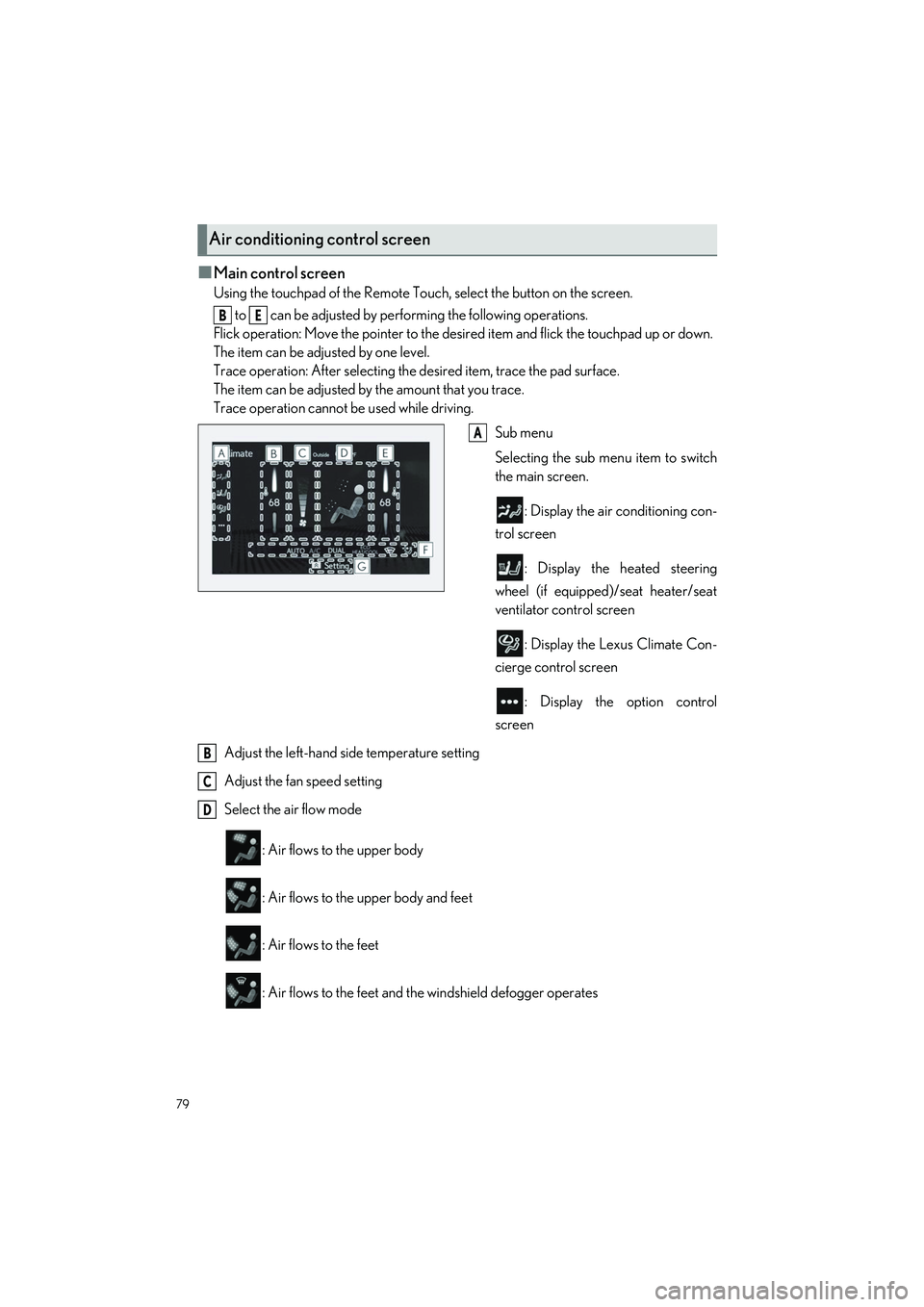

Air conditioning control screen
BE
A
B
C
D

80
LC500_LC500h_QG_OM11688U_(U)
Adjust the right-hand side temperature setting
Function on/off indicators
When the function is on, the indicator illuminates on the control screen.
Sub function menu
When the sub function button on the Remote Touch is pressed, the following functions
can be switched on and off.
: Set Lexus Climate Concierge ( P.77)
“AUTO”: Set automatic mode on/off ( P.81)
“Off”: Turn the fan off
“A/C”: Set cooling and dehumidification function
“DUAL”: Adjust the temperature for driver and passenger seats separately (“DUAL”
mode)
: Set eco air conditioning mode
■Option control screen
Select on the sub menu to display the option control screen.
The functions can be switched on and off.
When the function is on, the in dicator illuminates on the screen.
Set Lexus Climate Concierge ( P.77)
Adjusting the temp erature for driver
and passenger seats separately
(“DUAL” mode)
Set eco air conditioning mode
Air conditioning and heater output is
limited to prioritize fuel economy.
Cooling and dehumidification function
Prevent ice from building up on the windshield and wiper blades (Windshield wiper de-
icer) (if equipped)
Removing pollen from the air (Micro dust and pollen filter)
E
F
G
A
B
C
D
E
F

81
LC500_LC500h_QG_OM11688U_(U)

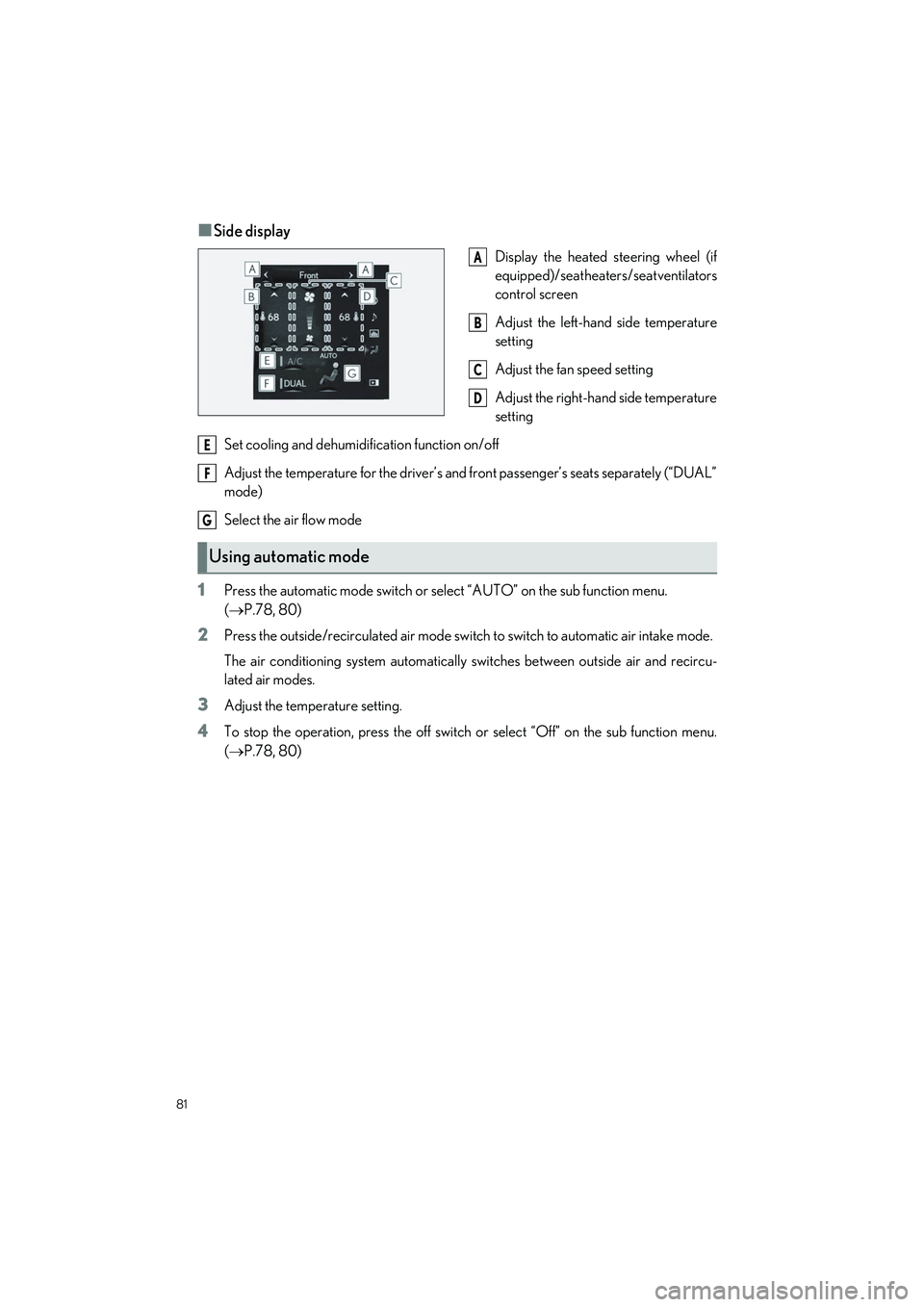

■Side display
Display the heated steering wheel (if
equipped)/seat heaters/seat ventilators
control screen
Adjust the left-hand side temperature
setting
Adjust the fan speed setting
Adjust the right-hand side temperature
setting
Set cooling and dehumidification function on/off
Adjust the temperature for the driver’s and front passenger’s seats separately (“DUAL”
mode)
Select the air flow mode
1Press the automatic mode switch or select “AUTO” on the sub function menu.
(  P.78, 80)
2Press the outside/recirculated air mode switch to switch to automatic air intake mode.
The air conditioning system automatically switches between outside air and recircu-
lated air modes.
3Adjust the temperature setting.
4To stop the operation, press the off switch or select “Off” on the sub function menu.
(  P.78, 80)
A
B
C
D
Using automatic mode
E
F
G

82
LC500_LC500h_QG_OM11688U_(U)
1Press the talk switch.
Voice guidance for the voice com-
mand system can be skipped by press-
ing the talk switch.
2If “Getting Started with Voice” screen is disp layed, select “OK” or press the talk switch.
3After hearing a beep, say a supported command.
●To display sample commands of the desire d function, say the desired function or
select the desired function button. To display more commands, select “More Com-
mands”.
● Selecting “Help” or saying “Help” prompts the voice command system to offer
examples of commands and operation methods.
● Registered POIs, registered names in the contacts list etc., can be said in the place
of the “<>” next to the commands.
Continue on to pages 83-88 for a detailed list of Voice Commands for the following cate-
gories:
Common . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.83
Top menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.83
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.84
Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.85
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.86
Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.87
Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.87
Apps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.88
Climate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.88

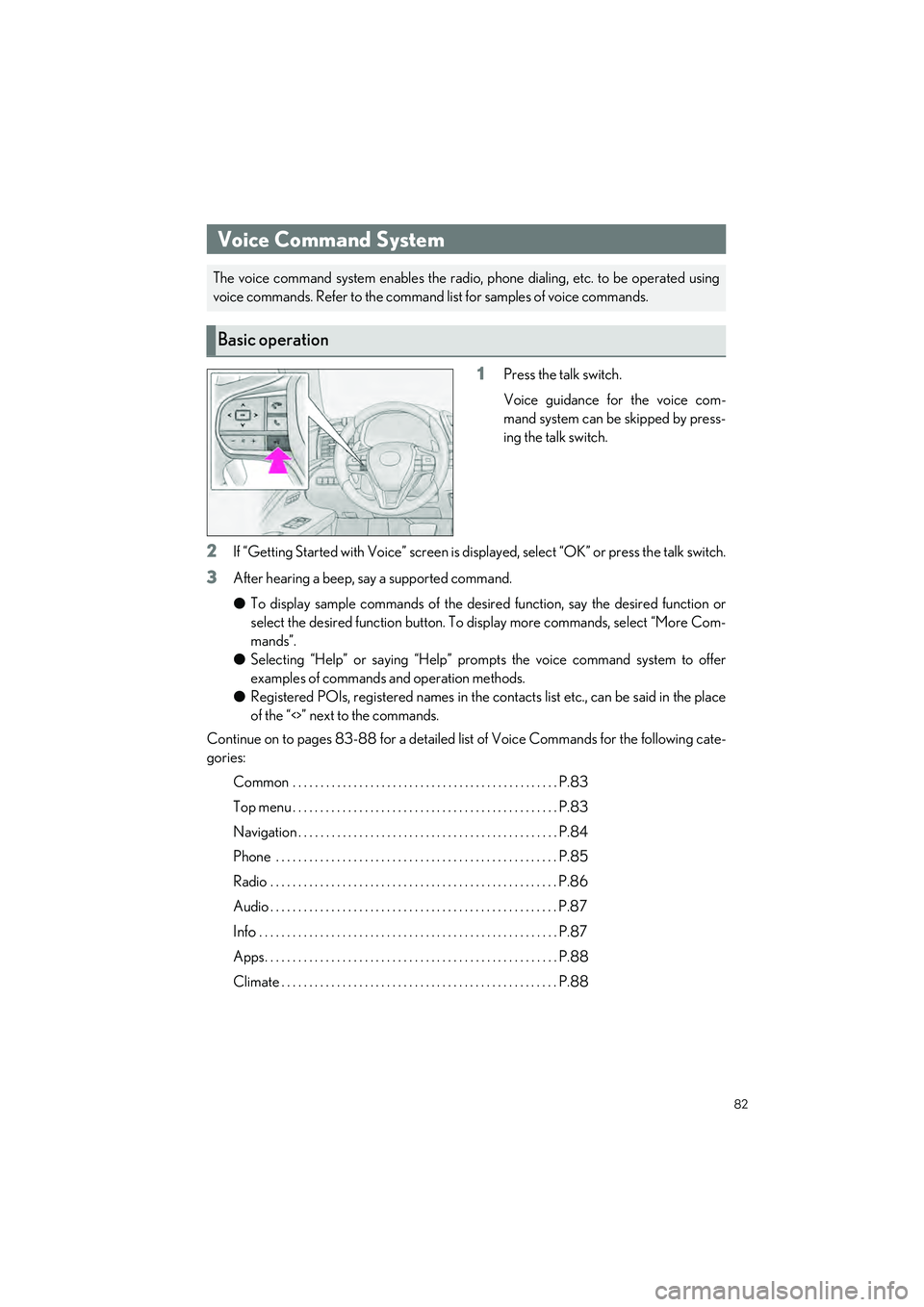

Voice Command System
The voice command system enables the radio, phone dialing, etc. to be operated using
voice commands. Refer to the command list for samples of voice commands.
Basic operation

83
LC500_LC500h_QG_OM11688U_(U)

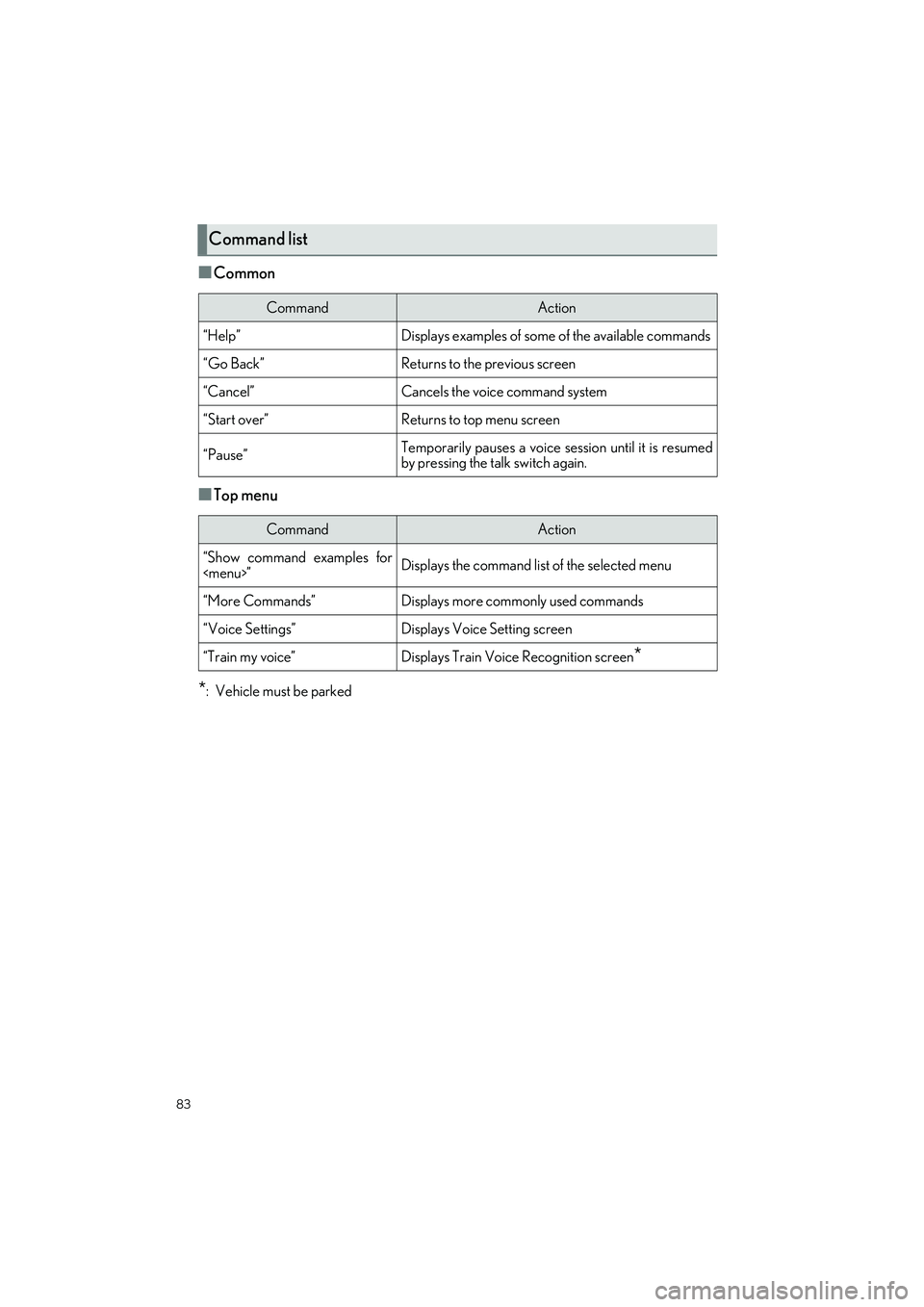

■Common
■Top menu
*: Vehicle must be parked
Command list
CommandAction
“Help”Displays examples of some of the available commands
“Go Back”Returns to the previous screen
“Cancel”Cancels the voice command system
“Start over”Returns to top menu screen
“Pause”Temporarily pauses a voice session until it is resumed
by pressing the talk switch again.
CommandAction
“Show command examples for
