lexus LFA 2012 / LEXUS 2012 LFA NURBURGRING PACKAGE GUIDE User Guide

41
Chassis and suspension
LFA_Nurburgring_U

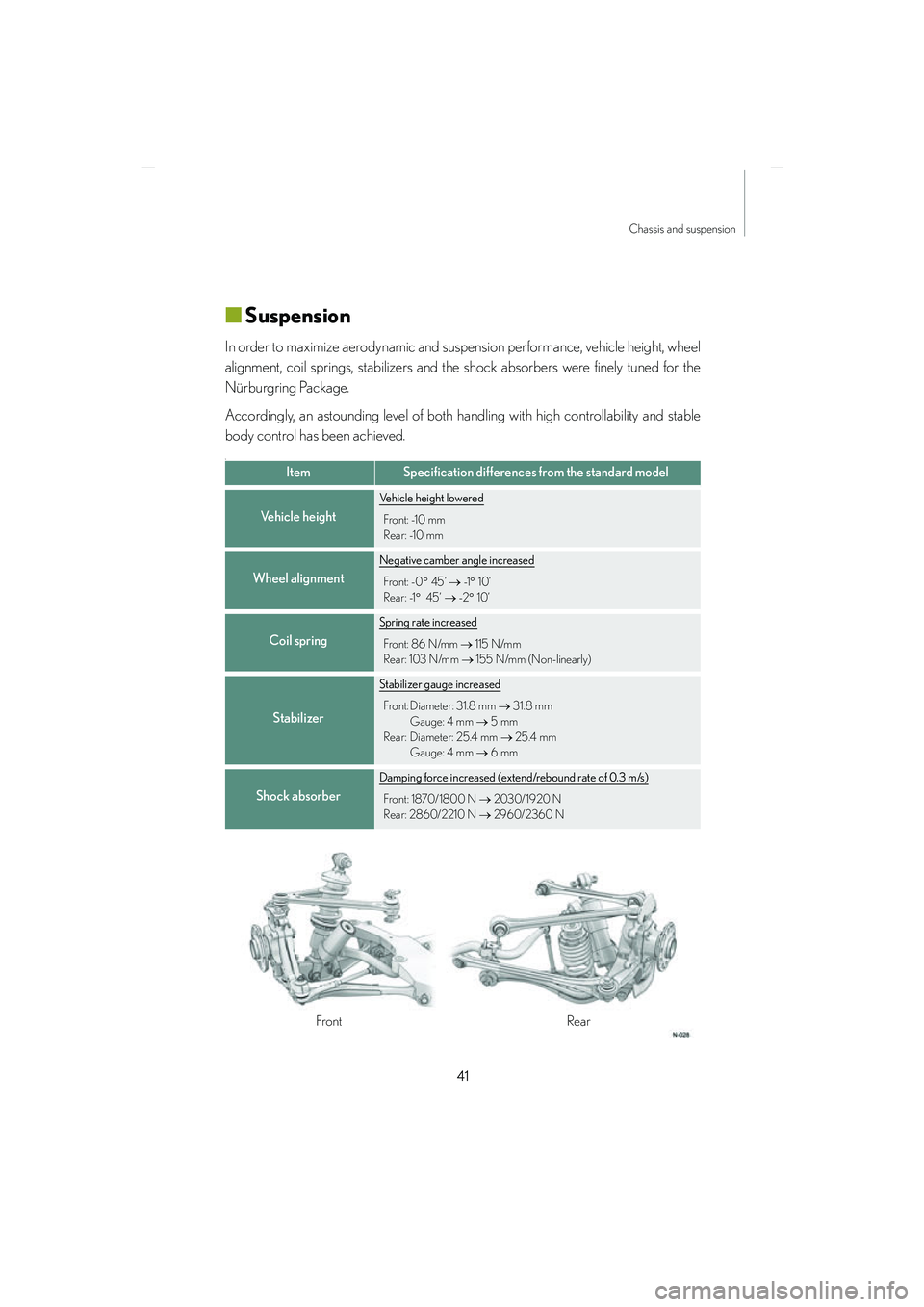

■Suspension
In order to maximize aerodynamic and suspension performance, vehicle height, wheel
alignment, coil springs, stabilizers and the shock absorbers were finely tuned for the
Nürburgring Package.
Accordingly, an astounding level of both handling with high controllability and stable
body control has been achieved.
s
ItemSpecification differences from the standard model
Vehicle height
Vehicle height lowered
Front: -10 mm
Rear: -10 mm
Wheel alignment
Negative camber angle increased
Front: -0 ° 45 ’ → -1° 10’
Rear: -1 ° 45’ → -2 ° 10’
Coil spring
Spring rate increased
Front: 86 N/mm → 115 N/mm
Rear: 103 N/mm → 155 N/mm (Non-linearly)
Stabilizer
Stabilizer gauge increased
Front: Diameter: 31.8 mm → 31.8 mm
Gauge: 4 mm → 5 mm
Rear: Diameter: 25.4 mm → 25.4 mm
Gauge: 4 mm → 6 mm
Shock absorber
Damping force increased (extend/rebound rate of 0.3 m/s)
Front: 1870/1800 N → 2030/1920 N
Rear: 2860/2210 N → 2960/2360 N
Front Rear
LFA_Nur_J_U_K_M_OM77029U.book 41 ページ ２０１２年１月１７日　火曜日　午前１０時１３分

42
LFA_Nurburgring_U

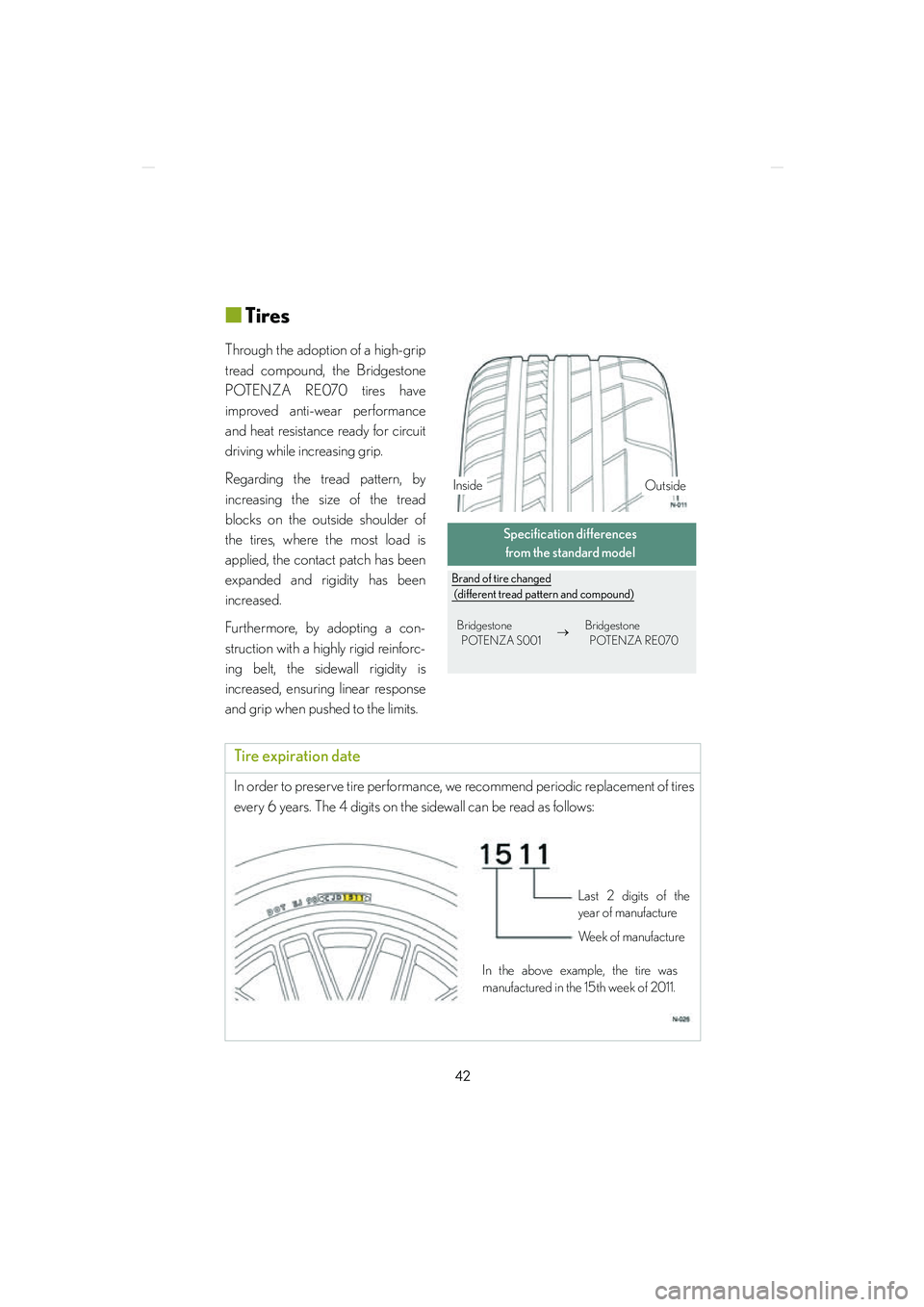

■Tires
Through the adoption of a high-grip
tread compound, the Bridgestone
POTENZA RE070 tires have
improved anti-wear performance
and heat resistance ready for circuit
driving while increasing grip.
Regarding the tread pattern, by
increasing the size of the tread
blocks on the outside shoulder of
the tires, where the most load is
applied, the contact patch has been
expanded and rigidity has been
increased.
Furthermore, by adopting a con-
struction with a highly rigid reinforc-
ing belt, the sidewall rigidity is
increased, ensuring linear response
and grip when pushed to the limits.
Tire expiration date
In order to preserve tire performance, we recommend periodic replacement of tires
every 6 years. The 4 digits on the sidewall can be read as follows:
Inside Outside
Specification differences
from the standard model
Brand of tire changed
(different tread pattern and compound)
Bridgestone POTENZA RE070
Bridgestone
POTENZA S001 →
Last 2 digits of the
year of manufacture
Week of manufacture
In the above example, the tire was
manufactured in the 15th week of 2011.
LFA_Nur_J_U_K_M_OM77029U.book 42 ページ ２０１２年１月１７日　火曜日　午前１０時１３分

43
Chassis and suspension
LFA_Nurburgring_U

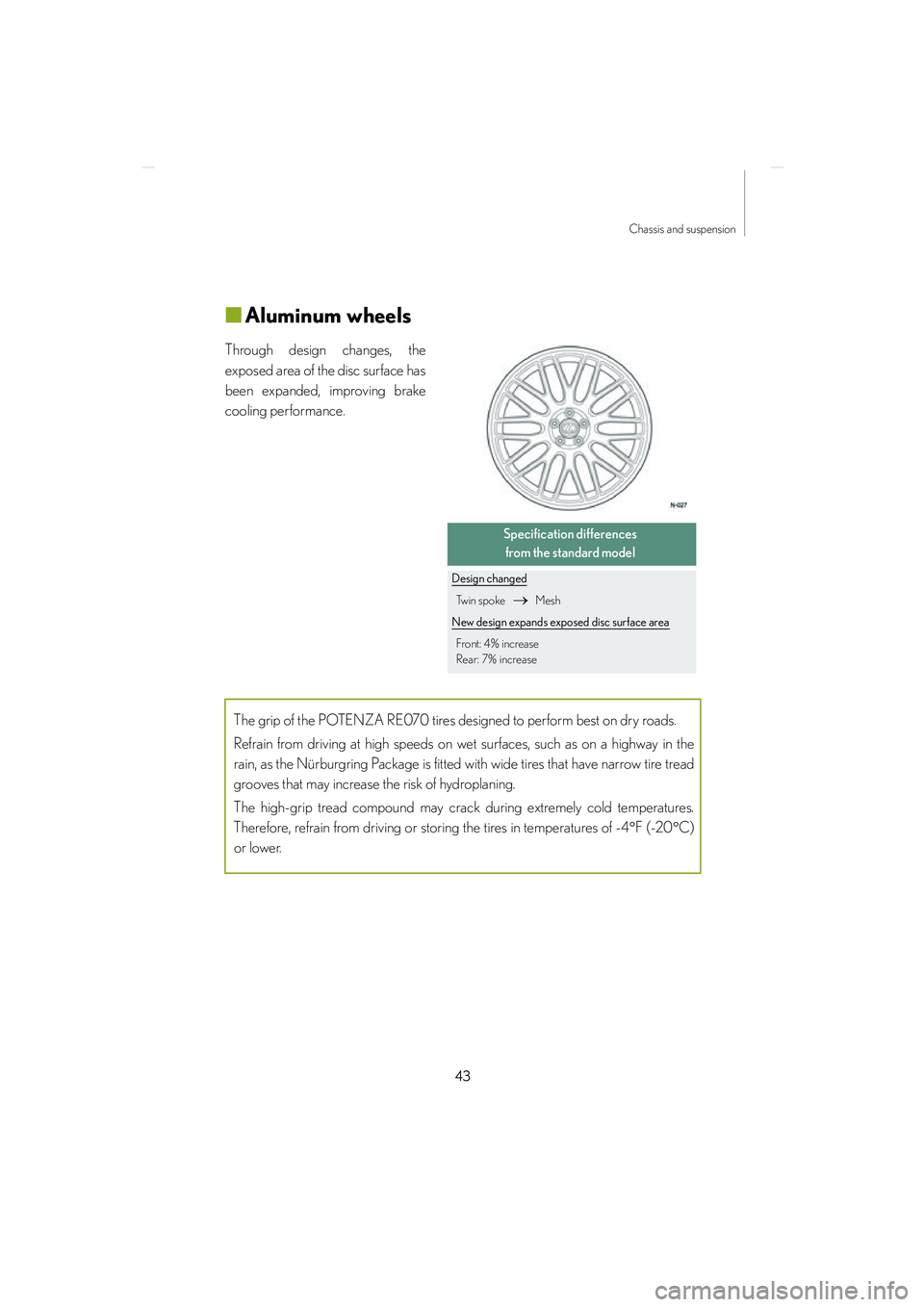

■Aluminum wheels
Through design changes, the
exposed area of the disc surface has
been expanded, improving brake
cooling performance.The grip of the POTENZA RE070 tires designed to perform best on dry roads.
Refrain from driving at high speeds on wet surfaces, such as on a highway in the
rain, as the Nürburgring Package is fitted with wide tires that have narrow tire tread
grooves that may increase the risk of hydroplaning.
The high-grip tread compound may crack during extremely cold temperatures.
Therefore, refrain from driving or storing the tires in temperatures of -4° F (-20°C)
or lower.
Specification differences
from the standard model
Design changed
Tw i n s p o k e → Mesh
New design expands exposed disc surface area
Front: 4% increase
Rear: 7% increase
LFA_Nur_J_U_K_M_OM77029U.book 43 ページ ２０１２年１月１７日　火曜日　午前１０時１３分

44
LFA_Nurburgring_U

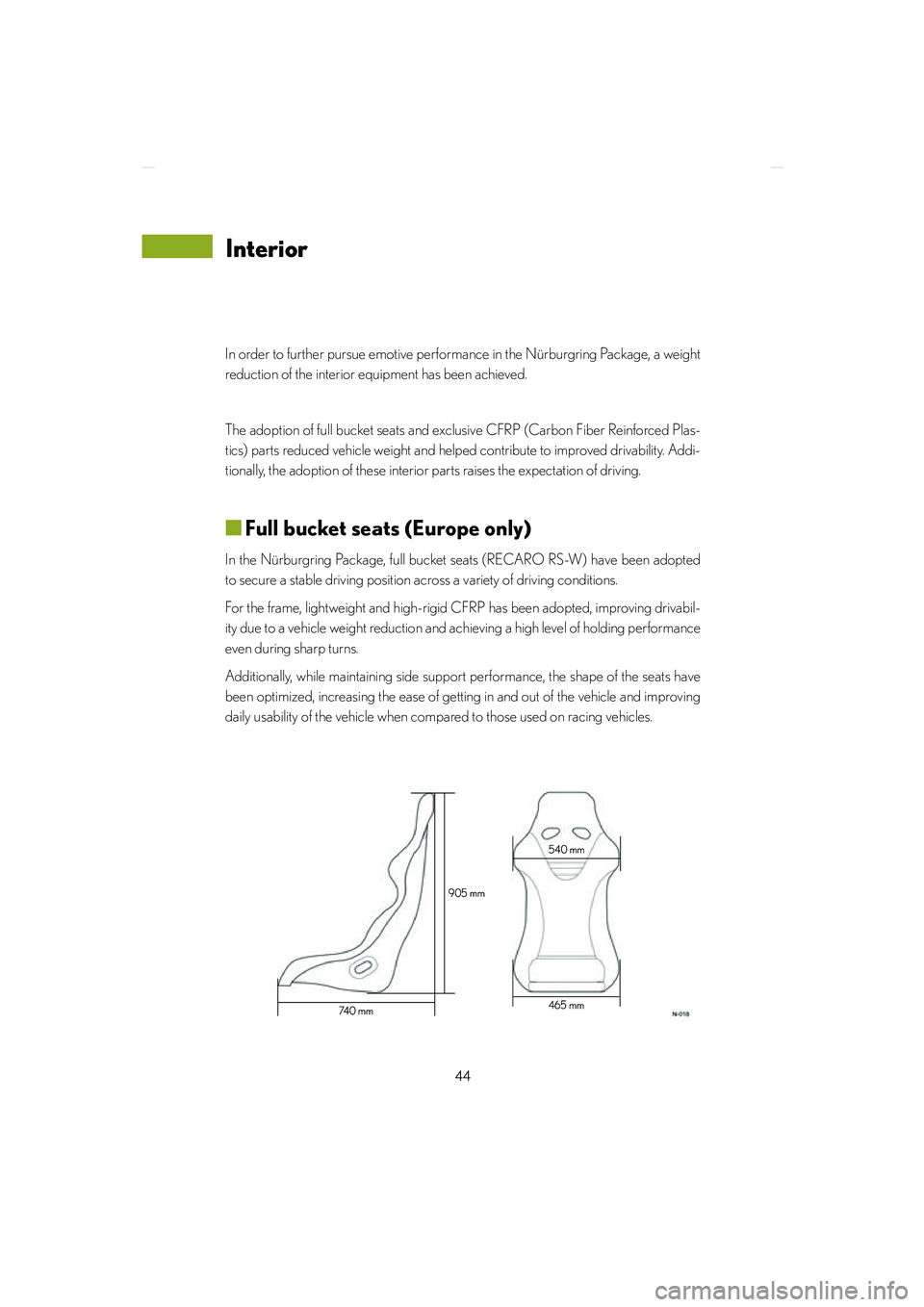

In order to further pursue emotive performance in the Nürburgring Package, a weight
reduction of the interior equipment has been achieved.
The adoption of full bucket seats and exclusive CFRP (Carbon Fiber Reinforced Plas-
tics) parts reduced vehicle weight and helped contribute to improved drivability. Addi-
tionally, the adoption of these interior parts raises the expectation of driving.
■Full bucket seats (Europe only)
In the Nürburgring Package, full bucket seats (RECARO RS-W) have been adopted
to secure a stable driving position across a variety of driving conditions.
For the frame, lightweight and high-rigid CFRP has been adopted, improving drivabil-
ity due to a vehicle weight reduction and achieving a high level of holding performance
even during sharp turns.
Additionally, while maintaining side support performance, the shape of the seats have
been optimized, increasing the ease of getting in and out of the vehicle and improving
daily usability of the vehicle when compar ed to those used on racing vehicles.
905 mm
74 0 m m
540 mm
465 mm
Interior
LFA_Nur_J_U_K_M_OM77029U.book 44 ページ ２０１２年１月１７日　火曜日　午前１０時１３分

45
Interior
LFA_Nurburgring_U

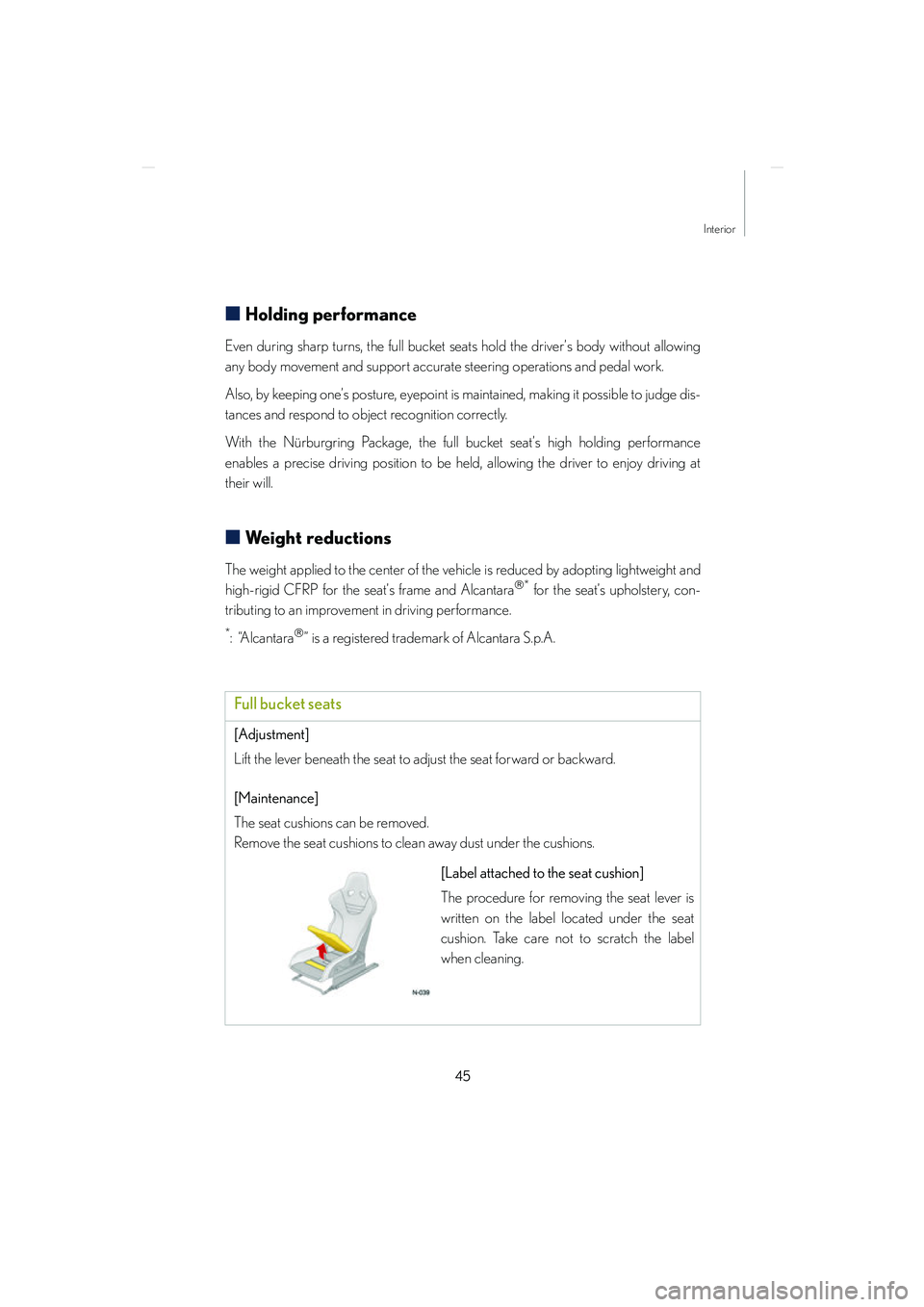

■Holding performance
Even during sharp turns, the full bucket seats hold the driver’s body without allowing
any body movement and support accurate steering operations and pedal work.
Also, by keeping one’s posture, eyepoint is maintained, making it possible to judge dis-
tances and respond to object recognition correctly.
With the Nürburgring Package, the full bucket seat’s high holding performance
enables a precise driving position to be held, allowing the driver to enjoy driving at
their will.
■Weight reductions
The weight applied to the center of the vehicle is reduced by adopting lightweight and
high-rigid CFRP for the seat’s frame and Alcantara * for the seat’s upholstery, con-
tributing to an improvement in driving performance.
*:“Alcantara” is a registered trademark of Alcantara S.p.A.
Full bucket seats
[Adjustment]
Lift the lever beneath the seat to adjust the seat forward or backward.
[Maintenance]
The seat cushions can be removed.
Remove the seat cushions to clean away dust under the cushions.
[Label attached to the seat cushion]
The procedure for removing the seat lever is
written on the label located under the seat
cushion. Take care not to scratch the label
when cleaning.
LFA_Nur_J_U_K_M_OM77029U.book 45 ページ ２０１２年１月１７日　火曜日　午前１０時１３分

46
LFA_Nurburgring_U

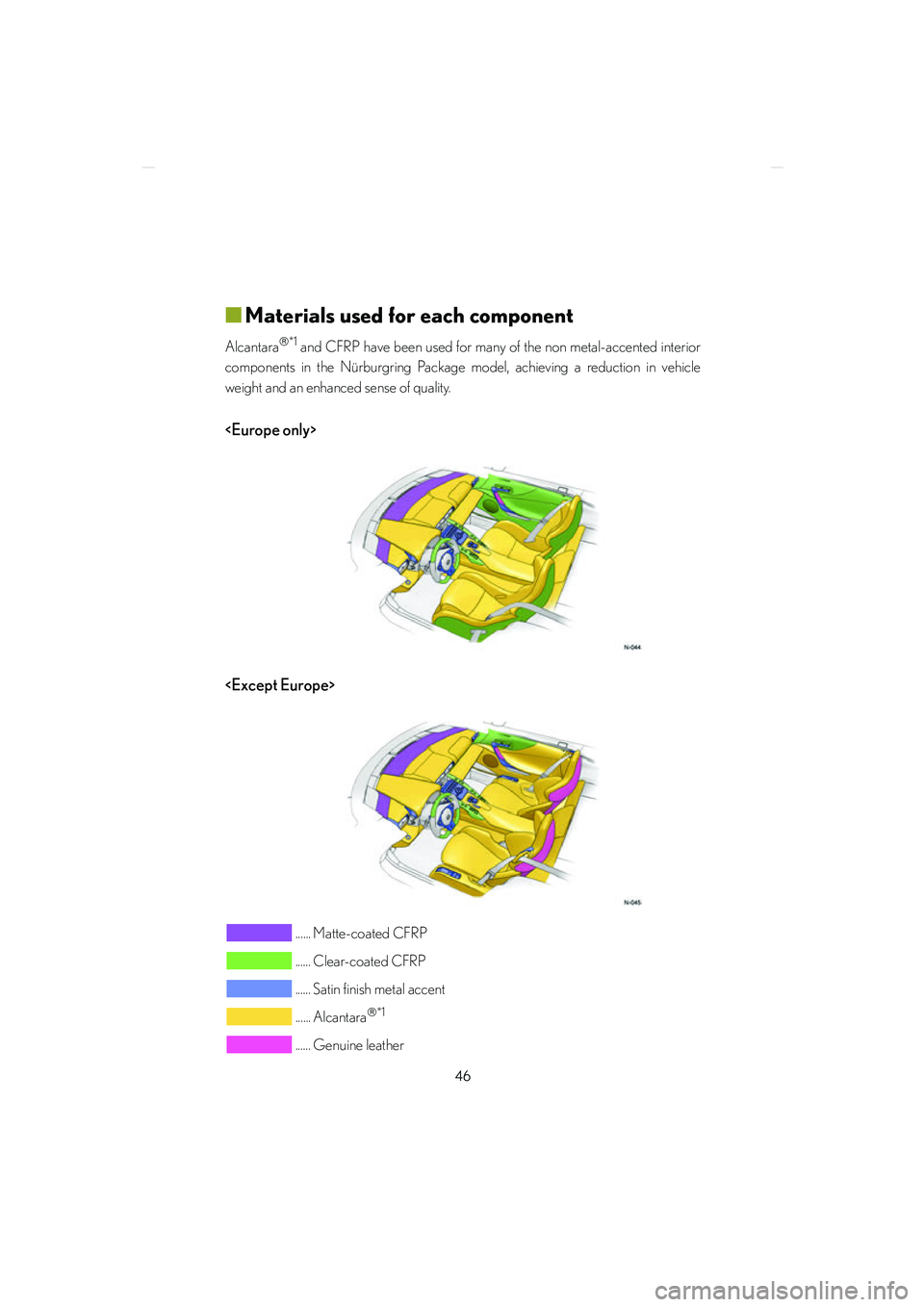

■Materials used for each component
Alcantara*1 and CFRP have been used for many of the non metal-accented interior
components in the Nürburgring Package model, achieving a reduction in vehicle
weight and an enhanced sense of quality.


...... Matte-coated CFRP
...... Clear-coated CFRP
...... Satin finish metal accent
...... Alcantara
 *1
...... Genuine leather
LFA_Nur_J_U_K_M_OM77029U.book 46 ページ ２０１２年１月１７日　火曜日　午前１０時１３分

47
Interior
LFA_Nurburgring_U

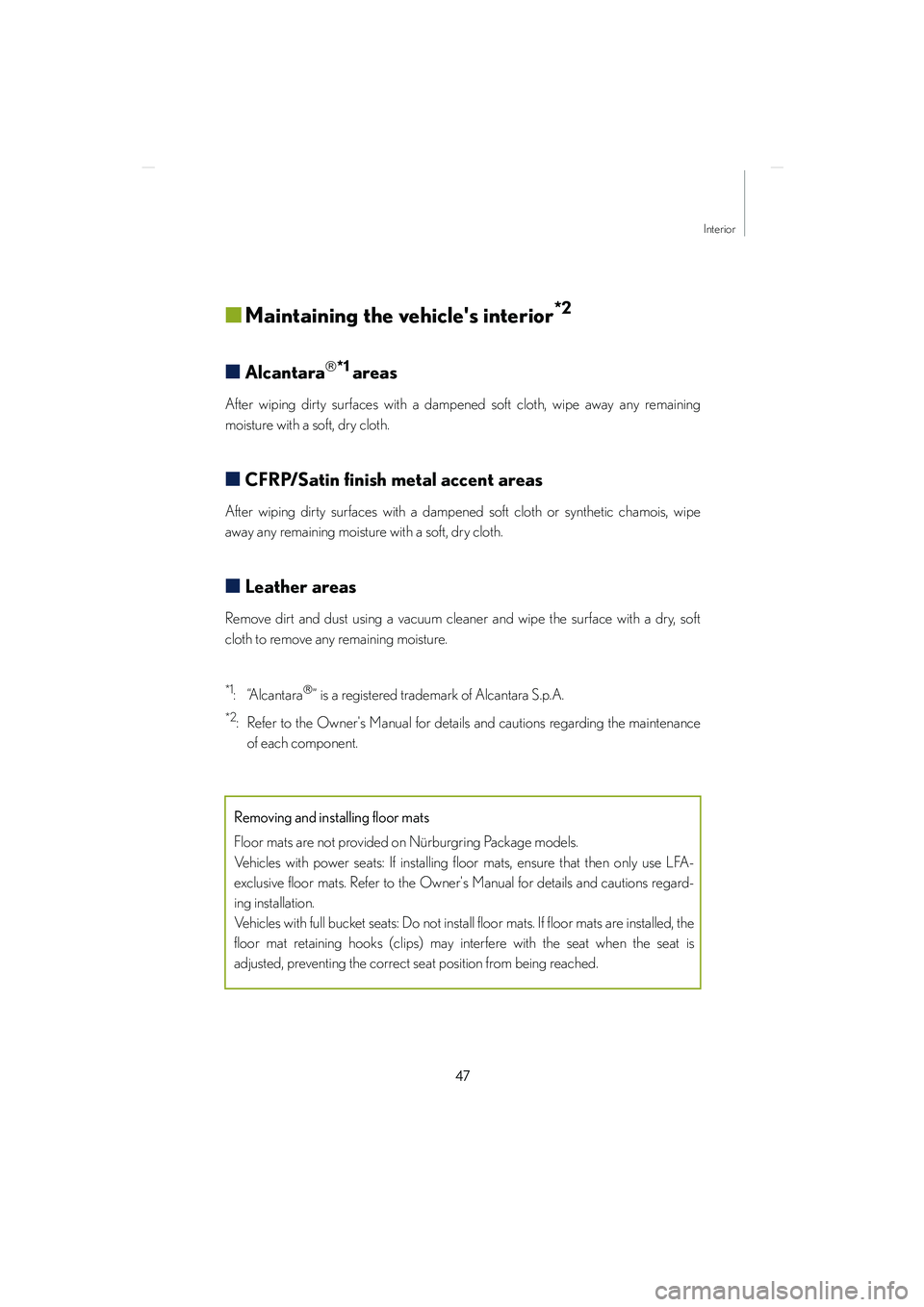

■Maintaining the vehicle's interior*2
■Alcantara*1 areas
After wiping dirty surfaces with a dampened soft cloth, wipe away any remaining
moisture with a soft, dry cloth.
■CFRP/Satin finish metal accent areas
After wiping dirty surfaces with a dampen ed soft cloth or synthetic chamois, wipe
away any remaining moisture with a soft, dry cloth.
■Leather areas
Remove dirt and dust using a vacuum cleaner and wipe the surface with a dry, soft
cloth to remove any remaining moisture.
*1:“Alcantara” is a registered trademark of Alcantara S.p.A.
*2: Refer to the Owner's Manual for details and cautions regarding the maintenance of each component.
Removing and installing floor mats
Floor mats are not provided on Nürburgring Package models.
Vehicles with power seats: If installing floor mats, ensure that then only use LFA-
exclusive floor mats. Refer to the Owner's Manual for details and cautions regard-
ing installation.
Vehicles with full bucket seats: Do not install floor mats. If floor mats are installed, the
floor mat retaining hooks (clips) may interfere with the seat when the seat is
adjusted, preventing the correct seat position from being reached.
LFA_Nur_J_U_K_M_OM77029U.book 47 ページ ２０１２年１月１７日　火曜日　午前１０時１３分

48
LFA_Nurburgring_U
Major Dimensions & Vehicle Weights
Seating Capacity2
Minimum Ground Clearance 100 mm
Curb Weight 1,480 kg-1,590 kg*
Gross Vehicle Weight Rating 1,660 kg-1,755 kg*
Fuel Tank Capacity (Reference) 73 L (19.3 gal., 16.1 Imp. gal.)
*: Figures vary according to equipment and destination.
/VS@TQFD@&JOEE






N-046
*
Technical information
LFA_Nur_J_U_K_M_OM77029U.book 48 ページ ２０１２年１月１７日　火曜日　午前１０時１３分

49
Technical information
LFA_Nurburgring_U

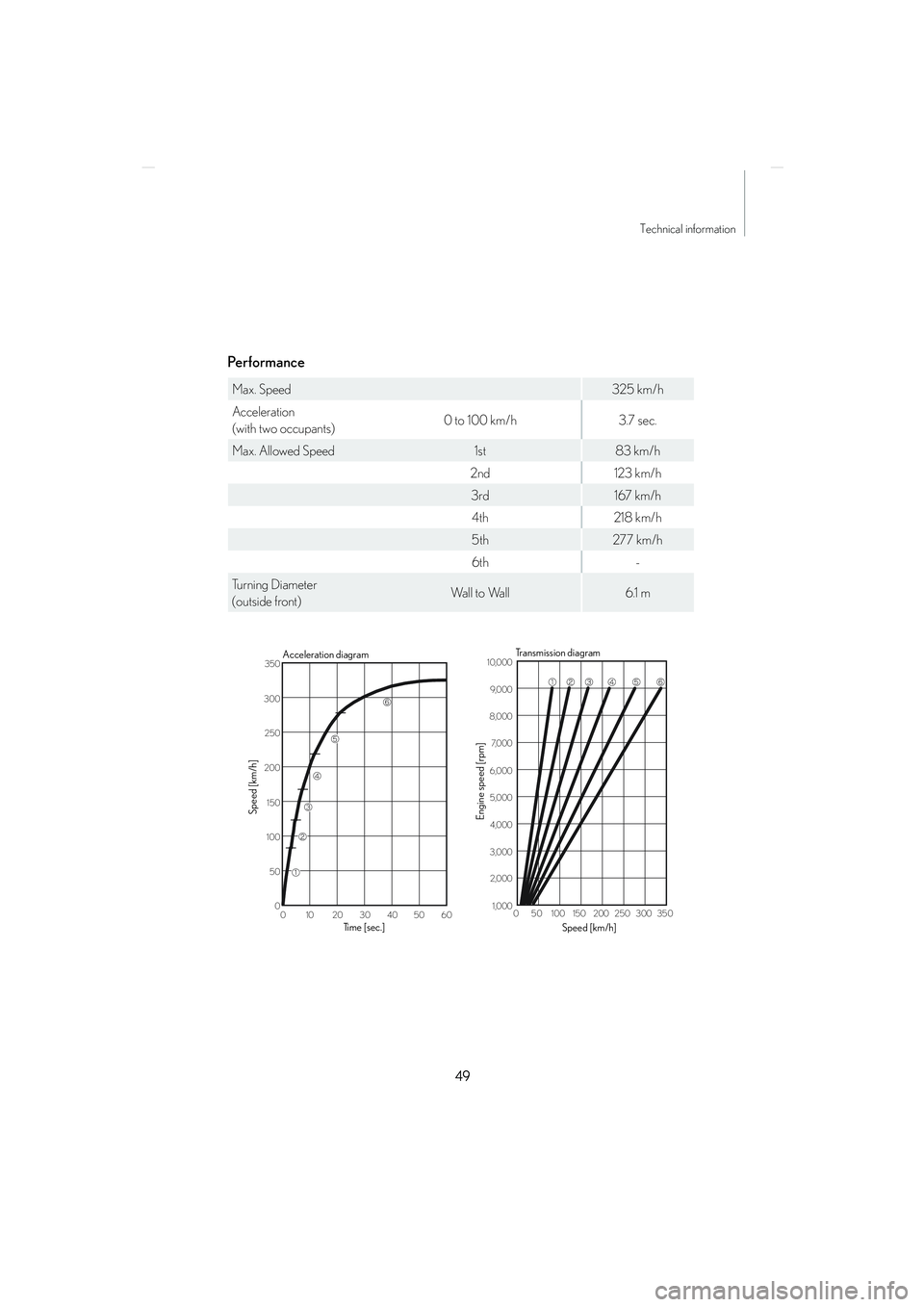

Performance
Max. Speed325 km/h
Acceleration
(with two occupants) 0 to 100 km/h
3.7 sec.
Max. Allowed Speed 1st83 km/h
2nd 123 km/h
3rd 167 km/h
4th 218 km/h
5th 277 km/h
6th -
Turning Diameter
(outside front) Wall to Wall
6.1 m
Acceleration diagram
Time [sec.]
Speed [km/h]
350
300 250
200
150
100 50 0 0102030405060






Transmission diagram
Speed [km/h]
Engine speed [rpm]
10,0009,000
8,000
7,000
6,000 5,000 4,000
3,000 2,000
1,000 0 50 100 150 200 250 300 350
/VS@TQFD@&JOEE






LFA_Nur_J_U_K_M_OM77029U.book 49 ページ ２０１２年１月１７日　火曜日　午前１０時１３分

50
LFA_Nurburgring_U

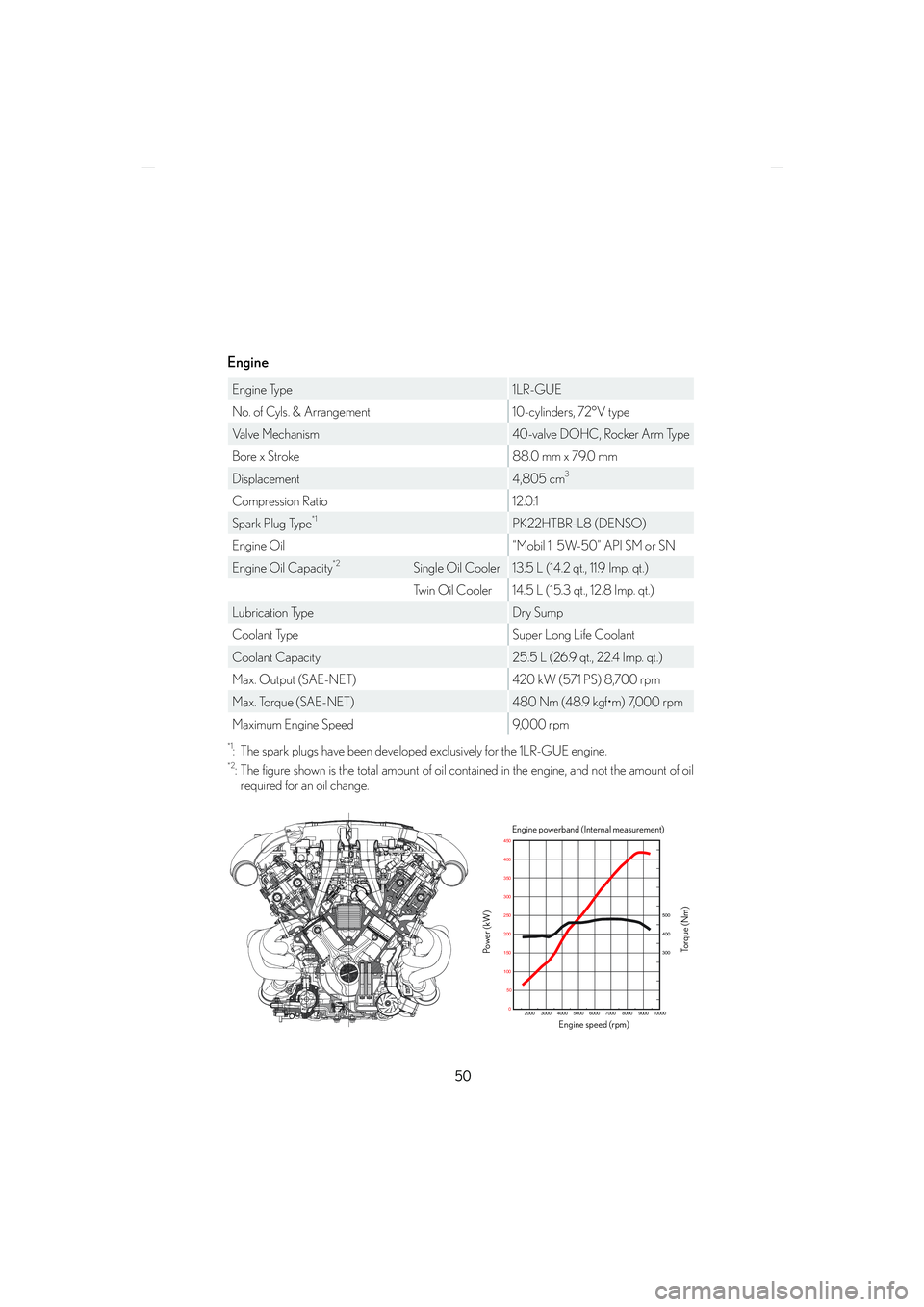

Engine
Engine Type1LR-GUE
No. of Cyls. & Arrangement 10-cylinders, 72°V type
Valve Mechanism 40-valve DOHC, Rocker Arm Type
Bore x Stroke 88.0 mm x 79.0 mm
Displacement 4,805 cm
3
Compression Ratio 12.0:1
Spark Plug Type
*1PK22HTBR-L8 (DENSO)
Engine Oil “Mobil 1 5W-50” API SM or SN
Engine Oil Capacity
*2Single Oil Cooler 13.5 L (14.2 qt., 11.9 Imp. qt.)
Twin Oil Cooler 14.5 L (15.3 qt., 12.8 Imp. qt.)
Lubrication Type Dry Sump
Coolant Type Super Long Life Coolant
Coolant Capacity 25.5 L (26.9 qt., 22.4 Imp. qt.)
Max. Output (SAE-NET) 420 kW (571 PS) 8,700 rpm
Max. Torque (SAE-NET) 480 Nm (48.9 kgf•m) 7,000 rpm
Maximum Engine Speed 9,000 rpm
*1: The spark plugs have been developed exclusively for the 1LR-GUE engine.*2: The fi gure shown is the total amount of oil contained in the engine, and not the amoun\
t of oil
required for an oil change.




Engine powerband (Internal measurement)
Engine speed (rpm)
Power (kW)
Torque (Nm)
/VS@TQFD@&JOEE






450
400
350
300
250500
400
300
200
150
100
500 2000 4000 6000 8000 3000 5000 7000 9000 10000
