Technical information
LFA_Nurburgring_U

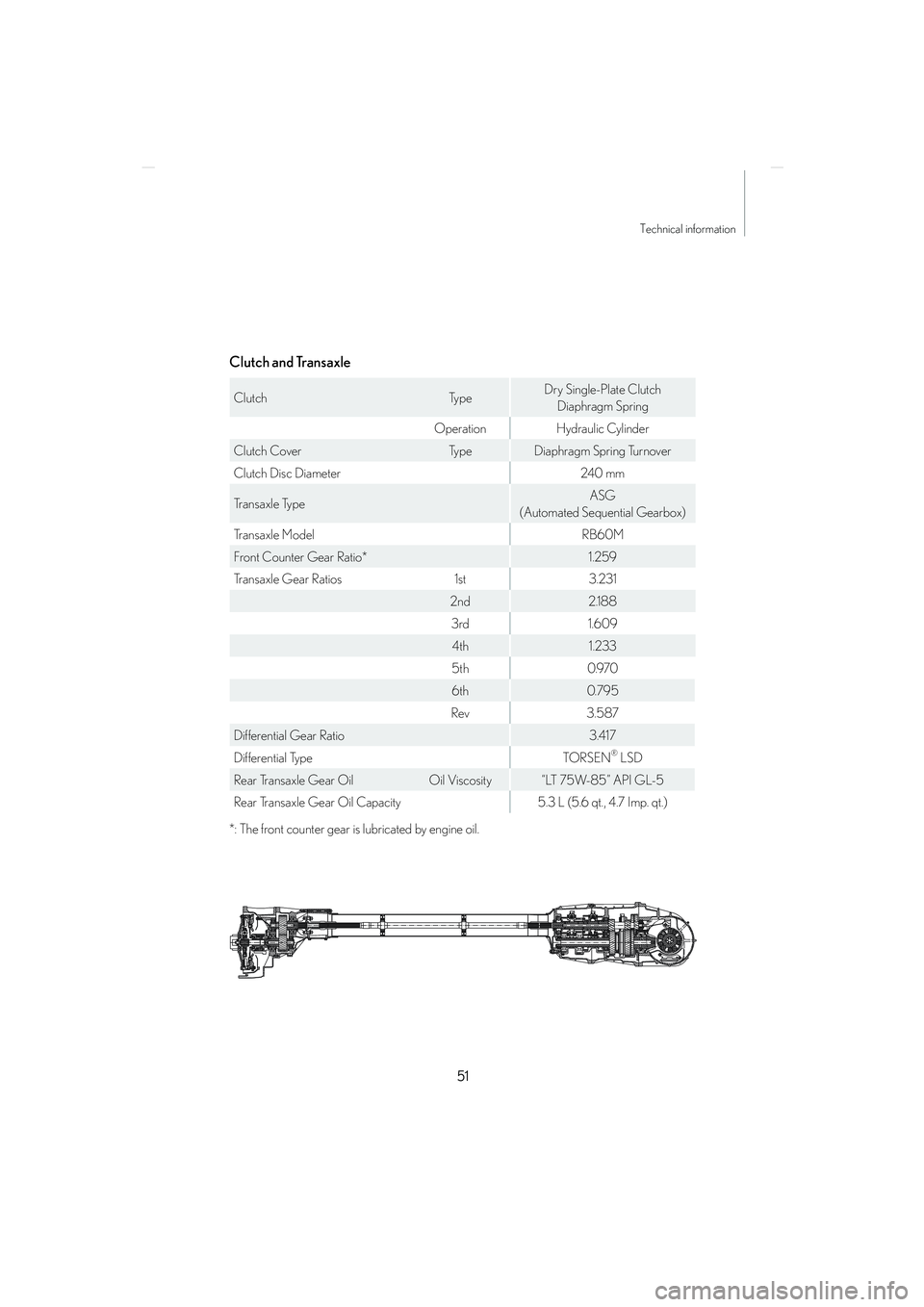

Clutch and Transaxle
ClutchTypeDry Single-Plate Clutch
Diaphragm Spring
Operation Hydraulic Cylinder
Clutch Cover Type Diaphragm Spring Turnover
Clutch Disc Diameter 240 mm
Transaxle Type ASG
(Automated Sequential Gearbox)
Transaxle Model RB60M
Front Counter Gear Ratio* 1.259
Transaxle Gear Ratios 1st3.231
2nd 2.188
3rd 1.609
4th 1.233
5th 0.970
6th 0.795
Rev 3.587
Differential Gear Ratio 3.417
Differential Type TORSEN
® LSD
Rear Transaxle Gear Oil Oil Viscosity “LT 75W-85” API GL-5
Rear Transaxle Gear Oil Capacity 5.3 L (5.6 qt., 4.7 Imp. qt.)
*: The front counter gear is lubricated by engine oil.
/VS@TQFD@&JOEE






LFA_Nur_J_U_K_M_OM77029U.book 51 ページ ２０１２年１月１７日　火曜日　午前１０時１３分

52
LFA_Nurburgring_U

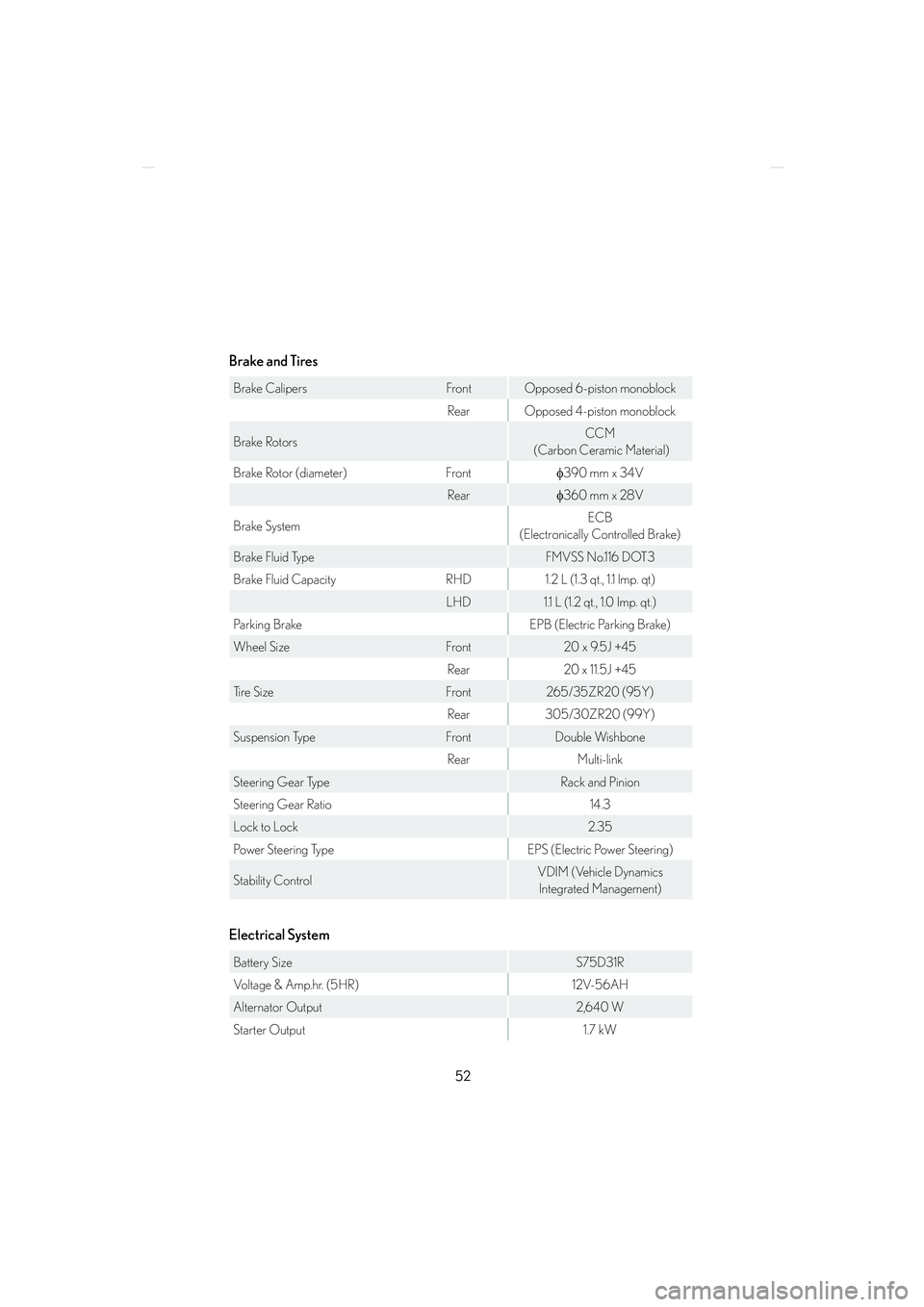

Brake and Tires
Brake Calipers Front Opposed 6-piston monoblock
Rear Opposed 4-piston monoblock
Brake Rotors CCM
(Carbon Ceramic Material)
Brake Rotor (diameter) Front I390 mm x 34V
Rear I360 mm x 28V
Brake System ECB
(Electronically Controlled Brake)
Brake Fluid Type FMVSS No.116 DOT3
Brake Fluid Capacity RHD 1.2 L (1.3 qt., 1.1 lmp. qt) LHD 1.1 L (1.2 qt., 1.0 Imp. qt.)
Parking Brake EPB (Electric Parking Brake)
Wheel Size Front 20 x 9.5J +45 Rear 20 x 11.5J +45
Tire Size Front 265/35ZR20 (95Y) Rear 305/30ZR20 (99Y)
Suspension Type Front Double Wishbone Rear Multi-link
Steering Gear Type Rack and Pinion
Steering Gear Ratio 14.3
Lock to Lock 2.35
Power Steering Type EPS (Electric Power Steering)
Stability Control VDIM (Vehicle Dynamics
Integrated Management)
Electrical System
Battery Size S75D31R
Voltage & Amp.hr. (5HR) 12V-56AH
Alternator Output 2,640 W
Starter Output 1.7 kW
